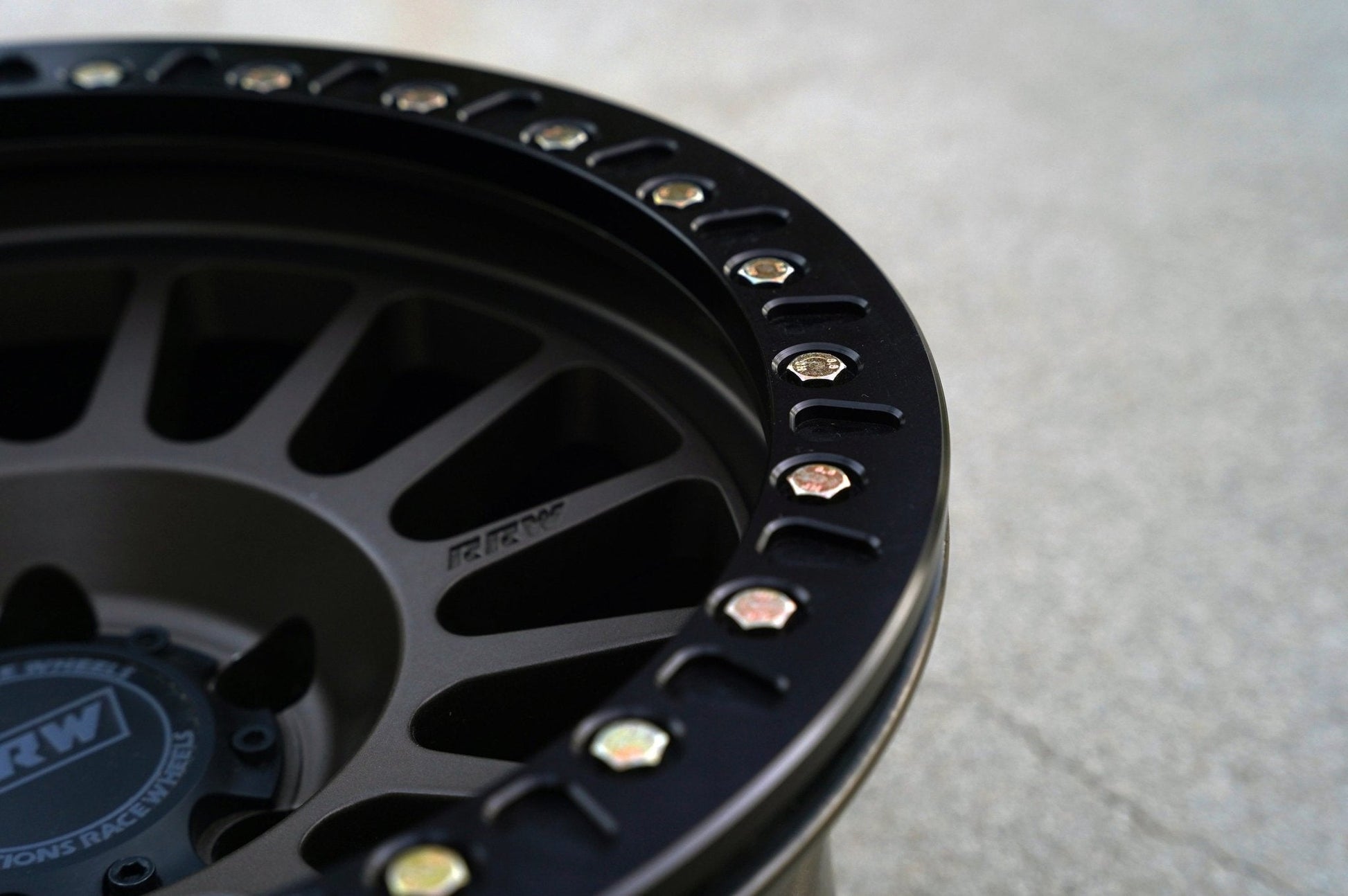

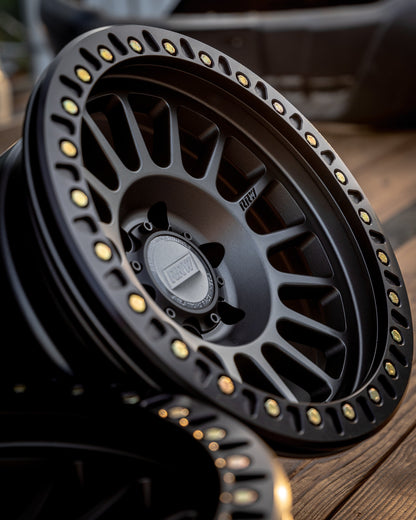

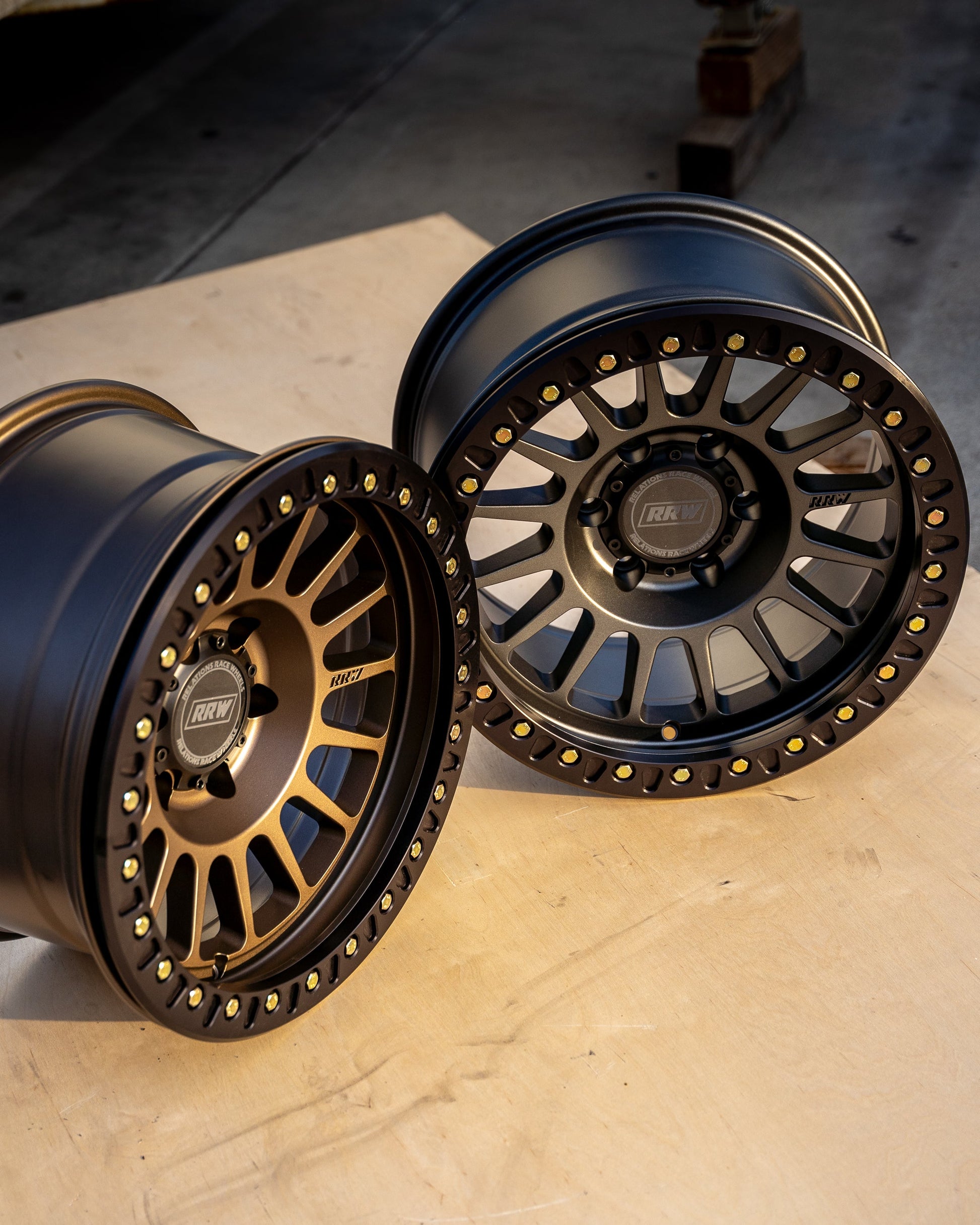

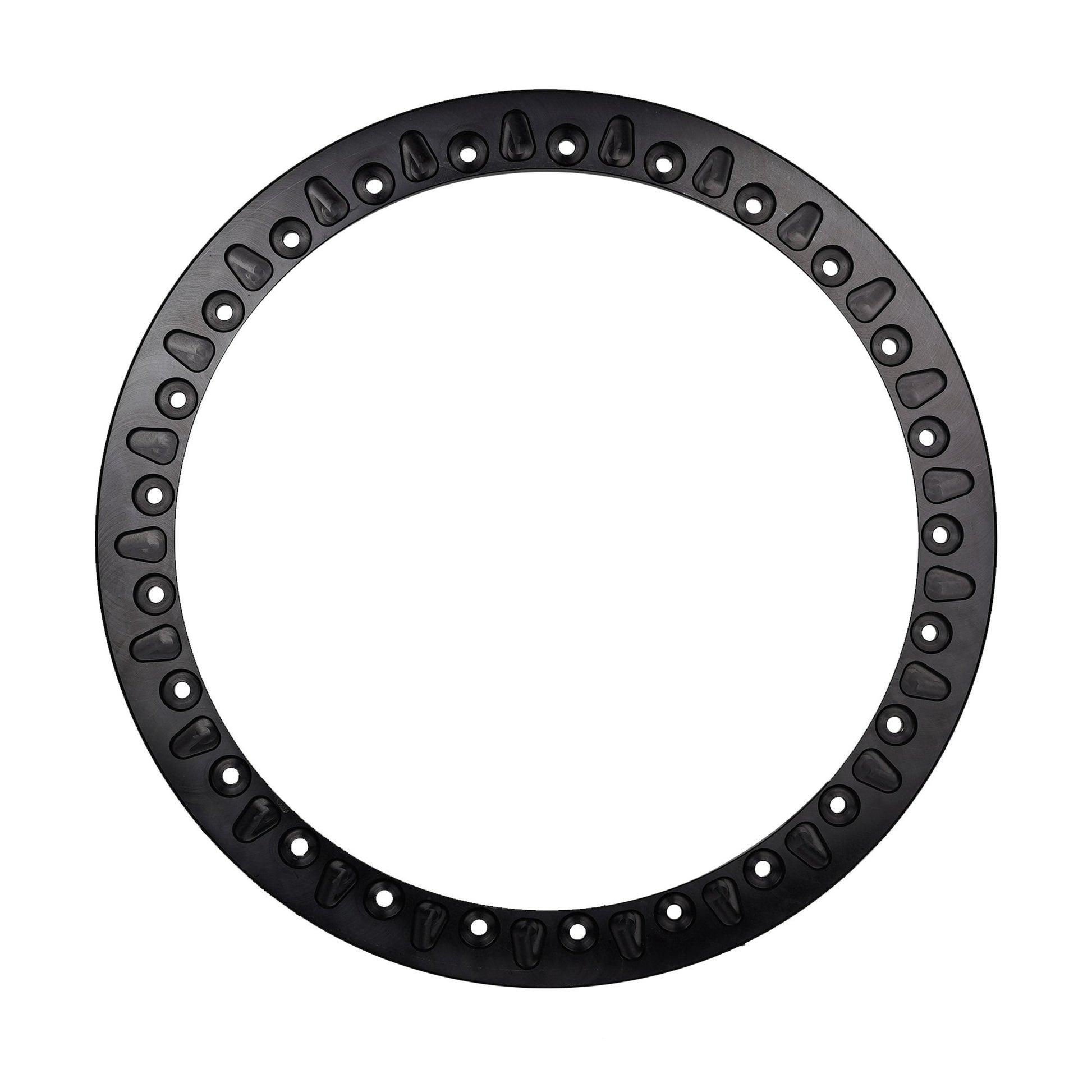

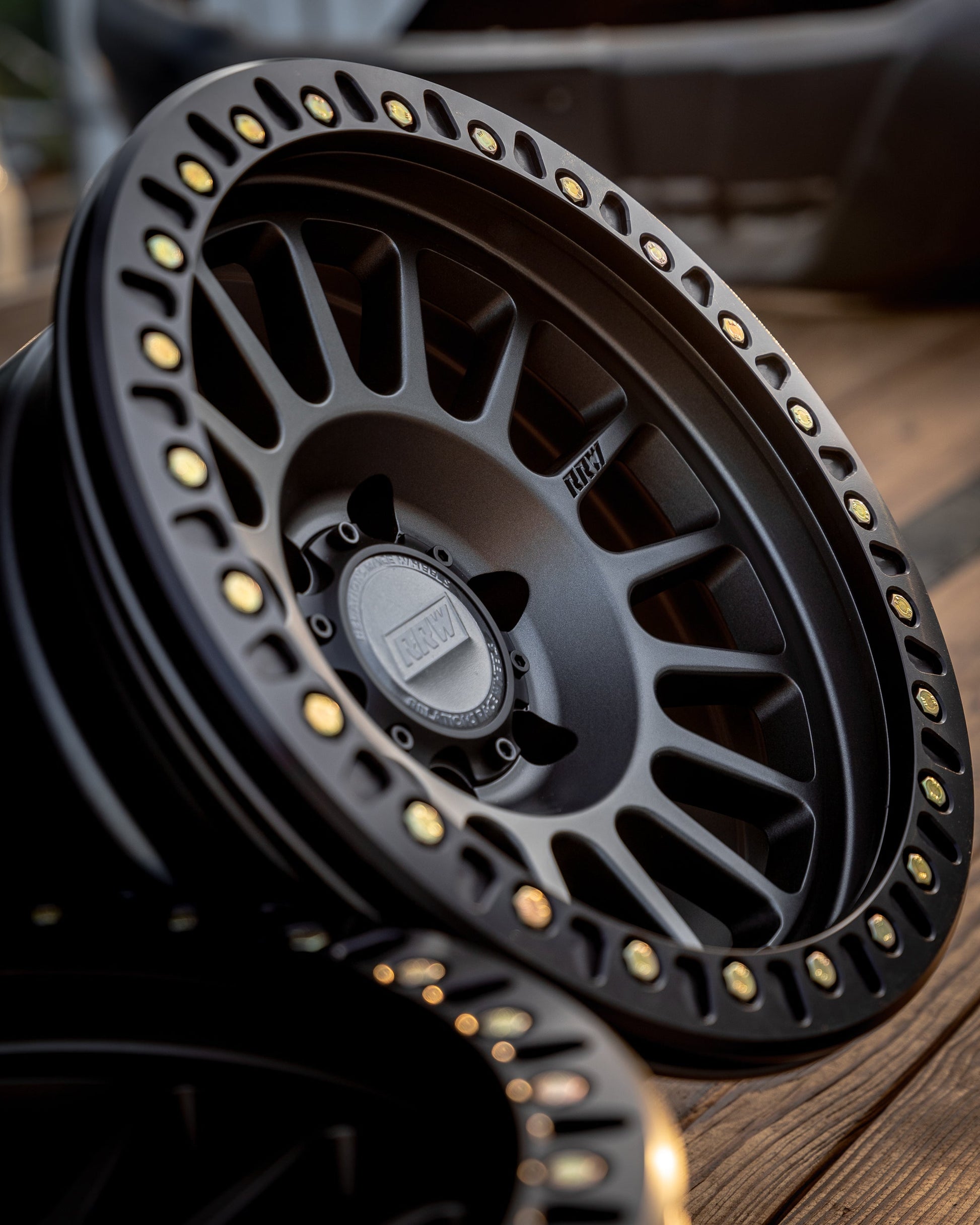

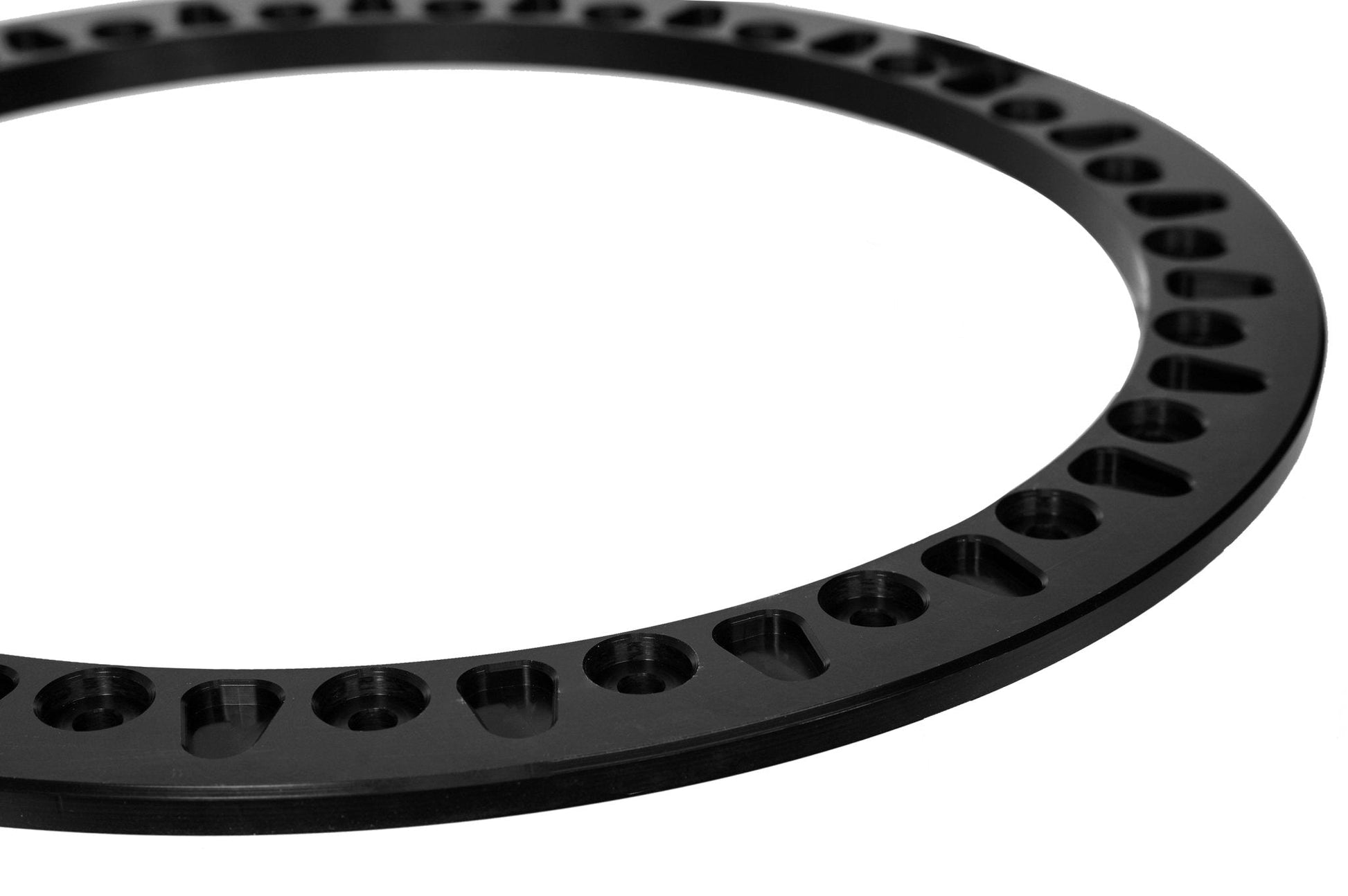

RRW True Functional Beadlock Rings - 6061-T6 Machined Billet

This listing is for one (1) beadlock ring.

IMPORTANT: Beadlock rings are for OFF-ROAD USE ONLY and are NOT DOT approved for highway use.

This billet beadlock ring is engineered for the hybrid (-H) series wheels and built for serious off-road performance. Machined from 6061-T6 aircraft-grade aluminum, it delivers exceptional tensile strength and durability.

• CNC laser-cut with precision tolerance
• 5/8" thickness
• V2 design features a knurled surface for enhanced tire bite

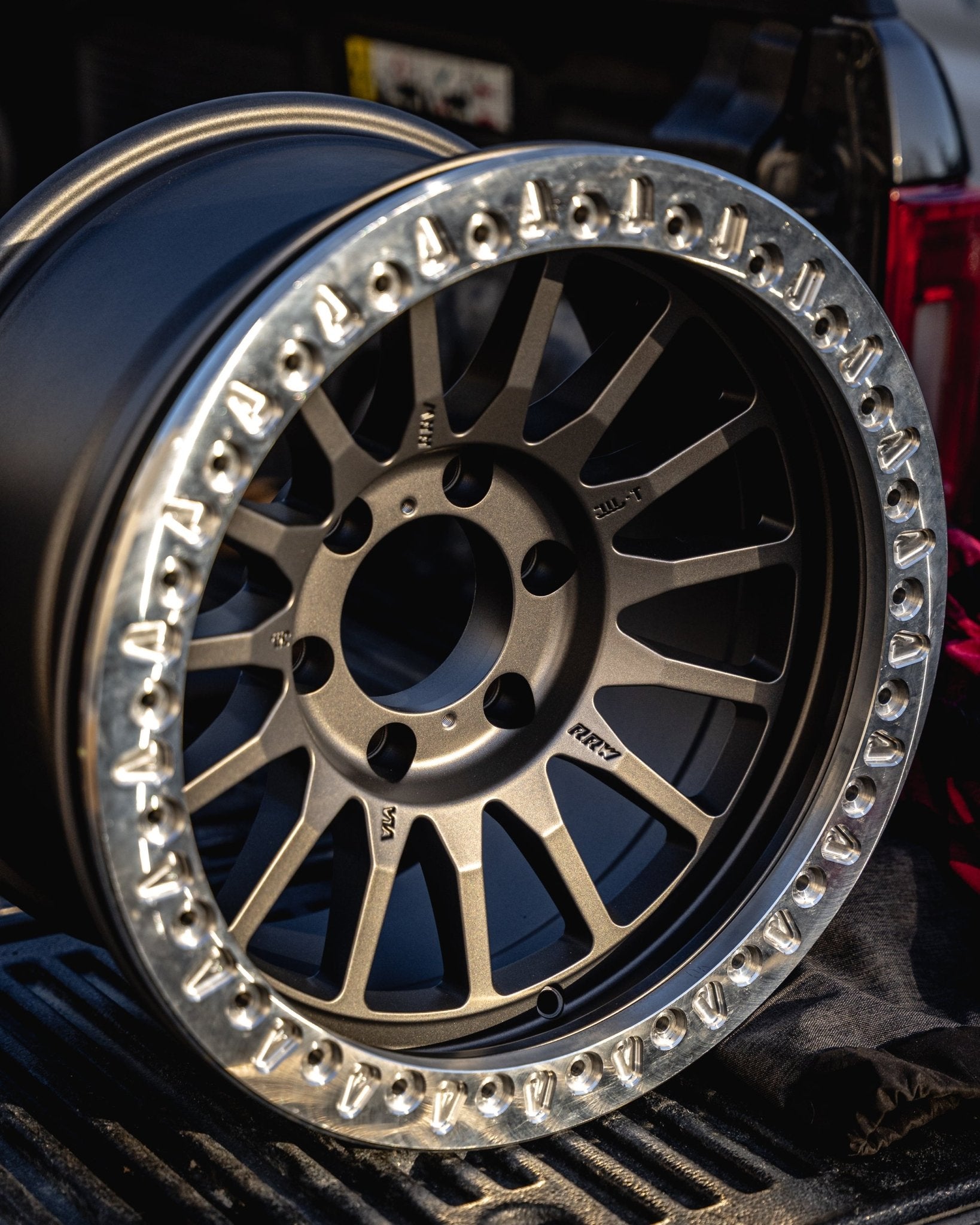

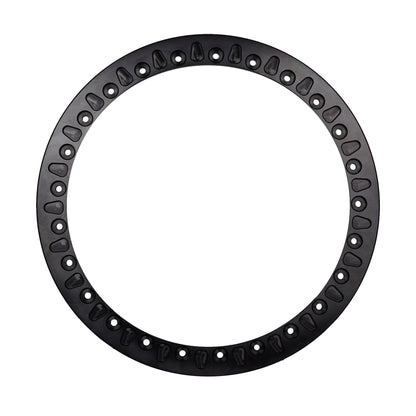

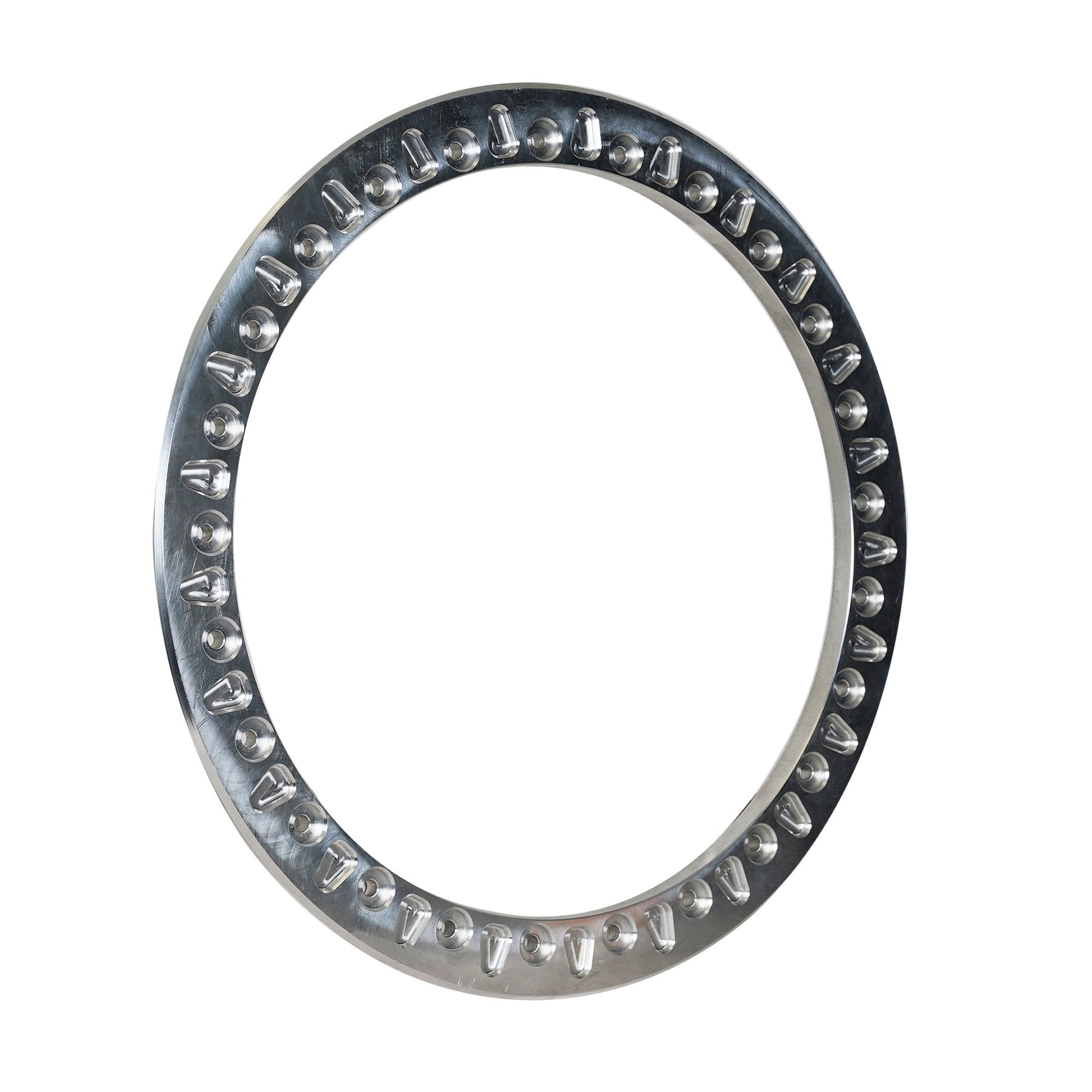

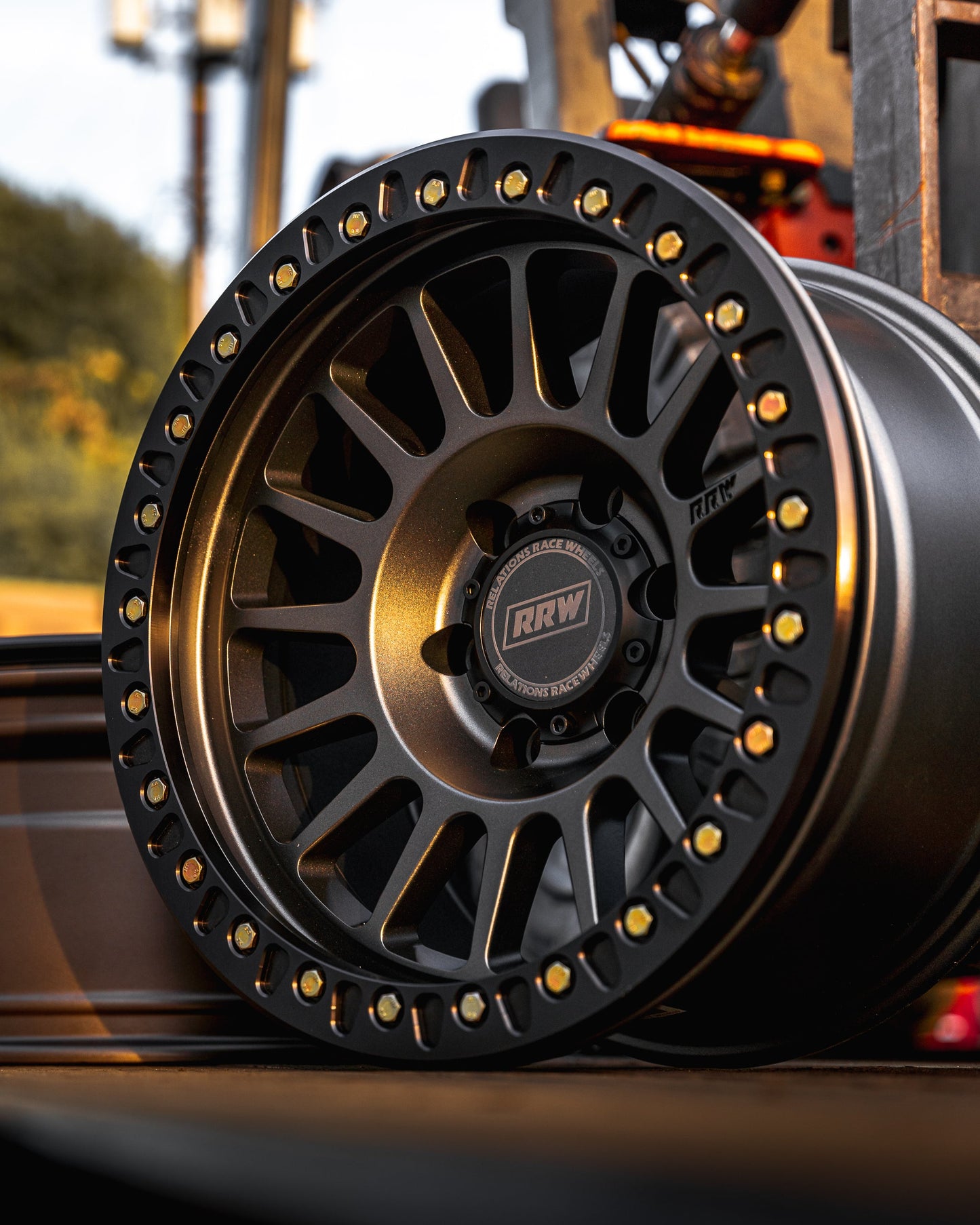

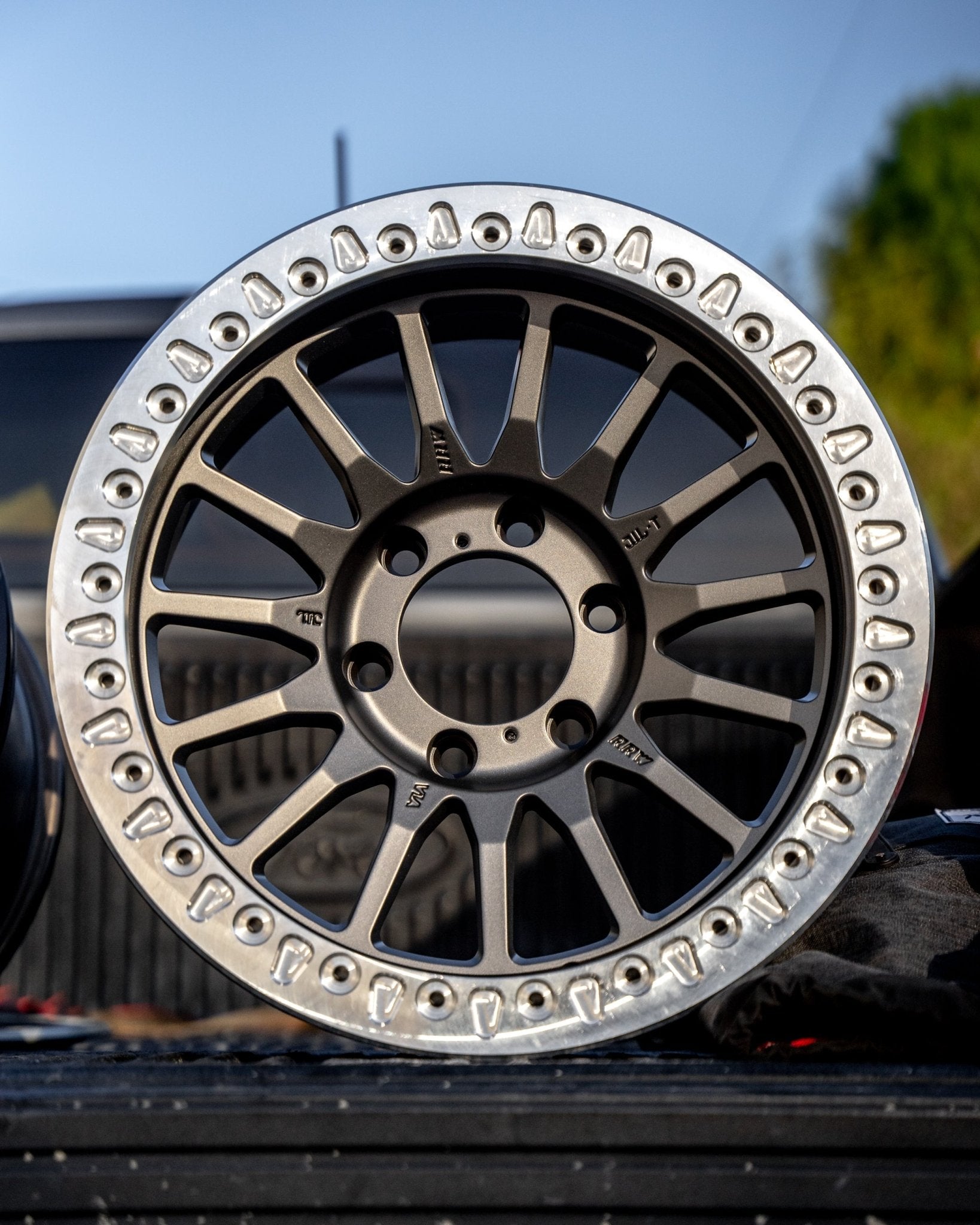

• Available in Raw Billet or Black Anodized finish
• Designed for all hybrid (-H) wheels
• Includes (25) M8 (Grade 10.9) gold or black zinc bolts
• Weight (without hardware): 3 lbs 10 oz
• Sold individually

Use & Installation:

• FOR OFF-ROAD USE ONLY.
• Torque bolts in a star pattern to 7 ft-lbs, then tighten to 14 ft-lbs.
• Do NOT over-torque; improper torqueing may strip threads.

BEADLOCK RINGS INSTALLATION GUIDE

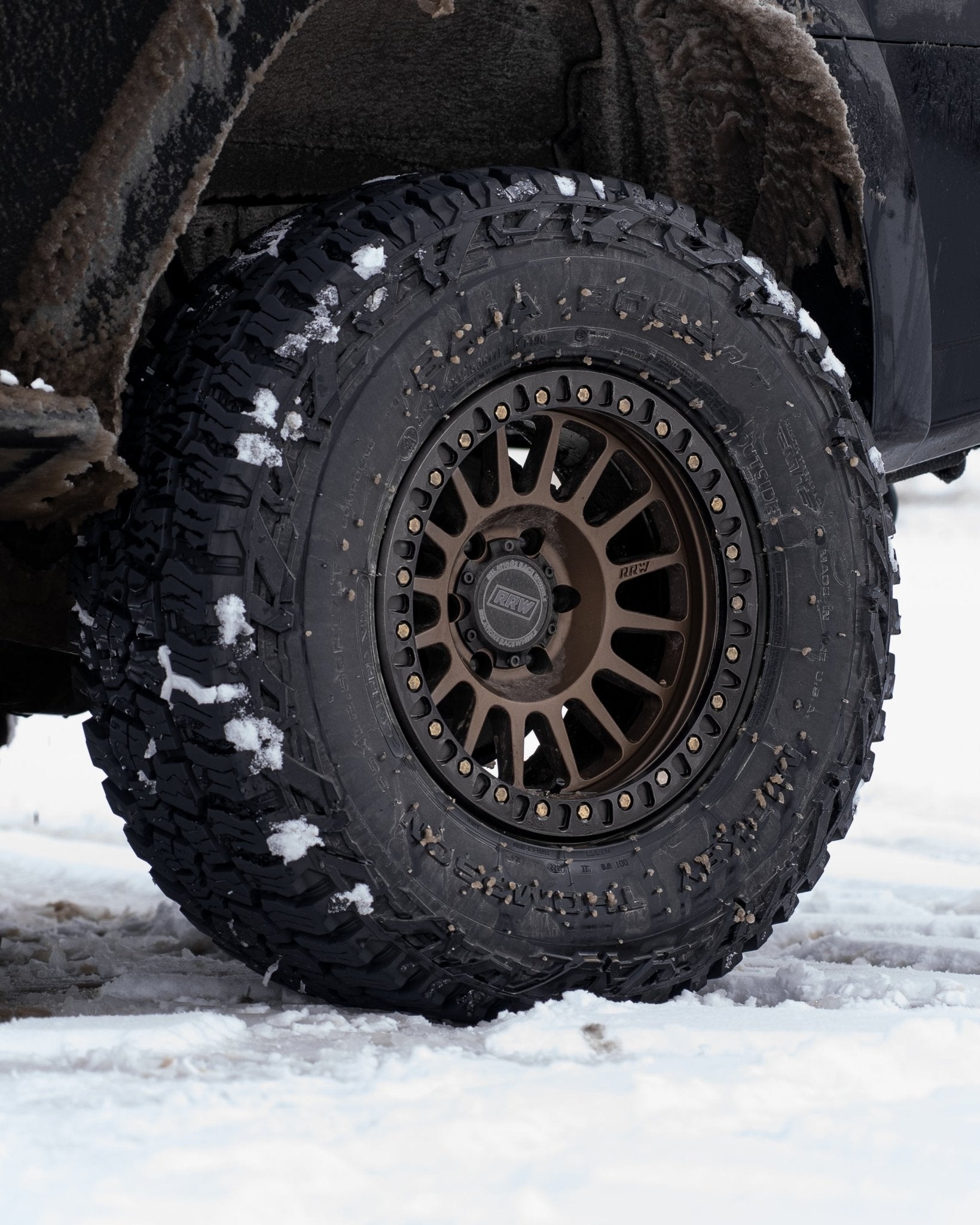

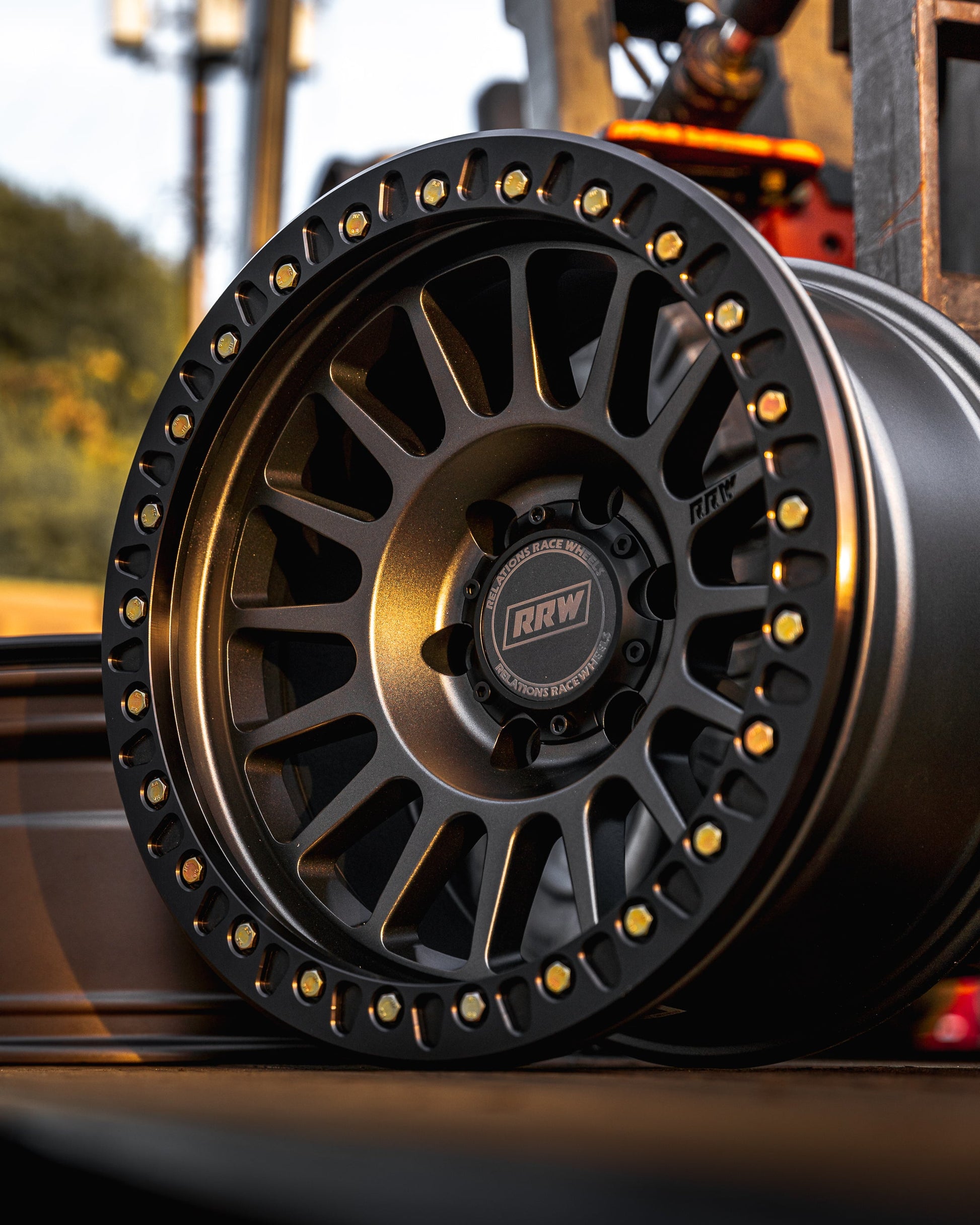

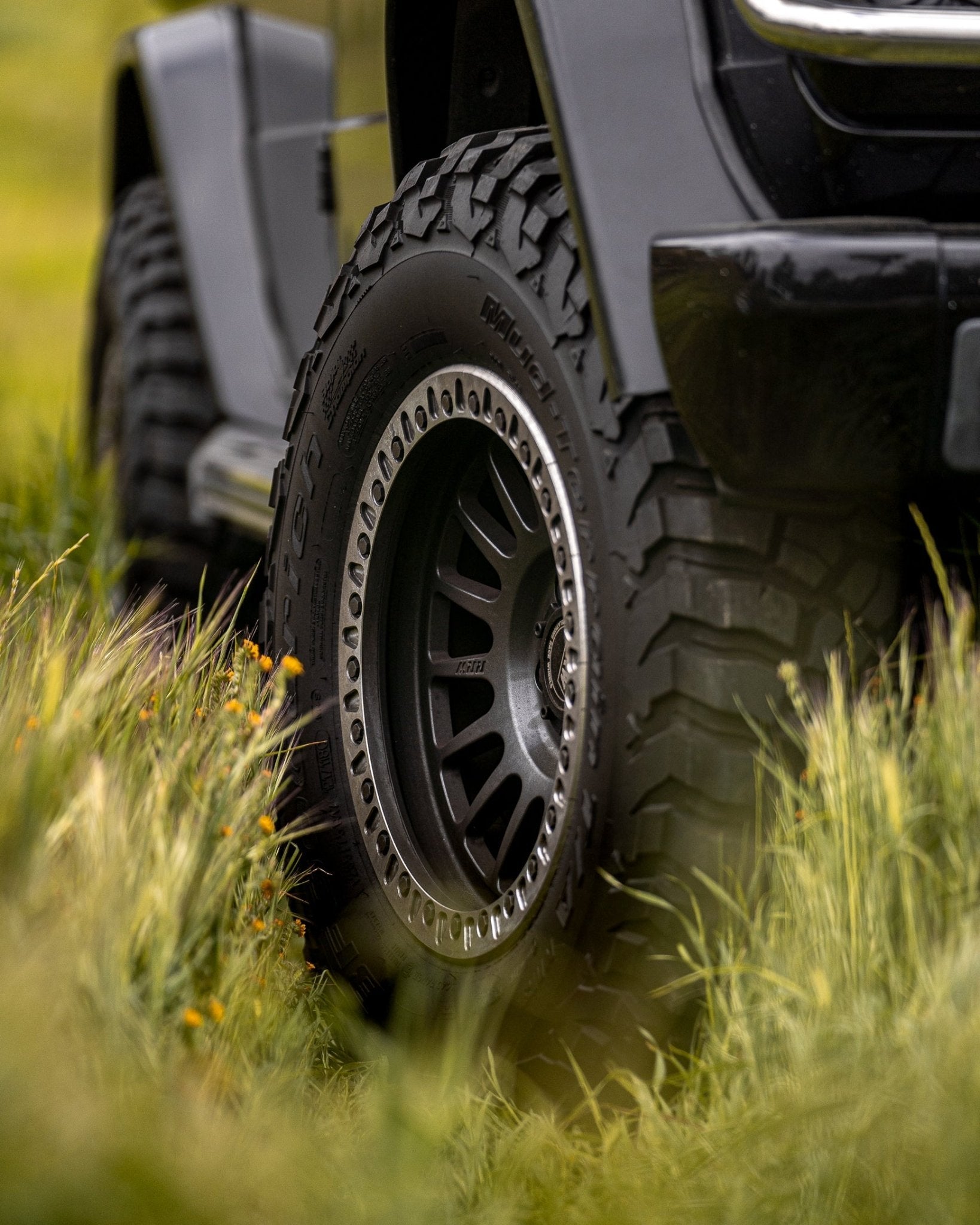

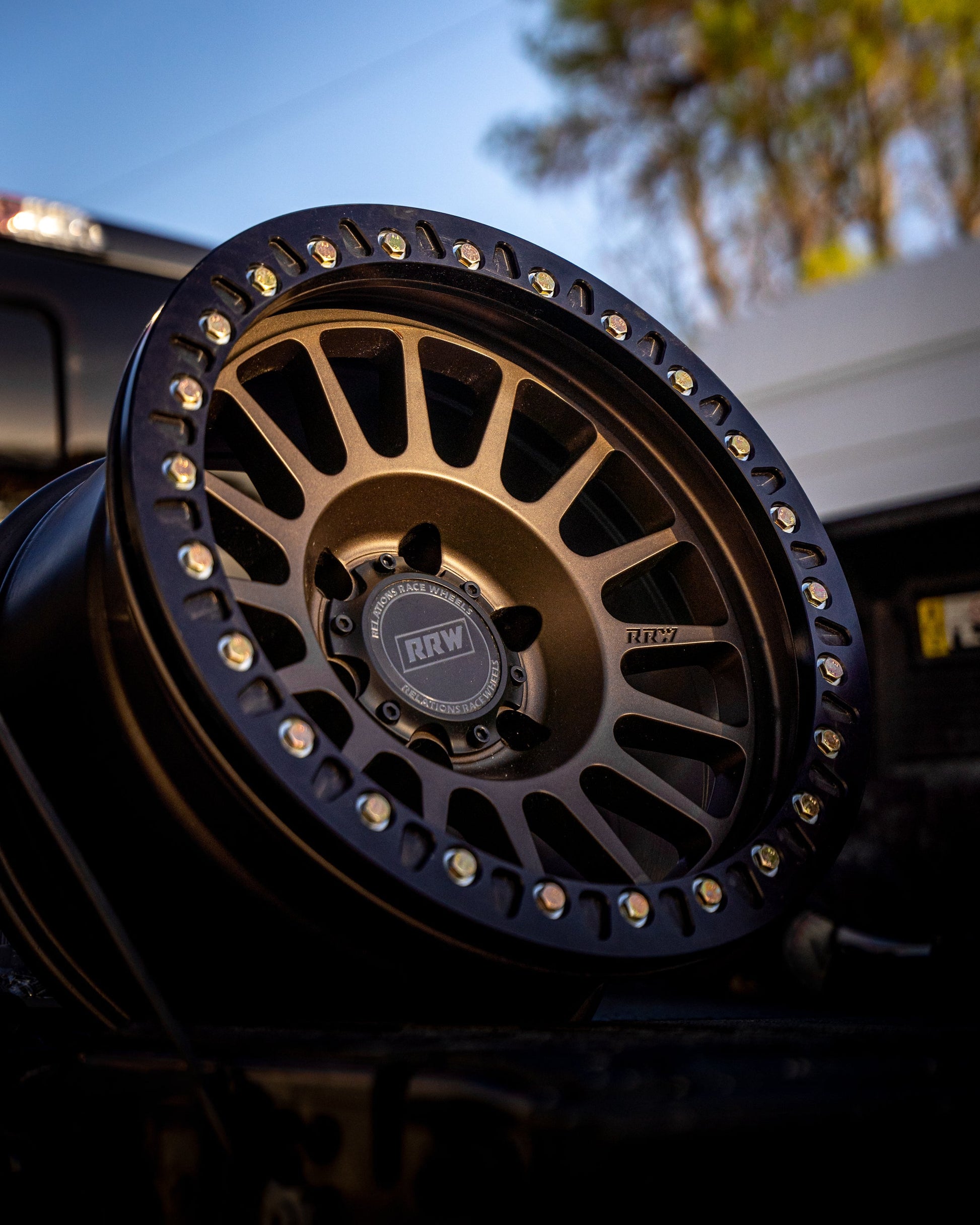

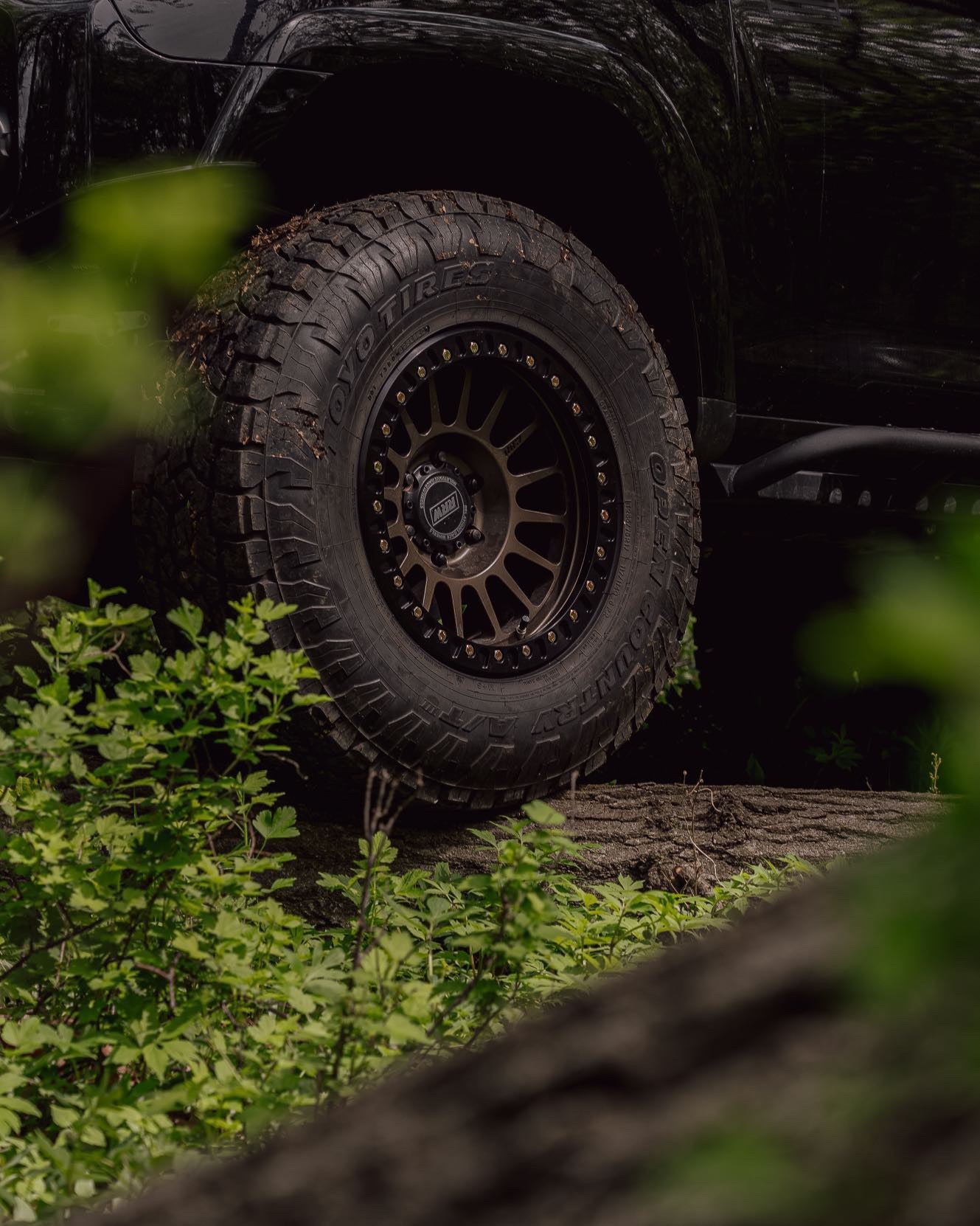

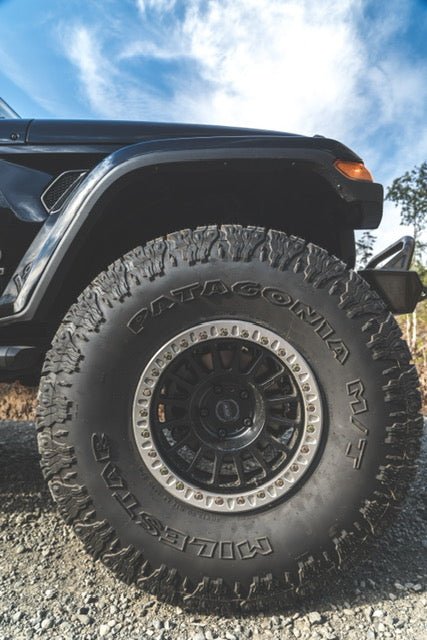

Transform your RR6-H or RR7-H hybrid wheels into fully functional beadlock wheels. With these rings, you can confidently run tires aired down to 5 PSI for increased traction and a smoother ride on technical trails—without worrying about debeading.

DISCLAIMER:
Beadlock rings are for OFF-ROAD USE ONLY. They are NOT STREET LEGAL.

INSTALLATION:
While many customers install beadlock rings themselves, we strongly recommend professional installation for best results.

HELPFUL TIPS:

• To avoid stripping threads, start installation with a few longer bolts (not included). These ensure full thread engagement before compressing the tire bead.
• Once the bead is seated, switch to the provided bolts (M8x1.25x30mm) and washers, which will now engage the threads fully before torqueing.
• Use caution—your wheels are aluminum, so handle threads with care.
• Apply soapy water or tire lubricant paste to help seat the tire bead smoothly as the beadlock ring is compressed.

TORQUE SPECS:

• Apply a dab of anti-seize lubricant to each bolt thread.
• Using a ¼" or ⅜" torque wrench, tighten bolts evenly in a star pattern to 7 ft-lbs.
• Then set your torque wrench to 14 ft-lbs and torque again in a star pattern to 14 ft-lbs.
• Do NOT overtighten.

Note: We are developing a DOT-approved beadlock wheel. No official timeline is available yet.
