Goose Gear Fitted-Top Side x Side Drawers | '91 - '97 Land Cruiser

Goose Gear Fitted-Top Side x Side Drawers | '91 - '97 Land Cruiser

Add 43-3/8 W x 8 H x 40 D-inch rear drawers with a fitted top and a choice of equal or asymmetric drawer splits. Module-height second-row seat deletes can extend the layout into a sleep platform.

Installation and Configuration Notes

Requires the LC80 Rear Plate System. Module and top plate weigh 125.4 lb. Guides are rated at 350 lb with 34-inch travel; supplier recommends no more than 100 lb per drawer.

Features, Specifications and Package Details

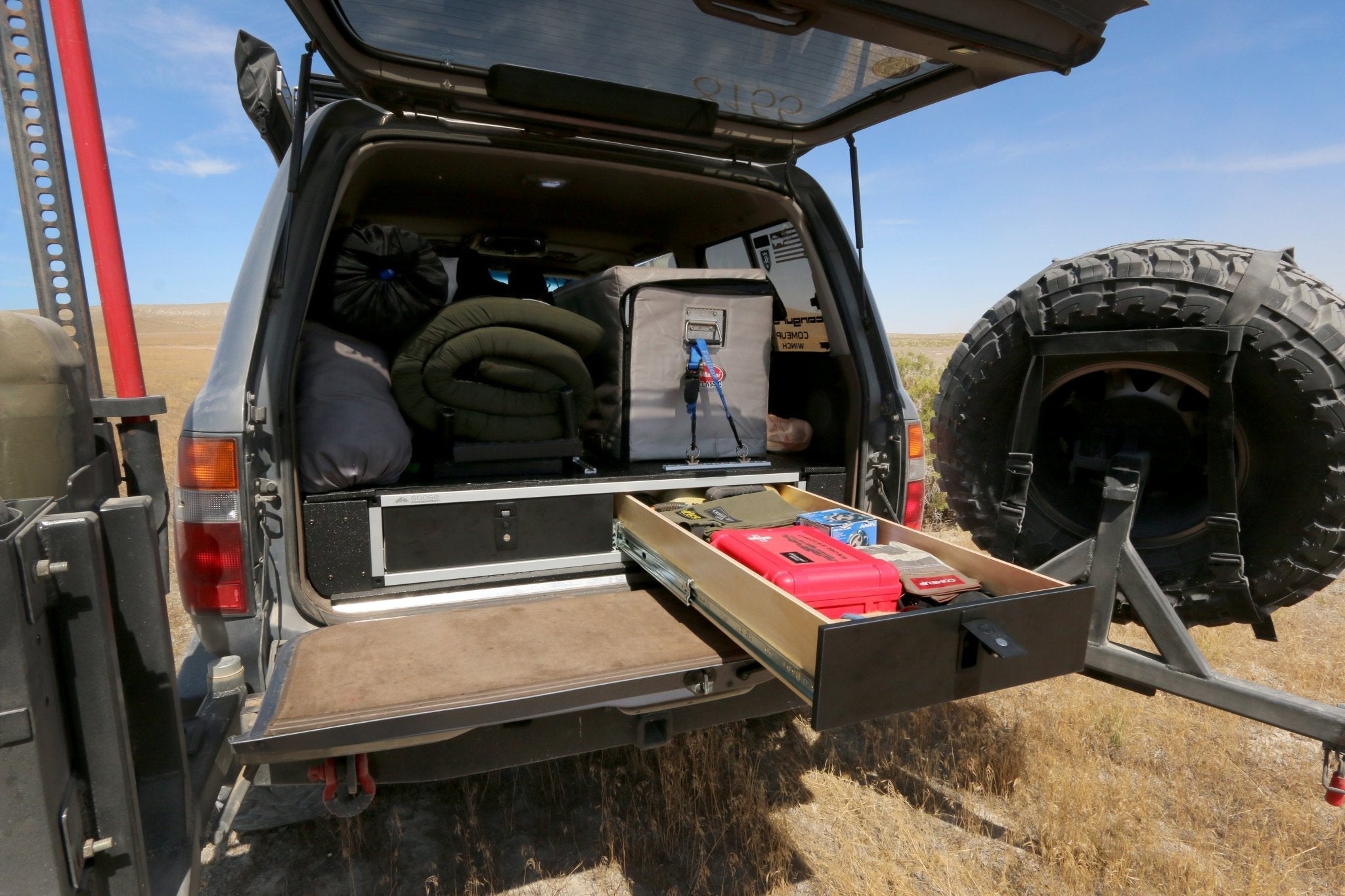

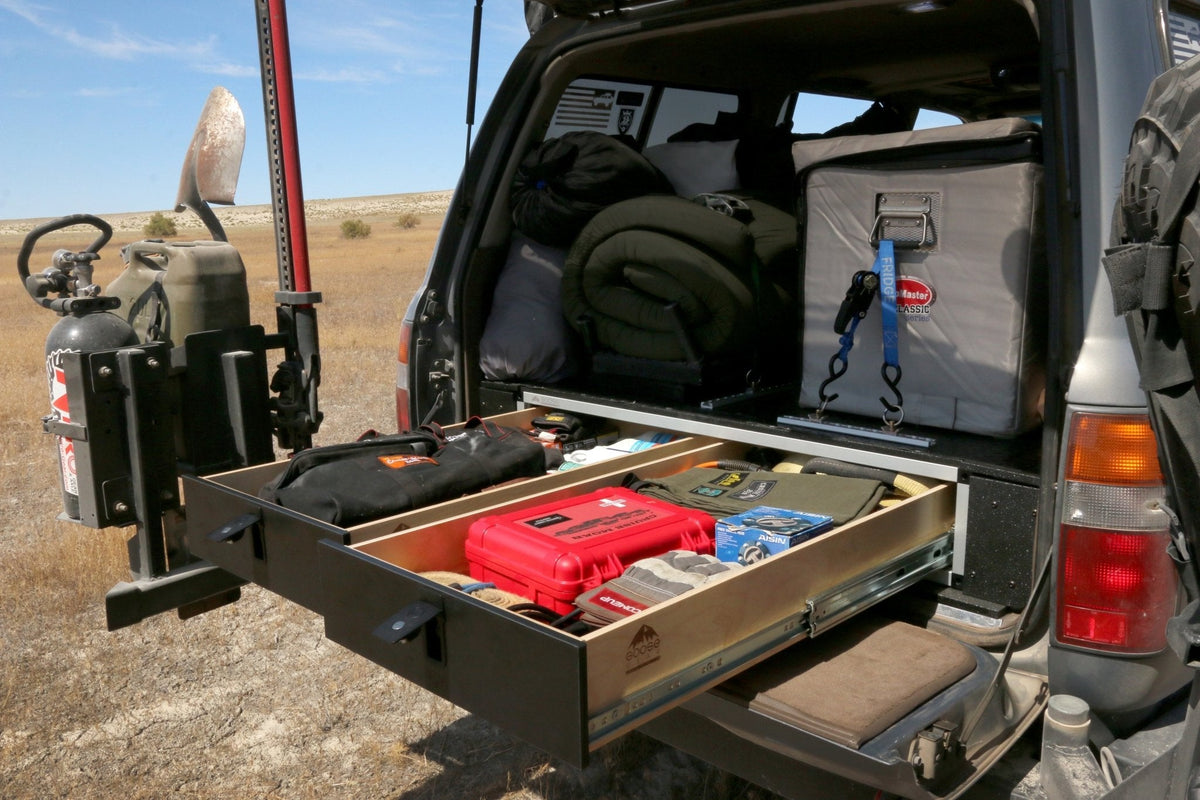

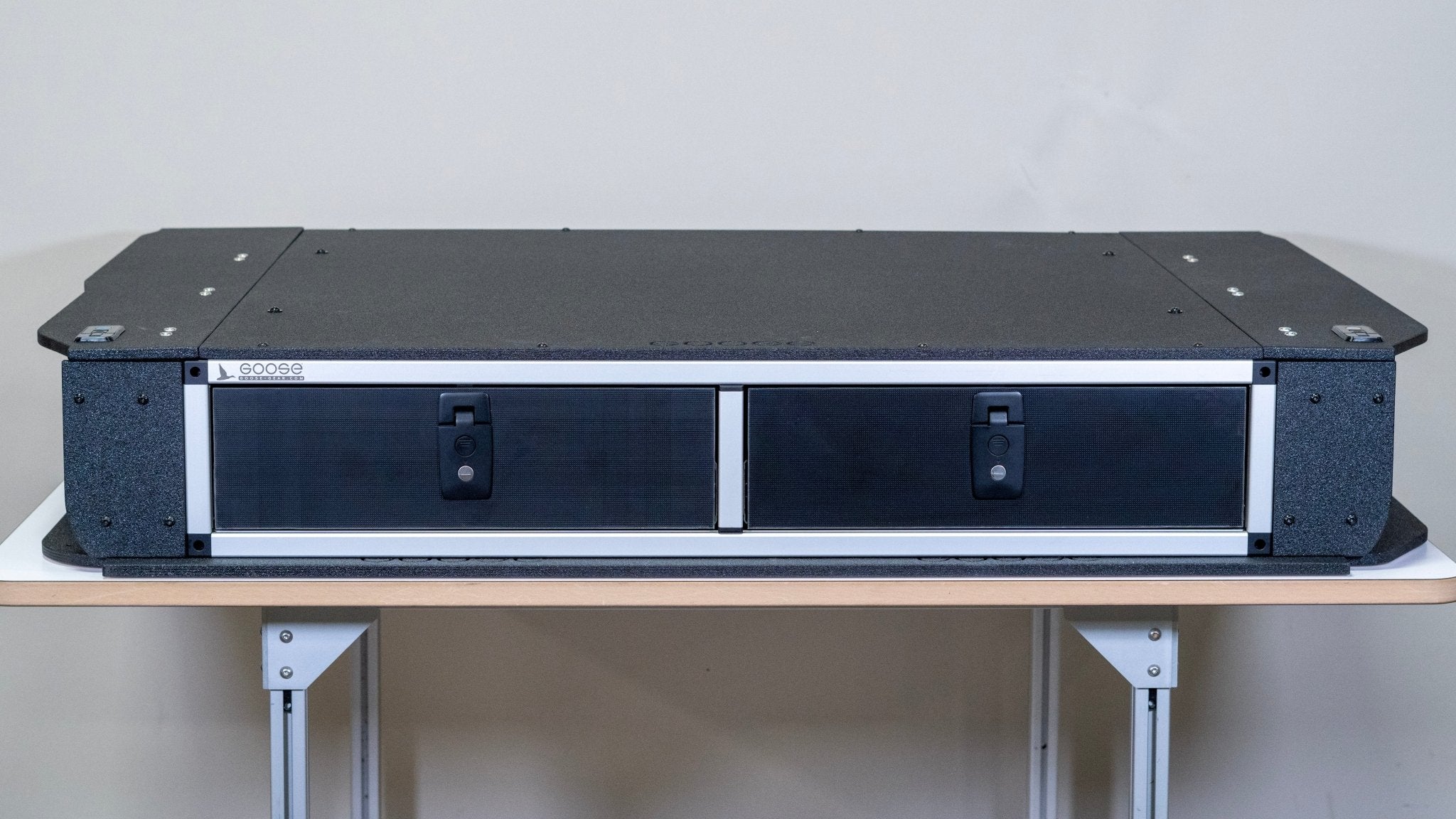

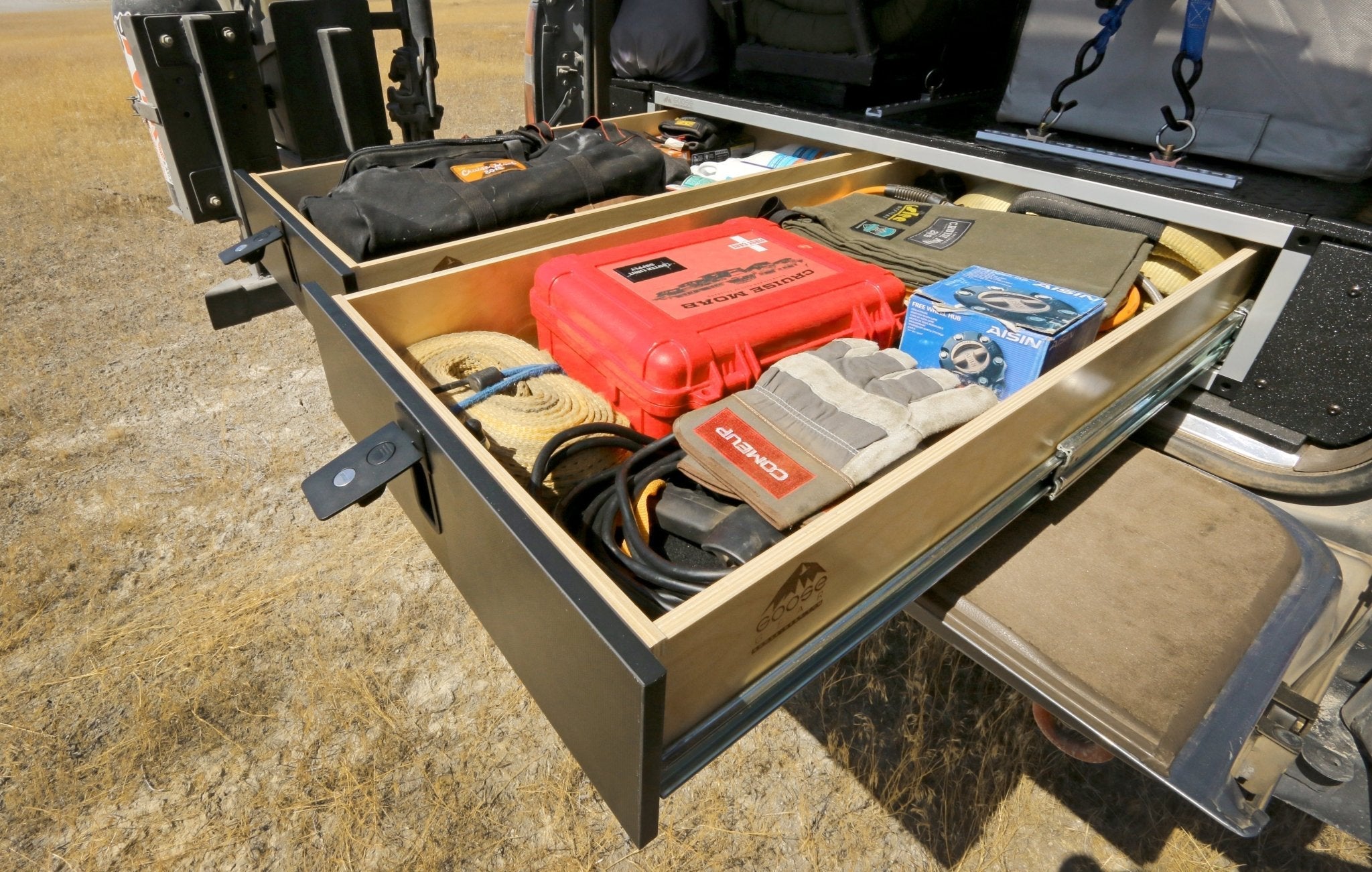

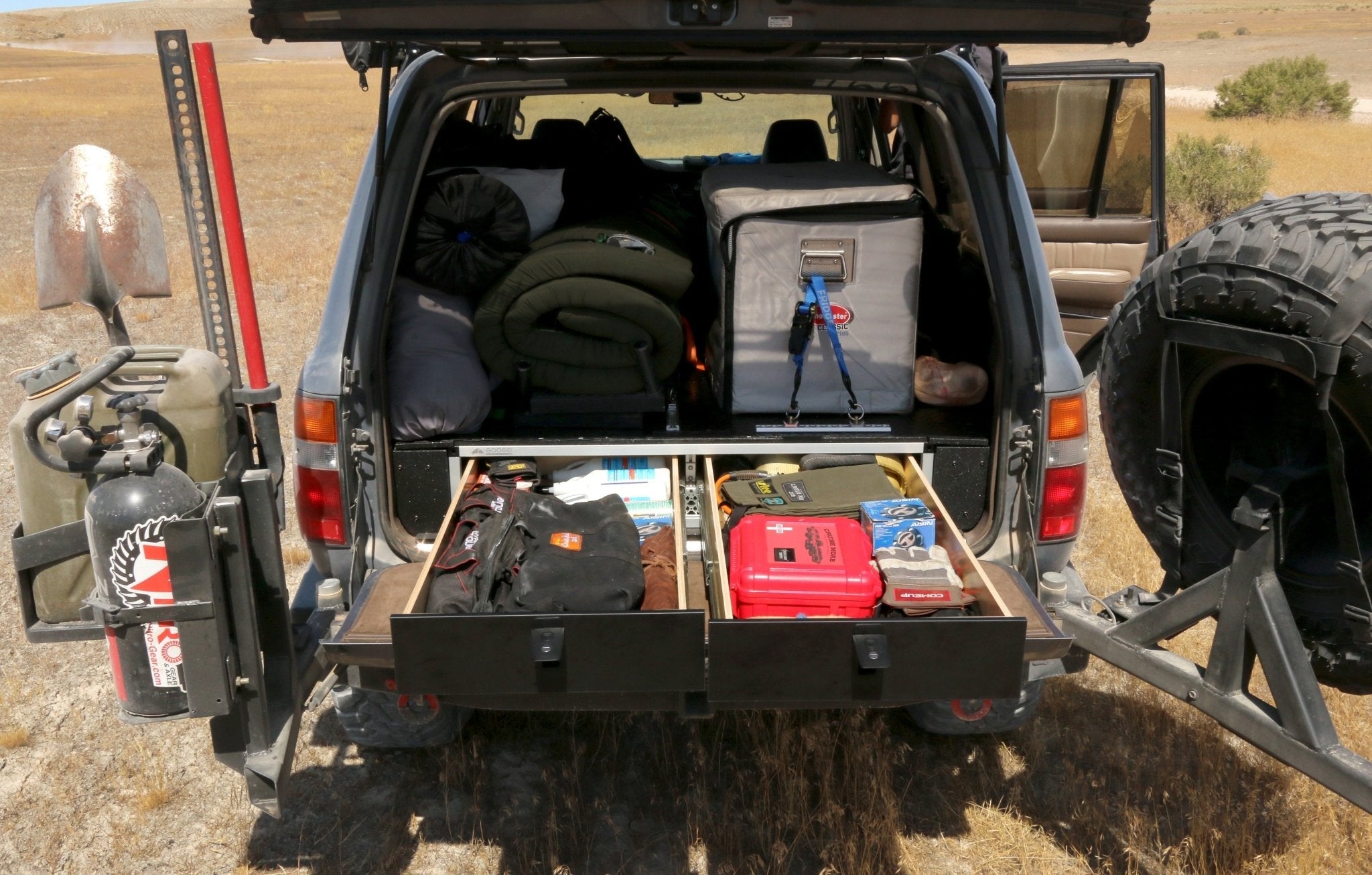

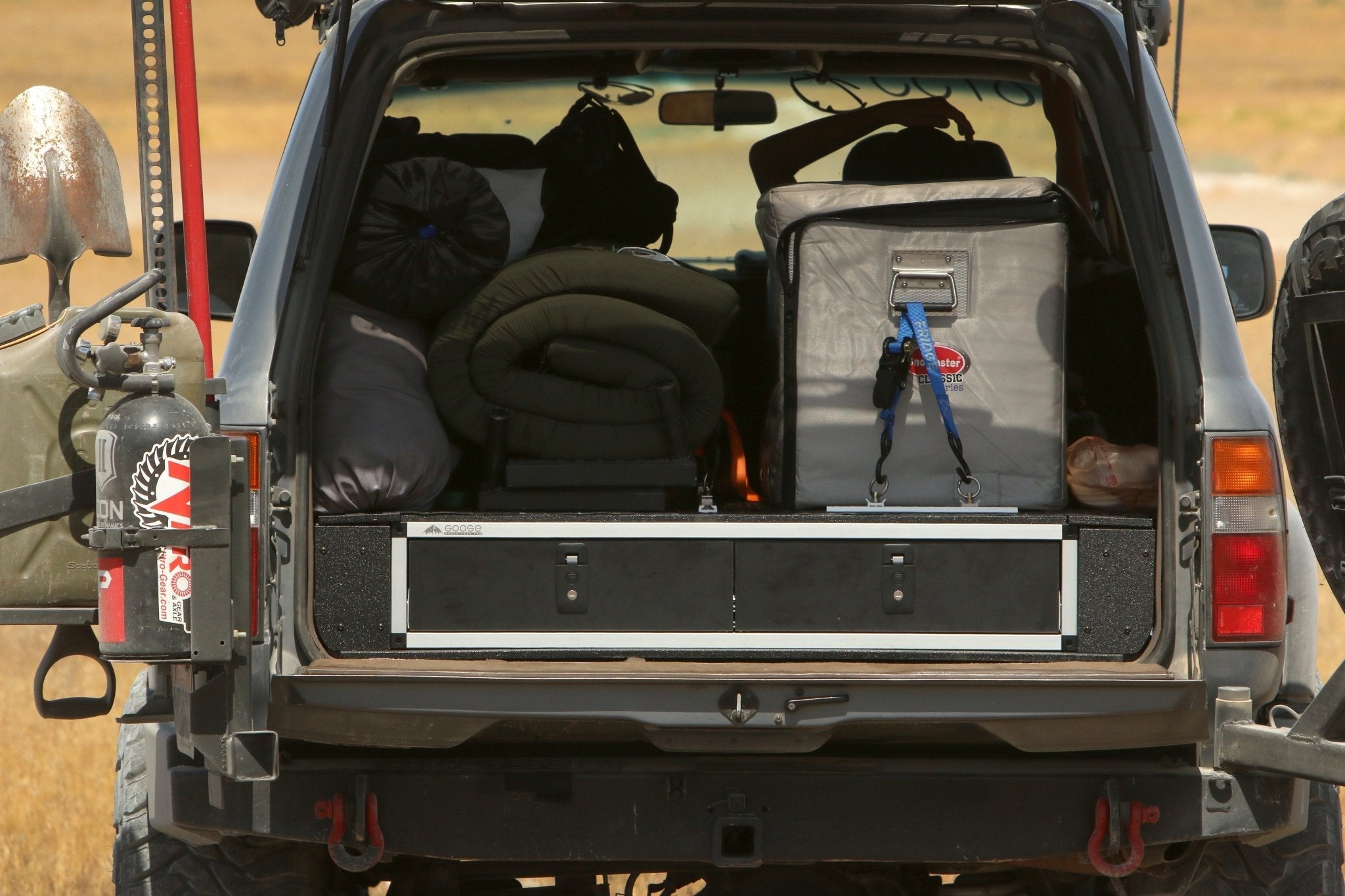

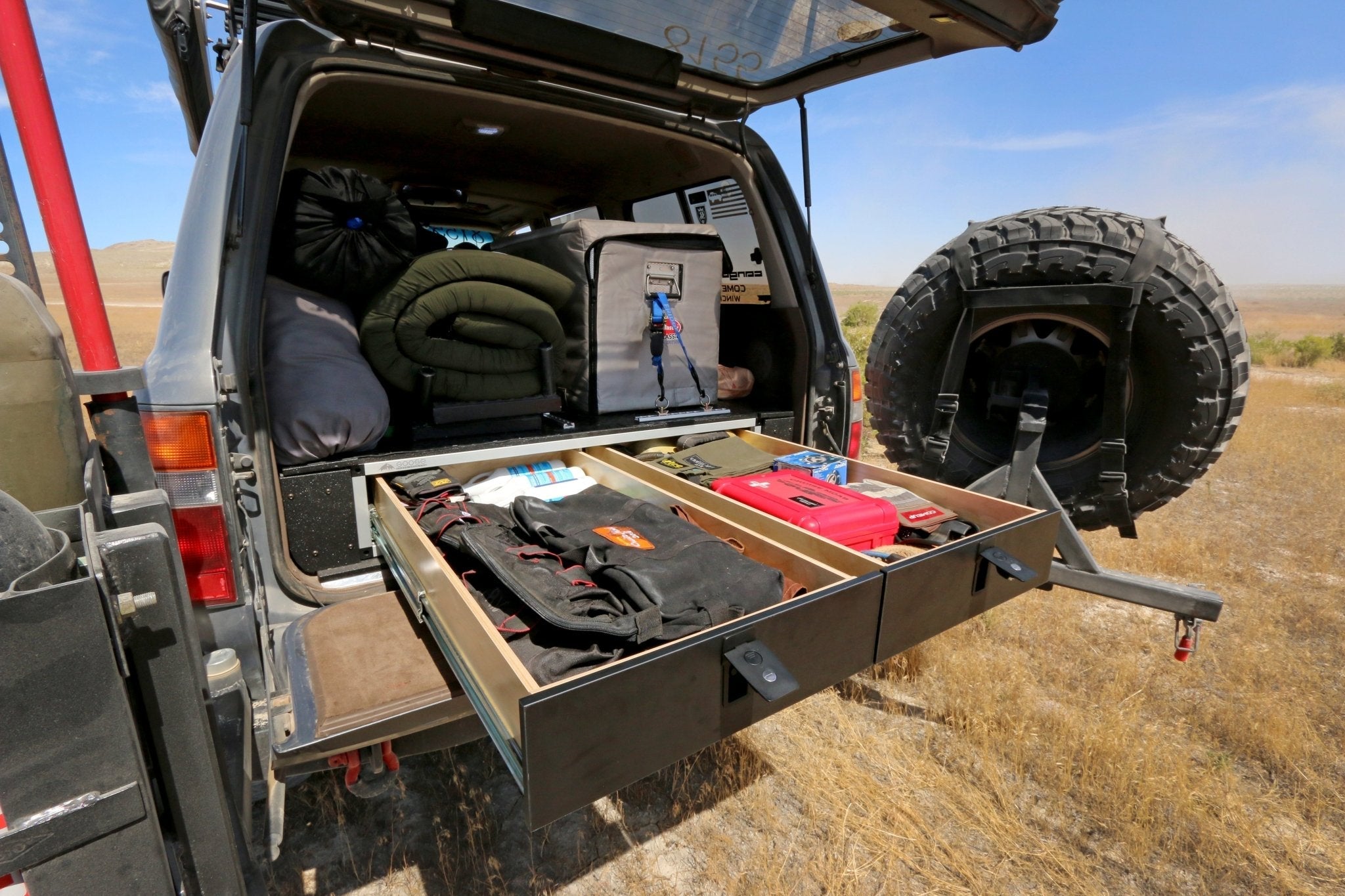

The Toyota Land Cruiser 80 Series Side x Side Drawer Module is designed for easy access gear storage, with two large slide out drawers for all your smaller gear. This system can be added on to with our Second Row Seat Delete Plate System™ that are Module Height to make one large sleep platform.

This module requires the Land Cruiser 80 Series Rear Plate System™ for proper installation.

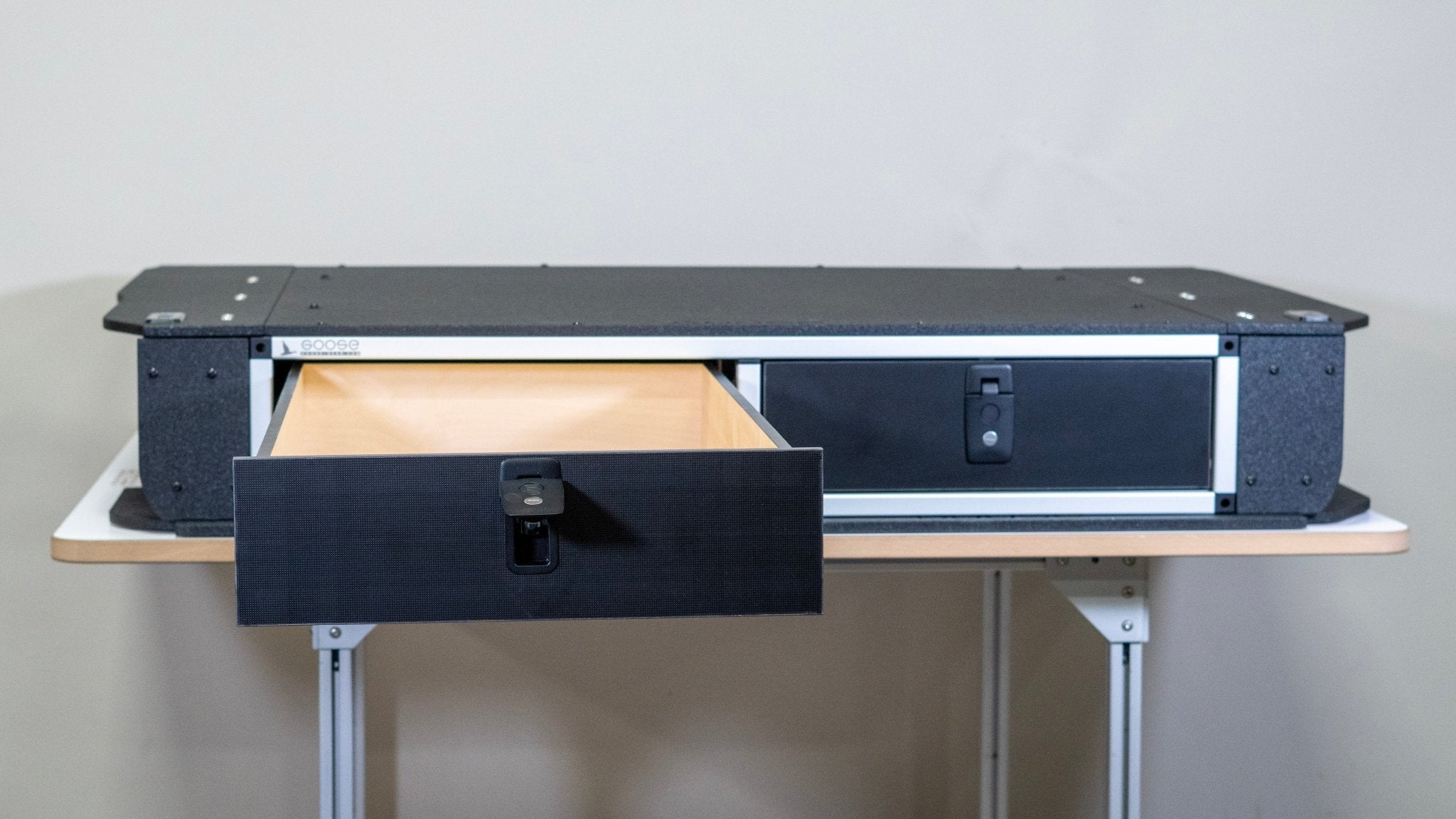

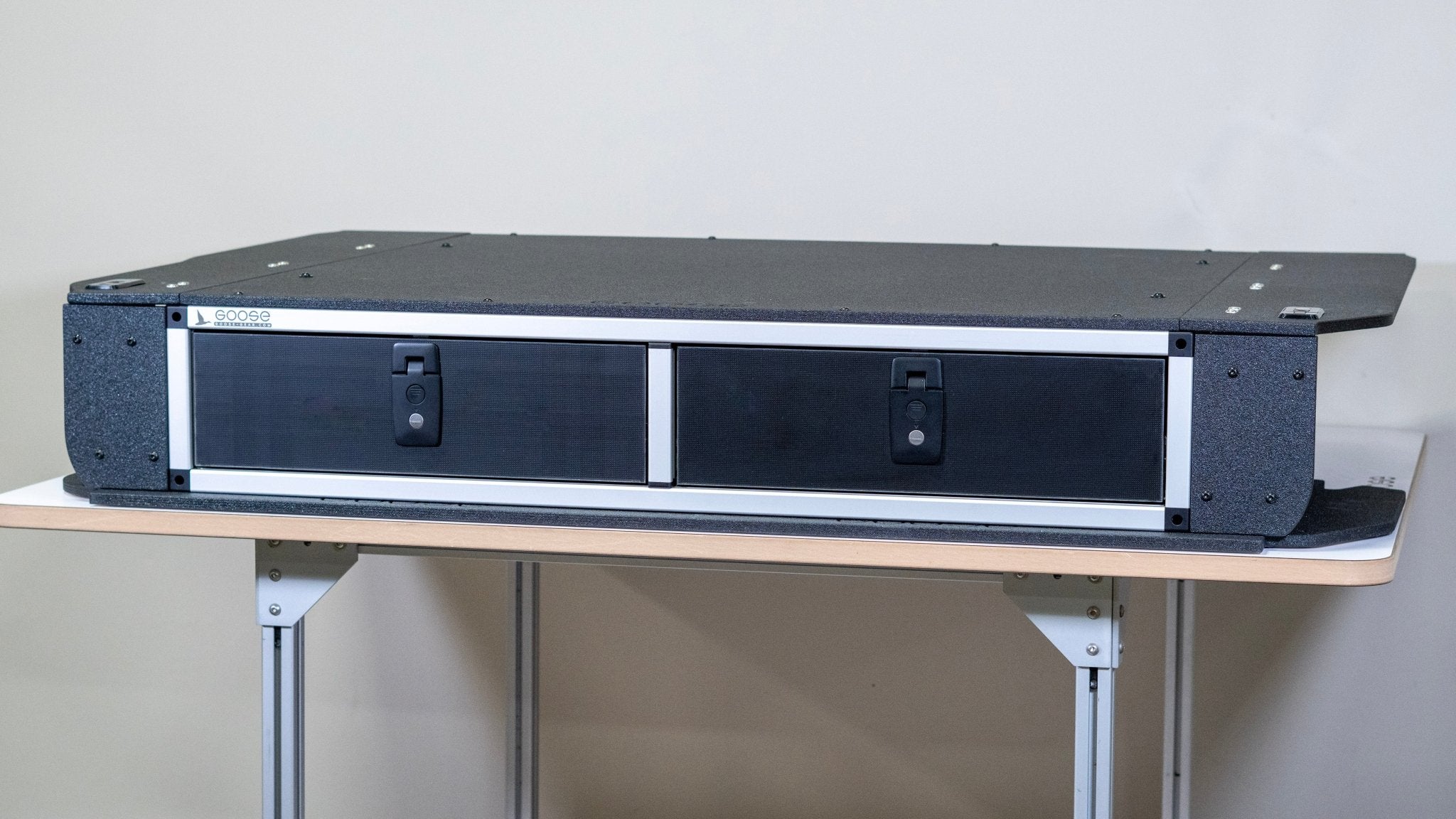

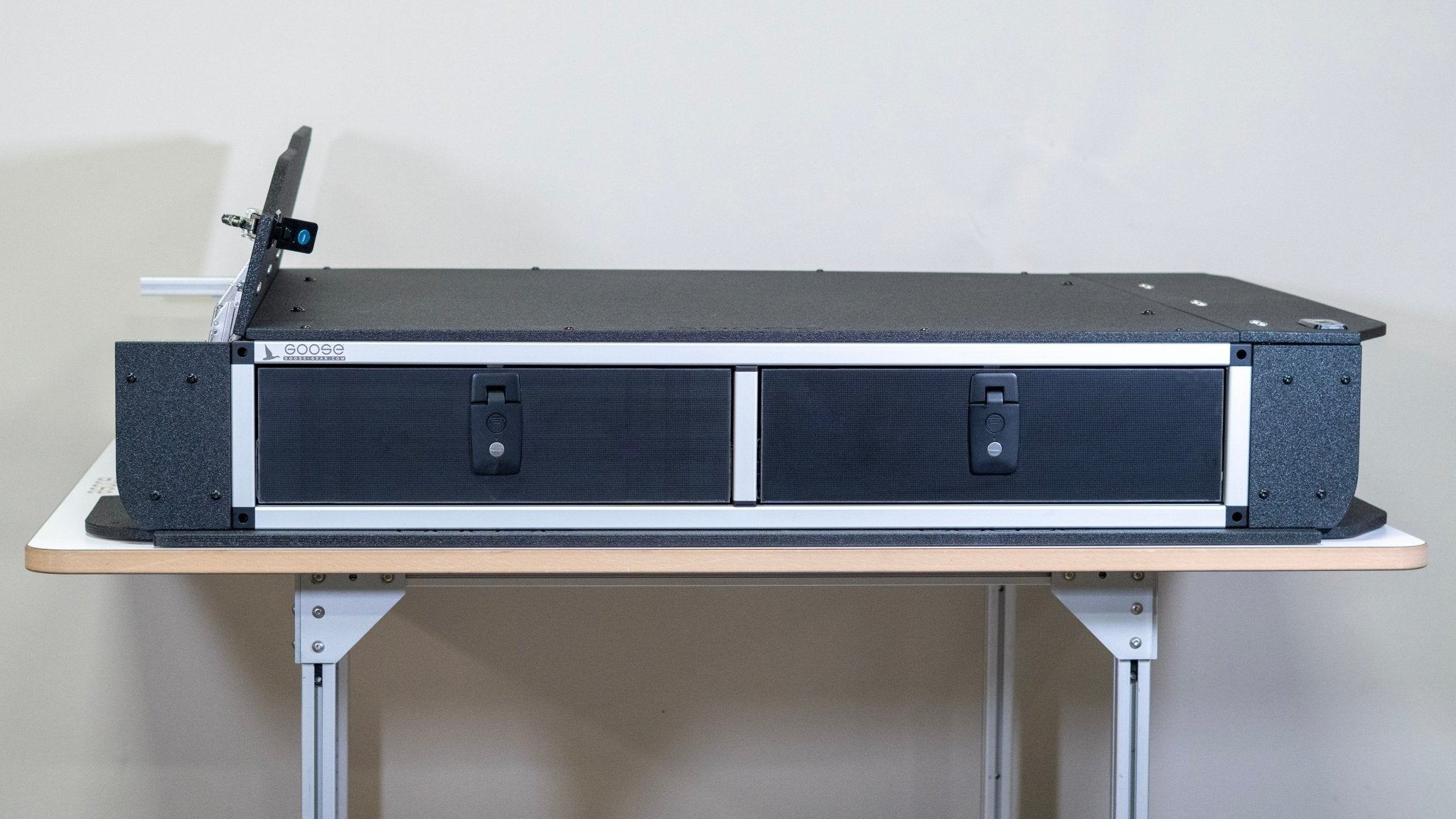

This Side x Side Modules is equipped with 8" tall drawers that are available in 50/50 split, 1/3-2/3 split and 2/3-1/3 split configurations. The 1/3-2/3 split have the smaller drawer on the left side of the module and the 2/3-1/3 split have the smaller drawer on the right side of the module.

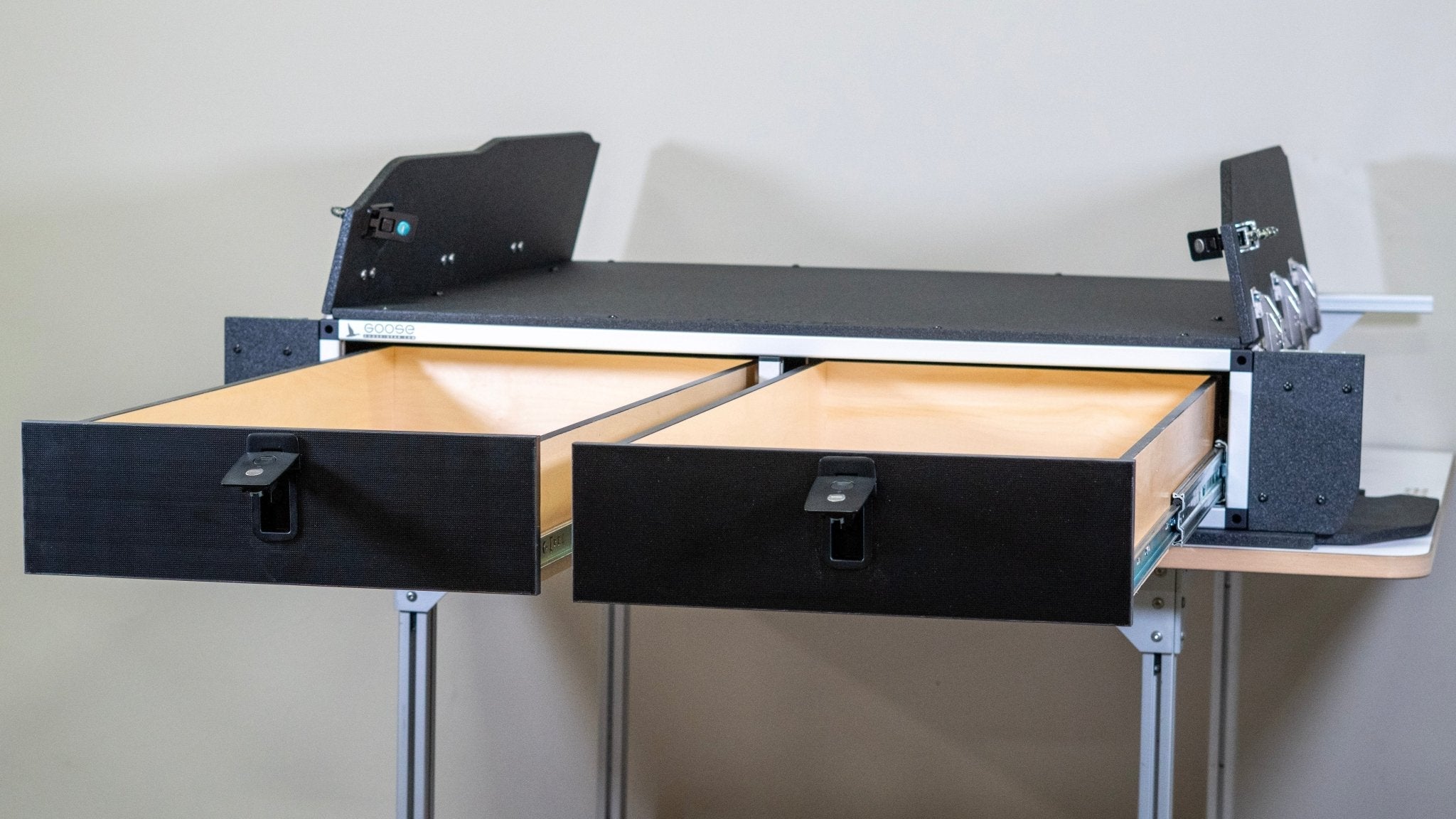

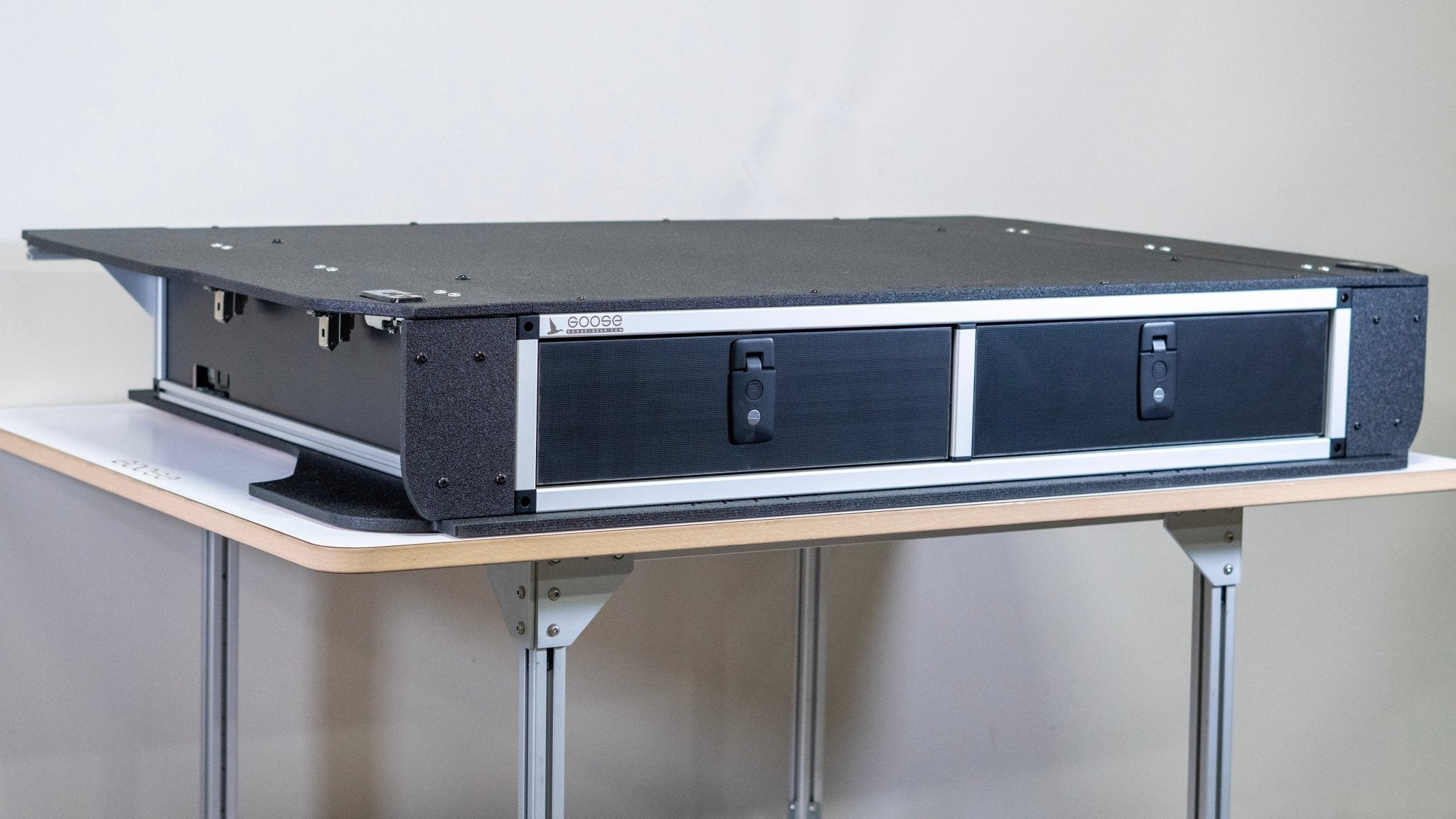

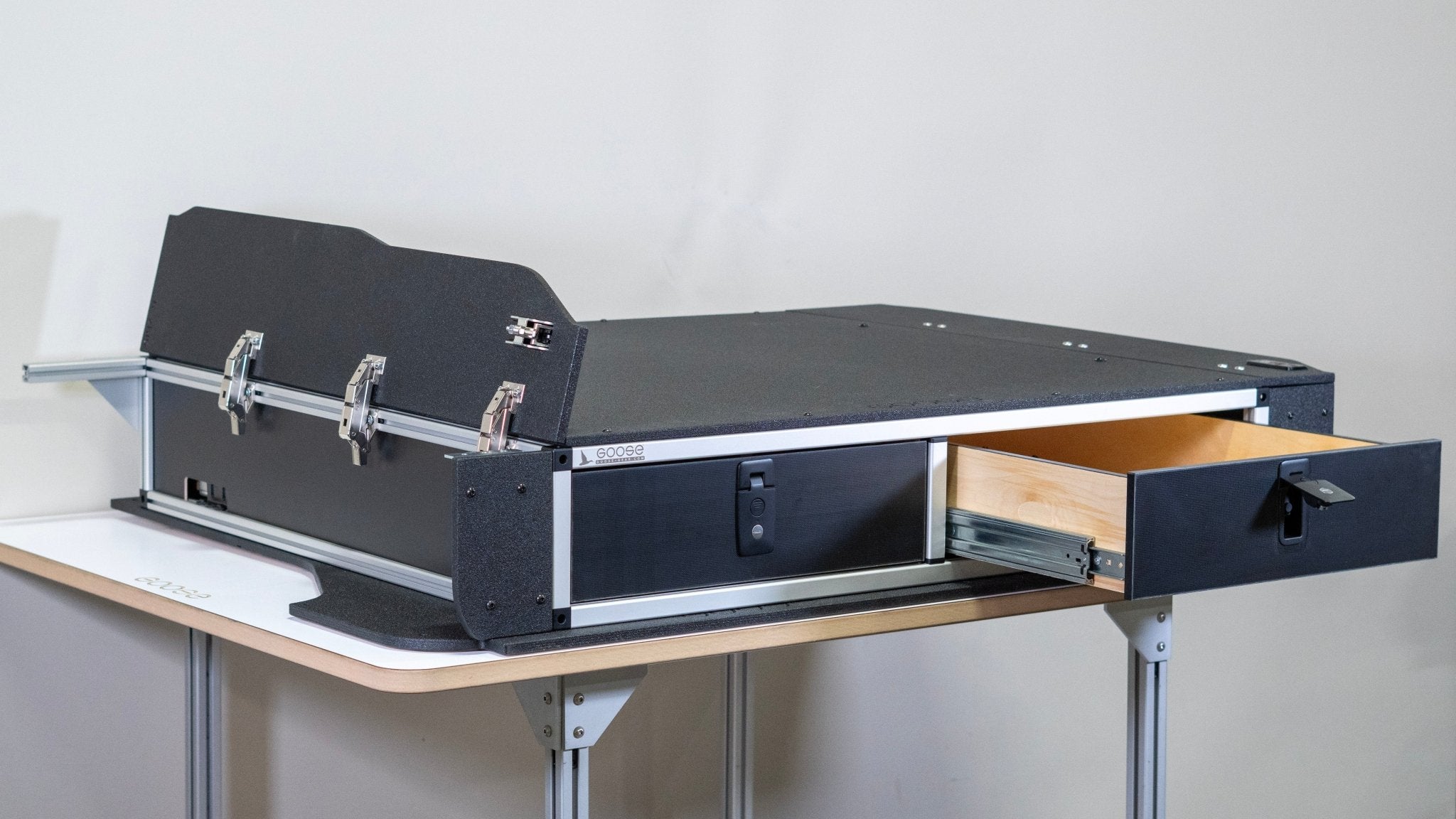

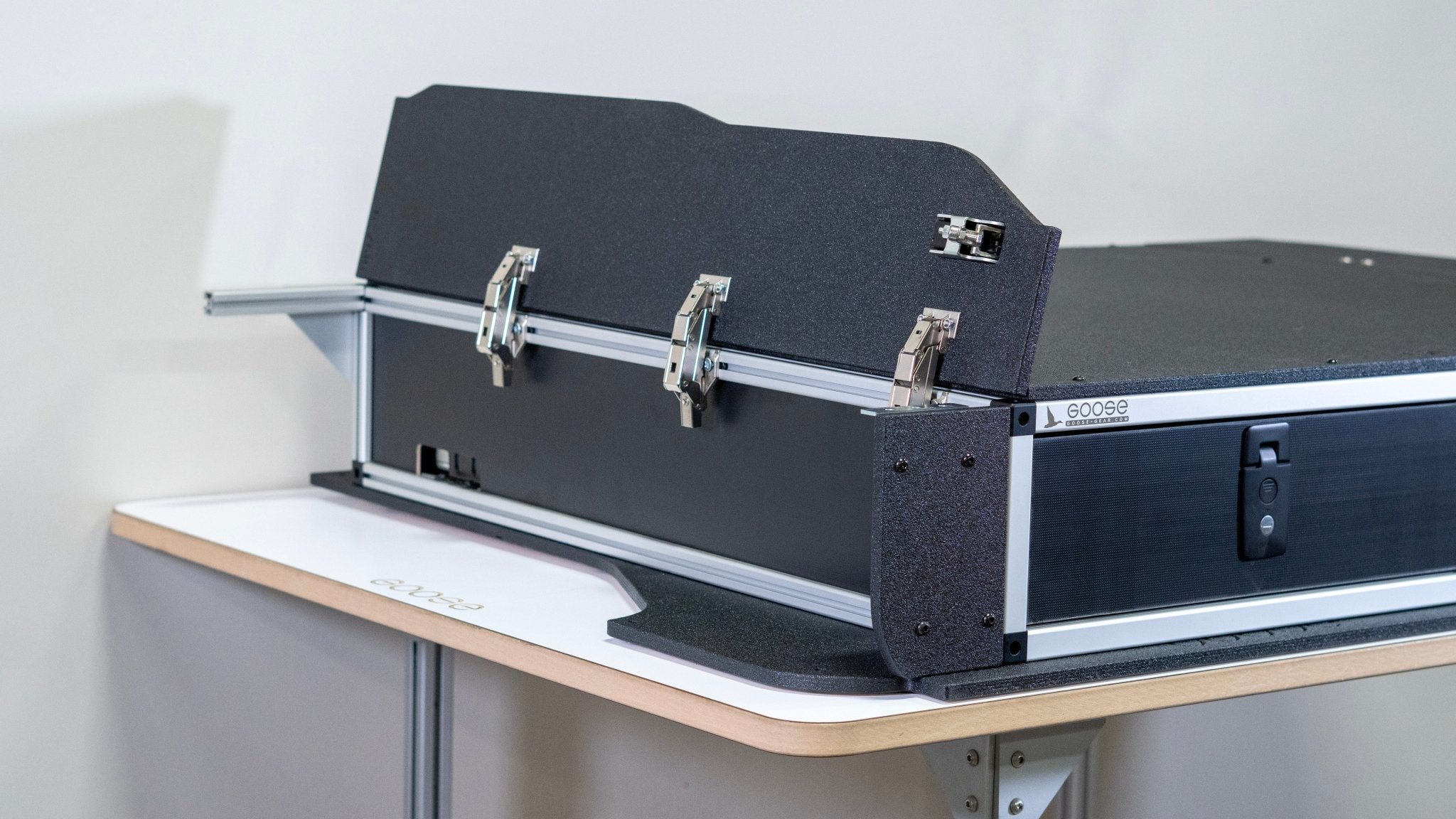

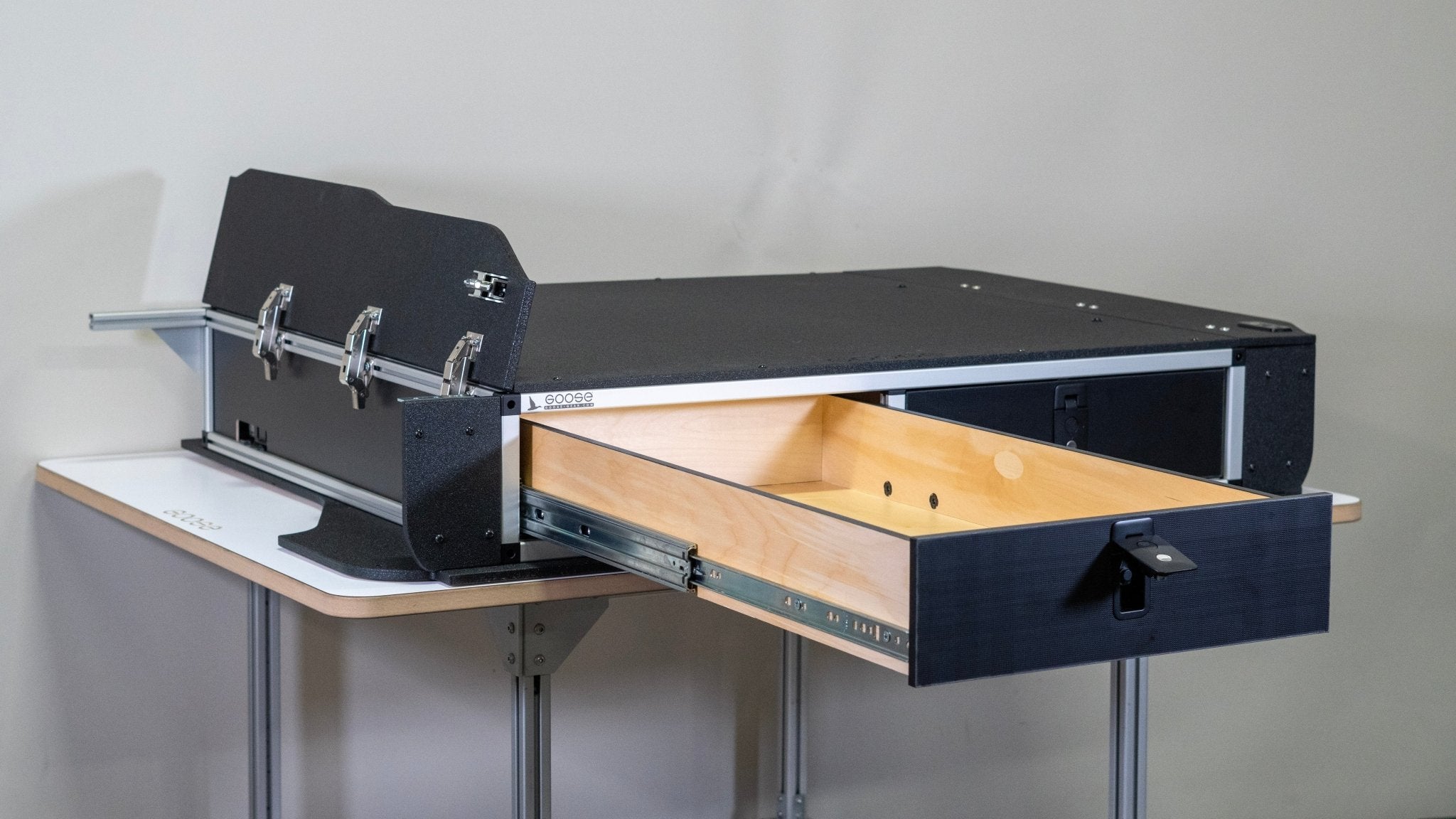

This Land Cruiser Specific Module is sprayed with proprietary bed liner top plate for increased durability as well as a location to mount additional items such as anchors for fridge and cooler straps etc. The top plate is slightly narrower than the drawer top to allow the addition of Wheel Well Wings. The Wheel Well Wings extend over the wheel wells and enclose the space between the module and the outside edge of the vehicle interior. This creates a flat surface that runs from wall to wall, seat back to back door. The hatch doors use Blum Euro hinges and mount to the side profile of the Side x Side Module. They are adjustable and also feature a quick release mechanism for easy removal.

Specifications

• Designed for the Toyota Land Cruiser 1991-1997 80 Series
• Dimensions: 43 3/8" W x 8" H x 40" D

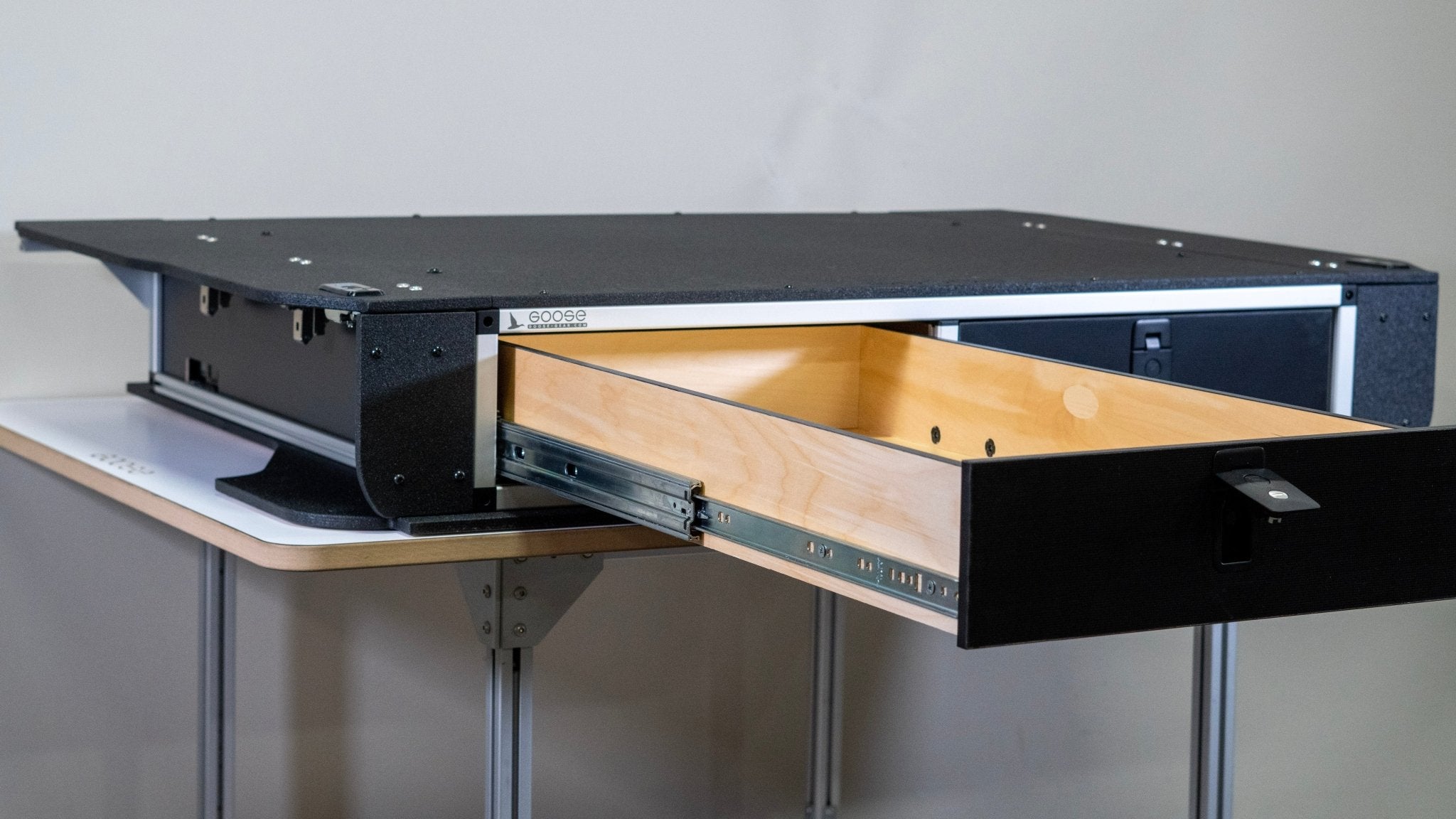

• 350# rated drawer guides with 34" of travel. We recommend no more than 100# per drawer.
• Module and Top Plate weight: 125.4 pounds

Legacy SKU's:

SXSLC80-430840-50-BLK, SXSLC80-430840-33-BLK, SXSLC80-430840-66-BLK, SXSLC80-430840-50-GRY, SXSLC80-430840-33-GRY, SXSLC80-430840-66-GRY, SXSLC80-430840-50-WHT, SXSLC80-430840-33-WHT, SXSLC80-430840-66-WHT
