Goose Gear Side-by-Side Drawers with Fitted Top | '10 - '24 4Runner

Goose Gear Side-by-Side Drawer Module with Fitted Top for Toyota 4Runner

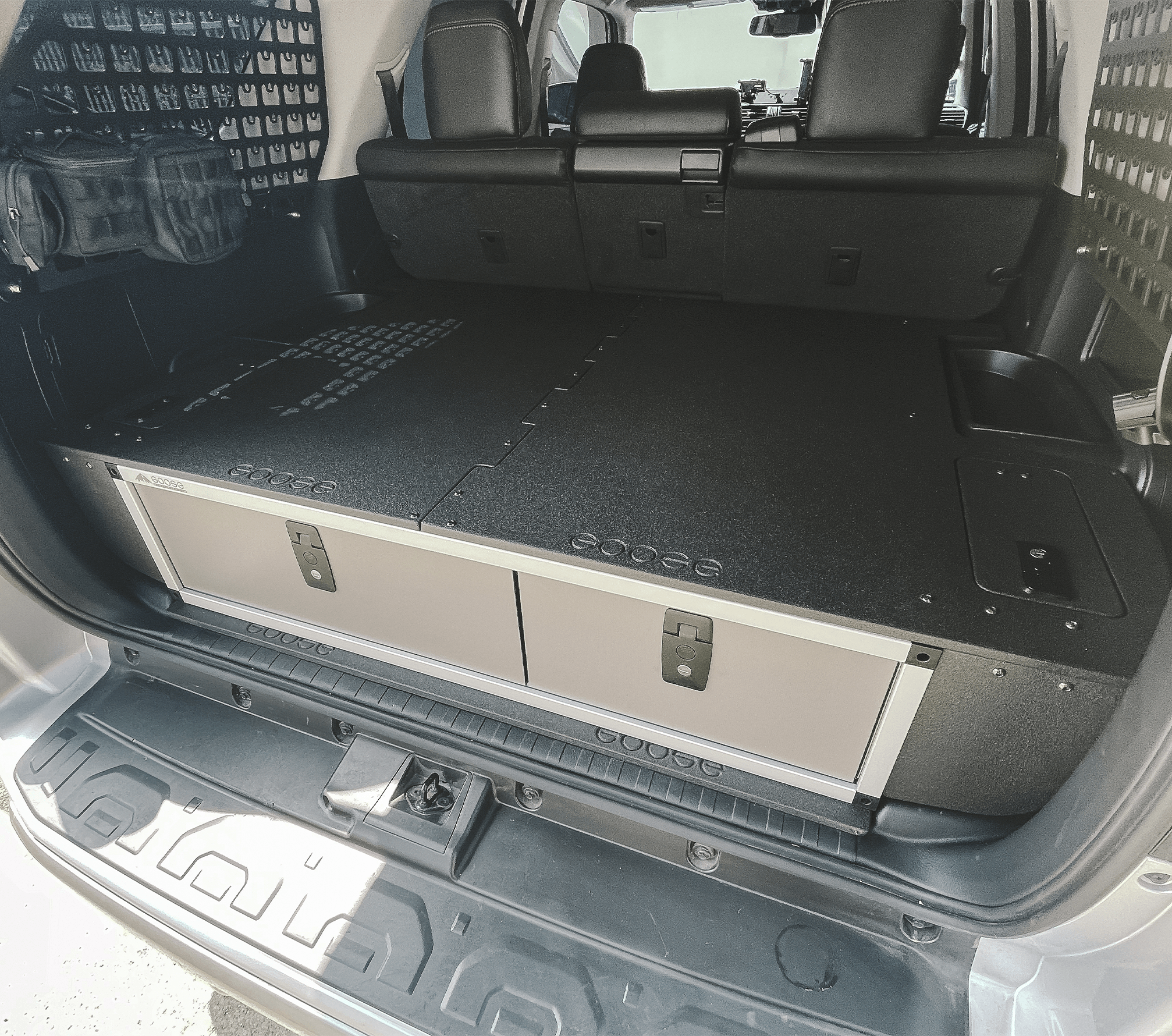

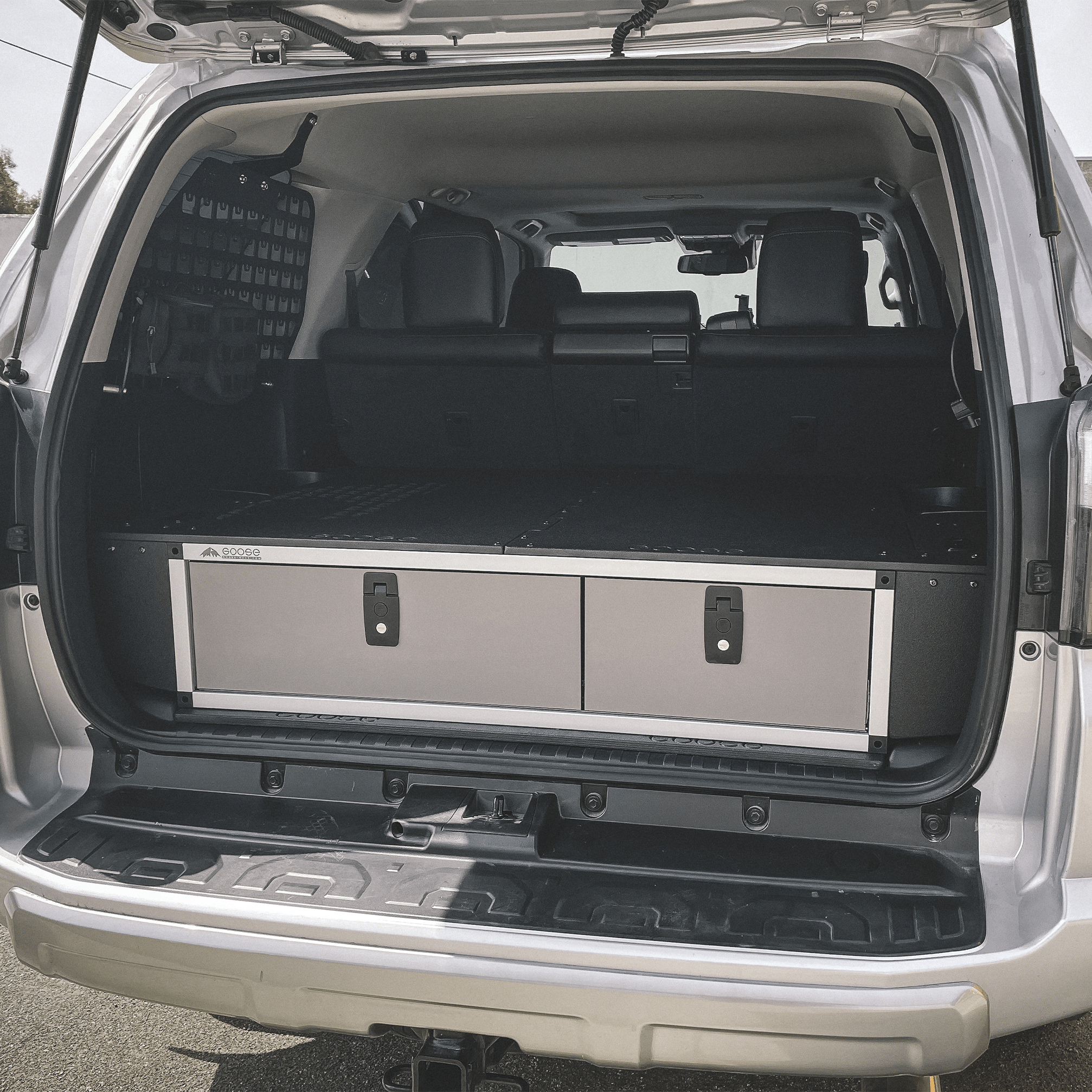

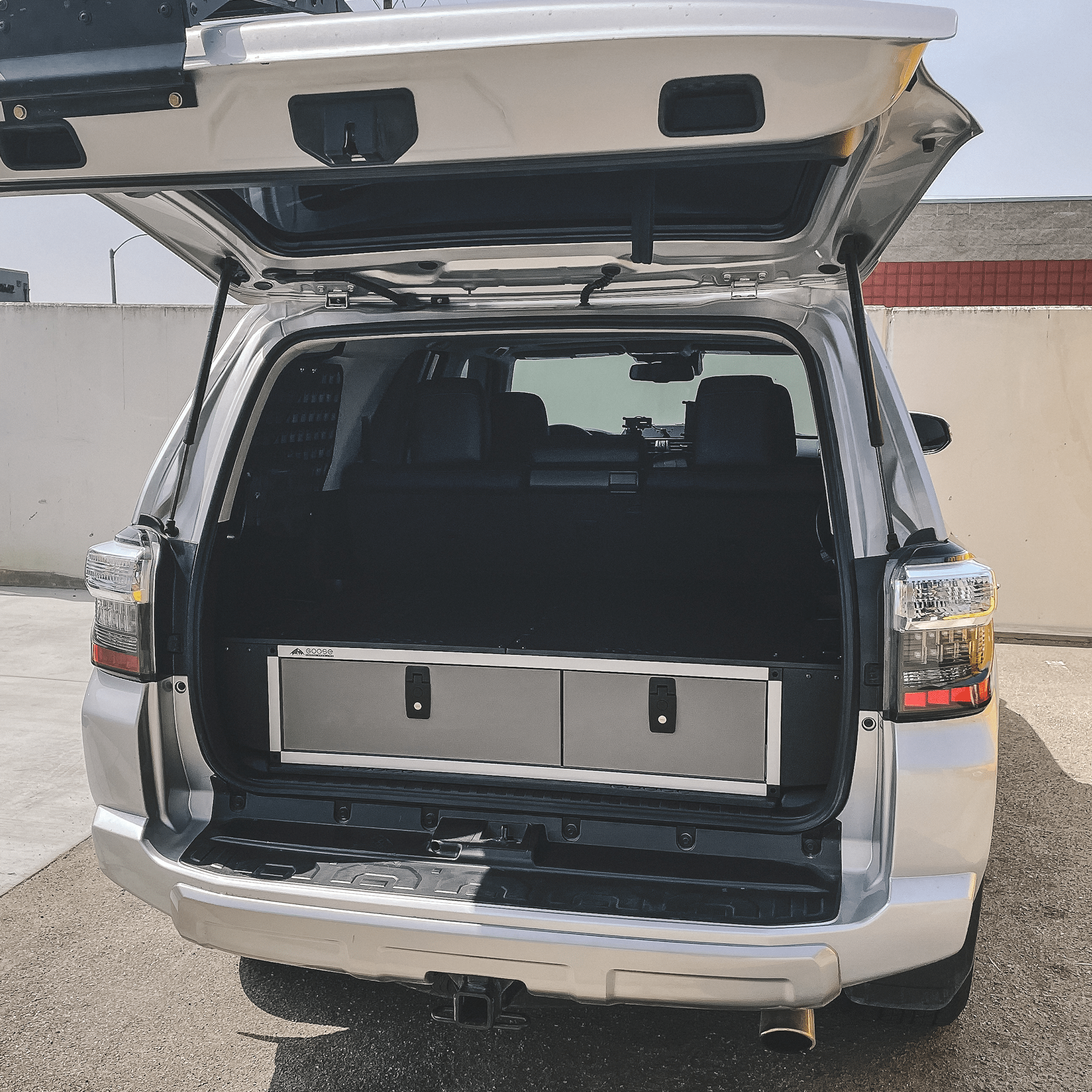

Create a flat cargo surface from wall to wall and seat back to rear door in your 2010–2024 fifth-generation Toyota 4Runner. The 10-inch-high module works with optional sleeping platforms and storage compartments.

Dimensions, Weight and Drawer Guides

• Module: 41-3/8 inches wide x 10 inches high x 36 inches deep.
• Overall height with the 4Runner top plate: 10-1/2 inches.
• Weight: 123.4 lb, including top plate, hatch doors and module.

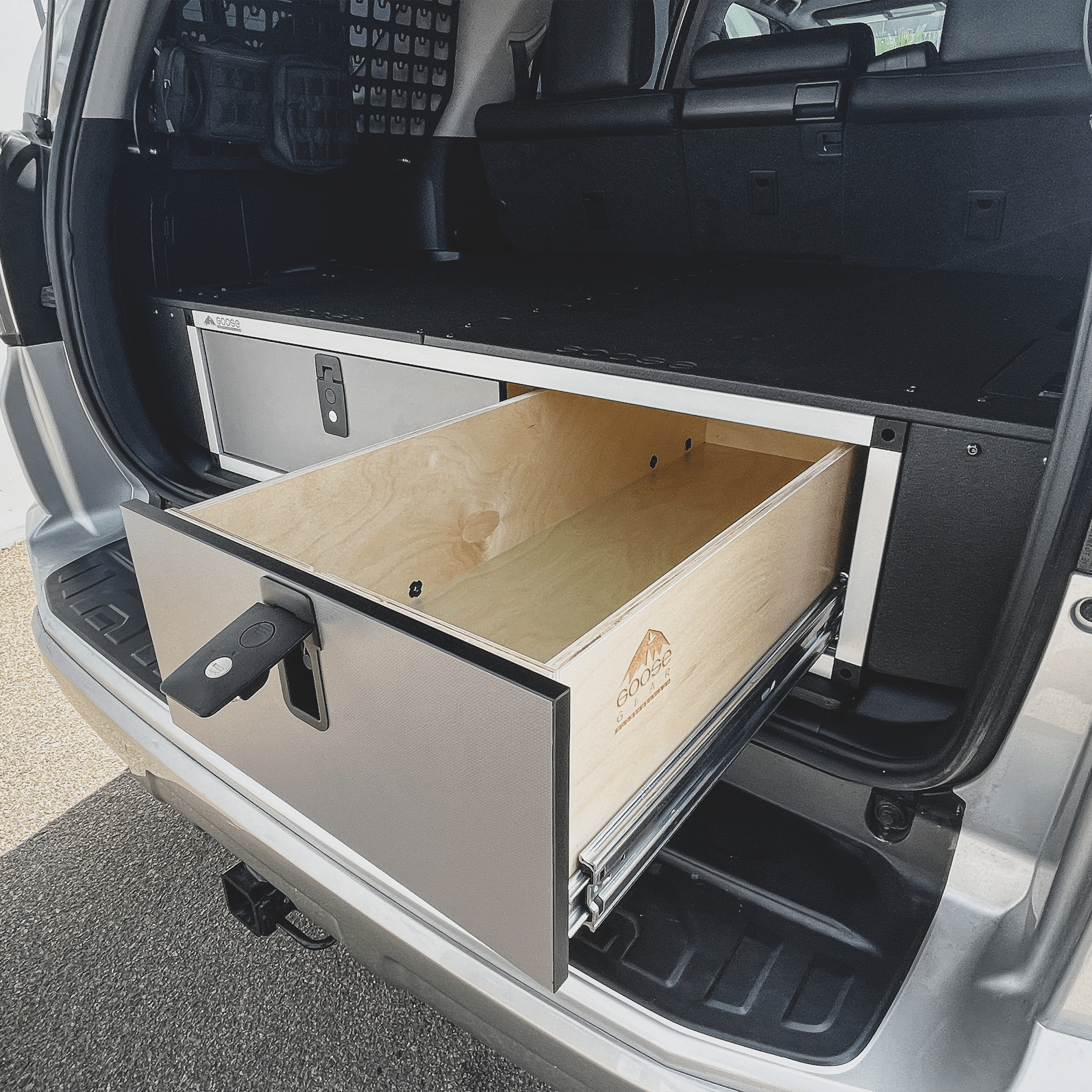

• Drawer guides rated at 350 lb, with 34 inches of travel.
• Supplier recommended load: no more than 100 lb per drawer.

Drawer Split and Trim Options

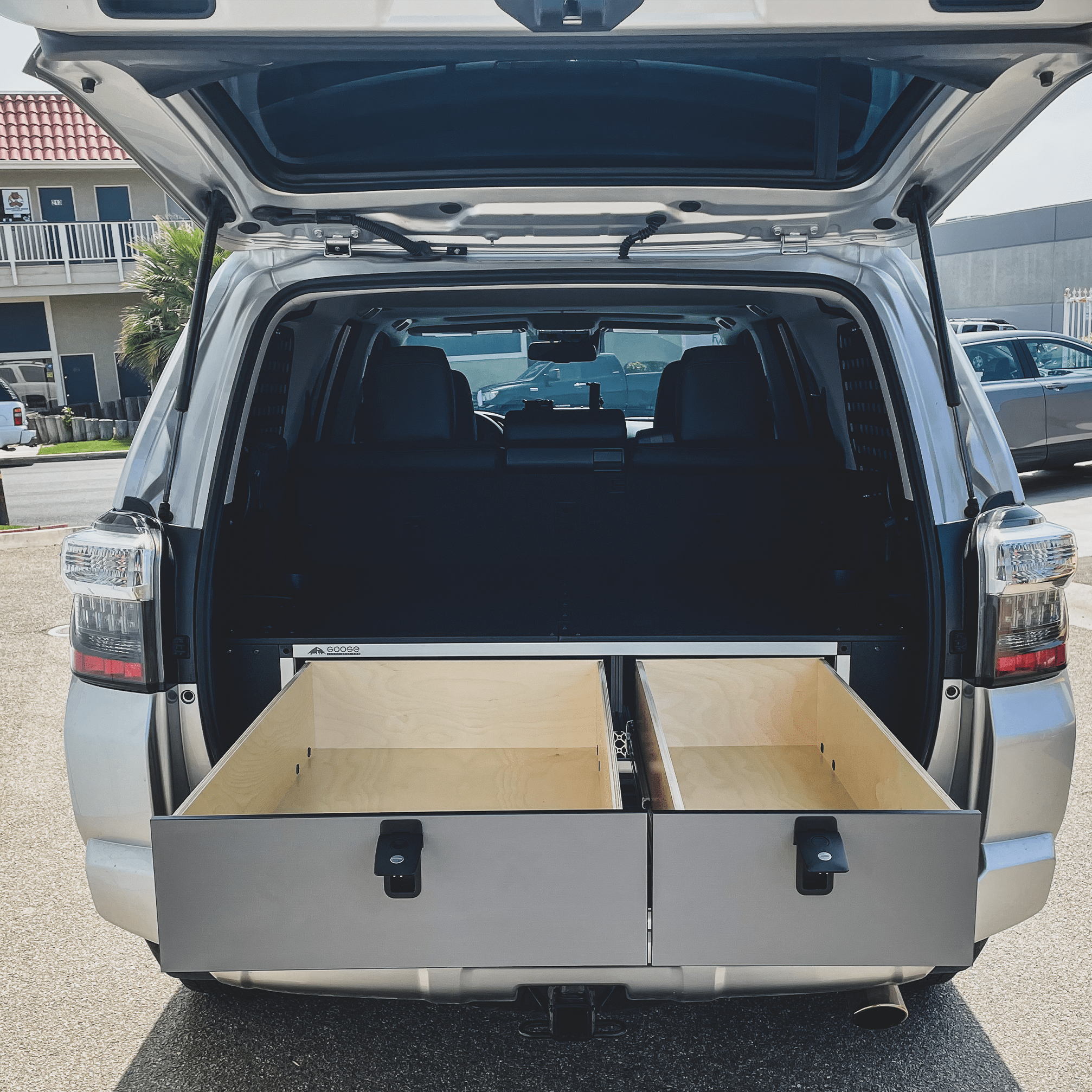

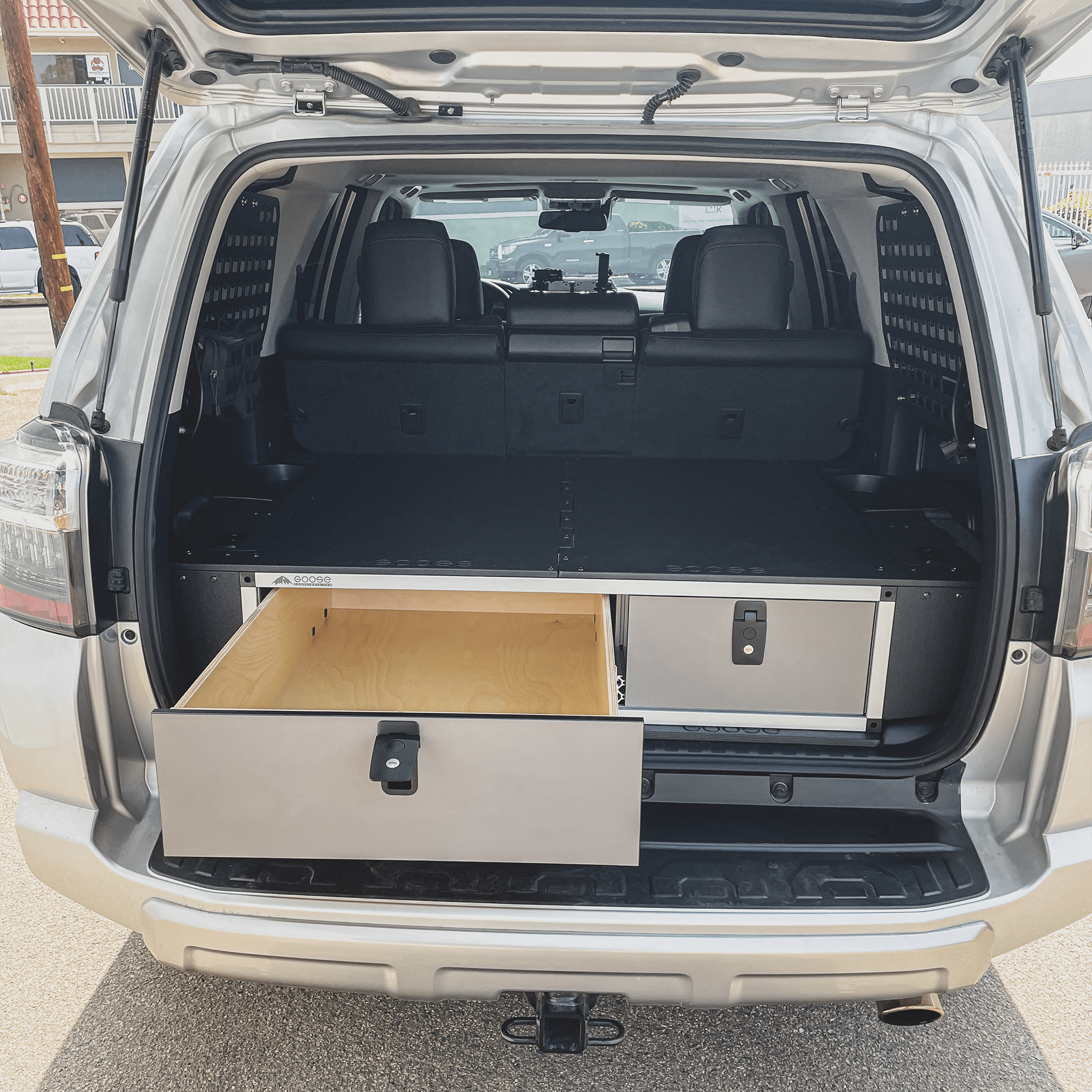

Choose 50/50, 1/3–2/3 with the smaller drawer on the left, or 2/3–1/3 with the smaller drawer on the right, in Black or Gray. Trim selections cover Standard or Factory Slide Out Tray, each with or without the factory subwoofer.

Fitted Top and Side Storage

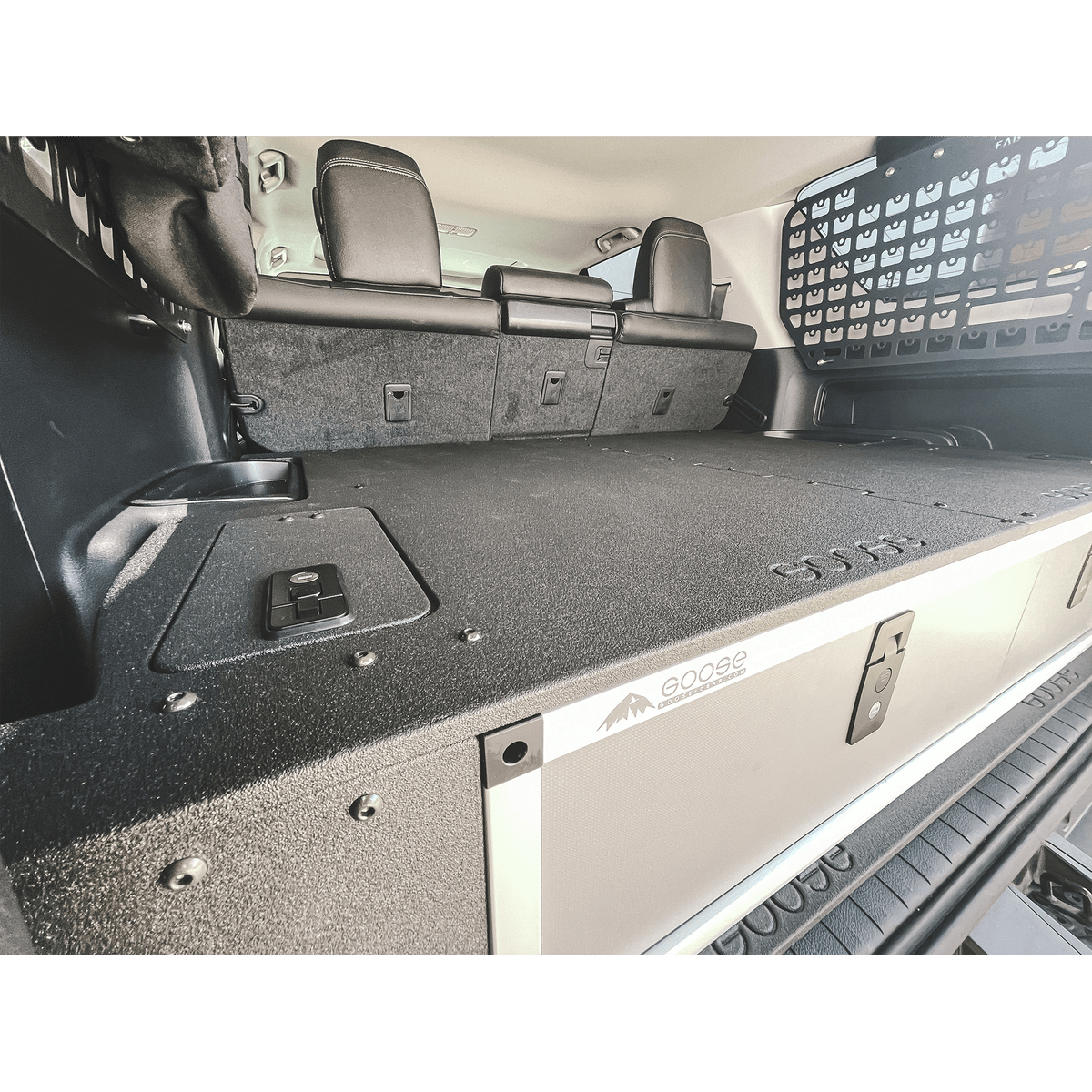

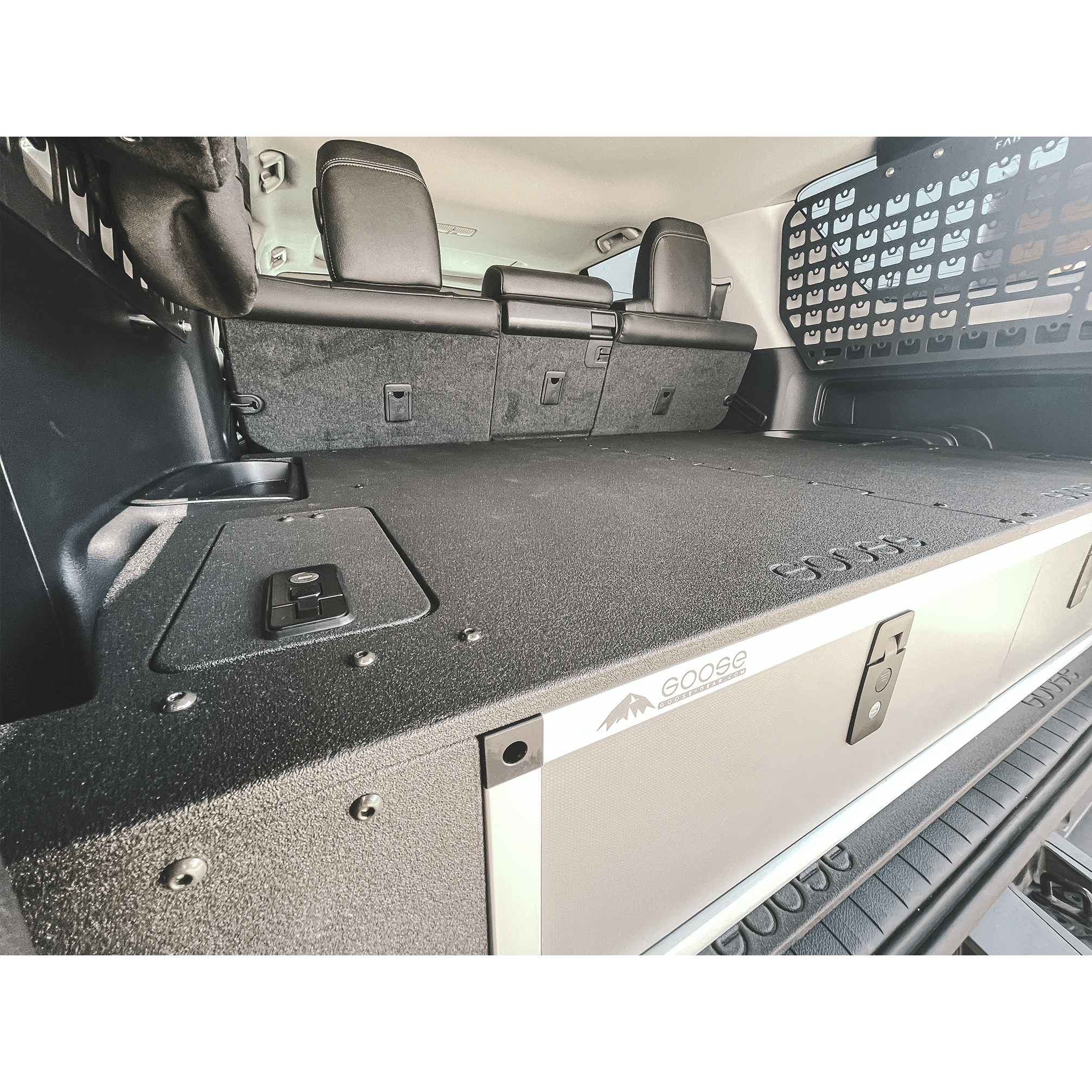

The coated top plate follows the interior contours with wings extending beyond the drawer module. Access doors in the plate create lockable storage behind the wheel wells. The top also provides mounting locations for accessories such as refrigerator or cooler strap anchors.

Required Rear Plate and Installation

The fifth-generation 4Runner Rear Plate System is required. This system does not fit 4Runners with a third-row seat delete. Loosely align the module and top plate to the vehicle interior first, then secure the drawer module before installing the top plate.
