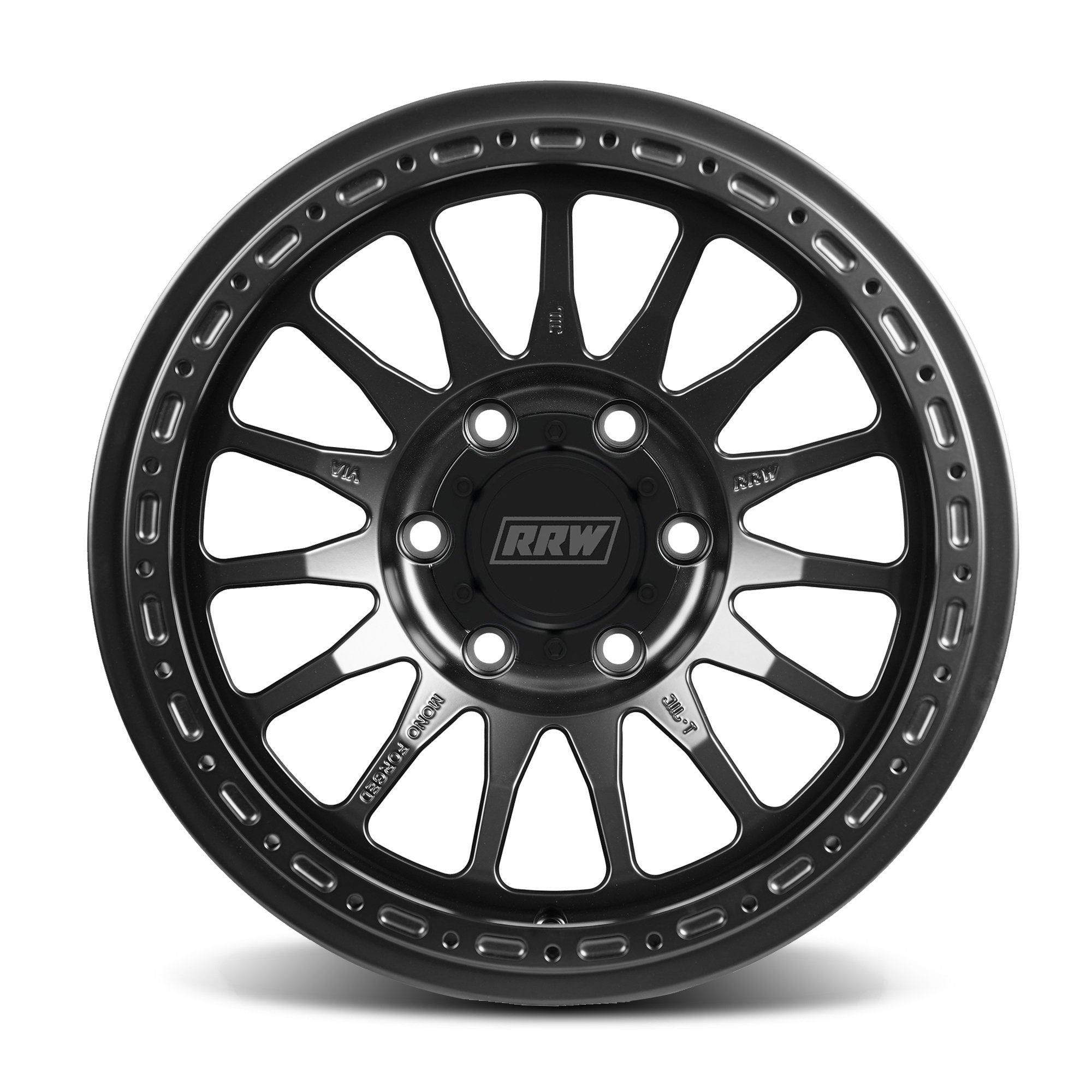

Relations Race Wheels RS7-H Hybrid MonoForged Wheel | Matte Black

Relations Race Wheels RS7-H Hybrid MonoForged Wheel | Matte Black

The matte black RS7-H is currently offered in 17x8 +12 and 17x8.5 -12 configurations with a 6x139.7 bolt pattern. Rated for 2,500 lbs and compatible with TPMS. Includes embossed caps; separately purchased conical lug nuts are required.

Features and Options

• Finish: Matte Black.
• Fitment: 4G Tacoma (2024+) / 6G 4Runner (2025+) / 3G Tundra (2022+); 3G Tacoma / 5G 4Runner.
• Size | Bolt Pattern | Offset | Backspacing: 17x8 | 6x139.7 | +12 | 4.97"; 17x8.5 | 6x5.5 | -12 | 4.28".

Specifications, Fitment and Installation Details

Specifications

6x139.7 sizes: 17x8 +12, 17x8.5 -12
Center bore for 6x139.7 +12: 95.1 mm (hub-centric for 24+ Tacoma, 22+ Tundra, 25+ 4Runner, Landcruiser 250)
Center bore for 6x139.7 -12: 106.1 mm (hub-centric for 3G Tacoma, 5G 4Runner)
Load Rating: 2500 lbs
Includes embossed center caps
Compatible with TPMS
Not compatible with OEM lug nuts. Conical lug nuts will need to be purchased to install wheels

Vehicle Fitment

+12: Toyota Tacoma (4G 2024+), Tundra (3G 2022+), 4Runner (6G 2025+), Landcruiser 250
-12: Toyota Tacoma (3G), 4Runner (5G)

Manufactured in a JWL/VIA Certified Facility and tested to meet and exceed OEM specifications. Photos are for reference only.
