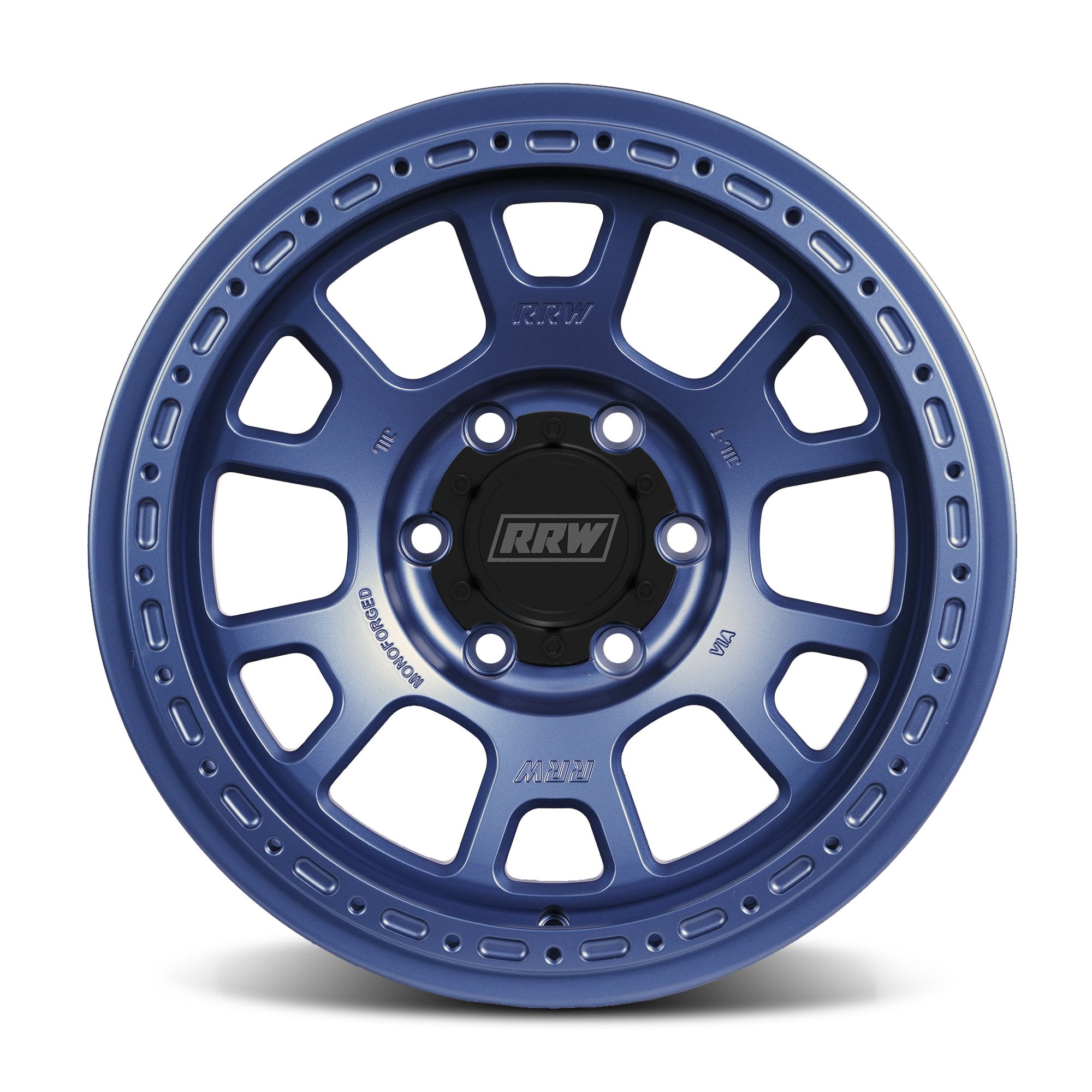

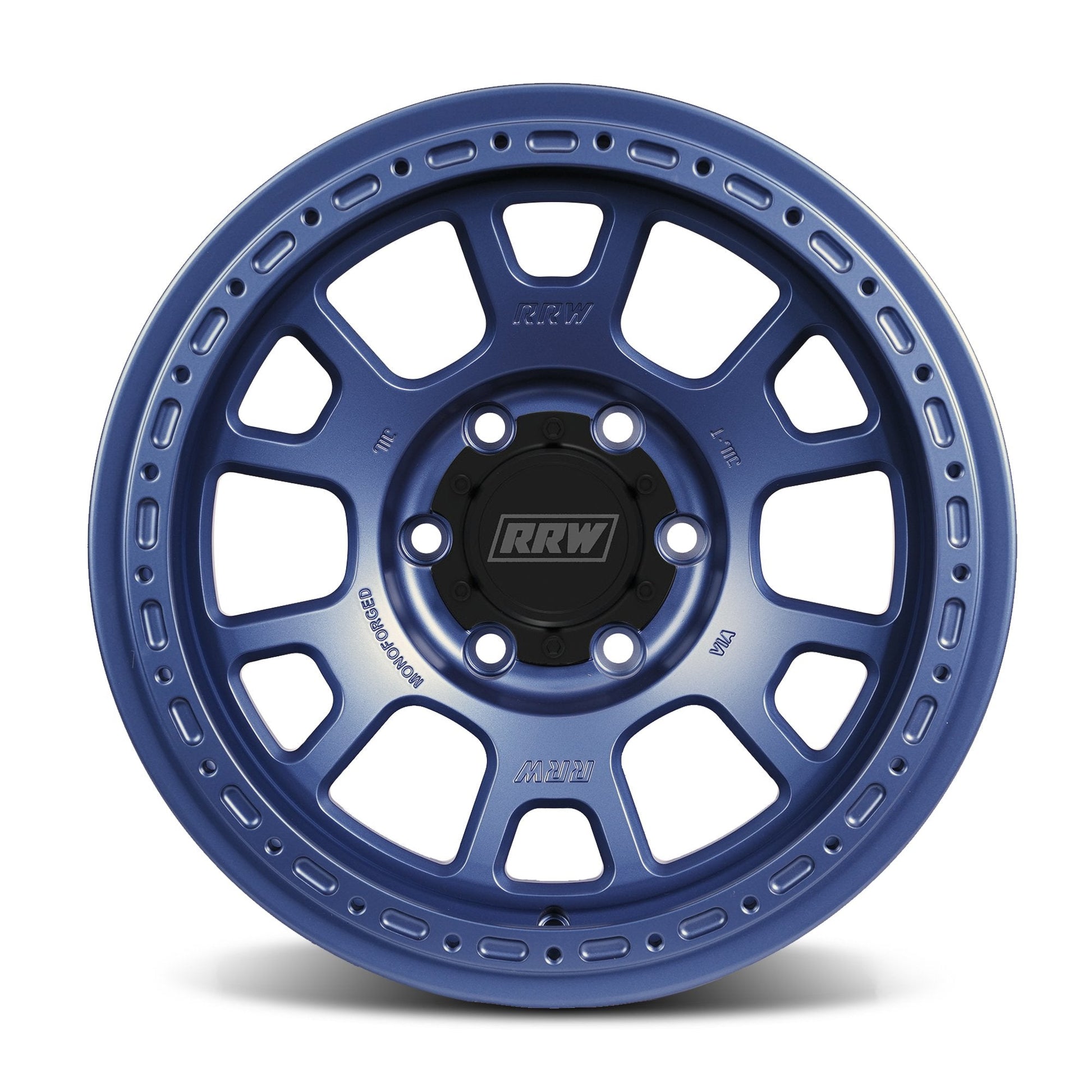

RS5-H Hybrid MonoForged Wheel | Graphite Blue

RS5-H Hybrid MonoForged Wheel | Graphite Blue

The Next Generation of Off-Road Performance

Built for drivers who refuse to compromise, the RS5-H Hybrid MonoForged Wheel combines lightweight forged construction, exceptional strength, and head-turning style in one premium package.

Manufactured from aerospace-grade forged 6061-T6 aluminum and finished in a stunning Graphite Blue coating, the RS5-H is engineered to perform in the harshest environments while delivering the aggressive styling your rig deserves.

Whether you're tackling rocky trails, exploring backcountry roads, or building the ultimate overland setup, the RS5-H provides the durability, performance, and versatility needed to take your vehicle to the next level.

Why Choose the RS5-H?

Forged Strength. Lightweight Performance.

Unlike traditional cast wheels, the RS5-H is forged from premium 6061-T6 aircraft-grade aluminum, creating a wheel that is both stronger and lighter than conventional alternatives.

Benefits include:

• Reduced unsprung weight
• Improved suspension performance
• Enhanced acceleration and braking
• Better ride quality
• Increased durability on and off-road

The RS5-H is approximately 15–20% lighter than comparable cast wheels while maintaining an impressive 2,500 lb load rating.

Hybrid Beadlock-Ready Design

The deep stepped hybrid lip offers maximum versatility and compatibility with:

• Protection Rings
• Billet Protection Rings
• True Beadlock Rings

This allows you to customize your setup based on your driving style and terrain requirements.

Engineered for Demanding Conditions

Refined chamfers and optimized spoke geometry reduce overall weight while improving lateral load distribution and strength through advanced FEA testing.

With a 2,500 lb load rating per wheel, the RS5-H is built to support fully loaded trucks and adventure rigs in the toughest environments.

Increased Thread Engagement

The Hybrid Series features deeper mounting holes with approximately 50% more thread engagement than previous designs.

Features include:

• 25 tapped mounting holes
• M8 x 1.25 thread pitch
• Increased clamping force and mounting security

Premium Graphite Blue Finish

The unique Graphite Blue finish combines aggressive styling with a premium appearance that stands out on the trail and in the parking lot alike.

Embossed ABS Center Caps Included

Every RS5-H wheel includes premium embossed ABS center caps for a clean, finished look right out of the box.

Specifications

Wheel Size

• 17x8.5

Bolt Pattern

• 6x5.5 / 6x139.7

Center Bore

• 106.1mm Hub-Centric

Load Rating

• 2,500 lbs per wheel

Additional Features

• Compatible with TPMS Sensors
• Includes Embossed ABS Center Caps
• Compatible with ET Lug Nuts for maximum wheel stud engagement

Vehicle Fitment

Designed to fit:

• Toyota Tacoma (2023 and older)
• Toyota 4Runner
• Toyota FJ Cruiser
• Lexus GX470
• Chevy Silverado

What's Included

• (1) RS5-H Hybrid MonoForged Wheel
• Embossed ABS Center Cap

Important Notes

• Compatible with TPMS sensors.
• OEM lug nuts are not compatible.
• Aftermarket conical-seat lug nuts are required for installation.
• ET Lug Nuts are recommended for maximum thread engagement, especially on Toyota applications with shorter wheel studs.

Built in a JWL/VIA-certified facility and engineered to meet or exceed OEM standards, the RS5-H Hybrid MonoForged Wheel delivers exceptional strength, reduced weight, and premium styling for your next off-road adventure.
