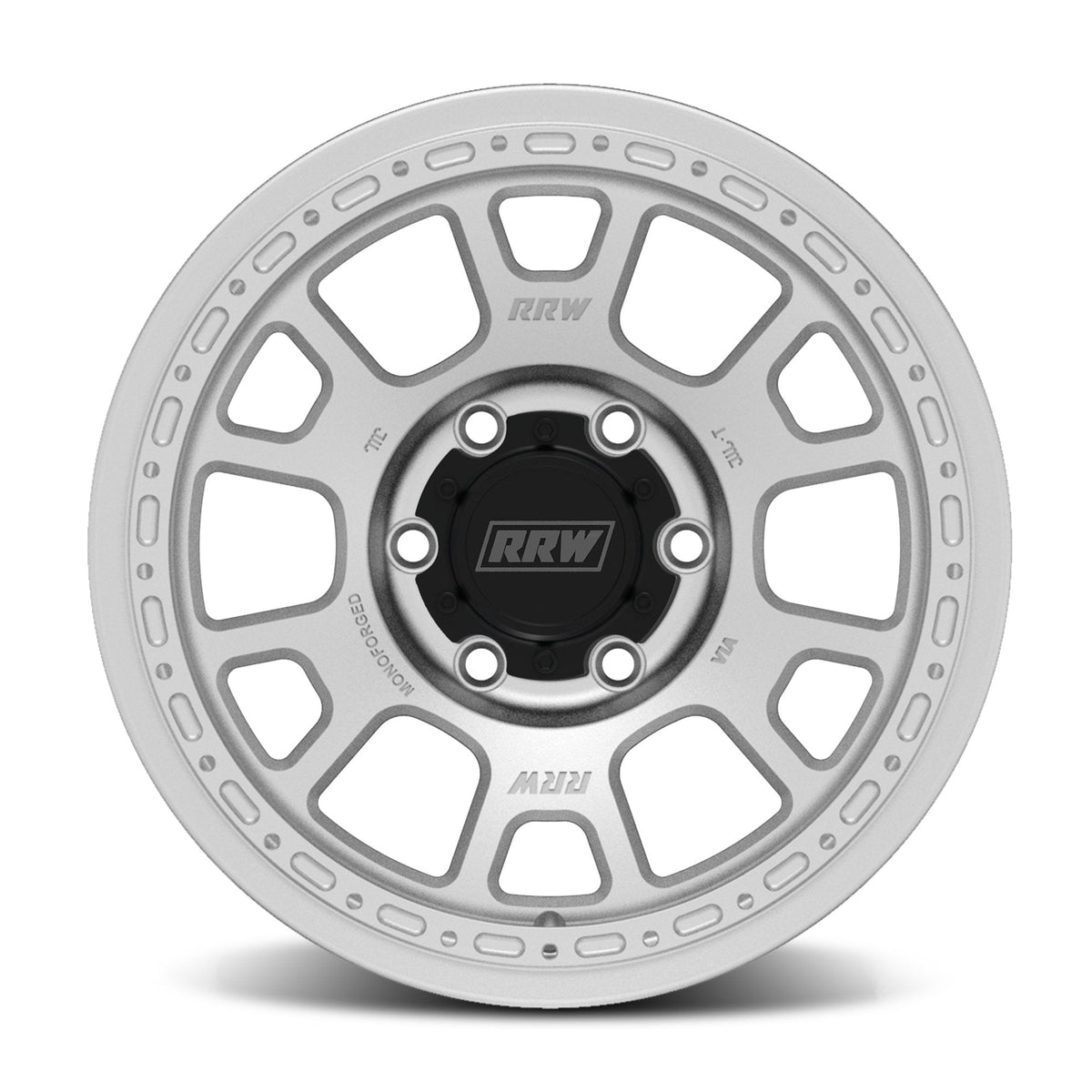

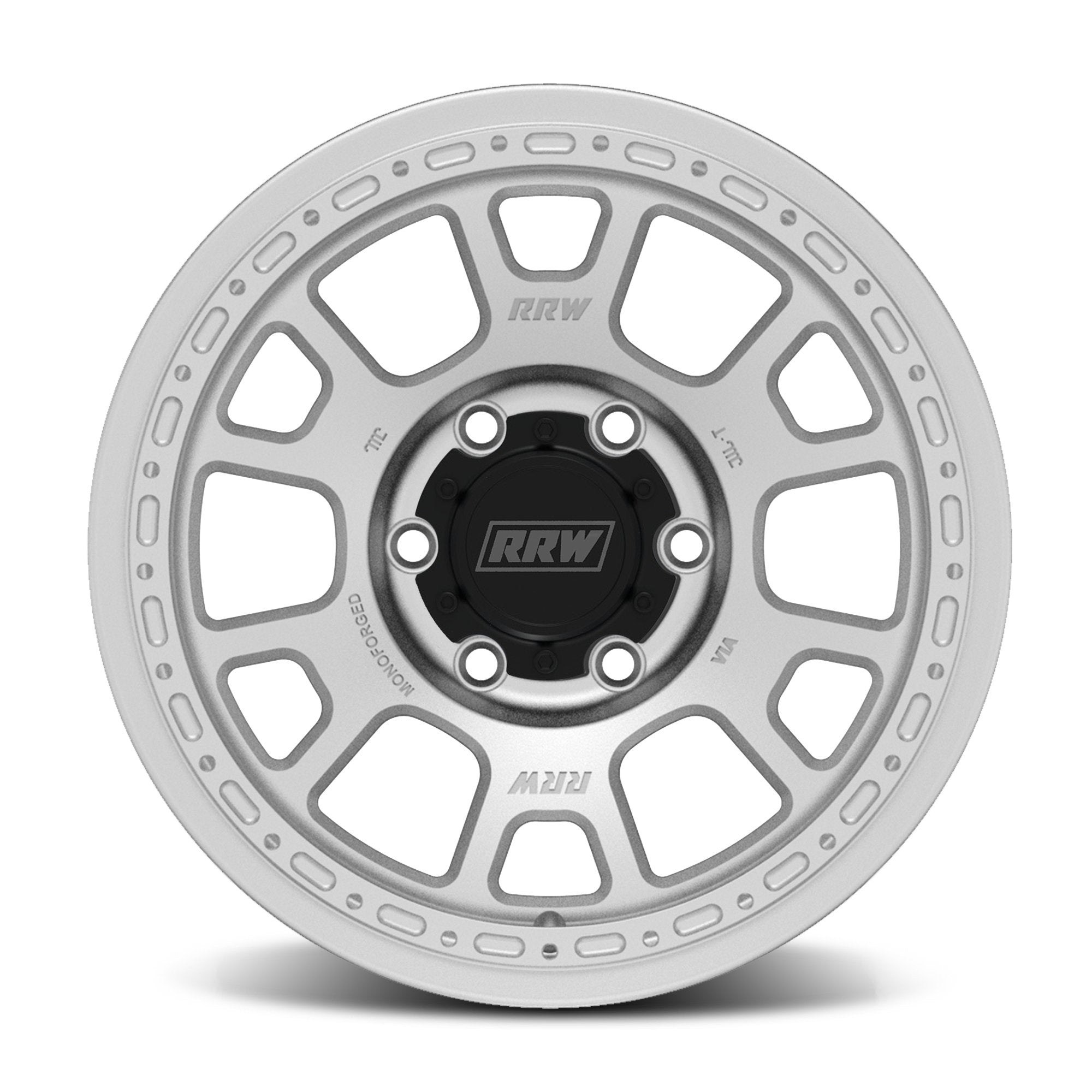

Relations Race Wheels RS5-H Hybrid MonoForged Wheel | Brushed Aluminum

Relations Race Wheels RS5-H Hybrid MonoForged Wheel | Brushed Aluminum

The brushed aluminum RS5-H is currently offered in 18x9 +18 and 17x8.5 -12 configurations with a 6x139.7 bolt pattern. Rated for 2,500 lbs and compatible with TPMS. Includes embossed ABS center caps; conical lug nuts must be purchased separately.

Features and Options

• Finish: Brushed Aluminum.
• Fitment: 4G Tacoma (2024+) / 6G 4Runner (2025+) / 3G Tundra (2022+); 3G Tacoma / 4Runner.
• Size | Bolt Pattern | Offset | Backspacing: 18x9 | 6x139.7 | +18 | 5.71"; 17x8.5 | 6x139.7 | -12 | 4.28".

Specifications, Fitment and Installation Details

Specifications

Size: 17x8 +12, 17x8.5 +25 and -12, 18x9 +18
Bolt Pattern: 6x5.5/6x139.7
Center bore for 6x5.5 +12, +18 +25: 95.2 mm (hub-centric for 24+ Tacoma, 22+ Tundra, 25+ 4Runner, Landcruiser 250)
Center bore for 6x5.5 -12: 106.1 mm (hub-centric for 3G Tacoma, 5G 4Runner)
Load Rating: 2500 lbs
Backspacing: varies
Includes ABS embossed center caps
Compatible with TPMS
Not compatible with OEM lug nuts. Conical lug nuts will need to be purchased to install wheels

Vehicle Fitment

+12, +18, +25: Toyota Tacoma (4G 2024+), Tundra (3G 2022+), 4Runner (6G 2025+), Landcruiser 250
-12: Toyota Tacoma (2023 and older), 5G 4Runner, FJ

Manufactured in a JWL/VIA Certified Facility and tested to meet and exceed OEM specifications
