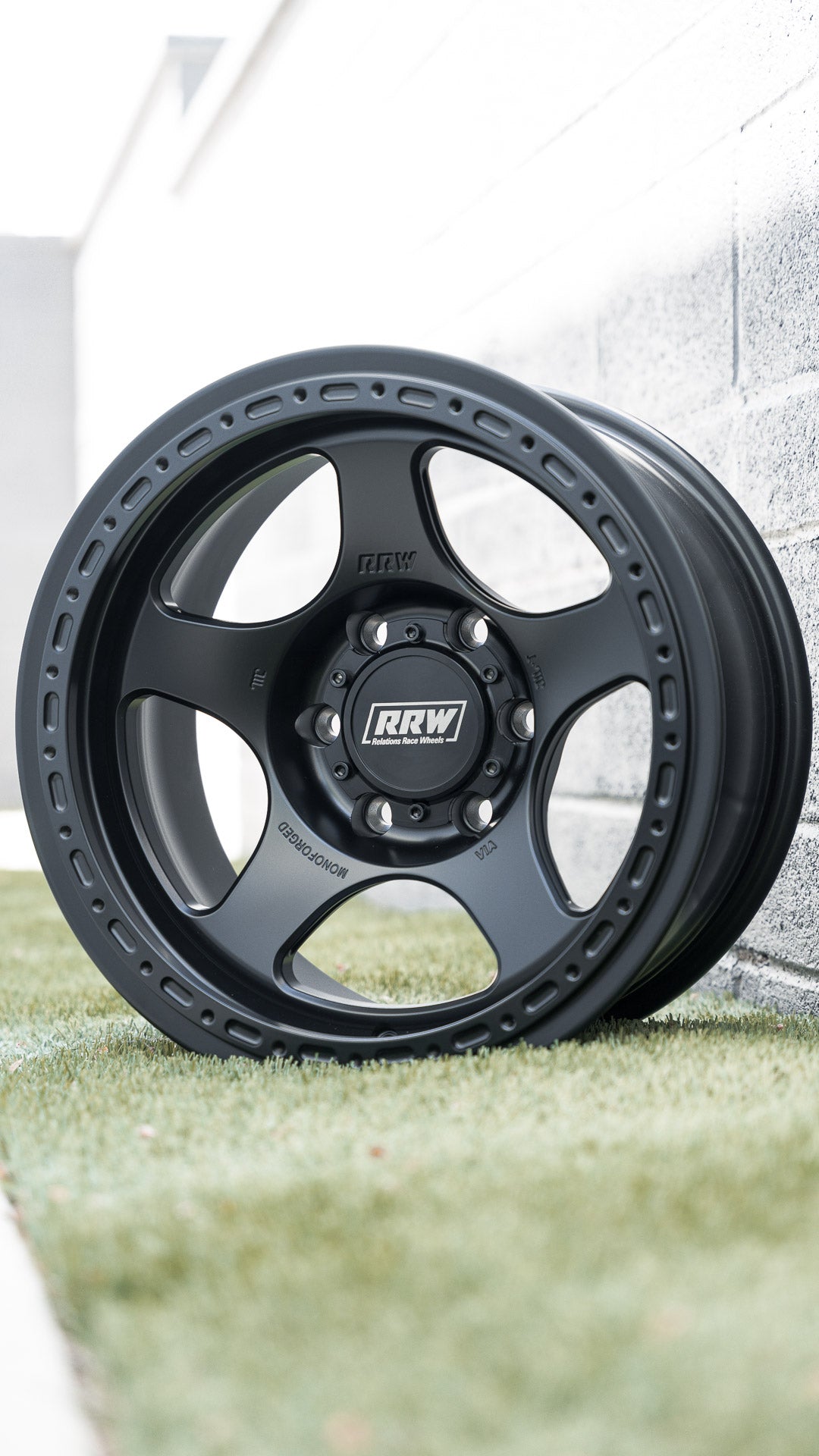

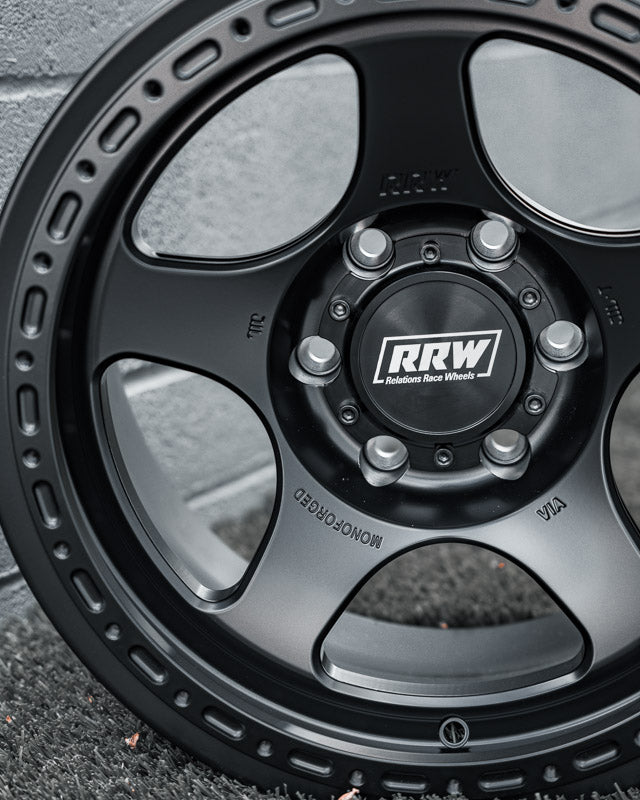

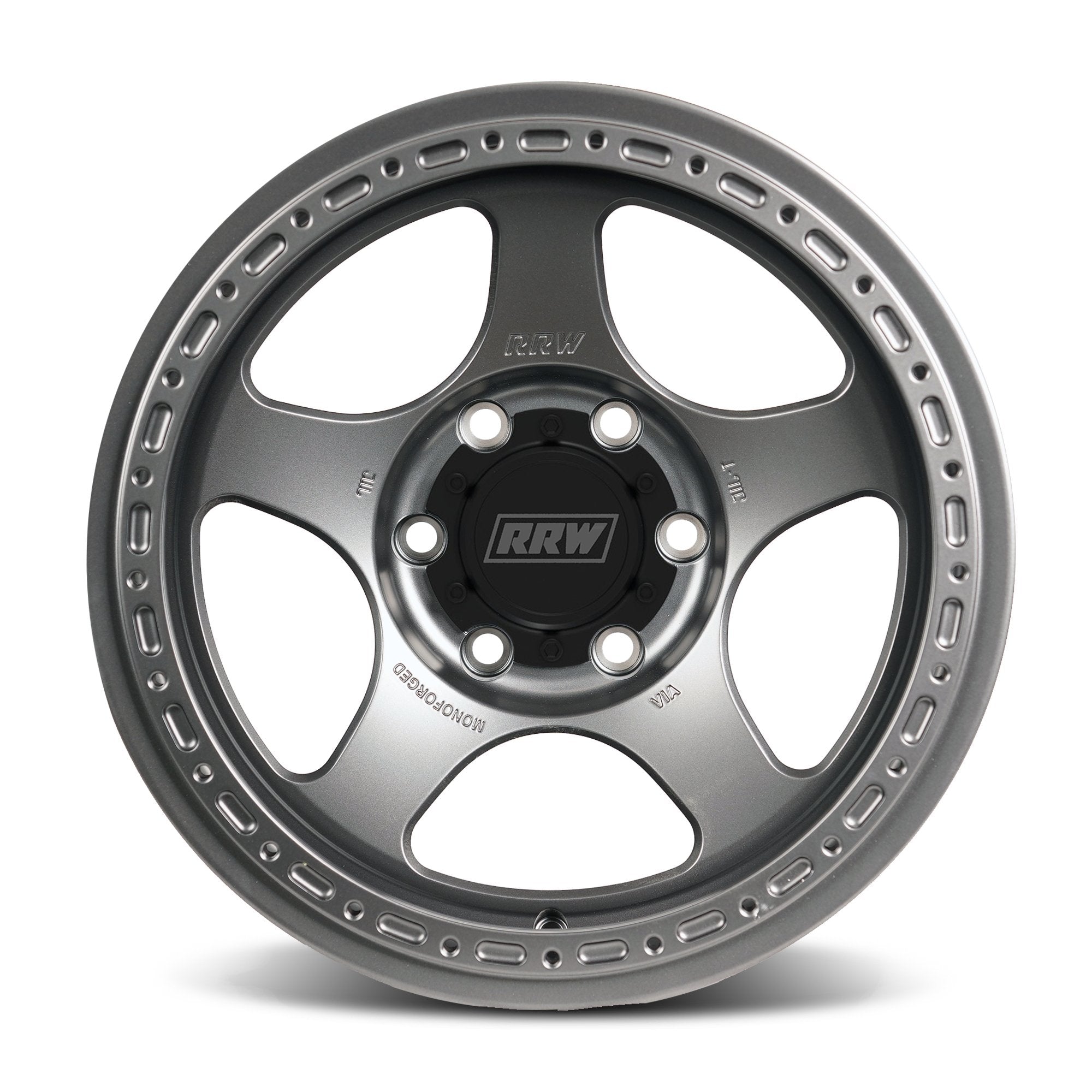

Relations Race Wheels RS4-H Hybrid MonoForged Wheel | Matte Gunmetal

Relations Race Wheels RS4-H Hybrid MonoForged Wheel | Matte Gunmetal

The matte gunmetal RS4-H is offered in 17x8.5 with -12 offset, a 6x139.7 bolt pattern and 106.1 mm center bore. Rated for 2,500 lbs and compatible with TPMS. Includes embossed ABS caps; separately purchased conical lug nuts are required.

Features and Options

• Finish: Matte Gunmetal.
• Fitment: 3G Tacoma / 4Runner.
• Size | Bolt Pattern | Offset | Backspacing: 17x8.5 | 6x139.7 | -12 | 4.28".

Specifications, Fitment and Installation Details

Specifications

Size: 17x8.5
Bolt Pattern: 6x5.5/6x139.7
Center bore: 106.1 mm (hub-centric for Toyota trucks)
Load Rating: 2500 lbs
Weight: 0 is 24.3lbs, -12 is 25.8lbs, -25 is 26lbs
Backspacing: varies
Includes ABS embossed caps
Compatible with TPMS
Not compatible with OEM lug nuts. Conical lug nuts will need to be purchased to install wheels

Vehicle Fitment

6x5.5: Toyota Tacoma (2023 and older), 4Runner, FJ

Tundra compatibility is not confirmed for the listed -12 offset configuration. Confirm application with Relations Race Wheels before ordering.

Manufactured in a JWL/VIA Certified Facility and tested to meet and exceed OEM specifications
