Relations Race Wheels RS2-H Hybrid MonoForged Wheel | Graphite Blue
Relations Race Wheels RS2-H Hybrid MonoForged Wheel | Graphite Blue
Low stock
Fulfilled by Relations Race Wheels

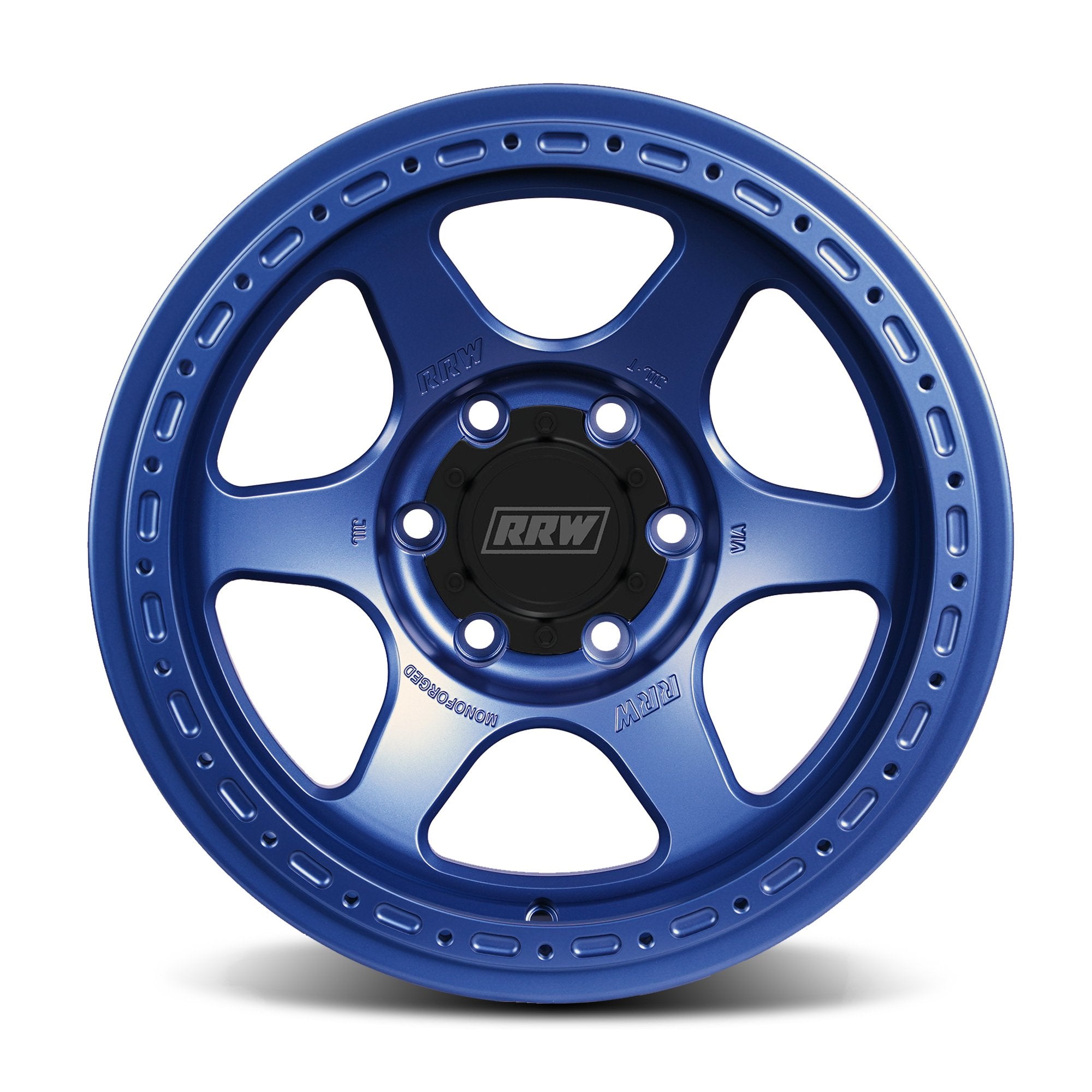

The graphite blue RS2-H is a 17x8.5 hybrid MonoForged wheel with -25 or -38 offset, a 6x139.7 bolt pattern and 106.1 mm center bore. Rated for 2,500 lbs, with an embossed ABS cap and TPMS compatibility. Conical lug nuts are required; OEM lug nuts are not compatible.
Couldn't load pickup availability
Fast US Standard Shipping &
Easy International Shipping
30-Day Returns
TG Pro
Satisfaction Promise
Trail Grid Pro Tested
- Details
Relations Race Wheels RS2-H Hybrid MonoForged Wheel | Graphite Blue
The graphite blue RS2-H is a 17x8.5 hybrid MonoForged wheel with -25 or -38 offset, a 6x139.7 bolt pattern and 106.1 mm center bore. Rated for 2,500 lbs, with an embossed ABS cap and TPMS compatibility. Conical lug nuts are required; OEM lug nuts are not compatible.
Features and Options
- Finish: Graphite Blue.
- Fitment: 3G Tacoma / 4Runner.

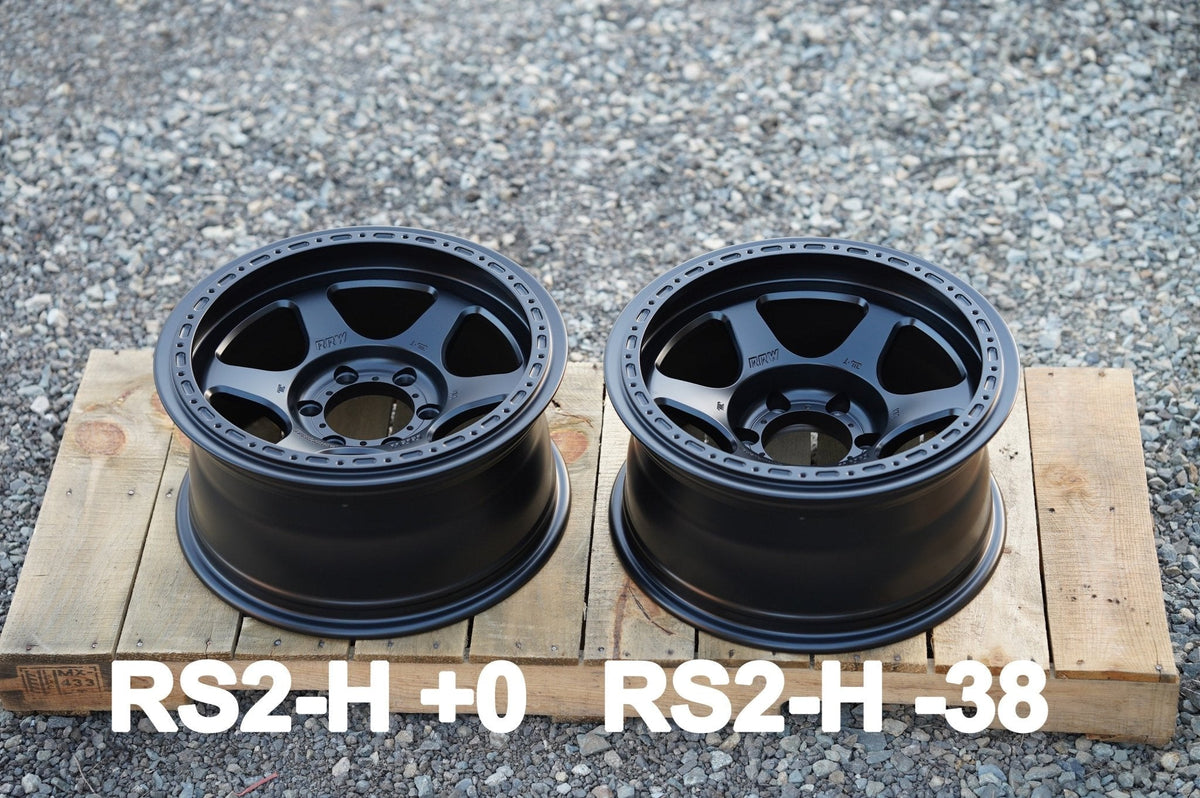

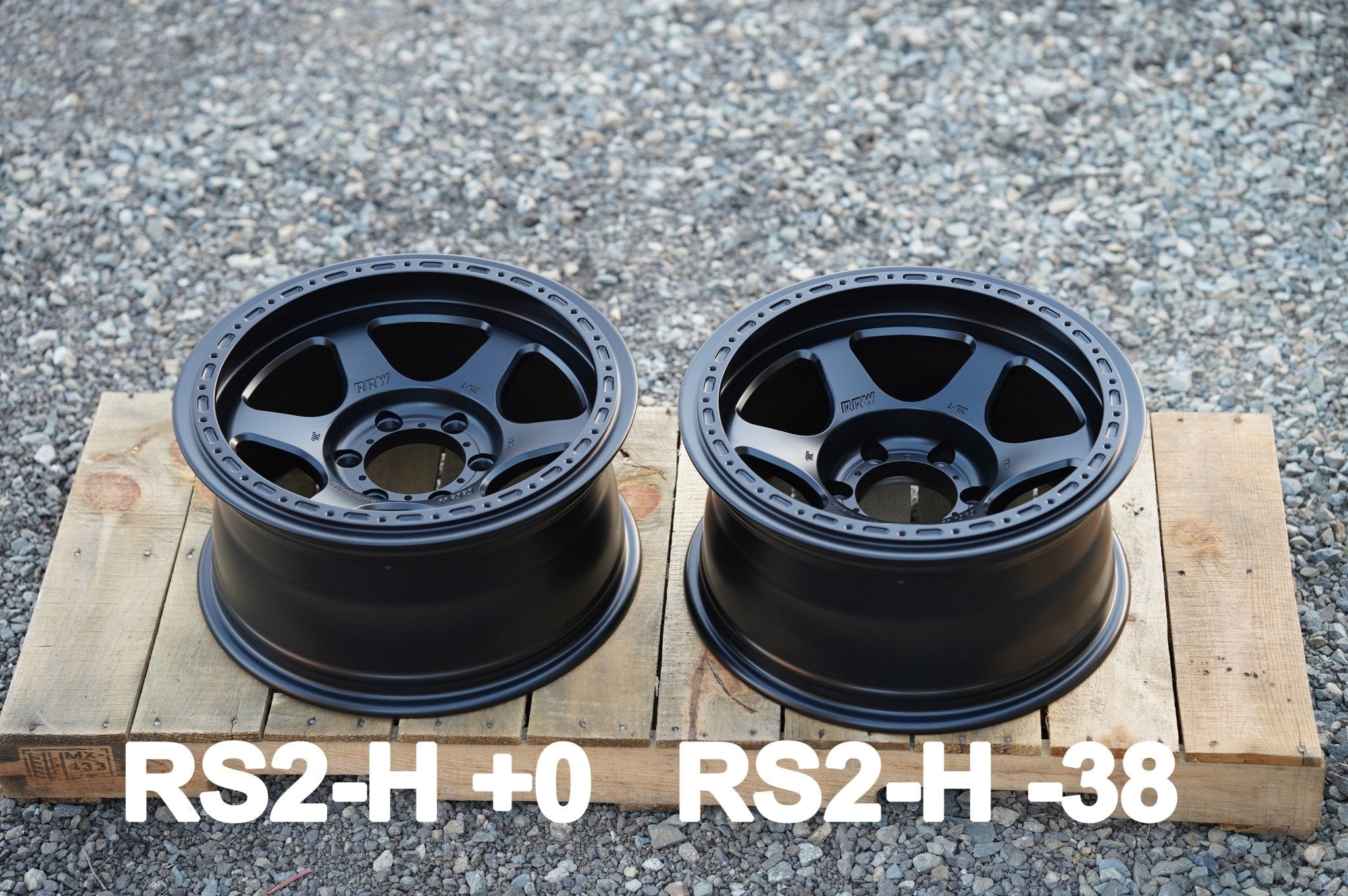

- Size | Bolt Pattern | Offset | Backspacing: 17x8.5 | 6x139.7 | -25 | 3.77"; 17x8.5 | 6x139.7 | -38 | 3.28".
Specifications, Fitment and Installation Details
Specifications
Size: 17x8.5
Bolt Pattern: 6x5.5/6x139.7
Center bore: 106.1 mm (hub-centric for Toyota trucks)
Load Rating: 2500 lbs
Includes embossed ABS cap
Compatible with TPMS
Not compatible with OEM lug nuts. Conical lug nuts will need to be purchased to install wheels
Vehicle Fitment

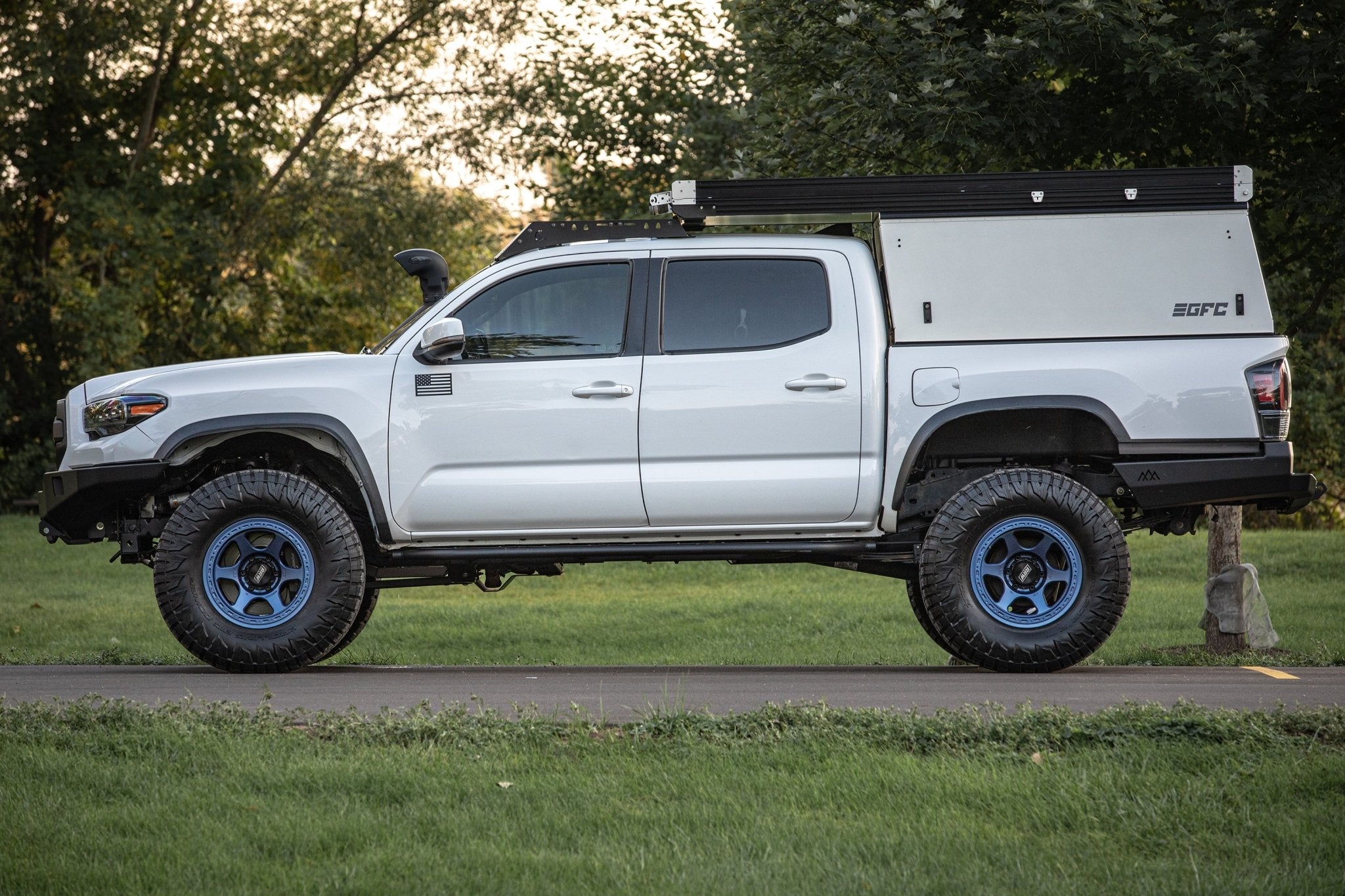

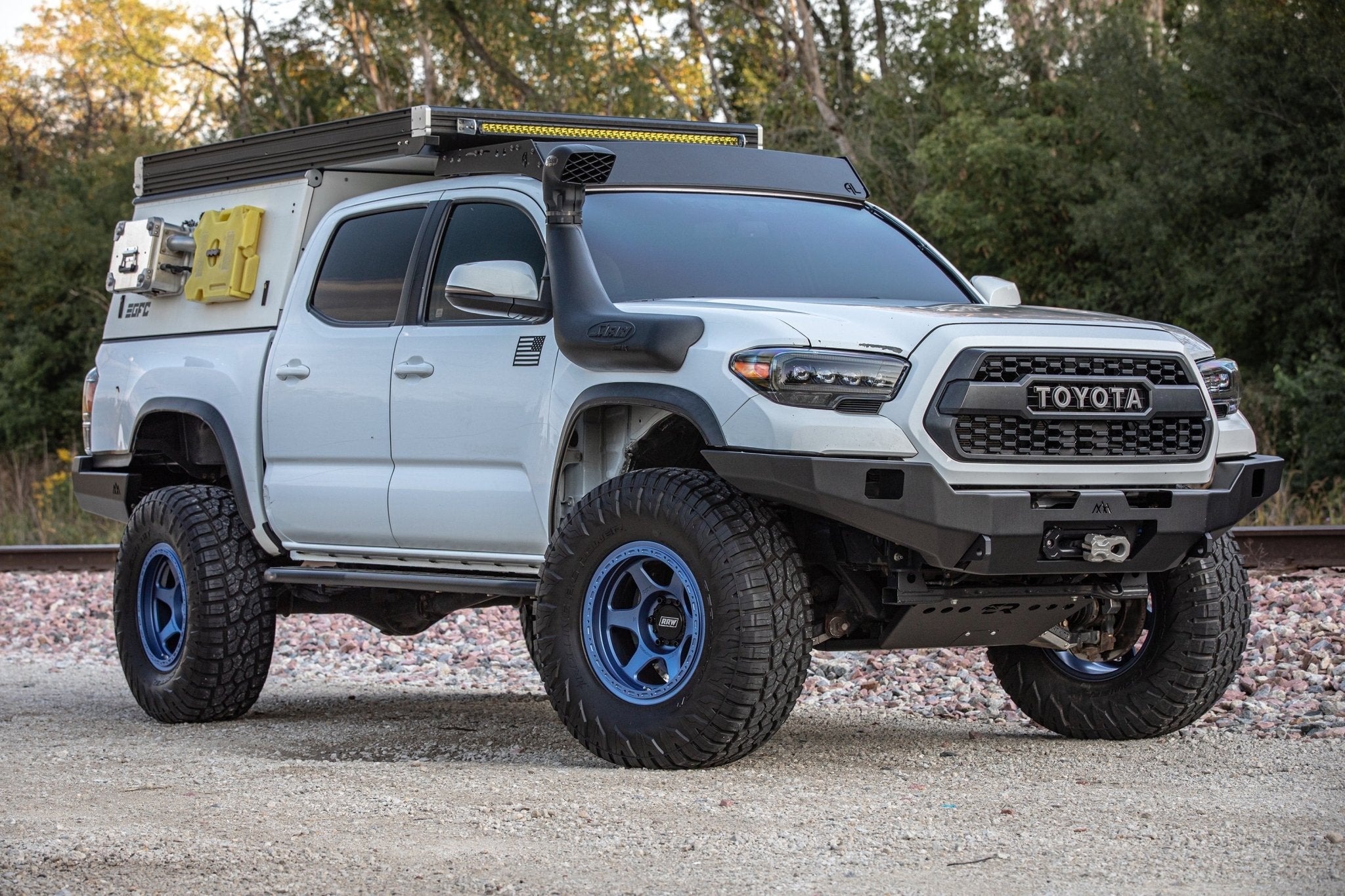

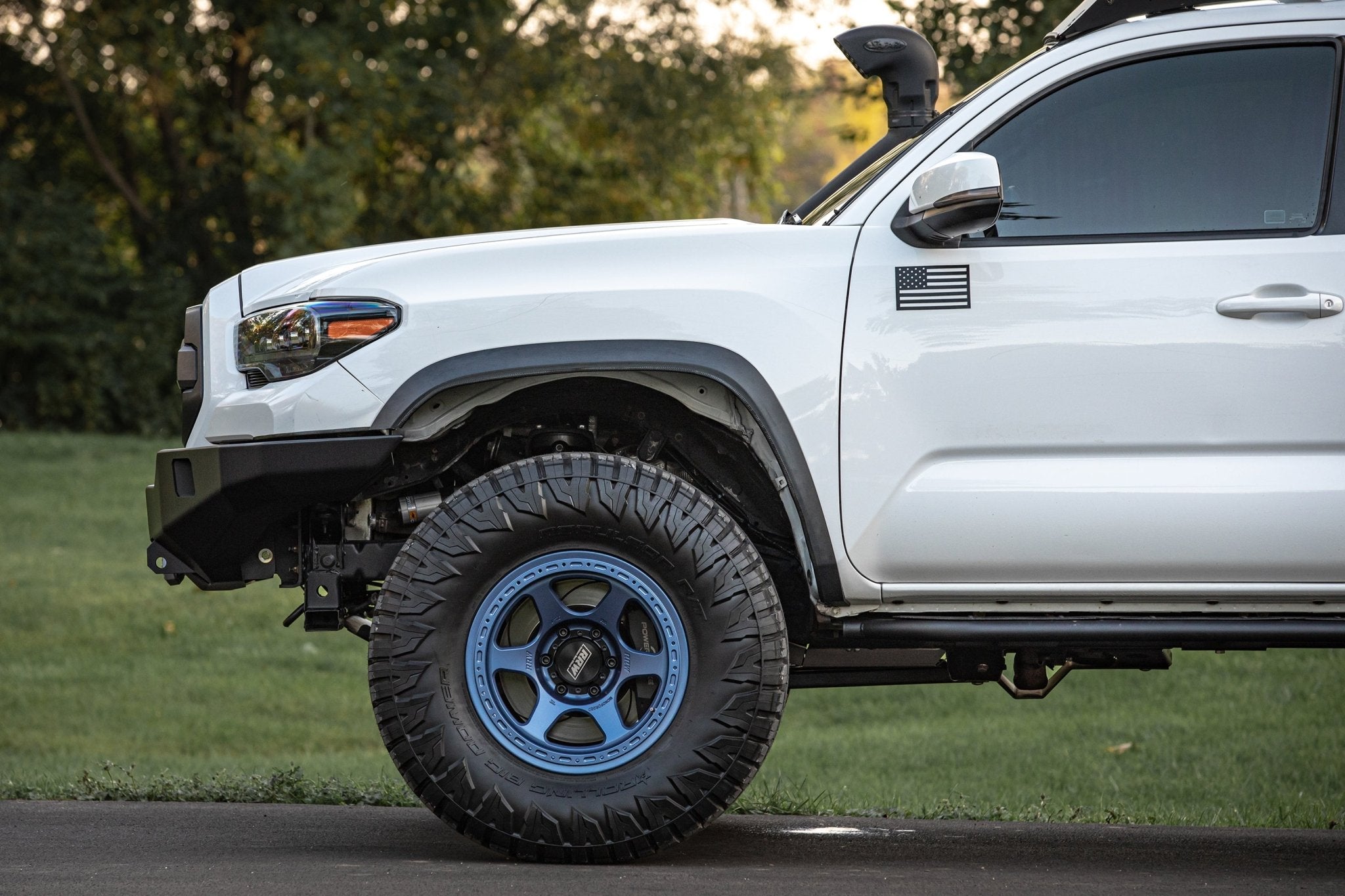

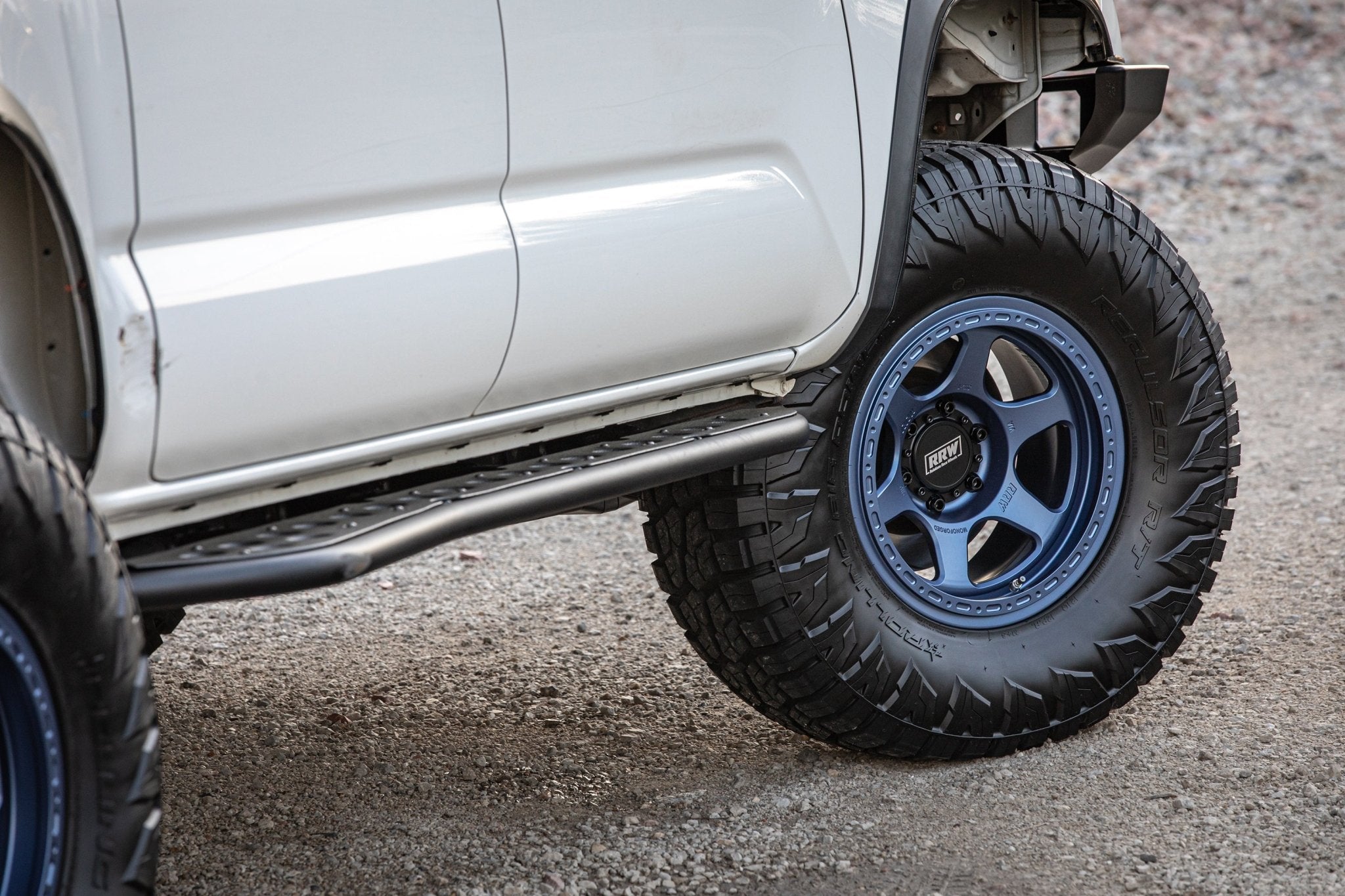

Toyota Tacoma (2023 and older), 4Runner, FJ
Manufactured in a JWL/VIA Certified Facility and tested to meet and exceed OEM specifications
