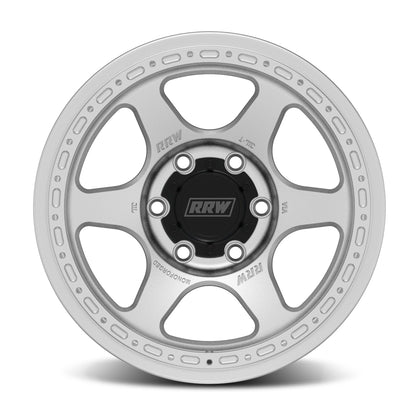

Relations Race Wheels RS2-H Hybrid MonoForged Wheel | Brushed Aluminum

Relations Race Wheels RS2-H Hybrid MonoForged Wheel | Brushed Aluminum

Choose a brushed aluminum RS2-H in 17x8.5 -12 or 18x9 +18 with a 6x139.7 bolt pattern and 2,500-lb load rating. Match center bore and offset to your vehicle. Includes embossed ABS caps and supports TPMS; conical lug nuts are required.

Features and Options

• Finish: Brushed Aluminum.
• Fitment: 3G Tacoma / 4Runner; 4G Tacoma (2024+) / 6G 4Runner (2025+) / 3G Tundra (2022+).
• Size | Bolt Pattern | Offset | Backspacing: 17x8.5 | 6x139.7 | -12 | 4.28"; 18x9 | 6x139.7 | +18 | 5.71".

Specifications, Fitment and Installation Details

Specifications

Size: 17x8.5 +25 and -12, 18x9 +18
Bolt Pattern: 6x5.5/6x139.7
Center bore for 6x5.5 -12: 106.1 mm (hub-centric for Toyota trucks)
Center bore for 6x5.5 +12, +18, +25: 95.2 mm (hub-centric for 24+ Tacoma, 22+ Tundra, 25+ 4Runner, Landcruiser 250,)
Load Rating: 2500 lbs
Backspacing: varies
Includes ABS embossed caps
Compatible with TPMS
Not compatible with OEM lug nuts. Conical lug nuts will need to be purchased to install wheels

Vehicle Fitment

6x5.5 -12: Toyota Tacoma (2023 and older), 5G 4Runner, FJ
6x5.5 +18, +25: Toyota Tacoma (4G 2024+), Tundra (3G 2022+), 4Runner (6G 2025+), Landcruiser 250

Manufactured in a JWL/VIA Certified Facility and tested to meet and exceed OEM specifications
