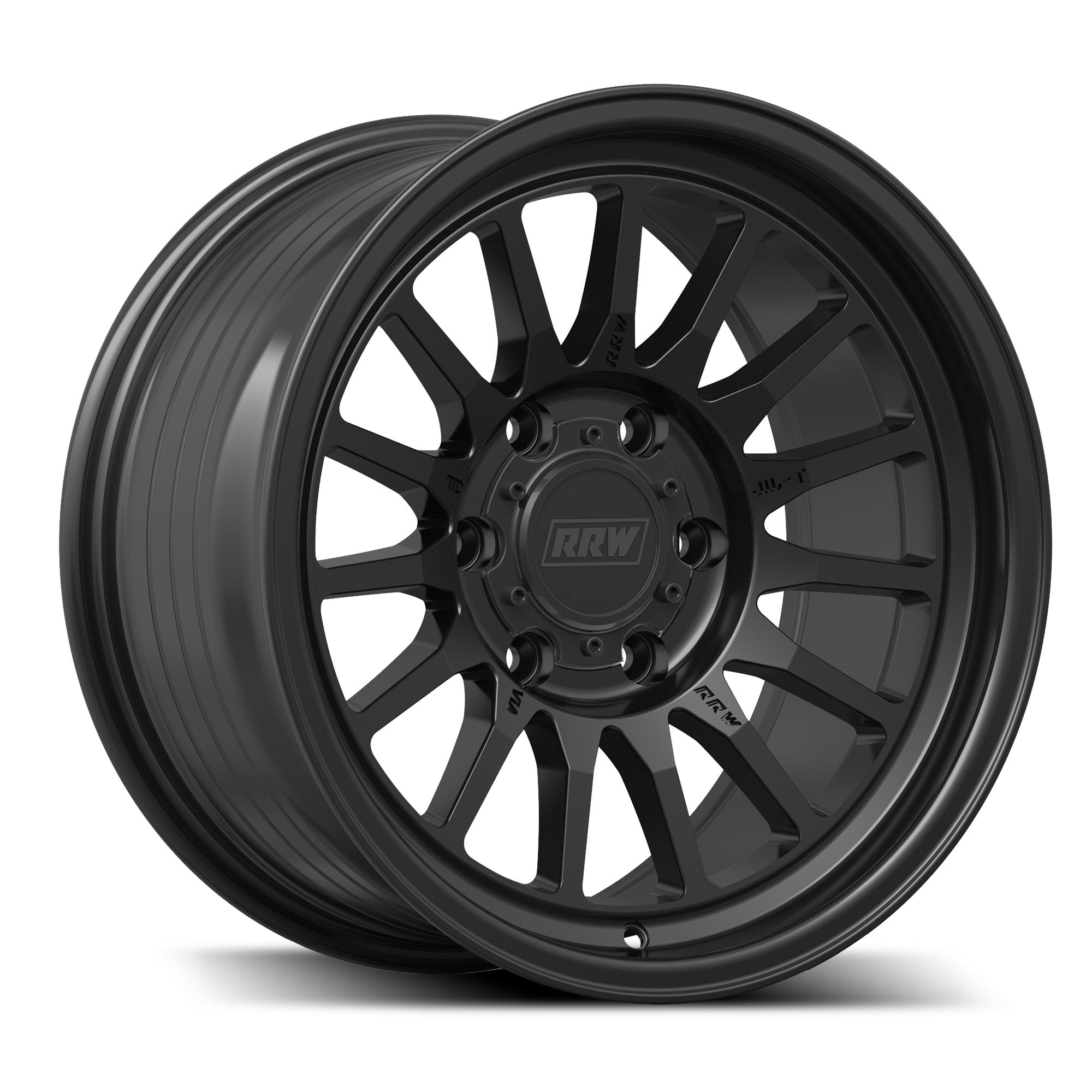

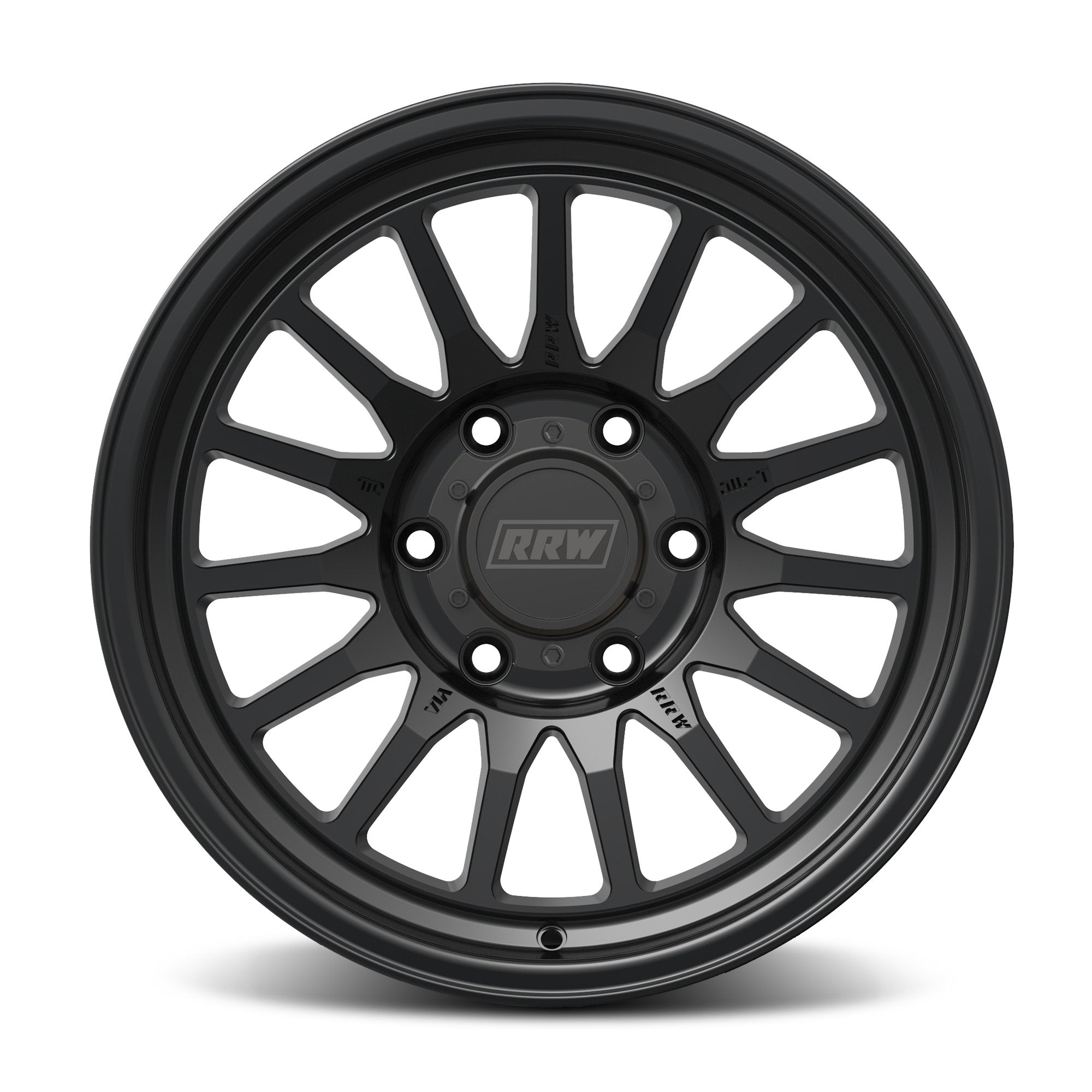

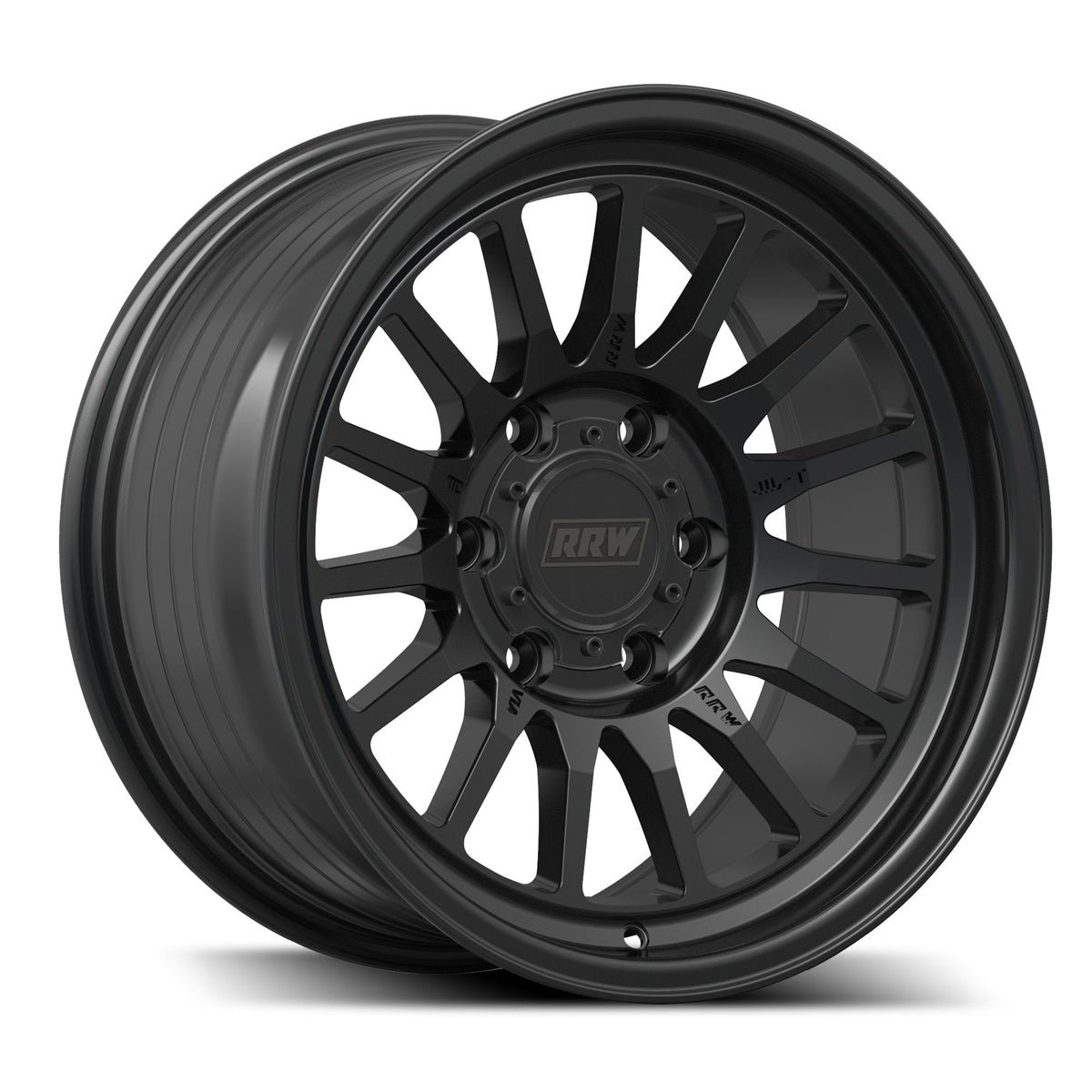

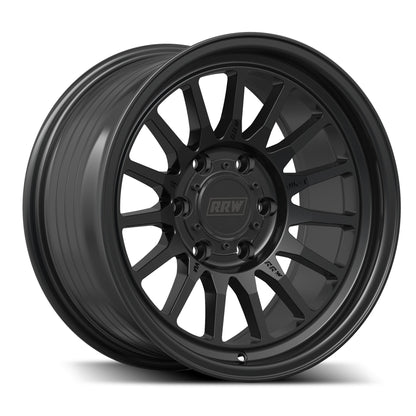

Relations Race Wheels RR7-S 17x8.5 Flow-Formed Wheel | Matte Black

Relations Race Wheels RR7-S 17x8.5 Flow-Formed Wheel | Matte Black

The currently listed matte black RR7-S is a 17x8.5 wheel with a 6x139.7 bolt pattern, +0 offset and 4.75-inch backspacing. Features a 106.1 mm center bore and 2,500-lb load rating. Compatible with TPMS and extended-thread lugs.

Features and Options

• Finish: Matte Black.
• Fitment: 3G Tacoma / 5G 4Runner.
• Size | Bolt Pattern | Offset | Backspacing: 17x8.5 | 6x139.7 | +0 | 4.75".

Specifications, Fitment and Installation Details

Specifications

Size: 17x8.5 -12, +0, +25
Bolt Pattern: 6x5.5 / 6x139.7
Center Bore for +0: 106.1mm (hub-centric for 3G Tacoma, 4Runner)
Center Bore for 6x139.7 +25: 95.1mm (hub-centric for 4g Tacoma, 3G Tundra, 6G 4Runner, Landcruiser 250)
Weight of +25: ~21,8lbs, +0: ~21.5lbs
Load Rating: 2500 lbs
Backspacing: 4.28"
Compatible with TPMS and Extended Thread (ET) Lugs

Vehicle Fitment

+0, -12: 3G Tacoma / 5G 4Runner
+25: 4G Tacoma (2024+) / 6G 4Runner (2025+) / 3G Tundra (2022+)

note: renders are for reference only
