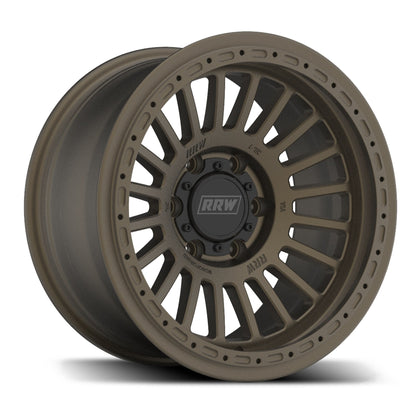

Relations Race Wheels RG6-H Hybrid MonoForged Wheel | Matte Bronze

Relations Race Wheels RG6-H Hybrid MonoForged Wheel | Matte Bronze

Choose the matte bronze RG6-H configuration that matches your vehicle. Available options include 17x8 +18 and 17x8.5 +25, -12 or -25, all with a 6x139.7 bolt pattern. Rated for 2,500 lbs; includes embossed ABS caps and supports TPMS. Conical lug nuts are required.

Features and Options

• Finish: Matte Bronze.
• Fitment: 4G Tacoma (2024+) / 6G 4Runner (2025+) / 3G Tundra (2022+); 3G Tacoma / 4Runner.
• Size | Bolt Pattern | Offset | Backspacing: 17x8 | 6x139.7 | +18 | 5.21"; 17x8.5 | 6x139.7 | +25 | 5.73"; 17x8.5 | 6x139.7 | -12 | 4.28"; 17x8.5 | 6x5.5 | -25 | 3.77".

Specifications, Fitment and Installation Details

Specifications

Size: 17x8 +18,  17x8.5 +25, -12 and -25, 18x8.5 +25
Bolt Pattern: 6x5.5/6x139.7
Center bore for -12 and -25: 106.1 mm (hub-centric for 3G Tacoma, 4Runner, FJ)
Center bore for +18 and +25: 95.3 mm (hub-centric for 24+ Tacoma, 22+ Tundra, 25+ 4Runner, Landcruiser 250)
Load Rating: 2500 lbs
Includes embossed ABS caps
Compatible with TPMS
Not compatible with OEM lug nuts. Conical lug nuts will need to be purchased to install wheels

Vehicle Fitment

6x5.5 -12 and -25: Toyota Tacoma (3G), 4Runner
6x5.5 +18 and +25: Toyota Tacoma (4G 2024+), Tundra (3G 2022+), 4Runner (6G 2025+), Landcruiser 250

Manufactured in a JWL/VIA Certified Facility and tested to meet and exceed OEM specifications
