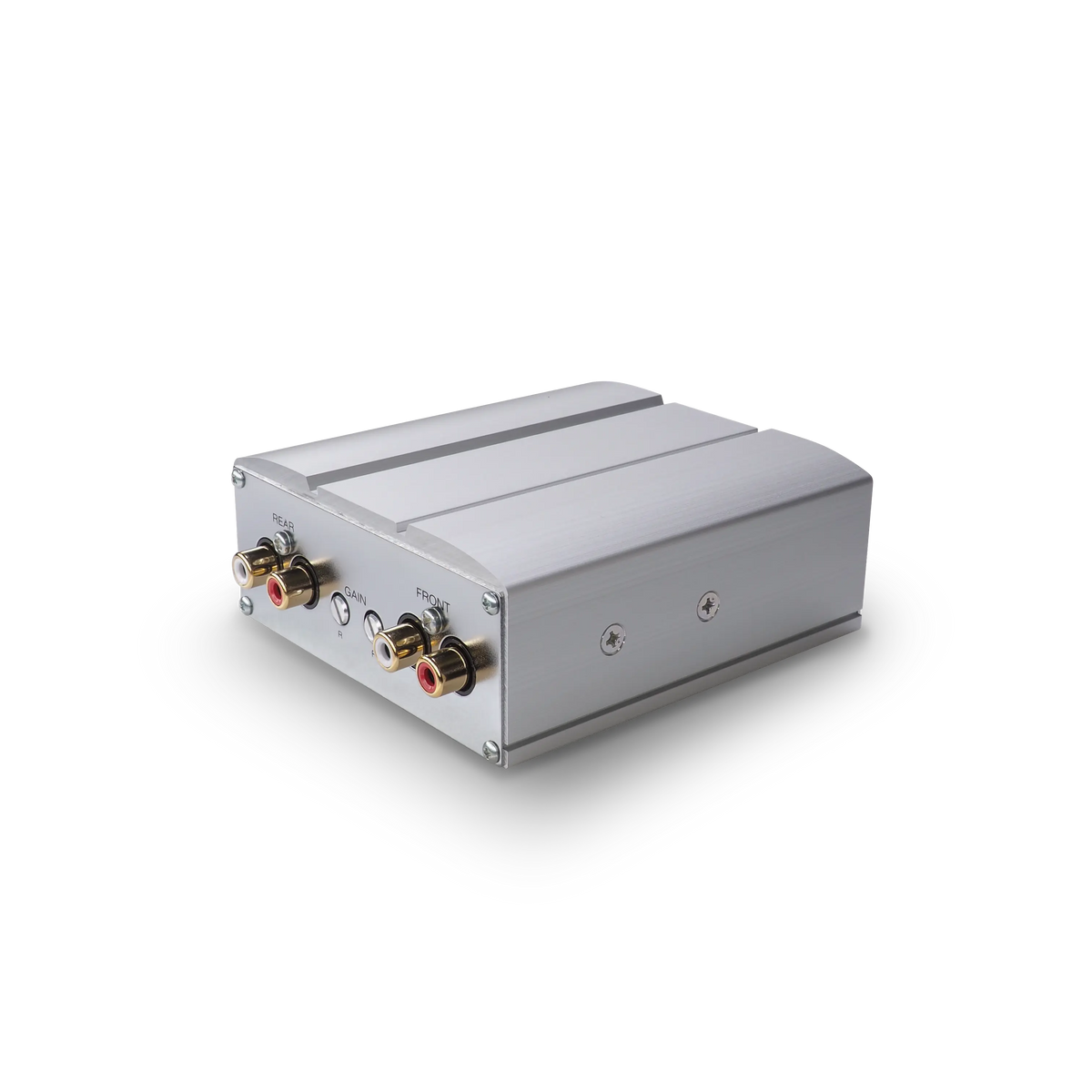

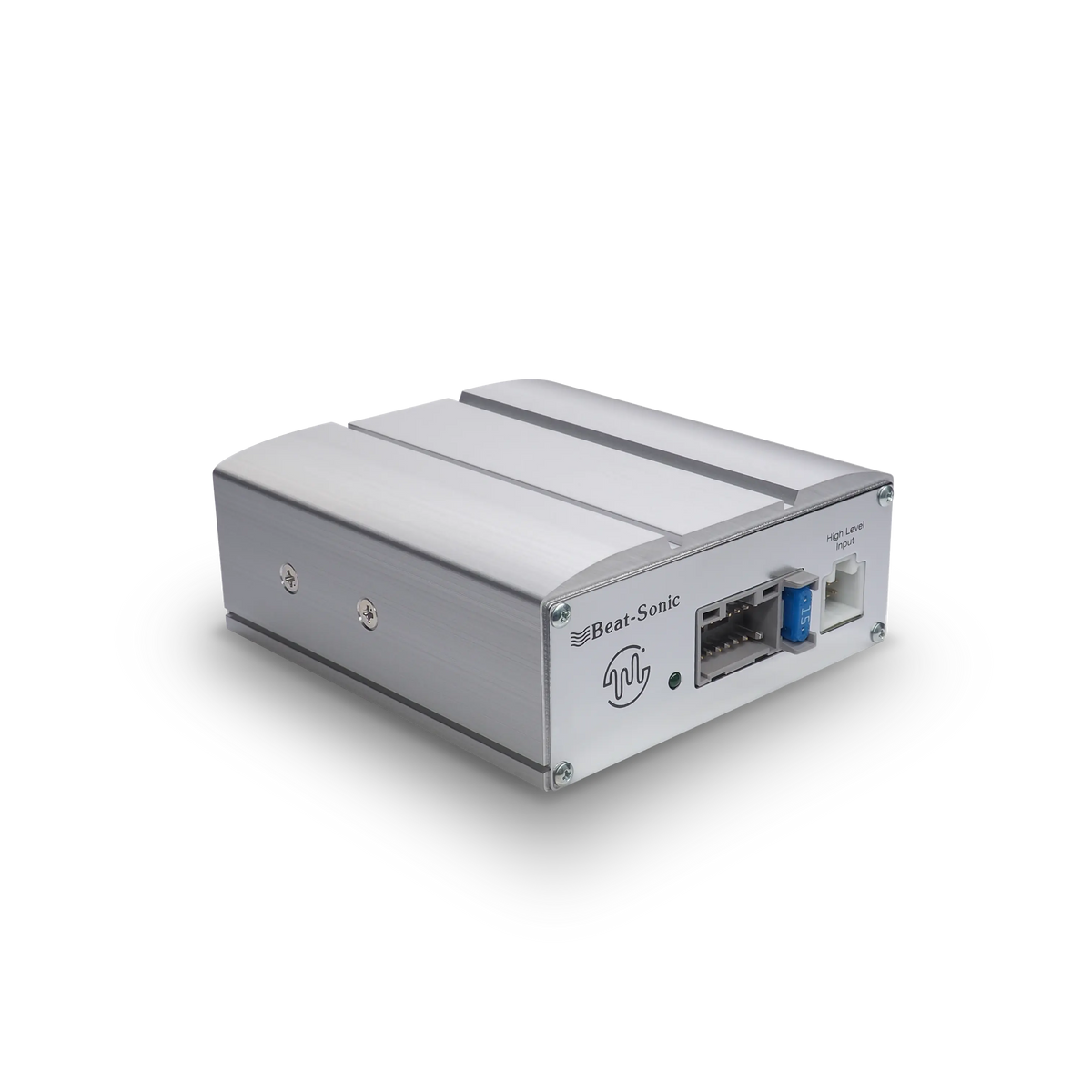

Beat-Sonic ENA-2T1 Plug & Play Encore Alpha Power Amplifier Kit | Select 1987-2021 Toyota/Lexus

Beat-Sonic ENA-2T1 Plug & Play Encore Alpha Power Amplifier Kit | Select Toyota, Lexus, Scion & Subaru

Upgrade your factory audio system with the Beat-Sonic ENA-2T1 Encore Alpha Micro Power Amplifier Kit, a plug-and-play solution designed to deliver improved sound clarity, stronger bass, and more powerful audio without replacing your factory stereo.

Whether you're looking for clearer vocals, more detailed music, or additional punch from your speakers, the ENA-2T1 enhances your listening experience while retaining your factory head unit and speakers. Its compact design and vehicle-specific wiring connections make installation straightforward, with no cutting, splicing, or permanent modifications to the factory wiring harness.

Improved Sound Quality Without Replacing Your Factory Stereo

The Beat-Sonic ENA-2T1 is designed to bring new life to your existing factory audio system. Delivering up to 45 watts across four channels, this compact amplifier provides additional power to help improve sound reproduction throughout the low, mid, and high frequencies.

Experience more detailed vocals, improved instrument separation, and fuller sound without the expense or complexity of replacing your factory stereo system.

High-Quality Audio Components

The ENA-2T1 uses carefully selected internal components to deliver clean, detailed audio reproduction.

High-quality electrolytic capacitors, low-impedance capacitors, and 70μm copper circuitry help support consistent audio performance across a wide frequency range.

A high-quality FET operational amplifier in the input stage helps reproduce subtle musical details, from vocals to instruments, with greater clarity and precision.

Plug-and-Play Installation

Designed for compatible factory audio systems, the ENA-2T1 connects using vehicle-specific wiring connections without requiring modifications to the factory harness.

Its ultra-compact design provides flexibility when choosing an installation location, making it easier to integrate into your existing stereo system.

Features

• Plug-and-play amplifier upgrade for compatible factory audio systems


• Maximum power output of 45W x 4 channels at 4Ω


• Improves sound clarity, detail, and overall audio output


• Enhances low, mid, and high-frequency reproduction


• Retains the factory head unit and speakers


• No cutting or splicing of the factory wiring harness required


• Compact design for flexible installation


• High-quality FET operational amplifier


• Premium electrolytic and low-impedance capacitors


• 70μm copper circuitry for improved audio performance


• Supports speaker-level and RCA audio inputs


• Wide frequency response of 15Hz–80kHz


• Compatible with 4–8Ω speaker loads


• Designed for select Toyota, Lexus, Scion, and Subaru vehicles



Vehicle Compatibility

Lexus

• 2016–2018 ES 300h / ES 350 (without factory navigation)


• 2016–2023 GX 460 (without factory navigation)


• 2014–2020 IS 200t / 250 / 300 / 350 (without factory navigation)


• 2015–2017 NX 200t / 300 (without factory navigation)


• 2015–2017 RC 200t / 300 / 350 (without factory navigation)


• 2016–2021 RX 350 / 450h (without factory navigation)



Toyota

• 2017–2020 Toyota 86


• 2014–2019 4Runner


• 2015–2018 Avalon


• 2014–2017 Camry


• 2014–2019 Corolla


• 2014–2019 Highlander


• 2015–2019 Prius


• 2015–2019 Prius c


• 2016–2017 Prius v


• 2013–2018 RAV4


• 2014–2019 Sequoia


• 2015–2017 Sienna


• 2014–2019 Tacoma


• 2014–2019 Tundra


• 2004–2023 Yaris



Scion

• 2013–2016 FR-S


• Additional compatible Scion models equipped with supported factory 10-pin/6-pin radio connectors



Subaru

• 2013–2021 BRZ


• 2013–2020 Forester


• 2015–2023 Impreza


• 2015–2017 Legacy


• 2015–2019 Outback


• 2013–2021 WRX



Additional Compatibility: Select 1987–2019 Toyota and Scion vehicles equipped with compatible factory 10-pin/6-pin radio connectors.

Technical Specifications

Amplifier Performance

• Maximum Power Output: 45W x 4 channels (4Ω)


• Compatible Speaker Impedance: 4–8Ω


• Input Sensitivity: 0.5–5V


• Frequency Response: 15Hz–80kHz (+0, -1dB)


• Total Harmonic Distortion: 0.01% (1kHz / 4Ω)



Audio Connections

• RCA auxiliary-level audio input


• Speaker-level input with high-level signal support



Power Requirements

• Power Supply: 12V DC, negative ground


• Operating Voltage: 11–15V DC


• Current Consumption: 0.2A (no signal)


• Fuse Rating: 15A



Dimensions & Weight

• Dimensions: 96mm (W) x 40mm (D) x 113.5mm (H)


• Weight: 420g (main amplifier only)



Important Compatibility Information

For non-JBL factory audio systems: If upgrading to aftermarket speakers, maintain a 4Ω speaker impedance as recommended for proper system compatibility.

Vehicle compatibility depends on the factory audio configuration, radio connections, and available wiring interfaces. Some Lexus applications specifically require vehicles without factory navigation.

Verify your vehicle's year, model, and factory audio system before ordering to ensure the ENA-2T1 is compatible with your setup.

Upgrade Your Factory Audio Without Replacing Everything

The Beat-Sonic ENA-2T1 Encore Alpha Power Amplifier Kit is an excellent solution for drivers who want better sound from their factory stereo without a complete audio system overhaul. With additional amplifier power, premium audio components, and convenient plug-and-play integration, it's a straightforward way to enjoy clearer, fuller, and more detailed music every time you drive.
