Morimoto XB EVO Headlights | '16 - '23 Tacoma

Morimoto XB Evo Installation

Discover the groundbreaking features of Morimoto's latest XB Evo Headlights for your 2016 - 2023 Toyota Tacoma! From advanced Bi-LED projectors to the innovative frost-free system, these headlights are designed to outperform and outlast.

Evolutionary: A simple design refresh would have been easy, but that’s not what this is all about. The all-new XB Evo headlights are a showcase of everything Morimoto is made of. From concept to completion. Packed with features that demonstrate a true attention to detail including the latest in technology, compliance, quality, and styling, these headlights are designed for enthusiasts who are serious about all the above, even if it comes at a premium.

Maximum Performance: Thanks to an all-new generation of Morimoto Bi-LED projectors, the XB Evo headlights will meet & exceed the highest standards for headlight performance that are set by the Insurance Institute for Highway Safety… which is a tough mark even for most modern luxury automakers. Here, the Tacoma Evo headlight utilizes dual Bi-LED projectors to deliver unmatched light output, with an incredibly bright and wide low beam, and a high beam that destroys darkness. In high beam mode, dedicated D-Optics add even more intensity and coverage. All optics are powered by the latest OE-grade automotive LEDs from Nichia in Japan.

On Road: The Morimoto XB Evo Headlights are DOT compliant with all FVMSS108 regulations for on-road use in the USA. Their projector optics are so capable and efficient that their LEDs are only driven at about 50% of their full potential intensity to avoid exceeding limitations set by compliance. The vertical aim is fully adjustable within +/- 6 degrees for a perfect alignment on any Tacoma, even with a lift. The system was designed in California by Morimoto’s lead optical engineer, Yoshi Ishida, to deliver maximum visibility, comfort, and safety, and that it does.

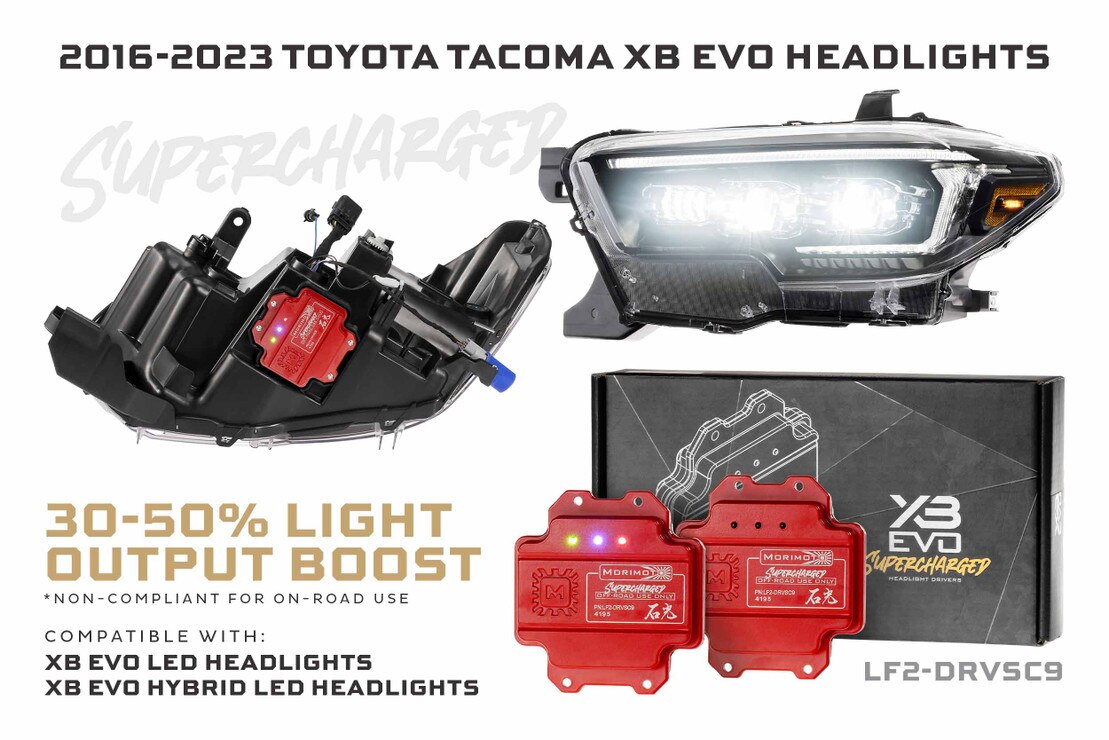

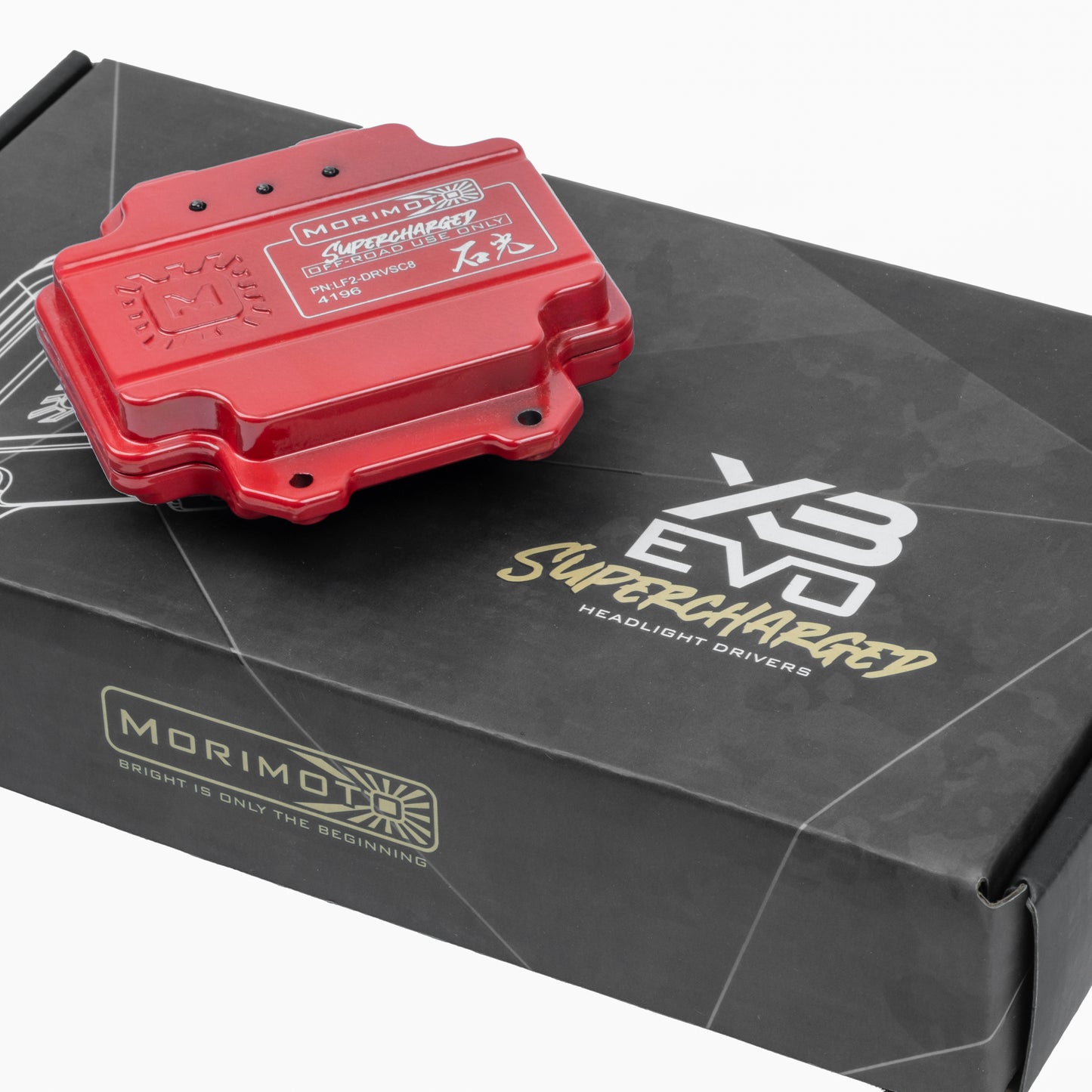

Off Road: Yes, you read that correctly. Out of the box, the XB Evos are only producing a fraction of their potential intensity for compliance reasons. Want more light for your off-road adventures? The optional Supercharged LED driver boosts both low and high beam intensity by approximately 30% - all without sacrificing reliability or warranty. While the Supercharger system easily enables the XB Evo to outshine every other headlight for the Tacoma on the market, we must reiterate that they will result in non-compliant levels of peak beam intensity, and therefore should not be used on public roads.

Frost-Free System: Our patent-pending heating system warms the surface temperature of the headlight lens to minimize frost buildup when driving through wet and snowy conditions in the wintertime. When the temperature drops below 5 degrees Celsius, the system is enabled to operate on your command by flashing the high beams four times. From there, it will automatically maintain temps within the headlight housing to mitigate frost buildup on the lens. A cold-climate game changer; this feature ensures the output of your XB Evo headlights will remain strong when you need it most.

DRL Optics: The turn signals and daytime running lights illuminate glass-like TIR-optics with special surface textures, which enables maximum intensity from all viewing angles. Easily out-shining low-tech optics found in most every other aftermarket headlight, they also provide a one-off look with the bespoke topographic pattern etched into the sidewall.

Easy to Personalize: The signal swap system allows users to personalize how the daytime running lights and turn signals operate according to personal preference, all through a simple plug n play key on the back of each headlight. The daytime running light can be configured to run full-time in either white or amber with no compromise in intensity either way. The turn signals can operate sequentially from side to side, or in a more traditional on-off mode with an elegant fade-off effect.

Start-up Sequence: When starting your Tacoma, the optics will automatically illuminate in a multi-stage sequence before turning back off. Unlike every other feature baked into the XB Evo headlights, this does absolutely nothing to improve performance. But executed properly, it does look cool, and there’s nothing wrong with that!

OE Fit & Installation: The XB Evo headlights are expertly crafted to match all OE specifications to ensure perfect fitment and hassle-free install. They will bolt onto the original mounting points and line up to the surrounding sheet-metal without any massaging, and then plug into the factory wire harness and then work without errors on the dash, flickering, flashing, or radio interference. Thoughtfully engineered for a modification-free install. No factory warranties void. No headaches.

Well-Built: This product is completely designed, engineered & tested in the USA by the Morimoto team to meet the high expectations of our customers. Nichia LEDs from Japan are used throughout. All wiring and connections are OE-grade. When it comes to UV protection, OE Toyota headlights are industry-best, which is why we’ve formulated a new hard coating that exceeds their standard for resistance against cracking, fading, and yellowing lenses from UV exposure. The list goes on but as the saying goes: you pay for what you get. XB Evo headlights aren’t cheap, but they are built to a high standard and should easily last the life of your Tacoma! We’re proud to stand behind the product with an industry-leading five-year warranty. If something fails prematurely, we have you covered.

Tech Specs:

• Traffic Pattern: LHD / Right Hand Traffic Only
• Output (Standard Drivers): DOT (FVMSS108) Compliant (LB2V and UB2)
• Output (Supercharged Drivers LF2-DRVSC8): Non-Compliant
• Main Optics: 2x Type 1 Ishida Optic Bi-LED (1x Nichia NC4W193F @ 750mA)
• High Beam Assist: 1x Type D Ishida Optic HB (4x Nichia NCSW131G @ 750mA)
• Functions: Low, High, Park, Turn, DRL, Welcome, and Lens Heating
• Turn Signal Modes: Sequential or Fade Off (Integrated)
• DRL Colors: White or Amber (Integrated)
• DRL/Signal Optics: Glass-like 3D TIR Optics with Topography sidewall pattern
• Frost-Free System: Logic Controlled 50W Ceramic w/ circulation fans

What's Included:

• Headlights: 2x (One Pair) 16-23 Toyota Tacoma XB Evo
• Headlight Adapters: 2x Halogen Adapters, 2x LED Adapters
• Wiring: 1x DRL Harness, 1x DRL Harness Extension, 1x Fuse Tap, 2x Magnet Mount Resistors
• Warranty: Five (5) Years

Compatibility:

• Toyota Tacoma: 2016-2023 (All)
• Compliance: Meets all DOT, SAE and FMVSS108 Standards
• Boost Drivers: Compatible with Supercharged Drivers model: LF2-DRVSC8
• NOTE: These headlights were developed for compatibility with North American vehicles. Morimoto does not guarantee compatibility on trucks outside of North America

Learn More:

• Comparison: XB EVO vs. XB EVO Hybrid
• Morimoto In-house Design
• Frost Free Heating System
• Advanced Optics

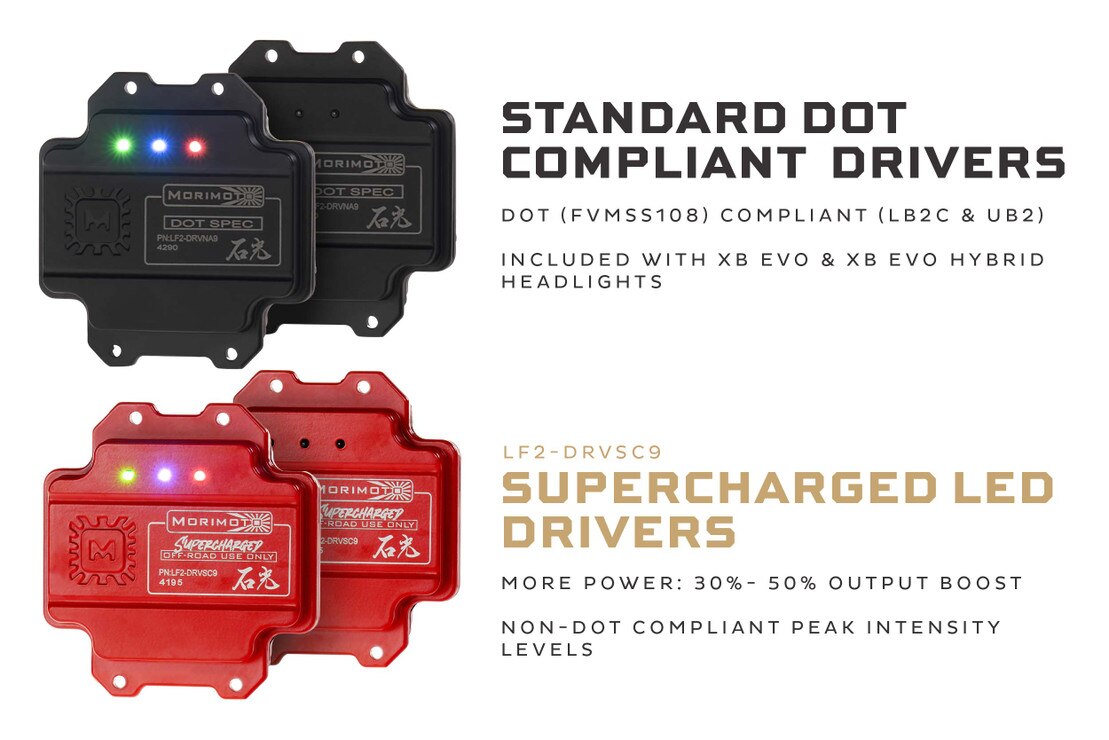

• Standard & Supercharged LED Drivers
• Daytime Running Lights & Turn Signals
