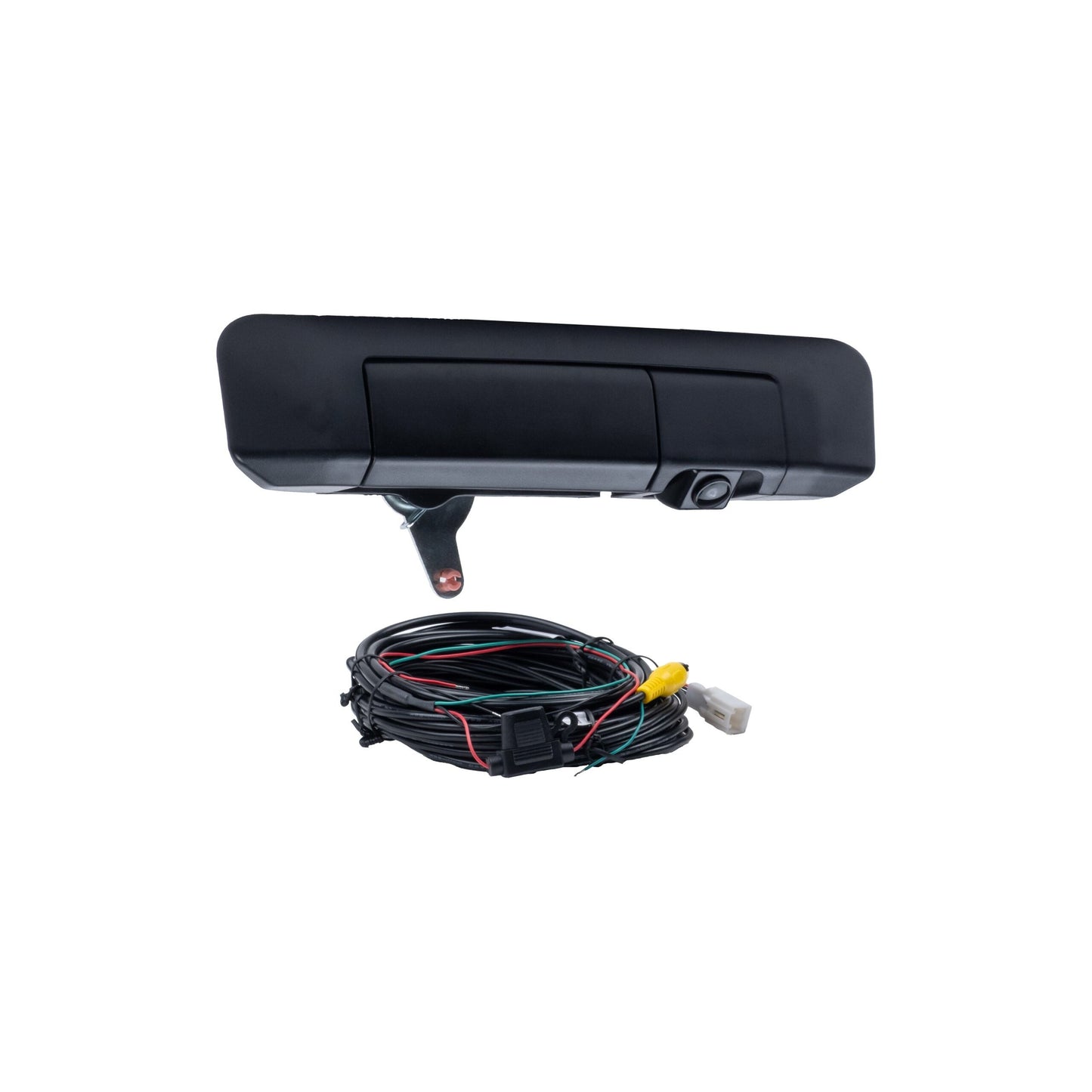

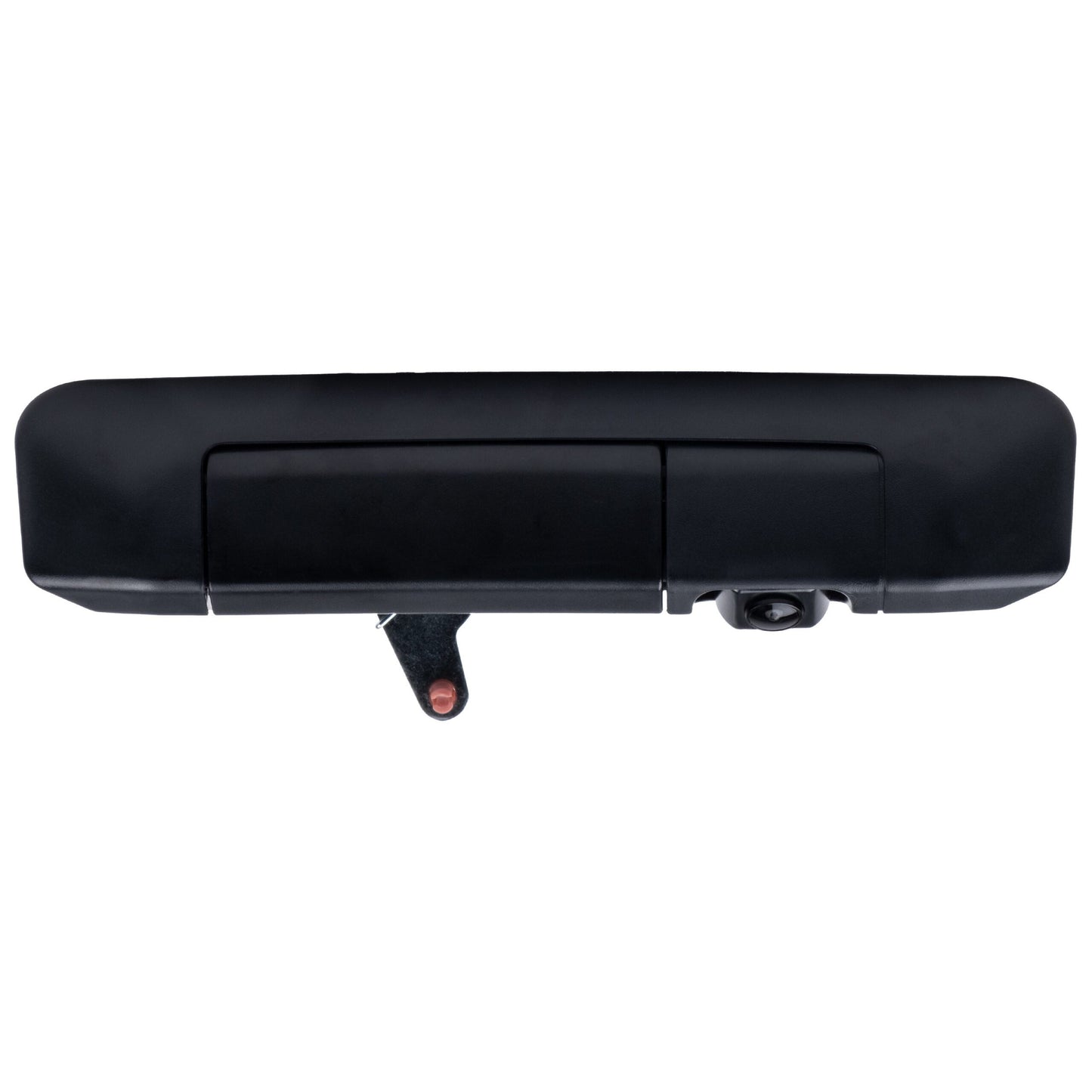

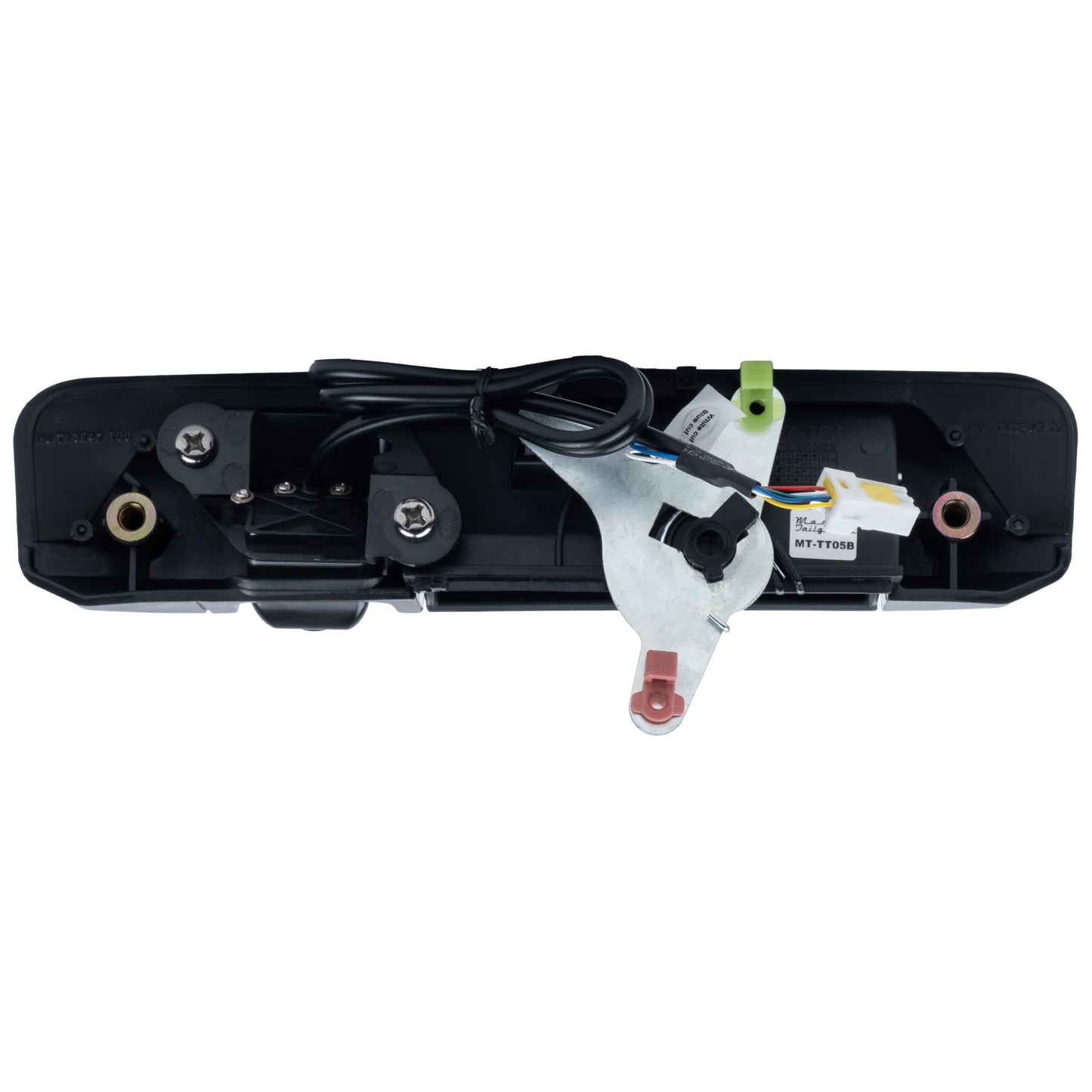

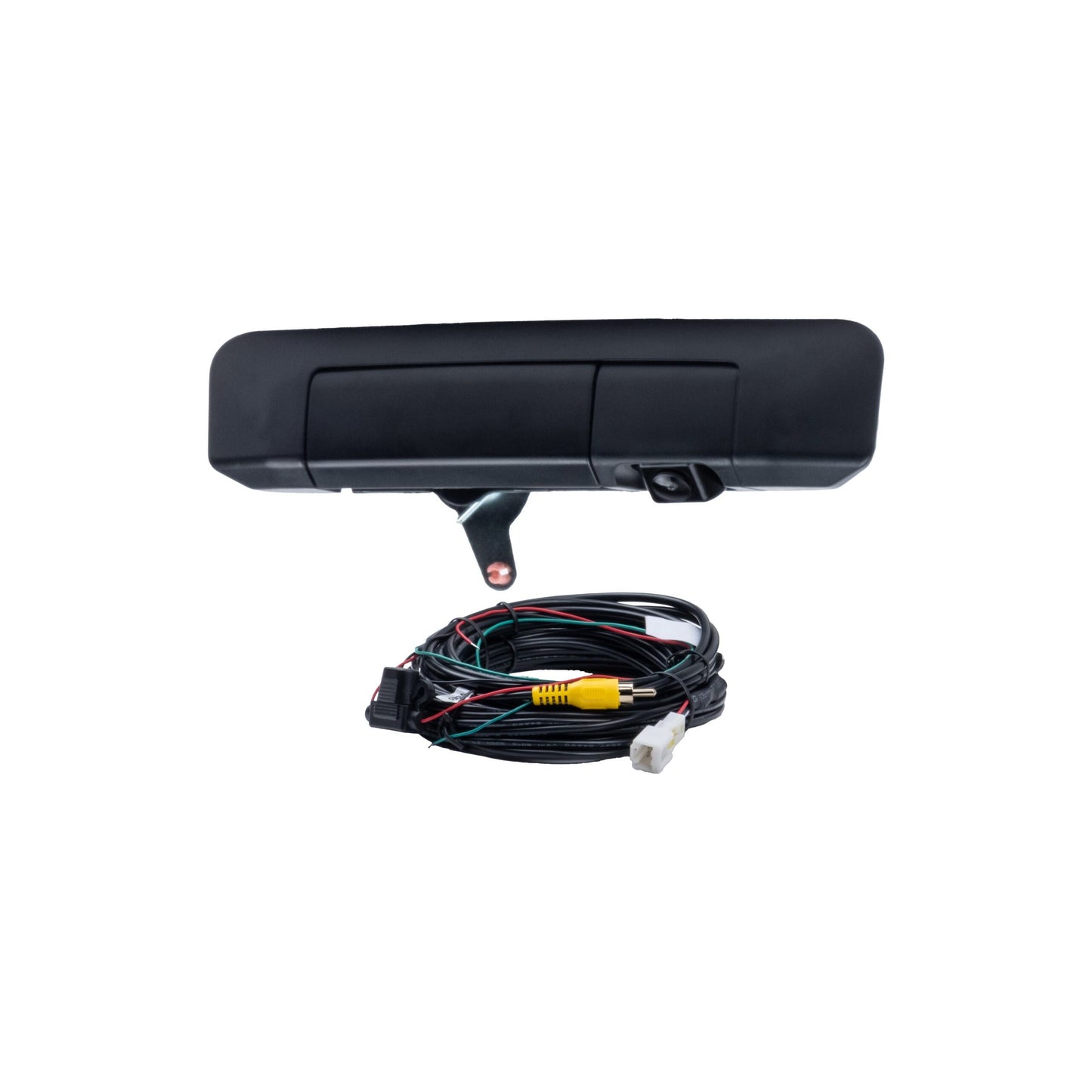

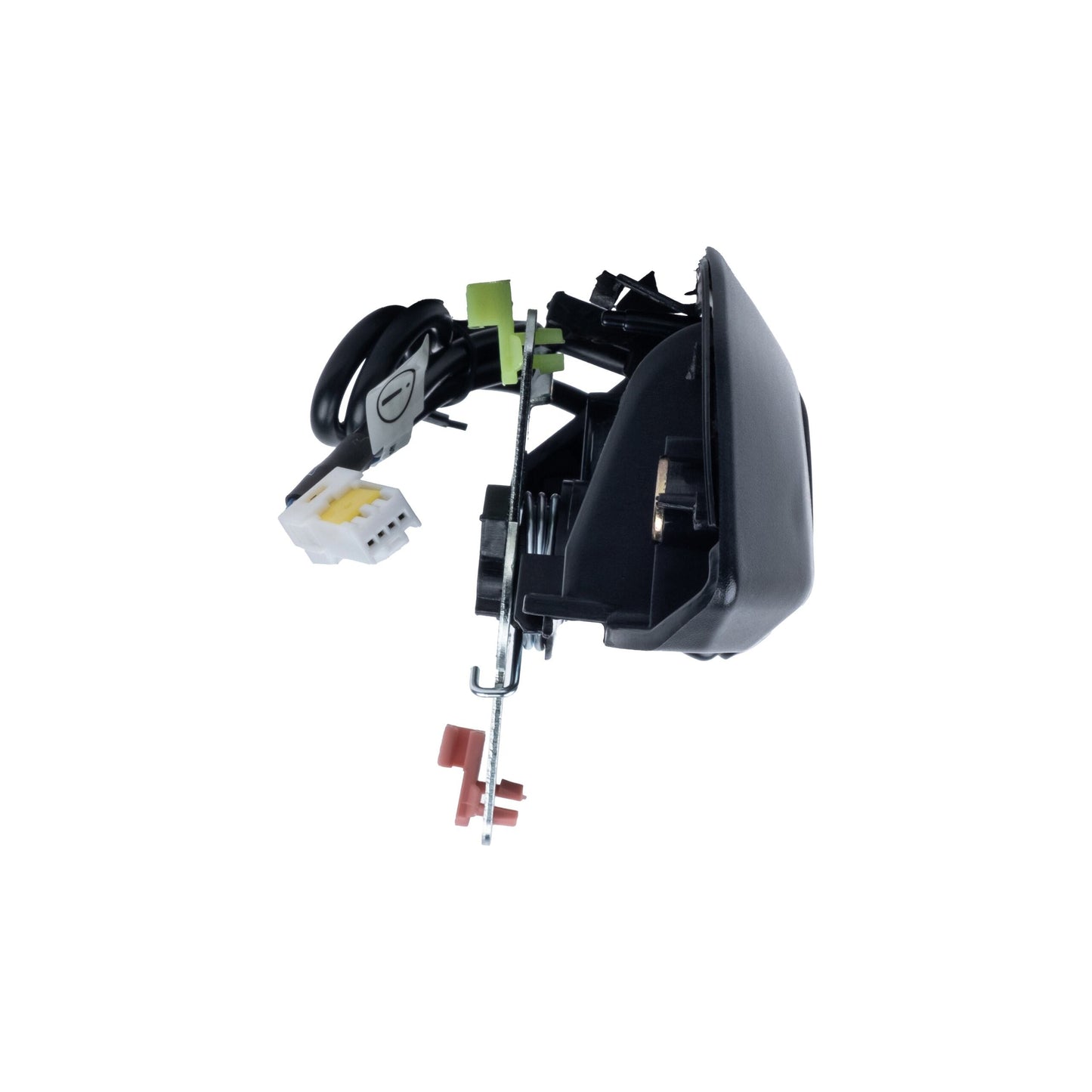

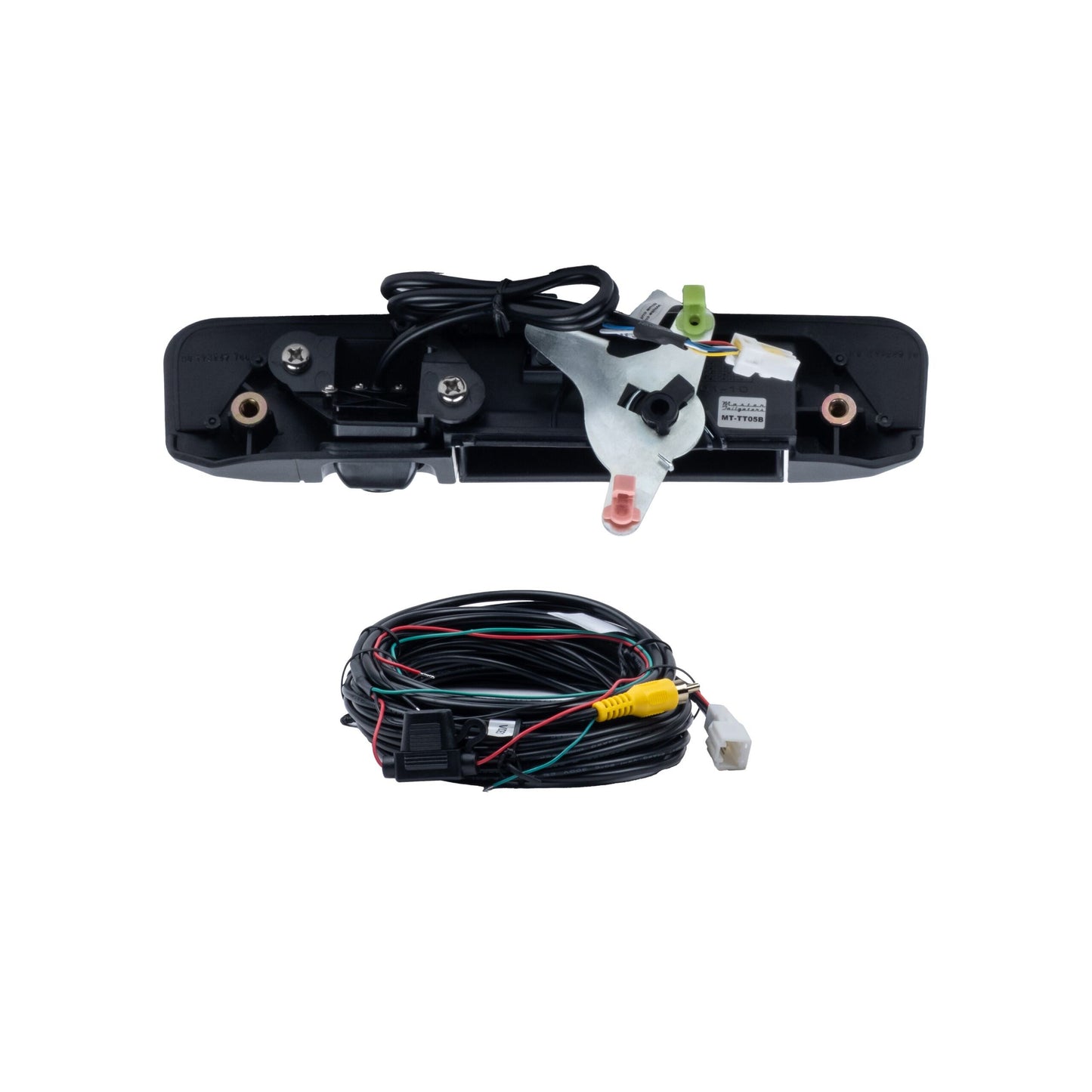

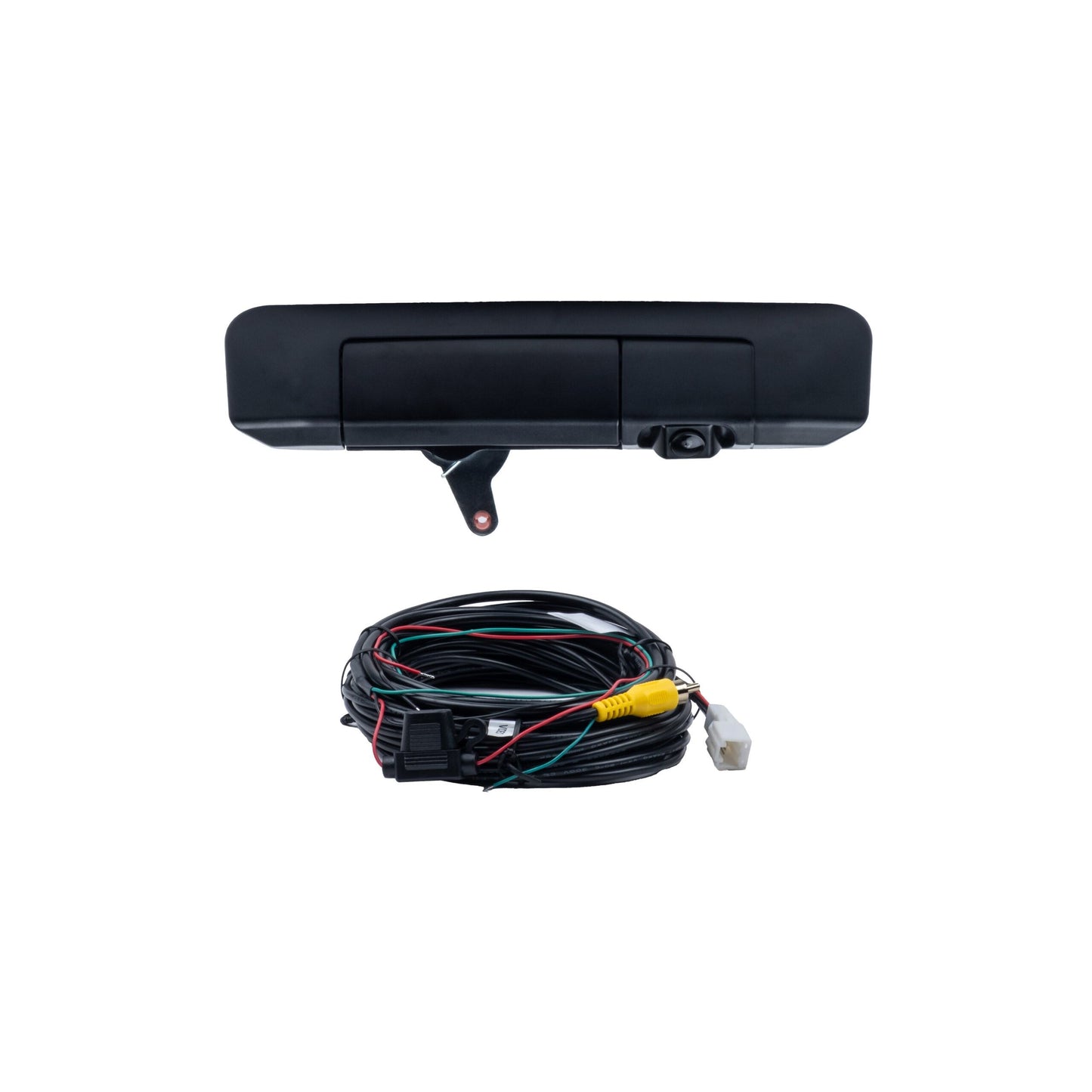

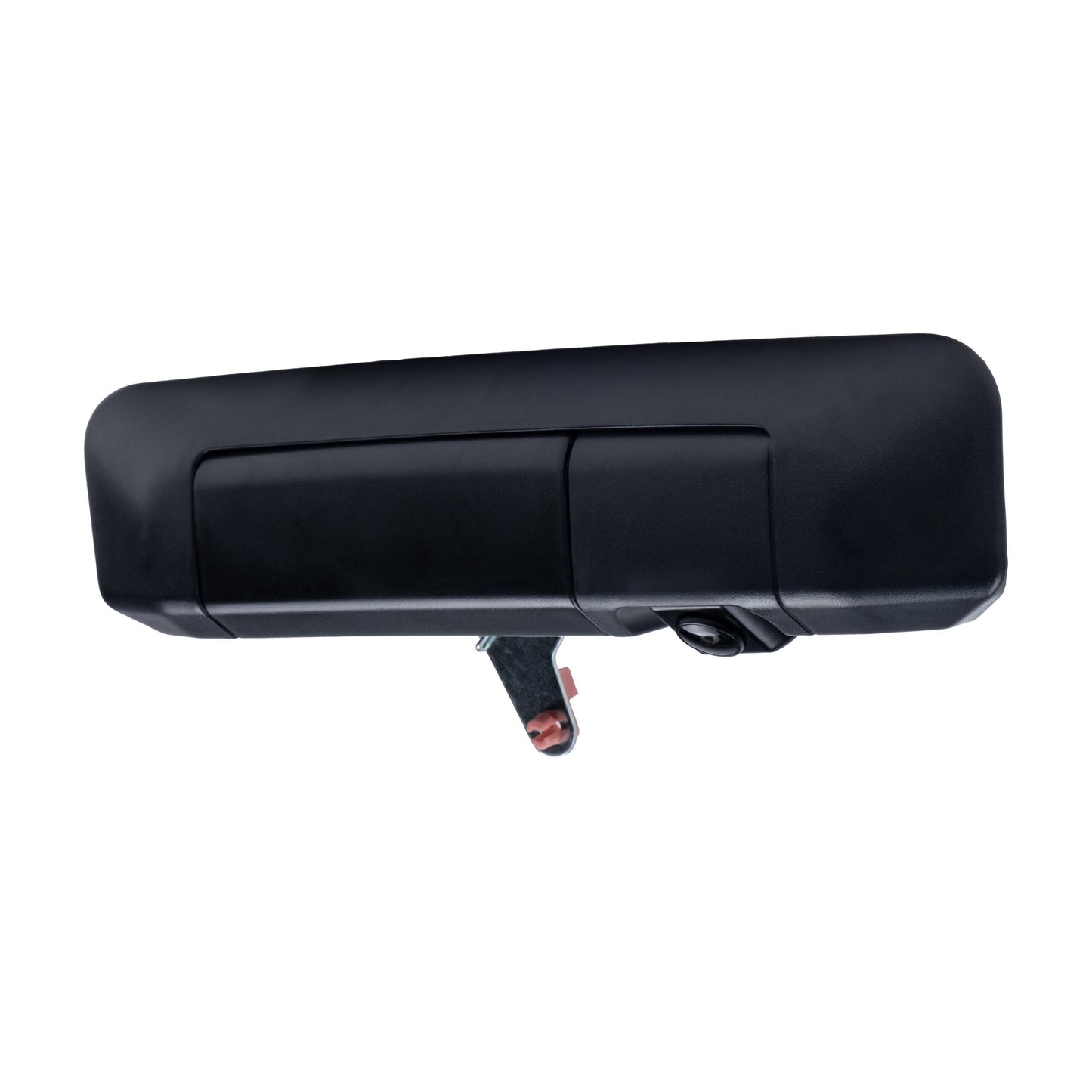

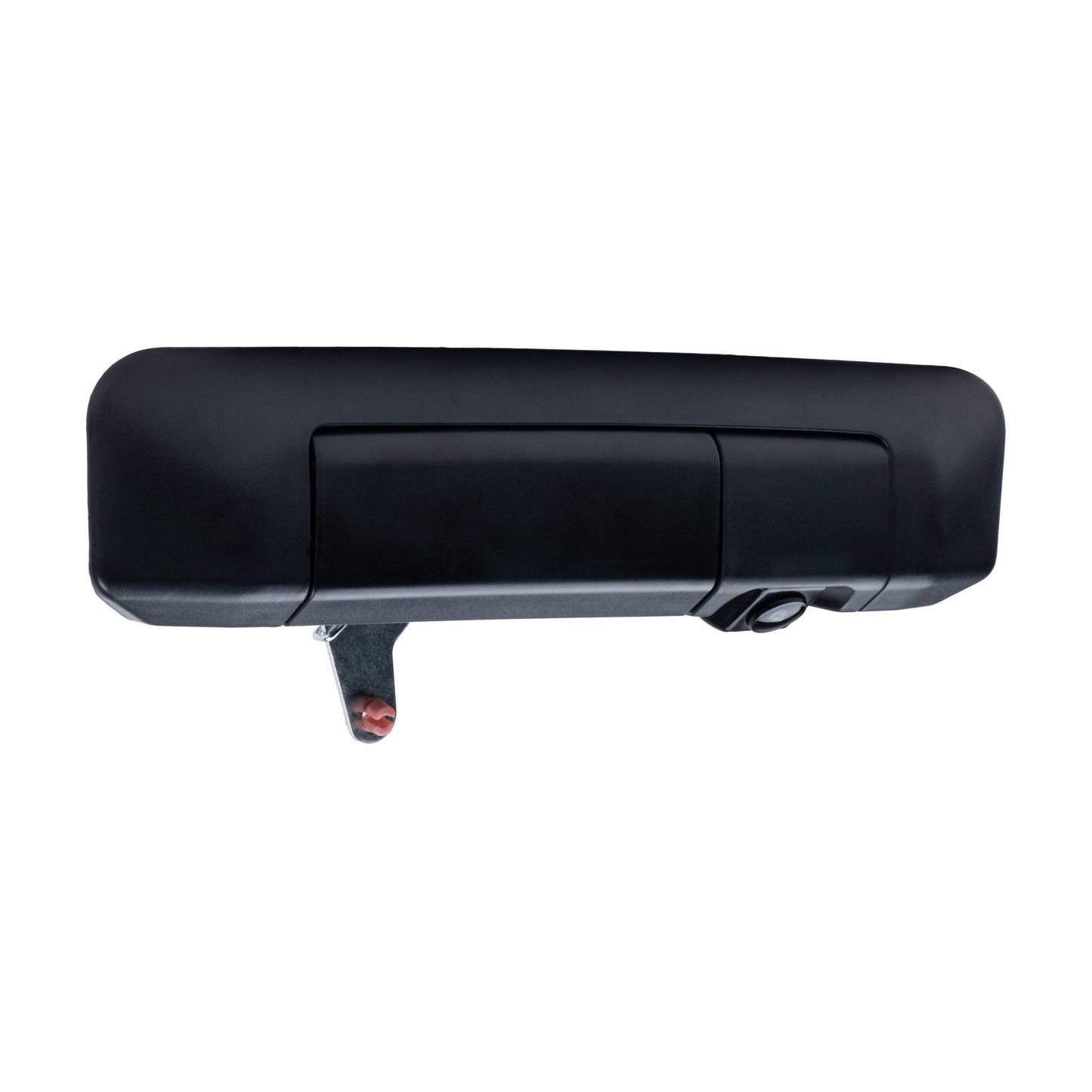

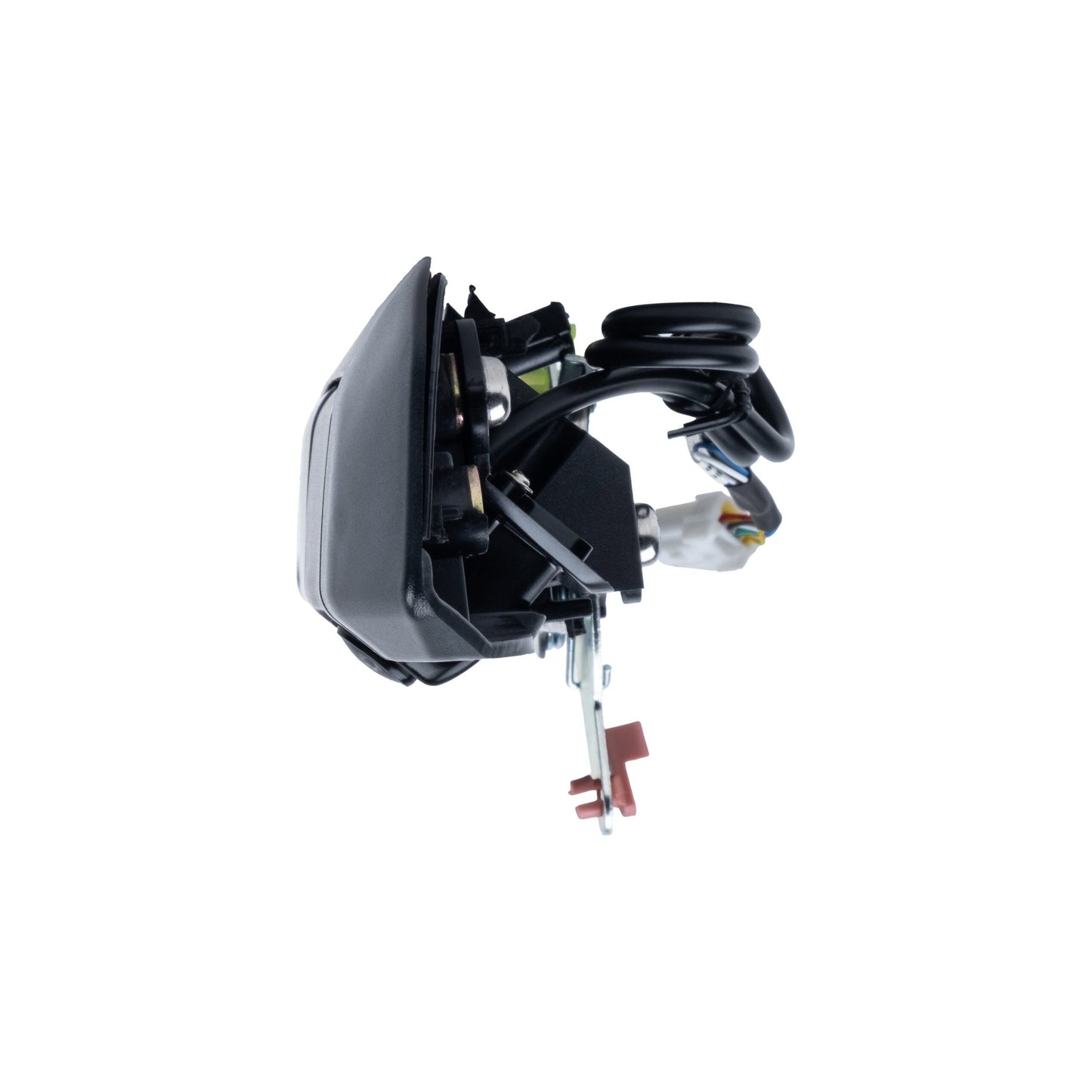

Tacoma Black Replacement Tailgate Handle with Backup Camera | '05 - '15 Tacoma

Connection Information:

This camera connects to any 12V power source. For instance, if you'd like the camera to stay on continuously, you can connect it to a constant 12V source. If you prefer it to activate only in reverse, simply connect it to the reverse tail lights.

Please note, this is an aftermarket tailgate and camera, not OEM. If you're planning to install it with a factory radio, an additional connector (not included) may be required.

Installation:

• Diagram for Tailgate Backup Cameras
• Tailgate Backup Camera Installation Guide

Camera Specs:

• Sensor: ¼” On-Semi (USA) CMOS Active Pixel Array, Lens: Nidec (Japan) (Glass + Plastic)

• Minimum Illumination : .1 Lux light sensitivity

• Signal System: NTSC/PAL

• Effective Pixels: 728 x 582

• Electronic Shutter: 1/50 to 1/100,000 seconds

• Resolution: 600 TV lines

• Angle: 170 Degrees

• Waterproof Rating: IP68

• Power: DC 12V

• Video Cable: 26 Feet (8 Meters)

Attention:

• Before purchasing check the back of your Monitor/Screen that you have a Yellow RCA input for easy installation.

• Installation is still possible without the Yellow RCA, however it is much more difficult and will require a professional to splice in the Video In signal.
