Add a full-extension Lock-In/Lock-Out fridge tray for wider refrigerators, including the listed Dometic CFX3 55IM and ARB Zero 47. Exterior width is 22-3/16 inches and height is 22 inches; the module weighs 41 lb.

Installation and Configuration Notes

The main body is 25 inches deep, with an additional rear extension 3 inches deep and 8 inches high for module-height seat deletes. Tray measures 18 W x 26-5/8 D inches. Fridge is not included. Retain vehicle, handle-removal and soft-top Bronco exclusions below.

Features, Specifications and Package Details

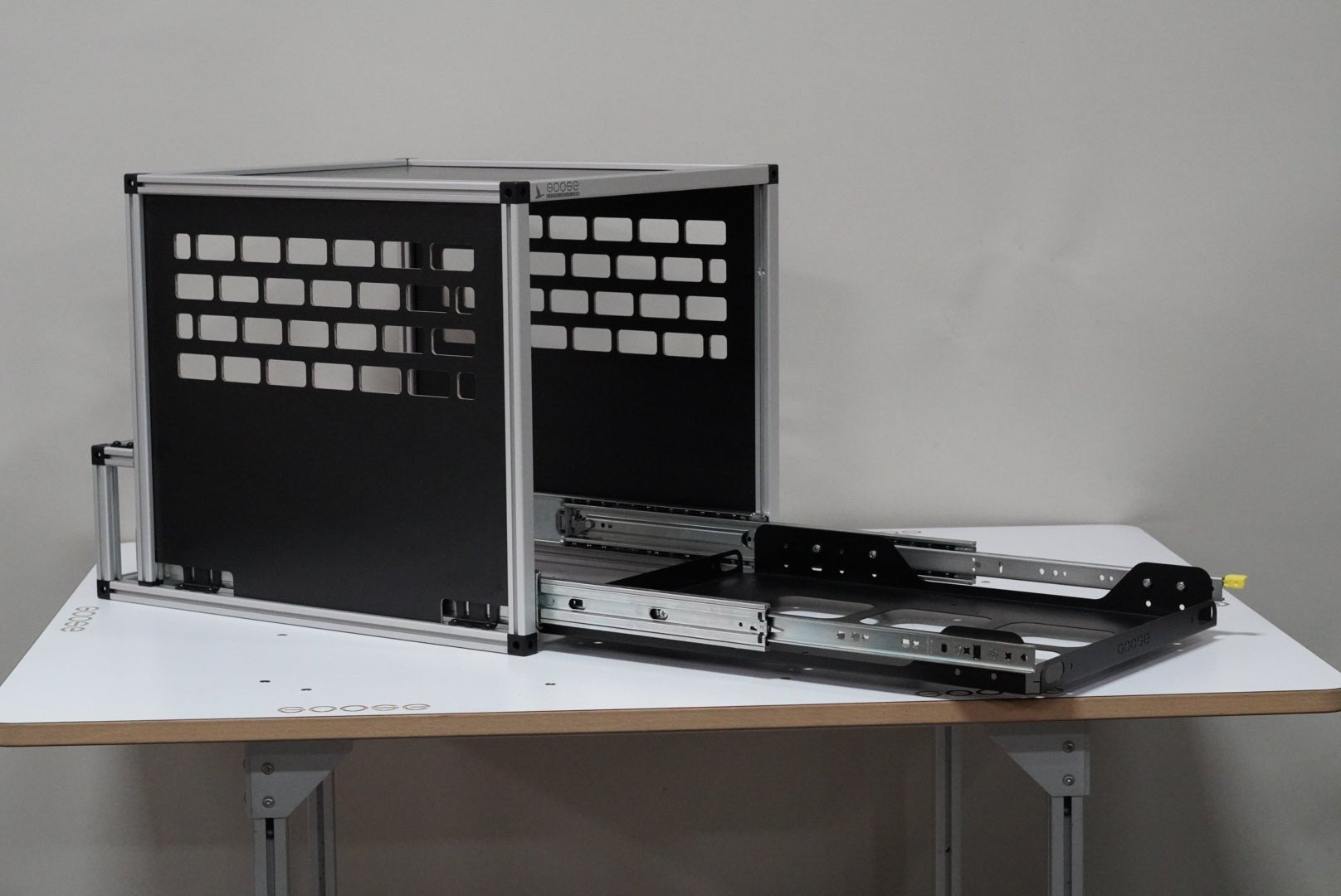

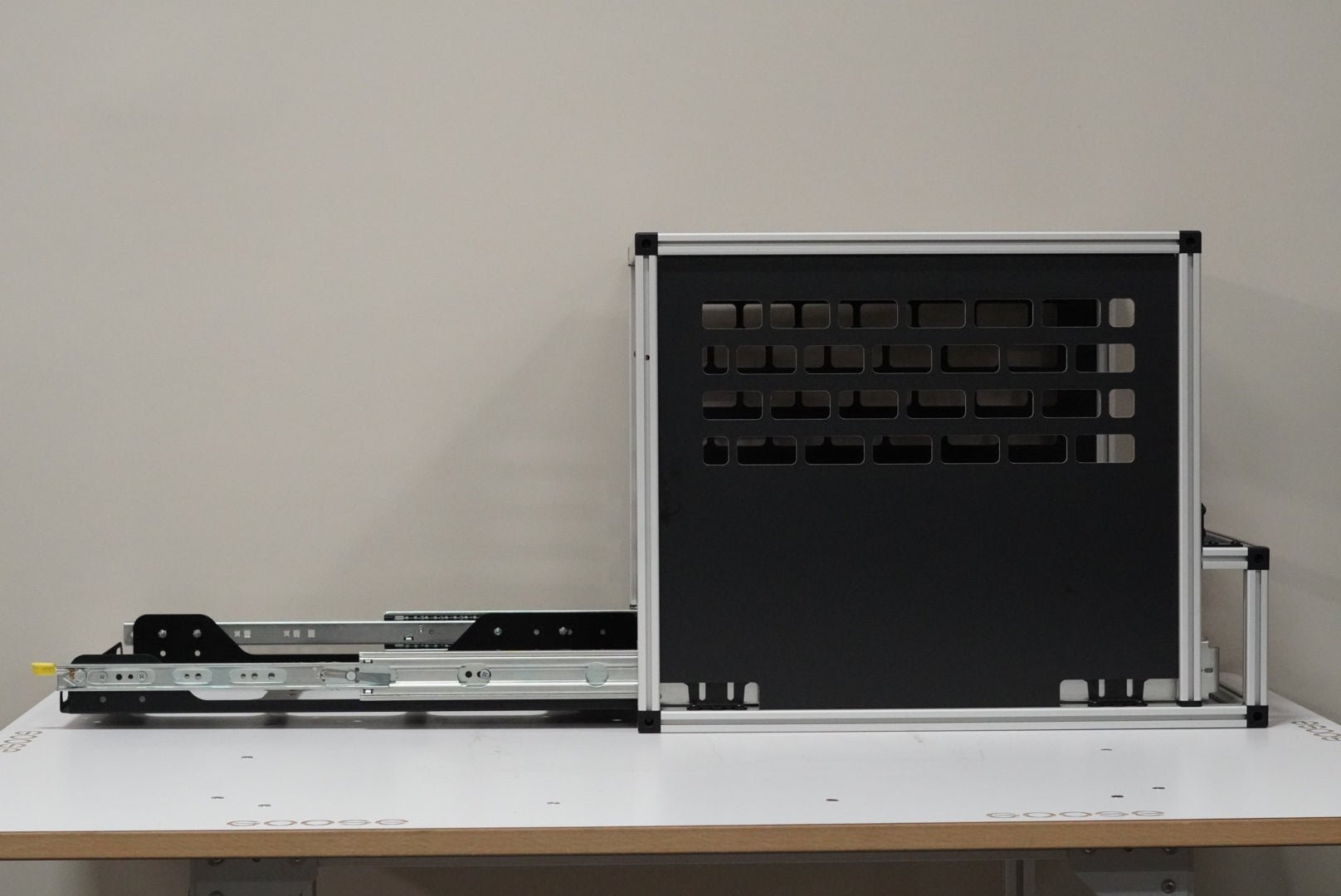

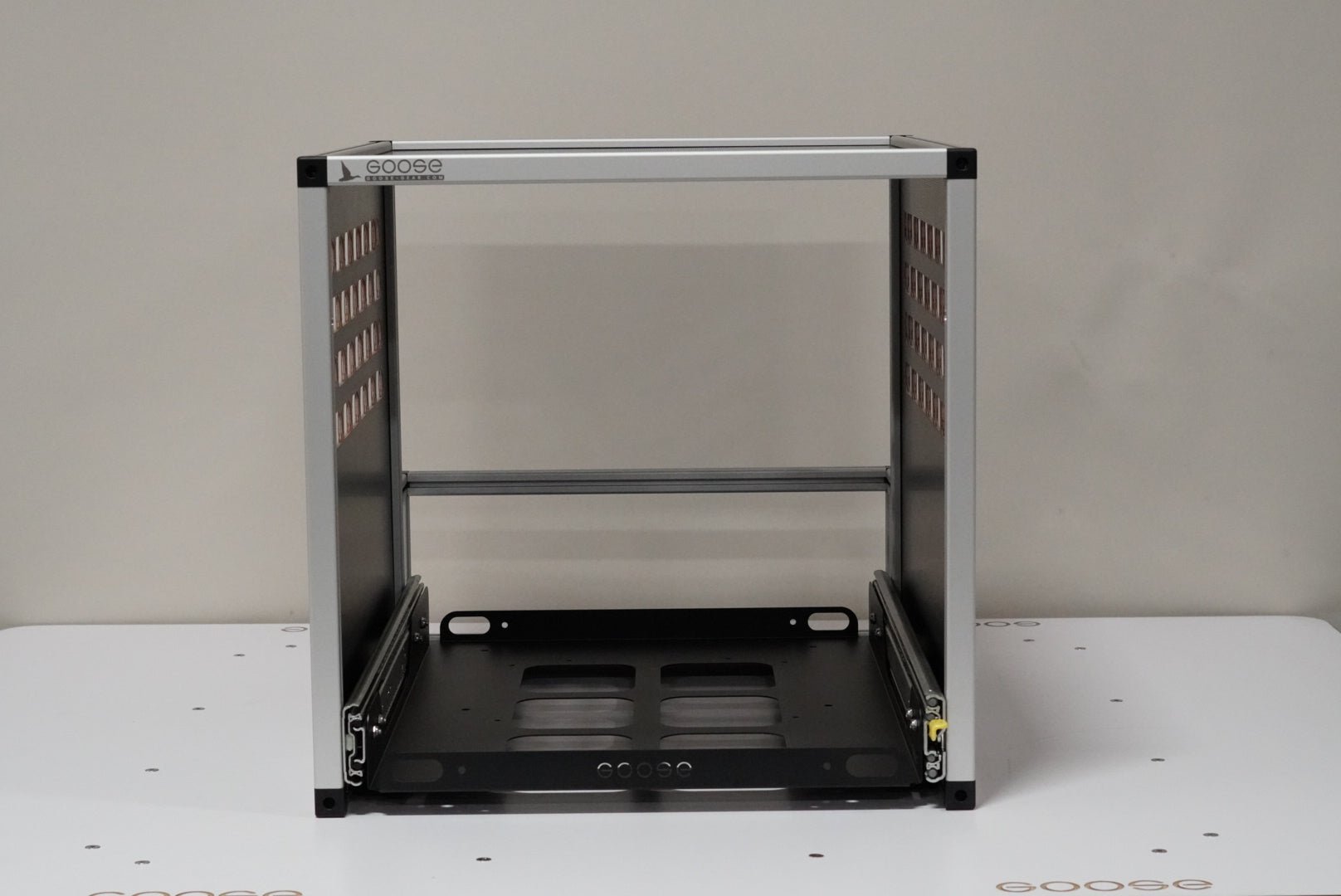

The Goose Gear IceBox 1.51 contains a complete fridge slide integrated into a Goose Gear Module. It features a 100% extension fridge tray with Lock-In/Lock-Out capability. With the Goose Gear IceBox, you can safely store gear on top of your fridge and still have complete access without having to unload your gear to access your food.

The 1.51 was designed specifically for the newer wider fridges made by Dometic and ARB. The Dometic CFX3 55IM and the ARB Zero 47.

IceBox 1.51 Specifications:

• Exterior Dimensions: 22-3/16"W x 22" H x 25-28"D*

• Refrigerator Tray:  18"W x 26-5/8"D
• Weight: 41 Lbs

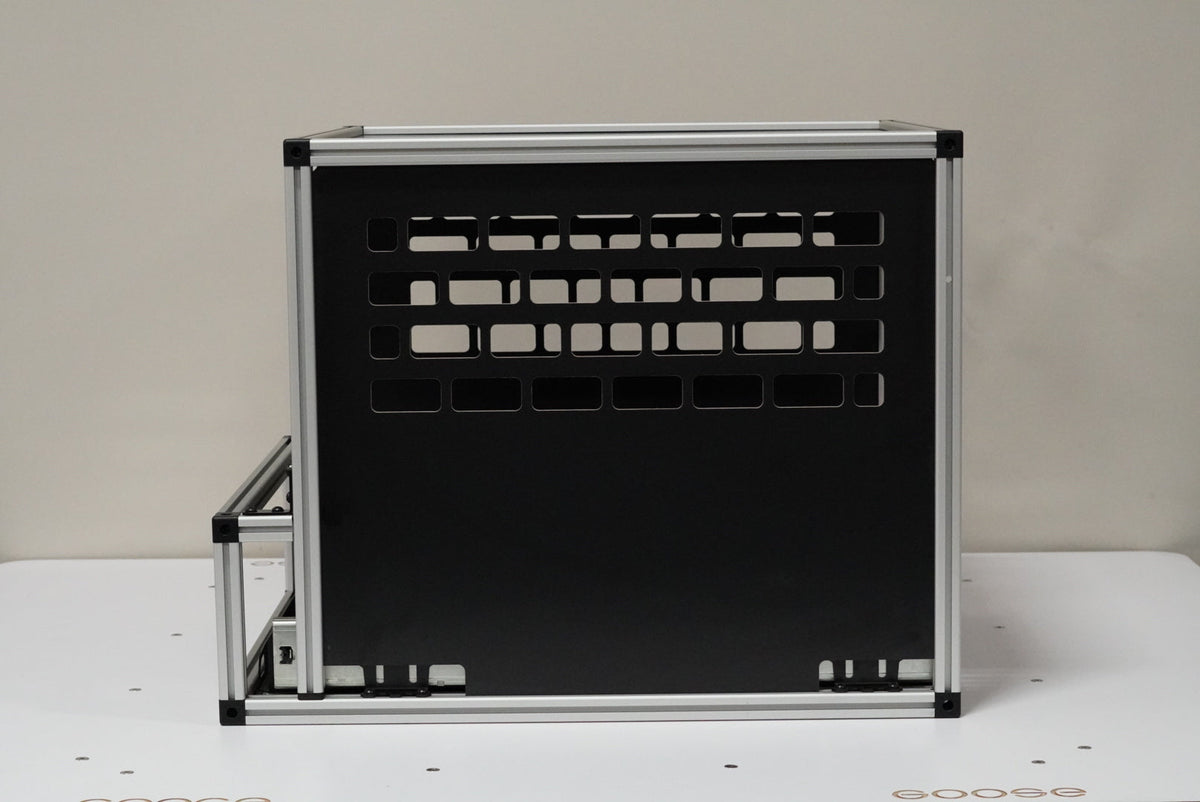

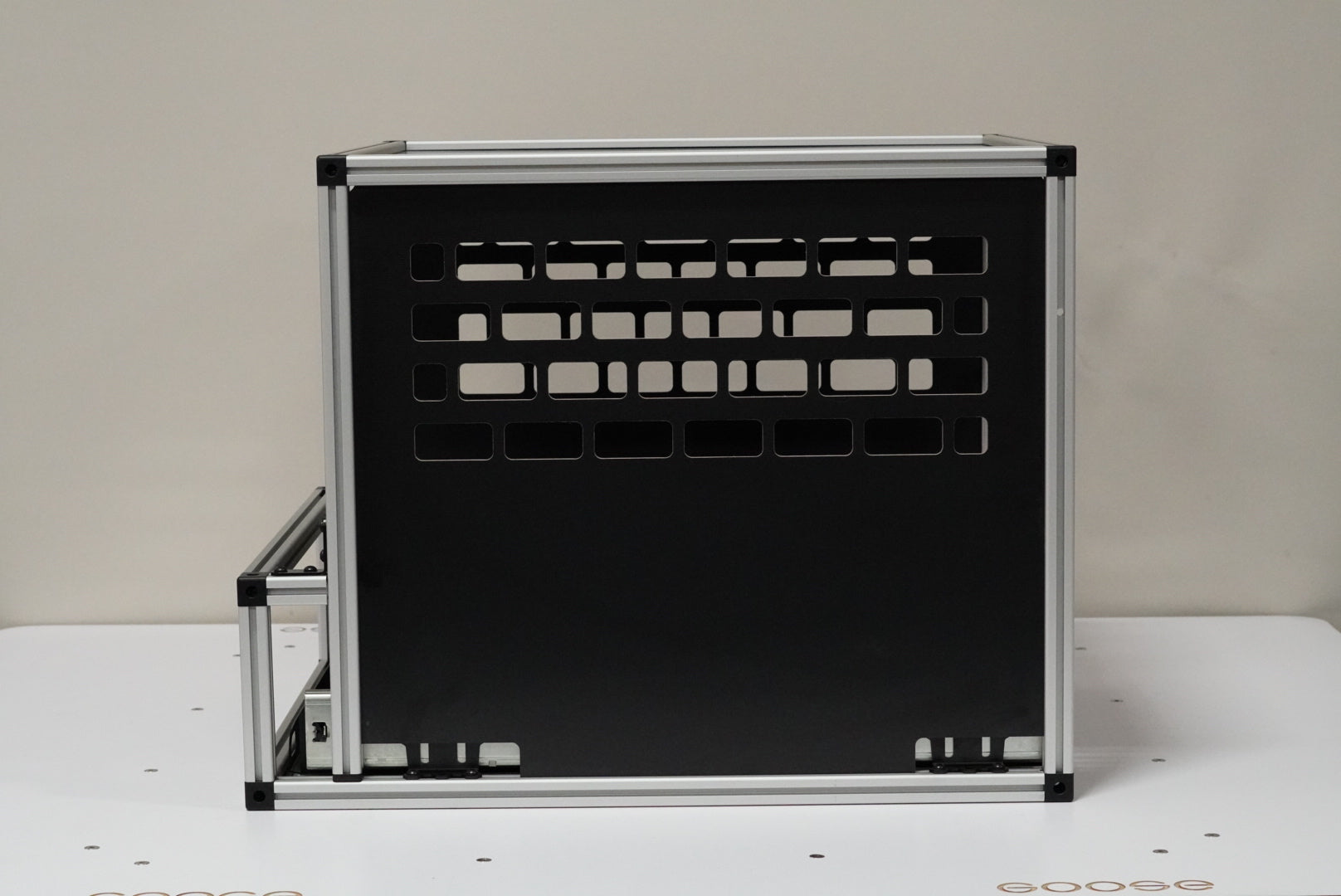

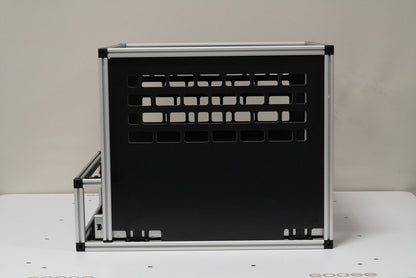

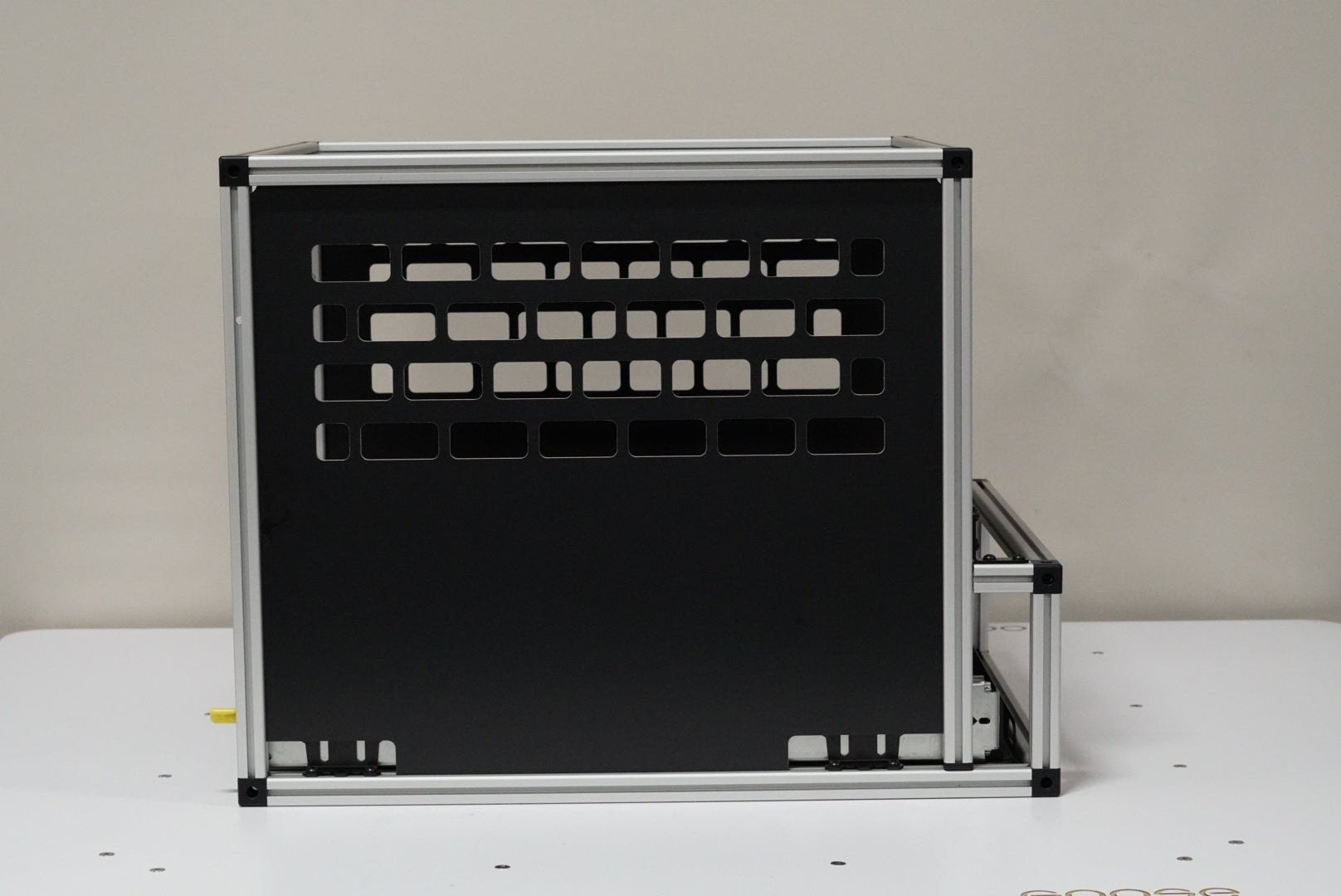

*Main module depth is 25".  On the rear of the frame is an additional 3" depth by 8" high extension necessary for attaching module height seat deletes.

IceBox 1.51 is designed for Jeep JKU's, JLU's, FJ Cruisers and Bronco 4 doors. The IceBox 1.51 is NOT compatible with the Bronco 2021-Present 6th Gen. 4 Door with a Soft Top.

Fridge is NOT Included

This model supports the following fridges: ARB Classic fridge up to Classic 50qt, ARB Zero 47, Engel up to 45qt, Indel B up to 40qt, Dometic 40, Dometic CFX3-45, Dometic CFX3 55IM in the JKU and will fit the JLU with removal of one handle and installation of our slotted anchors to reduce the overall length of the fridge to clear the rear seat.

Image below shows a Dometic 40 in a JLU mounted on the driver's side of the vehicle. Due to the length of the fridge, you will need to remove the rear handle and use our slotted anchors as replacement anchor points for your straps. This will also be required for the Dometic CFX3 45 and 55IM.

FRIDGE LOCATIONS IN THE JEEP JLU

The depth of the Jeep JLU interior is shorter than the JKU and therefore, if you are planning on using a CampKitchen 2.3 module in a JLU you will not be able to fit an ARB 50 on the Driver side. You will ONLY be able to fit an Engel 45, or Dometic CXF40, or Dometic CFX3-45 if you remove the rear handles. On the passenger side there is more depth, and you can fit the ARB 50 or similar sized fridges.
