Garmin Dash Cam X110 | '03 - '25 4Runner

Toyota 4Runner Garmin Dash Cam X110

Note: The video below does not feature the new Dash Cam X110, but the installation is exactly the same for the new X110. Our video includes a 5th Generation 4Runner, but the installation path for the OBD constant power adapter can be used as a guide in all 4Runners.

Garmin X110 Bundle Overview

Capture Every detail with up to 4K ultra HD video. Memories are blurry, your dash cam is clear.

Details: Featuring a wide 140-degree field of view plus a built-in polarizer, the compact, voice-controlled Garmin Dash Cam X110 captures and saves important details in 1080p HD video.

Highlights:

• Records 1080P HD video with a 140-degree field of view
• Compact size with easy-to-view 2.4" bright display
• Built-in Garmin Clarity Polarizer reduces windshield glare
• Control the dash cam with your voice
• Easily share saved video clips from the vault by using the Garmin Drive smartphone app (subscription required)
• Parking Guard and Live View Features (subscription required) help monitor your vehicle when you're away

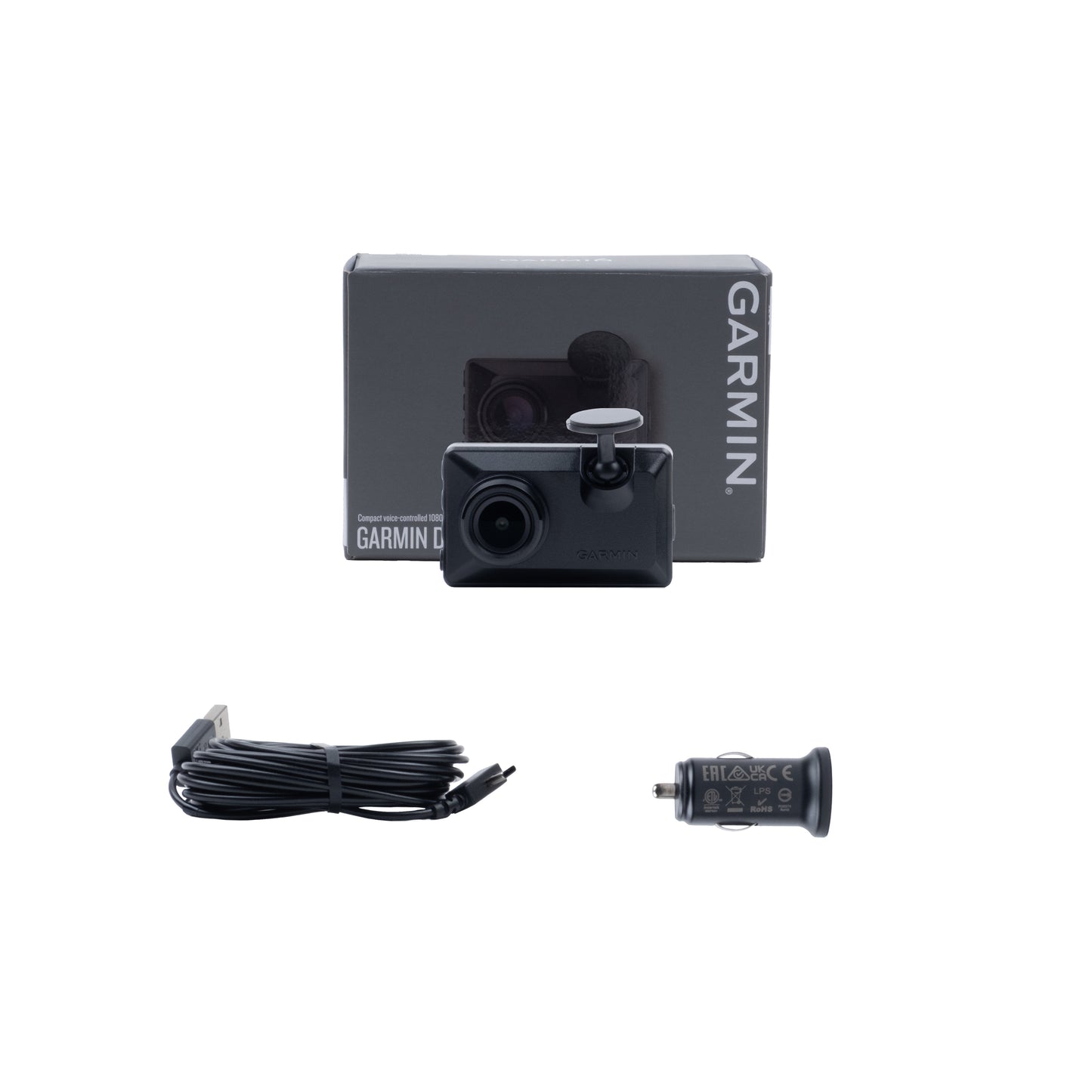

Included in Purchase:

• Garmin Dash Cam X110
• Low profile adhesive mount
• Vehicle power cable (13 ft)
• Dual USB power adapter
• Optional: OBD constant power connector with dual USB connections (provides constant power when the vehicle is on or off)
• Optional: Dash Camera Power Adapter (provides constant power when the vehicle is on only)

Optional: OBD Constant Power Adapter

• Fits all Toyota 4Runners with an OBD Port

This power-packed OBD constant power adapter allows your dash cam to record events even when your vehicle is powered off.

Also included is a USB extension cable that allows you to run your power cable from power from your dash camera on your windshield all the way down to the your OBD adapter.
Here's how:

• Step 1: Plug in your OBD power pack into your OBD port that's located about the drivers side kick panel (just above your left foot)
• Step 2: Secure your dash camera to your windshield in your desired location. We always recommend placing it in the middle of the windshield, just below your rearview mirror
• Step 3: Plug in your long USB power cord into your dash camera on your windshield
• Step 4: Run your USB power cord wire up to the headliner console and conceal your wire by tucking it into the headliner console, then run the cable to your left to the drivers side A-Pillar.
• Step 5: When you reach the A-Pillar, gently hide your wire under the plastic trim that covers your A-Pillar airbags
• Step 6: When you reach your driver-side weather-stripping, simply pull it out from the door and run your wire behind the weatherstripping (in the door) from the A-Pillar down to the drivers-side kick panel.
• Step 7: Remove your kick panel and run your wire across the kick panel and then up to your OBD connector. Tuck any extra wire in your kick panel. Reattach your kick panel.

Optional: Dash Camera Power Adapter

• Fits: 2003 - 2024 Toyota 4Runner only

The pin count for your dash camera power adapter can vary depending on your vehicle. Here’s a quick guide to help you identify the right one:

• 7-pin: Typically found on 2003–2019 Toyota 4Runners with an auto-dimming rearview mirror. The adapter connects directly to the back of the mirror, no need to access the overhead console.
• 10-pin: Typically used in 2020–2024 Toyota 4Runners and is accessed via the vehicle’s overhead console.
• 12-pin: Typically associated with 2014+ Toyota Tundras, some 2010+ 4Runners and 2016–2023 Toyota Tacomas. These usually connect to the back of the rearview mirror.
• 14-pin: Typically related to 2005–2015 Toyota Tacomas or 2007–2013 Toyota Tundras. These usually connect to the back of the rearview mirror.

Again, this is a helpful guide but please be sure to check your vehicle's pin count before purchasing to ensure compatibility!
