2025+ Toyota 4Runner Complete Skid Plate Collection

Protect the vulnerable underside of your 2025+ Toyota 4Runner with one complete underbody armor package. The Cali Raised LED Complete Skid Plate Collection combines five vehicle-specific skid plate systems to provide protection from the front of your 4Runner through the transmission, transfer case, fuel tank, and lower control arms.

Instead of piecing together your underbody protection one plate at a time, this package gives you the complete setup for less than purchasing each skid plate individually.

Available in heavy-duty 3/16" American steel or lightweight 1/4" 5052 aircraft-grade aluminum, this collection is built for 4Runner owners who plan to put their rigs to work on rocks, ruts, trails, and everything in between.

Complete Underbody Protection in One Package

Your 4Runner's undercarriage contains some of its most important — and expensive — components. Rocks, ledges, stumps, and other trail obstacles can quickly turn an off-road adventure into a costly repair.

This complete collection protects the major vulnerable areas underneath your 2025+ 4Runner with:

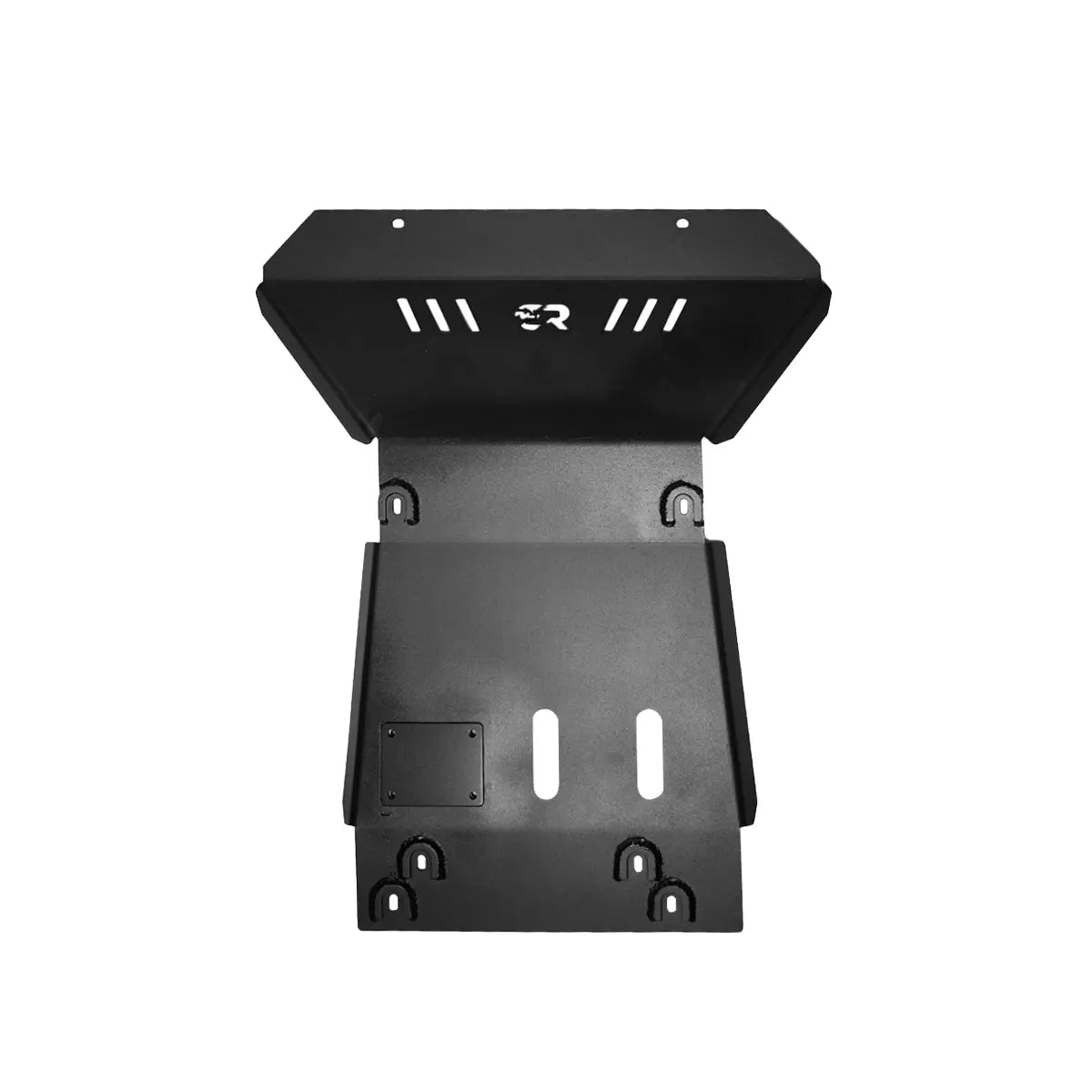

• Front skid plate

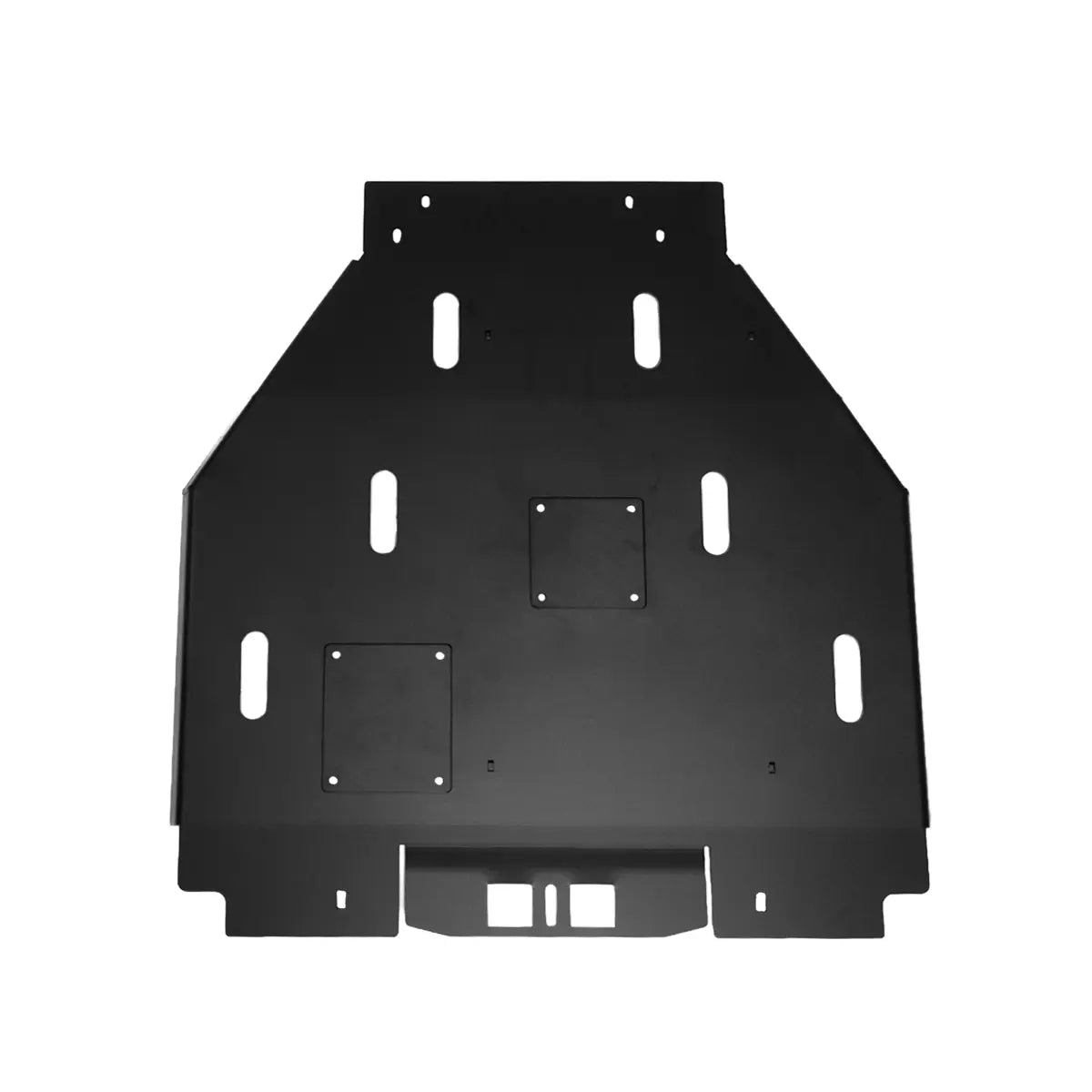

• Cat shield and transmission skid plate

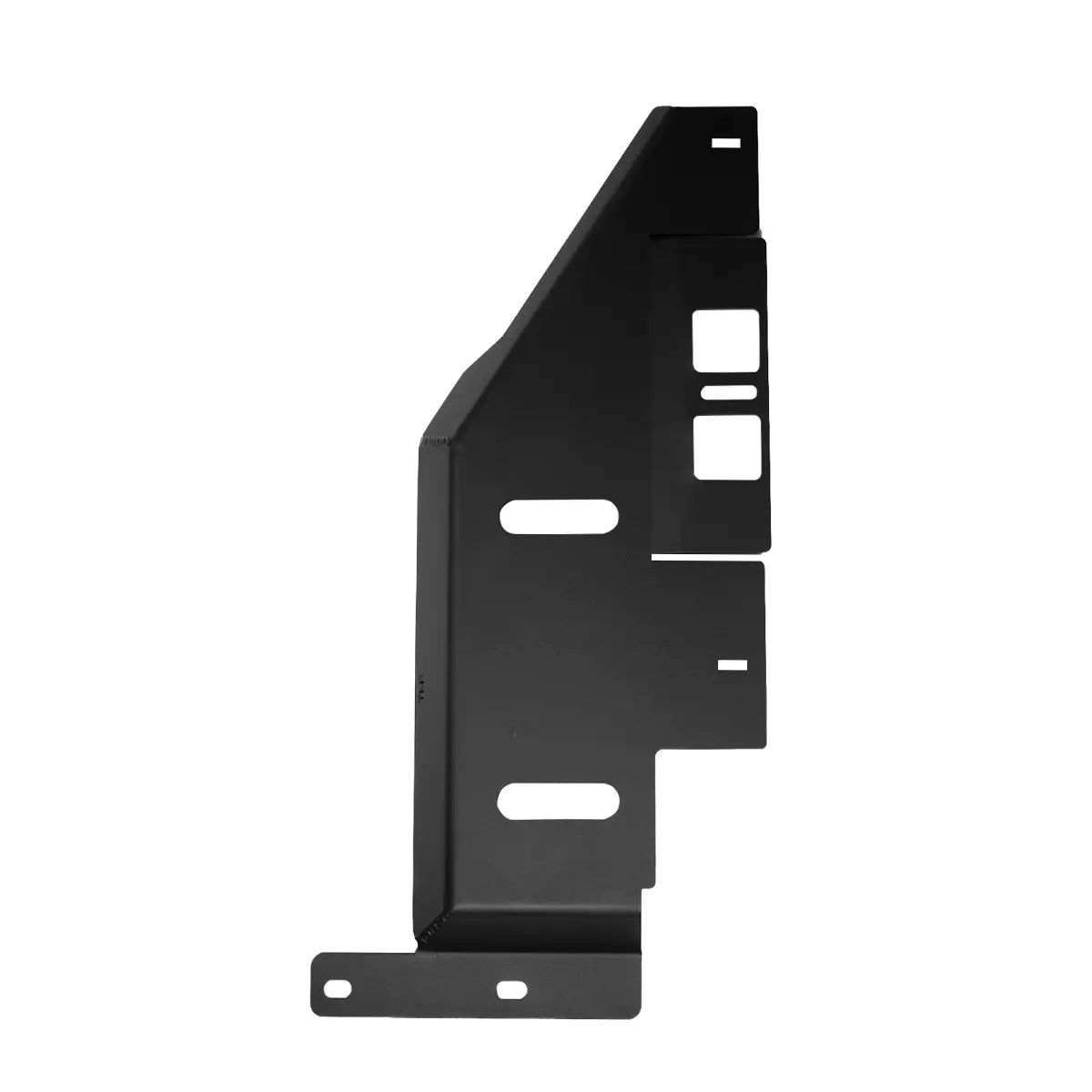

• Transfer case skid plate

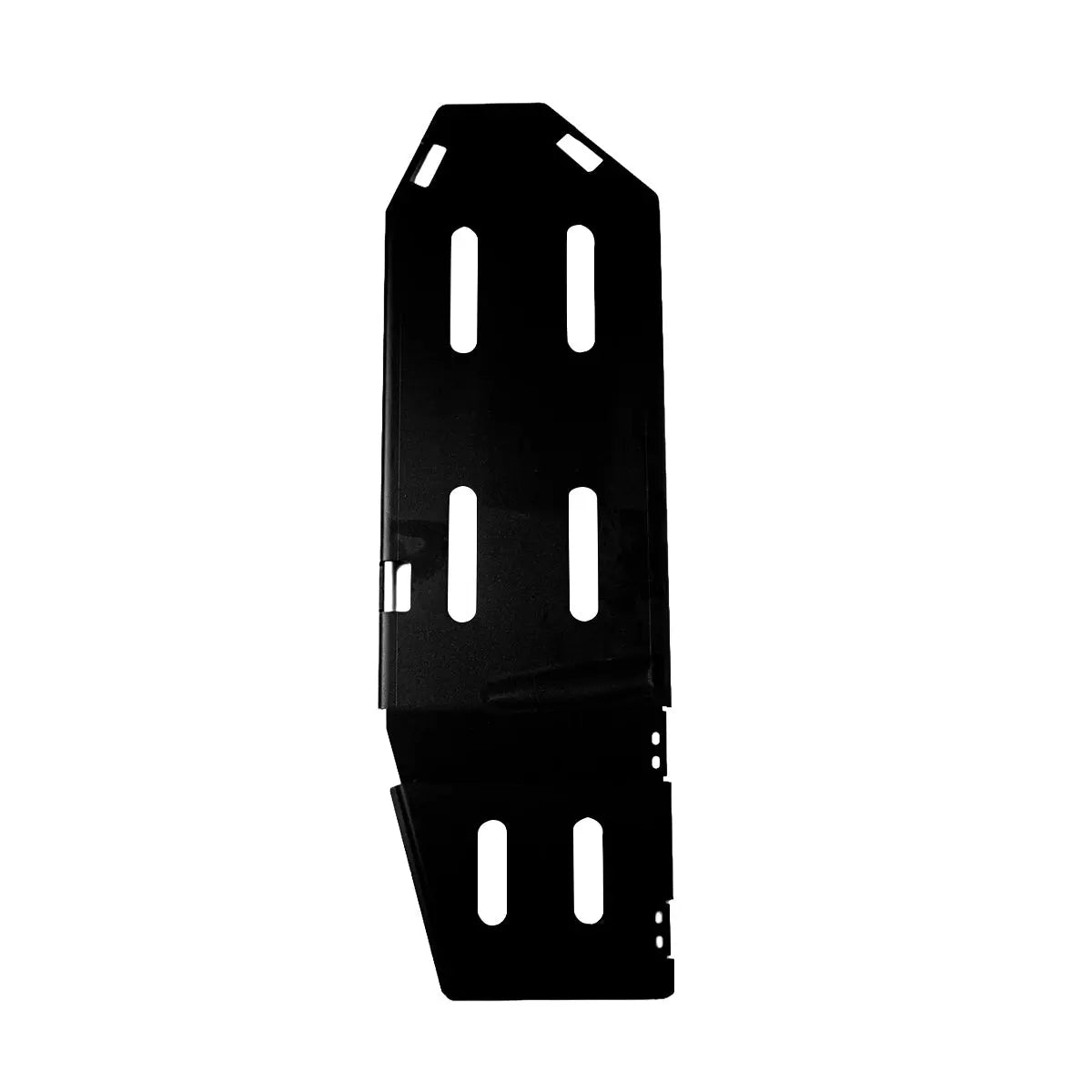

• Fuel tank skid plate

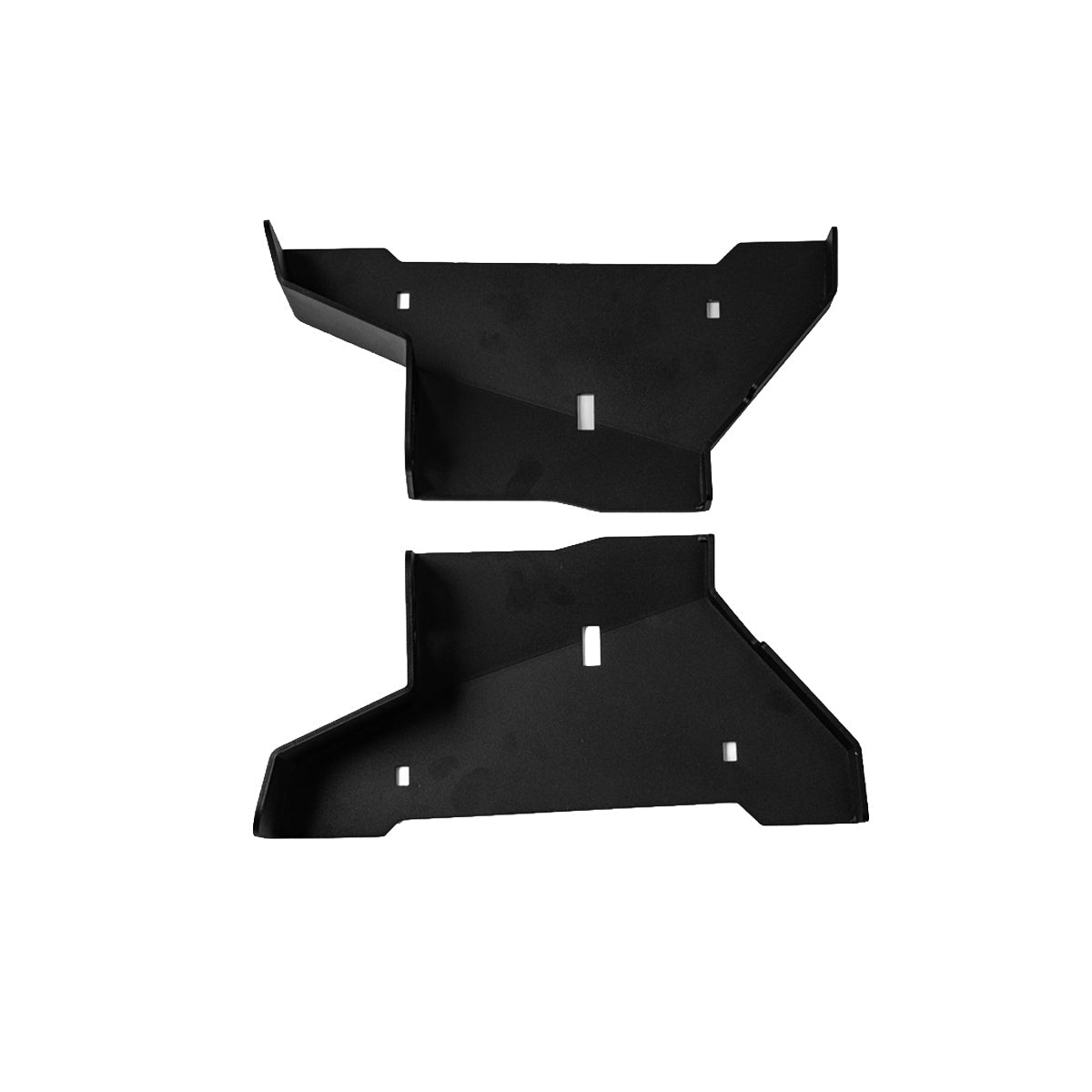

• Left and right lower control arm skid plates

Each plate is designed to work together as a complete system, with neighboring skid plates indexing against one another to minimize gaps in protection across the belly of your 4Runner.

Steel or Aluminum — Choose the Right Protection for Your Build

Every 4Runner build is different, which is why this skid plate collection is available in two material configurations.

3/16" American Steel: Choose steel when maximum impact resistance and durability are your priorities. It's an excellent option for 4Runners that regularly encounter rocks, technical terrain, and demanding trail conditions.

1/4" 5052 Aircraft-Grade Aluminum: Choose aluminum when reducing overall vehicle weight is important while still adding substantial underbody protection. It's ideal for overland builds and rigs carrying additional accessories, recovery equipment, camping gear, and other weight.

Important: The lower control arm skid plates are manufactured exclusively from coated steel. They are included as coated steel components with both the steel and aluminum skid plate packages.

Designed Specifically for the 2025+ Toyota 4Runner

This isn't a universal collection of skid plates. Each component is engineered specifically around the underbody of the 2025 and newer Toyota 4Runner 4WD.

Hybrid and non-hybrid models have different underbody configurations, so simply select the appropriate HYBRID or NON-HYBRID option when ordering.

The vehicle-specific design provides proper coverage while allowing each skid plate to integrate with the other components in the collection.

100% Bolt-On Installation

Serious underbody protection doesn't have to require permanent modifications to your new 4Runner.

The Complete Skid Plate Collection installs using factory mounting locations along with the supplied Grade 8 hardware. There's no drilling, cutting, welding, or fabrication required.

Plan approximately 2–3 hours for installation depending on your tools and experience. Because of the size and weight of the skid plates, having a second person available to help position them during installation is recommended.

Depending on your equipment and working conditions, lifting the vehicle may also be necessary.

Built for Real Trail Use

From rocky climbs and deep ruts to muddy creek crossings and remote overland routes, these skid plates are built to take the punishment that would otherwise reach your 4Runner's critical components.

High-quality welds, durable materials, and corrosion-resistant protective finishes help ensure the collection is ready for repeated exposure to demanding trail conditions.

The system is also designed to integrate with other Cali Raised LED accessories, making it an ideal foundation for a complete trail-ready 4Runner build.

Save by Buying the Complete Collection

Every skid plate included in this package is also available individually, allowing you to build your underbody protection over time.

But if you already know you want complete coverage, this collection is the better value.

You receive the same five skid plate systems in one package for less than purchasing them individually, along with the hardware needed to install the complete system.

Key Features

• Designed specifically for 2025+ Toyota 4Runner 4WD models
• Complete underbody protection in one package
• Includes five skid plate systems
• Protects the front underside, catalytic converter and transmission area, transfer case, fuel tank, and lower control arms
• Available in 3/16" American steel or 1/4" 5052 aircraft-grade aluminum
• Lower control arm skid plates are coated steel with both material options
• Hybrid and non-hybrid configurations available
• Individual plates are designed to work together without unnecessary coverage gaps
• Costs less than purchasing all five skid plate systems individually
• 100% bolt-on installation
• No drilling required
• No cutting or fabrication required
• Uses factory mounting locations and supplied Grade 8 hardware
• Corrosion-resistant protective finish
• High-quality welded construction
• Designed to integrate with other Cali Raised LED accessories
• Designed, engineered, and manufactured in the USA

Fitment

Vehicle: 2025+ Toyota 4Runner
Drivetrain: 4WD
Hybrid: Compatible — select HYBRID when ordering
Non-Hybrid: Compatible — select NON-HYBRID when ordering
Installation: Bolt-on
Drilling Required: No
Cutting Required: No
Estimated Installation Time: 2–3 hours
Difficulty: Moderate
Vehicle Lift: May be required
Second Installer: Recommended for positioning heavier plates

Specifications

Steel Option: 3/16" American steel
Aluminum Option: 1/4" 5052 aircraft-grade aluminum
Lower Control Arm Skids: Coated steel with both steel and aluminum packages
Hardware: Factory mounting points and supplied Grade 8 hardware
Installation: 100% bolt-on
Drilling: None required
Fabrication: None required
Part Numbers: CR4416, CR4418, CR4420, CR4422
Manufacturing: Designed, engineered, and manufactured in the USA

What's Included

• Front skid plate
• Cat shield and transmission skid plate
• Transfer case skid plate
• Fuel tank skid plate
• Driver-side lower control arm skid plate
• Passenger-side lower control arm skid plate
• Complete Grade 8 hardware kit including bolts, washers, and lock nuts
• Online installation video/instructions

Frequently Asked Questions

What is included in the Complete Skid Plate Collection?

The package includes all five Cali Raised LED skid plate systems for the 2025+ Toyota 4Runner: Front Skid Plate, Cat Shield & Transmission Skid Plate, Transfer Case Skid Plate, Fuel Tank Skid Plate, and Lower Control Arm Skid Plates.

The lower control arm protection includes both the driver- and passenger-side plates. A complete Grade 8 hardware kit is also included.

Is this the same as buying all of the individual 2025+ 4Runner skid plates?

Yes. You're getting the same skid plates, bundled together into one complete underbody protection package.

The advantage of purchasing the collection is that it costs less than buying all five skid plate systems separately, and you'll have complete protection from the start.

Can I buy the skid plates individually?

Yes. Every skid plate in this collection is also available individually if you prefer to build your underbody protection in stages.

Should I choose steel or aluminum?

It depends on your priorities.

Choose 3/16" American steel if maximum impact strength and durability are your primary concerns.

Choose 1/4" 5052 aircraft-grade aluminum if you want strong underbody protection while minimizing the amount of additional weight added to your 4Runner.

If I choose aluminum, are all of the skid plates aluminum?

No. The front, cat shield and transmission, transfer case, and fuel tank skid plates are manufactured from 1/4" 5052 aircraft-grade aluminum when you select the aluminum package.

The lower control arm skid plates are only produced in coated steel, so those two plates are steel with both package options.

Does this fit the 2025 Toyota 4Runner?

Yes. The collection is designed specifically for 2025 and newer Toyota 4Runner 4WD models.

Does it fit both hybrid and non-hybrid 4Runners?

Yes, but you must select the correct configuration when ordering.

Hybrid and non-hybrid 2025+ 4Runners have different underbody layouts, so choose HYBRID or NON-HYBRID based on your vehicle.

Does installation require drilling?

No. The collection is 100% bolt-on and uses factory mounting locations along with the supplied Grade 8 hardware. No drilling, cutting, welding, or fabrication is required.

How long does installation take?

Plan approximately 2–3 hours depending on your tools, equipment, and experience.

The installation is considered moderate difficulty. Because some of the plates can be heavy and awkward to position underneath the vehicle, having a second person available to help is recommended.

Are installation instructions included?

Yes. Online installation instructions and video guidance are available to walk you through the installation process.

Is it cheaper to buy the complete collection?

Yes. The Complete Skid Plate Collection is priced lower than purchasing all five 2025+ Toyota 4Runner skid plate systems individually, making it the best option for owners who want complete underbody protection from the start.
