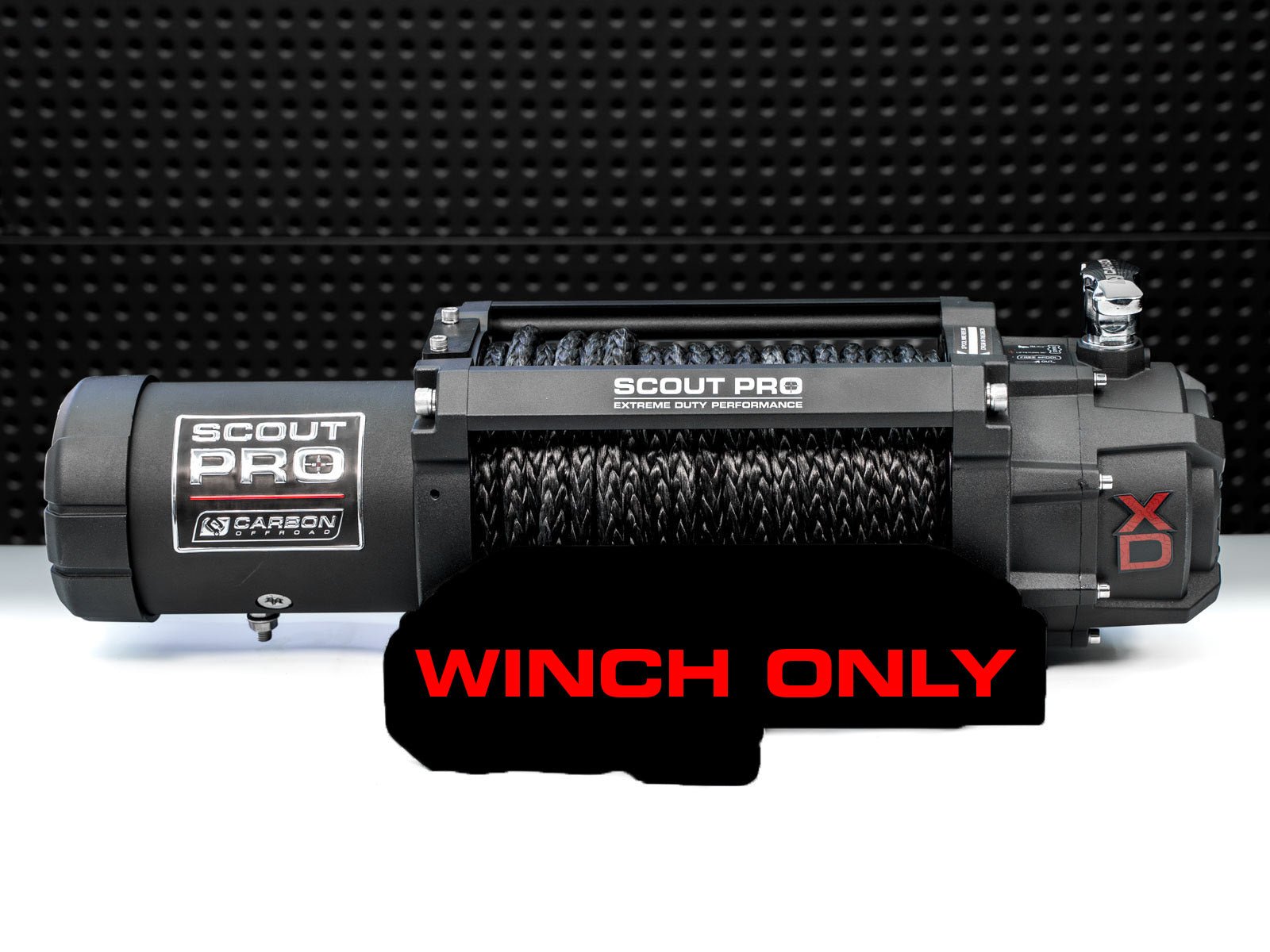

Carbon Offroad Scout Pro V3 Winch | 15,000lb 12V Winch Only

Carbon Offroad Scout Pro V3 Winch | 15,000lb 12V Winch Only

Carbon Offroad
$699.00
$699.00
Sale Sold out
Shipping calculated at checkout.

In stock

Fulfilled by Carbon Offroad USA

Scout Pro 15K V3 Winch Only version with 15,000lb single-line rating, 7HP 12V motor, 218:1 gearing, and 24m UHMWPE rope. Mounting hardware and additional accessories sold separately; verify package configuration.
View full details

Fast US Standard Shipping &
Easy International Shipping

30-Day Returns

TG Pro
Satisfaction Promise

Trail Grid Pro Tested

  • Details

Heavy-Duty 12V Winching for Appropriately Equipped Rigs

The Carbon Offroad Scout Pro 15K V3 pairs a 15,000lb (6,804kg) single-line rating with a 7HP series-wound motor and oversized three-stage planetary gearset. The 218:1 ratio balances pulling power and line speed for compatible heavily loaded trucks, overland rigs, camper haulers, and larger 4x4s, including appropriately equipped RAM 1500 and 79 Series Land Cruiser builds.

A rotating ring gear clutch controls freespool engagement, and an automatic brake integrated into the motor bracket provides load holding. The winch has IP68 protection and supports the optional Carbon Offroad Air Freespool Clutch Upgrade.

Winch Only Package

The stated package includes the Scout Pro V3 winch and 11mm x 24m (0.4-inch x 78.7ft) UHMWPE synthetic rope. Mounting hardware and additional accessories are sold separately.

The model feature specification also lists a forged rope thimble, MegaPro hook in 10 color options, MEGAPRO CNC billet hard-anodized precision alloy fairlead, 3.6m (11.8ft) wired remote, and wireless remote. Confirm the exact Winch Only configuration before ordering accessories.

Specifications

  • Part number: CW-XD15-V3WO.
  • Rated single-line pull: 15,000lb (6,804kg).
  • Motor: 12V DC, 7HP series-wound; gearing: 218:1 three-stage planetary.
  • Recommended battery: minimum 650 CCA.
  • Mounting pattern: 254 x 114.3mm (10 x 4.5 inches).
  • Drum: 63.5 x 224mm (2.5 x 8.8 inches).
  • Winch: 556.5 x 158 x 187mm (21.9 x 6.2 x 7.4 inches).
  • Packing: 580 x 200 x 220mm (22.8 x 7.9 x 8.7 inches).
  • Installed weight: 26.7kg (58.9lb); IP68 rated.

First-Layer 12V Performance

  • No load: 8.5m/min (27.9ft/min), 65A.
  • 2,000lb (910kg): 3.6m/min (11.8ft/min), 120A.
  • 6,000lb (2,720kg): 2.9m/min (9.5ft/min), 160A.
  • 10,000lb (4,540kg): 2.0m/min (6.6ft/min), 215A.
  • 13,000lb (5,900kg): 1.4m/min (4.6ft/min), 265A.
  • 15,000lb (6,818kg stated performance value): 1.1m/min (3.6ft/min), 380A.

Rated Pull by Layer

  • Layer 1: 15,000lb (6,810kg).
  • Layer 2: 12,700lb (5,765kg).
  • Layer 3: 10,770lb (4,890kg).
  • Layer 4: 9,130lb (4,145kg).

Warranty and Installation

Stated coverage: lifetime mechanical warranty, 5-year electrical warranty, and 5-year water ingress protection warranty, subject to manufacturer terms. Confirm rated mounting, clearance, 12V electrical capacity, and recovery-point compatibility. Vehicle filters do not guarantee direct fitment. Follow manufacturer instructions and keep people clear during recovery.
