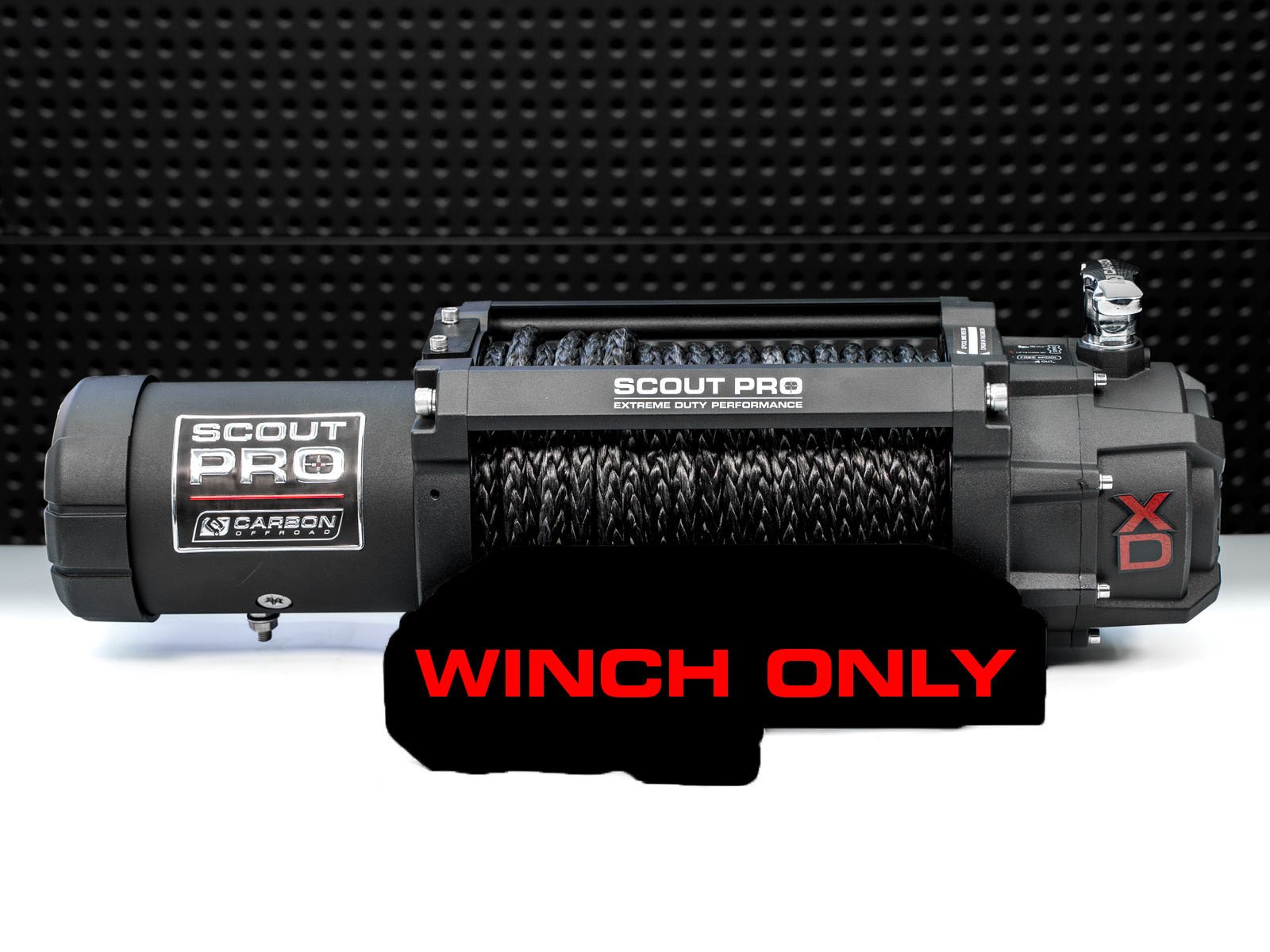

Carbon Offroad Scout Pro 15K V3 Winch | 15,000lb 12V Winch Only

Carbon Offroad Scout Pro 15K V3 Winch | 15,000lb 12V Winch Only

Carbon Offroad
$659.00
$659.00
Sale Sold out
Shipping calculated at checkout.

In stock

Fulfilled by Carbon Offroad USA

Scout Pro 15K V3 Winch Only version with 15,000lb rated pull, 7HP 12V motor, 24m synthetic rope, thimble, MegaPro hook, fairlead, and dual remotes. Mounting hardware and additional accessories sold separately.
View full details

Fast US Standard Shipping &
Easy International Shipping

30-Day Returns

TG Pro
Satisfaction Promise

Trail Grid Pro Tested

  • Details

Scout Pro 15K V3 for Heavy-Duty 12V Recovery Setups

The Carbon Offroad Scout Pro 15K V3 combines a 15,000lb (6,804kg) single-line rating with a 7HP series-wound motor and oversized 218:1 three-stage planetary gearing. Designed for appropriately equipped heavily loaded overland rigs, RAM 1500s, 79 Series Land Cruisers, and camper haulers, it offers additional rated pulling capacity over a 12K model without implying direct vehicle fitment.

Features include a rotating ring gear clutch, automatic brake integrated into the motor bracket, and IP68 protection. Compatible with the optional Carbon Offroad Air Freespool Clutch Upgrade for supported 12K and Scout Pro winches.

What's Included

  • Scout Pro 15,000lb V3 winch.
  • 11mm x 24m (0.4-inch x 78.7ft) UHMWPE synthetic rope.
  • Forged rope thimble and MegaPro hook.
  • MEGAPRO CNC billet hard-anodized multi-position precision alloy fairlead.
  • Wired remote with 3.6m (11.8ft) lead and wireless remote.

Winch Only version. Mounting hardware and additional accessories are sold separately.

Specifications

  • Part number: CW-XD15-V3WO.
  • Rated single-line pull: 15,000lb (6,804kg).
  • Motor: 12V DC 7HP series-wound.
  • Gear ratio: 218:1; three-stage planetary gear train.
  • Recommended battery: minimum 650 CCA.

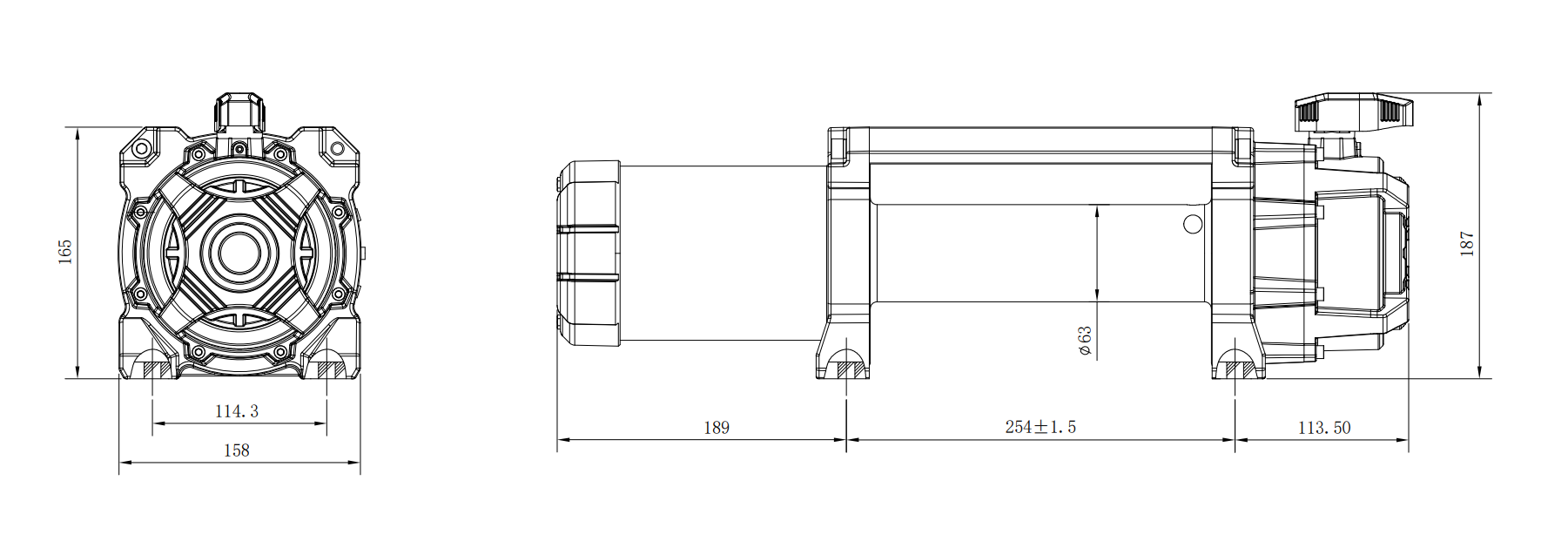

  • Mounting bolt pattern: 254 x 114.3mm (10 x 4.5 inches).
  • Drum and winch dimensions: consult the manufacturer's dimension diagram before installation.
  • Packing dimensions: 580 x 200 x 220mm (22.8 x 7.9 x 8.7 inches).
  • Installed weight: 26.7kg (58.9lb); protection: IP68.

First-Layer 12V Performance

  • No load: 8.5m/min (27.9ft/min), 65A.
  • 2,000lb (910kg): 3.6m/min (11.8ft/min), 120A.
  • 6,000lb (2,720kg): 2.9m/min (9.5ft/min), 160A.
  • 10,000lb (4,540kg): 2.0m/min (6.6ft/min), 215A.
  • 13,000lb (5,900kg): 1.4m/min (4.6ft/min), 265A.
  • 15,000lb (6,818kg stated performance value): 1.1m/min (3.6ft/min), 380A.

Rated Pull by Rope Layer

  • Layer 1: 15,000lb (6,810kg).
  • Layer 2: 12,700lb (5,765kg).
  • Layer 3: 10,770lb (4,890kg).
  • Layer 4: 9,130lb (4,145kg).

Warranty and Installation

Stated coverage includes a lifetime mechanical warranty, 5-year electrical warranty, and 5-year water ingress protection warranty, subject to manufacturer terms. Verify rated mounting structure, dimensional clearance, 12V electrical capacity, and compatible recovery points. Vehicle filters are not a fitment guarantee. Follow manufacturer instructions, observe rope-layer limits, and keep people clear during recovery.
