Carbon Offroad RS9-S Short Drum Winch | 9,000lb Winch Only

Carbon Offroad RS9-S Short Drum Winch | 9,000lb Winch Only

Carbon Offroad
$949.00
$949.00
Sale Sold out
Shipping calculated at checkout.

In stock

Fulfilled by Carbon Offroad USA

Compact RS9-S short drum winch with 9,000lb rated pull, 8.0HP 12V motor, 80:1 gearing, and IP68 sealing. Winch Only listing for matched custom installations; verify package contents, mounting, and electrical requirements.
View full details

Fast US Standard Shipping &
Easy International Shipping

30-Day Returns

TG Pro
Satisfaction Promise

Trail Grid Pro Tested

  • Details

High-Speed Short Drum Winch for Space-Limited Builds

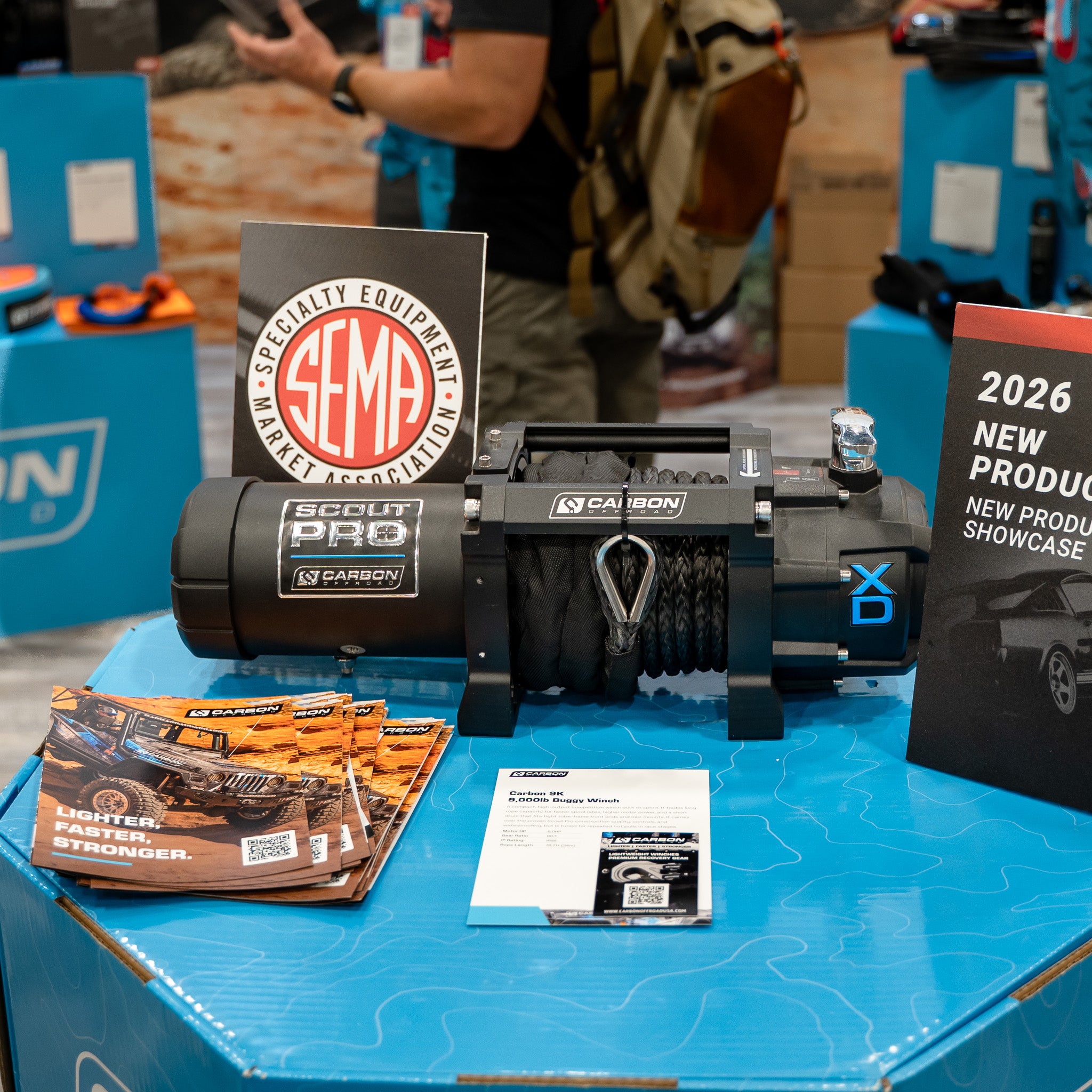

The Carbon Offroad Scout Pro RS9-S packages an 8.0HP 12V series-wound motor and 80:1 performance gearing into a compact short-drum chassis. Designed for appropriately matched race buggies, UTVs, ATVs, and specialized off-road builds, it prioritizes line speed where mounting space is limited.

This is the Winch Only listing. Its existing component specification lists the winch, 8mm x 24m (5/16-inch x 80ft) Spectra™ synthetic UHMWPE rope, MegaPro hook, fairlead, and wiring accessory kit. Confirm the package configuration before installation. Compatible with the optional Carbon Offroad Air Freespool Clutch Upgrade.

Specifications

  • Rated line pull: 9,000lb (4,080kg stated specification).
  • Motor: 8.0HP 12V series-wound.
  • Gearing: 80:1 heavy-duty performance ratio.
  • Water/dust sealing: IP68 rated.
  • Overall dimensions: 385 x 115 x 120mm (15.16 x 4.53 x 4.7 inches).
  • Drum diameter x length: 63 x 122mm (2.5 x 4.8 inches).
  • Mounting bolt pattern: 164 x 114.3mm (6.46 x 4.5 inches).
  • Winch weight: 22kg (48.4lb).

Stated Line Speed and Current Draw

  • No load: 79.4ft/min (24.2m/min), 55A.
  • 4,000lb (1,816kg): 18.4ft/min (5.6m/min), 180A.
  • 7,000lb (3,180kg): 13.8ft/min (4.2m/min), 310A.
  • 9,000lb (4,090kg in performance table): 8.5ft/min (2.6m/min), 440A.

Rated Pull by Rope Layer

  • Layer 1: 9,000lb (4,090kg).
  • Layer 2: 7,760lb (3,524kg).
  • Layer 3: 6,690lb (3,040kg).
  • Layer 4: 5,760lb (2,615kg).

Installation and Safe Use

Confirm chassis clearance and bolt pattern rather than assuming vehicle-specific fitment. Use an appropriately rated mounting plate or cradle, compatible 12V electrical system, rated recovery points, and matched rigging. Follow manufacturer installation and operating instructions, including rope-layer limits, inspect before use, and keep people clear.
