Carbon Offroad RS9 High-Speed Winch | 9,000lb 12V Winch Only

Carbon Offroad RS9 High-Speed Winch | 9,000lb 12V Winch Only

Carbon Offroad
$849.00
$849.00
Sale Sold out
Shipping calculated at checkout.

In stock

Fulfilled by Carbon Offroad USA

RS9 high-speed winch with 9,000lb rated pull, 8.0HP 12V motor, 80:1 gearing, and 42m Spectra™ synthetic rope. Winch Only listing includes hook, fairlead, wiring accessory kit, and dual remotes. Verify mounting and electrical compatibility.
View full details

Fast US Standard Shipping &
Easy International Shipping

30-Day Returns

TG Pro
Satisfaction Promise

Trail Grid Pro Tested

  • Details

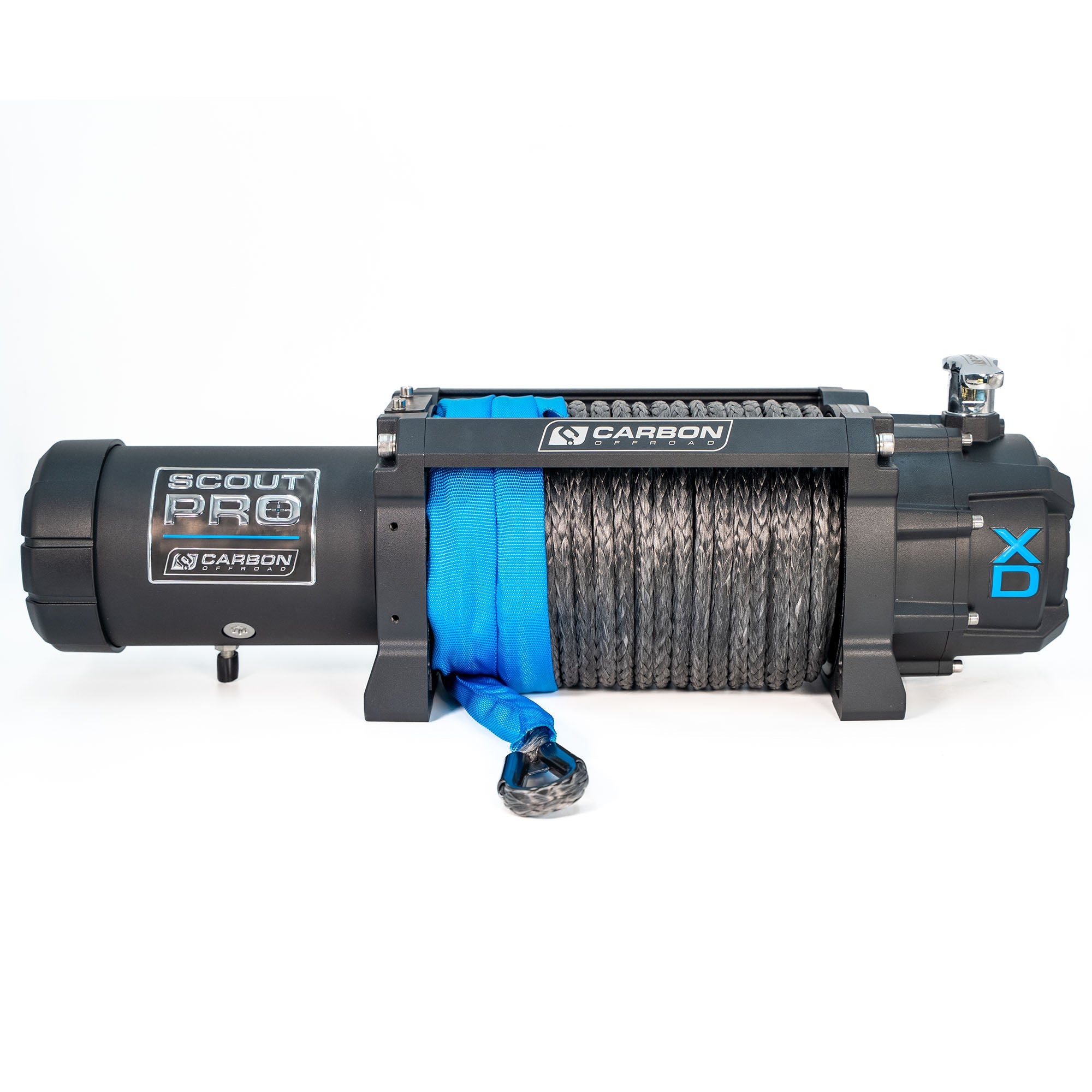

High-Speed Winching with Extended Rope Reach

The Carbon Offroad Scout Pro RS9 combines an 8.0HP 12V series-wound motor, 80:1 performance gearing, and a lightweight V3 chassis for racers and off-road operators who prioritize recovery speed. Its 42m (137ft) synthetic rope provides extended reach, while the chassis is designed to reduce weight and front-axle load.

This is the Winch Only listing. IP68 sealing helps protect against water and dust. Compatible with the optional Carbon Offroad Air Freespool Clutch Upgrade for supported 12K and Scout Pro winches.

What's Included

  • Carbon Offroad RS9 winch.
  • 8mm x 42m (5/16-inch x 137ft) Spectra™ Fiber synthetic UHMWPE rope.
  • MegaPro hook and fairlead.
  • Wiring accessory kit.
  • Wired and wireless remote controls.

Specifications

  • Rated line pull: 9,000lb (4,080kg).
  • Motor: 8.0HP 12V series-wound.
  • Gear ratio: 80:1 heavy-duty performance gearing.
  • Chassis: Carbon Offroad V3; sealing: IP68.
  • Winch dimensions: 572 x 158 x 187mm (22.52 x 6.22 x 7.36 inches).
  • Drum diameter x length: 63 x 224mm (2.5 x 8.8 inches).
  • Mounting pattern: 254 x 114.3mm (10 x 4.5 inches).

Line Speed and Current Draw

  • No load: 24.2m/min (79.4ft/min), 55A.
  • 4,000lb (1,816kg): 5.6m/min (18.4ft/min), 180A.
  • 7,000lb (3,180kg): 4.2m/min (13.8ft/min), 310A.
  • 9,000lb (4,090kg in performance table): 2.6m/min (8.5ft/min), 440A.

Rated Pull by Rope Layer

  • Layer 1: 9,000lb (4,090kg).
  • Layer 2: 7,760lb (3,524kg).
  • Layer 3: 6,690lb (3,040kg).
  • Layer 4: 5,760lb (2,615kg).

Confirm mounting clearance, rated cradle or plate, 12V electrical capacity, and compatible recovery points before installation. Vehicle filters do not establish direct fitment. Observe rope-layer limits and manufacturer operating instructions, inspect rigging before use, and keep people clear during recovery.
