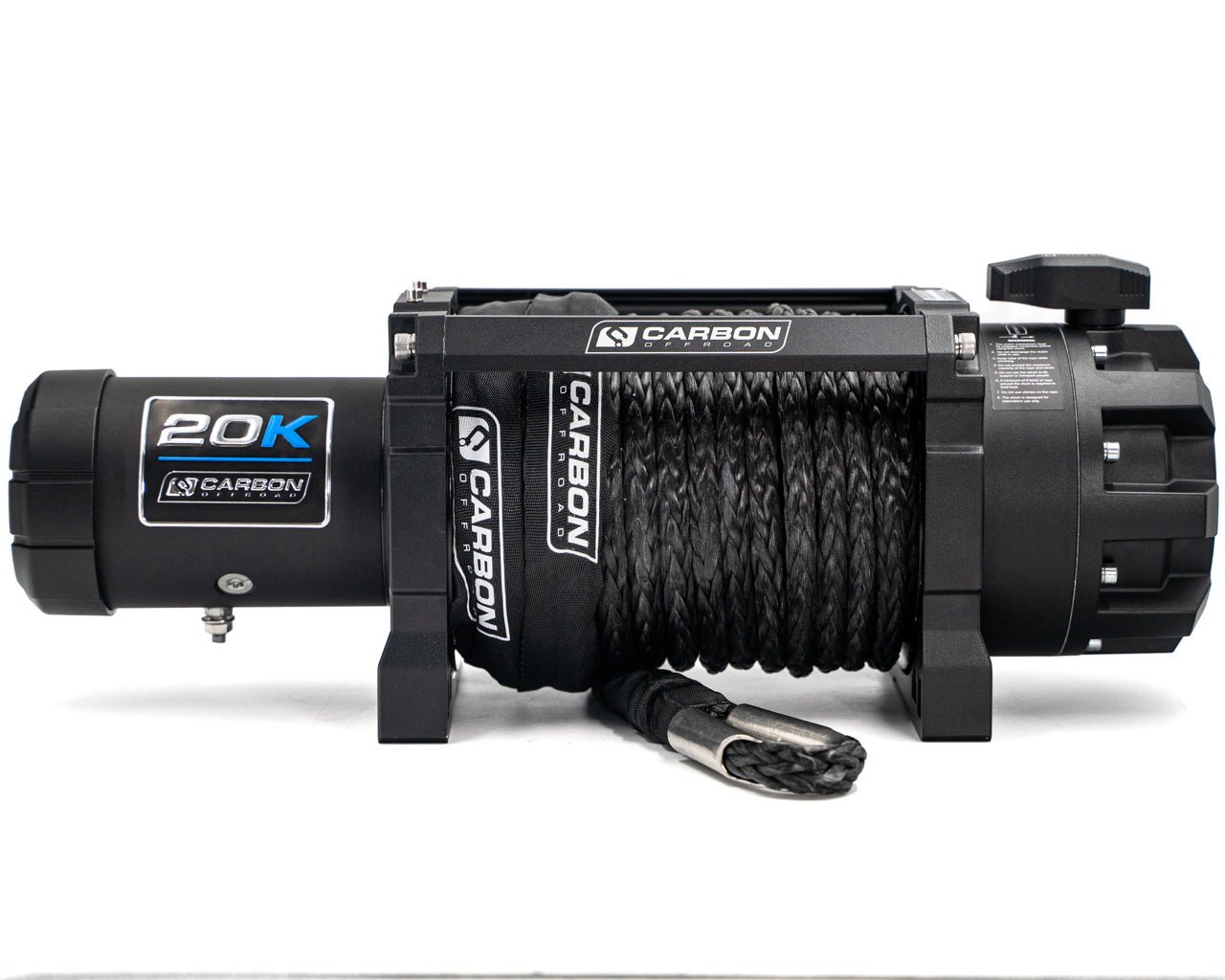

Carbon Offroad Scout Pro Extreme Duty Winch | 20,000lb 24V Winch Only

Carbon Offroad Scout Pro Extreme Duty Winch | 20,000lb 24V Winch Only

Carbon Offroad
$1,199.00
$1,199.00
Sale Sold out
Shipping calculated at checkout.

In stock

Fulfilled by Carbon Offroad USA

Scout Pro 20K Winch Only listing with 20,000lb rated pull, 7HP 24V motor, 25m synthetic rope, MEGAPRO fairlead, and wired/wireless remotes. Requires compatible 24V power and rated mounting hardware.
View full details

Fast US Standard Shipping &
Easy International Shipping

30-Day Returns

TG Pro
Satisfaction Promise

Trail Grid Pro Tested

  • Details

20,000lb Recovery Winch for Compatible 24V Builds

The Carbon Offroad Extreme Duty Scout Pro 20K is designed for appropriately equipped oversized 4WDs, expedition trucks, heavy trailers, and work vehicles. Its 7HP 24V series-wound motor drives a 354:1 three-stage planetary gearbox for controlled high-load pulling.

An automatic brake integrated into the motor frame provides proportional load holding, while the rotating ring gear clutch switches between engaged and freespool modes. A sealed 600A solenoid protects the electrical control assembly. The premium MEGAPRO multi-position fairlead is CNC-machined billet aluminium with Type III hard anodising. Compatible with the optional Carbon Offroad Air Freespool Clutch Upgrade.

What's Included

  • Scout Pro 20K 24V truck winch.
  • Wired remote with 3.6m (11.8ft) lead and wireless remote.
  • 13mm x 25m (0.5-inch x 82ft) synthetic rope.
  • MEGAPRO CNC billet fairlead.

Winch Only listing. Verify any additional mounting hardware, wiring, and accessories required for installation.

Specifications

  • Rated line pull: 20,000lb (9,072kg).
  • Motor: 24V DC 7HP series-wound; gearbox: 354:1 three-stage planetary.
  • Drum dimensions: 88 x 224mm (3.5 x 8.8 inches).
  • Mounting bolt pattern: 254 x 114.3mm (10 x 4.5 inches).
  • Winch dimensions: 579 x 192 x 224mm (22.8 x 7.6 x 8.8 inches).
  • Packing dimensions: 640 x 250 x 345mm (25.2 x 9.8 x 13.6 inches).
  • Weight with rope: 30kg (66.1lb); stated complete-kit weight: 37kg (81.6lb).
  • Recommended battery: minimum 650 CCA; requires compatible 24V supply.
  • Solenoid: sealed 600A.

24V Performance

  • No load: 25.6ft/min (7.8m/min), 40A.
  • 8,000lb (3,630kg): 8.5ft/min (2.6m/min), 125A.
  • 16,000lb (7,257kg): 4.6ft/min (1.4m/min), 200A.
  • 20,000lb (9,072kg): 3.3ft/min (1.0m/min), 280A.

Rated Pull by Rope Layer

  • Layer 1: 20,000lb (9,072kg).
  • Layer 2: 16,140lb (7,321kg).
  • Layer 3: 13,520lb (6,133kg).
  • Layer 4: 11,660lb (5,290kg).

Pull decreases as rope builds on the drum. Verify mounting dimensions, rated structure, electrical capacity, and matched recovery points. Vehicle filters are not a direct-fit guarantee. Follow manufacturer installation and operating instructions and keep people clear.
