Carbon Offroad Scout Pro Extreme Duty Truck Winch | 20,000lb 24V Winch Only

Carbon Offroad Scout Pro Extreme Duty Truck Winch | 20,000lb 24V Winch Only

Carbon Offroad
$1,199.00
$1,199.00
Sale Sold out
Shipping calculated at checkout.

In stock

Fulfilled by Carbon Offroad USA

20,000lb Scout Pro truck winch with 7HP 24V motor, 25m synthetic rope, MEGAPRO fairlead, and wired/wireless remotes. Winch Only version; requires a compatible 24V electrical system and rated mounting setup.
View full details

Fast US Standard Shipping &
Easy International Shipping

30-Day Returns

TG Pro
Satisfaction Promise

Trail Grid Pro Tested

  • Details

24V Winching Power for Heavy Recovery Applications

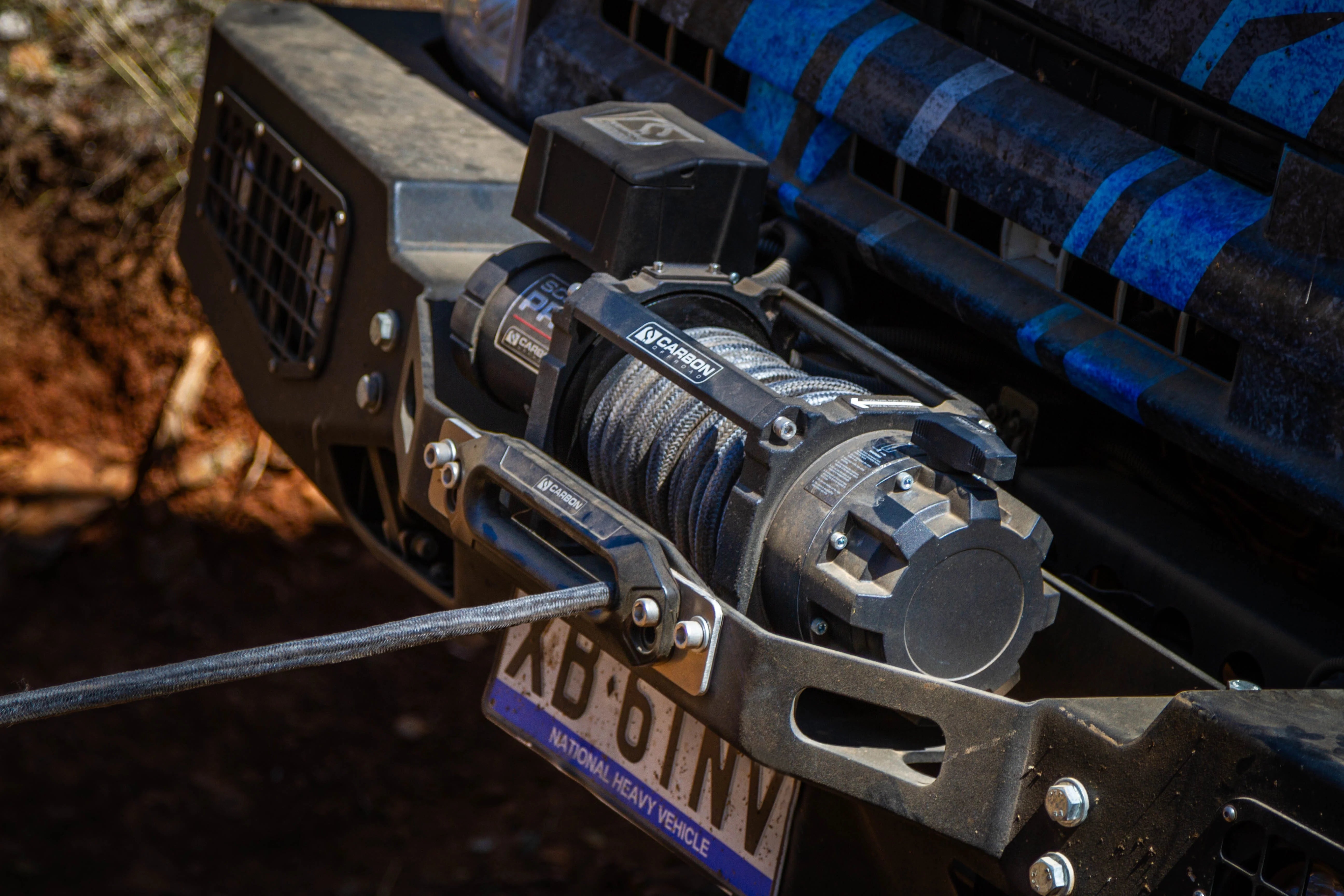

The Carbon Offroad Extreme Duty Scout Pro 20K combines a 20,000lb (9,072kg) rated line pull with a 7HP 24V series-wound motor and 354:1 three-stage planetary gearbox. Designed for appropriately equipped expedition trucks, heavy work vehicles, oversized trailers, and off-road builds, it provides controlled pulling with an automatic load-holding brake and rotating ring gear clutch.

IP68 protection and a sealed 600A solenoid help protect critical components. The MEGAPRO multi-position fairlead uses CNC billet aluminium with a Type III hard-anodised finish. Compatible with the optional Carbon Offroad Air Freespool Clutch Upgrade for supported Scout Pro models.

What's Included

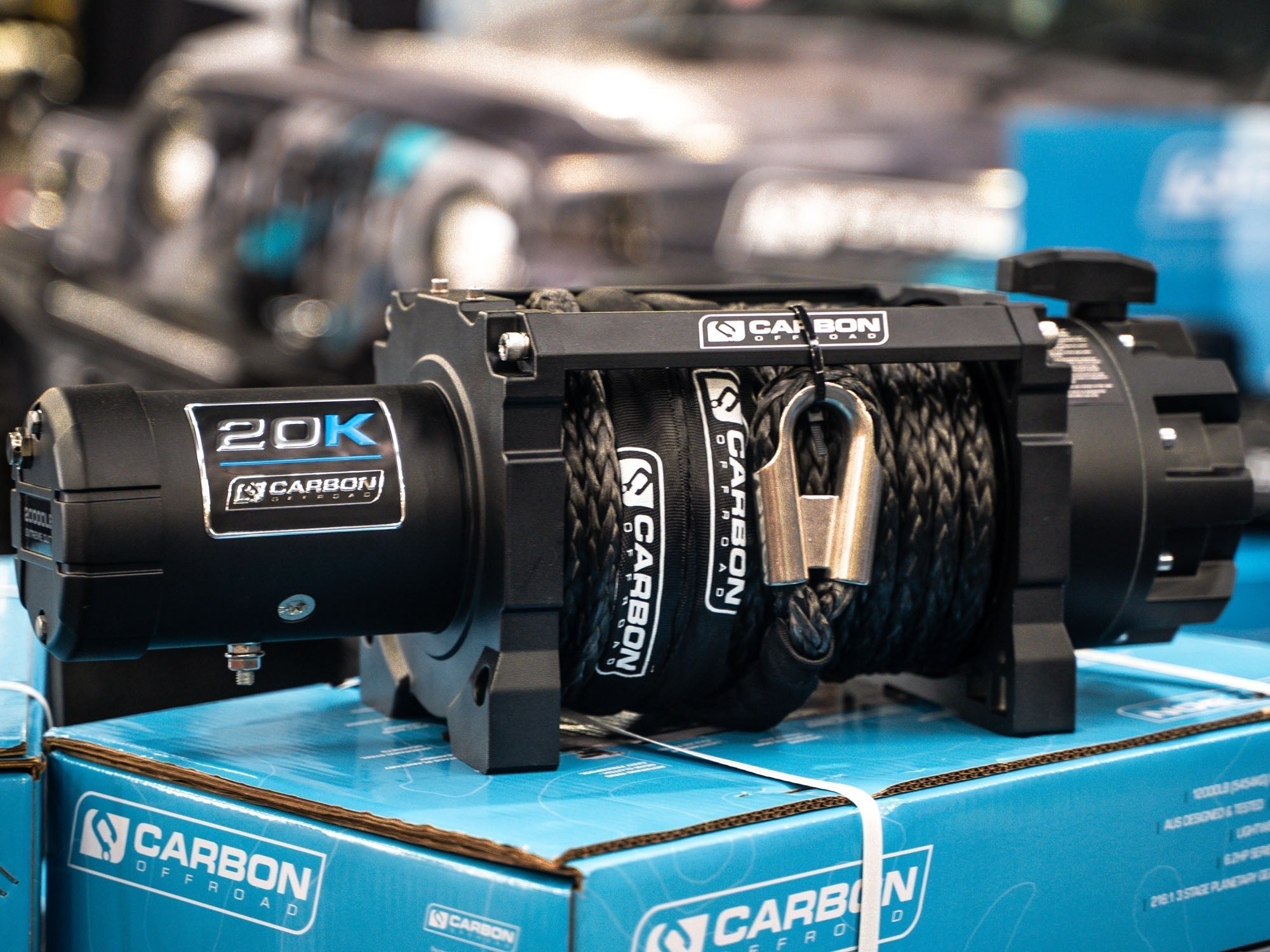

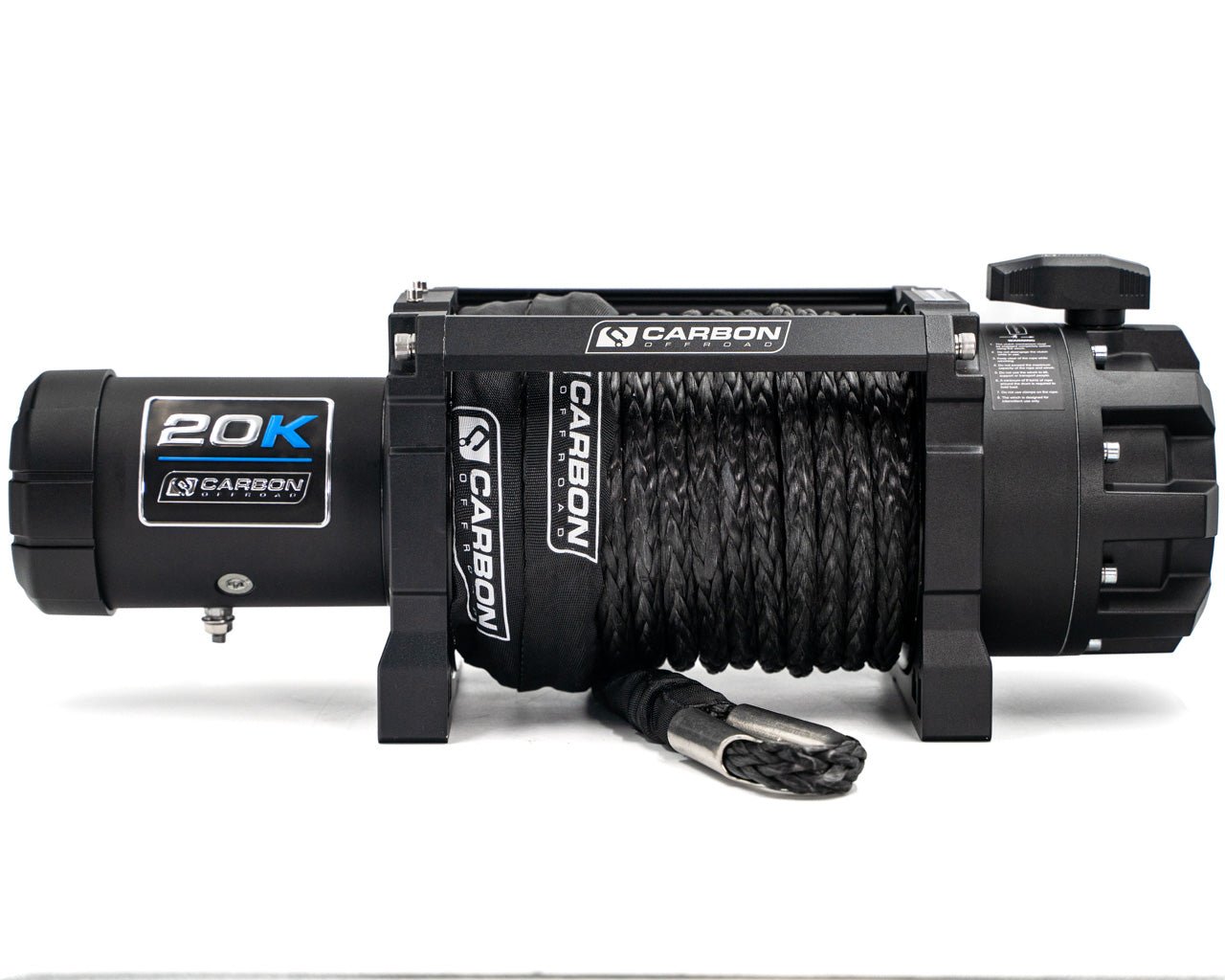

  • Scout Pro 20K 24V truck winch.
  • Wired remote with 3.6m (11.8ft) lead and wireless remote.
  • 13mm x 25m (0.5-inch x 82ft) synthetic rope.
  • MEGAPRO premium CNC billet fairlead.

Winch Only version. Confirm additional mounting hardware, wiring, and installation accessories required for your setup.

Specifications

  • Model: CW-XD20; motor: 24V DC, 7HP series-wound.
  • Rated pull: 20,000lb (9,072kg); gearbox: three-stage planetary, 354:1.

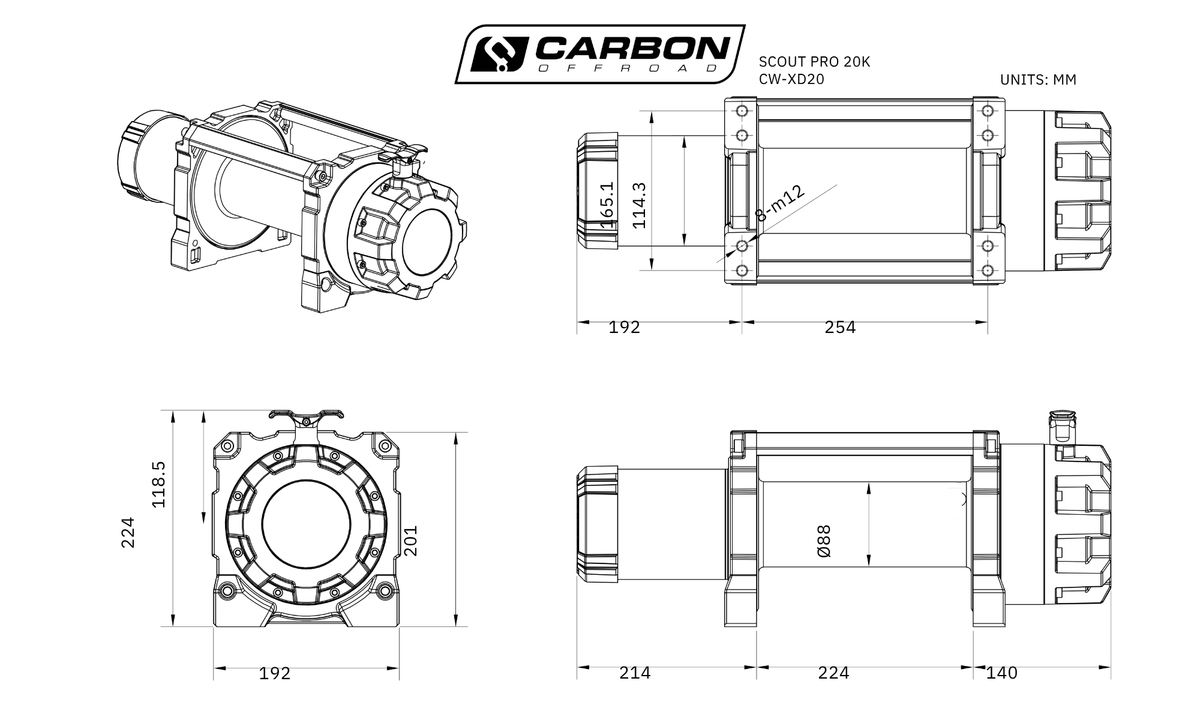

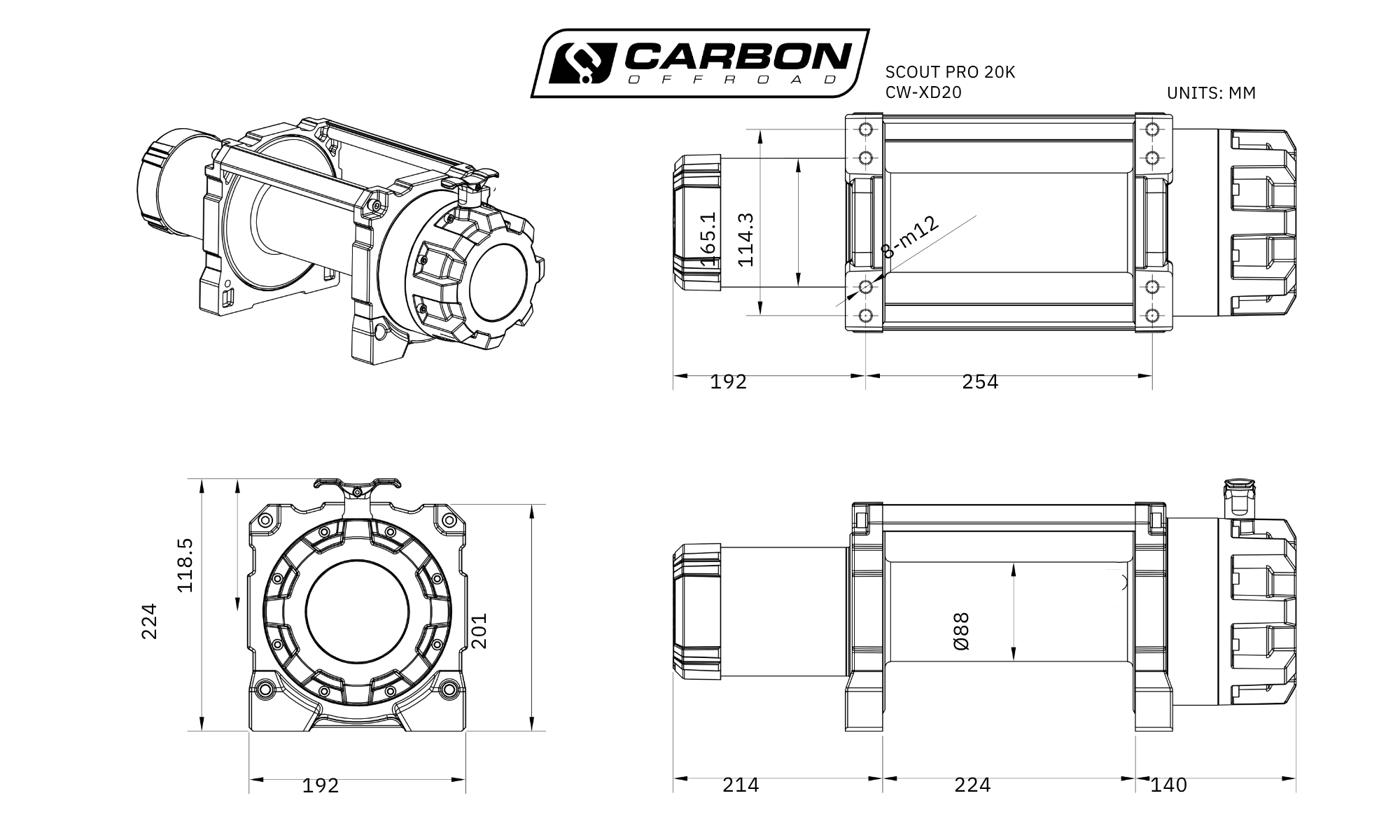

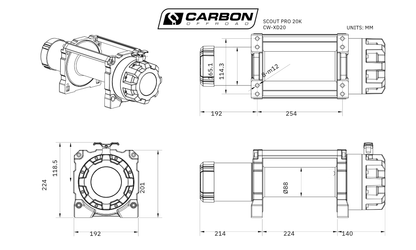

  • Drum diameter x length: 88 x 224mm (3.5 x 8.8 inches).
  • Mounting pattern: 254 x 114.3mm (10 x 4.5 inches).
  • Winch dimensions: 579 x 192 x 224mm (22.8 x 7.6 x 8.8 inches).
  • Packing dimensions: 640 x 250 x 345mm (25.2 x 9.8 x 13.6 inches).
  • Winch with rope: 30kg (66.1lb); stated complete-kit weight: 37kg (81.6lb).
  • Recommended battery: minimum 650 CCA; compatible 24V DC supply required.
  • Solenoid: sealed 600A; protection: IP68.

24V Line Speed and Current

  • No load: 25.6ft/min (7.8m/min), 40A.
  • 8,000lb (3,630kg): 8.5ft/min (2.6m/min), 125A.
  • 16,000lb (7,257kg): 4.6ft/min (1.4m/min), 200A.
  • 20,000lb (9,072kg): 3.3ft/min (1.0m/min), 280A.

Rated Pull by Rope Layer

  • Layer 1: 20,000lb (9,072kg).
  • Layer 2: 16,140lb (7,321kg).
  • Layer 3: 13,520lb (6,133kg).
  • Layer 4: 11,660lb (5,290kg).

Available pull decreases as rope builds on the drum. Verify voltage, clearance, rated mounting structure, electrical capacity, and recovery-point suitability before installation. Vehicle filters do not establish direct fitment or recovery suitability. Follow manufacturer instructions and keep people clear during use.
