ON/OFF battery isolation for compatible 12V–48V DC systems, with an ABS housing, brass connections, and mounting hardware. Rated 275A continuous at 12V DC.
Couldn't load pickup availability
Fast US Standard Shipping &
Easy International Shipping
30-Day Returns
TG Pro
Satisfaction Promise
Trail Grid Pro Tested
- Details
Simple Battery Isolation for Storage and Maintenance
The Carbon Offroad Battery Isolator Switch gives you a straightforward way to disconnect and restore power on compatible 12V–48V DC systems. Turn the two-position knob to isolate the battery and help prevent unwanted drain while your vehicle or boat is parked.
A black ABS housing and solid brass connection components provide a durable, corrosion-resistant construction for suitable automotive, marine, and off-road installations.
Specifications
- Switch function: ON/OFF.
- Supported systems: 12V–48V DC; maximum voltage 48V DC.
- Continuous current: 275A at 12V DC.
- Intermittent current: 455A at 12V DC.
- Momentary current: 1,250A at 12V DC.

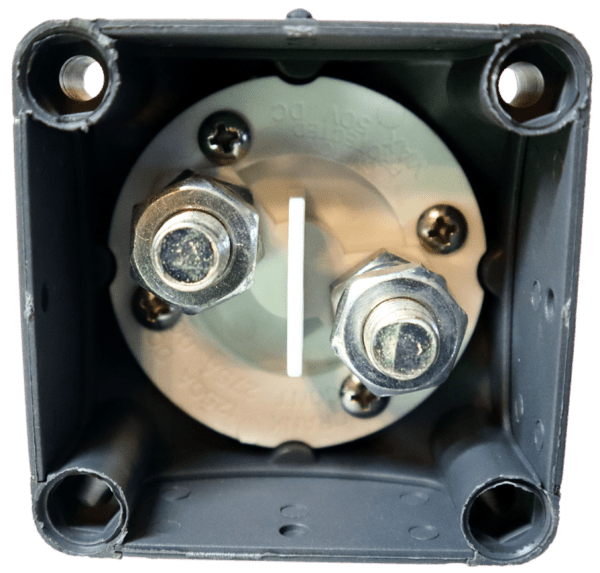

- Two termination studs: 3/8 inch (10mm).
- Operating temperature: −25°C to 85°C.
- Housing: black ABS plastic.
- Connection material: solid brass.

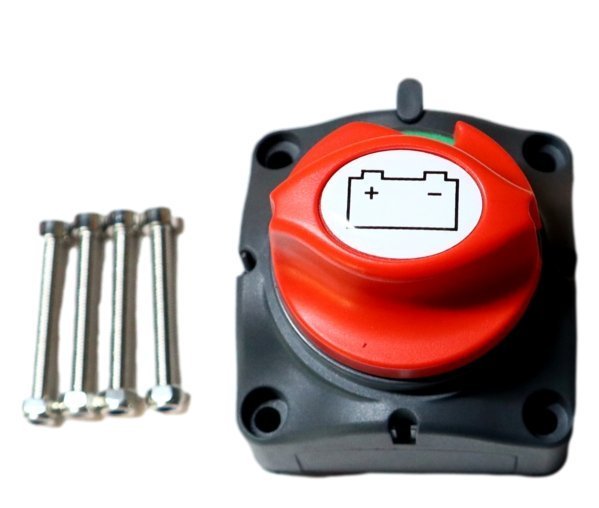

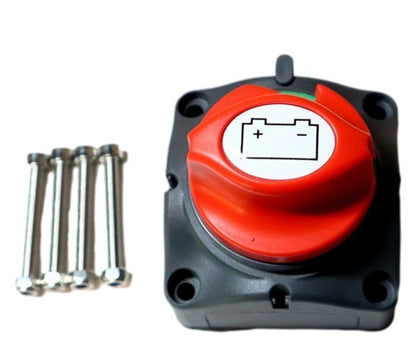

What's Included
- One battery isolator switch.
- Four mounting bolts with nuts.
Installation Compatibility
Confirm your system voltage, current requirements, connections, and mounting space before installation. The current figures listed above are specified at 12V DC; do not assume the same current capacity at other voltages. Vehicle year and model alone do not establish electrical compatibility.
