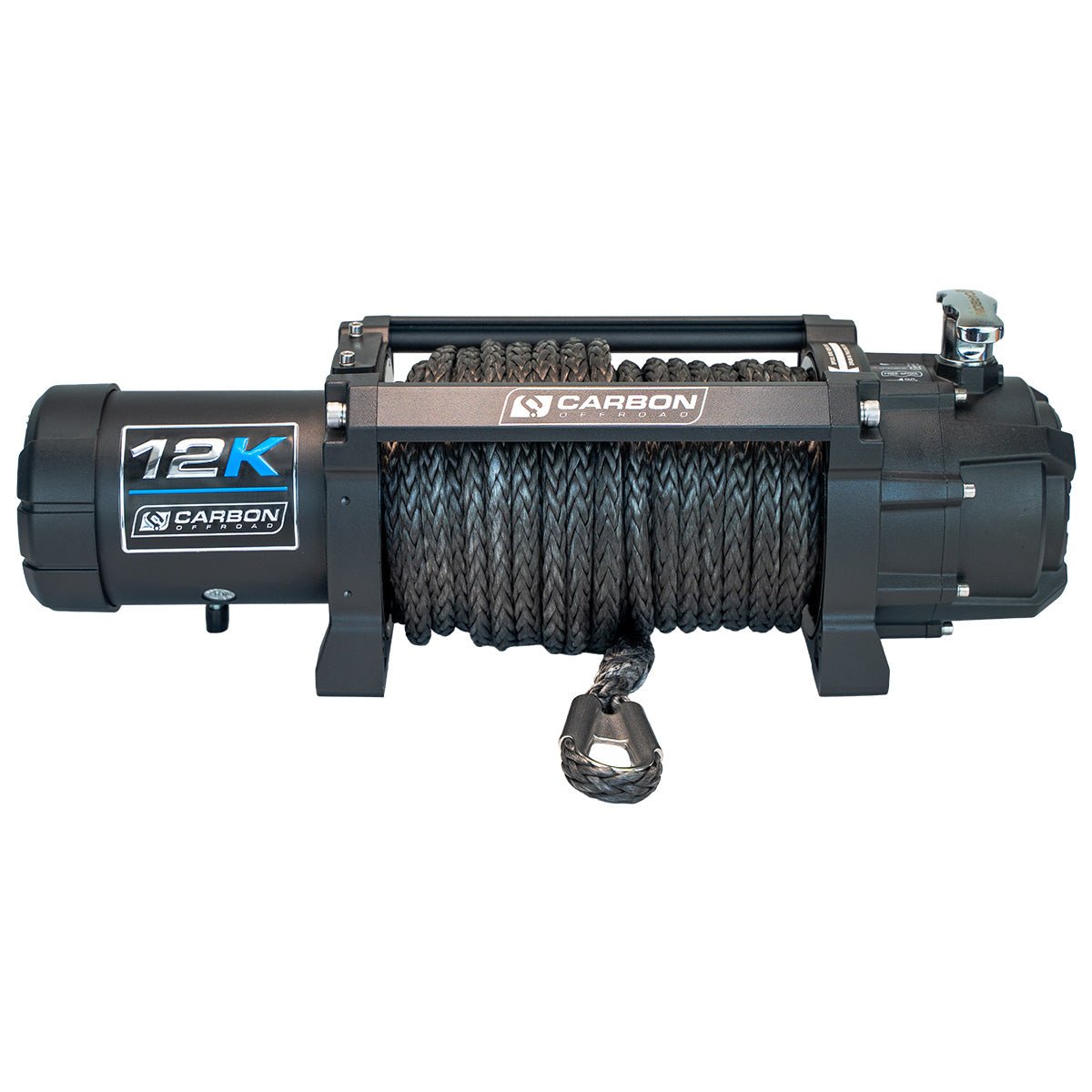

Carbon Offroad 12K V3X Electric Winch | 12,000lb Black Rope, Winch Only

12,000lb Electric Winch with Black Synthetic Rope

The Carbon Offroad 12K V3X combines a 6HP motor and triple planetary gearbox with a 12,000lb (5,443kg) rated line pull. Engineered in Australia and refined through off-road use, it is designed for appropriately equipped 4x4 and utility recovery applications while limiting added front-end weight.

The breathable membrane-style motor breather accommodates heat expansion and contraction. A multi-fit control box can mount directly on the winch, above the drum or motor, to the vehicle, or on a bull bar with the included bracket. Wired and wireless remotes provide two control options, while the isolator switch and additional cabling allow power to be disconnected when the winch is not in use.

Listed Package Contents

This product retains its Winch Only designation. The existing V3X package specification lists the following components:

• Carbon Offroad 12K V3X winch.
• Wired and wireless remotes.
• Black synthetic rope.
• CNC-machined alloy fairlead.
• Isolator switch with additional cabling.
• Mounting hardware kit.
• MegaPro hook.

Confirm the exact package and vehicle-specific installation requirements before fitting.

Specifications and Protection

• Rated line pull: 12,000lb (5,443kg).
• Motor: 6HP; 12V DC performance specification.
• Gearbox: triple planetary; chassis: V3X.
• Stated winch weight: 43.0lb (19.7kg).
• IP68 rating: dust protection and stated freshwater submersion protection to 5ft (1.5m) for up to 30 minutes when not operating. Follow manufacturer conditions; this is not an instruction to operate underwater.
• Compatible with the optional Carbon Offroad Air Freespool Clutch Upgrade.

12V Line Speed and Current

• No load: 31.2ft/min (9.5m/min), 60A.
• 3,000lb (1,360kg): 15.4ft/min (4.7m/min), 135A.
• 6,000lb (2,725kg): 11.8ft/min (3.6m/min), 220A.
• 9,000lb (4,090kg): 8.5ft/min (2.6m/min), 285A.
• 12,000lb (5,443kg): 5.6ft/min (1.7m/min), 340A.

Rated Pull by Rope Layer

• Layer 1: 12,000lb (5,450kg stated layer-table value).
• Layer 2: 9,800lb (4,450kg).
• Layer 3: 8,300lb (3,770kg).
• Layer 4: 7,200lb (3,270kg).

Warranty and Installation

Limited lifetime mechanical warranty plus 5-year electrical and water ingress coverage. The stated registration offer extends electrical and water ingress coverage from 5 to 7 years when registered within 90 days, subject to manufacturer terms.

Confirm mounting clearance, electrical capacity, and suitable rated recovery points before installation. Vehicle filters are not a direct-fit guarantee. Follow manufacturer instructions, observe rope-layer limits, and keep people clear during recovery.
