Beat-Sonic Plug & Play Front Camera Interface Kit | Select 2022+ Toyota Models

Add front camera visibility to your factory screen—without the hassle.

The video below shows the installation in a 2024+ Toyota Tacoma which you can use as a reference to install in any of the compatible vehicles listed below!

The Beat-Sonic Plug & Play Front Camera Interface Kit is the easiest way to add a front camera to your 2022+ Toyota while retaining full factory functionality of your factory backup camera as well. This Trail Grid Pro exclusive bundle combines the Beat-Sonic CS15 Camera Selector with the BCAM13 Front Camera, pre-configured by our team for a true plug-and-play installation.

Vehicle Compatibility
Works with select 2022–2026 Toyota models, including:
• 2025-2026 Toyota 4Runner with 8" display screen only
• 2025-2026 Toyota Camry with 8" or 12.3" display screen
• 2023-2026 Toyota Corolla / GR Corolla with 8" display screen
• 2024-2026 Toyota Grand Highlander with 8" or 12.3" display screen
• 2024-2026 Toyota Land Cruiser with 8" or 12.3" display screen
• 2023-2026 Toyota Prius with 8" or 12.3" display screen
• 2023-2025 RAV4 with 8" or 10.5" display screen
• 2025-2026 Toyota Sienna with 8" or 12.3" display screen
• 2023-2026 Toyota Sequoia with 8" display screen only
• 2024-2026 Toyota Tacoma with 8" display screen only
• 2022-2026 Toyota Tundra with 8" display screen only

No cutting. No splicing. No guesswork.

We handle the wiring before it ships so all you need to do is install it using our step-by-step video and enjoy the added visibility.

Total Control at Your Fingertips

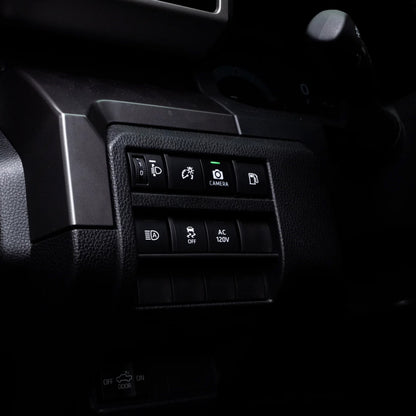

Use the included OEM-style switch to toggle between your front camera, rear camera, and factory display anytime while driving. Whether you’re parking, navigating tight trails, or pulling into a garage, you’ll always have the view you need.

• Press the switch anytime to view the front camera or your factory rear camera
• View your rear camera on demand—even while driving forward
• Automatic front camera display under 9 mph for easier parking
• Backup camera always takes priority when in reverse

Built for Real-World Driving
This kit is perfect for trucks and SUVs with larger front ends, low clearance, or aftermarket bumpers. The included BCAM13 front camera features a 160° wide-angle lens, giving you a clear view of obstacles you normally can’t see from the driver’s seat.

Trail Grid Pro Plug & Play Advantage
Unlike universal kits, this system is pre-built and tested by our team to ensure seamless integration with your vehicle. The updated harness features compact connectors for a cleaner, easier install.

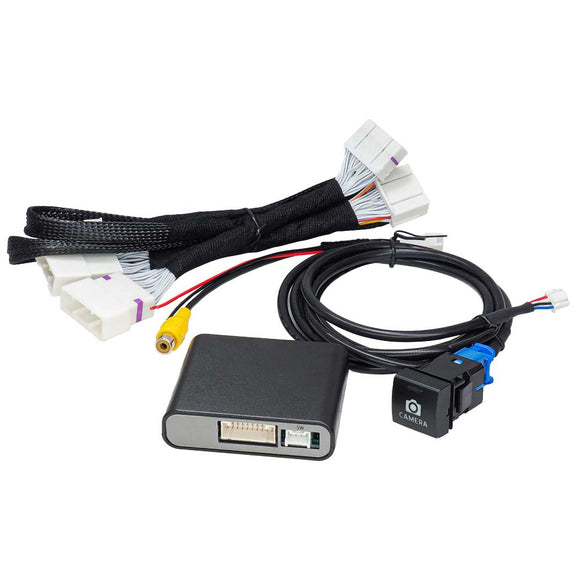

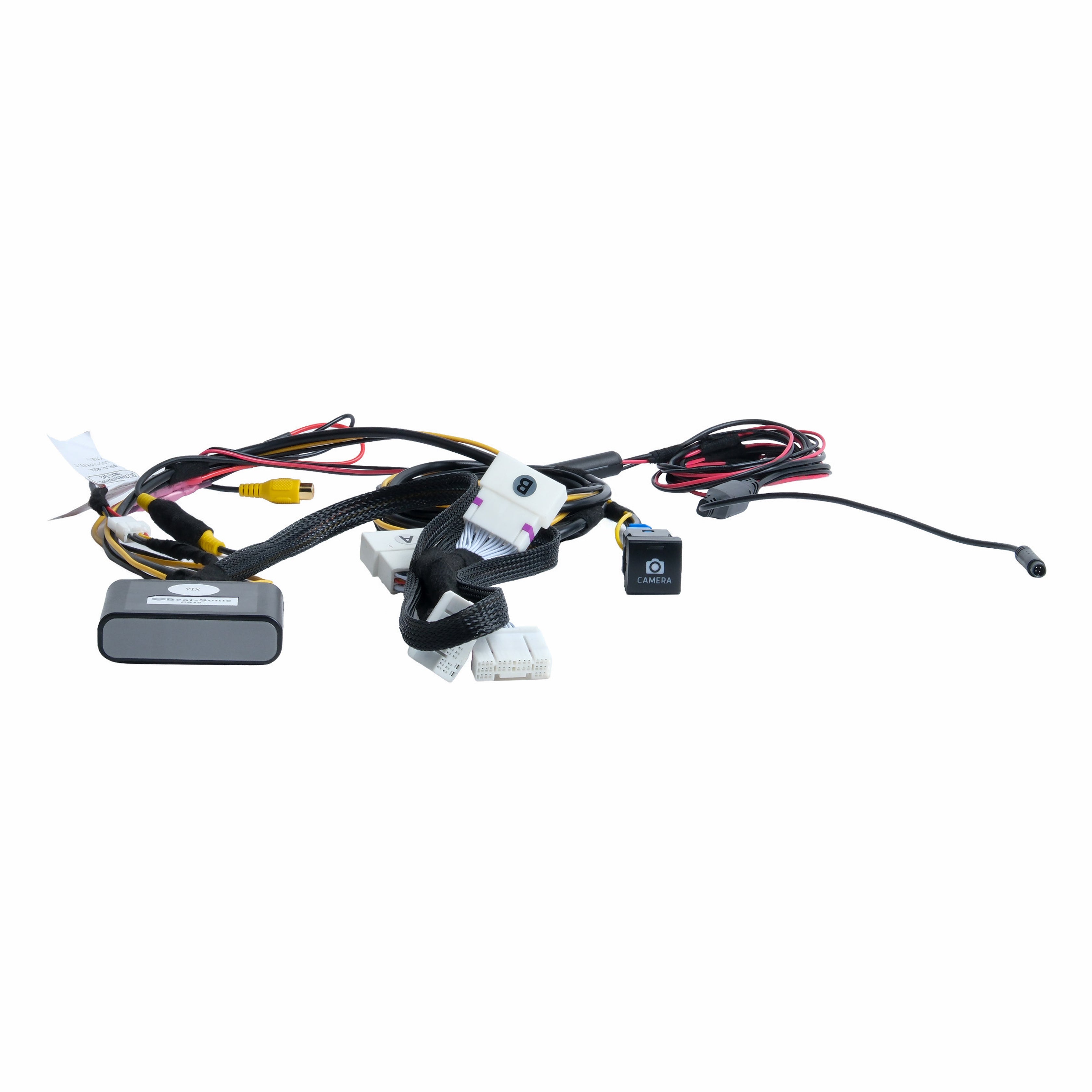

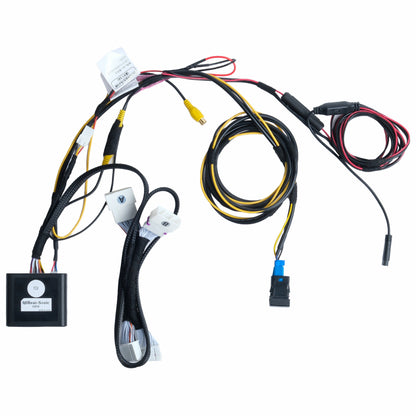

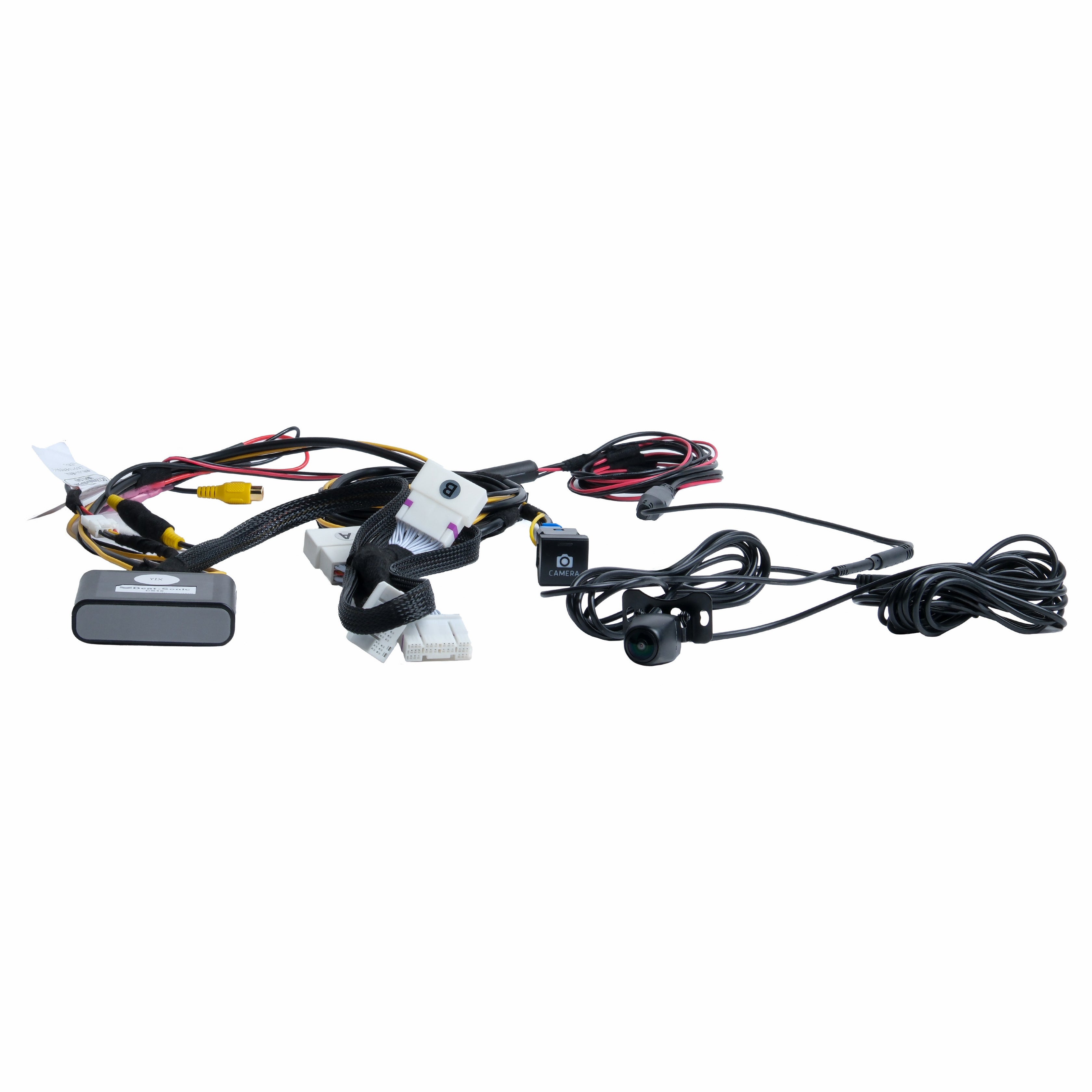

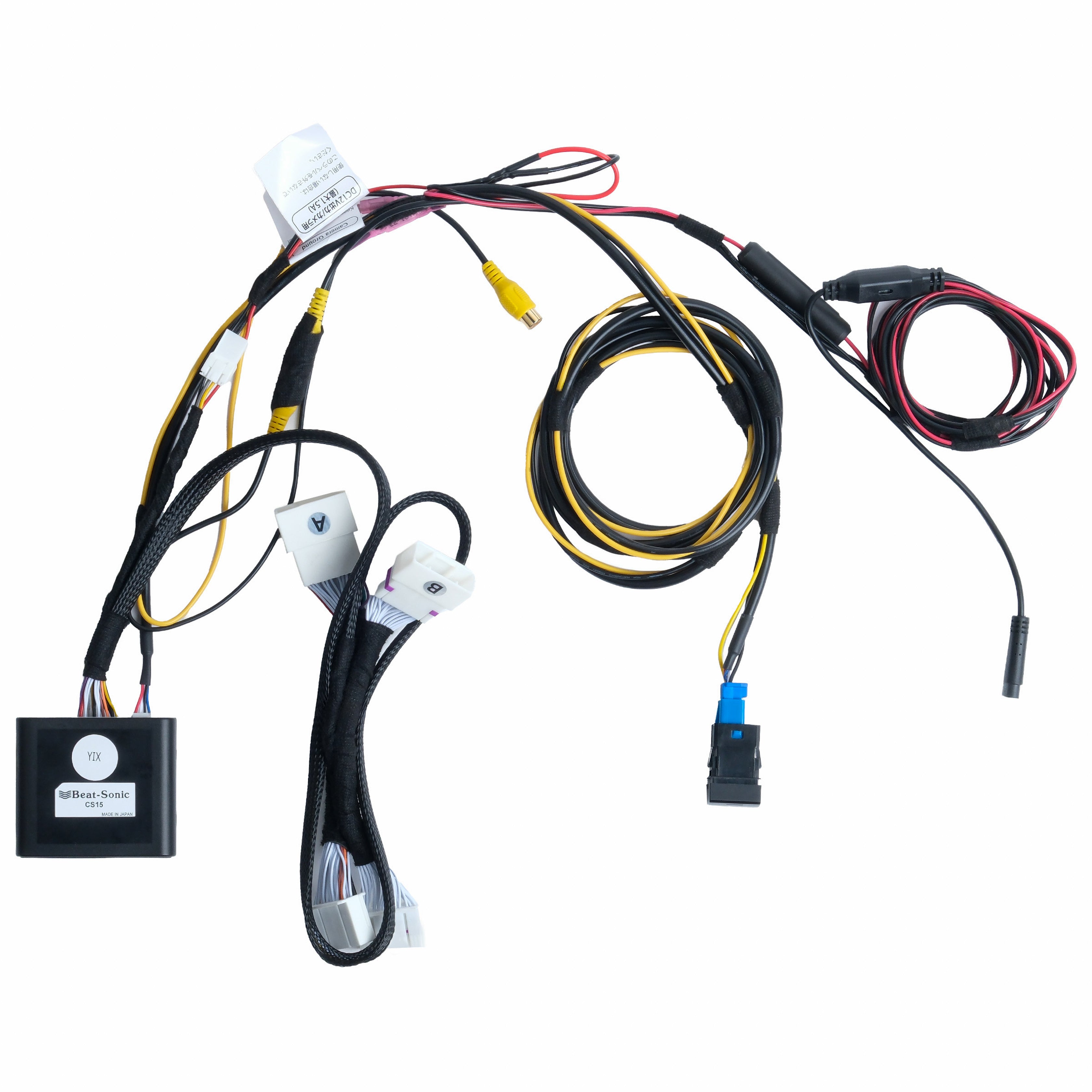

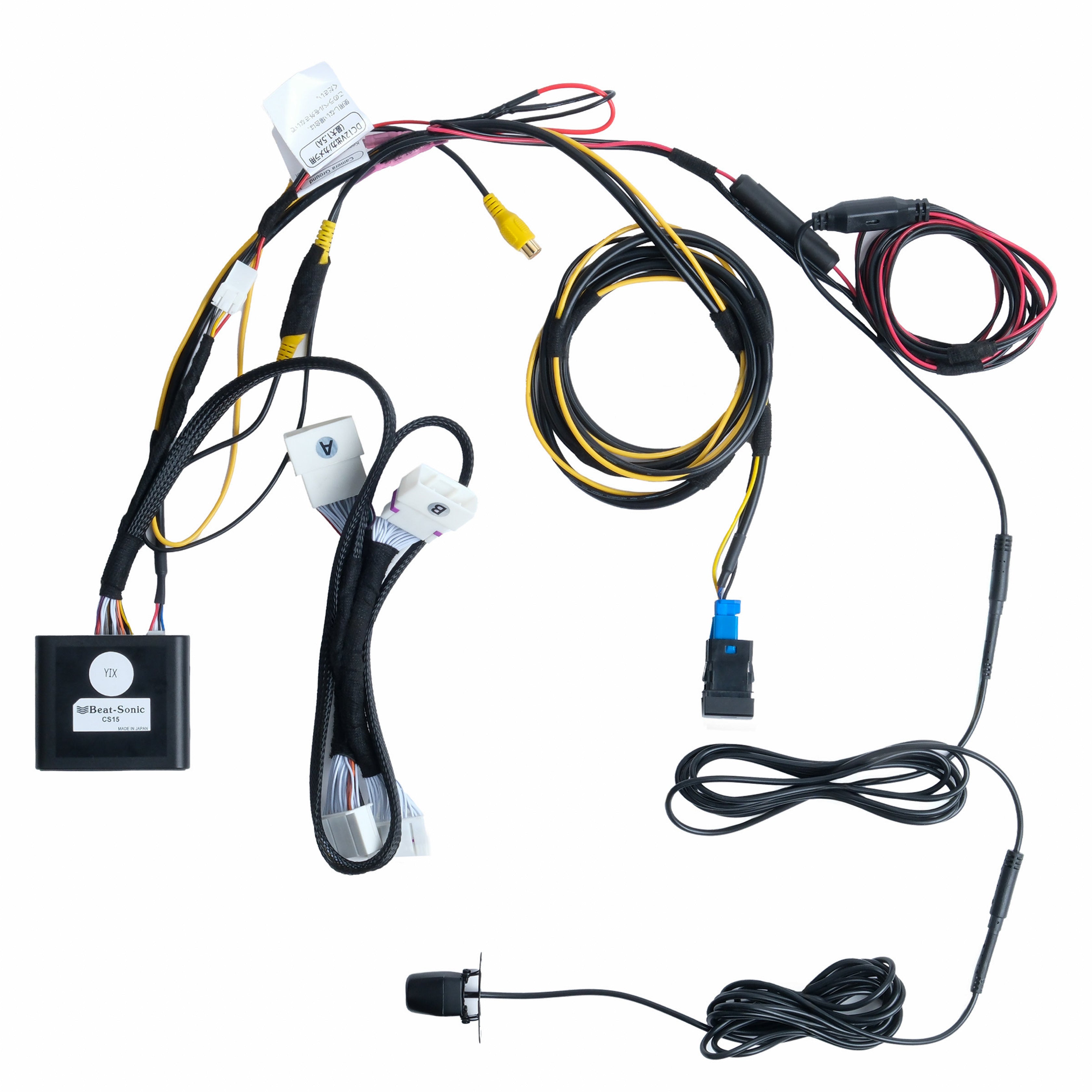

What’s Included

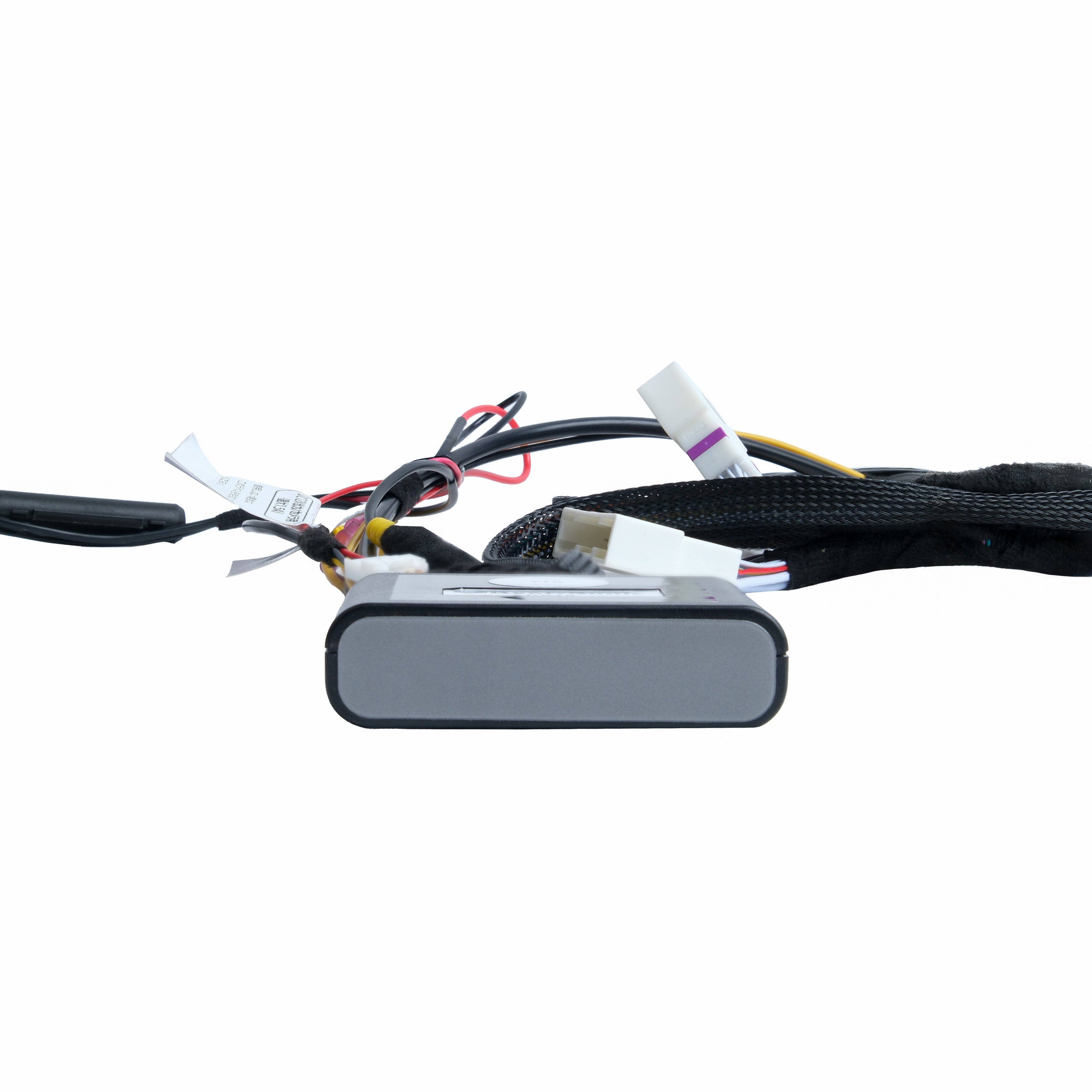

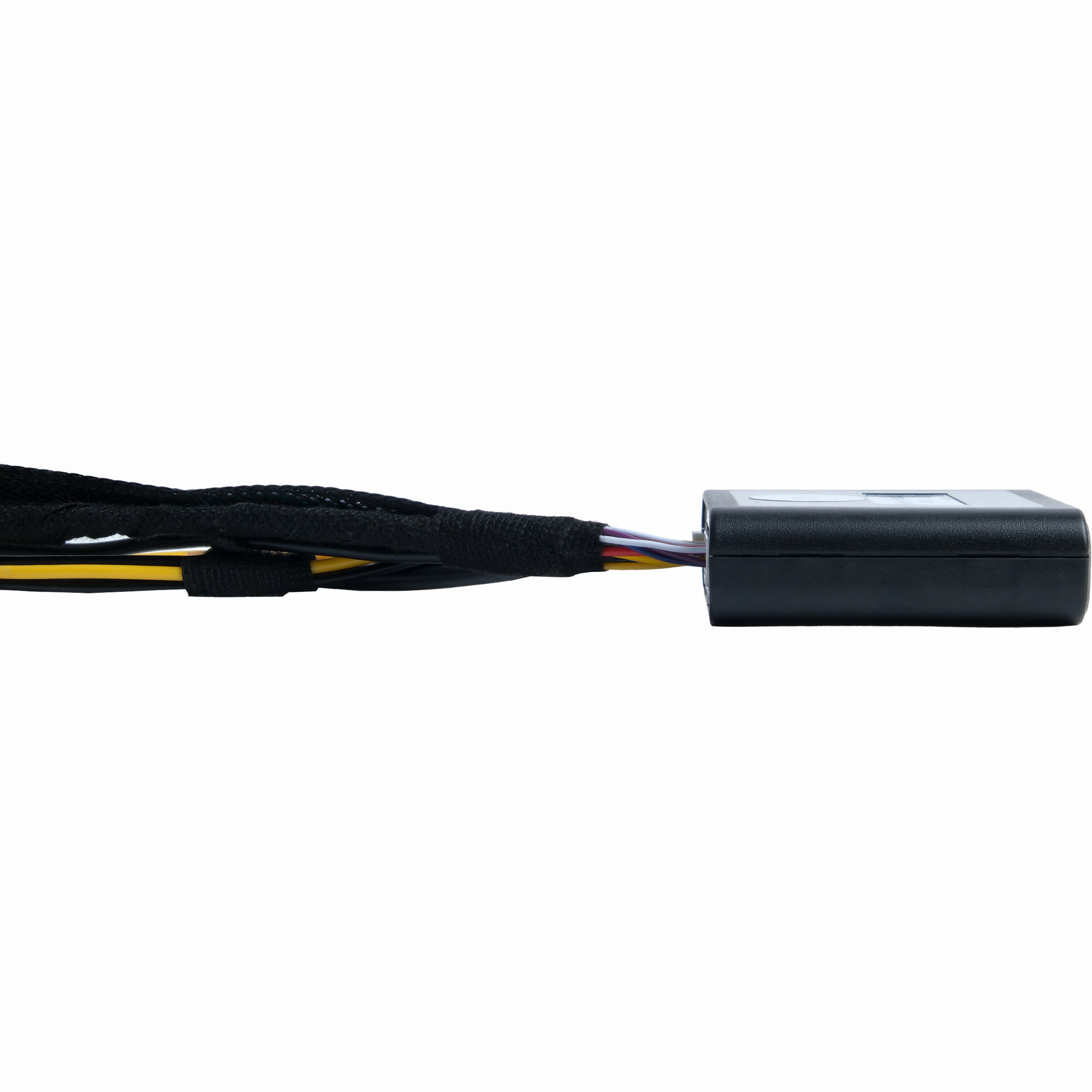

• Beat-Sonic CS15 Camera Selector Module

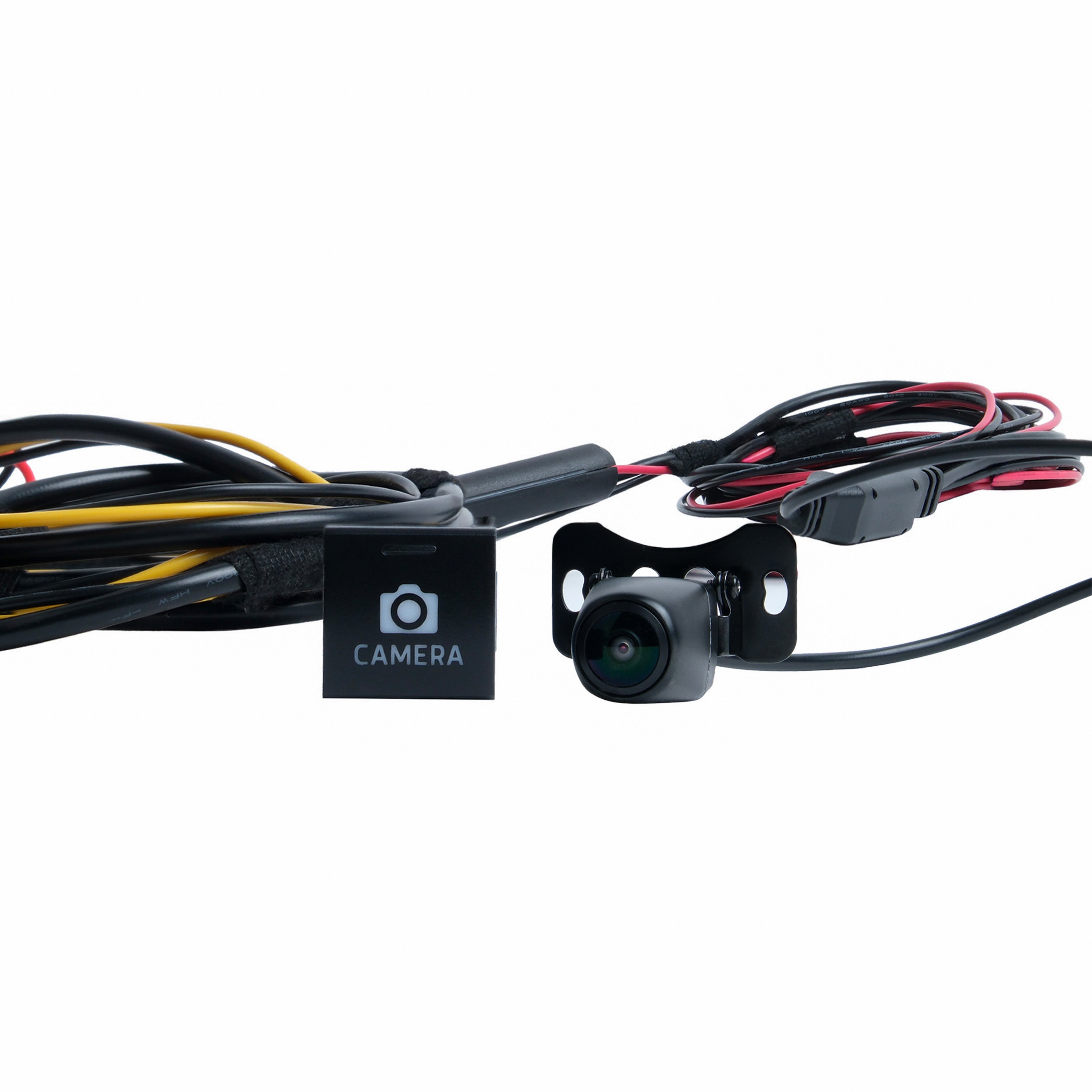

• Beat-Sonic BCAM13 Front Camera
• Trail Grid Pro Plug & Play Wiring Harnesses

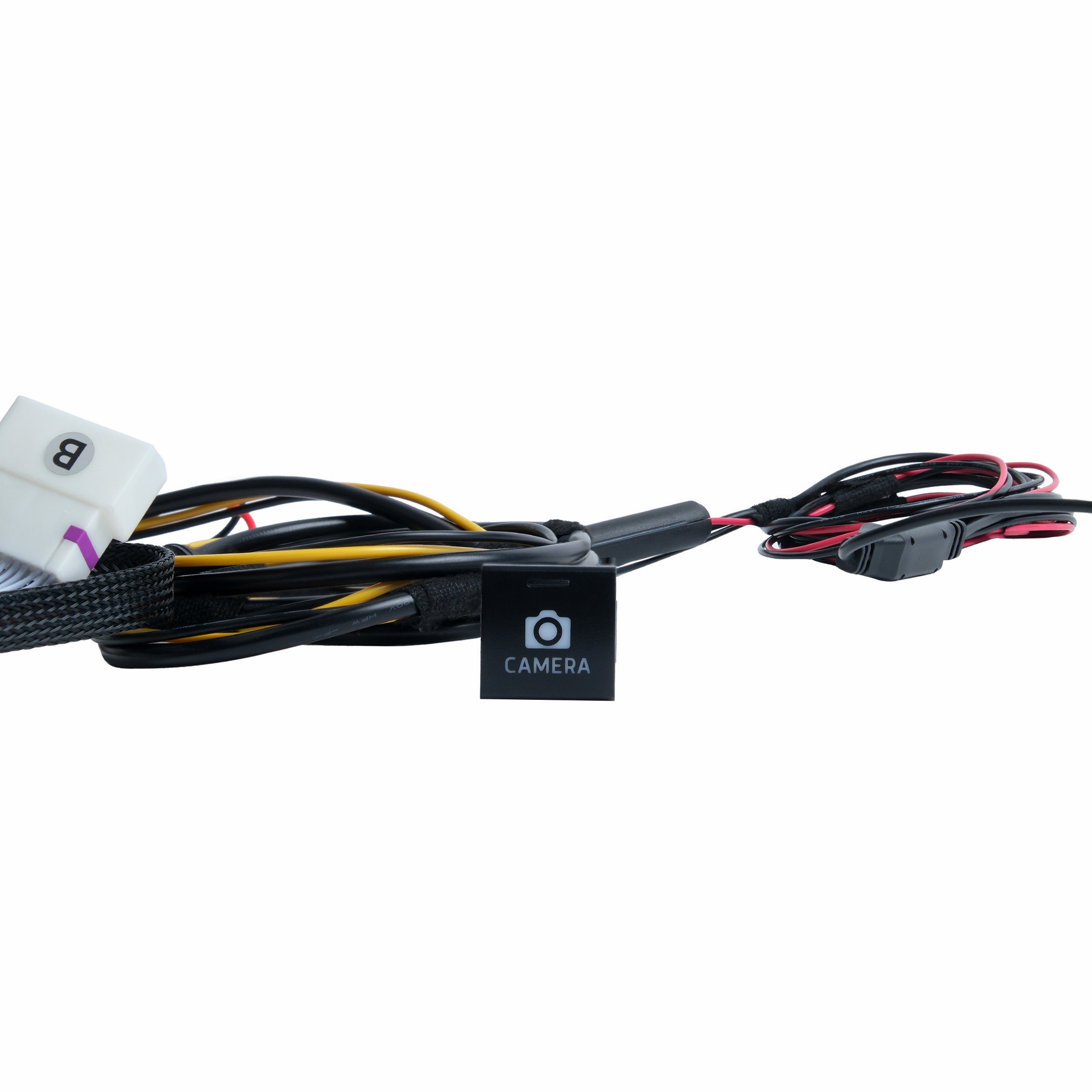

• OEM-style selector switch with white LED
• Installation resources (video + guide)

Key Features
• Adds front camera to factory Toyota screen
• Toggle between front and rear cameras anytime
• Retains full factory backup camera functionality
• Automatic front camera display under 9 mph
• Plug-and-play installation—no cutting or splicing

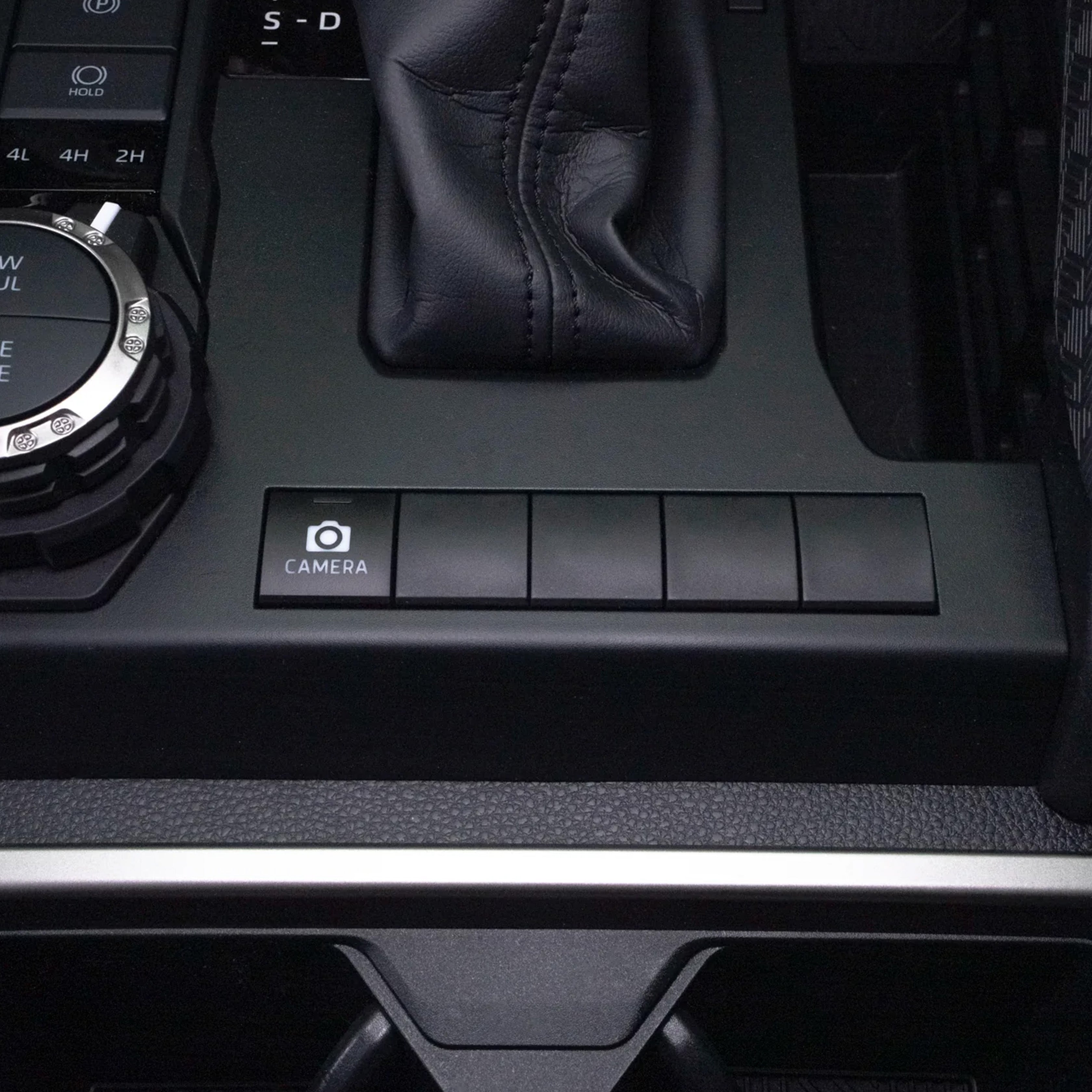

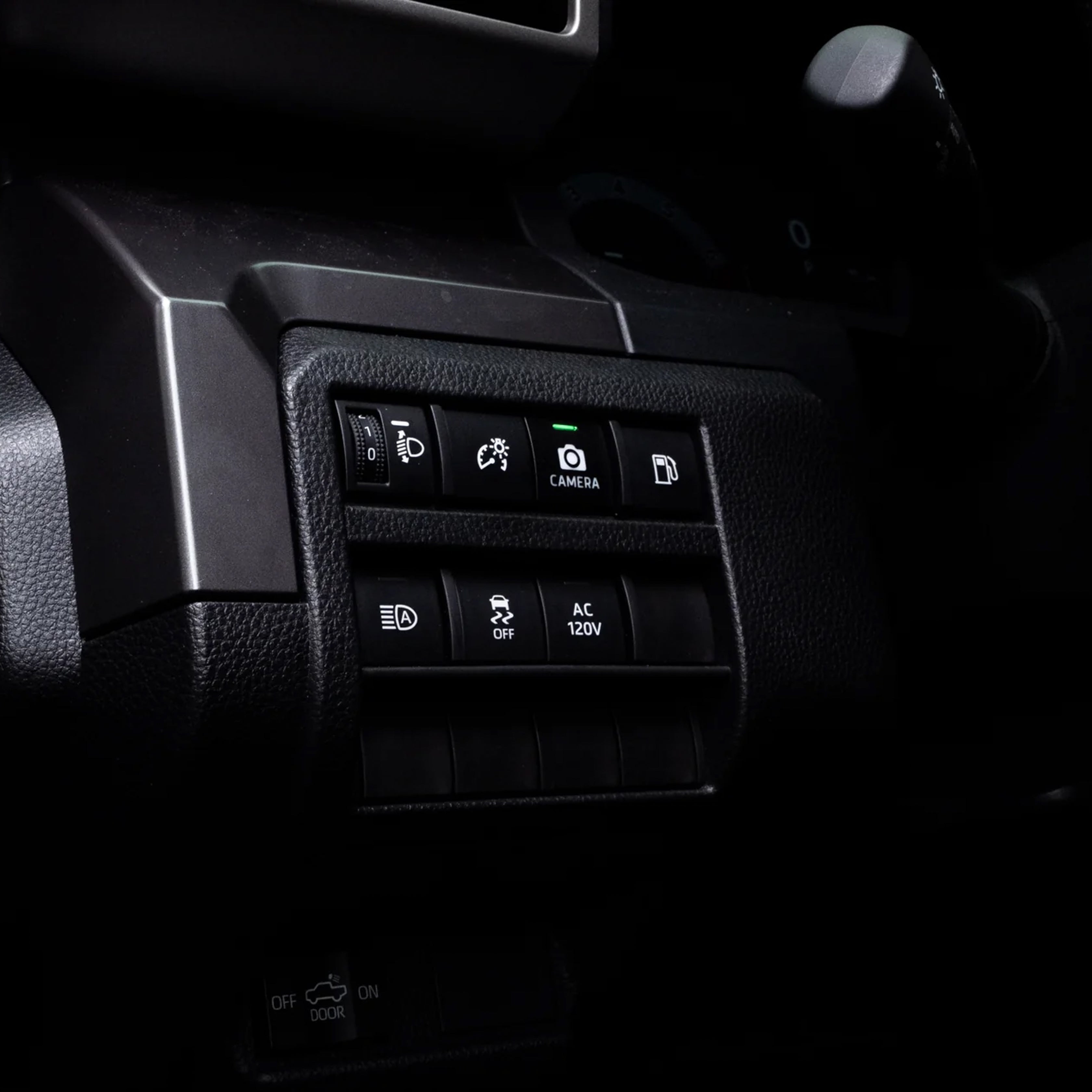

• OEM-style switch fits factory blank locations
• 160° wide-angle front camera
• IP67 waterproof, durable construction

Flexible Camera Mounting

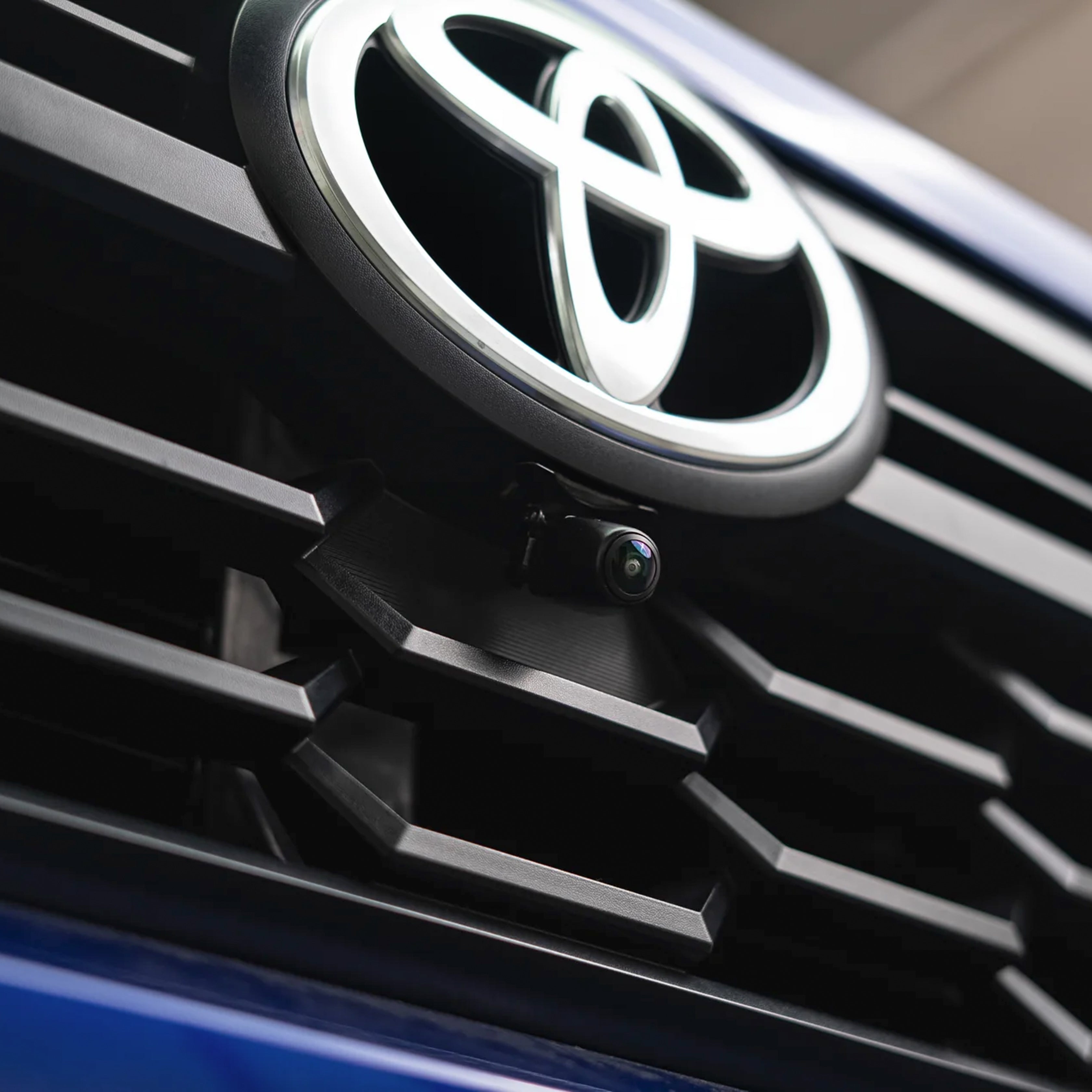

• Mount to front grille using screws
• Use double-sided tape for a no-drill option
• Adjustable bracket included for optimal positioning

Camera Selector Specifications
• Voltage: DC 11V–15V
• Current: <100mA (excluding camera)
• Main unit size: 70 x 19 x 61mm
• Weight: 38g
• Selector switch cable length: 1.8m

Front Camera Specifications
• Sensor Type: 1/4" CMOS
• Image View: Front View
• Resolution: 640 x 480 (approximately 310,000 pixels)
• Viewing Angle: 160 degrees
• Minimum Illumination: 1 lux
• Video Format: NTSC (Color)
• Voltage / Current: 12V DC, 40 mA
• Water Resistance Rating: IP67
• Operating Temperature: -10 degrees C to +60 degrees C

Please confirm your screen size and vehicle compatibility before ordering.

See more. Park easier. Drive smarter.
This is how front camera integration should have come from the factory.
