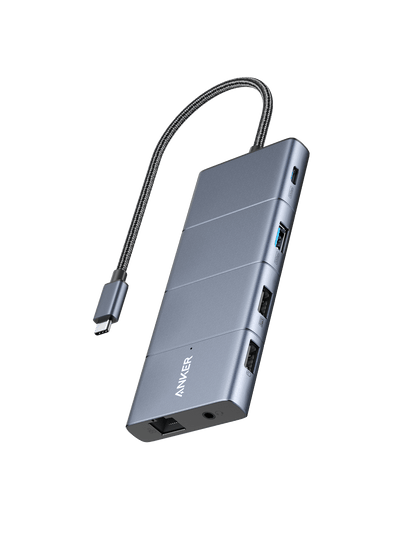

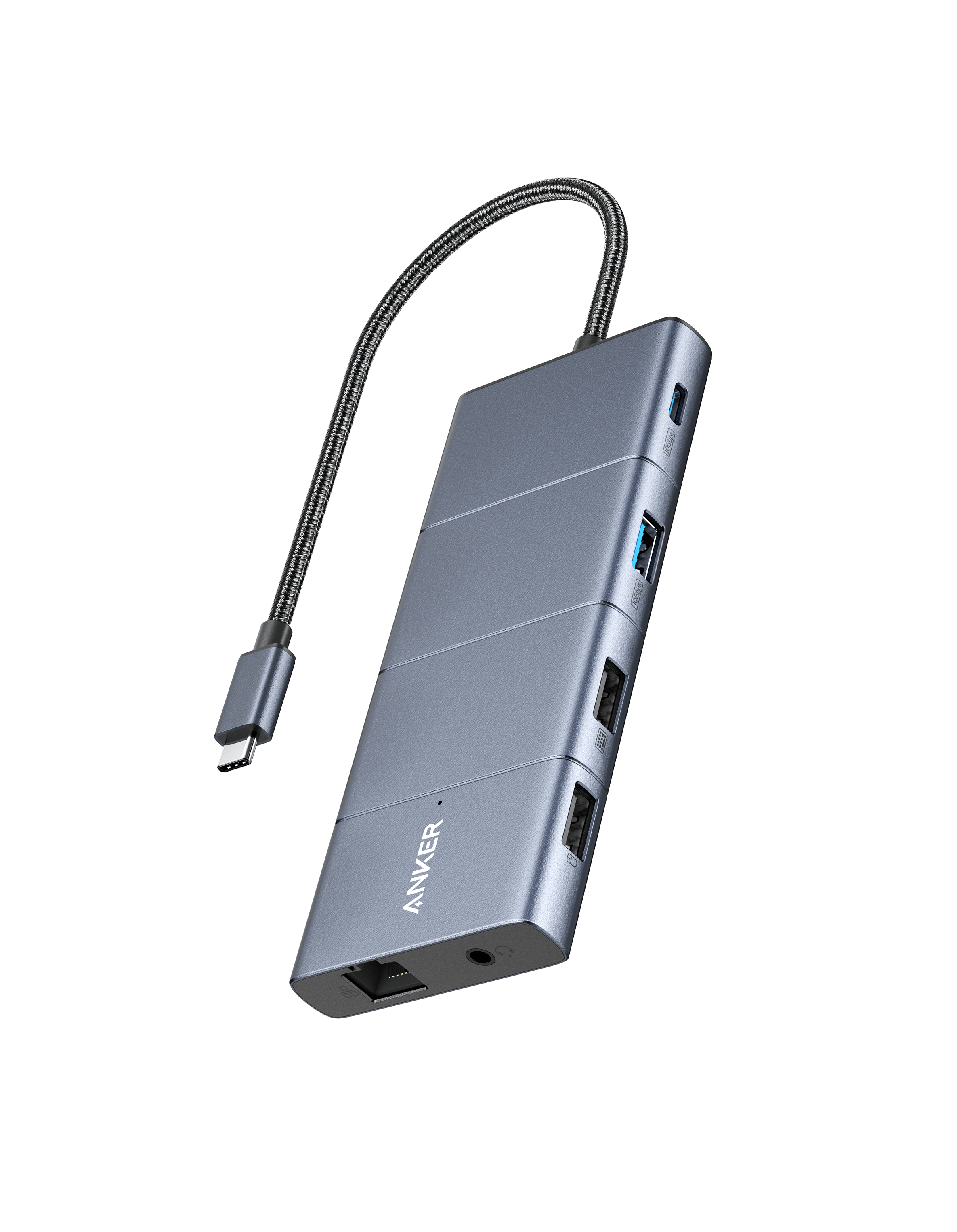

Anker 565 USB-C Hub (11-in-1)

Anker 565 USB-C Hub (11-in-1)

Expand your laptop’s connectivity with the Anker 565 USB-C Hub. With 11 ports, it provides high-speed data transfer, dual-monitor support, up to 85W pass-through charging, Gigabit Ethernet, SD and microSD card readers, and audio connectivity through a single USB-C connection.

Key Features

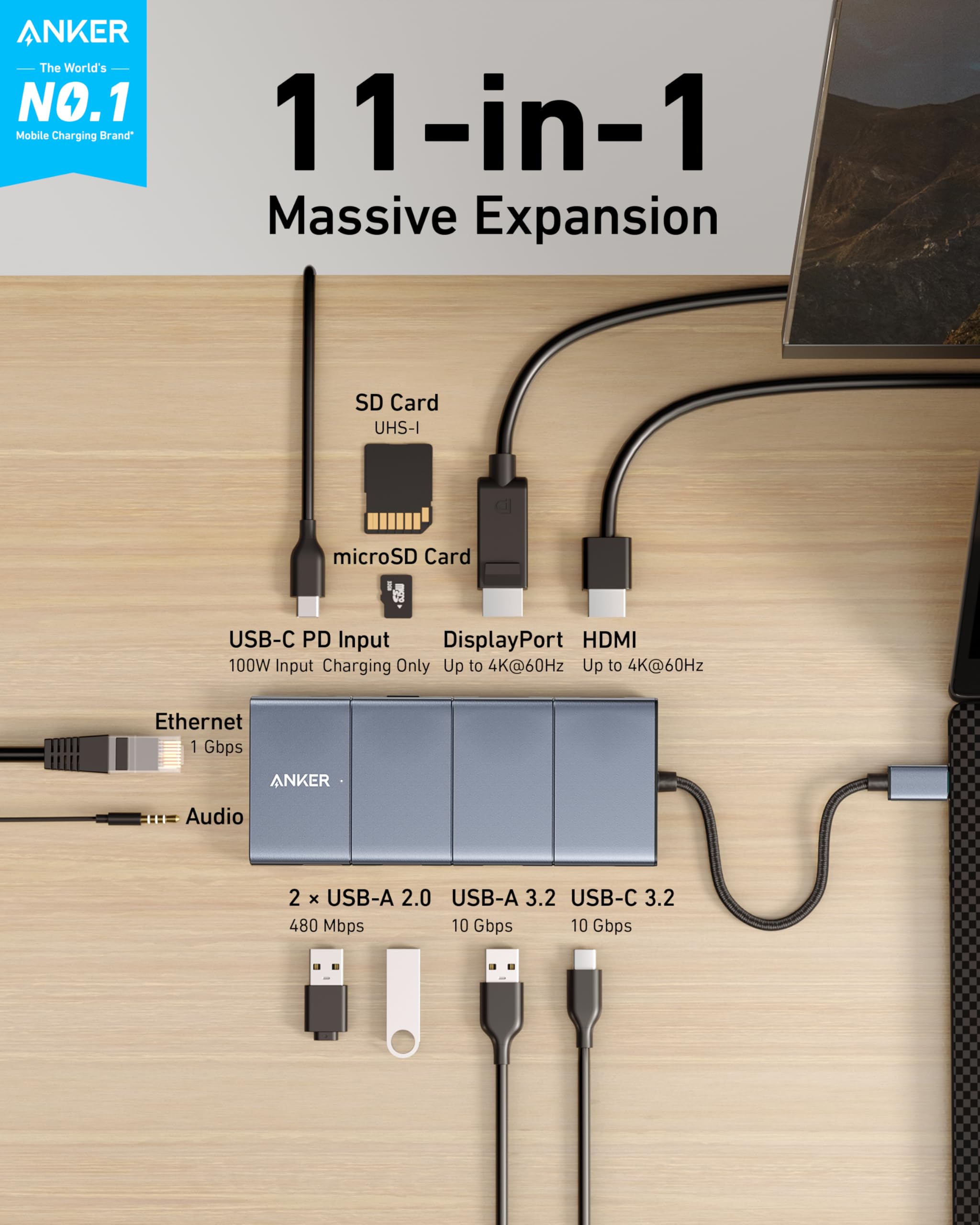

• 11-in-1 Connectivity: Includes USB-C and USB-A data ports, HDMI, DisplayPort, USB-C Power Delivery, Ethernet, SD and microSD card slots, and a 3.5mm audio port.
• High-Speed Data Transfer: USB-C and USB-A 3.2 ports support transfer speeds up to 10Gbps.
• Dual-Monitor Support: Connect two external displays through HDMI and DisplayPort for up to 4K@60Hz output on supported configurations.
• Up to 85W Pass-Through Charging: The USB-C PD input supports up to 100W, providing up to 85W of power to a connected laptop while the hub is in use.
• Fast SD Card Transfers: SD and microSD card slots support UHS-I speeds up to 104MB/s.
• Gigabit Ethernet: Provides a stable wired network connection with speeds up to 1Gbps.
• Audio Connectivity: 3.5mm combo audio port supports both audio input and output.
• Compact Design: Connect multiple peripherals through a single USB-C port without the need for separate adapters.

Specifications

• Model: A8388
• PD Input: 100W
• Laptop PD Output: Up to 85W
• HDMI: Up to 4K@60Hz
• DisplayPort: Up to 4K@60Hz
• USB-C Data: USB 3.2, up to 10Gbps
• USB-A Data: 1 × USB 3.2, up to 10Gbps; 2 × USB 2.0, up to 480Mbps
• Ethernet: Gigabit Ethernet, up to 1Gbps
• SD Card: UHS-I, up to 104MB/s
• microSD Card: UHS-I
• Audio: 3.5mm combo audio input/output, 96kHz/24-bit
• HDMI Standard: HDMI 2.0
• HDCP: HDCP 2.2
• Attached Cable Length: Approximately 8.27 in

Display Support

The Anker 565 supports dual-monitor setups through its HDMI and DisplayPort outputs.

Windows laptops:

• Extended display across two external monitors and the laptop screen
• Mirrored external monitors with a separate laptop display
• Mirrored content across all connected displays

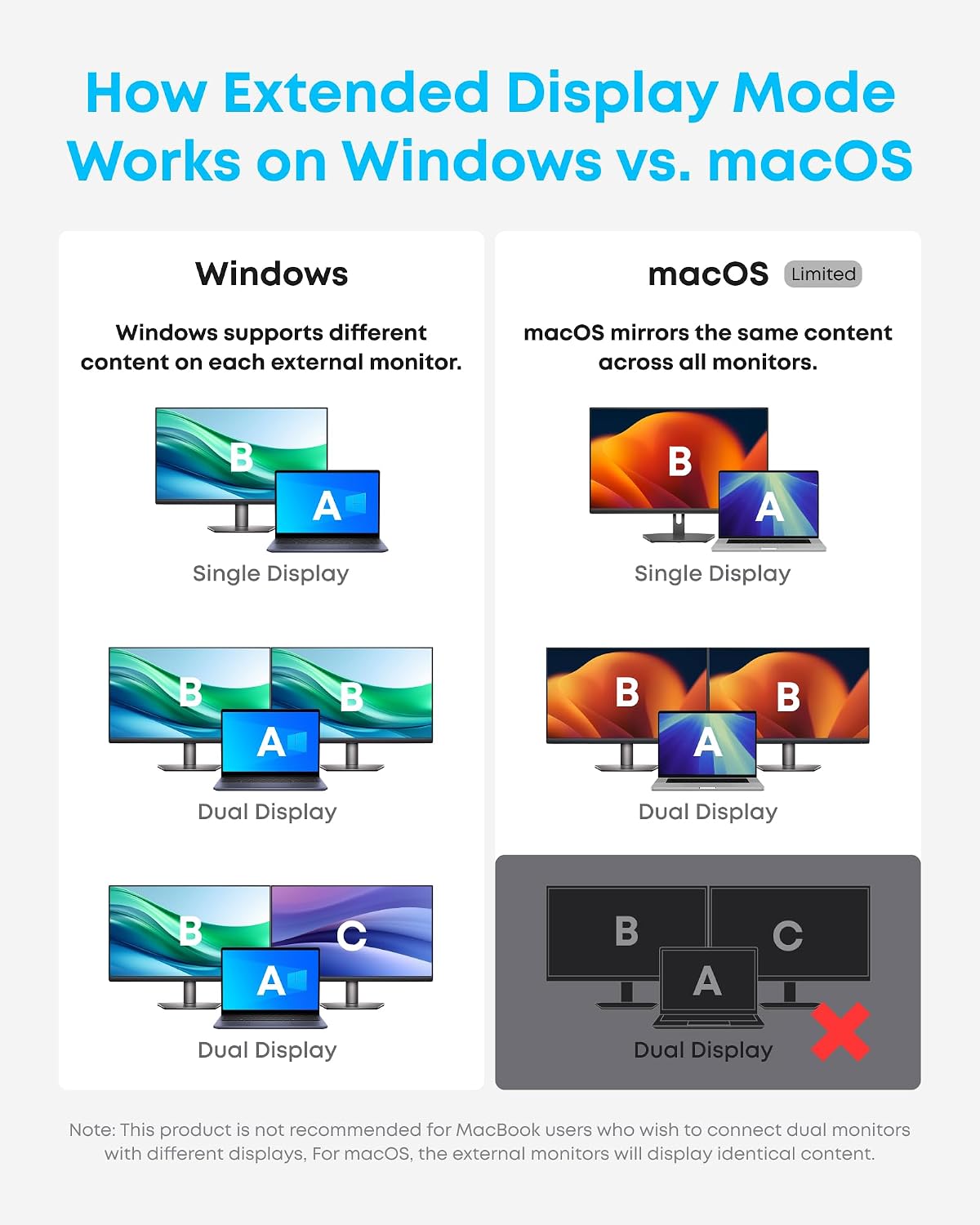

MacBooks:

• Both external monitors display the same content while the laptop screen displays different content
• All connected displays show the same content

Display capabilities depend on the laptop's USB-C/DisplayPort capabilities. A DisplayPort 1.4 laptop supports up to 4K@60Hz, while DisplayPort 1.2 laptops are limited to 1080p@60Hz for supported dual-display configurations.

Compatibility

Compatible with Windows laptops and MacBooks with a USB-C port that supports the required display and data functions.

Important Notes

• USB-A and USB-C ports marked for data transfer do not support device charging or video output.
• Pass-through charging requires a USB-C charger, which is not included.
• A charger with sufficient power is recommended to achieve the maximum 85W laptop charging output.
• Display capabilities vary depending on the host laptop and its USB-C/DisplayPort specifications.
• On macOS, display functionality may vary depending on the MacBook model and macOS version.
• If the hub is not detected after updating to macOS Ventura, check System Settings > Privacy & Security > Allow accessories to connect.
• This product does not use post-consumer recycled or bio-based materials.

What's Included

• Anker 565 USB-C Hub (11-in-1)
• Welcome guide
• 18-month warranty
• Customer support
