Anker 563 USB-C Docking Station (10-in-1)

Anker 563 USB-C Docking Station (10-in-1)

Expand your laptop's connectivity with the Anker 563 USB-C Docking Station. With 10 ports, triple-display support, high-speed data transfer, up to 100W laptop charging, Ethernet, and audio connectivity, it provides a convenient all-in-one solution for your workspace.

Key Features

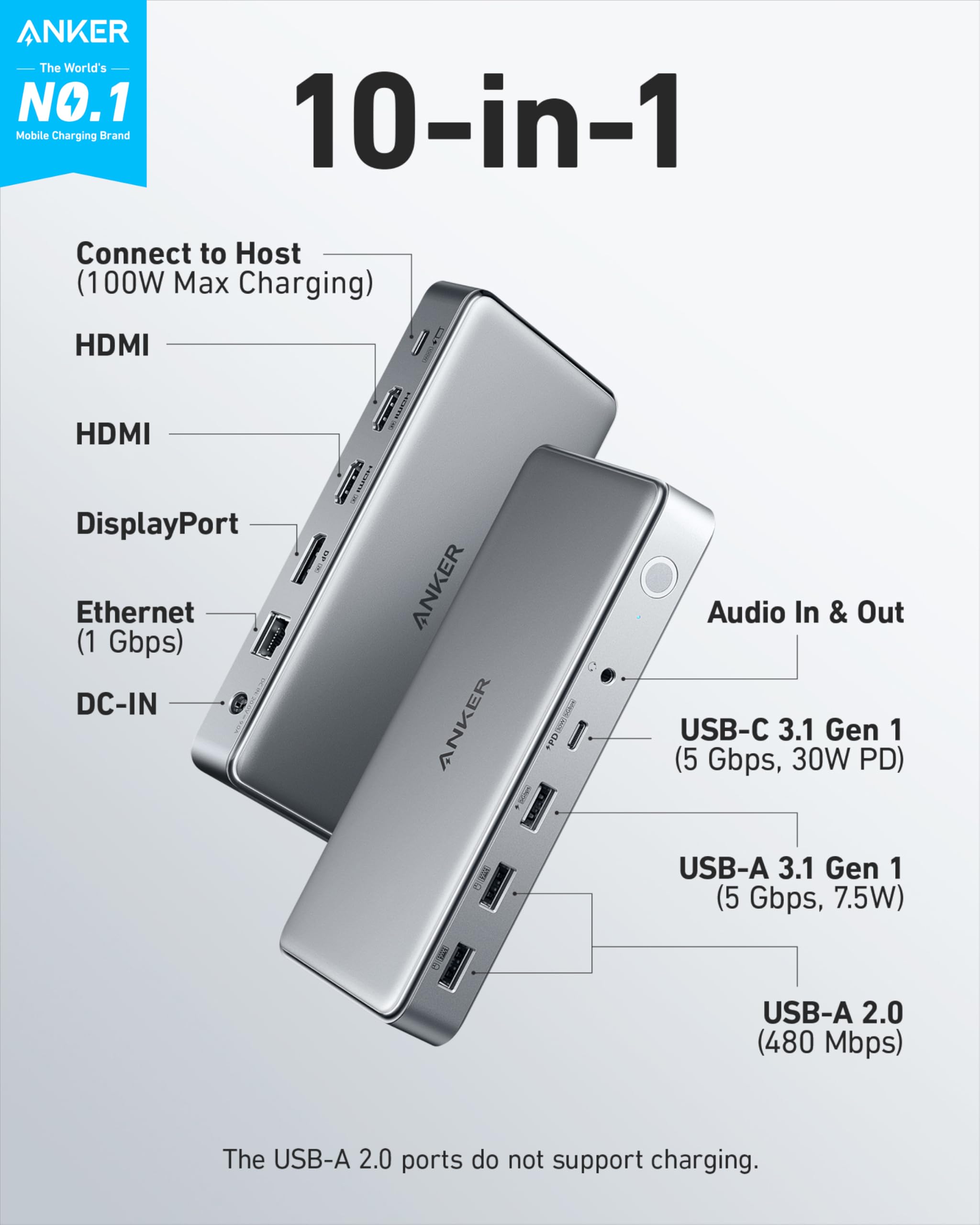

10-in-1 Connectivity

Turn a single USB-C port into a versatile workstation with:

• 1 × 4K HDMI port
• 1 × 2K HDMI port
• 1 × 2K DisplayPort
• 1 × USB-C 3.1 Gen 1 port
• 1 × USB-A 3.1 Gen 1 port
• 2 × USB-A 2.0 ports
• 1 × Gigabit Ethernet port
• 1 × 3.5mm audio combo port
• 1 × USB-C Power Delivery input for laptop charging

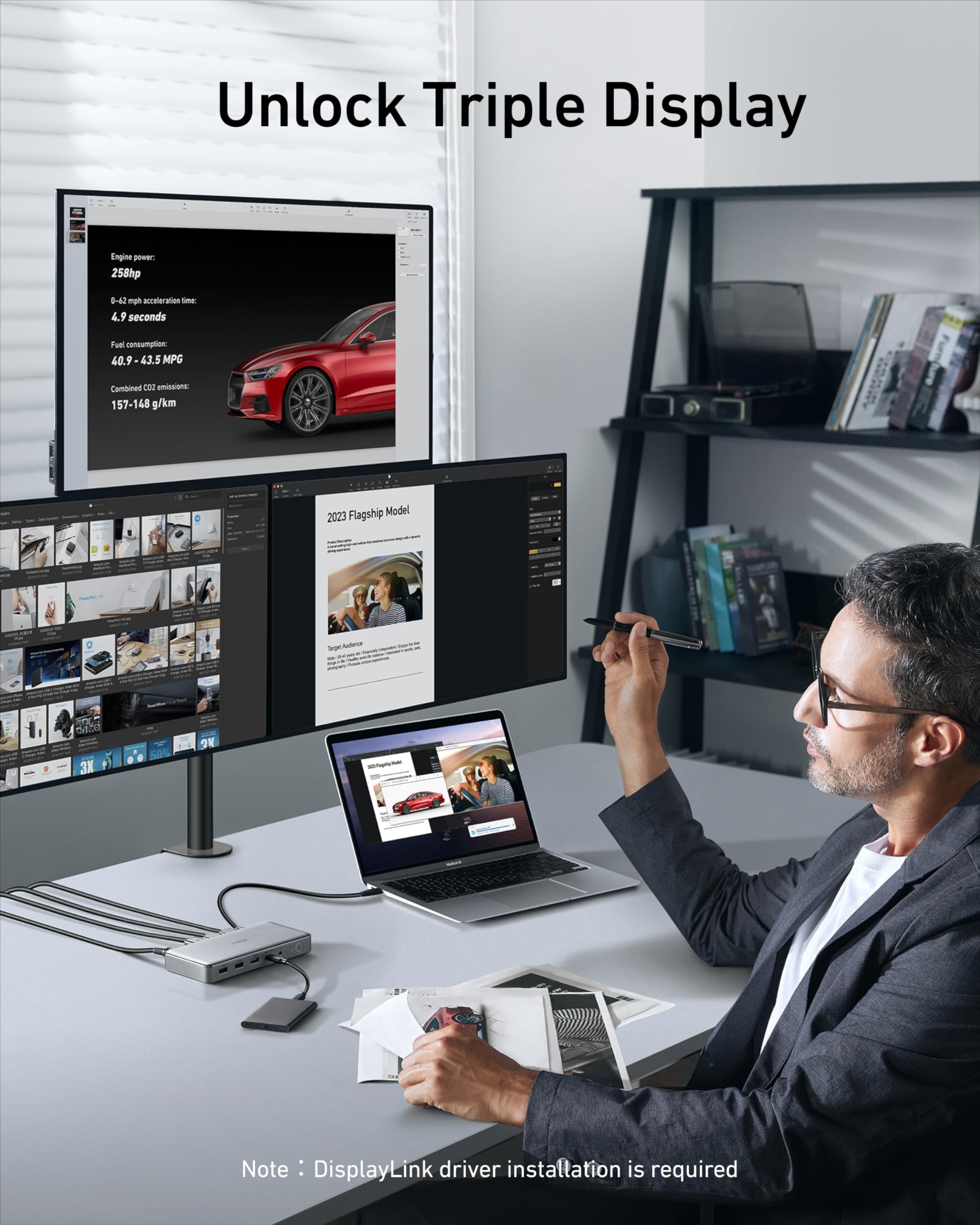

Triple-Display Support

Connect up to three external monitors simultaneously for expanded multitasking. On compatible M1 MacBooks, each connected display can show different content.

When using three monitors, supported resolutions are up to 4K at 30Hz through HDMI and 2048 × 1152 at 60Hz through the second HDMI and DisplayPort connections.

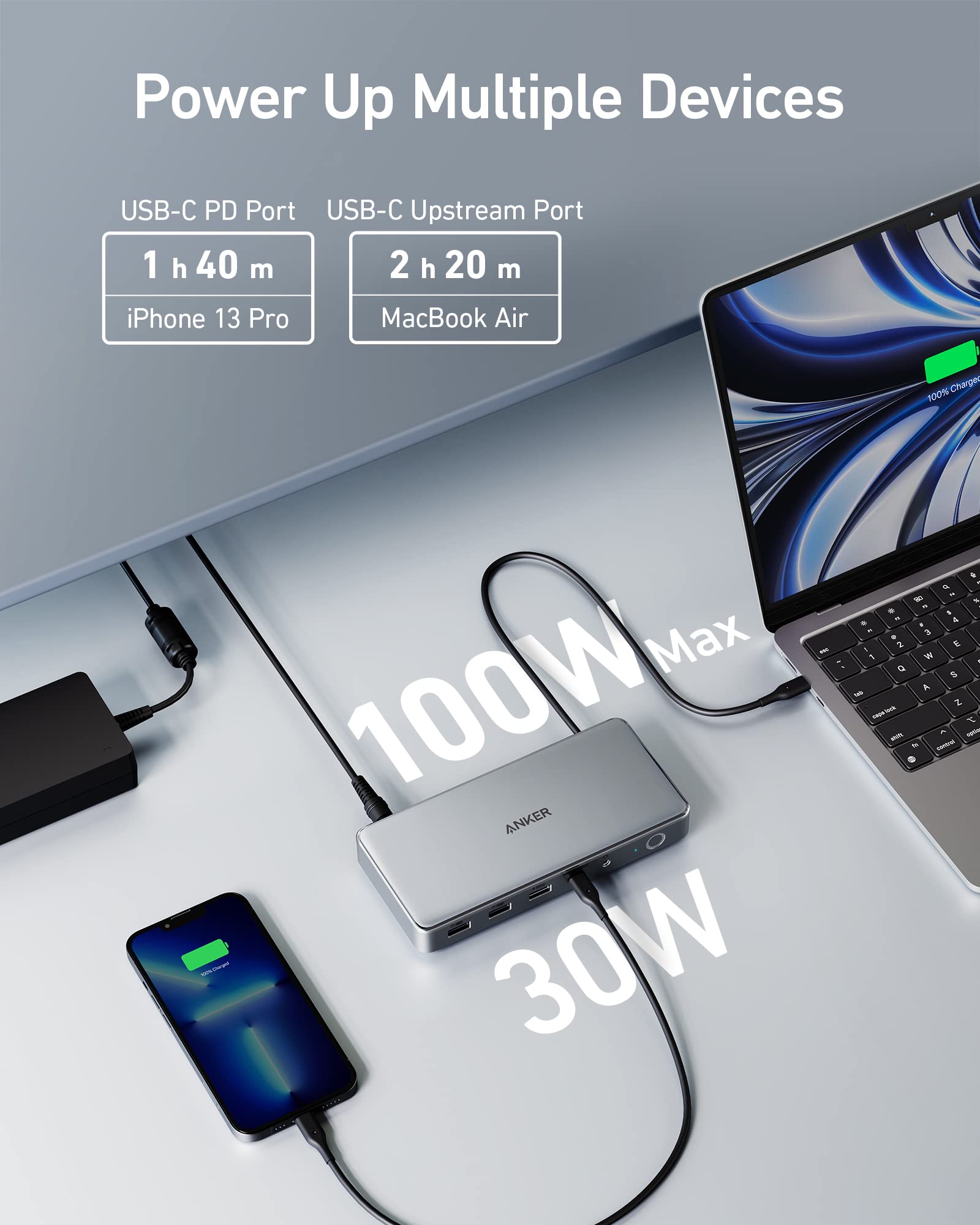

Powerful Charging

The USB-C Power Delivery input supports up to 100W of dynamic power for compatible laptops. The dock also includes a USB-C port capable of up to 30W for charging compatible devices.

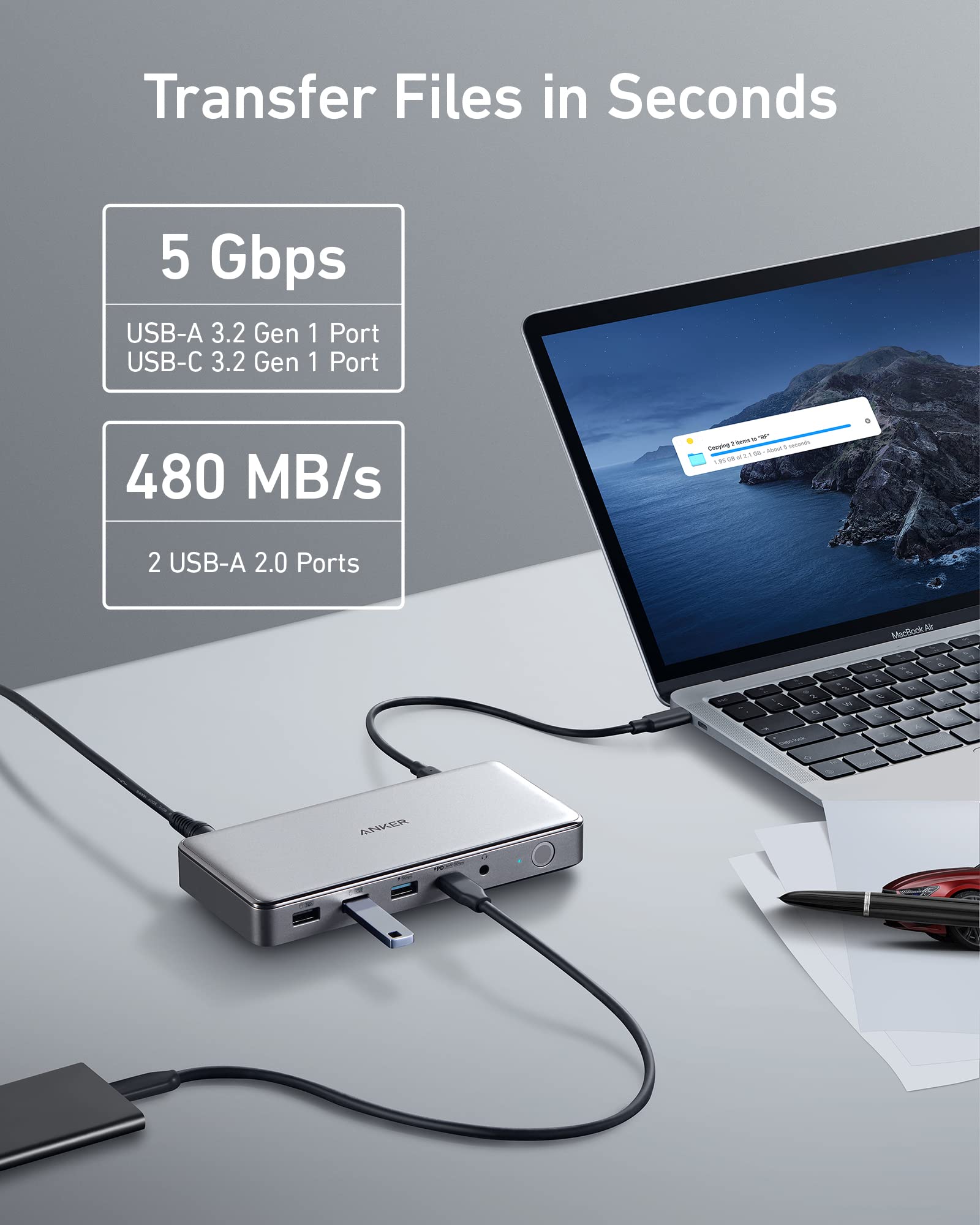

High-Speed Data Transfer

Transfer files at speeds of up to 5Gbps through the USB-C 3.1 Gen 1 and USB-A 3.1 Gen 1 ports.

Gigabit Ethernet

Connect to a wired network through the Gigabit Ethernet port for fast, stable network connectivity.

Audio Connectivity

The 3.5mm audio combo port supports both audio input and output at up to 96kHz/24-bit.

Display Specifications

Single Monitor

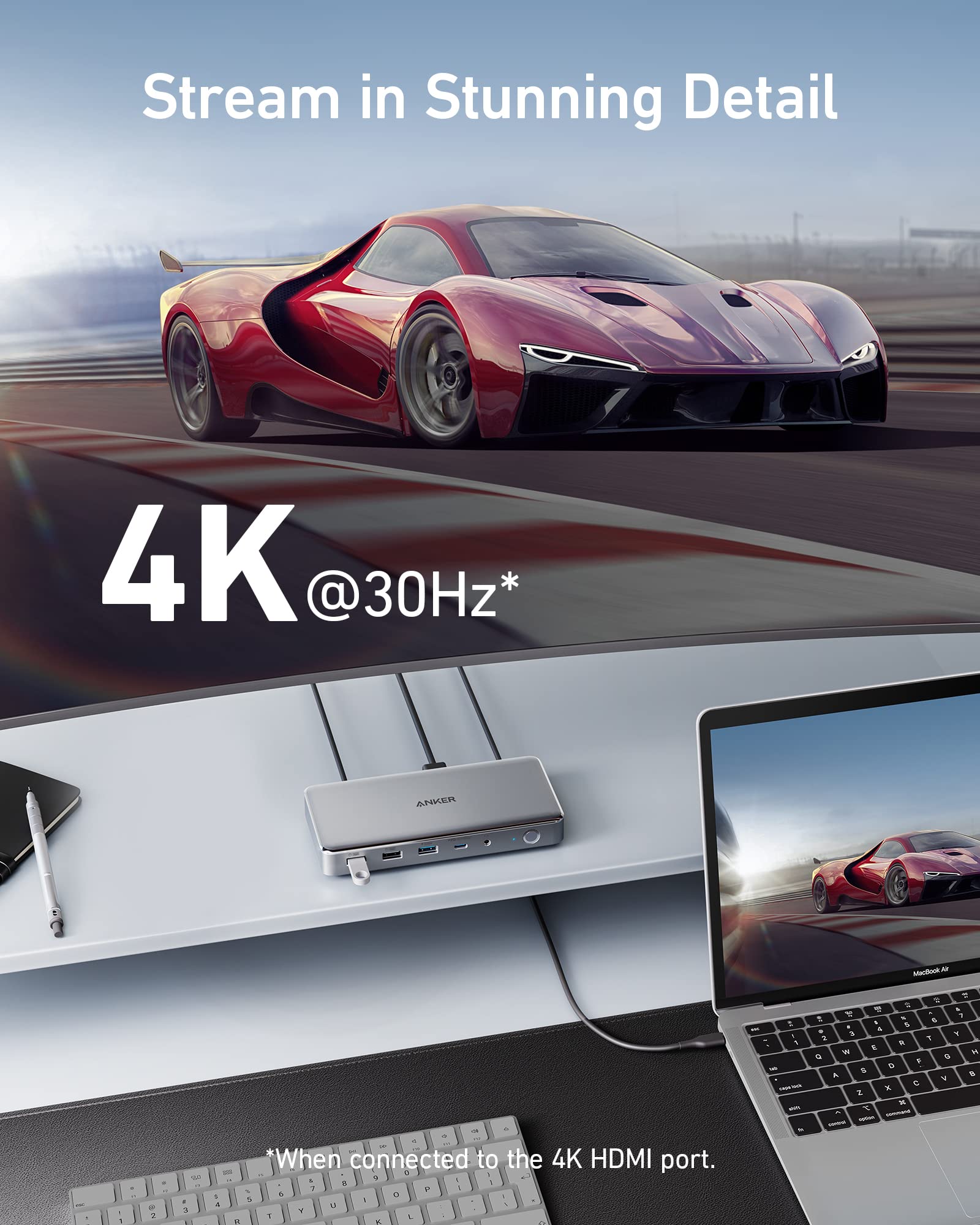

• 1st HDMI: Up to 4K at 30Hz
• 2nd HDMI: Up to 2K at 50Hz
• DisplayPort: Up to 2K at 60Hz

Two Monitors

Supported combinations include:

• 4K at 30Hz + 2K at 50Hz through both HDMI ports
• 4K at 30Hz + 2K at 60Hz through HDMI 1 and DisplayPort
• 2048 × 1152 at 60Hz + 2048 × 1152 at 60Hz through HDMI 2 and DisplayPort

Three Monitors

• HDMI 1: Up to 4K at 30Hz
• HDMI 2: Up to 2048 × 1152 at 60Hz
• DisplayPort: Up to 2048 × 1152 at 60Hz

Note: 2K monitors that do not support 2048 × 1152 will generally switch automatically to 1920 × 1080.

Specifications

• Model Number: A8395
• Laptop Charging: Up to 100W Power Delivery
• HDMI 1: 4K
• HDMI 2: 2K
• DisplayPort: 2K
• USB-C Data: 5Gbps, up to 30W
• USB-A 3.1 Gen 1: 5Gbps, 5V/0.9A
• USB-A 2.0: 480Mbps, 5V/0.5A × 2
• Ethernet: 1Gbps
• Audio: 3.5mm combo input/output, 96kHz/24-bit
• HDMI Standard: HDMI 2.0
• Data Transfer: Up to 5Gbps
• Operating System Compatibility: macOS 10.14 or later, Windows 7, 8, 10, and 11

Compatibility Requirements

The connected host device must support:

• USB-C Power Delivery
• DisplayPort Alt Mode

Compatible operating systems include macOS 10.14 or later and Windows 7, 8, 10, and 11.

Important Display Notes

The 2K HDMI port and 2K DisplayPort do not support HDCP. As a result, some protected content from services such as Netflix and YouTube may not play correctly through these ports, may display at a reduced resolution, or may result in a blank screen.

What's Included

• Anker 563 USB-C Docking Station (10-in-1)
• 180W Power Adapter
• USB-C Cable
• Welcome Guide
• 18-month limited warranty
• Customer support

Note: This product does not use post-consumer recycled or bio-based materials.
