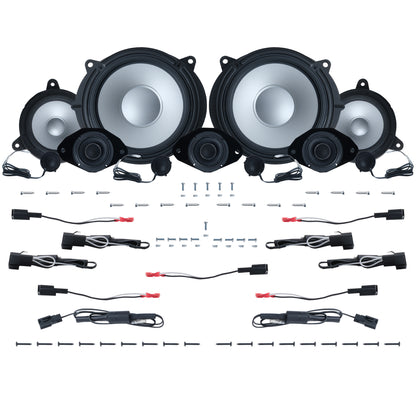

Alpine 6, 9 or 11 Speaker Plug & Play Bundle (8" Front Door Speaker) | 2022+ Tundra

Alpine 4, 6 or 8-Speaker Plug & Play Upgrade Bundle | 2022+ Toyota Tundra

[Install video coming soon]

Hi-Res Audio. Plug-and-Play Simplicity. Tacoma-Ready.

Take your 2022+ Toyota Tundra’s sound system to the next level with Trail Grid Pro’s Alpine Plug & Play Speaker Bundles—engineered for clarity, punch, and performance. Available in three configurations—6-speaker for Base/Standard Audio Non-JBL, 9-speaker for Base/Standard Audio Non-JBL and 11-speaker for JBL amplified models—this bundle features Hi-Res Audio Certified Alpine S-Series speakers that reproduce frequencies up to 40kHz for ultra-clear, natural sound. Inspired by Alpine’s flagship F#1Status system, the next-gen S-Series brings premium, high-end audio technology to a more accessible price point.

At the heart of this kit are oversized 8" front door speakers that deliver powerful midrange and deeper bass response, creating a fuller, more immersive listening experience. Whether you're cruising to your next off-road adventure or commuting around town, your Tacoma will finally sound as bold as it looks.

At Trail Grid Pro, we take the guesswork out of your upgrade. Each bundle is pre-wired, pre-sized, and assembled in-house at our Frederick, Maryland shop. Installation is plug-and-play—no cutting, no splicing, no stress. Just incredible sound and a 2-year warranty on manufacturer defects.

Which bundle is right for me?

11-Speaker Bundle: JBL Amplified:

Choose the 11-speaker JBL amplified bundle if the A-pillar tweeters have a JBL logo on them.

9-Speaker Bundle: Base/Standard Audio:

Choose the 9-speaker bundle if there is no JBL logo on the A-pillar tweeters and your Tundra has a tweeter in each rear door. To verify, look through the speaker grille located directly to the right of the rear door handle. This grille is present on all Tundras, but the tweeter behind it is not. If you can see a tweeter behind the grille, select the 9-speaker bundle.

6-Speaker Bundle: Base/Standard Audio:

Choose the 6-speaker bundle if there is no JBL logo on the A-pillar tweeters and there is no tweeter behind the rear door speaker grille. Look through the grille located directly to the right of the rear door handle. If you do not see a tweeter behind the grille, select the 6-speaker bundle.

What’s In the Bundle?

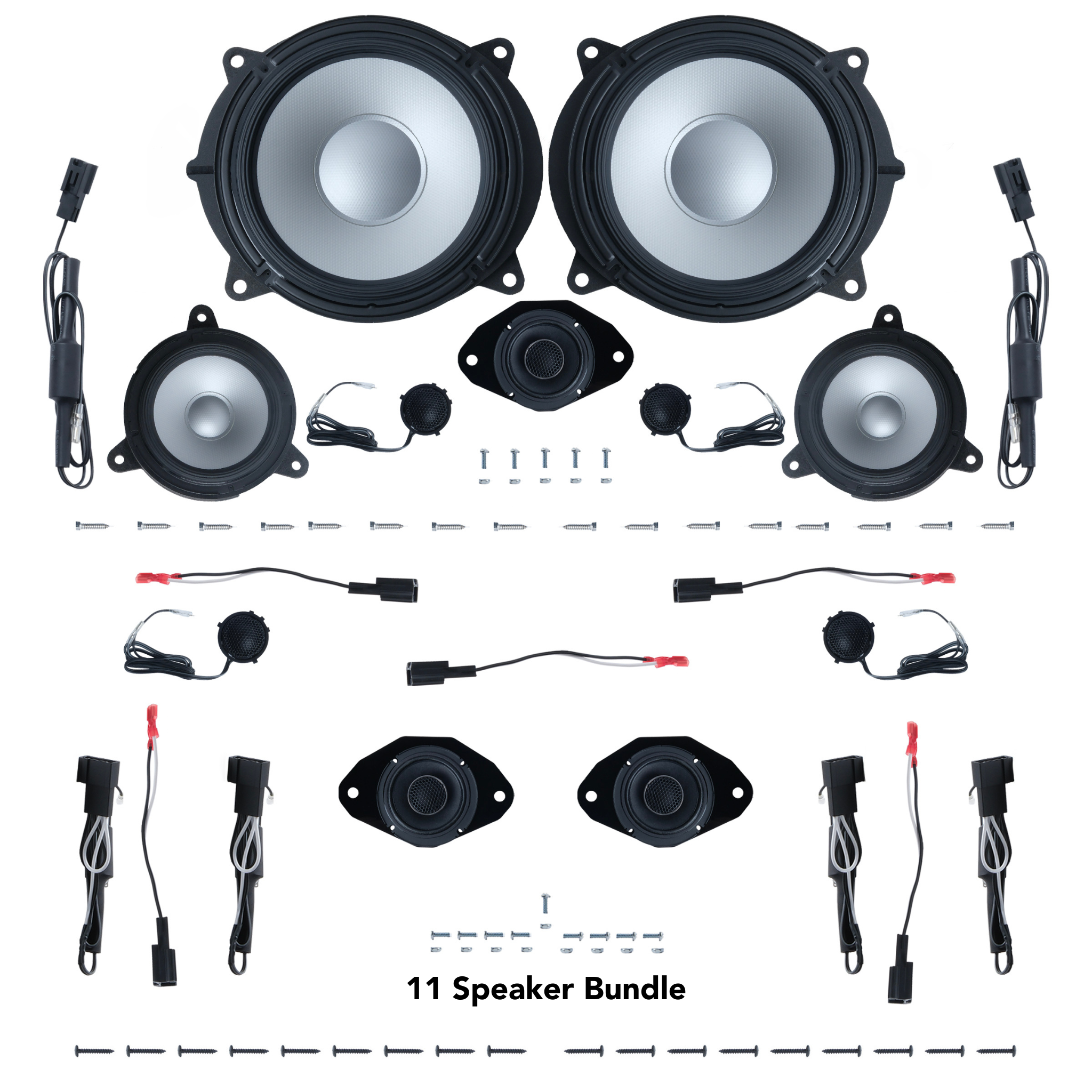

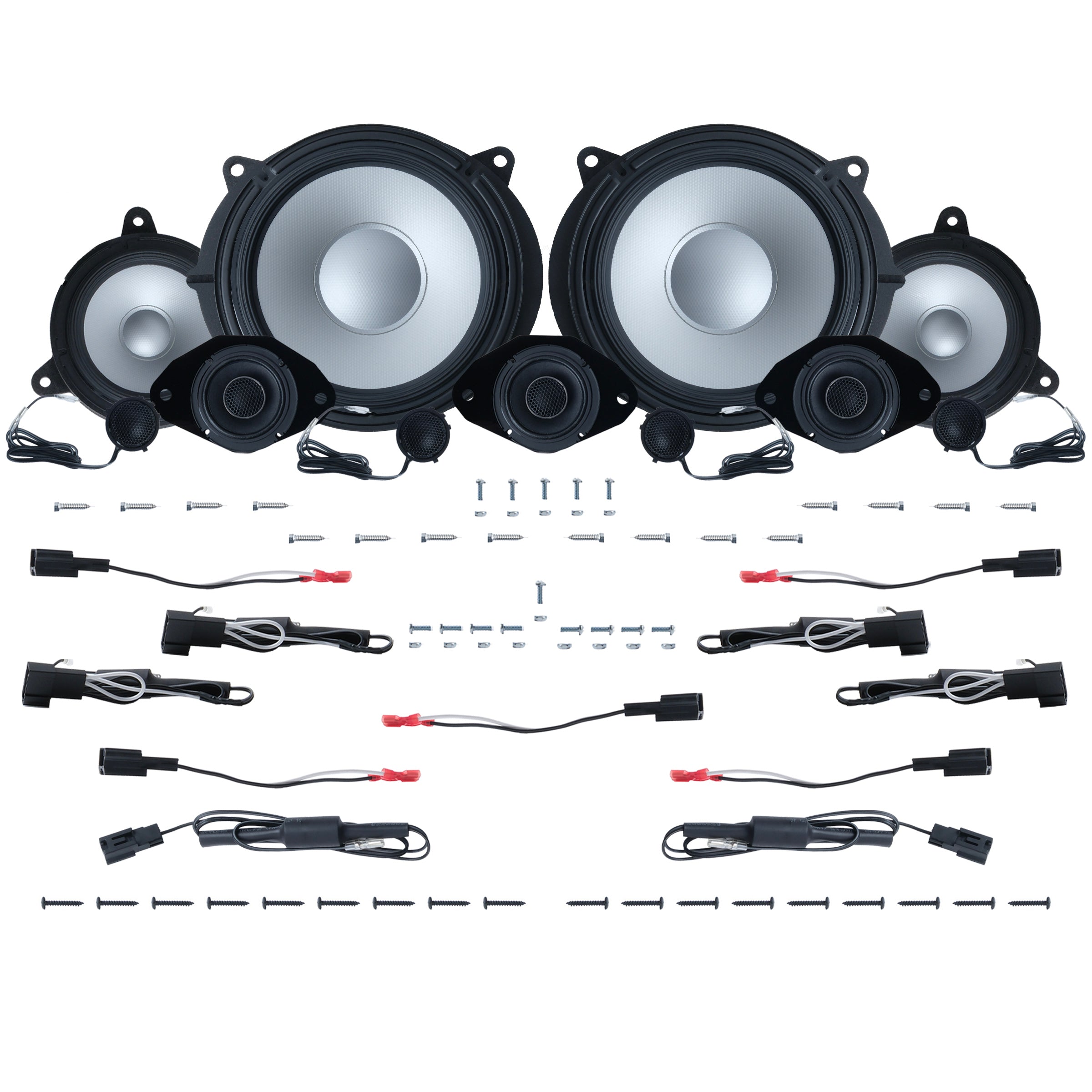

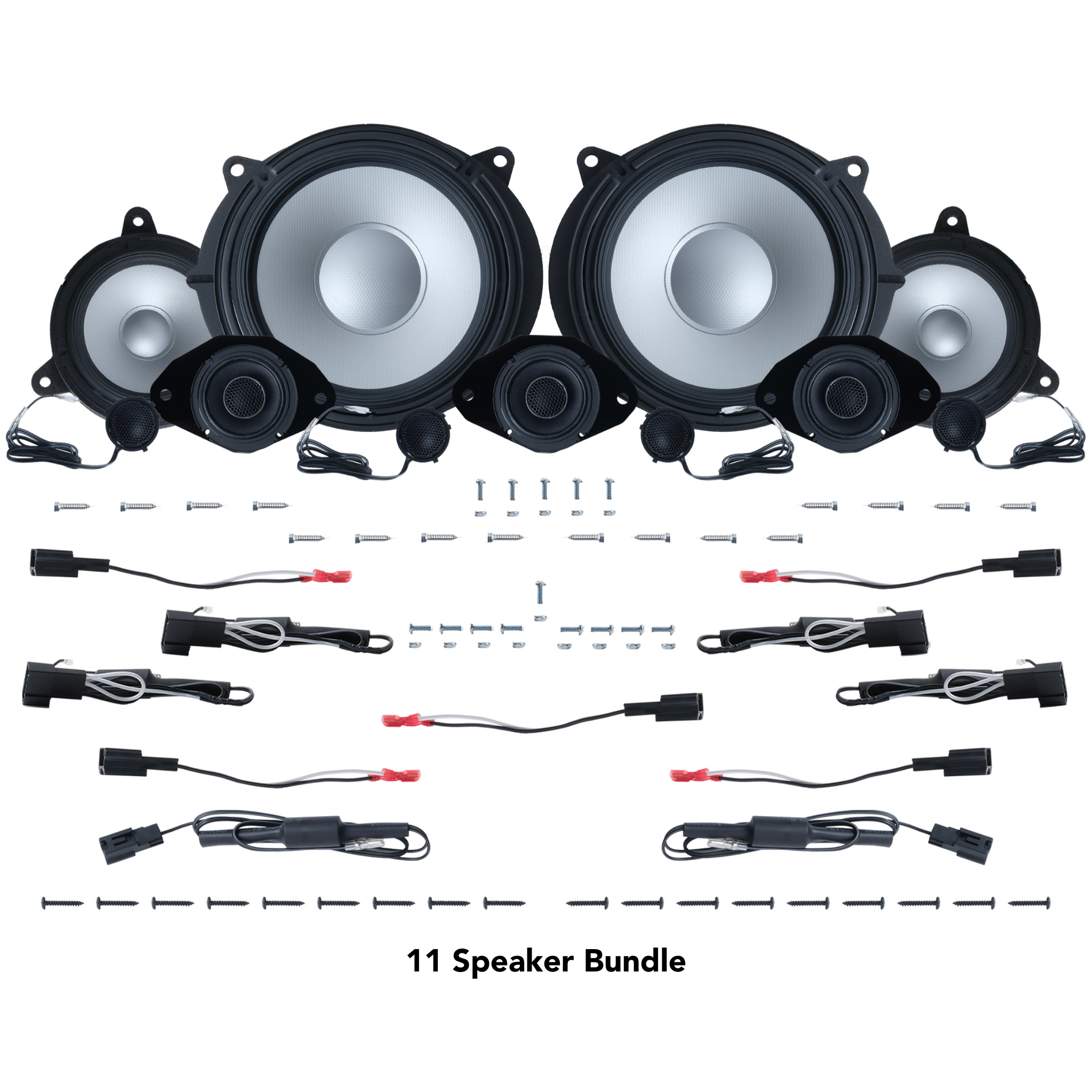

JBL Amplified 11-Speaker Bundle

• Alpine S2-S80C 8" & 3" Component System (Dash & Front Doors)

• Alpine S2-S30 3" (Center Dash)
• Alpine S-S10TW 1" Tweeters (A-pillar)
• Alpine S2-S65C 6.5" Speakers & 1" Tweeters (Rear Doors)

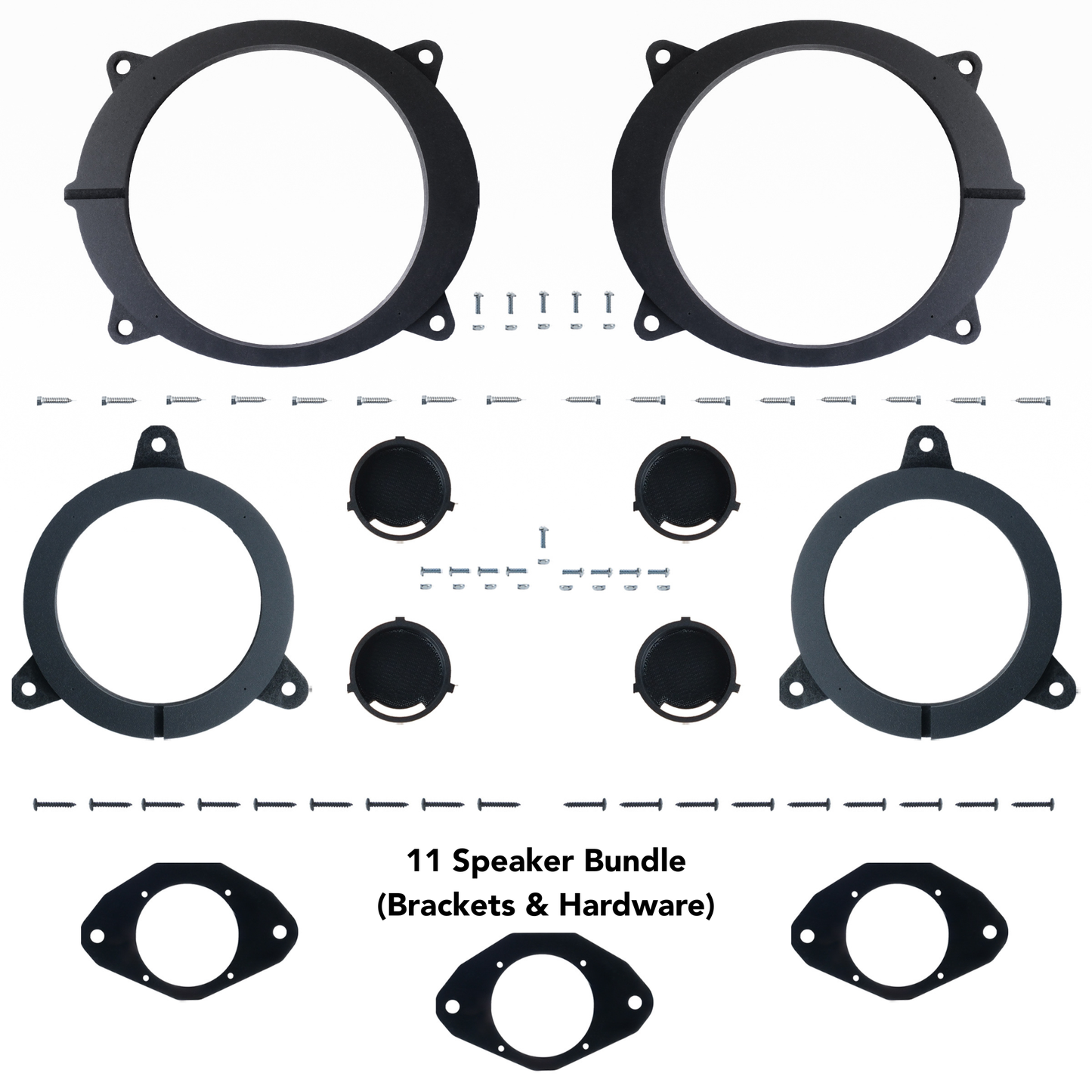

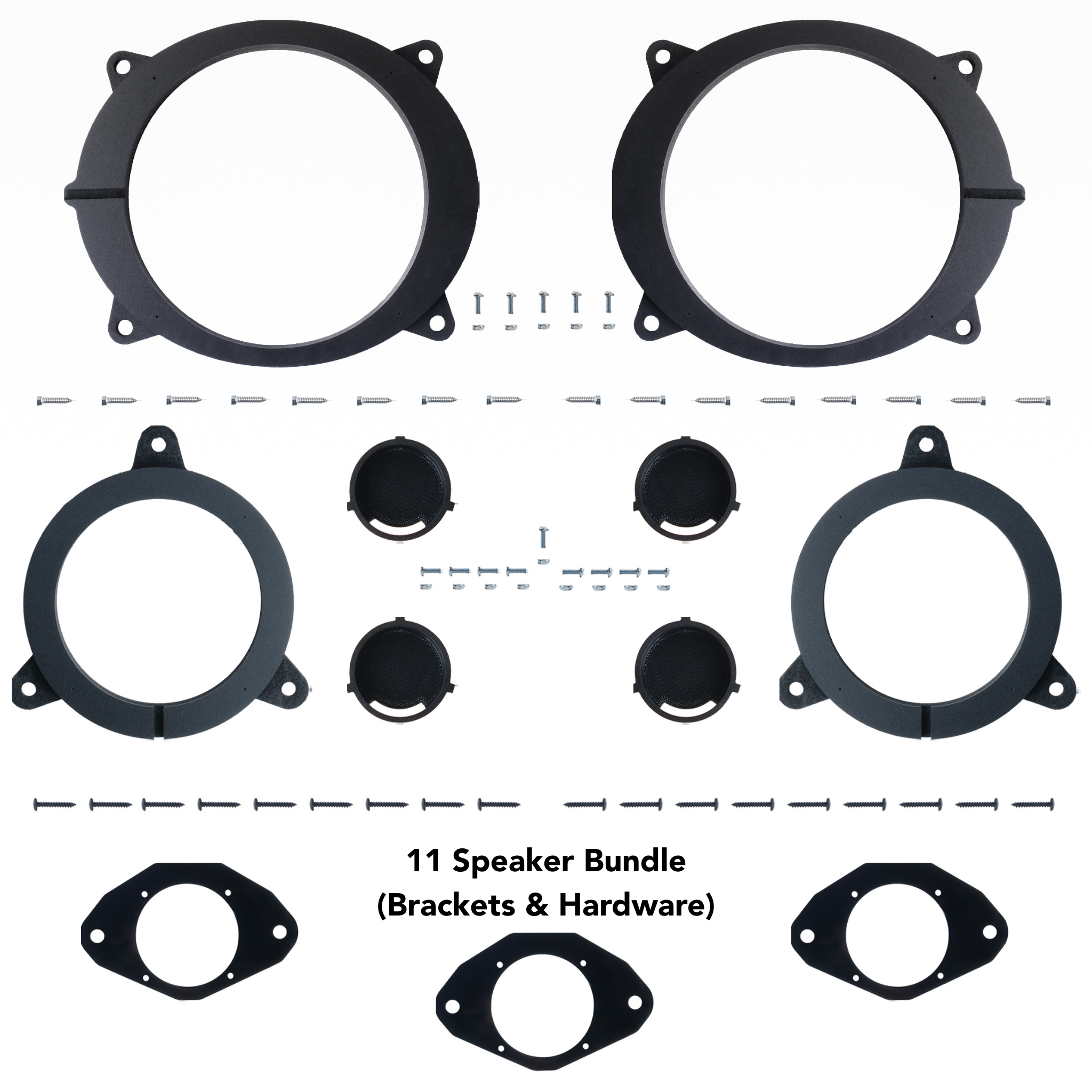

• Pre-sized speaker adapters for every location
• Plug-and-play connectors pre-wired, soldered, and shrink-wrapped for a professional, ready-to-install finish

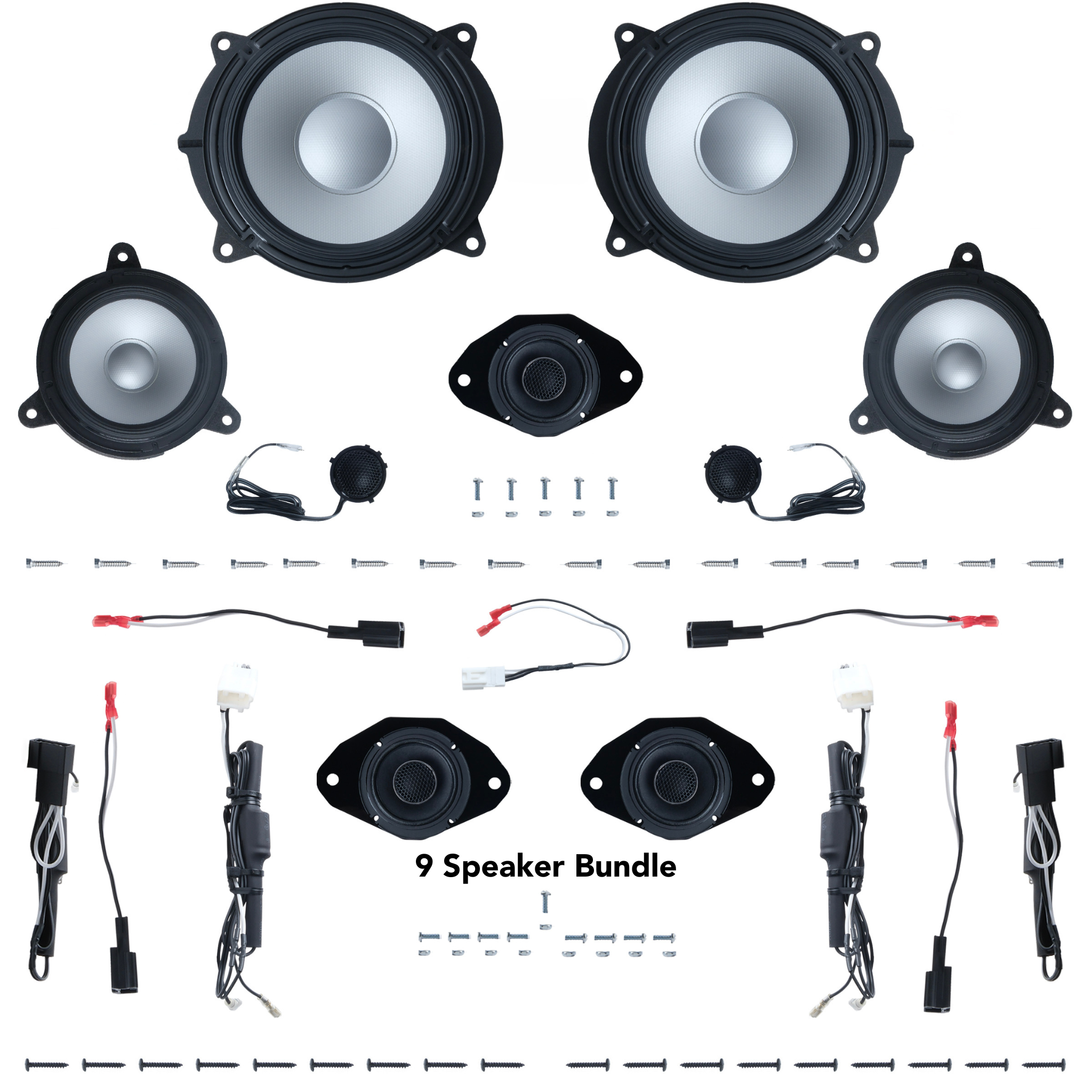

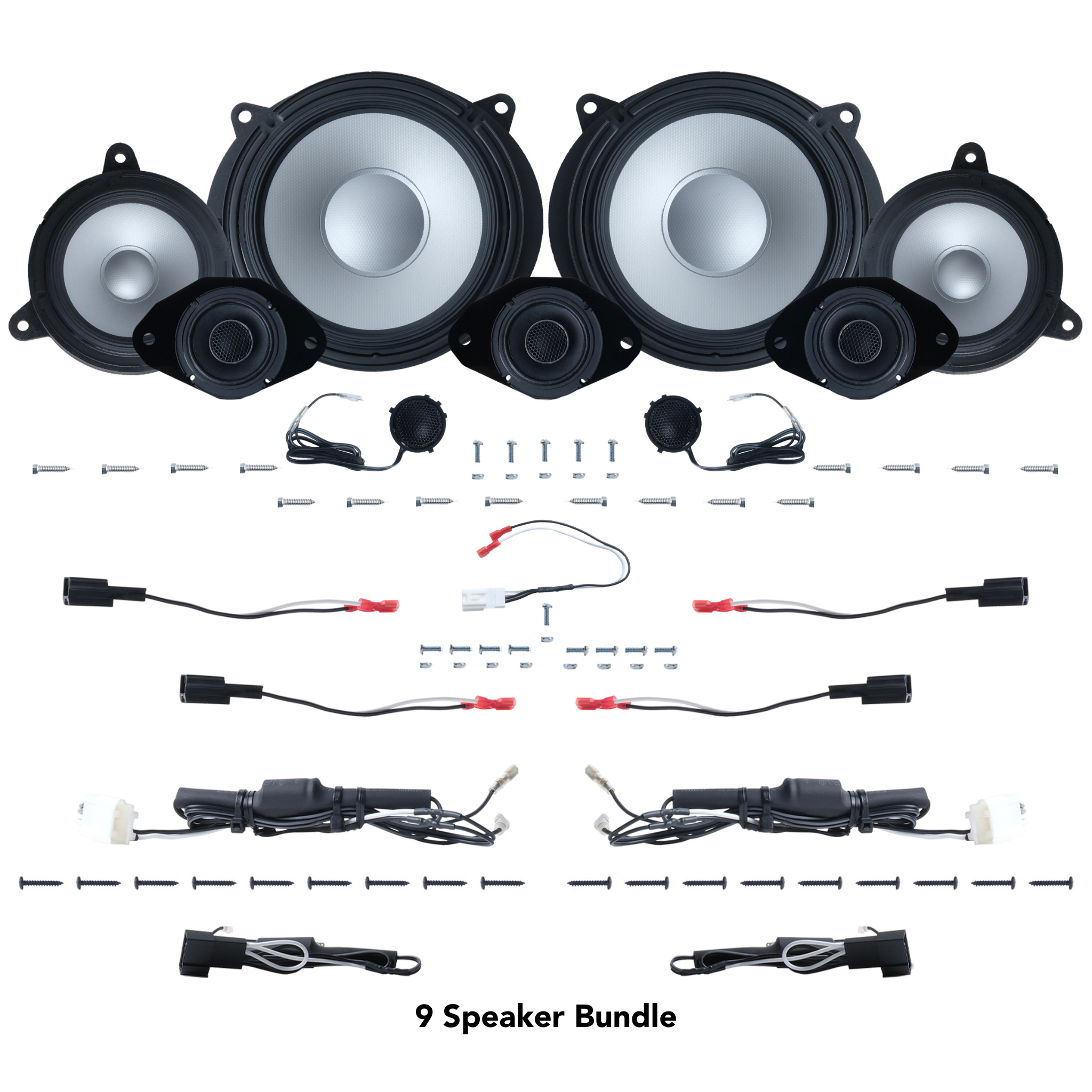

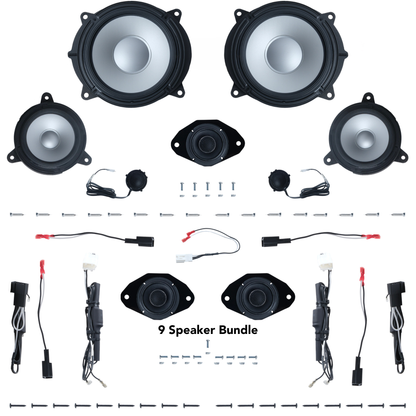

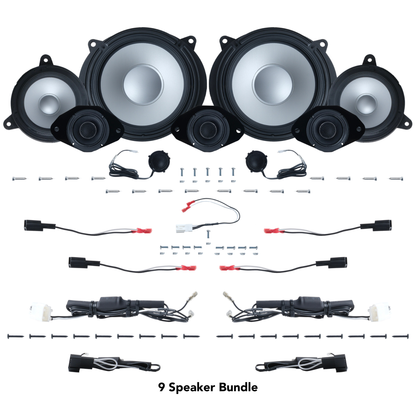

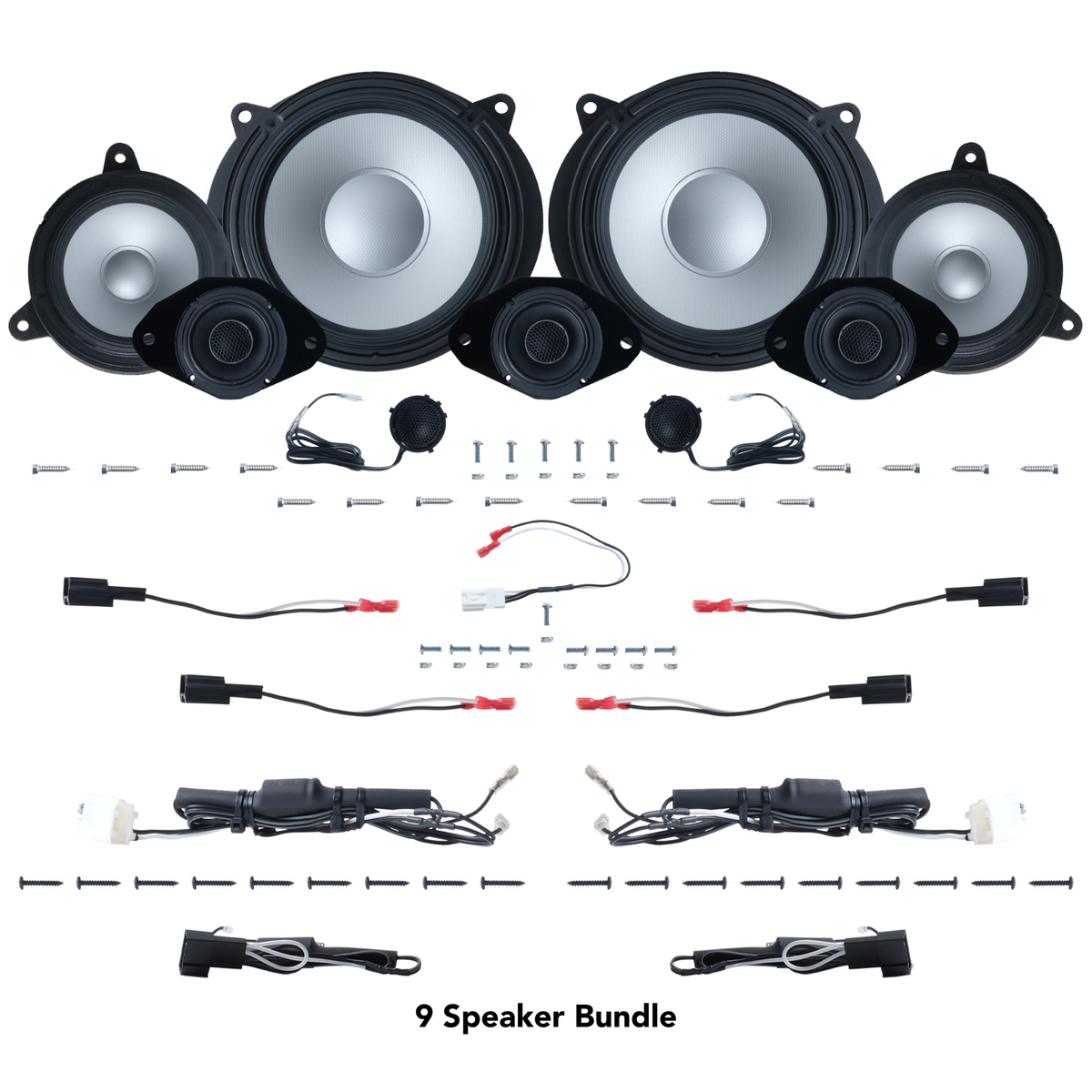

Base/Stand Audio Non-JBL 9-Speaker Bundle

• Alpine S2-S80C 8" & 3" Component System (Dash & Front Doors)
• Alpine S2-S30 3" (Center Dash)
• Alpine S2-S65C 6.5" Speakers & 1" Tweeters (Rear Doors)
• Pre-sized speaker adapters for every location
• Plug-and-play connectors pre-wired, soldered, and shrink-wrapped for a professional, ready-to-install finish

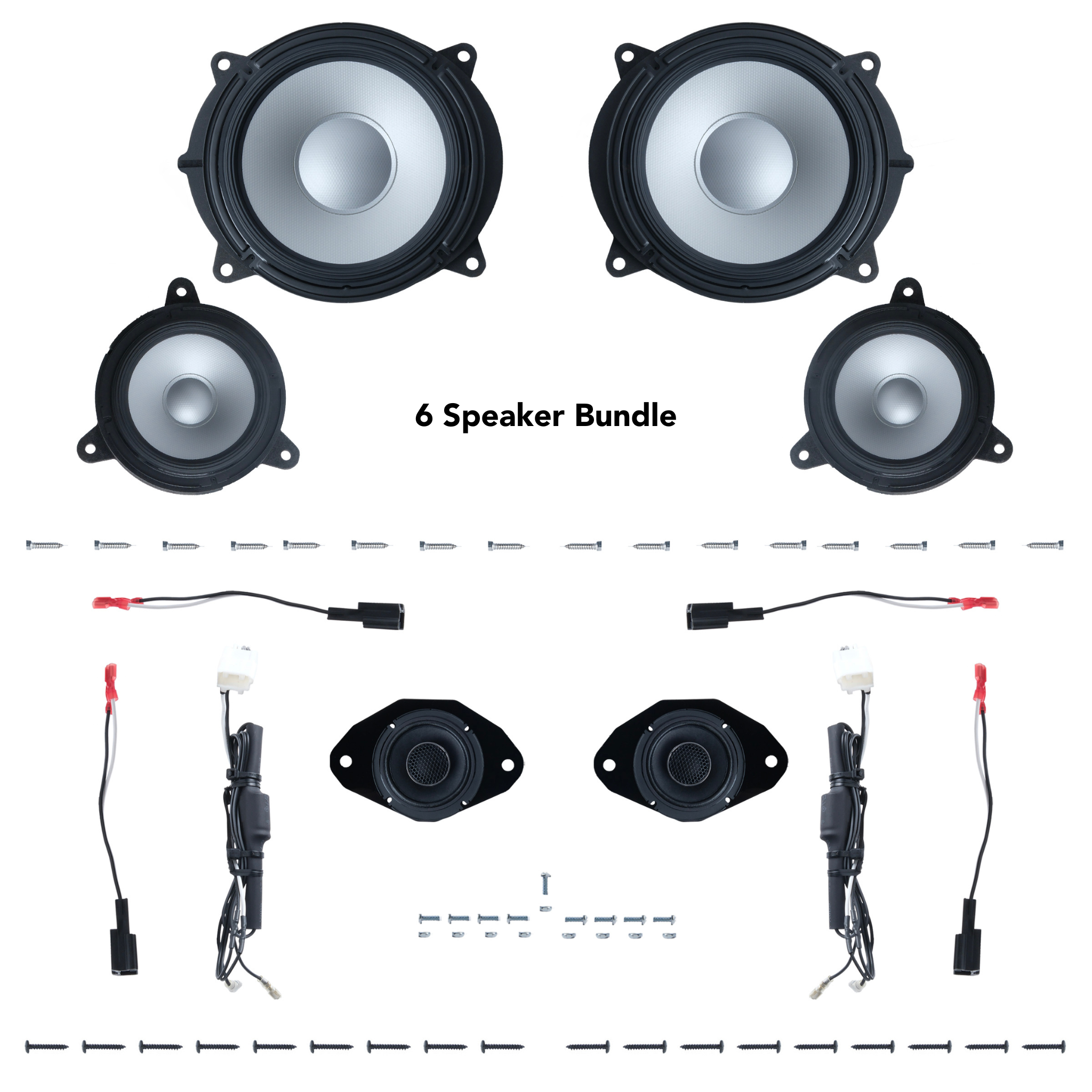

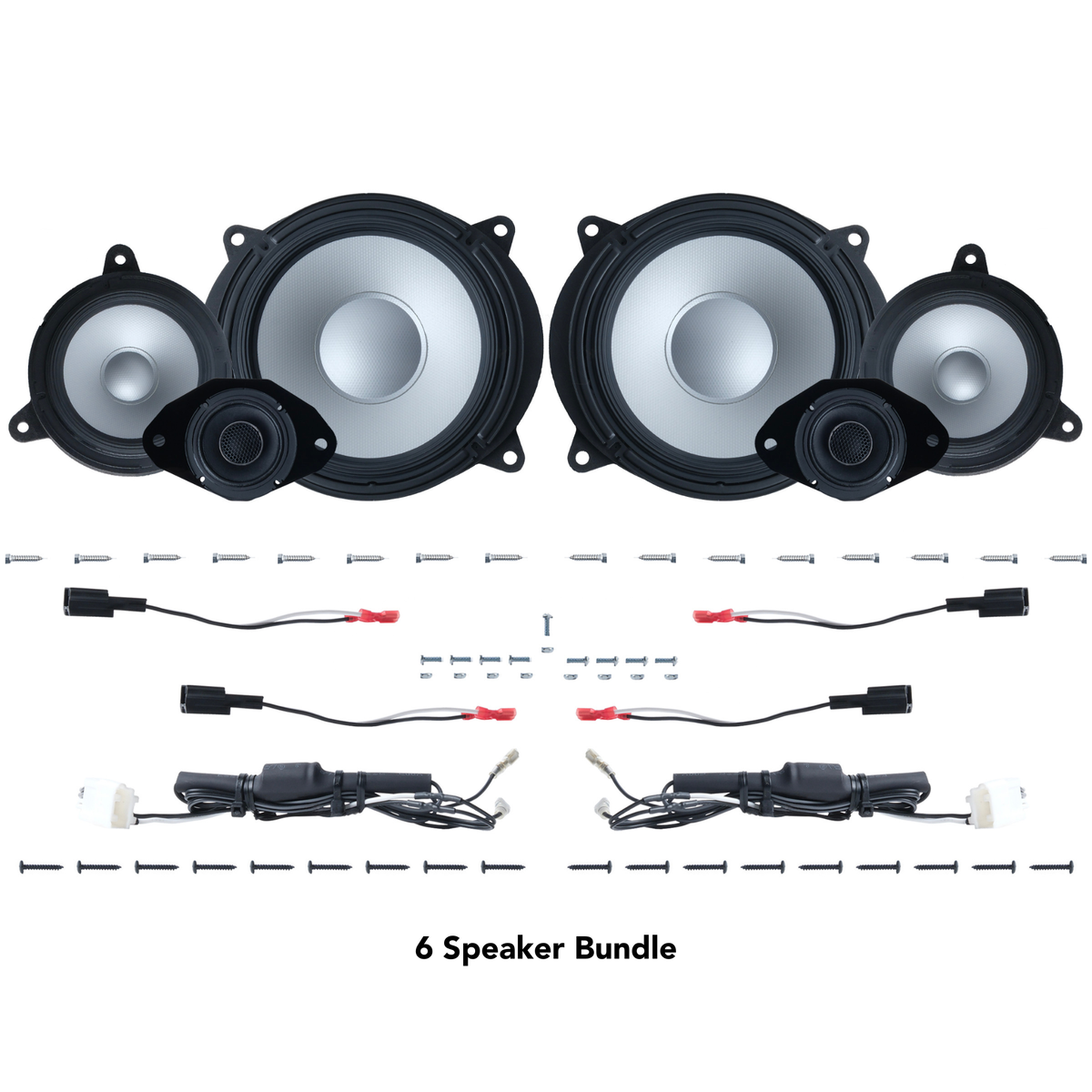

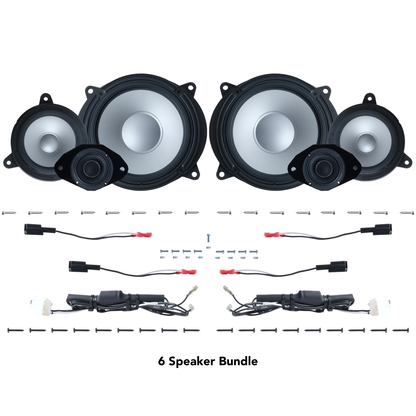

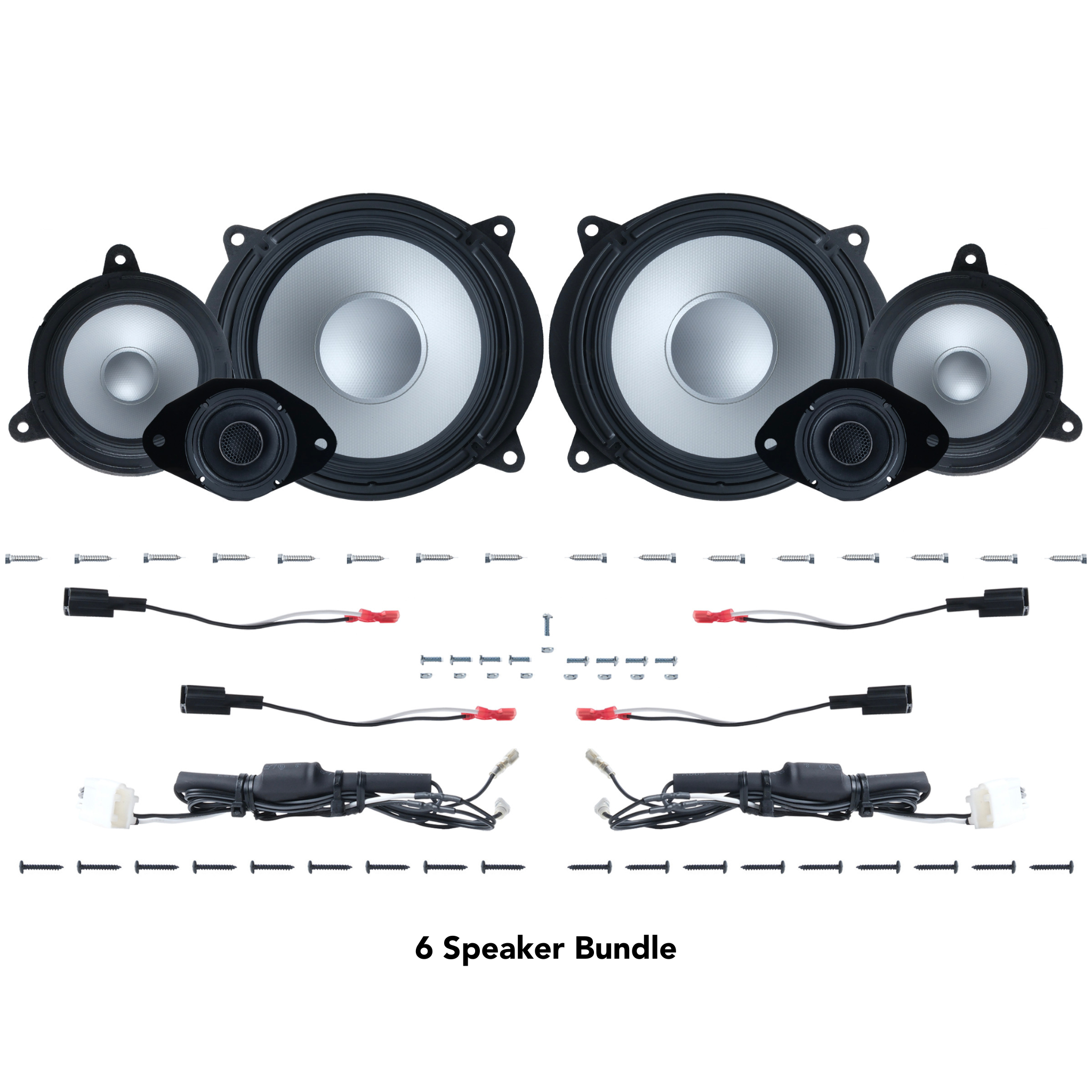

Base/Standard Audio Non-JBL 6-Speaker Bundle

• Alpine S2-S80C 8" & 3" Component System (Dash & Front Doors)

• Alpine S2-S65 (Rear Doors)

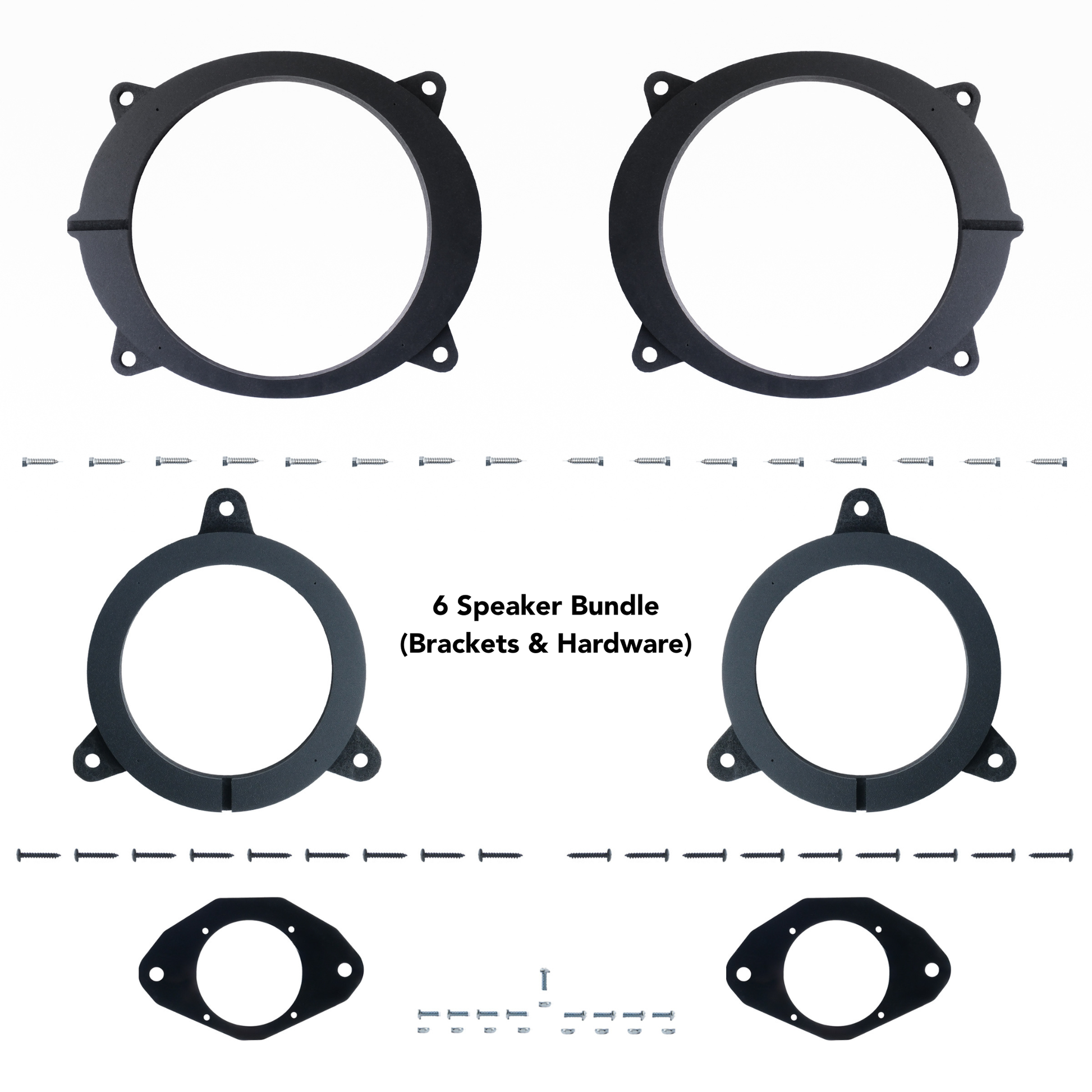

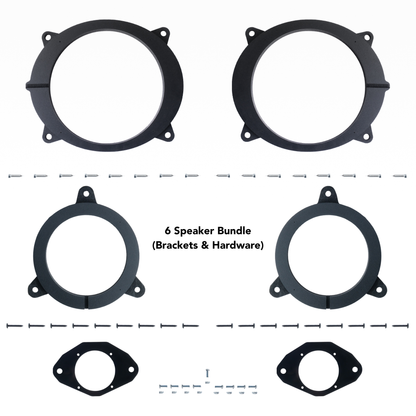

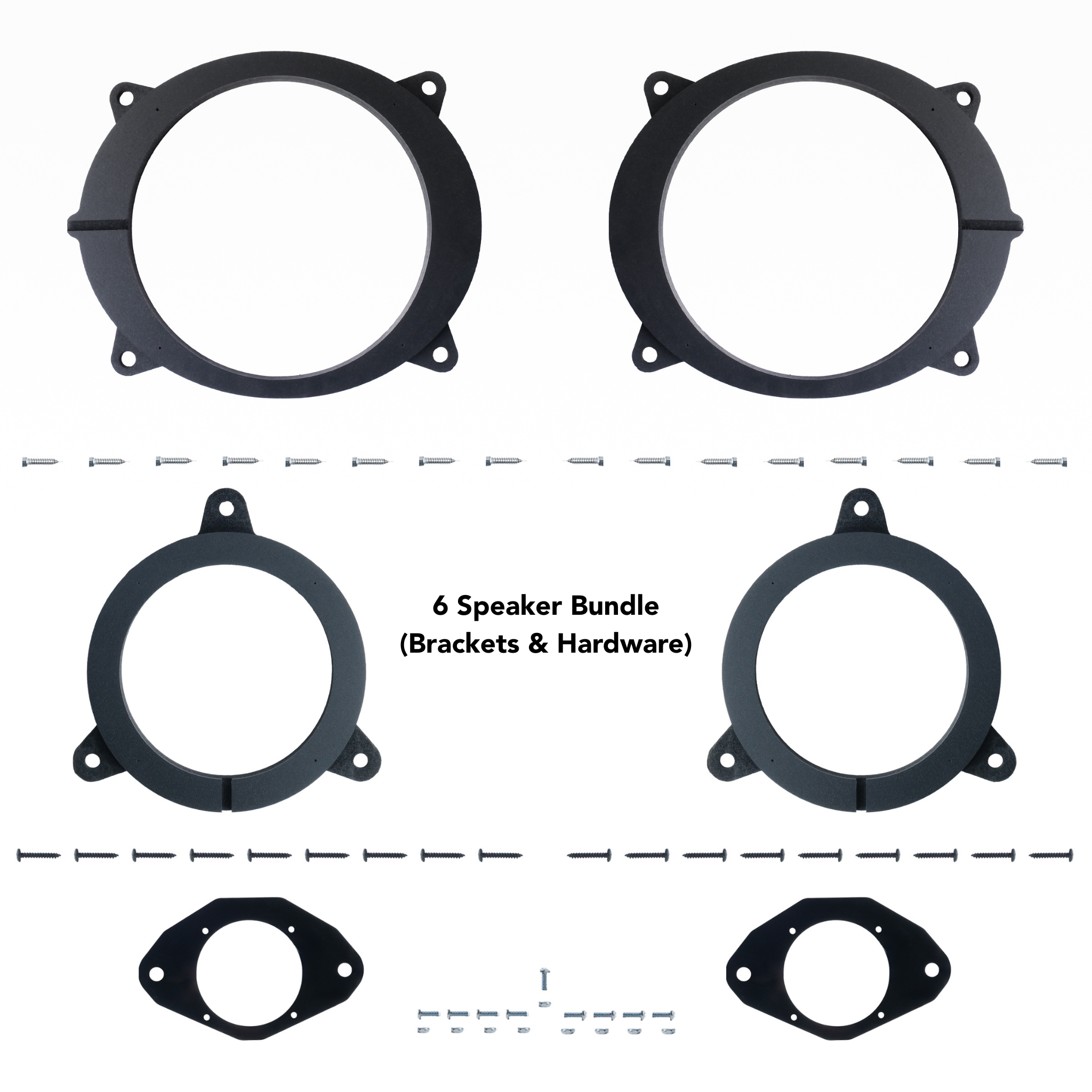

• Pre-sized speaker adapters for every location
• Plug-and-play connectors pre-wired, soldered, and shrink-wrapped for a professional, ready-to-install finish

Speaker Specifications

Alpine S2-S80C

• Woofer Size: 8"
• Mid-Range/Tweeter: 3" with built-in 3/4" Tweeters (Coaxial)
• Power Handling: 85W RMS / 260W Peak
• Frequency Response: 65Hz – 40kHz (Hi-Res)
• Sensitivity: 90dB

Alpine S2-S65

• Woofer Size: 6.5"
• Tweeter Size: 1" (Coaxial)
• Power Handling: 80W RMS / 240W Peak
• Frequency Response: 70Hz – 40kHz (Hi-Res)
• Sensitivity: 88dB


Alpine S2-S30

• Woofer Size: 3"
• Tweeter Size: 5/8" coaxial
• Power Handling: 85W RMS / 260W Peak
• Frequency Response: 230Hz - 40kHz (Hi-Res)
• Sensitivity: 83dB
• Impedance: 4 Ohms
• Mounting Depth: 1-3/8"
• Cone Material: Pulp
• Tweeter Type: Dome

Alpine S-S10TW

• Max RMS Power: 80W
• Peak Power: 240W
• Material: Silk
• Magnet Type: Neodymium
• Voice Coil: Copper Clad Aluminum
• Crossover: Passive 12dB/Octave High-Pass Filter
• Frequency Response: 1kHz – 22kHz
• Sensitivity: 88dB (1W / 1m)
• Impedance: 6 ohm
• Flush Mount Depth: 17.6mm
• Cutout Diameter: 51mm

Why Trail Grid Pro’s Bundle?

• Vehicle-specific fitment for 2022+ Toyota Tundra
• Hi-Res Audio Certified for stunning clarity and realism
• Plug-and-play installation with all connectors pre-wired & sealed
• 2-year warranty for peace of mind
• Tested in-house for perfect fit and performance

Transform your Tacoma’s audio into a high-resolution, live-concert experience — without the hassle.
