Westcott Designs Pre-Load Collar Lift Kit | '22 - '25 Tundra (TRD-Pro)

Westcott Designs Pre-Load Collar Lift Kit

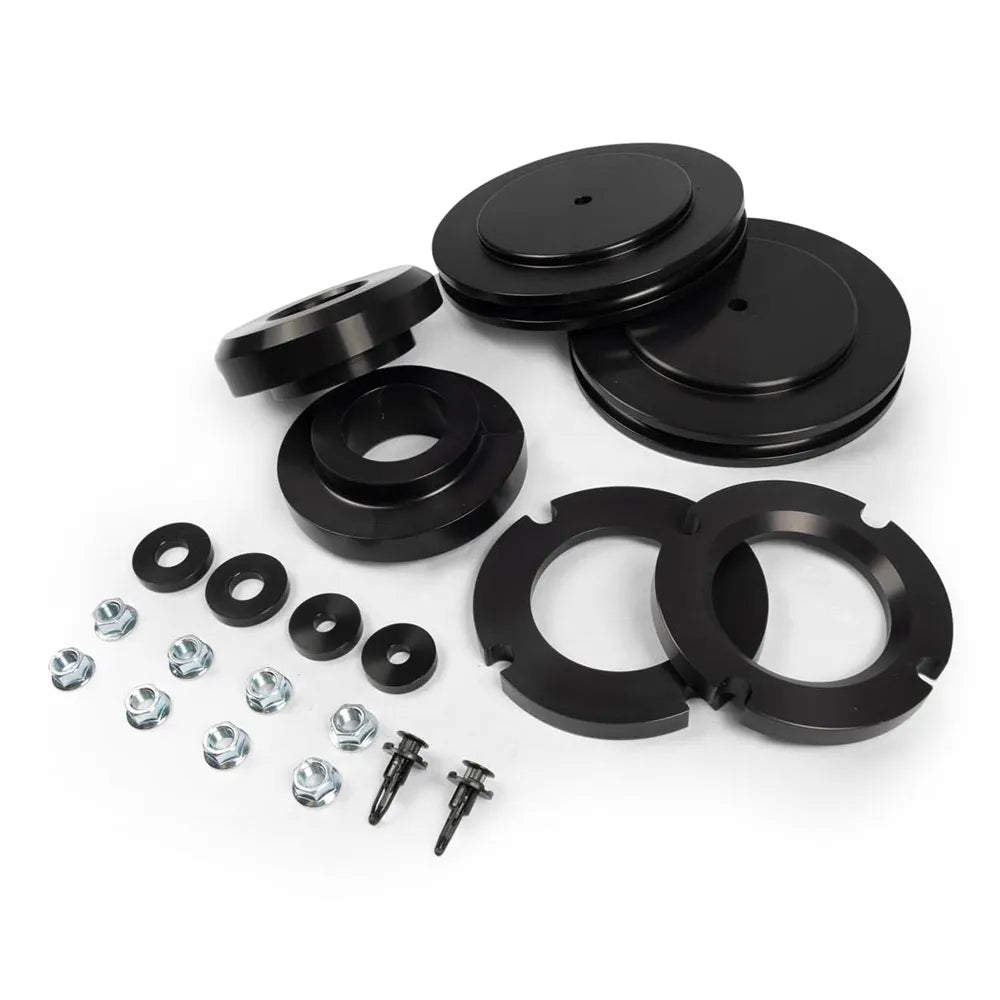

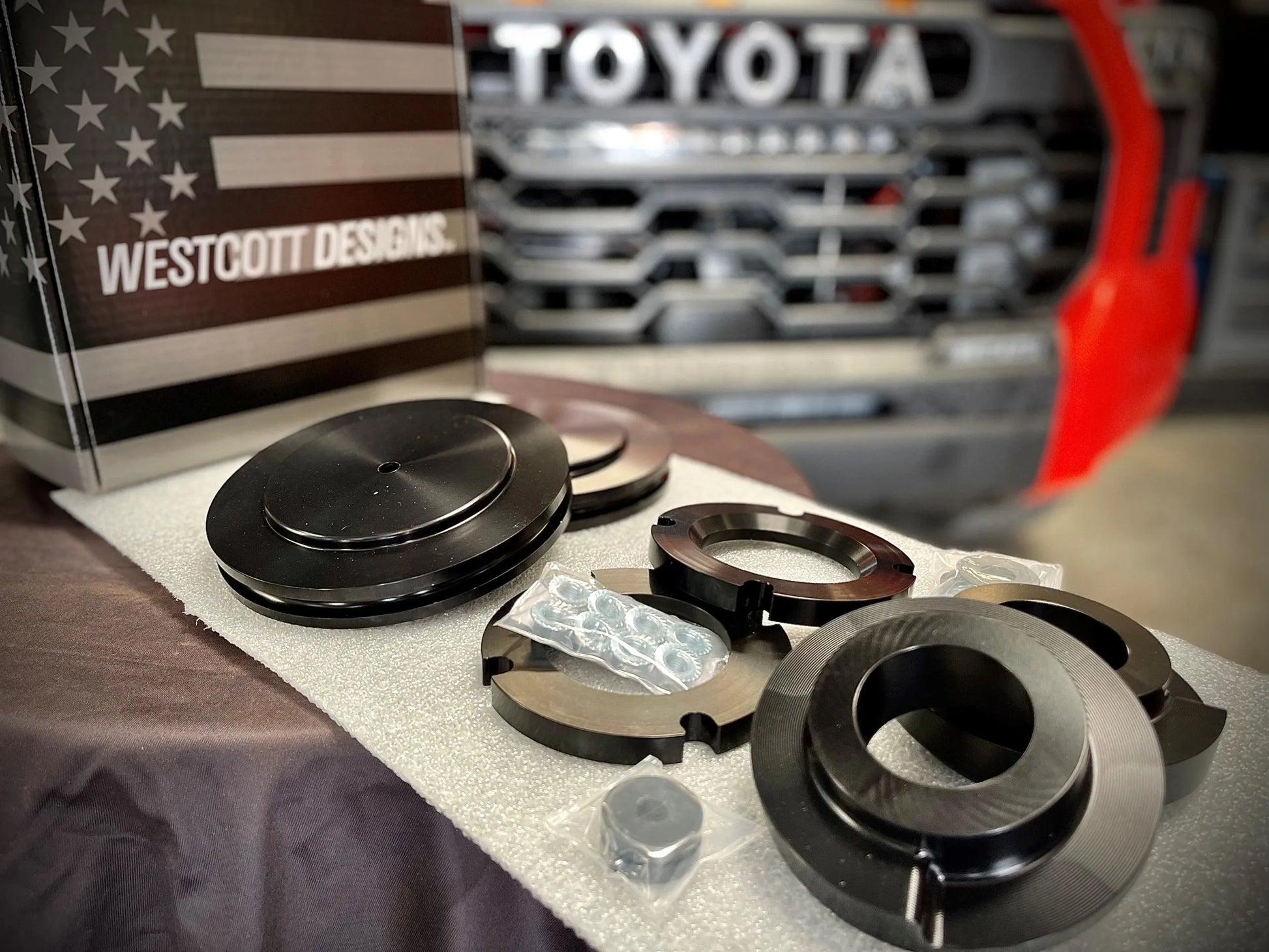

Westcott Designs preload collar lift kit for the 2022–2024 Toyota Tundra TRD Pro and 1794 Edition equipped with factory Fox shocks. This precision-engineered kit includes CNC-machined lower preload collars, top shim plates, and rear billet lift pucks—available in raw aluminum or a hard black anodized finish for a factory-style look. From the factory, these Tundra models come with 1.1″ of front lift. This Westcott kit adds an additional 2.5″ of lift up front and 1.0″ in the rear using your existing shocks and springs, while maintaining factory ride quality and suspension geometry.

No new upper control arms are required, and the kit allows alignment to OEM specs after installation. Run up to a 35″ tire with no Body Mount Chop required; 37″ tires are possible with the correct wheel offset and some minor trimming.

Westcott products are designed and manufactured in-house in Phoenix, AZ, and built to perform. Please note: Some TRD PRO models may exhibit a factory rear lean of approximately 0.5″ side-to-side. Rear lift options include either two 1.00″ pucks or a staggered set with one 1.00″ and one 1.50″ puck to compensate for lean.

Lift Specs:

• 2022–2024 Toyota Tundra w/ Fox Suspension:
  • Front Lift: 2.5″

  • Rear Lift: 1.0″

Note: No shocks included.
