Toyota Tundra Rock Sliders | '22+ Tundra

2022–Current Toyota Tundra Rock Sliders
Fits all powertrains

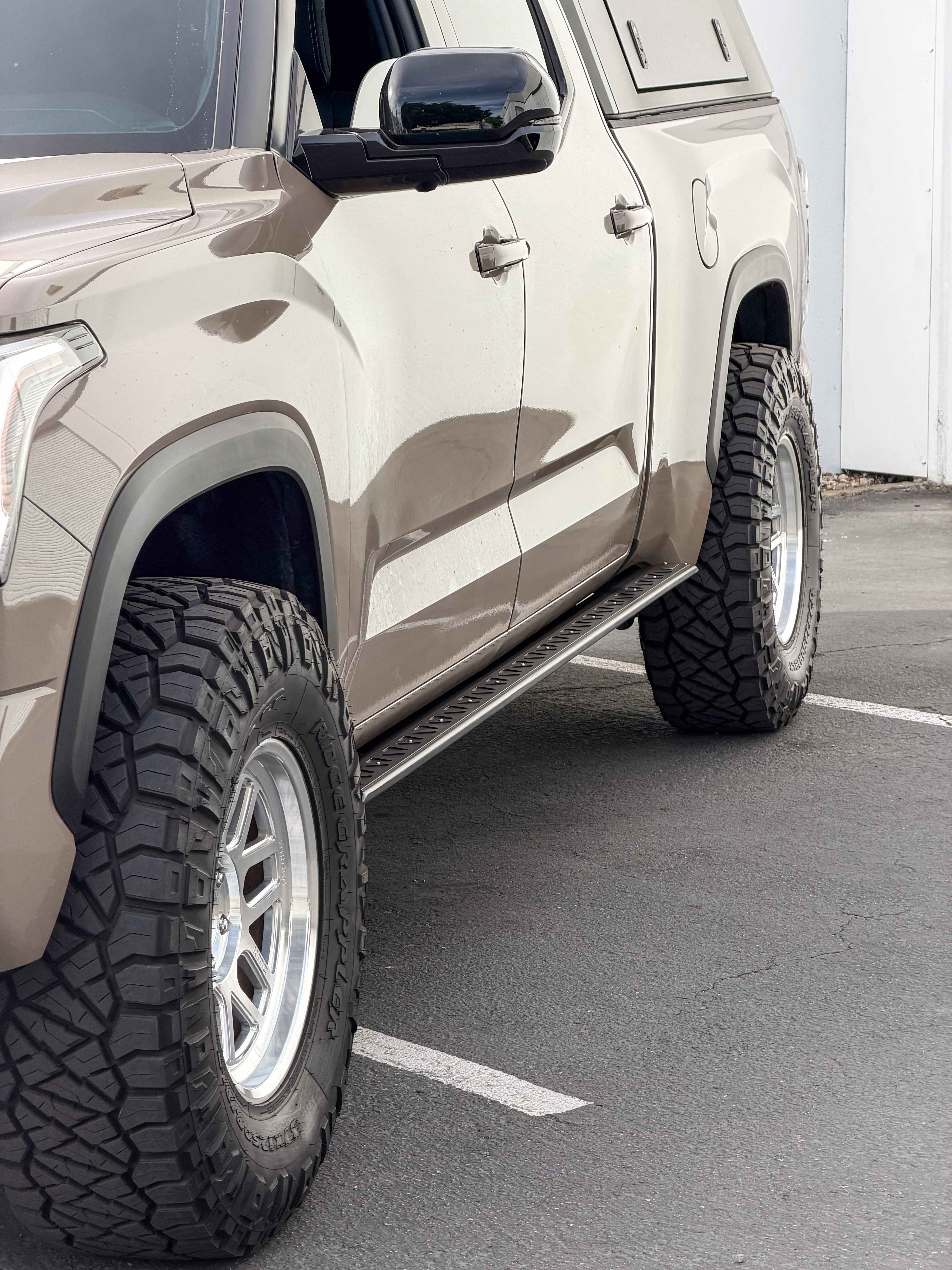

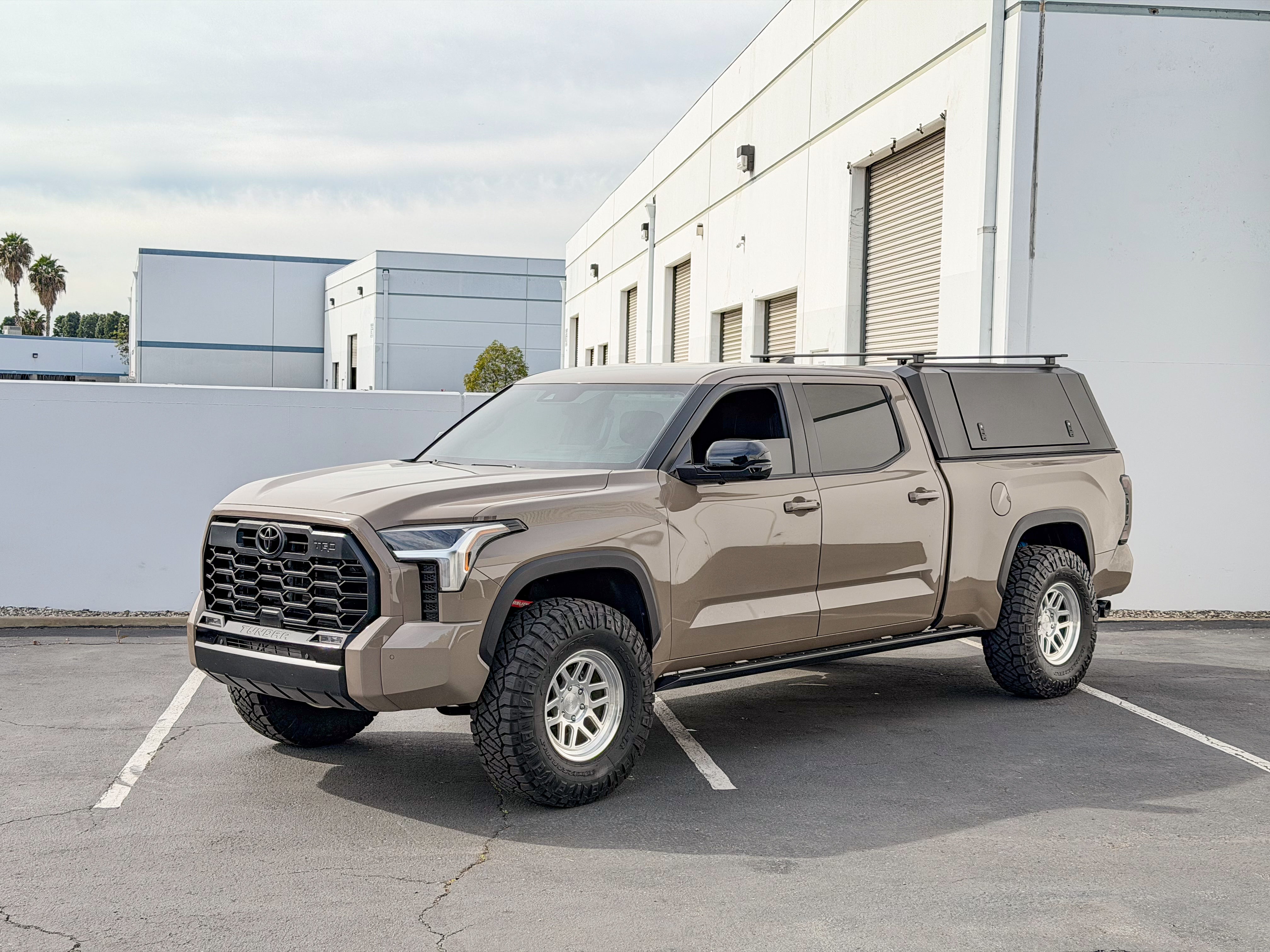

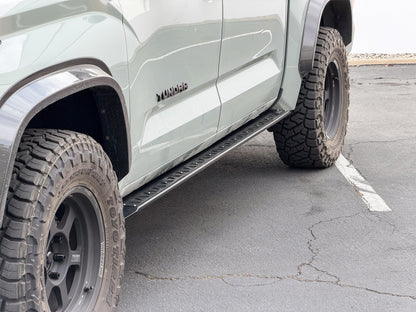

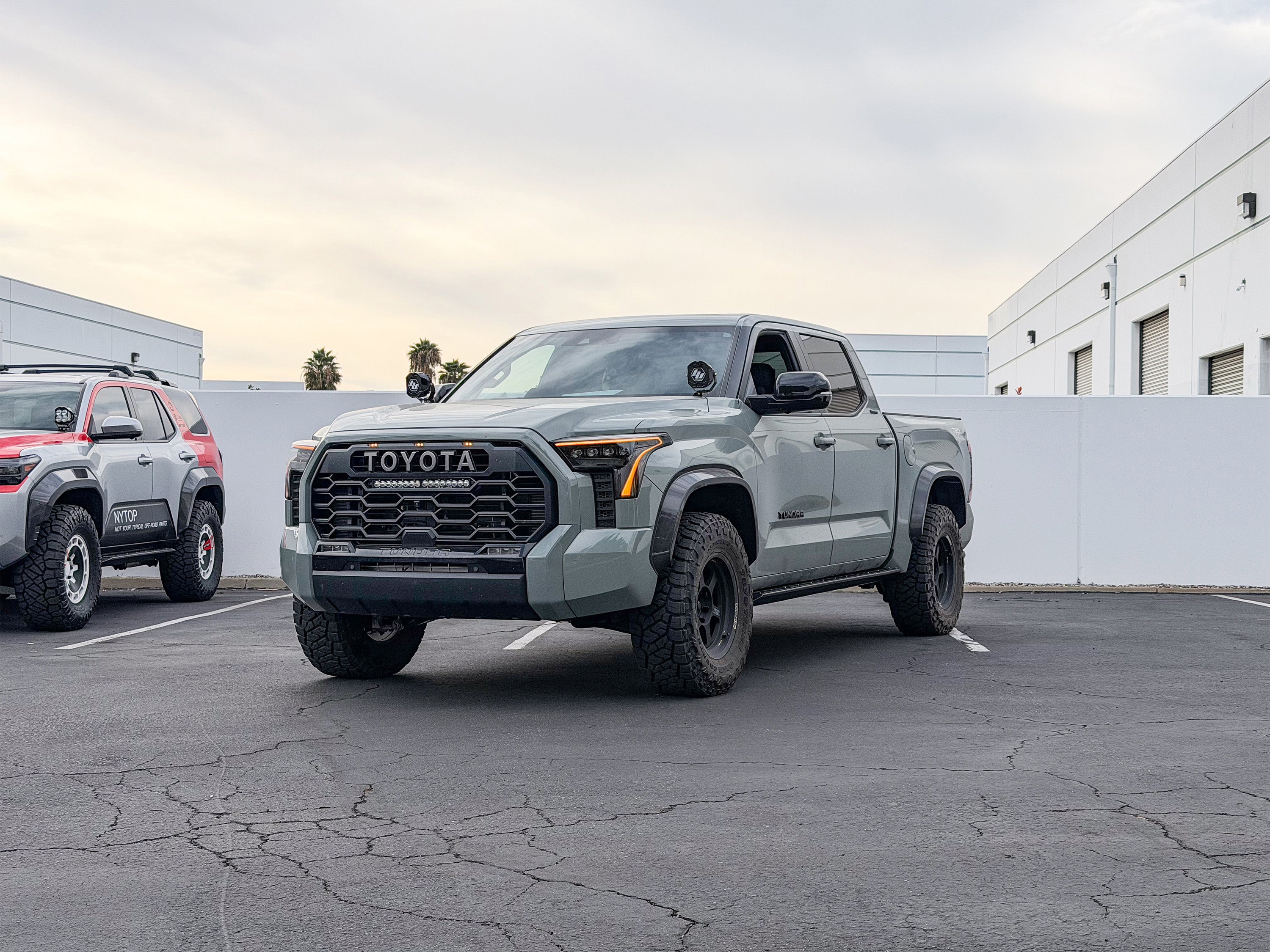

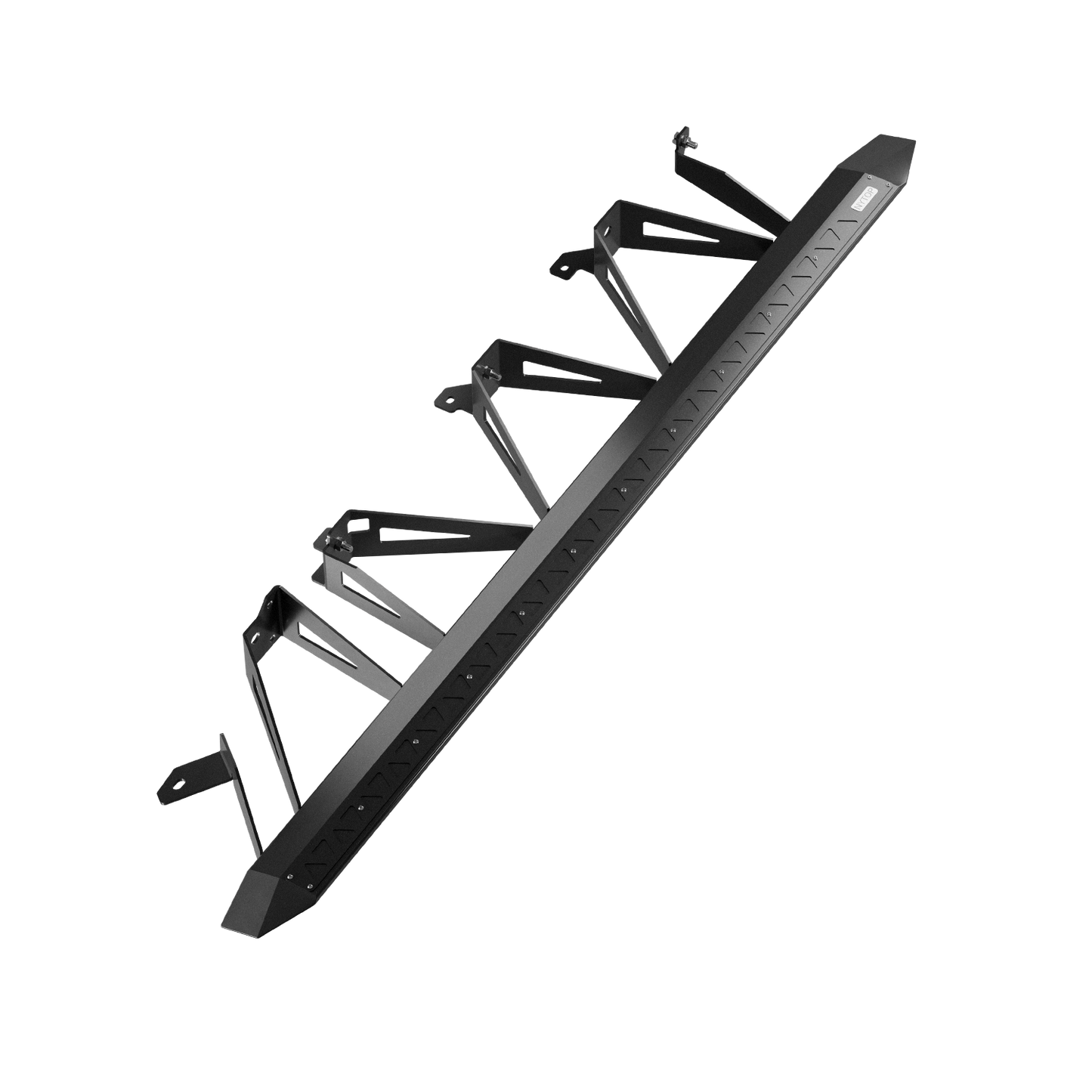

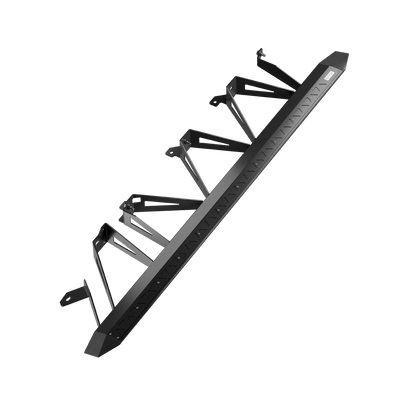

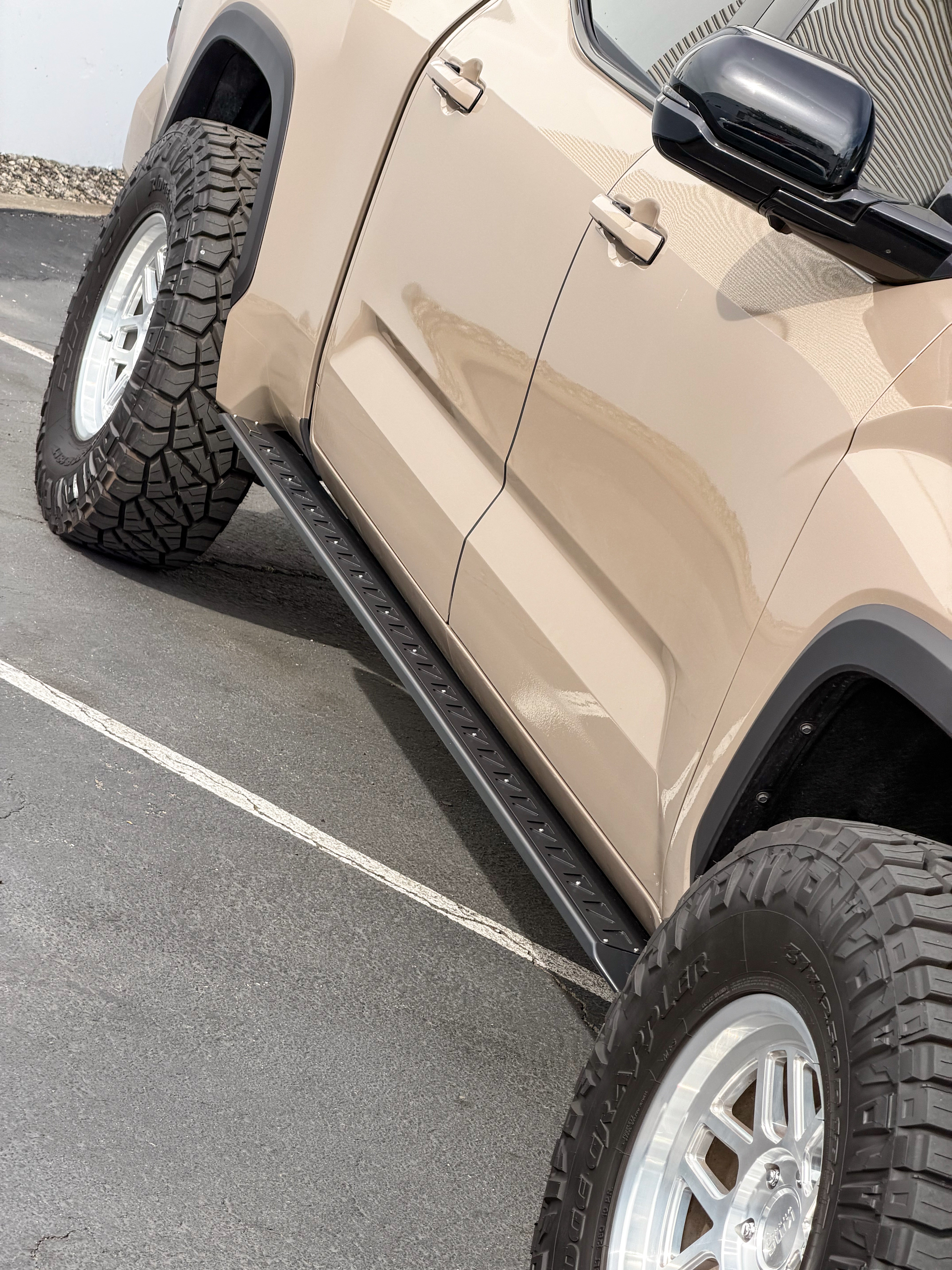

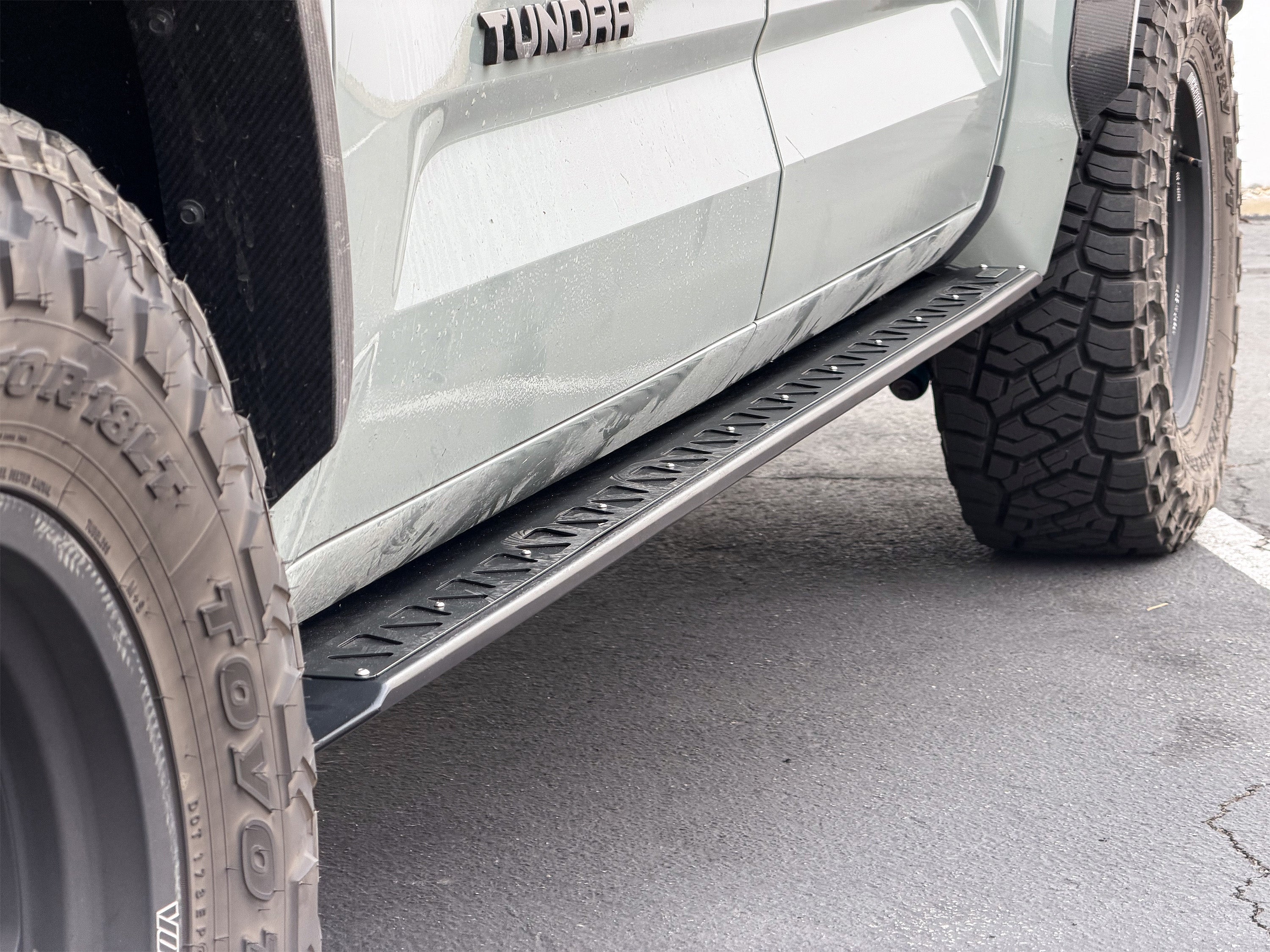

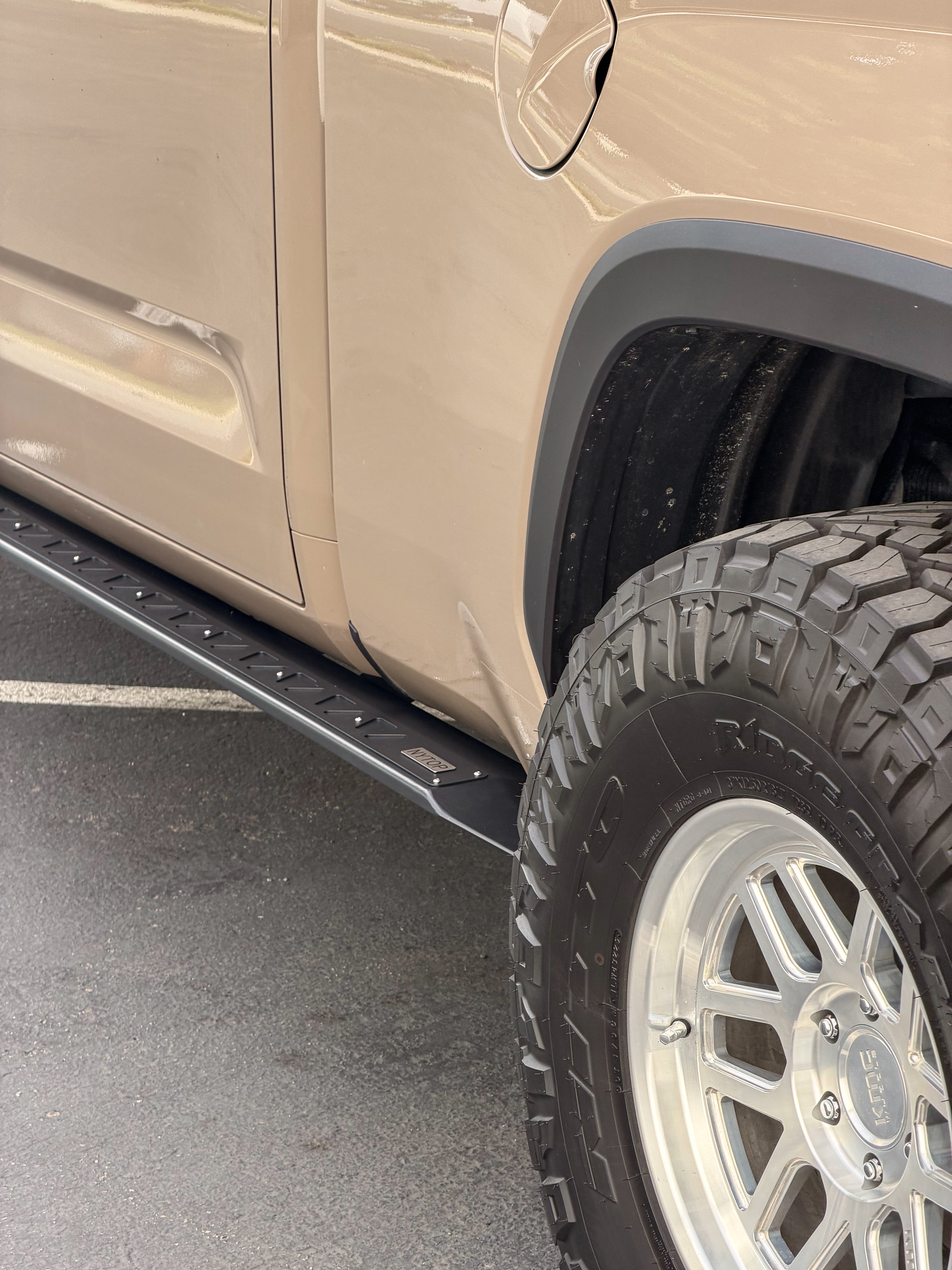

Redefine side protection with Not Your Typical Rock Sliders for the 2022+ Toyota Tundra—engineered for serious off-road use without sacrificing daily drivability. These sliders feature a high-clearance, low-profile, non-tubular design that delivers superior protection while maintaining a clean, functional look.

Unlike traditional round-tube sliders, this innovative design uses a 28.5° flat, angled bottom surface optimized for sliding over rocks and trail obstacles. The top surface remains level, creating a usable 4-inch-wide step for easy entry and exit. Built to take abuse, the sliders are TIG welded from 3/16-inch and 1/4-inch high-strength steel and finished in a durable wrinkle black powder coat.

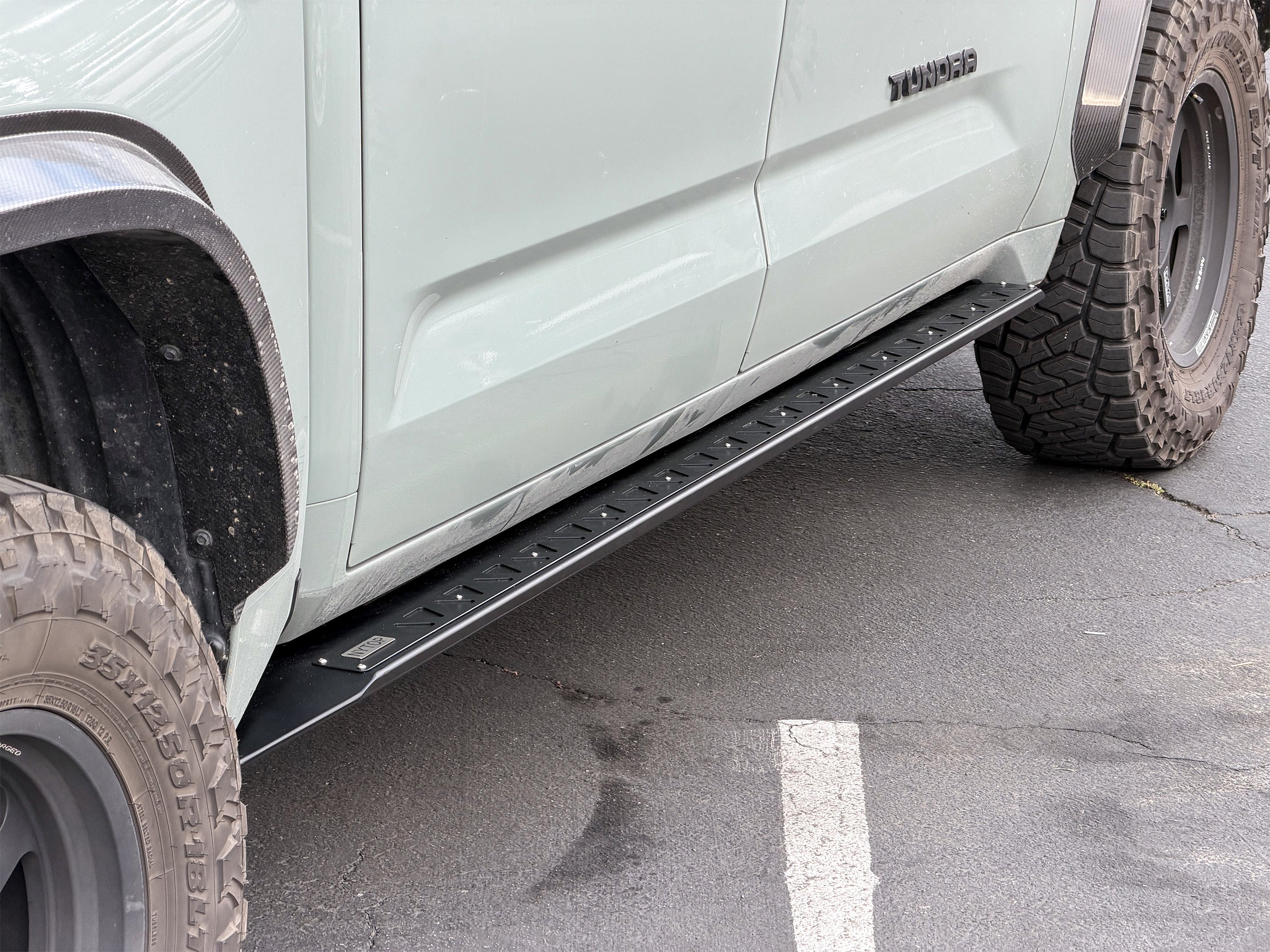

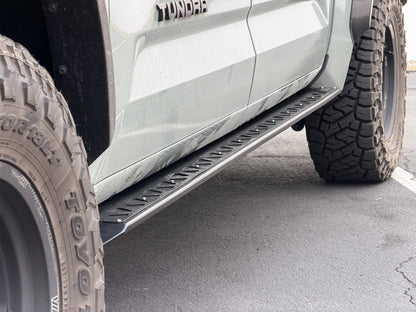

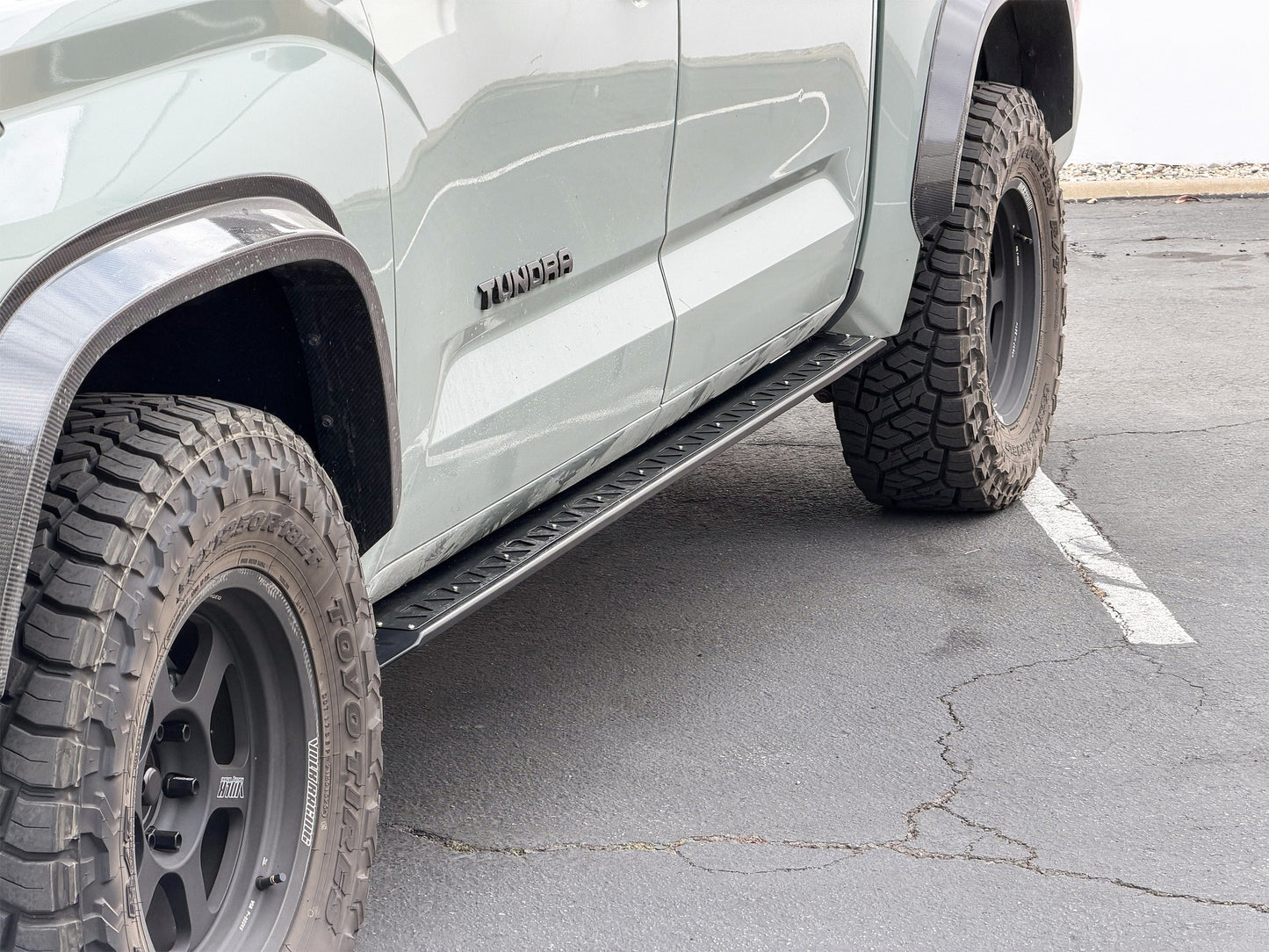

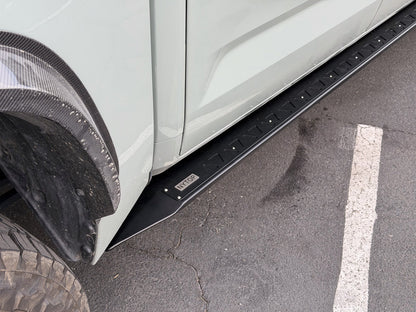

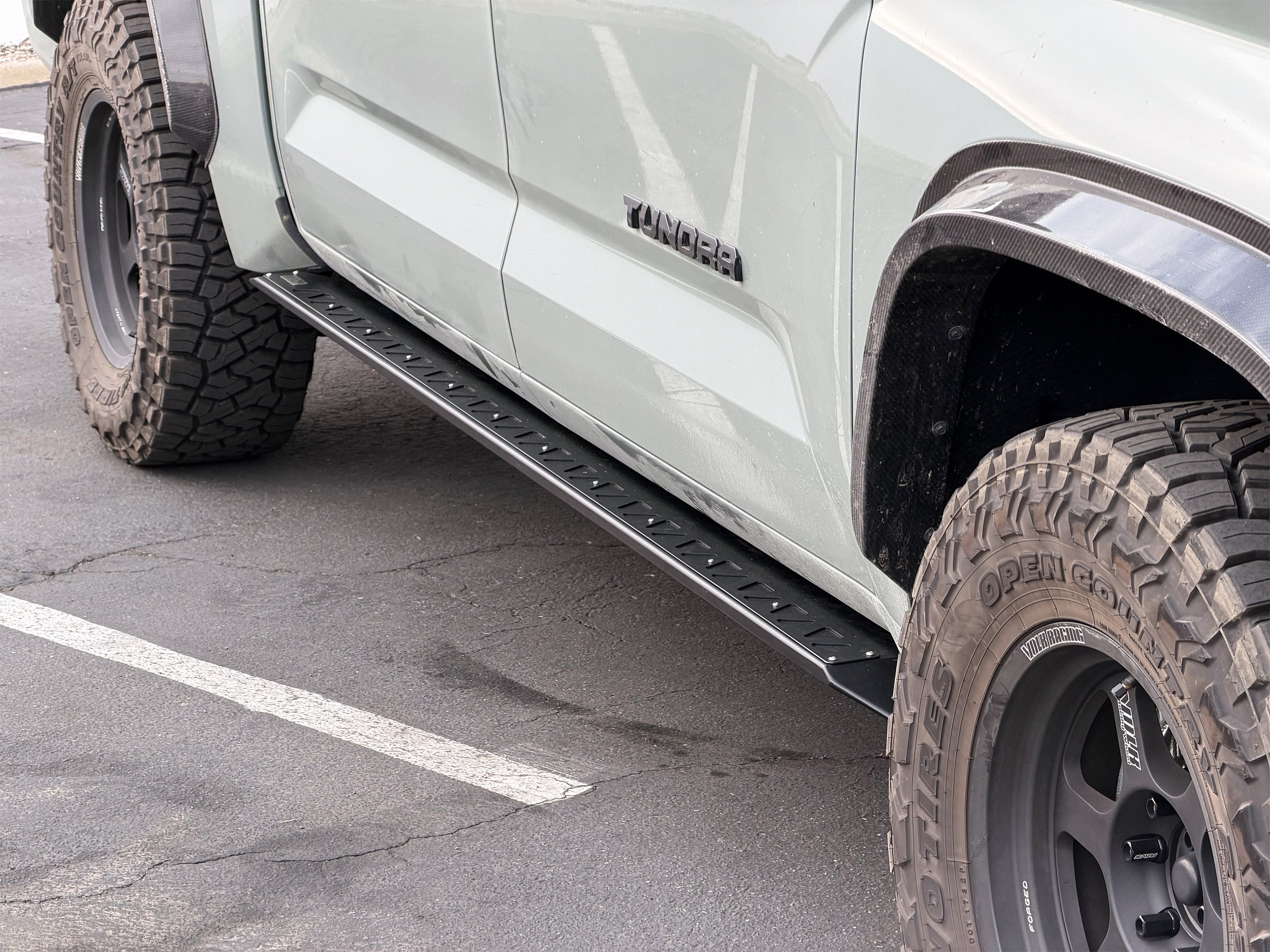

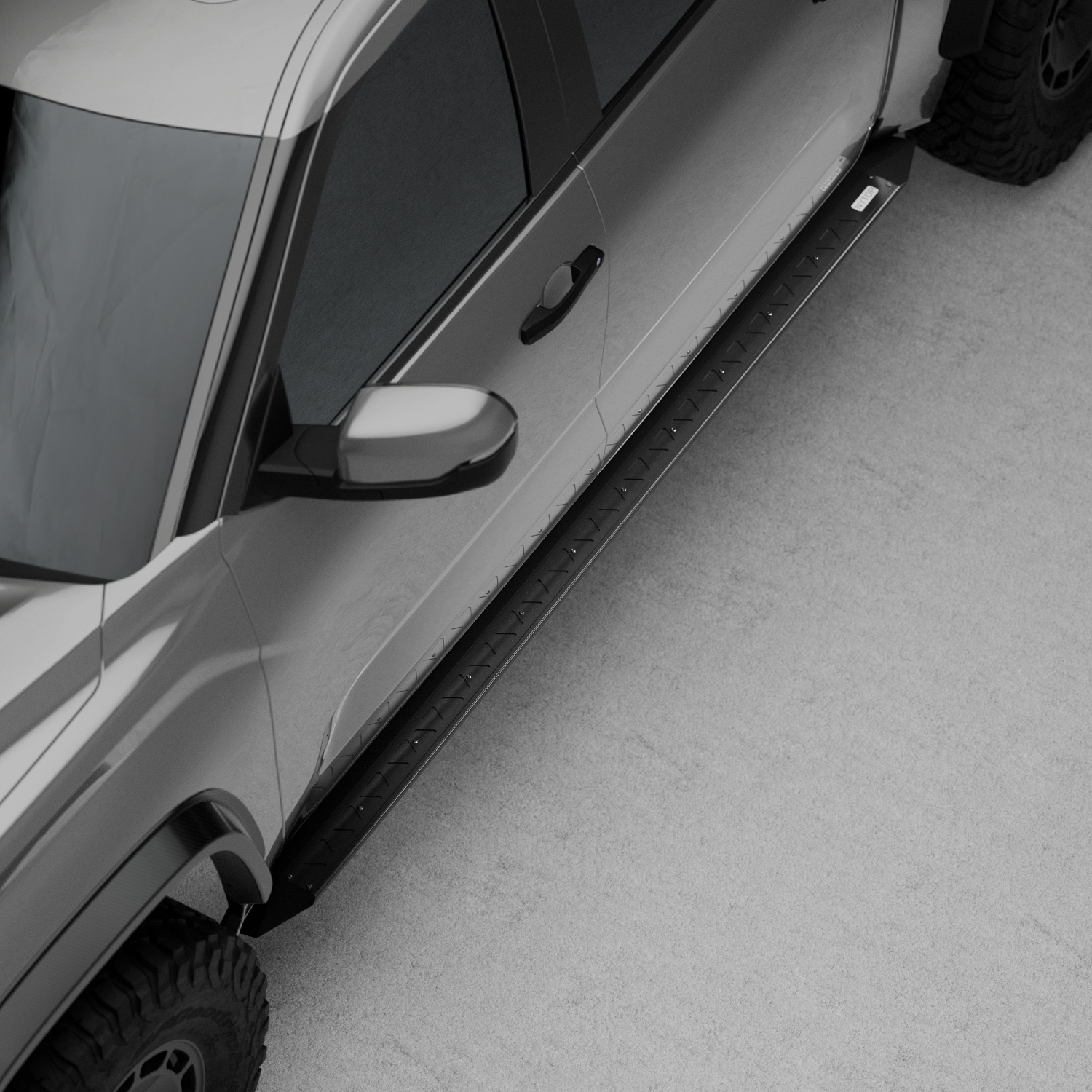

Mounting directly to the frame, these rock sliders protect your Tundra’s body while doubling as side steps. Installation uses patent-pending hardware that eliminates the need for trimming, drilling, or any irreversible vehicle modifications.

Design & Engineering

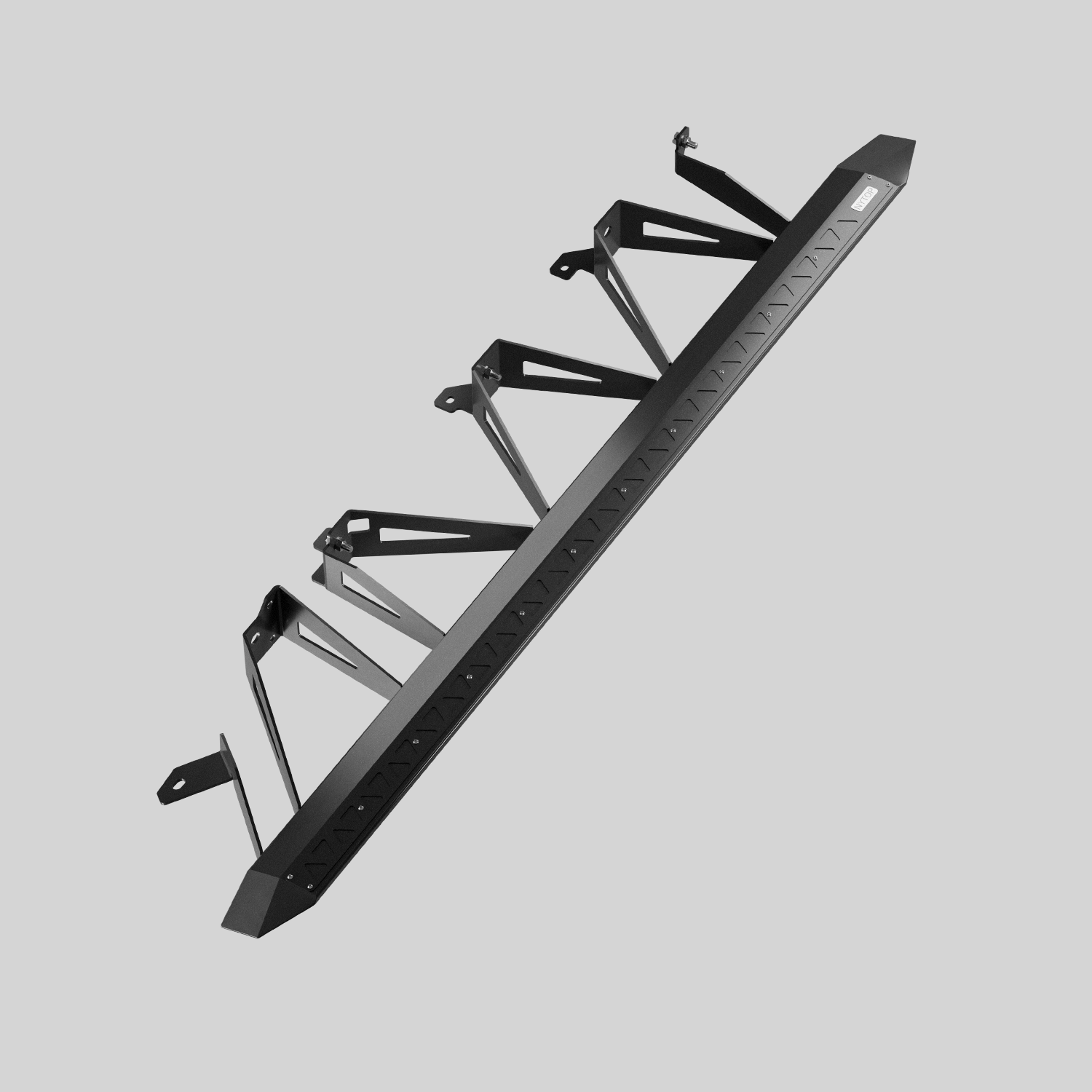

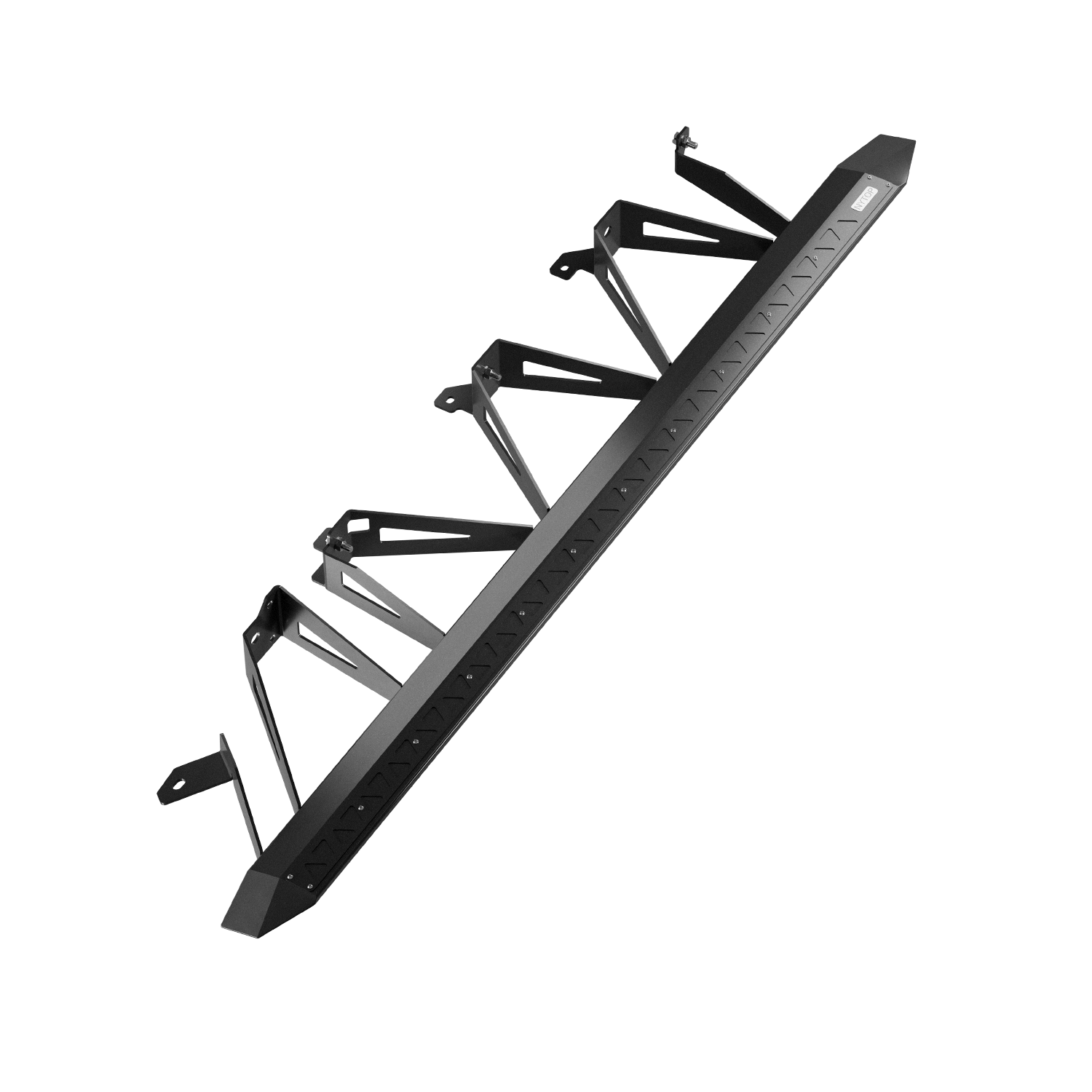

• High-clearance, low-profile, non-tubular construction
• 28.5° angled bottom surface optimized for sliding

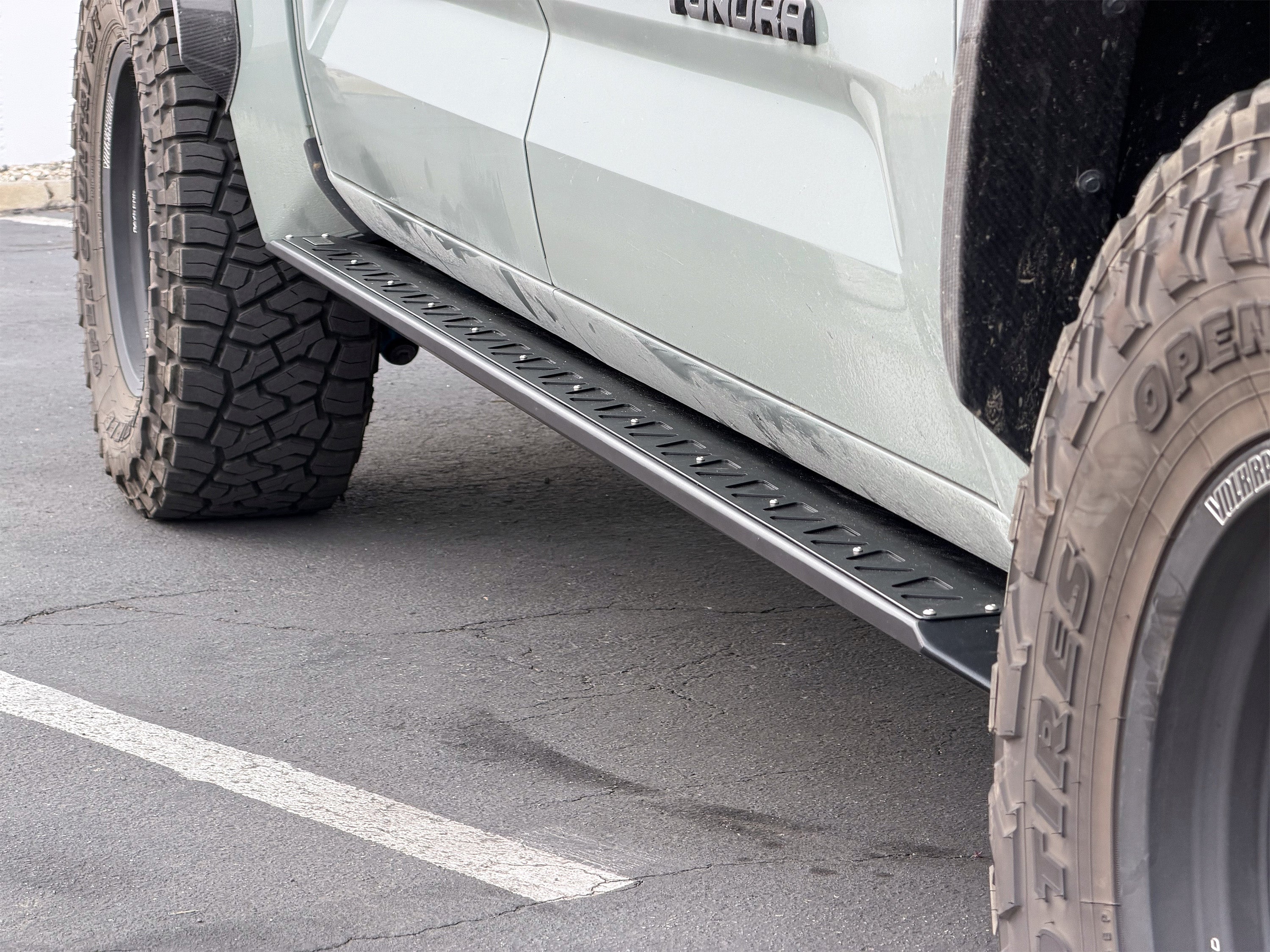

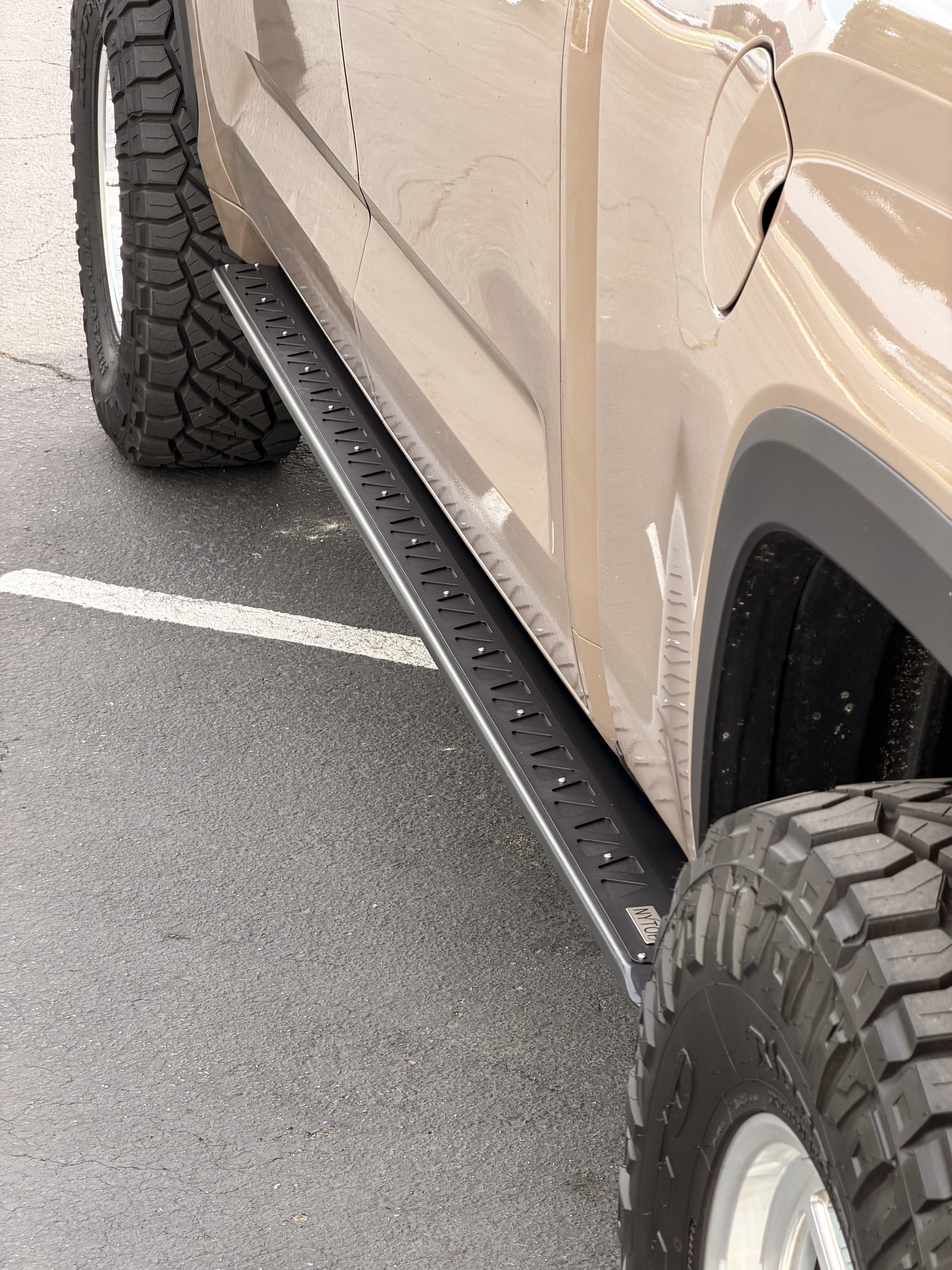

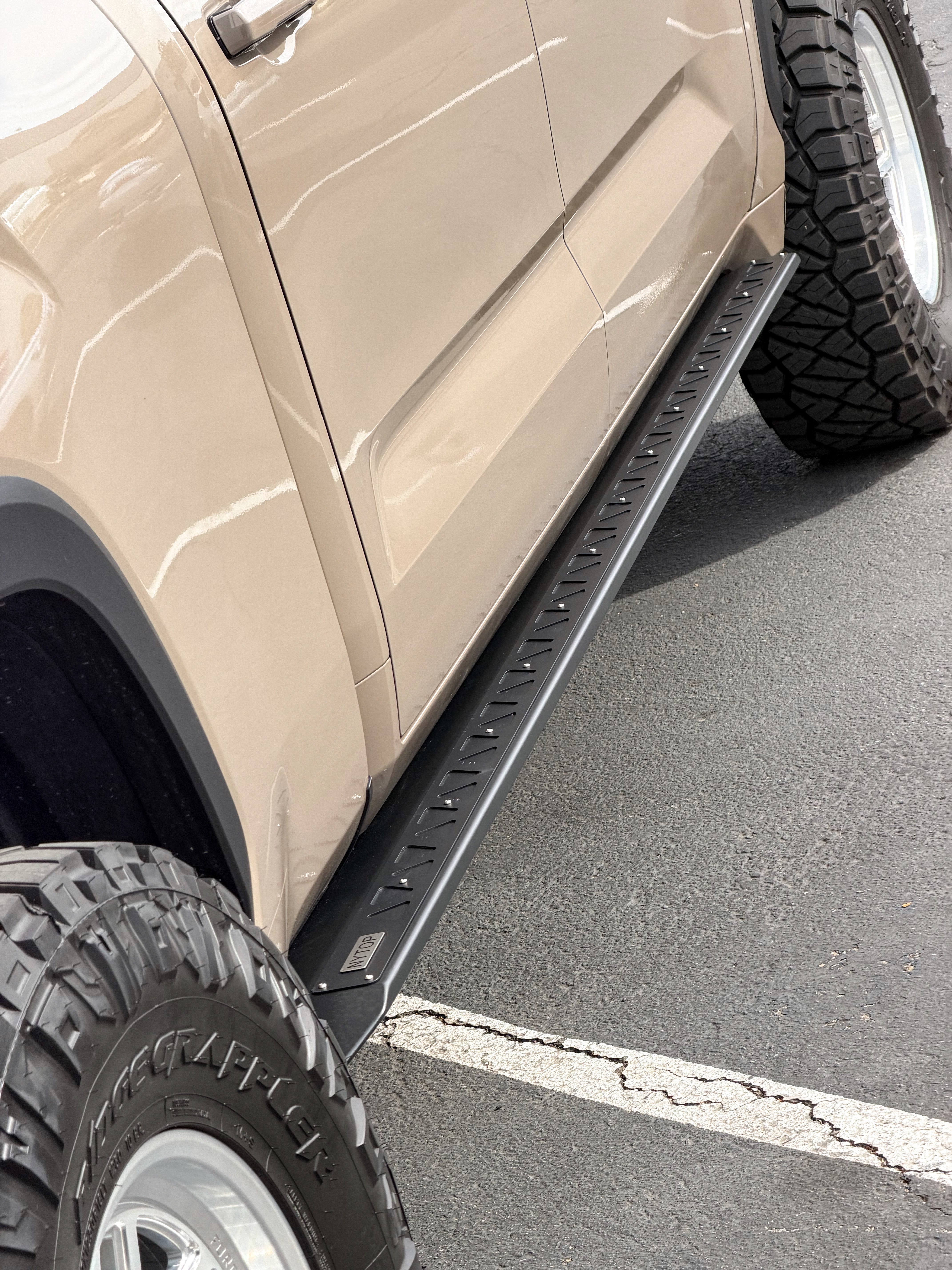

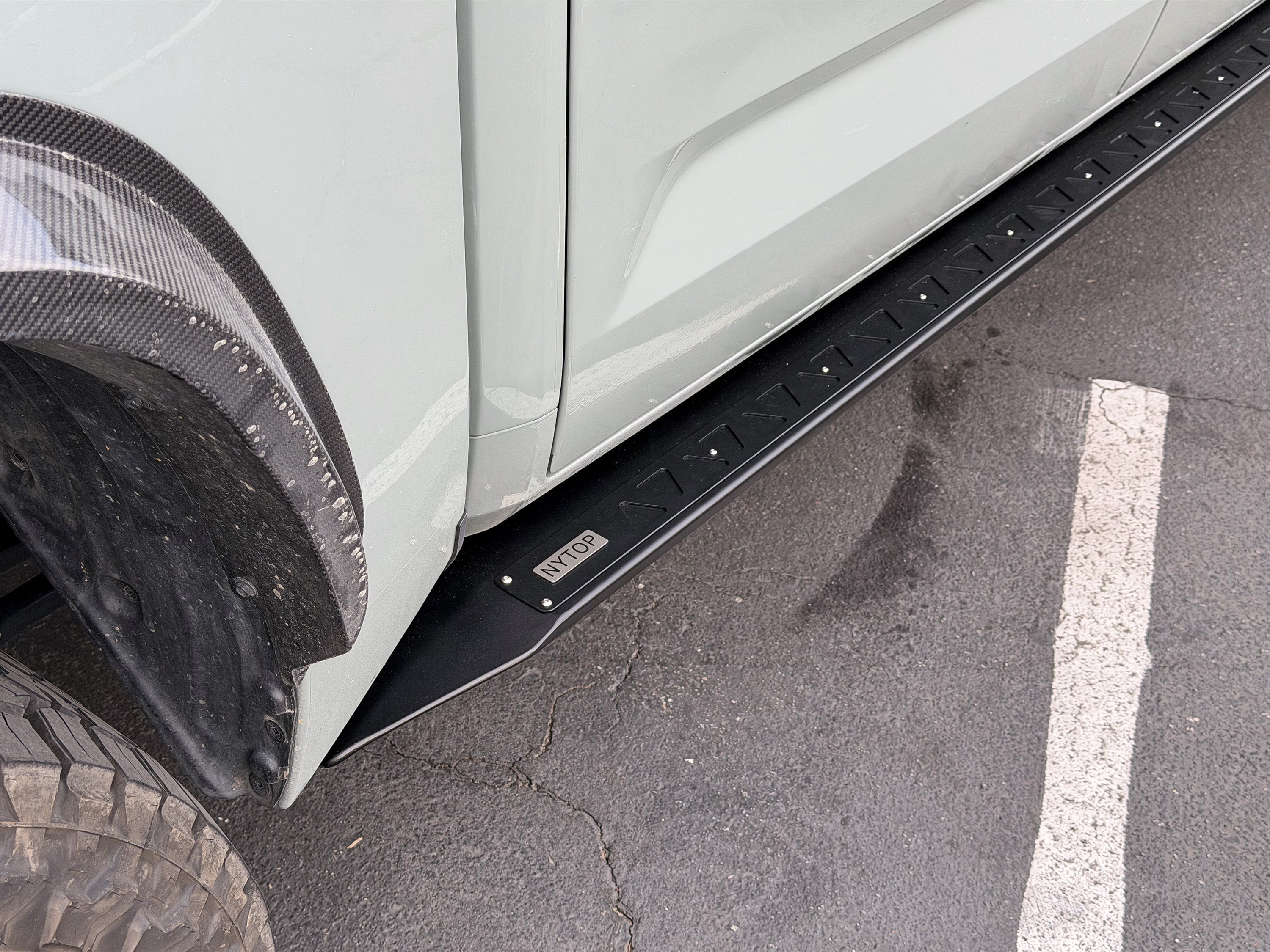

• Flat top with 4" wide stepping platform
• TIG welded 3/16" and 1/4" high-strength steel
• Durable wrinkle black powder coat finish

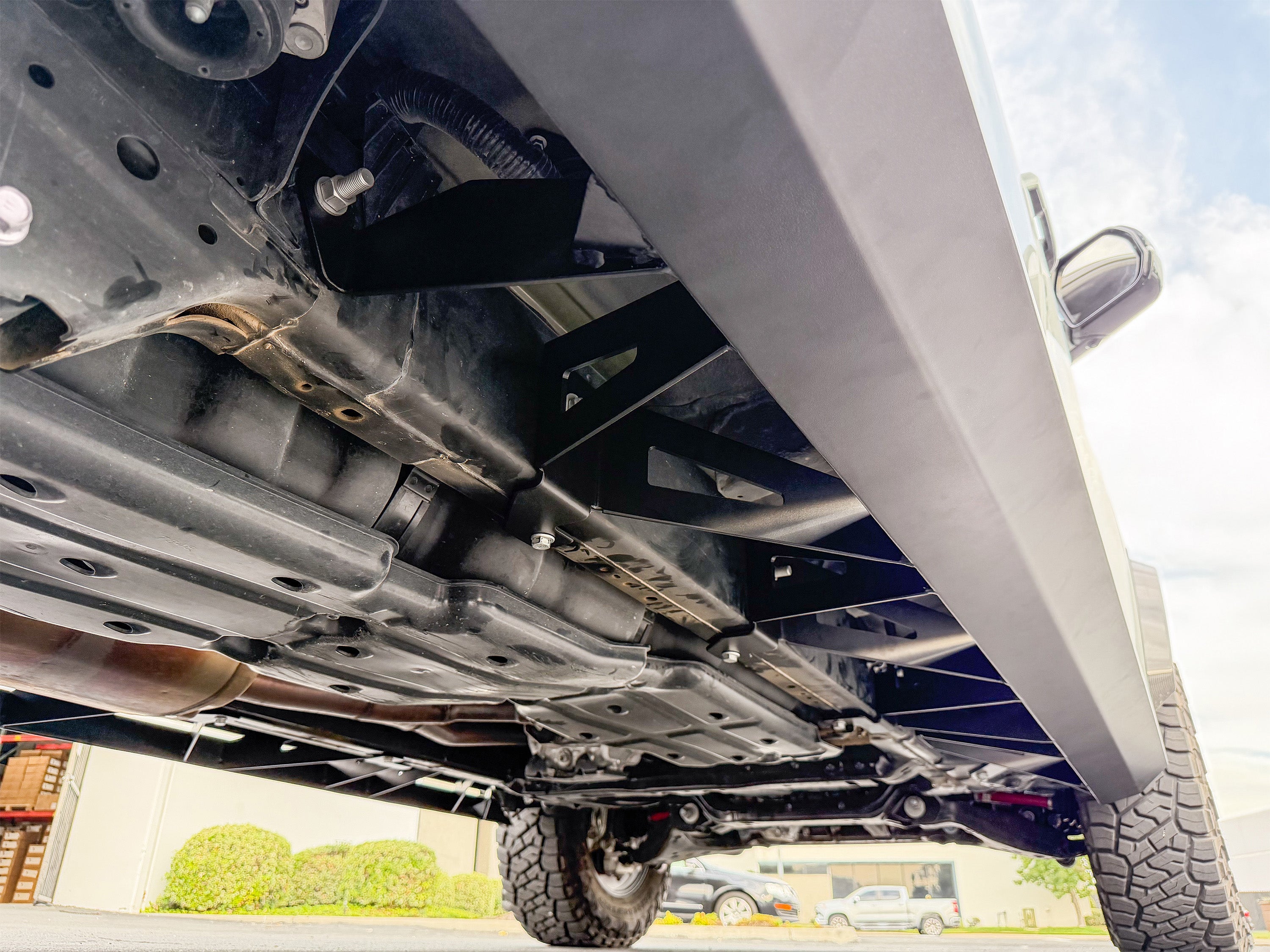

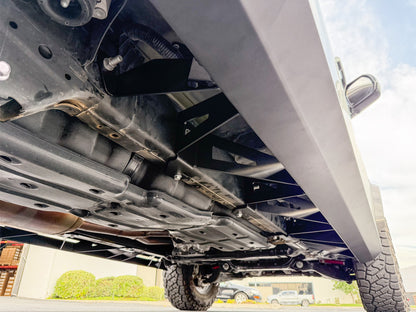

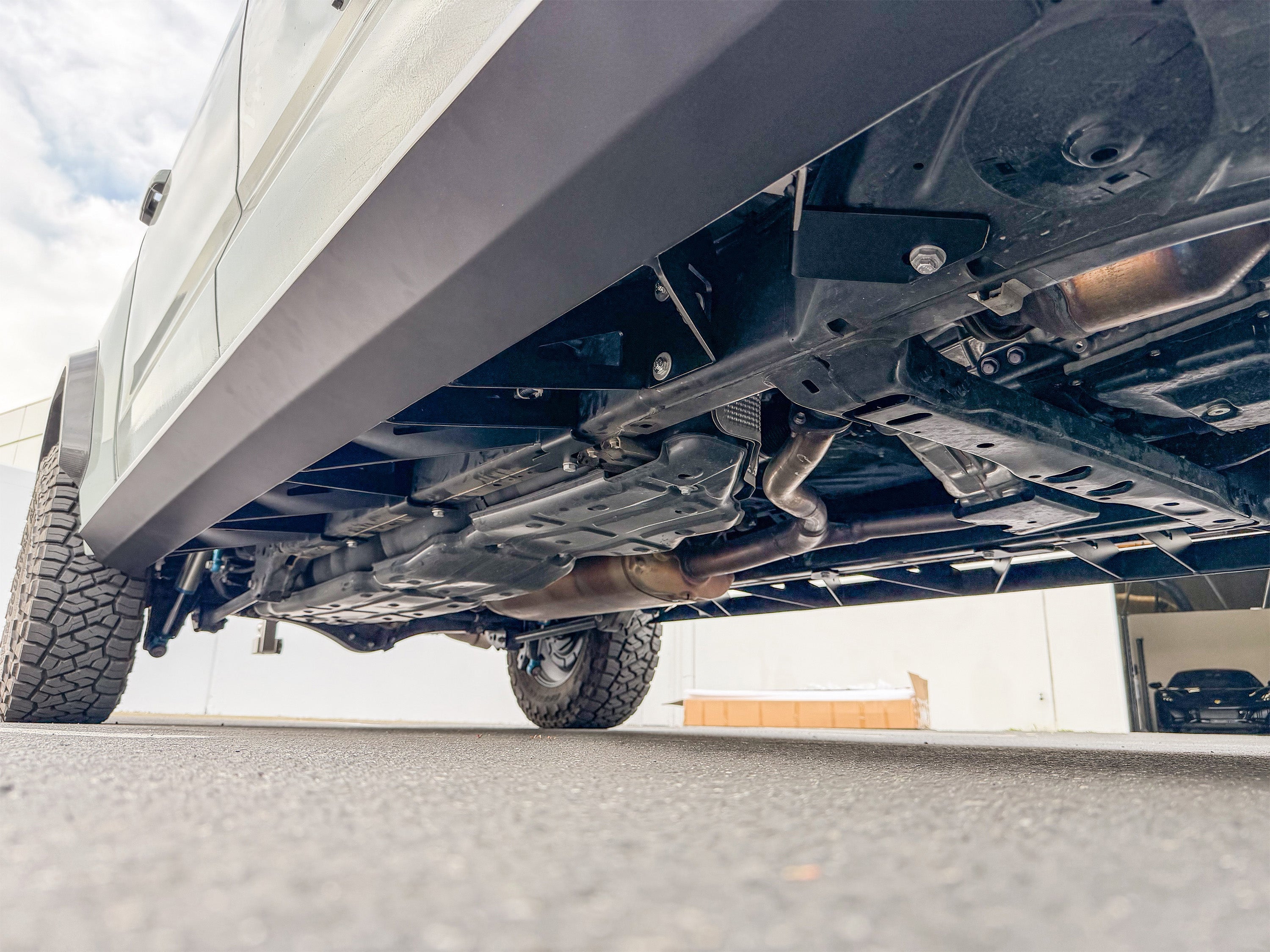

• Frame-mounted for maximum strength and protection

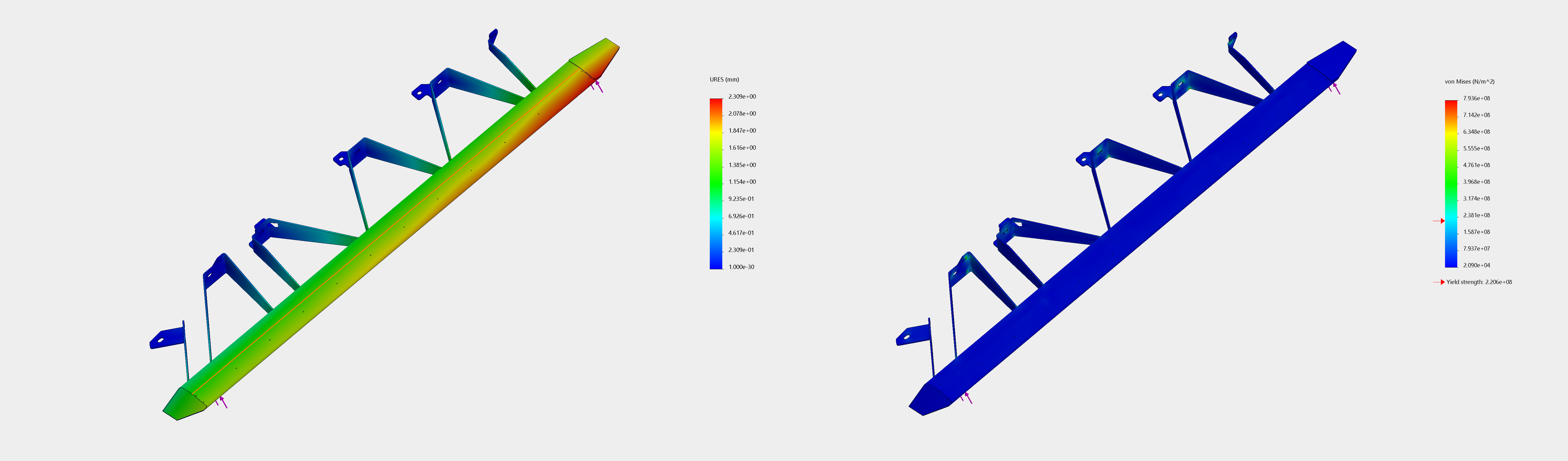

NYTOP Rock Slider Stress Test Results:

• 1.3 metric tons (2,866 lbs): 2mm flex with full spring-back
• 1.7 metric tons (3,748 lbs): 3mm flex with 1mm deformation
• 2.0 metric tons (4,409 lbs): 4mm flex with 1.5mm deformation
• 3.0 metric tons (6,614 lbs): 6mm flex with 2mm deformation

Product Weight (Pair):

• 200 lbs (CrewMax Short Bed)
• 224 lbs (CrewMax Long Bed)

Installation & Usage

All required mounting hardware is included. The rock sliders install using patent-pending mounting hardware to ensure a secure fit without cutting, drilling, or permanent vehicle modification.

Torque Specifications:

• M6 BoxBolts®: 14 ft-lbs (19 Nm)
• M8 BoxBolts®: 19 ft-lbs (25 Nm)
• M12 BoxBolts®: 59 ft-lbs (80 Nm)
• Standard M12 bolts: 75 ft-lbs (101 Nm)
• Patent-pending M14 blind studs & nuts: 105 ft-lbs (142 Nm)

Built for Tundra owners who demand uncompromising strength, smart design, and trail-proven performance.
