Kicker Plug & Play 5-Channel Amplifier & 10" Subwoofer Kit | '16 - '23 Tacoma

Kicker 5-Channel Amplifier & 10" Subwoofer Kit

Fits: 2016–2023 Toyota Tacoma | Compatible with Non-Amplified Systems
Works with Factory or Aftermarket Head Units

Take your 2016–2023 Toyota Tacoma’s audio system to the next level with the Trail Grid Pro Kicker Plug & Play 5-Channel Amp & Subwoofer Kit. This all-in-one package features the powerful Kicker 46CXA660.5T 5-Channel Amplifier paired with a Kicker 10″ CompRT CWRT104 Subwoofer housed in our custom Trail Grid Pro subwoofer enclosure—delivering crystal-clear highs, dynamic mids, and deep, responsive bass.

Built specifically for the Tacoma and manufactured in our Frederick, MD facility, this kit ensures a clean, factory-quality fit. Installation is easy thanks to AudX plug-and-play harnessing and a custom amp mounting bracket—meaning no cutting, no splicing, and no headaches. Whether you're keeping your factory head unit or upgrading to an aftermarket system, this setup is ready to rock.

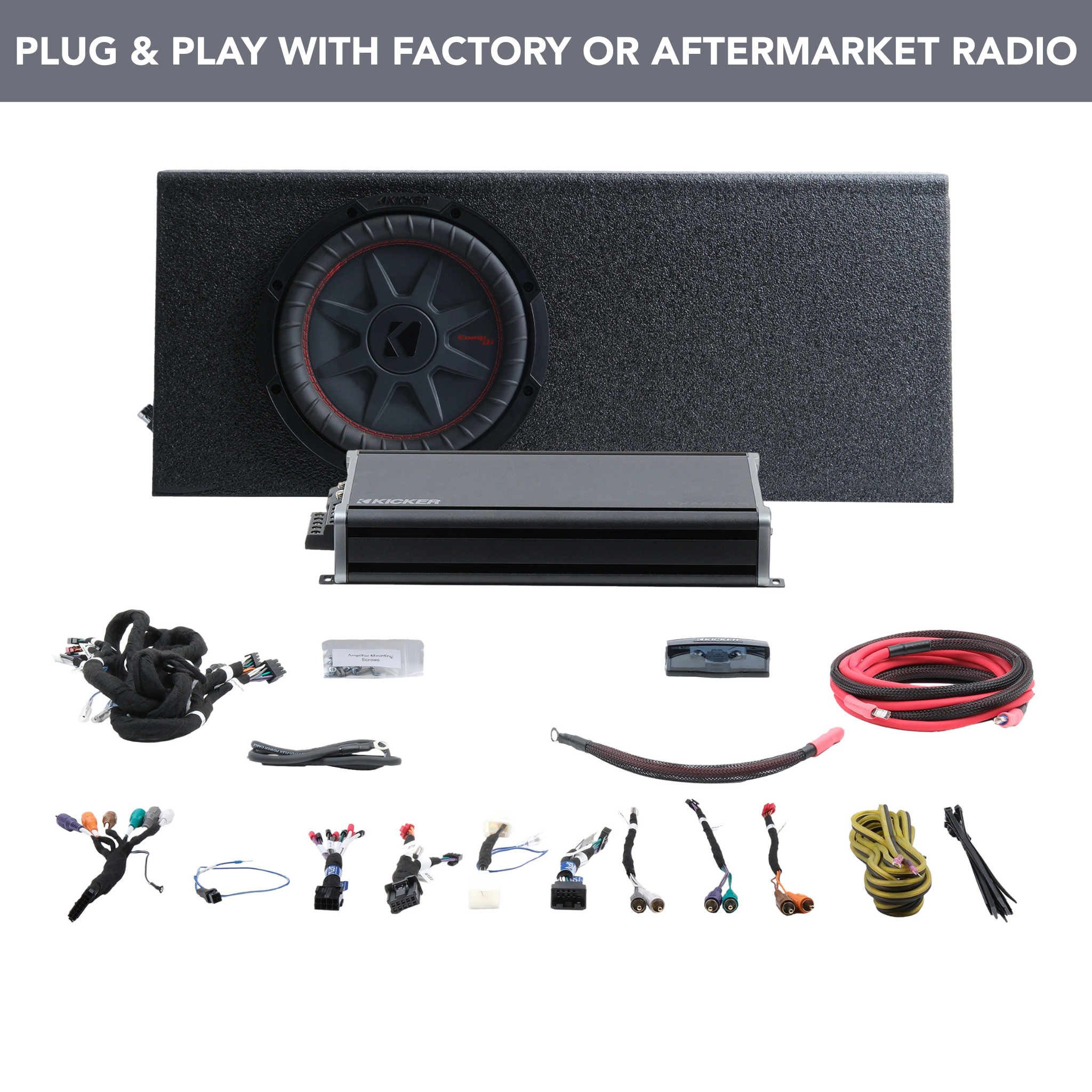

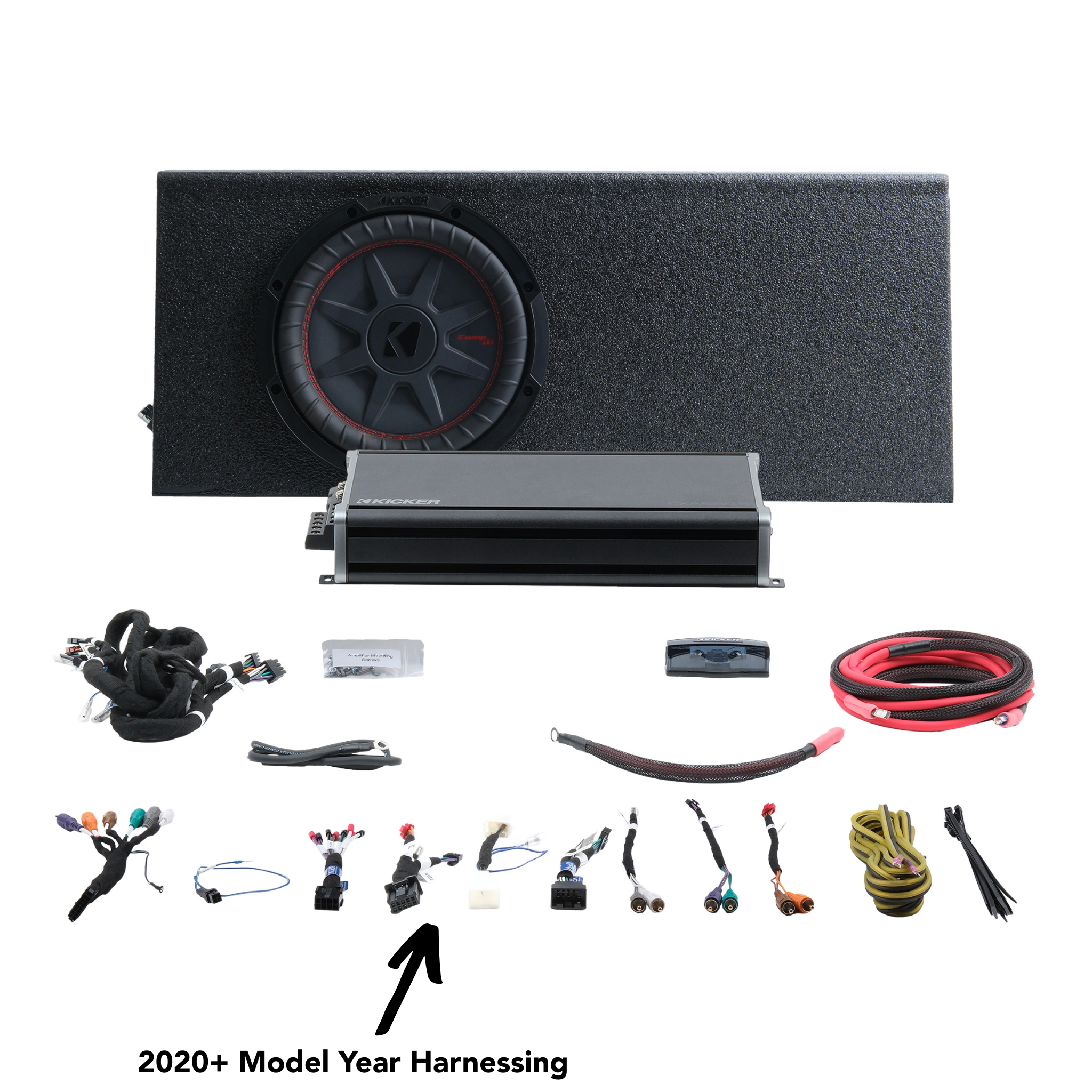

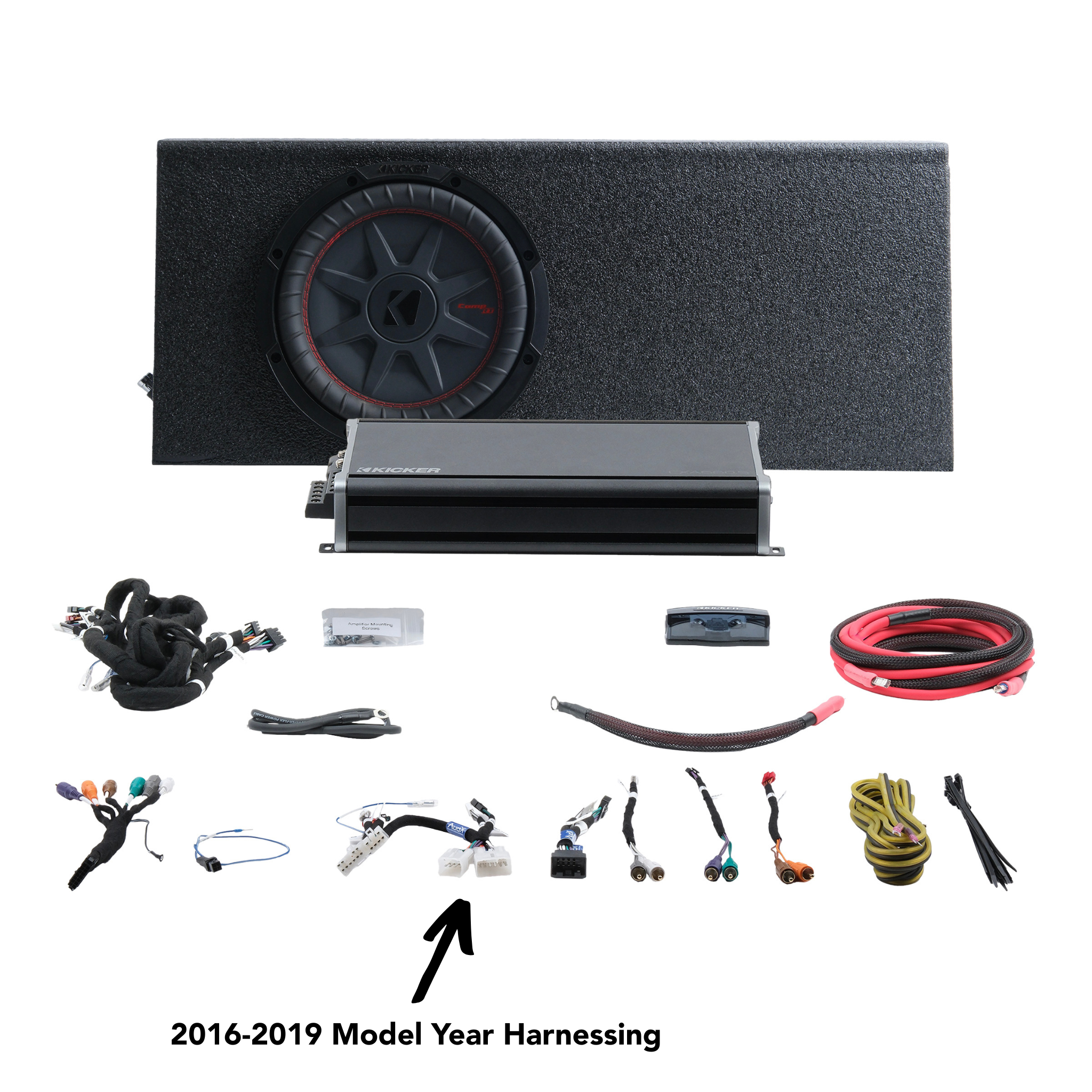

What’s Included:

• Kicker CXA6605T 5-Channel Amplifier
• Trail Grid Pro Custom-fit 10" Subwoofer Enclosure (Tacoma-specific)
• Kicker 10" CompRT CWRT10 Subwoofer
• AudX Bass Control Knob (for Kicker Amp)
• AudX Plug & Play T-Harness
• AudX Plug & Play Main Harness
• RCA Adapters
• Kicker 47VK6 Amplifier Install Kit
• 10mm Ground Bolt
• 10x Zip Ties

Kicker 46CXA660.5T Amplifier – Key Features:

• Compact Class D amplifier design for efficient performance and easy installation
• Five-channel configuration with four full-range channels and a dedicated subwoofer channel
• FIT+™ (Fail-Safe Integration Technology) for seamless integration with factory or aftermarket audio systems
• KickEQ™ bass boost for enhanced low-frequency response
• Compatible with the optional Kicker CXARC remote bass controller
• Top-mounted controls for simplified tuning and adjustments

Specifications:

• RMS Power Output:
  • 65W x 4 + 150W x 1 @ 4Ω
  • 90W x 4 + 300W x 1 @ 2Ω
• Bridged Power Output:
  • 180W x 2 @ 4Ω
• Frequency Response:
  • Main Channels: 20Hz–20kHz
  • Subwoofer Channel: 25Hz–200Hz
• Signal-to-Noise Ratio: >95dB
• Input Sensitivity:
  • Low-Level Inputs: 125mV–5V
  • High-Level Inputs: 250mV–10V
• Fuse Rating: 60A
• Dimensions: 12.38" W x 2.38" H x 7" D

Kicker CWRT10 Subwoofer – Key Features:

• Slim, shallow-mount design for tight spaces
• Dual 2-ohm voice coils (used in this kit)
• Injection-molded polypropylene cone with ribbed surround
• High-temp voice coil + vented pole piece for durability
• Compatible with sealed or ported enclosures
• .652 Cubic feet of air-space in the TGP Tacoma subwoofer enclosure

Specifications:

• RMS Power Handling: 400W
• Peak Power: 800W
• Sensitivity: ~85dB
• Frequency Response: 30Hz–500Hz
• Mounting Depth: ~3.44″
• Mounting Diameter: 9.13″

The Trail Grid Pro Advantage:

Everything in this kit is designed, pre-wired, and pre-tested by our team in Frederick, Maryland—ensuring a reliable, clean, and powerful audio upgrade for your non-amplified Tacoma. With a fully plug-and-play install, no extra parts needed, and a 2-year warranty, you’ll be hitting the trail (or the commute) with sound that truly performs.
