Audison 13 Speaker Plug & Play Bundle | '24+ Land Cruiser (JBL Amplified Only)

Audison 13 Speaker Plug & Play Bundle | '24+ Land Cruiser (JBL Amplified Only)

Audison
$1,497.00
$1,716.00 $1,497.00
Sale Sold out
Shipping calculated at checkout.

In stock

Upgrade your 2024+ Toyota Land Cruiser with Audison’s 13 Speaker Bundle—premium plug-and-play sound, crystal-clear clarity, and easy installation from Trail Grid Pro.
View full details

Fast US Standard Shipping &
Easy International Shipping

30-Day Returns

TG Pro
Satisfaction Promise

Trail Grid Pro Tested

  • Details
  • Speaker Specifications

2024+ Toyota Land Cruiser Audison 13 Speaker Bundle (JBL Amplified Only)

Transform Your Land Cruiser’s Audio Experience
Take your 2024+ Toyota Land Cruiser to a new level of clarity and precision with Trail Grid Pro’s Audison 13 Speaker Bundle — crafted for audiophiles who demand more from their drive. This premium setup combines Italian engineering and Toyota-specific tuning to deliver studio-grade sound, seamless installation, and plug-and-play convenience.

Whether you’re cruising city streets or exploring off the grid, Audison’s advanced speaker technology reproduces every note with unmatched accuracy and depth — giving your Land Cruiser a soundstage worthy of its legendary name.

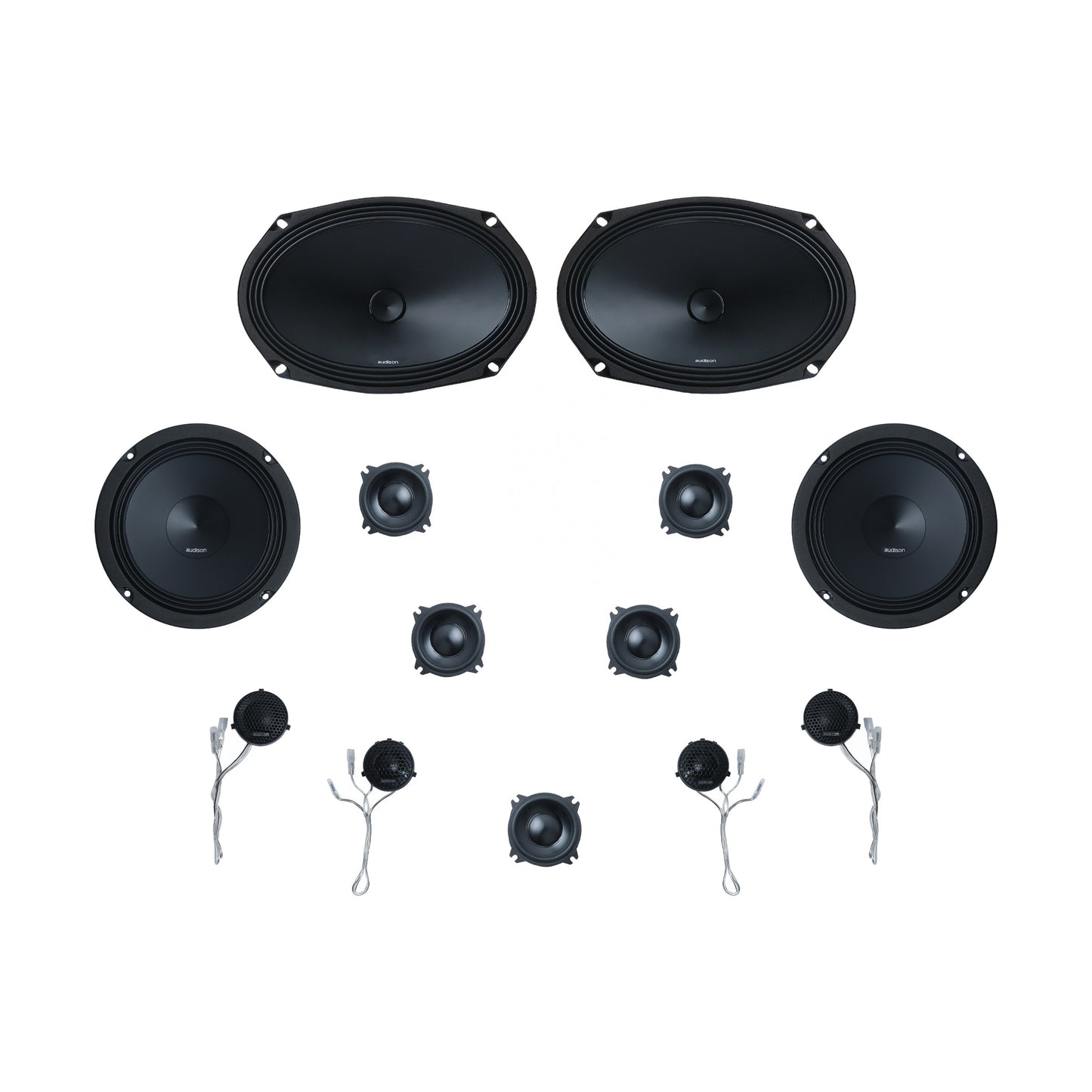

What’s in the Bundle

Each kit is hand-built and pre-wired in our Frederick, Maryland facility for a perfect fit and easy installation:

  • Front Doors & A-Pillar: Audison APK 6x9 Component System — powerful mid-bass and crisp highs
  • Rear Doors: Audison APK 165 Component System — balanced sound and smooth rear fill
  • Dash, Center Channel, & Rear Hatch: Audison AP 2 MV (x5) — ultra-clear mids for a detailed front-stage experience

All required adapters and plug-and-play connectors come pre-wired, soldered, shrink-wrapped, and tesa-taped for a factory-grade finish — ready to install right out of the box.

How to Tell If You Have a JBL Amplified Land Cruiser

  • JBL Amplified: If your A-pillar tweeter has a JBL logo, you have the JBL amplified system.
  • Non-JBL: If you do not have an A-pillar tweeter with a JBL logo, you do not have a base audio system.

Knowing which system you have ensures you receive the correct harness and wiring configuration for a flawless plug-and-play install.

Why Trail Grid Pro?

✅ Plug & Play Simplicity — Pre-wired, pre-sized, and tested before shipping
✅ Premium Sound — Genuine Audison components deliver precise, natural audio
✅ Toyota-Specific Fitment — Engineered for seamless installation in the 2024+ Land Cruiser
✅ Hand-Built in the USA — Assembled, tested, and packed in Frederick, Maryland
✅ 2-Year Warranty — We stand behind every bundle we ship

Experience the Audison Difference

Audison’s reputation for high-fidelity sound meets Trail Grid Pro’s plug-and-play engineering. From smooth vocals to deep bass lines, every drive becomes an immersive concert-level experience.

Upgrade your 2024+ Toyota Land Cruiser with the Audison 13 Speaker Bundle — precision audio built for adventure.

Audison Speaker System Overview

This 13-speaker Audison system combines premium Italian design and precision engineering to deliver crystal-clear, dynamic sound throughout your 2024+ Toyota Land Cruiser. Featuring the Audison APK 690, Audison APK 165, and Audison AP 2 MV, this setup provides powerful midbass, smooth highs, and immersive detail — all with OEM-level fitment and Trail Grid Pro’s plug-and-play simplicity.

Audison APK 690 – Front Door & A-Pillar

The Audison APK 690 system is designed for vehicles with 6x9" elliptical speaker mounts. It features a 6x9” woofer paired with an AP 1 tweeter and compact APCX TW 690 crossover.

Engineered for seamless door installation, the APK 690 delivers deep, controlled bass and crisp high frequencies while maintaining compact dimensions. The large voice coil ensures high power handling and control, while dual Faston connectors simplify installation and maintain perfect contact.

Key Features:

  • Compact, easy-to-install crossovers with adjustable tweeter attenuation
  • Optimized woofer parameters for in-door acoustic performance
  • Mechanical cone-dust cap design for high efficiency
  • Large 25mm (1”) voice coil for better power control and dynamics
  • Dual Faston connectors for quick tweeter integration

Technical Specifications:

  • Woofer Size: 6x9" (690mm)
  • Impedance: 4Ω
  • Peak Power Handling: 300W
  • Continuous Power: 100W
  • Frequency Response: 40Hz – 20kHz
  • Voice Coil Diameter: 25mm (0.98”)
  • Sensitivity: 95dB
  • Xmax: 4mm (0.16”)
  • Crossover: HP 6dB/Oct @ 3.3kHz

Audison APK 165 – Rear Door

The Audison APK 165 two-way system pairs an AP 6.5” woofer with an AP 1 tweeter and the APCX TW crossover. It includes a two-position tweeter level selector (+2dB / 0dB), allowing fine-tuning for either OEM-grille or A-pillar installations.

High-current Faston terminals with double contact points provide reliable connections, ensuring simple, flexible installation and consistent signal delivery.

Key Features:

  • Adjustable tweeter output (+2dB / 0dB) for optimal placement tuning
  • Dual-contact Faston terminals for quick, reliable wiring
  • Durable materials and compact magnet design for OEM fitment

Technical Specifications:

  • Woofer Size: 6.5" (165mm)
  • Impedance: 4Ω
  • Peak Power Handling: 300W
  • Continuous Power: 100W
  • Frequency Response: 60Hz – 20kHz
  • Voice Coil Diameter: 32mm (1.26”)
  • Sensitivity: 93.5dB
  • Xmax: 2.5mm (0.1”)
  • Crossover: HP 6dB/Oct @ 3.5kHz

Audison AP 2 MV – Dash, Center Channel & Rear Hatch (x5)

The Audison AP 2 MV wide-range speaker reproduces the entire mid-to-high frequency range with incredible clarity and phase coherence. Perfect for OEM dash and A-pillar locations, it creates a detailed soundstage that feels natural and immersive.

A 25mm (1”) voice coil ensures smooth, extended low-frequency response down to 150Hz, while the lightweight aluminum cone and neodymium magnet design extend highs up to 20kHz with minimal distortion.

Key Features:

  • Full-range 2” design reproduces mids and highs with no crossover distortion
  • Aluminum cone with copper shorting ring for flat impedance and clean highs
  • Dual Neodymium magnets for compact size and extended response
  • Ideal for center channel, dash, and surround applications

Technical Specifications:

  • Nominal Diameter: 2" (50mm)
  • Impedance: 4Ω
  • Peak Power Handling: 50W
  • Continuous Power: 25W
  • Sensitivity: 84dB
  • Frequency Response: 150Hz – 20kHz
  • Voice Coil: 25mm (1”)
  • Magnet: Neodymium
  • Xmax: 2.5mm (0.1”)

The Audison Advantage

Every component in this 13-speaker system is engineered for precise acoustics, high efficiency, and clean installation. The result is a premium, plug-and-play upgrade that transforms your Land Cruiser into a rolling concert hall — with clarity, balance, and power that factory audio simply can’t match.
