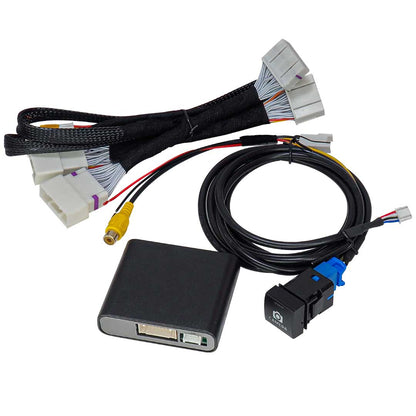

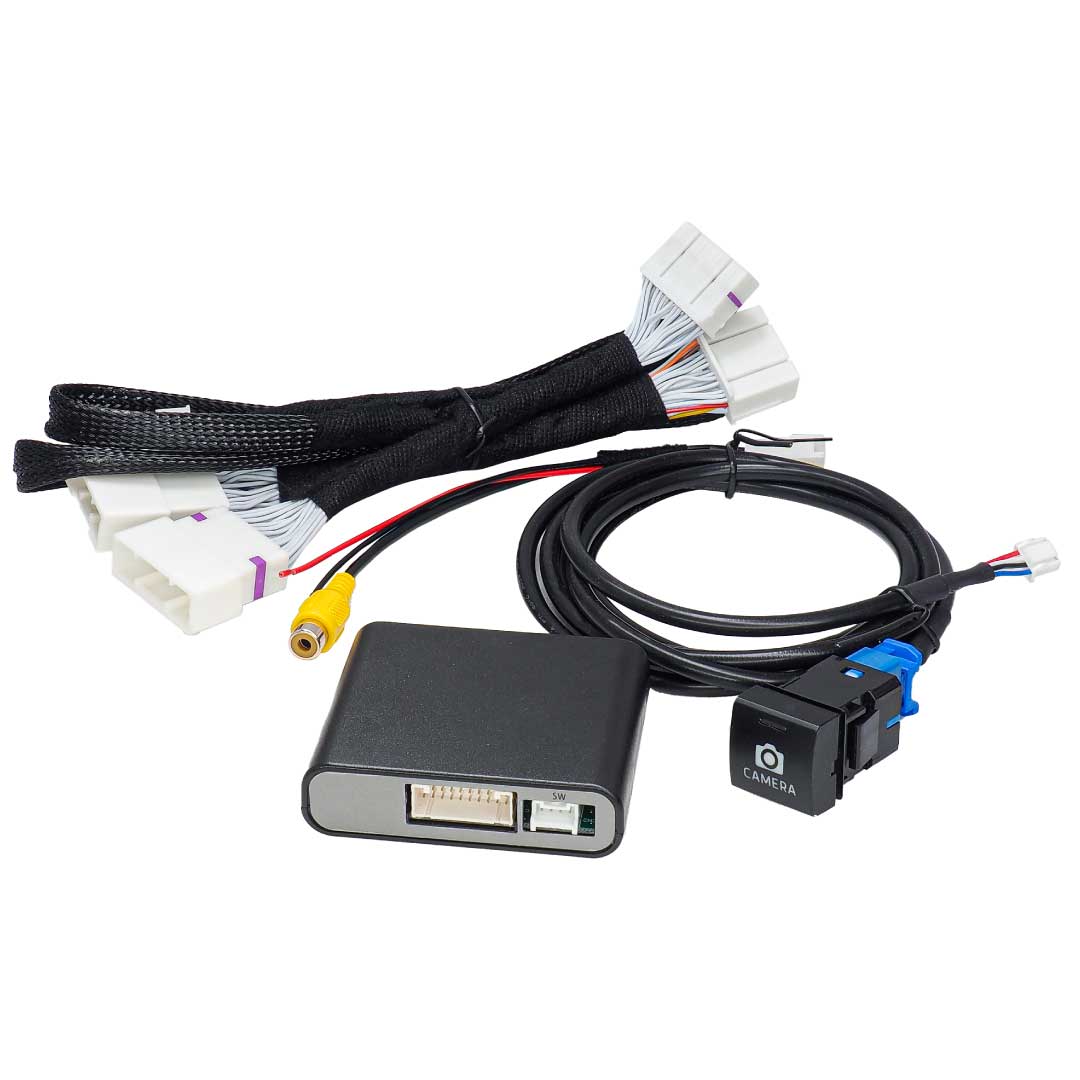

Beat-Sonic CS15 Front Camera Interface for Select 2022+ Toyota Models

Beat-Sonic CS15 Front Camera Interface | Select 2022+ Toyota Models

Add front camera functionality to your factory Toyota screen with the Beat-Sonic CS15 Front Camera Interface — a clean, plug-and-play solution designed to enhance visibility and make tight parking situations easier. This interface allows you to integrate an aftermarket front camera with your OEM display while maintaining full use of your factory backup camera. (Front camera sold separately.)

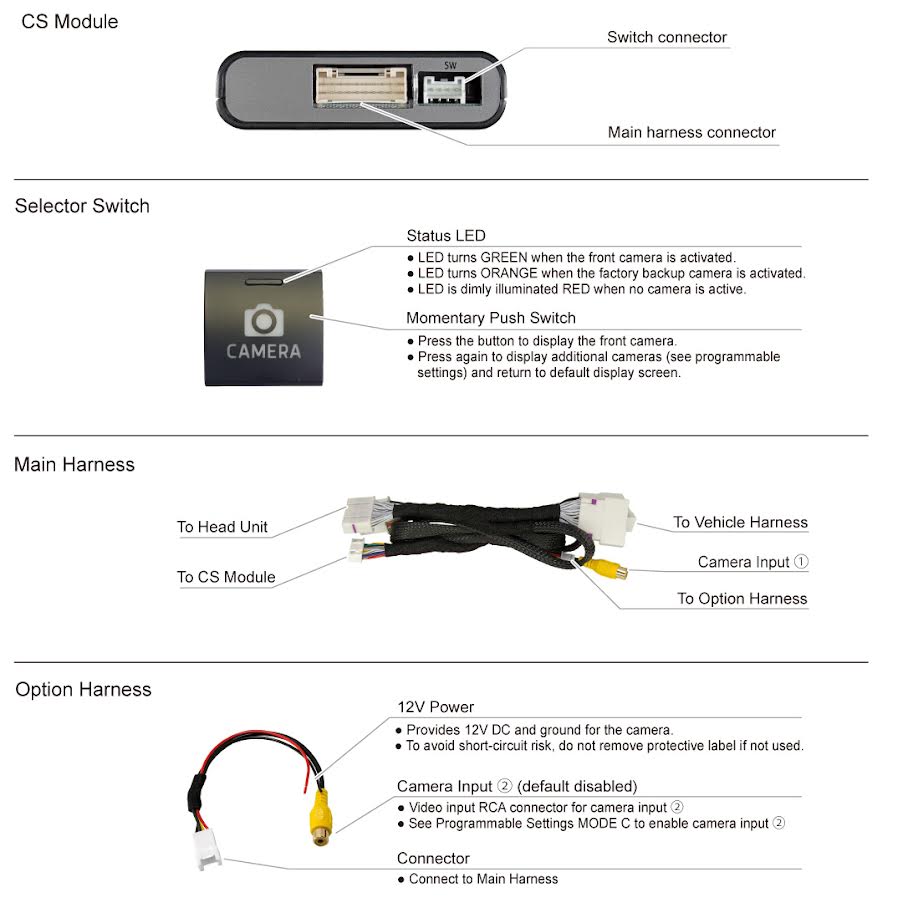

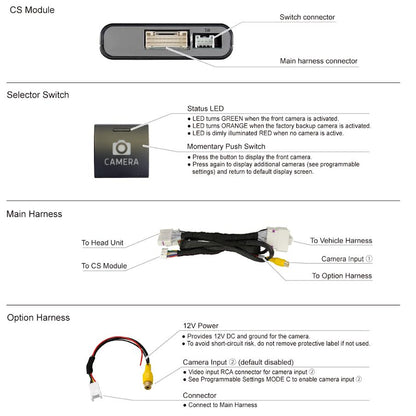

With a simple press of the included OE-style selector switch, you can toggle between front and rear camera views directly on your factory screen. The built-in programmable timer lets you choose how long the front camera displays — 5, 10, 15, or 20 seconds — or set it to push-on/push-off mode. For added convenience, the system can also be programmed to automatically show the front camera at speeds below 9 mph, helping you avoid obstacles when parking or navigating tight trails.

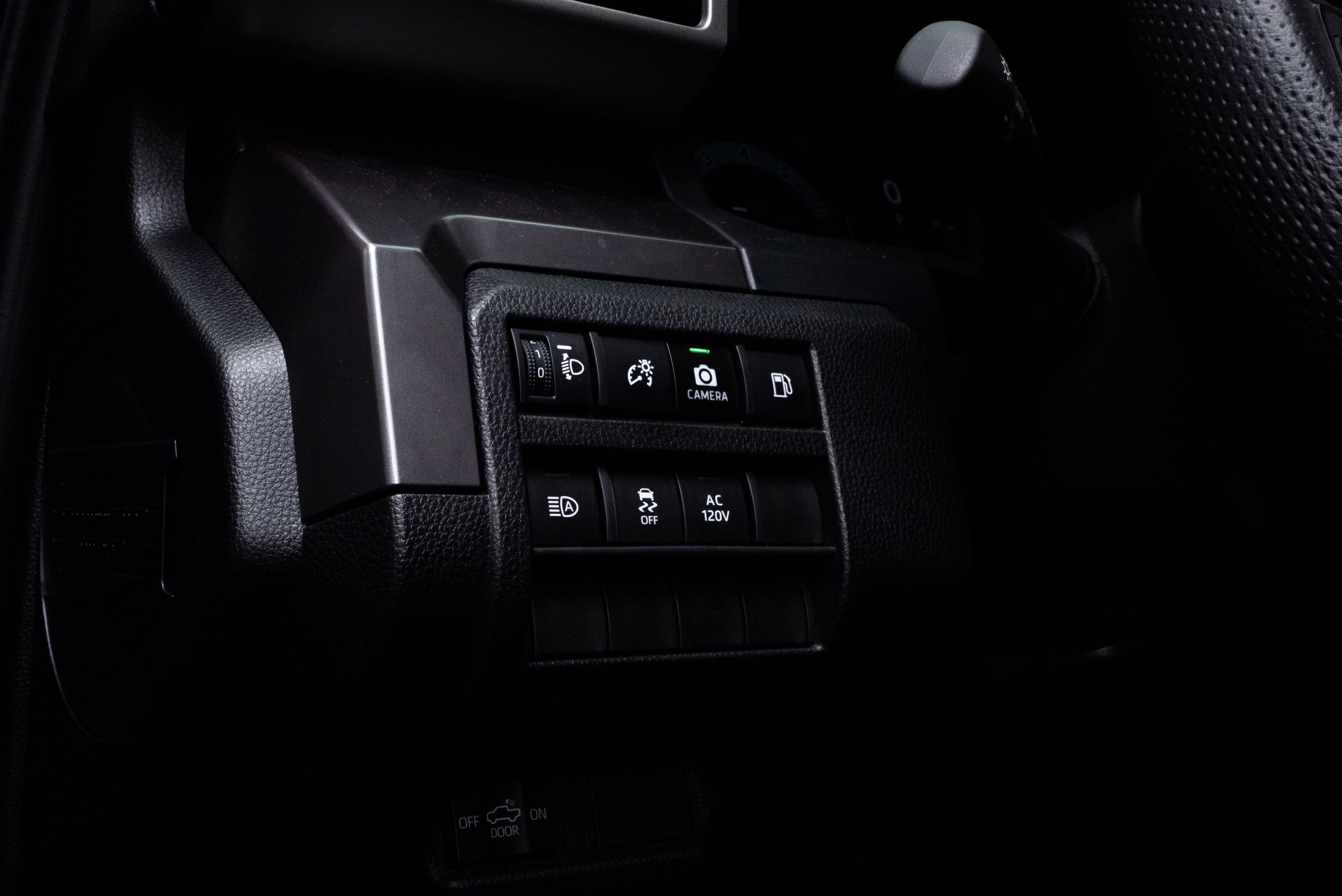

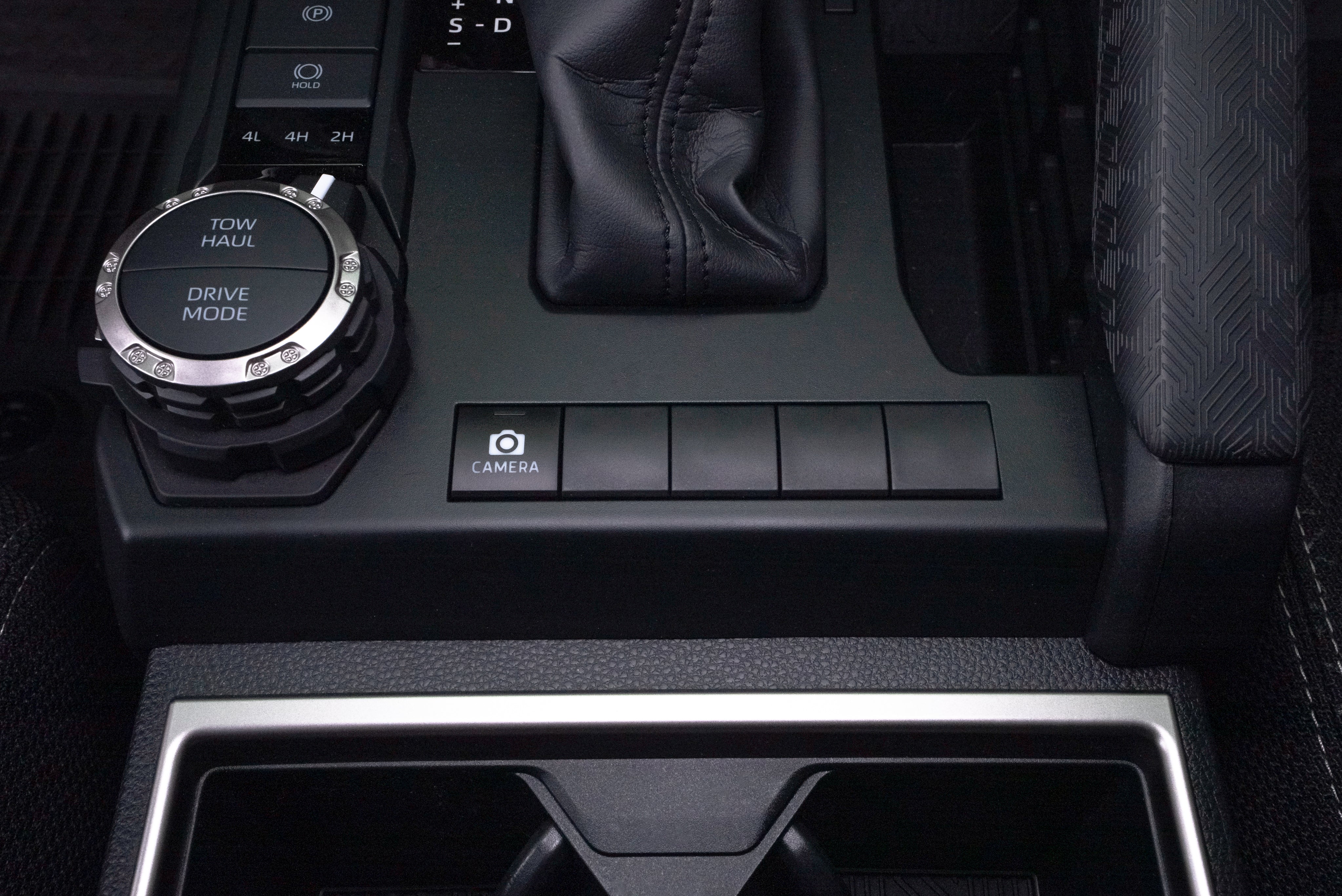

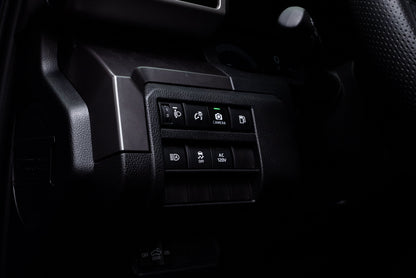

Designed with OEM integration in mind, the included switch features a white LED and fits neatly into an unused factory switch blank for a clean, factory-style appearance. Installation is fully plug-and-play with no cutting or modification to your vehicle’s factory wiring harness.

Key Features:

• Adds front camera functionality to factory Toyota display
• Seamlessly switch between front and rear cameras
• Programmable display timer or manual on/off control
• Automatic front camera display below 9 mph (programmable)
• OE-style selector switch with white LED
• Ideal for lowered vehicles, front spoilers, and tight parking

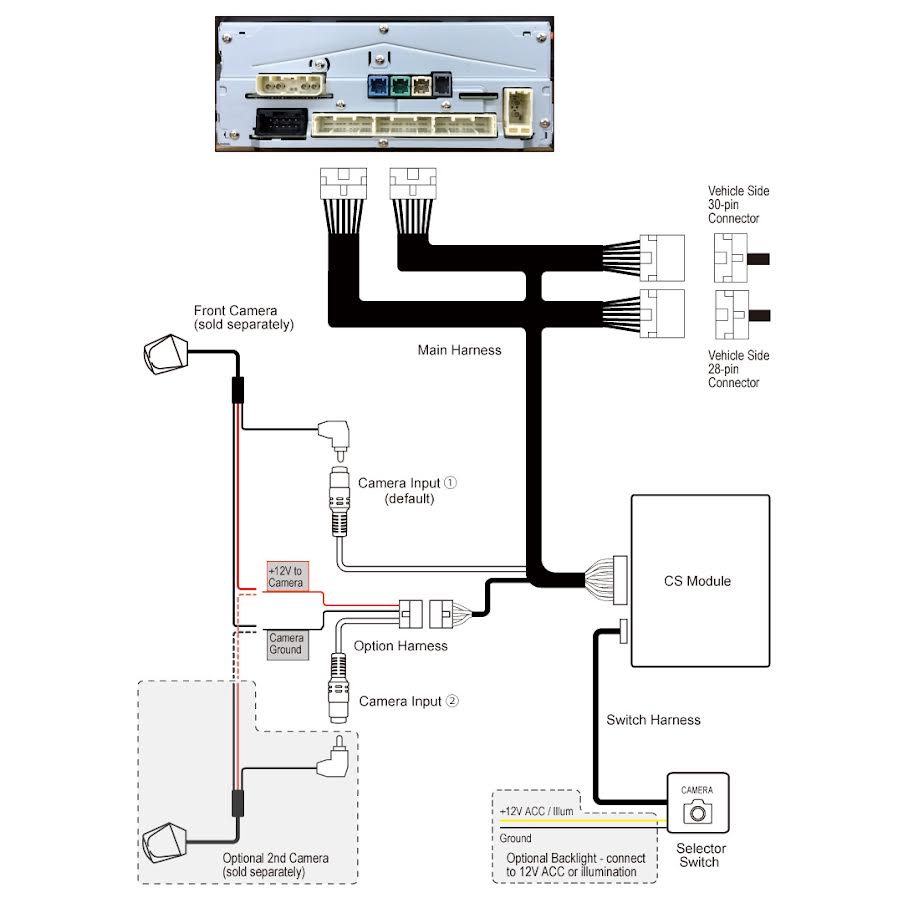

• Plug-and-play installation — no factory wiring modifications
• Front camera sold separately

Recommended Front Camera:

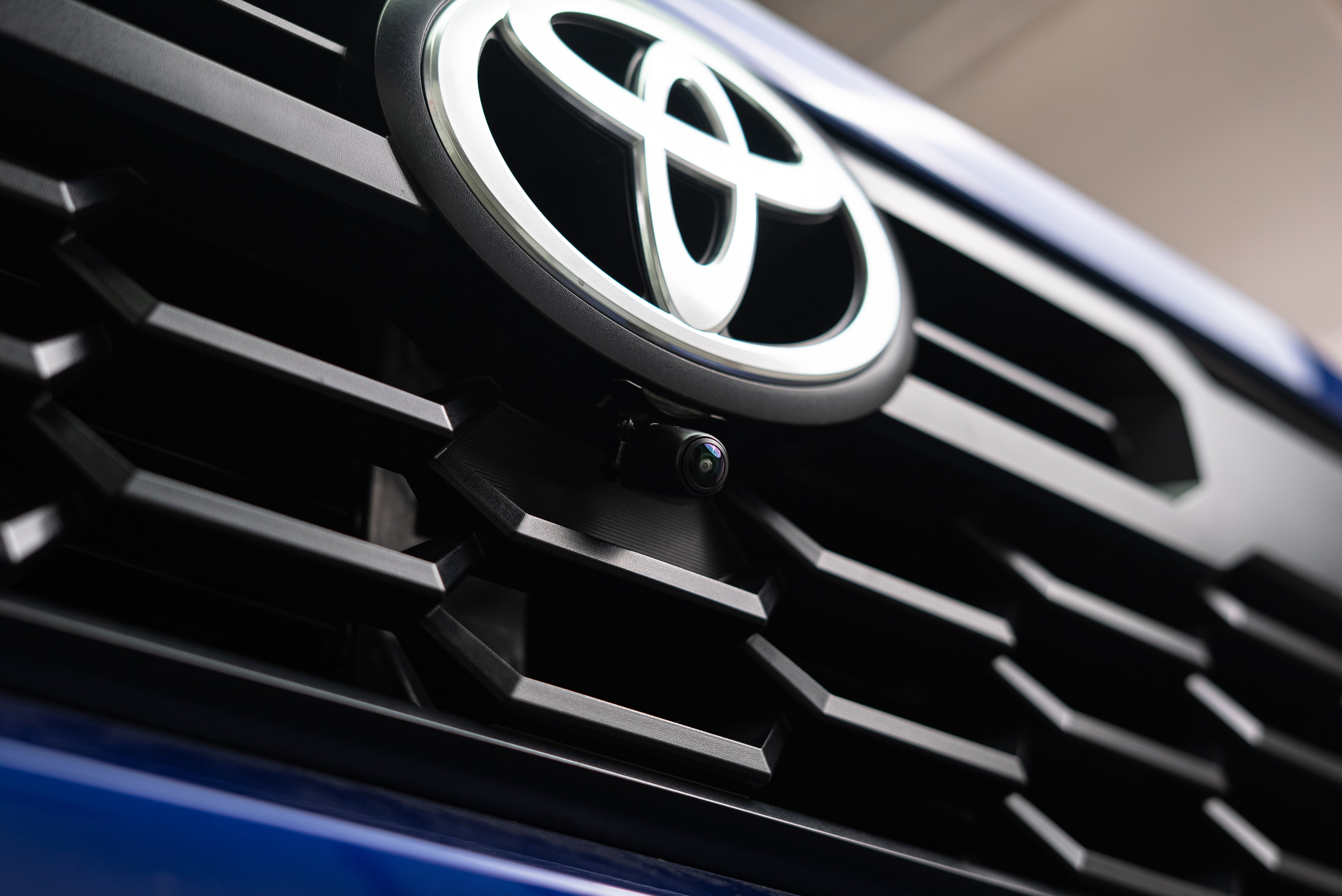

• BCAM11A (Front grille mounting style)

Specifications:

• Voltage: DC11V–15V
• Current Consumption: <100mA (excluding camera)
• Main Unit Dimensions: 70 × 19 × 61mm
• Weight: 38g
• Selector Switch Cable Length: 1.8m

Compatibility:

• 2025–2026 Toyota 4Runner (8" screen only)
• 2025–2026 Toyota Camry (8" or 12.3")
• 2023–2026 Toyota Corolla / GR Corolla (8")
• 2024–2026 Toyota Grand Highlander (12.3")
• 2023–2026 Toyota Highlander (8" or 12.3")
• 2024–2026 Toyota Land Cruiser (8" or 12.3")
• 2023–2026 Toyota Prius (8" or 12.3")
• 2023–2025 Toyota RAV4 (8" or 10.5")
• 2025–2026 Toyota Sienna (8" or 12.3")
• 2023–2026 Toyota Sequoia (8" only)
• 2024–2026 Toyota Tacoma (8" only)
• 2022–2026 Toyota Tundra (8" only)

Important Notes:

• Front camera is not included and must be purchased separately
• Backup camera functionality remains unchanged and always takes priority when reverse gear is engaged

Upgrade your Toyota with added front visibility, improved parking confidence, and a factory-style integration that looks and works like it came from the dealership.
