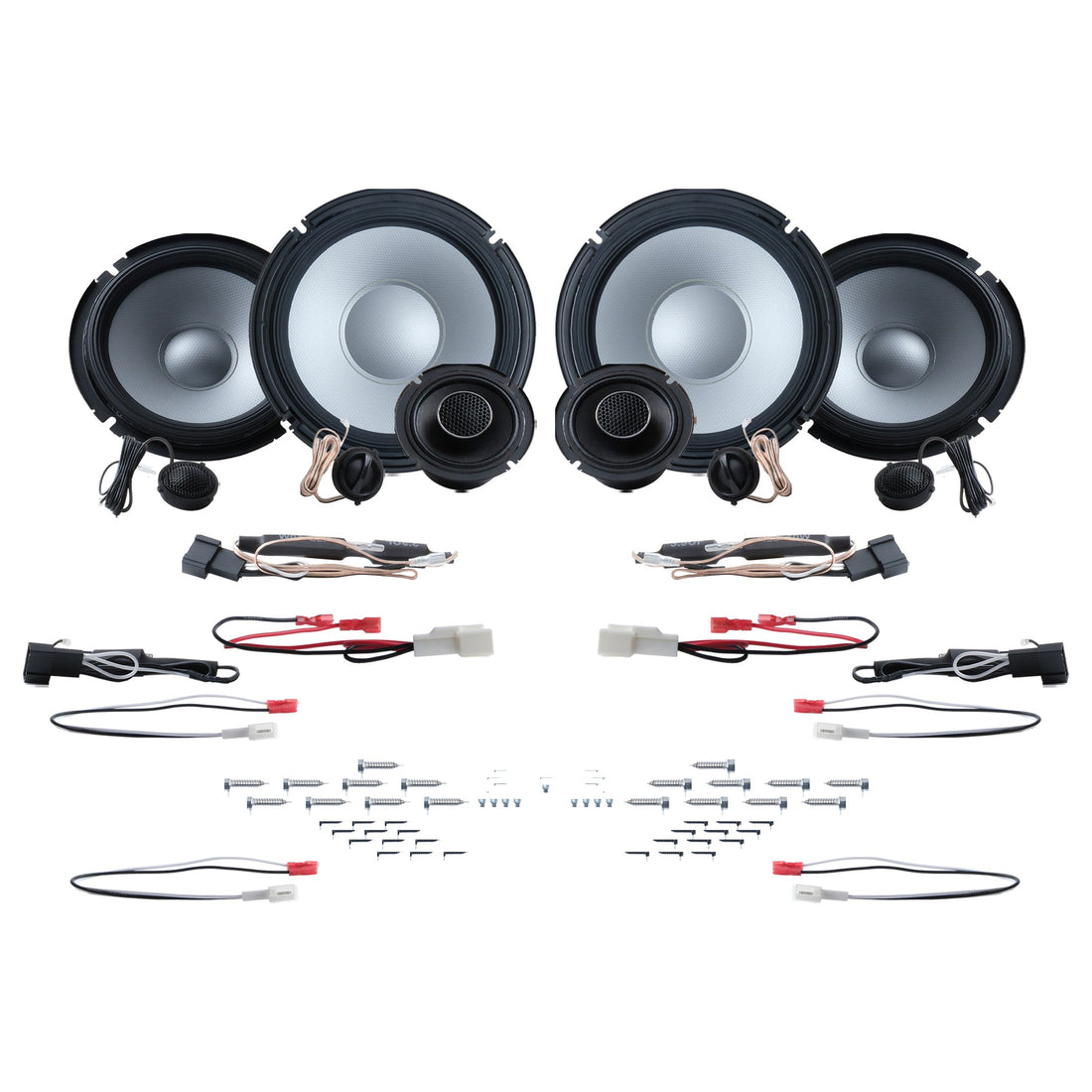

Welcome to the installation guide for your 2007-2013 Tundra Alpine Plug & Play 6, 8 or 10 Speaker bundle from Trail Grid Pro! This step-by-step guide is designed to make the installation process as smooth as possible, whether you're a seasoned DIYer or tackling your first speaker upgrade.

This guide applies to the 6x9" and 8" front door speaker options.

In this guide, you’ll find:

  • 📢 Important Updates: The written guide includes the latest updates and adjustments that may not be shown in the video, ensuring you have the most up-to-date instructions for a flawless installation.
  • 🎥 Installation Videos: Visual instructions to help you through the process, including a detailed microphone install.
  • 🛠️ Tools Needed: A quick list of everything you'll need to get started.
  • 📝Step-by-Step Instructions: Clear, easy-to-follow directions from disassembling your dash to securing the new Sony head unit.
  • ⚠️ Special Notes: Important information and considerations for your installation.
  • 🛠️ Common Troubleshooting Solutions: Quick and effective fixes for common installation and performance issues.

Table of Contents

🎥 Installation Video

Coming Soon!

🛠️Tools Needed:

  • 10mm socket
  • Phillips head screwdriver
  • Panel removal tool
  • Zip ties
  • Cutters

📝Step-by-Step Instructions

Step 1: Remove Dash Speakers

  • Use a panel tool to remove the dash grille.
  • Remove the two factory 10mm bolts securing the speaker.
  • Disconnect the speaker by pressing the tab.

Step 2: Install Alpine 3" Dash Speakers

  • Gather the Alpine 3" speakers, brackets, and supplied #4 nuts/bolts.
  • Attach the bracket to the Alpine speaker.
  • Connect the provided adapter harness to the factory connector.
  • Place the speaker assembly in the dash, aligning the bracket with factory locations. (See photo below).
  • Secure using the two factory 10mm bolts
    • ⚠️ Do not overtighten!
  • Reinstall the speaker grille by pressing it back into place.
  • Repeat for the other dash speaker.

Step 3: Remove Front Door Panels

  • Remove two Phillips screws:
    • One behind the door handle (cover removed with a panel tool)
    • One inside the grab handle.
  • Remove the push clip near the door hinge.
  • Remove the triangular trim near the mirror by pulling straight out.
  • Release the clips along the panel edge starting at the bottom.
  • Lift the panel up and off the window channel.
  • Disconnect the cables and wire harnesses
    • Door lock, Window switch, Door light

Step 4: Remove Tweeters & Front Door Speakers

For 8 & 10 Speaker Bundles Only:

  • Use a small flathead screwdriver to gently release the tabs securing the tweeter in the sail panel.
  • Carefully remove the tweeter from the mount.

For All Bundles:

  • Disconnect the harness from the factory front door speaker.
  • Remove the four screws/bolts securing the speaker.
  • Remove the speaker from the door.

Step 5: Install Tweeters & Front Door Speakers

Tweeters (8 & 10 Speaker Kits Only):

  • Select the tweeters with the Alpine logo on the back.
  • Remove the black grille cover by twisting counterclockwise; discard the cover.
  • Align the speaker wires with the opening in the sail panel tweeter mount.
  • Insert the tweeter straight into the mount and press firmly until the tabs lock securely around the back.
  • Connect the provided adapter harness to the factory connector.

Tip: Since extra cable length is provided, you can rest the sail panel on the dash until the door panel is reinstalled.

Front Door Speakers:

  • Install the speaker adapter ring using the provided bolts.
  • Connect the harness to the speaker—match the 1/8" and 1/4" spade connectors to the correct terminals. They should fit snugly.
  • Route the speaker wire through the spacer, then set the speaker into the spacer.
  • Align the wiring with the channel in the adapter ring to avoid pinching.
  • Secure the speaker to the adapter ring with the supplied Phillips screws.

⚠️ Do not overtighten. Protect the speaker while tightening to avoid damage.

Step 6: Reinstall Front Door Panels

  • Reconnect all cables and harnesses (white cable on top, green on bottom).
  • Hang the panel on the window channel and press clips into place.
  • Reinstall the screws: large in the grab handle, small behind the door handle.
  • Replace trim panels and the push clip.

Step 7: Remove Rear Door Panels

  • Remove two Phillips screws (one behind door handle, one inside grab handle).
  • Release panel clips starting at the bottom.
  • Lift panel up and off the window channel.
  • Disconnect cables and harnesses.

Step 8: Remove Tweeters & Factory Speakers (8 & 10 Speaker Kits Only

For 8 & 10 Speaker Bundles Only:

  • Use a small flathead screwdriver to gently release the tabs securing the tweeter in the rear door panel.
  • Remove the tweeter from the mount.

For All Bundles:

  • Disconnect the harness from the factory 6.5" speaker.
  • Remove the three screws/bolts securing the speaker.
  • Remove the speaker from the door.

Step 9: Install Rear Tweeters & 6.5" Speakers (10 Speaker Kits Only)

Tweeters (10 Speaker Bundles Only):

  • Remove the black and silver grille cover by twisting counterclockwise; discard the cover.
  • Align the tweeter wires with the opening in the rear door panel mount.
  • Insert the tweeter straight into the mount and press until the tabs lock securely around the back.
  • Connect the adapter harness to the factory connector.

Rear Door Speakers:

  • Install the provided 6.5" speaker adapter ring using the supplied bolts.
  • Connect the harness to the speaker—match the 1/8" and 1/4" spade connectors to the correct terminals.
  • Route the speaker wire through the spacer, then position the speaker into the spacer.
  • Align the wiring with the channel in the adapter ring to avoid pinching.
  • Secure the speaker to the adapter ring with the supplied Phillips screws.

Pro Tip: Take your time and protect the speaker while tightening the screws.

Step 10: Reinstall Rear Door Panels

  • Reconnect all harnesses and cables
    • White cable  → top
    • Green cable  → bottom
  • Hang panel on window channel, ensuring it seats properly.
  • Press around the edges to snap all clips back into place.
  • Reinstall the two screws:
    • Large screw → behind the armrest
    • Small screw → behind the door handle

Step 11: Test Functionality

  • Power on your radio.
  • Confirm all speakers are functioning.
  • Enjoy your new Alpine Plug & Play audio upgrade!

Congratulations on installing your new
Alpine Speaker Plug & Play Bundle!
