Welcome to the installation guide for your 2014-2021 Tundra AudX Plug & Play 5-Channel Amp & Subwoofer Kit from Trail Grid Pro! This step-by-step guide is designed to make the installation process as smooth as possible, whether you're a seasoned DIYer or tackling your first head unit upgrade.

In this guide, you’ll find:

  • 📢 Important Updates: The written guide includes the latest updates and adjustments that may not be shown in the video, ensuring you have the most up-to-date instructions for a flawless installation.
  • 🎥 Installation Videos: Visual instructions to help you through the process, including a detailed microphone install.
  • 🛠️ Parts Included and Tools Needed: A quick list of everything you'll need to get started.
  • 📝Step-by-Step Instructions: Clear, easy-to-follow directions from disassembling your dash to securing the new Sony head unit.
  • ⚠️ Special Notes: Important information and considerations for your installation.
  • 🛠️ Common Troubleshooting Solutions: Quick and effective fixes for common installation and performance issues.

Table of Contents

🎥Installation Video

Coming Soon!

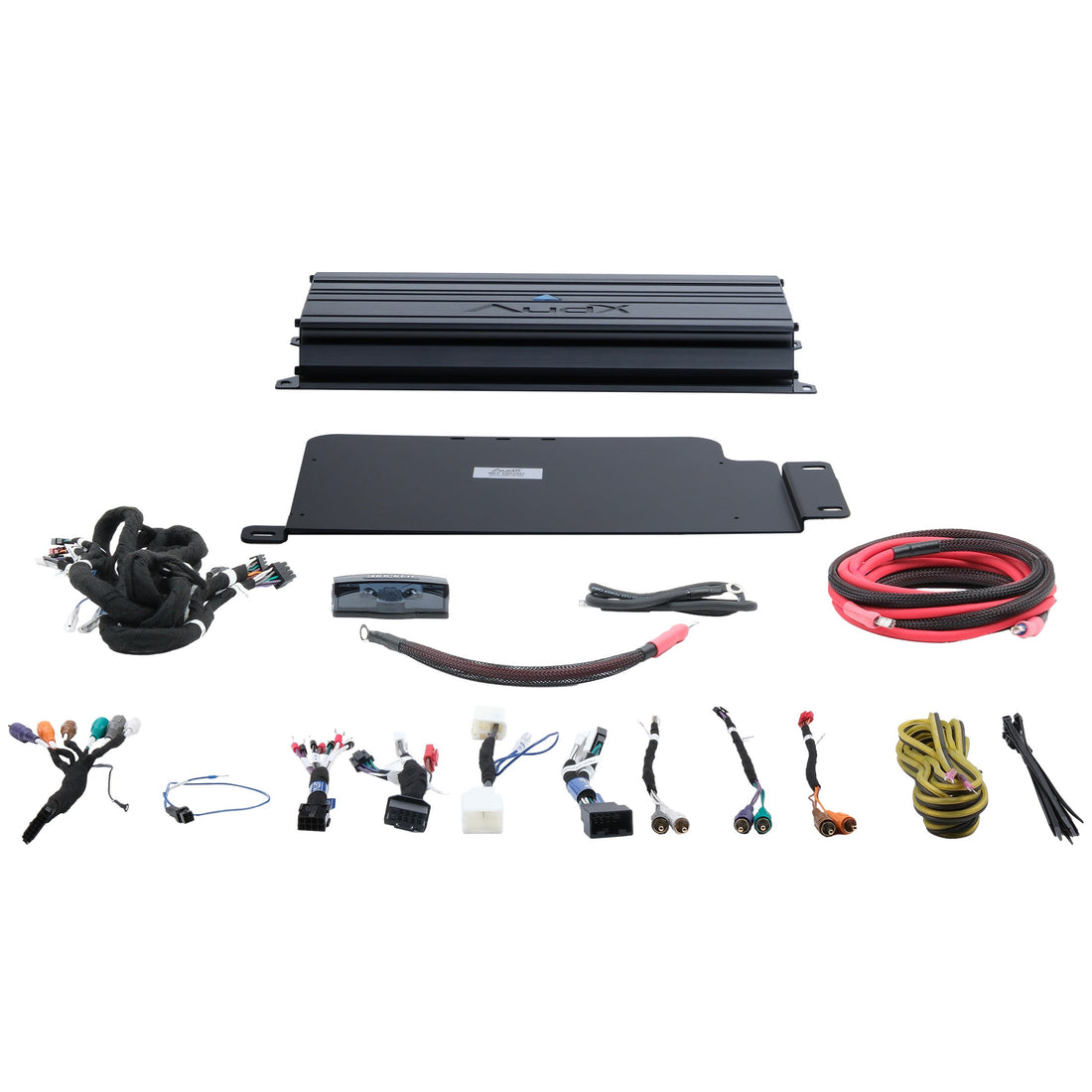

🛠️Parts Included:

  • AudX EZV1K 5-Channel Amplifier
  • AudX Tundra Amplifier Mounting Bracket
  • AudX T-Harness
  • AudX Main harness
  • Amplifier Bypass Harness (Amplified Non-JBL Vehicles Only)
  • RCA adapters
  • Trail Grid Pro Amplifier Install Kit
  • 10 Zip Ties
  • 10mm Ground Bolt

🛠️Tools Needed:

  • Panel removal tool
  • 10 mm socket
  • 12 mm socket
  • 14 mm socket
  • Ratchet wrench
  • Socket extension
  • Phillips head screwdriver
  • Zip ties
  • Razor knife
  • Wire fish

Step 1: Disassemble Your Tundra

  • Dash & Head Unit
    • Remove the lower dash panel containing the USB ports.
    • Use a panel tool between this panel and the HVAC panel, then pull straight back to release the retaining clips.
    • Pull the HVAC panel straight out by hand and disconnect the plug from the back.
    • Remove the four 10mm bolts securing the head unit, then pull straight back to release the clips.
    • Disconnect all wiring connections from the rear of the head unit.
  • Center Console
    • Twist the gear shifter handle counterclockwise to remove it.
    • Open the center console, then lift up the shifter panel to release it.
    • Disconnect any connectors before fully removing the panel.
  • Passenger Seat
    • Remove the two 14mm front seat bolts.
    • Slide the seat forward, remove the plastic trim covering the rear bolts, then remove the rear 14mm bolts.
    • Slide the seat back, lift, and either lean it back for access or disconnect the plugs and remove it completely.

Factory Non-JBL Amplifier (if equipped)

  • Remove the three plastic pins securing the amplifier cover.
  • Remove the cover and disconnect all three plugs from the amp.

Step 2: Connect the Amplifier Bypass Harness (Amplified Non-JBL Vehicles Only)

  • The bypass harness has two plugs:
    • One 10 pin connector.
    • One 12 pin connector.
  • Match the appropriate connectors to the factory plugs and connect.

Step 3: Route the Power Wire

  • Remove the Passenger Front Door Kick Panel Trim:
    • Remove screw on knob securing panel to floor.
    • Pull the panel to the left to remove the retainers.
  • Remove the Passenger Door Sill:
    • Using a panel tool or your fingers gently pry the floor trim up until free.
    • Lift and remove from vehicle.
  • Prepare the Power Wire:
    • Open the hood and secure it in place.
    • Locate the power wire with the inline fuse included in your kit.
    • Connect the short power wire to one side of the inline fuse by securing the wire ferrule using an allen key.
    • Connect one end of the longer power wire to the other side of the inline fuse the same way.
  • Route the Power Wire:
    • Place the ring terminal near the positive battery terminal (do not connect it yet).
    • Route the power wire along the driver’s side fender, across the firewall, and toward the passenger-side firewall grommet.
  • Pass Through the Firewall:
    • Use a utility knife to carefully cut an "X" in the firewall grommet to allow the power wire to pass through.

      ⚠️ Note: Many Toyota firewall grommets have both an exterior and interior membrane—cut through both.
      ⚠️ Be careful not to damage any vehicle wiring while cutting.

    • Use a wire fish tool if necessary to guide the ferrule end of the power wire into the cab.
    • Once the wire is through the firewall, pull the slack into the passenger-side floorboard.
  • Run the Power Wire to the Amplifier:
    • Route the wire down the passenger-side kick panel and through the factory wire channel.
    • Run the wire under the carpet to the power side of the amplifier.
    • Use the provided zip ties to secure any loose wiring in the engine bay.

Step 4: Route the Main Harness

  • Route the Main Harness:
    • Position the main harness under the front passenger seat.
    • Start with the T-harness end and begin routing it toward the head unit.
    • Run the harness under the carpet, directing it toward the gear shifter.
    • Continue routing the harness through the transmission tunnel area, moving toward the front of the vehicle.
    • Guide the T-harness up inside the dash, routing it towards the main radio connections.

Step 5: Connect your Head Unit

For 2014–2019 Models

Factory Head Unit:

  • Disconnect the 10-pin and 6-pin and from the back of the head unit.
  • Plug the male end of the AudX T-Harness into the 10-pin and 6-pin ports on the head unit.
  • Attach the vehicle’s 10-pin and 6-pin connectors to the female end of the AudX T-Harness.
  • ⚠️ (Optional) If grounding the harness, secure the black wire with the small ring terminal to a clean metal-to-metal ground location.

Aftermarket Head Unit:

  • Disconnect the 10-pin and 6-pin connectors from the back of the head unit.
  • Connect the male end of the AudX T-Harness to the 10-pin and 6-pin ports on the head unit.
  • Attach the vehicle’s 10-pin and 6-pin connectors to the female end of the AudX T-Harness.
  • Connect RCA cables to the RCA outputs on the aftermarket radio.

For 2020–2021 Models

Factory Head Unit:

  • Disconnect the 10-pin and AM/FM antenna connector from the back of the head unit.
  • Connect the male end of the AudX T-Harness to the 10-pin and AM/FM antenna port on the head unit.
  • Attach the vehicle’s 10-pin and AM/FM antenna connector to the female end of the AudX T-Harness.

Aftermarket Head Unit:

  • Disconnect the 10-pin and AM/FM antenna connector from the back of the head unit.
  • Connect the male end of the AudX T-Harness to the 10-pin and AM/FM antenna location on the head unit.
  • Attach the vehicle’s 10-pin and AM/FM antenna connector to the female end of the AudX T-Harness.
  • Connect RCA cables to the RCA outputs on the aftermarket radio:
    • Front Speakers:
      White → White
      Grey → Red
    • Rear Speakers:
      Green → White
      Purple → Red
    • Subwoofer:
      Orange → White
      Brown → Red

⚠️ (Optional) For either factory or aftermarket head unit installations, if grounding the harness, secure the black wire with the small ring terminal to a clean metal-to-metal ground location.

Step 6: Reinstall Your Head Unit

  • Reconnect and Reposition:
    • Ensure that all previously disconnected wiring connections are securely reattached.
    • Carefully position the head unit back into the dash.
    • Fasten the head unit using the four factory 10 mm bolts.

⚠️ Important: Do not fully reassemble the dash at this point—functionality should be tested before completing the installation.

Step 7: Connect the Ground Wire

  • Secure the Ground Connection:
    • Use the provided ground wire to connect the ring terminal to the factory ground point located under the passenger seat.
    • If a factory ground bolt is not present, use the included bolt to secure the ring terminal to the pre-threaded hole under the seat.

Step 8: Connect the Bass Control Knob

  • Mount and Connect the Bass Knob:
    • Attach the bass control knob in your preferred location using the included Velcro, or install it into one of our Switch Blank Mounts.
    • Route the control knob wire from the main harness and plug the 3.5mm headphone jack into the bass control knob.
    • Use zip ties to secure any excess or loose wiring.

Step 9: Secure the Amplifier to the Bracket

  • Install the Amplifier:
    • Place the amplifier mounting bracket with the AudX label facing up.
    • Align the amplifier with the pre-drilled holes on the mounting bracket, orienting it so the ports face the driver side of the vehicle.
    • Insert one bolt up through the bottom of the amplifier mounting bracket, then through the amplifier’s mounting hole.
    • Place a flat washer, followed by a split washer, and secure it with a nut.
    • Use a 9/32" wrench and a Phillips head screwdriver to tighten the hardware.
      ⚠️ Do not overtighten.
    • Mount the amplifier bracket to the floor pan using the factory hardware by securing the 10mm bolts back to the factory locations.

Step 10: Connect the Amplifier

  • Connect main harness to amplifier:
    • Connect 14 pin connector into "Input" port
    • Connect 4 pin connector into "REM" port
    • Connect 8 pin connector into "Output" port
    • Connect subwoofer wires into "Woofer"
      • Red → +
      • Black → -
      • Secure using the provided allen wrench
    • Connect red power wire into "DC12V"
      • Secure wire ferrule using the provided allen wrench
    • Connect the black ground wire into " GND"
      • Secure wire ferrule using the provided allen wrench

Step 11: Route the Subwoofer Wire

  • Route the wire to behind the rear seat:
    • Remove the rear door sill by pulling straight up.
    • Route the subwoofer wire through the factory wiring channel toward the rear seat.
    • Press the subwoofer wire under the interior plastic panels and continue routing it to the rear seat.
  • Connect to the Subwoofer:
    • Connect the yellow wire to the positive (+) terminal.
    • Connect the black wire to the negative (–) terminal.

    Step 12: Connect Power to the Battery

    • Connect the Power Wire:
      • Locate the short length of power wire with the pre-connected ring terminal.
      • Connect the ring terminal securely to the positive battery terminal.

    Step 13: Test & Tune the System

    • Power on your vehicle and test the audio system.
    • Confirm that both the radio and amplifier are functioning properly.
    • Adjust and tune the amplifier settings to achieve optimal sound quality.

    🛠️Troubleshooting Tip:
    If the head unit powers on but you hear no sound, double-check that the remote turn-on wire is properly connected.

    Step 14: Reassembly

    • Reinstall the Passenger Seat:
      • After confirming the system is functioning properly and the amplifier gains are set, begin reassembly.
      • Position the passenger seat back into place, making sure the rear seat mounts are aligned.
      • Start all four 14mm seat bolts by hand, then tighten them securely with a 14mm socket.
    • Complete Vehicle Reassembly:
      • Reinstall all remaining components, including the passenger seat trim, center console, and dash panels.

    Congratulations on installing your new AudX 5 Channel Amplifier Plug & Play Kit!
