2003-2009 4Runner Gear Plate Installation Guide

2003-2009 4Runner Gear Plate Installation Guide

Welcome to the installation guide for your 2003–2009 Toyota 4Runner Gear Plate from Trail Grid Pro! This step-by-step guide is designed to make the installation process as smooth as possible, whether you're a seasoned DIYer or tackling your first upgrade.

In this guide, you’ll find:

  • 📢 Important Updates: The written guide includes the latest updates and adjustments that may not be shown in the video, ensuring you have the most up-to-date instructions for a flawless installation.
  • 🎥 Installation Videos: Visual instructions to help you through the process, including a detailed microphone install.
  • 🛠️ Tools Needed: A quick list of everything you'll need to get started.
  • 📝Step-by-Step Instructions: Clear, easy-to-follow directions from disassembling your dash to securing the new Kenwood head unit.
  • ⚠️ Special Notes: Important information and considerations for your installation.

Table of Contents

🎥 Installation Video

Coming soon!

🛠️ Tools Needed

  • 10 mm socket
  • Ratchet wrench (Manual or powered)
  • Panel removal tool (Plastic preferred)

📝Step-by-Step Instructions

Step 1: Disassembling The Cargo Area

  • Remove the carpet cargo mat.
  • Use a pry tool to remove the plastic covers over the rear D-rings.
  • Remove the 10 mm bolts securing the rear D-rings.
  • Remove the plastic trays by pulling up and out.
  • Remove the 10 mm bolts securing the front D-rings.
  • Remove the floor trim by pulling up.
  • Unlock and remove the shelf assembly.
  • If you would like to reuse the D-rings during the installation of your gear plate:
    • Remove the keeper washer from the 10 mm bolt.
    • Remove the D-ring from the plastic housing by prying out with panel tool
    • Set the D-rings to the side for installation.
      • The factory 10 mm bolts ad plastic housing will not be re-used.

Step 2: Installing The Gear Plate

  • Take this time to clean the cargo area and carpet before installation of the gear plate.
  • Insert the gear plate with the 4 recessed mounting locations facing up.
  • Line up the mounting holes in the hear plate with the factory D-ring mounting points.
  • Mount the gear plate:
    • Option 1 (No D-rings):
      • Place the provided spacers under the gear plate on the rear 2 mounting locations.
      • Place the provided 10 mm bolts trough the washers, through the gear plate and through the spacer to secure the gear plate to the points where the D-rings were mounted.
    • Option 2 (D-rings):
      • Place the provided spacers under the gear plate on the rear 2 mounting locations.
      • Place the provided 10 mm bolts trough the D-ring, through the gear plate and through the spacer to secure the gear plate to the points where the D-rings were mounted.
    • We recommend using either blue or red lock-tite.

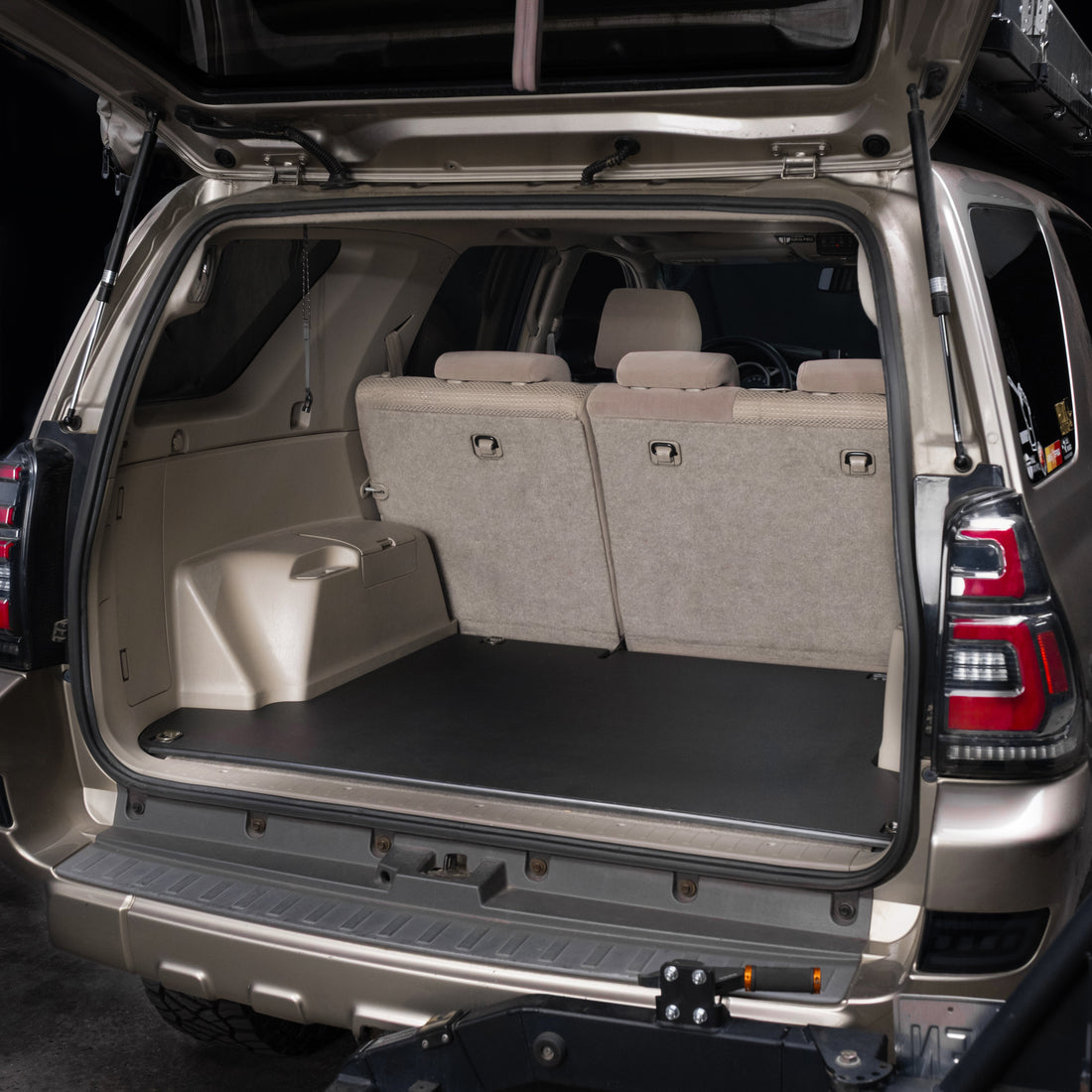

    Congratulations on installing your new 4Runner Gear Plate!
