- Details

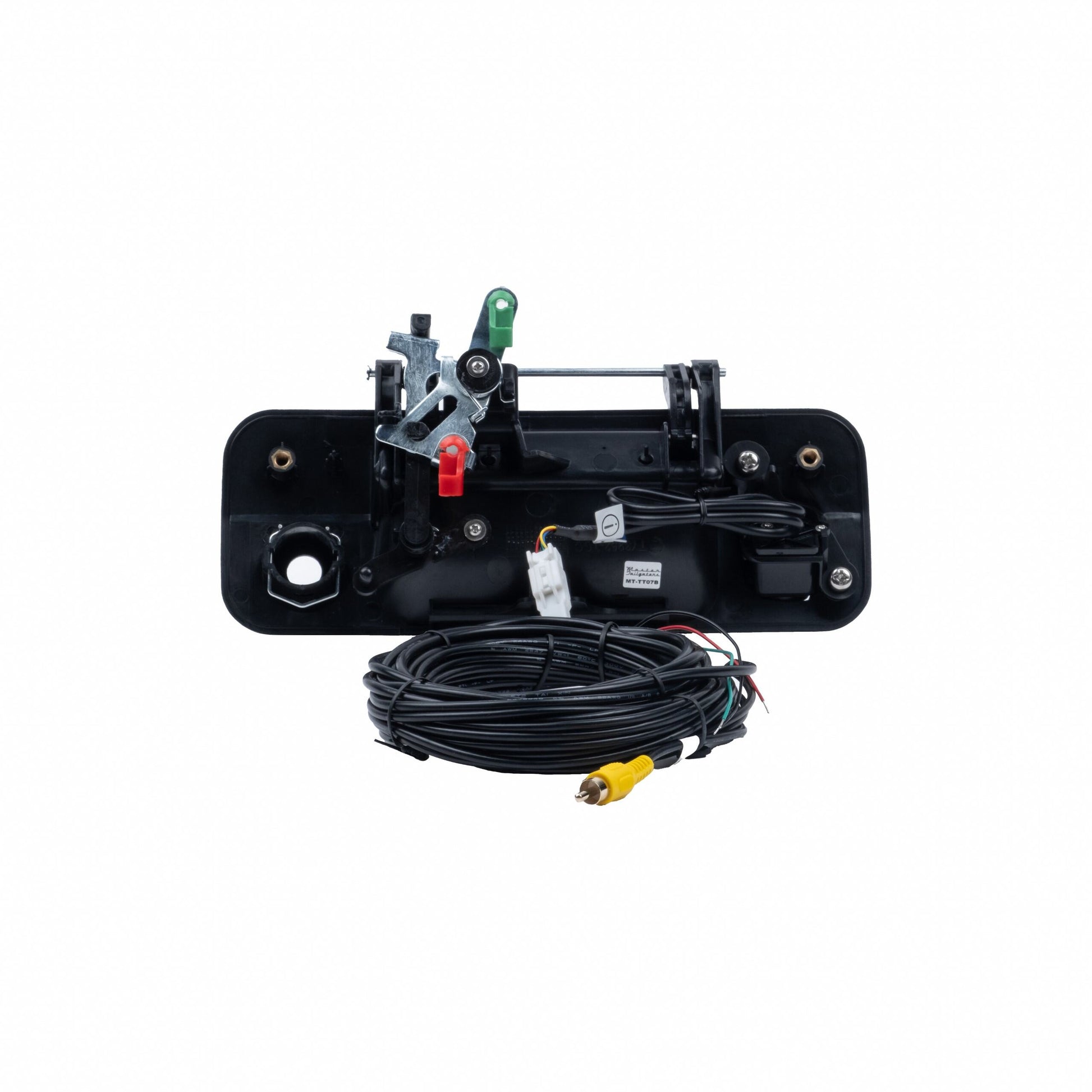

Connection Information:
This camera can be connected to any 12V power source. If you'd like the camera to stay on continuously, you can connect it to a constant 12V source. Alternatively, to have it activate only when reversing, you can connect it to the reverse tail lights.

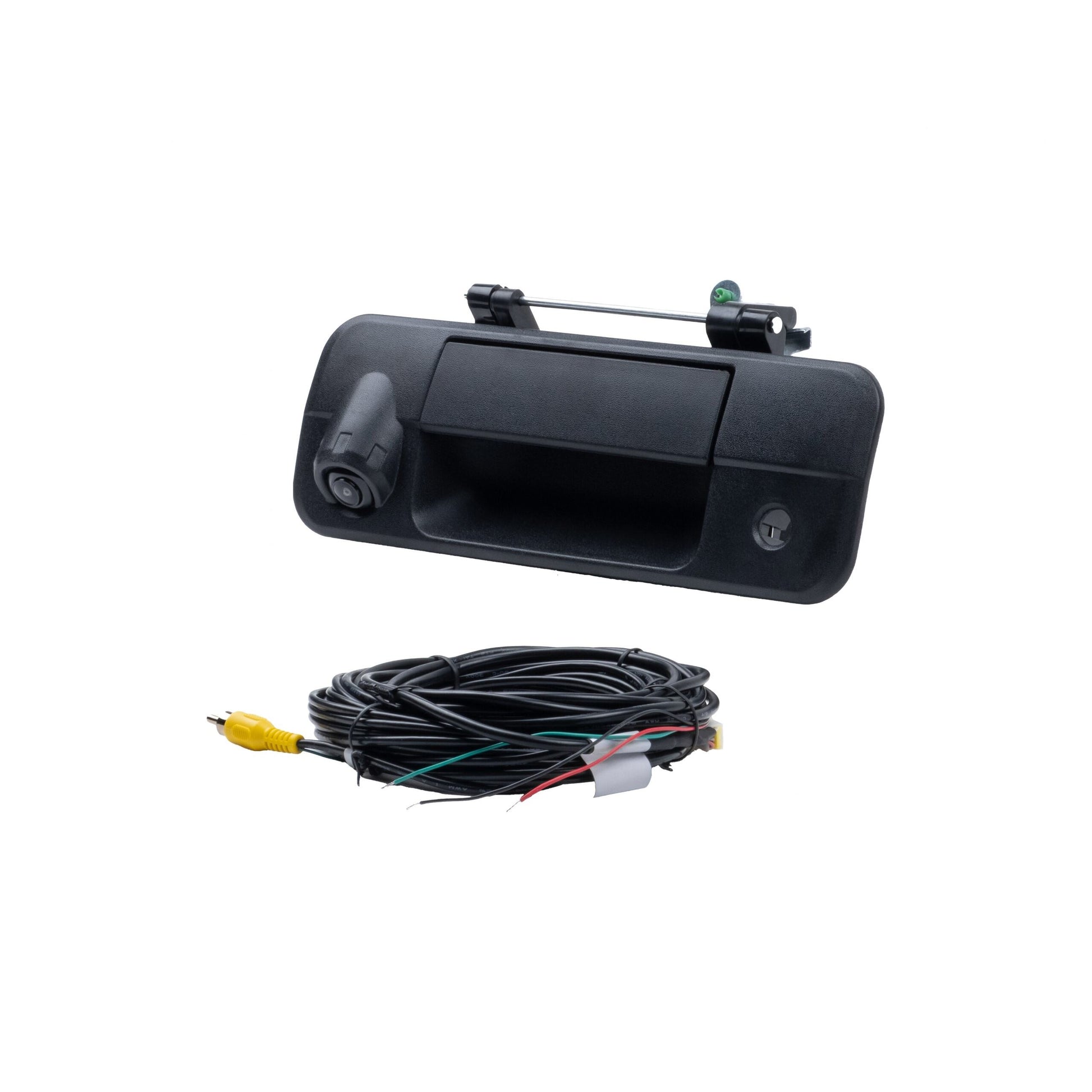

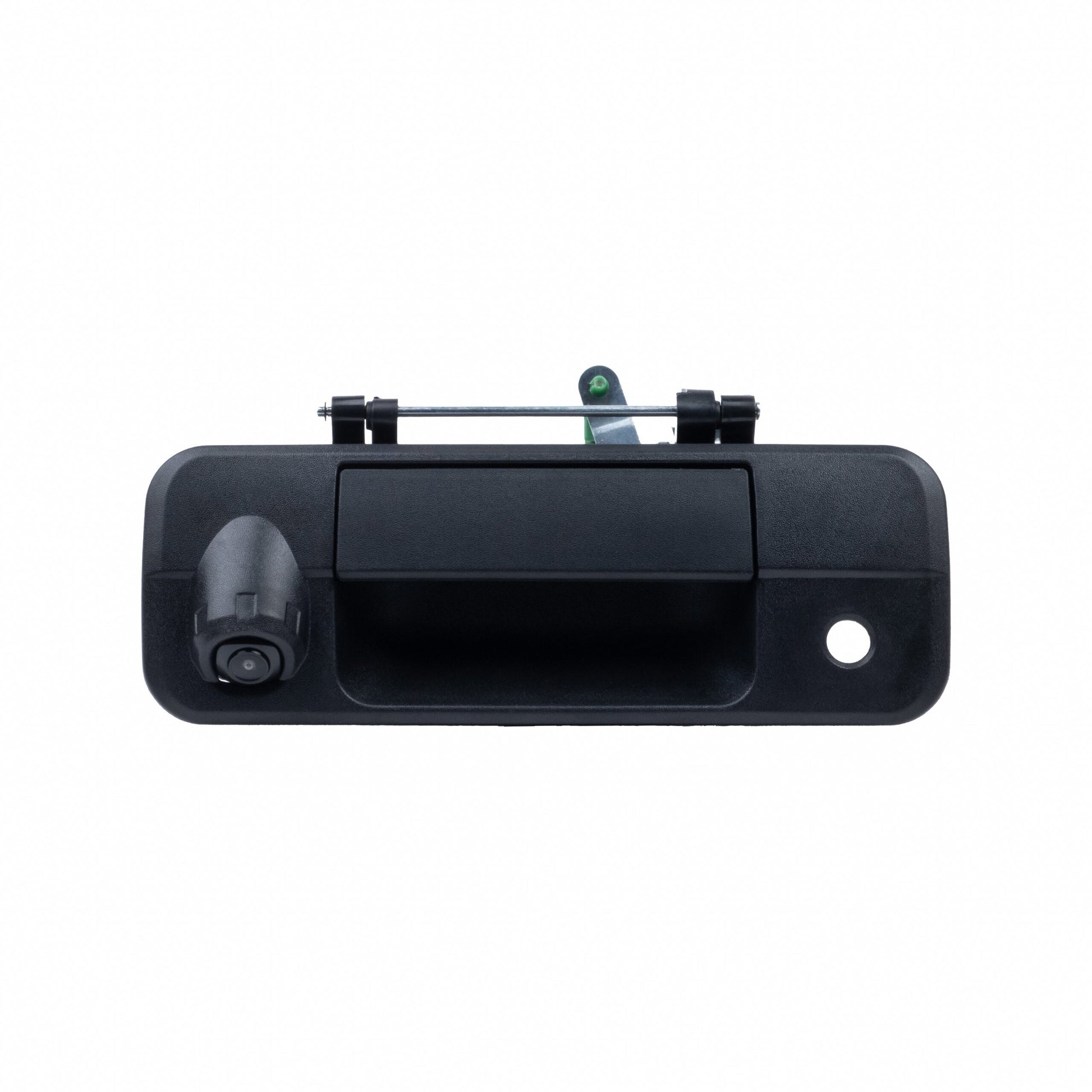

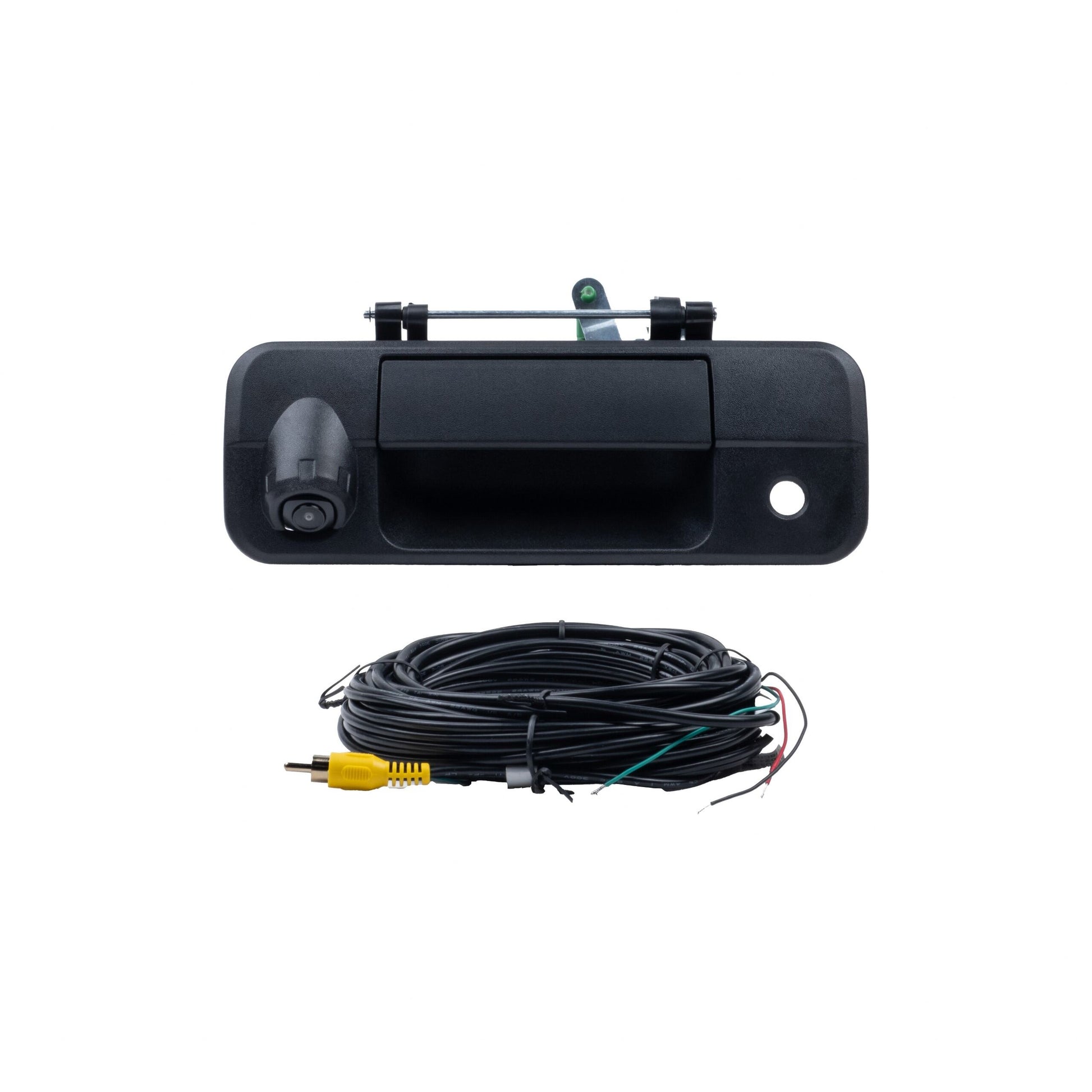

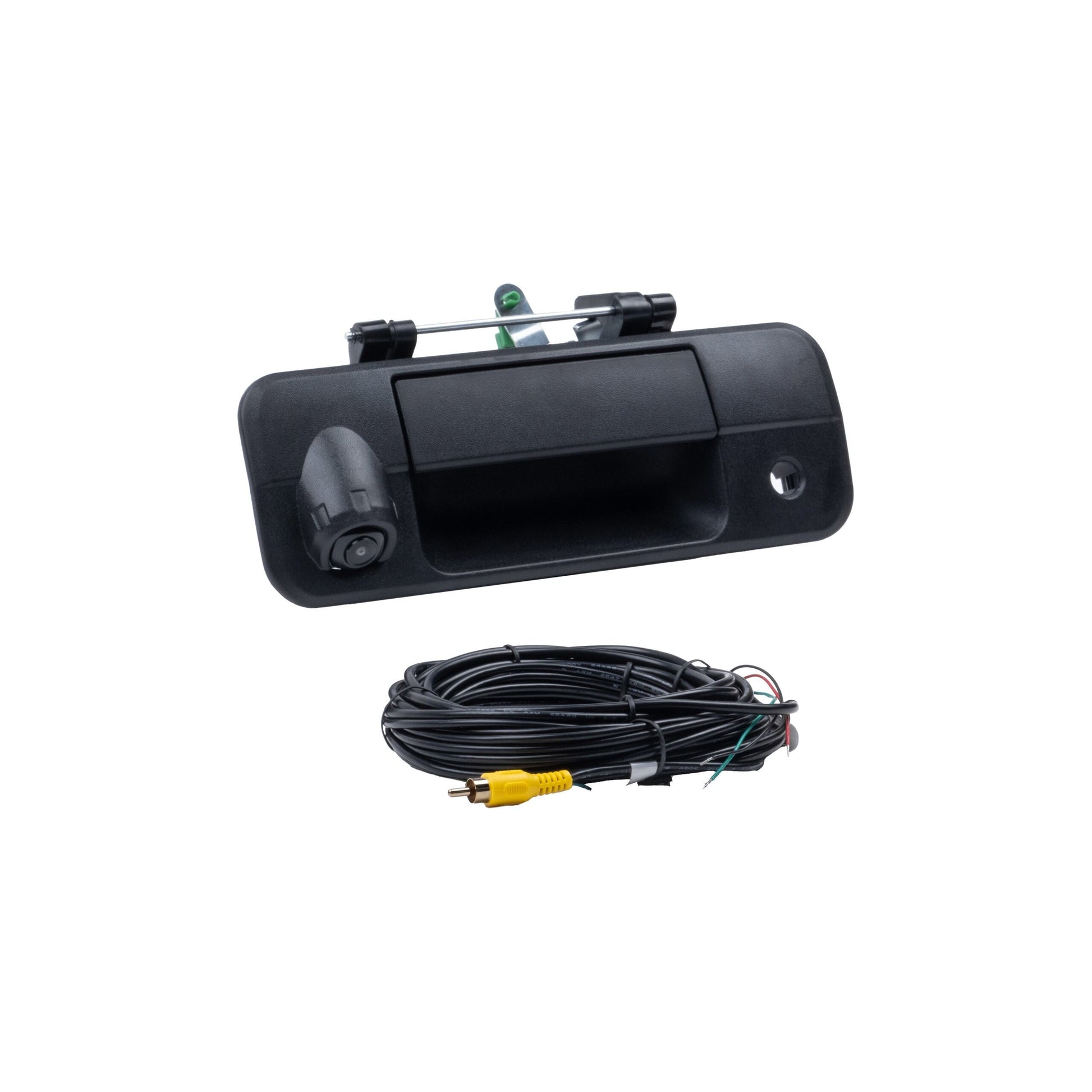

Please note, this is an aftermarket tailgate and camera, not OEM. If you're installing it with a factory radio, you may need an additional connector, which is not included.
Installation:

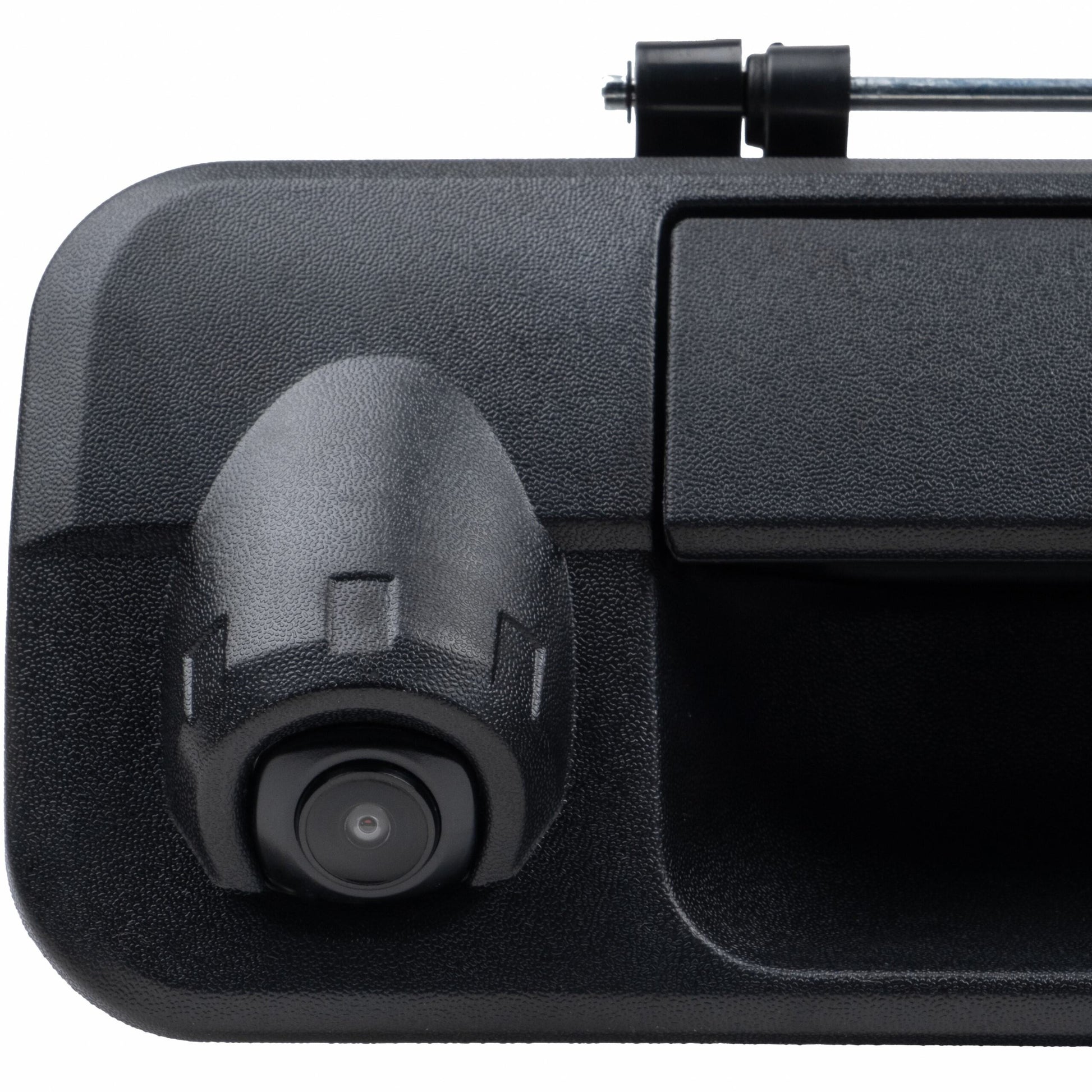

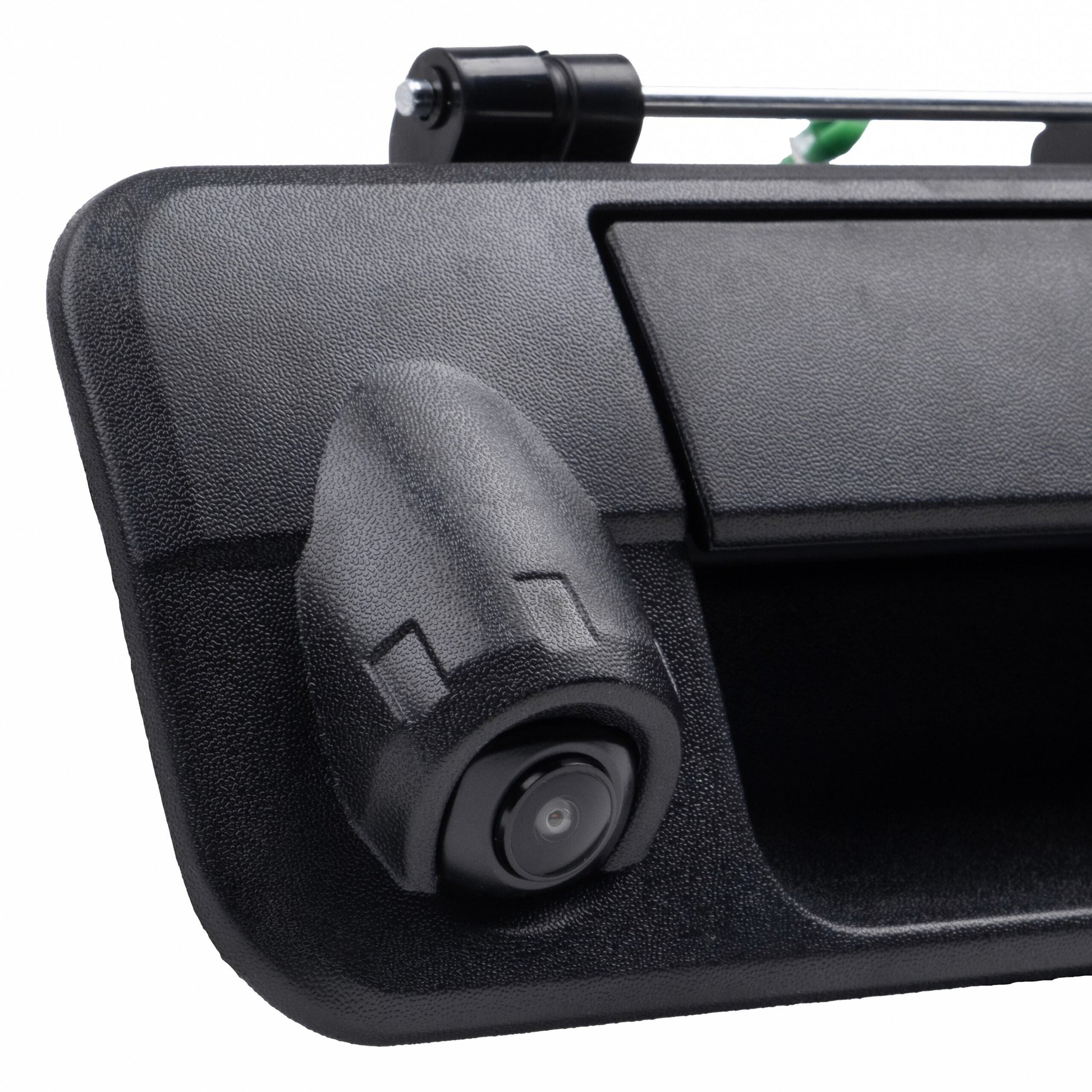

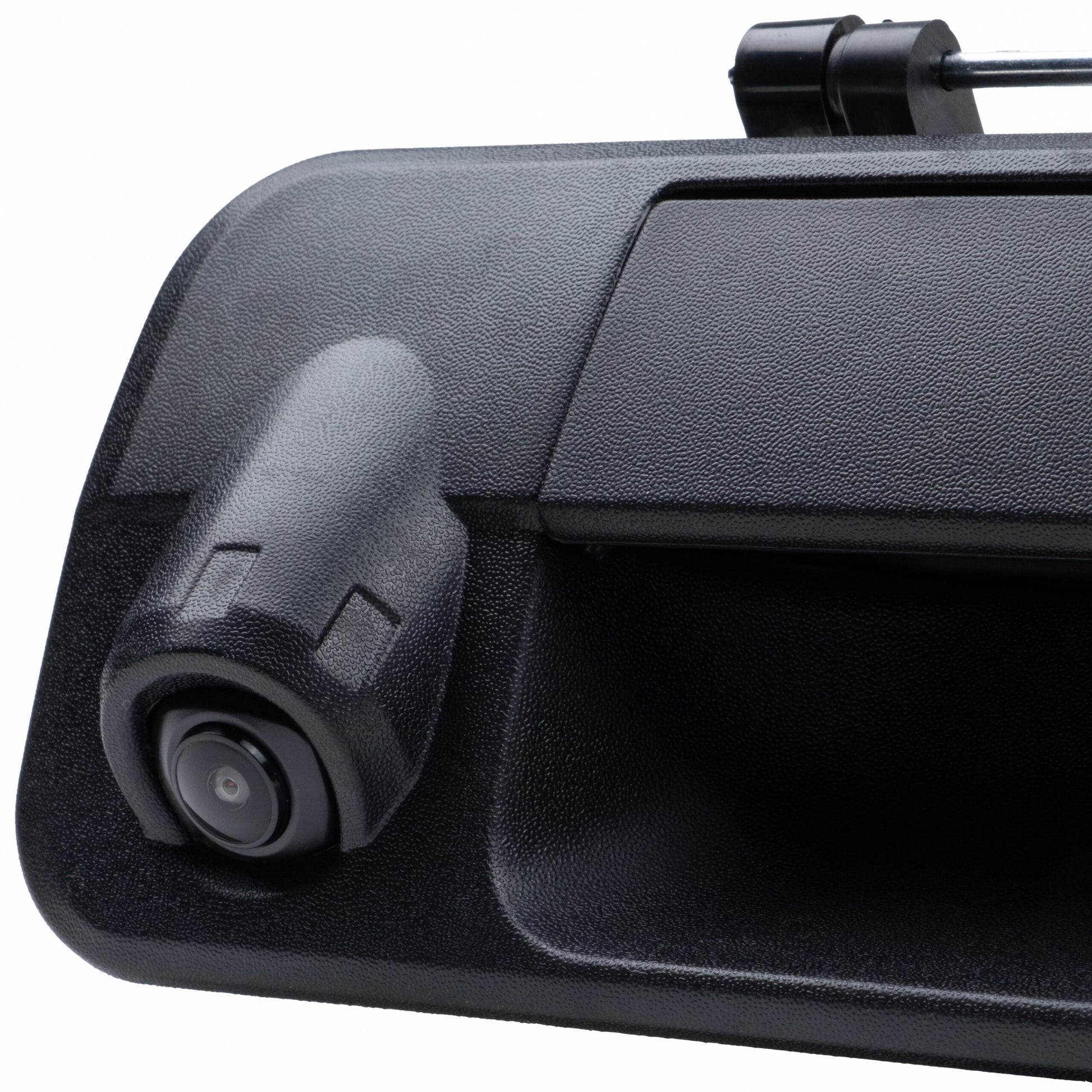

Camera Specs:
- Sensor: ¼” On-Semi (USA) CMOS Active Pixel Array, Lens: Nidec (Japan) (Glass + Plastic)
- Minimum Illumination : .1 Lux light sensitivity
- Signal System: NTSC/PAL
- Effective Pixels: 728 x 582
- Electronic Shutter: 1/50 to 1/100,000 seconds
- Resolution: 600 TV lines
- Angle: 170 Degrees
- Waterproof Rating: IP68
- Power: DC 12V
- Video Cable: 26 Feet (8 Meters)
Attention:
- Before purchasing check the back of your Monitor/Screen that you have a Yellow RCA input for easy installation.
- Installation is still possible without the Yellow RCA, however it is much more difficult and will require a professional to splice in the Video In signal.
