Kicker JBL Bypass Plug & Play 5-Channel Amplifier Kit | '14 - '21 Tundra

Kicker JBL Bypass Plug & Play 5-Channel Amplifier Kit | '14 - '21 Tundra

Kicker
$598.00
$898.00 $598.00
Sale Sold out
Shipping calculated at checkout.

Our high-performance Kicker Plug & Play 5-Channel Amplifier Kit is made to fit your Toyota Tundra. Kicker's CXA660.5 5-Channel Amplifier lets you play at concert-like volume like never before, yet maintains the smoothness and subtlety to please even the most selective ear - all in a TGP Plug & Play package

FITS: 2014-2021 Factory JBL Amplified Toyota Tundras

  • Plug & Play w/ TGP Alpine & Sony head unit bundles, or any aftermarket radio setup with RCA speaker/sub outs
  • Kit utilizes your existing speaker wiring for an easy amplified experience!
  • Free Lower 48 Shipping
  • 60-Day Returns
  • 2-Year Warranty
  • Lead Time: 3-6 Business Days or Less

Please answer the questions below so we can accurately build your Kicker bundle.
View full details

Fast US Standard Shipping &
Easy International Shipping

60-Day Returns

TG Pro
Satisfaction Promise

Trail Grid Pro Tested

  • Details
  • Specs
  • Kicker Product Highlights
  • Kicker Amp Specs
  • Manuals

Ready for your Tundra

2014-2021 Tundra Installation Guide

Well, you've been asking and we got it done ... a truly Plug & Play JBL Amplifier Bypass Kicker 5-Channel Amplifier kit for your 2014 - 2021 Toyota Tundra. Our R&D team has been cranking all cylinders to deliver an easy to install, truly plug and play solution so Tundra folks can add power to their system at a fraction of the cost you'd pay a professional to get this done for you.

This kit is plug & play with Trail Grid Pro Alpine & Sony head unit bundles or any aftermarket radio with RCA speaker and/or sub outs. Not for use with Tundra factory head unit. This kit is only compatible with the factory JBL amplified system.

JBL Amplified or Non-JBL Amplified?

If your door speakers have a JBL logo on them, then you have a JBL amplified system.

If your door speakers do not have a JBL logo, then you do not have a JBL amplified system.

If your door speakers do not have a JBL logo but you do have an amplifier under the front passenger seat, then you have the amplified non-JBL system.

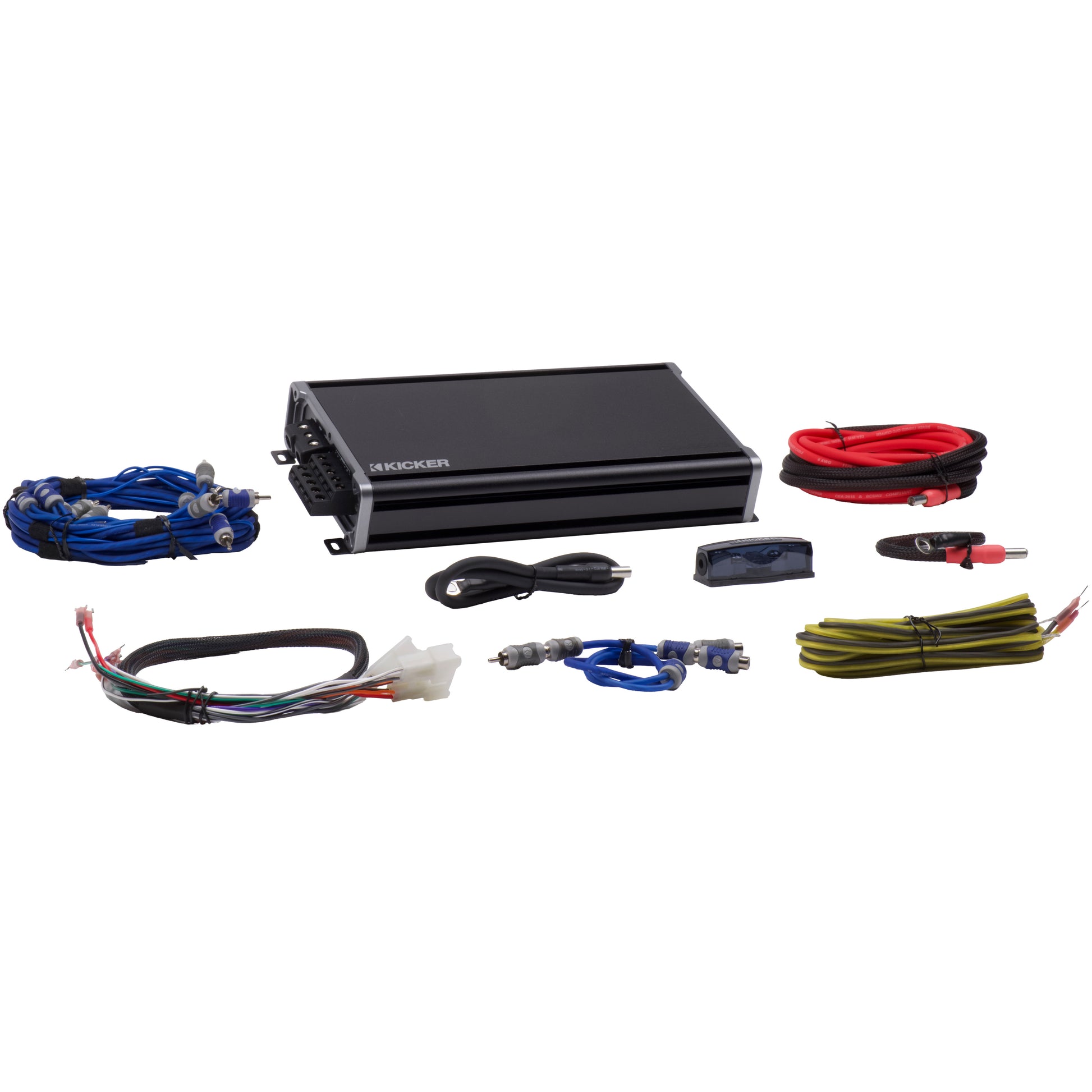

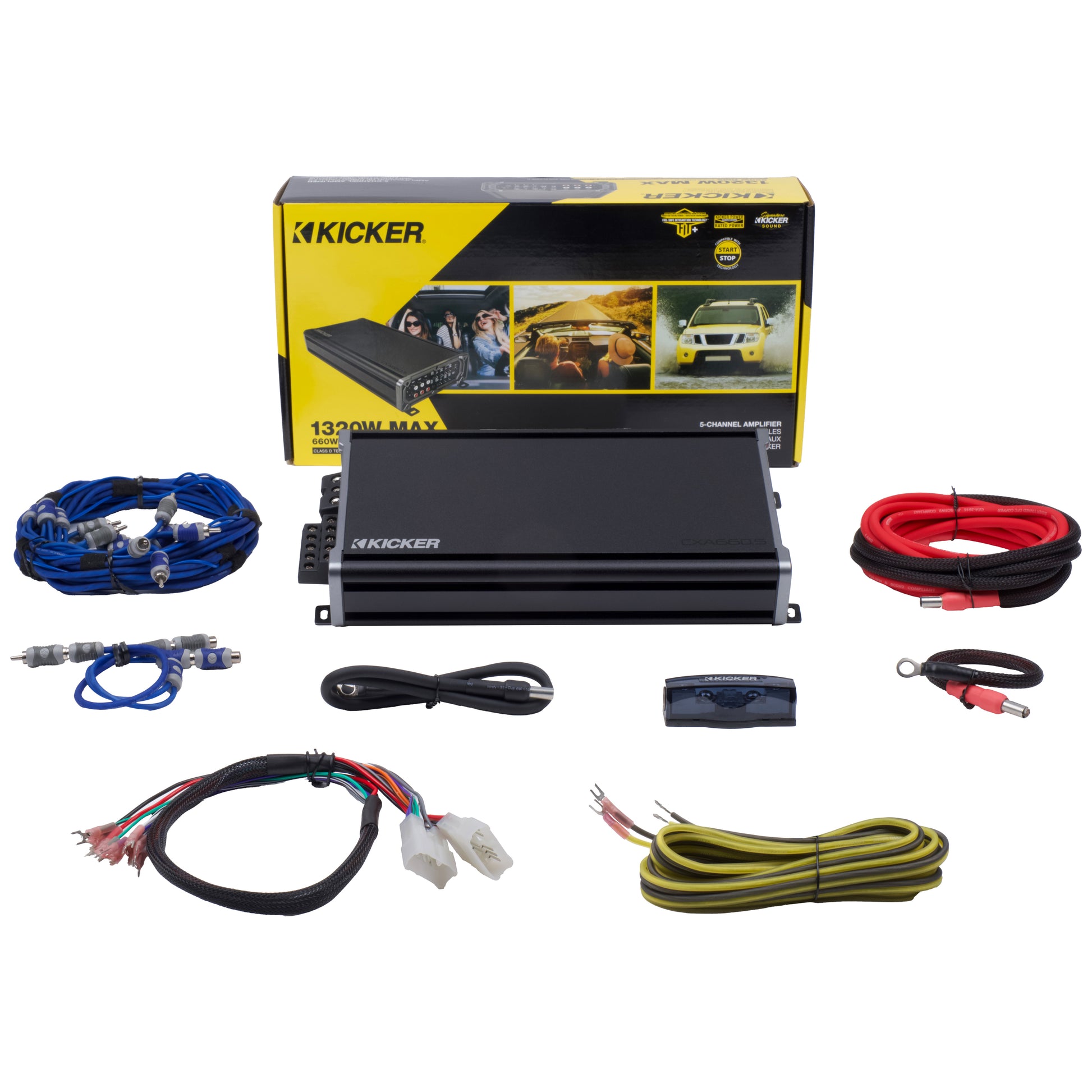

What’s In The Plug & Play Bundle?

We’ve taken all the guesswork out of adding an amplifier in your 2014 – 2021 Toyota Tundra. We’ve partnered with some of the biggest and most reliable names in mobile electronics to bring you a high-end, super-reliable audio system — that’s packed with a 2-year no-questions-asked warranty on manufacturer defect. All of our bundles are pre-wired and ready to install prior to shipping from our Frederick, Maryland shop. When you get your bundle, it’s all ready to drop in your truck! Here’s what you can expect to be in your Kicker JBL Amp Bypass Plug & Play 5-Channel Amplifier Kit from Trail Grid Pro:

  • Kicker CXA660.5 5-Channel Amplifier.
  • Kicker 47VK6 Amplifier Kit.
  • 3x Kicker 46KI23 RCA's.
  • 1x Kicker 46KIYFM RCA Splitter.
  • Plug & Play wiring harness utilizes factory speaker wiring to amplify speakers!
  • Plug & play radio connectors will be pre-wired, soldered and shrink-wrapped to achieve a professional finish prior to shipping for ease of installation.
  • Plug & play harnesses are built with enough length to store the 5-Channel Amplifier under the passenger seat.
  • All fork terminals, ring terminals will be pre-attached to applicable locations on the harnesses for a plug and play installation.
  • 10x zip ties, 1x 10mm bolt, 5x velcro strips.

Interested in our 5-Channel amplifier bundle for your Toyota Tundra but have a question first? Simply complete the form below and we’ll get back to you promptly!

Weight 18 lbs
Dimensions 18 × 18 × 12 in
Toyota Model Tundra
Toyota Year 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021

CX-Series amps reach massive power levels thanks to an optimized circuit layout and the highest-grade internal components. Highly efficient heat sinks keep the amp cool and an optional remote level control lets you adjust bass on the fly.

FIVE CHANNELS OF FUN

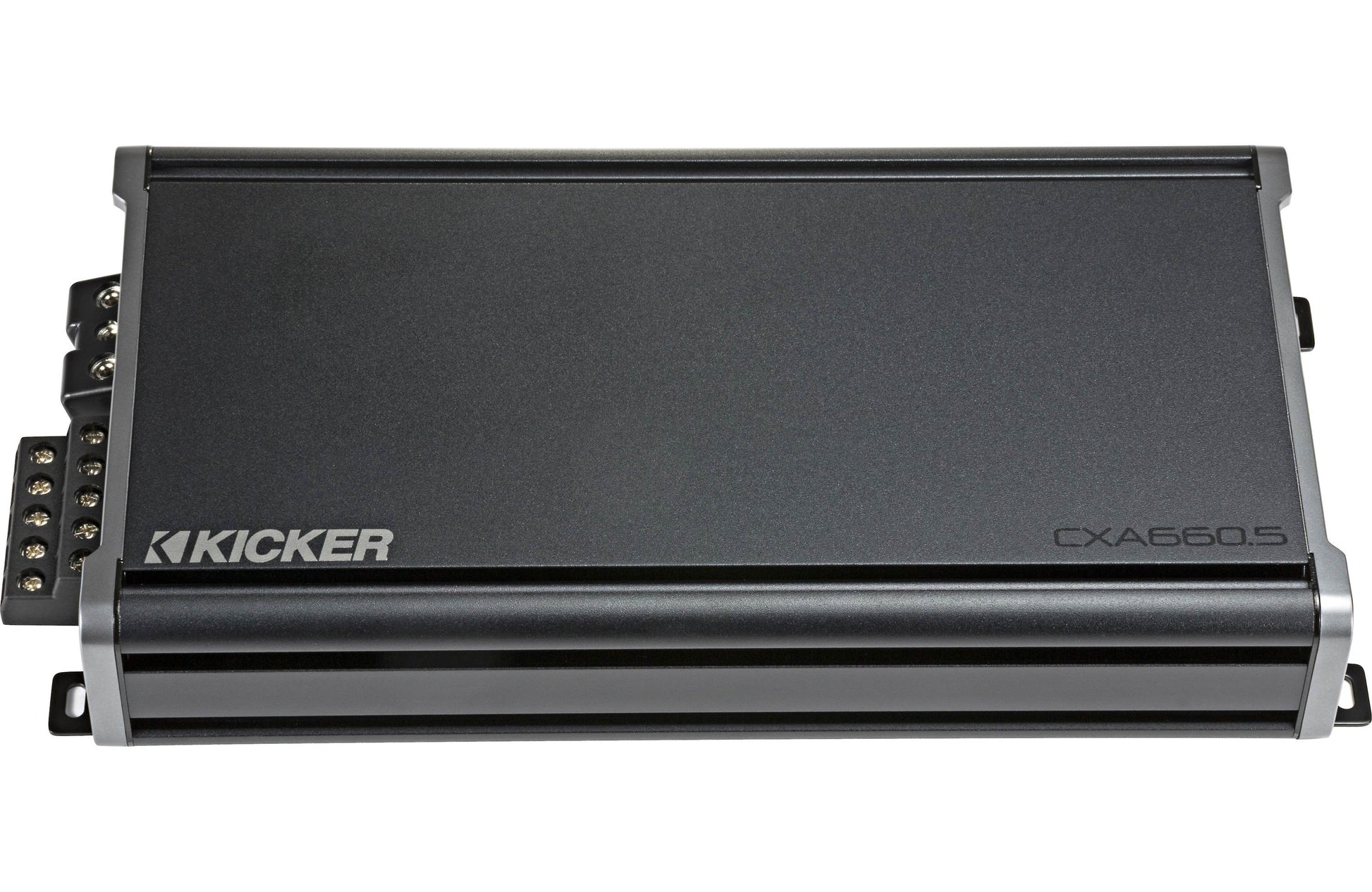

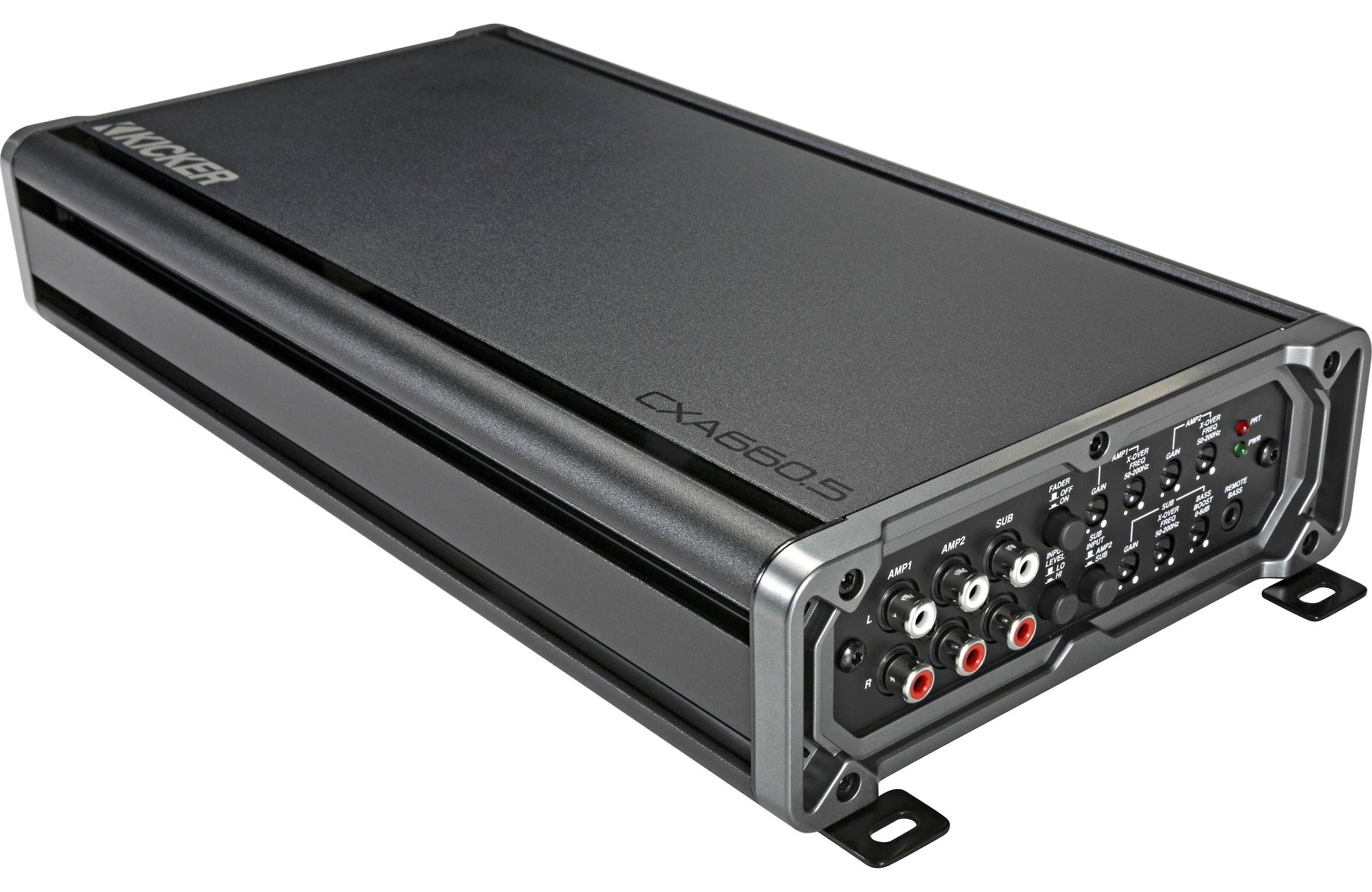

The CXA660.5 Amplifier is built to be the complete package in one cool-looking amp.

This CX amplifier uses powerful Class A/B technology to power four mid/high-range channels and an ultra-efficient Class D power plant for the bass channel. The amp also comes equipped with FIT+™ (Fail-safe Integration Technology-PLUS), giving you superior clarity and dependability.

KickEQ™ variable bass boost gives you as much as a 6dB of extra bump. A powerful 12dB crossover and 24dB subsonic filter is also included, letting you quickly tune your entire system to taste. From your dash, a simple turn of the optional CXARC Remote Bass Controller (sold separately) increases your output to fit your choice of music.

This CX amplifier delivers as much as 90 watts into four full-range channels or 180 watts into two-bridged channels, plus as much as 300 watts into one bass channel. See below for more details.

  • Class A/B full-range channels
  • Class D bass channel included for one amp to run an entire system
  • Three-second turn-on/off delay to eliminate unwanted interference
  • Variable 12dB crossovers provides control to dial in perfect sound
  • KickEQ™ 6dB variable bass boost for those additional low frequencies
  • 24dB subsonic filter for protection from potentially damaging frequencies
  • FIT+™ (Fail-safe Integration Technology-PLUS) means it works with nearly every radio
  • Accepts up to 40-volt input signal
  • Small footprint for easier installation
  • Vertical mounting hardware included for another unique look

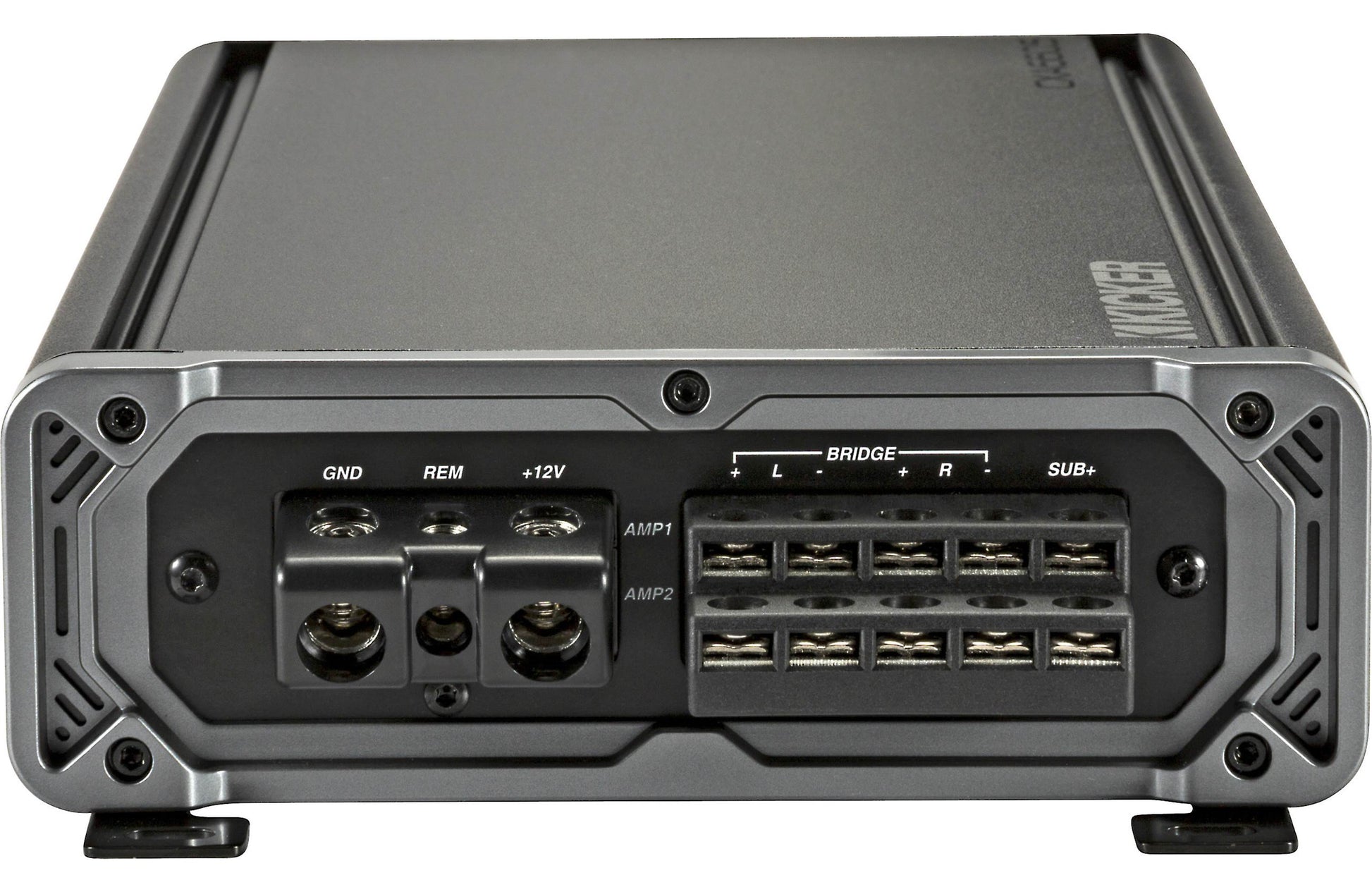

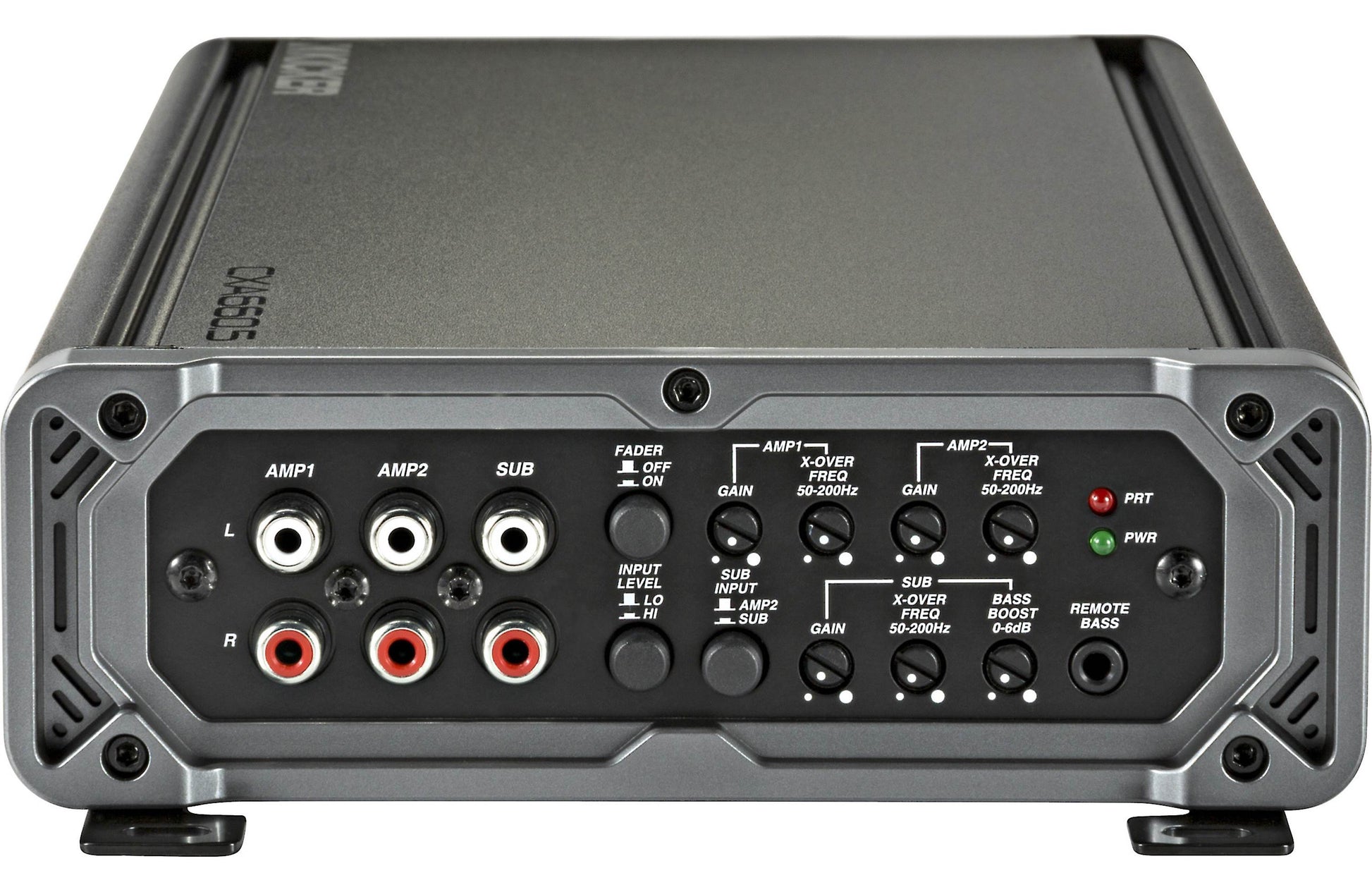

  • Model: CXA660.5
  • Power (watts/ch): 4 Ohm Stereo 65x4
  • Power (watts/ch): 2 Ohm Stereo 90x4
  • Power (watts/ch): 4 Ohm Stereo 180x2
  • Power (watts/ch): 4 Ohm Mono Sub Ch 150x1
  • Power (watts/ch): 2 Ohm Mono Sub Ch 300x1
  • CXRC Remote Bass Capable (sold sep.): Yes
  • Dimensions (in): 14 L, 2 3/8 H, 6 3/4 W
  • Frequency Response (Hz): 10Hz- 20kHz
  • Frequency Response (Hz - Sub Ch.): 25Hz-200Hz
  • Input Sensitivity: 125mV-5V (low level), 1V-40V (high level)
  • Signal-to-Noise Ratio: 90dB
  • Active Crossover: Amp 1-2: High Pass 10-200Hz @ 12dB/Octave, Sub Channel: Low Pass 50-200Hz @ 12dB/Octave
  • Subsonic Filter: 25Hz @ 24dB/Octave
  • KickEQ Boost: Variable 0-6dB @40Hz
  • Warranty: 2 Years manufacturer defect - free from defects in material and workmanship
