Ironman 4x4 Raid Series Front Bumper | '16 - '23 Tacoma

Ironman 4x4 Raid Series Front Bumper | '16 - '23 Tacoma

Regular price $1,199.00
Regular price Sale price $1,199.00
Sale Sold out
Shipping calculated at checkout.

FITS: 2016-2023 Toyota Tacoma

  • $100 Standard Freight Shipping to lower 48 USA
  • 3 Year Warranty
View full details

Fast US Standard Shipping &
Easy International Shipping

60-Day Returns

TG Pro
Satisfaction Promise

Trail Grid Pro Tested

Raid Front Bumper Kit Suited for 2016+ Toyota Tacoma

The world's first fully crash safety tested and SRS airbag compatible tubular style bumper to suit 2016 + Toyota Tacoma.

Leveraging our experience of designing and manufacturing vehicle armor for military, fleet, and recreational purposes, the mission was to create the safest, most feature-loaded 4x4 steel Tacoma bumper on the market.

Raid Front Bumper Kit 2016+ Toyota Tacoma

The RAID 4x4 bumpers blend the Australian mindset of functionality with American design characteristics. As a result, the protective Tacoma bumper provides you and your passengers maximum safety for daily driving with the essential trail-ready features of improved vehicle protection, increased approach angle, additional ground clearance, and winch carrying capability. 

The Ironman 4x4 Raid front bumper uses our two-stage attachment design, connecting the winch cradle directly to the chassis for the most robust possible recovery platform. Alternative one-piece bumpers pull from the bumper shell, causing twisting and potential deformation to the steel bumper and vehicle. In addition, the frame-mounted rated recovery points (5,000kg/11,000lbs) give you a concrete foundation for recovery or towing. 

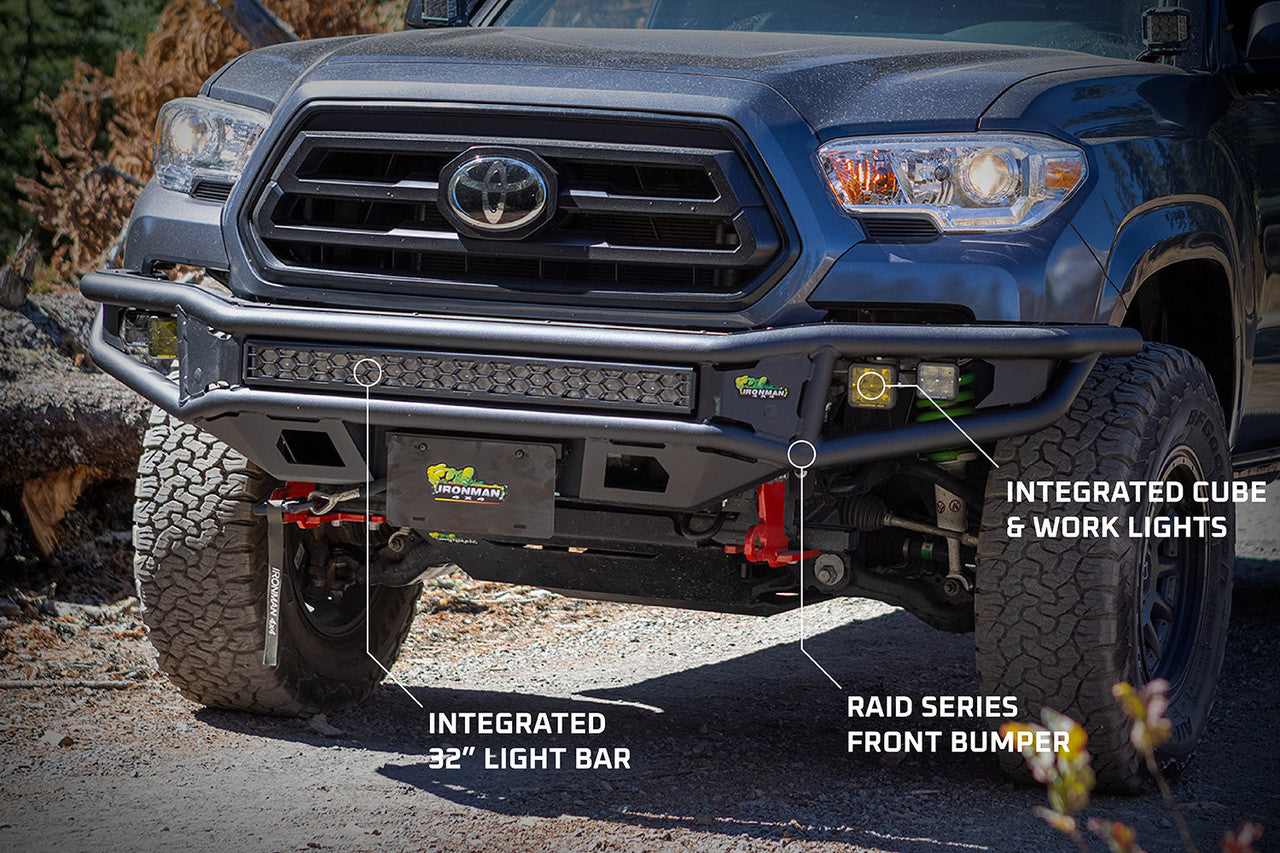

The Raid off-road steel bumper can come fully loaded with a 32", 300W dual row OSRAM chip LED light-bar delivering projection of 25000 Raw lumens into the road ahead for confidence-boosting visibility in nighttime driving. The new hooded reflectors direct the light beam more effectively and reduce glare commonly found in light bars.

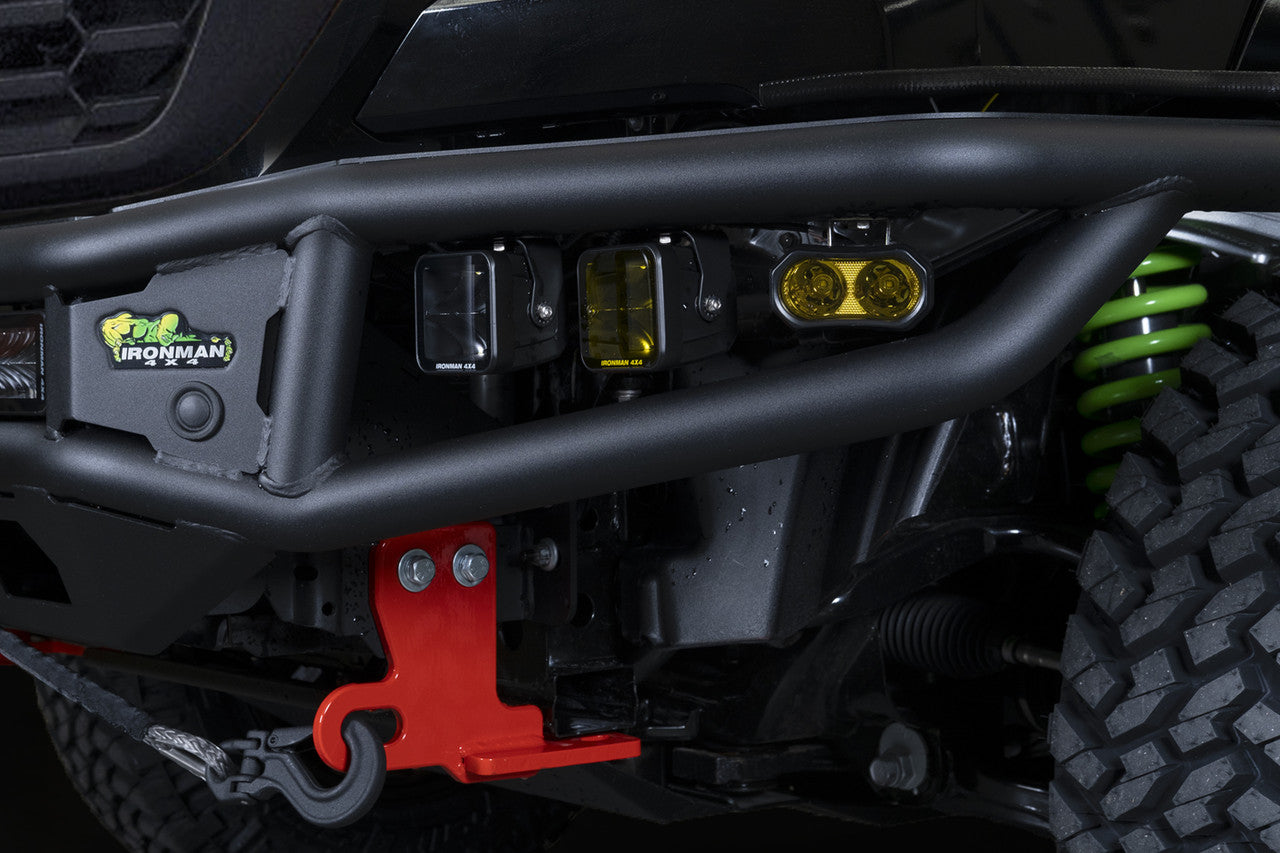

In addition to the powerful light-bar are four customizable OSRAM chip LED cube lights with up to 4800 lumens; choose between clear or amber, spot or flood. All lights feature a flat, UV-stable polycarbonate lens designed to reduce rain/snow/ice build-up.

Additional Features:

  • Two-part front bumper design with a winch cradle mounted directly to the chassis for the strongest and safest possible winching platform for the harshest recovery situations
  • Bolt-on, frame-mounted recovery points (5,000kg/11,000lbs) included with the bumper
  • Integrated crumple zones transfer energy away from vehicle occupants
  • ADR 69, 73 approved (Full Frontal and Offset Impact Occupant Protection)
  • Tested to the highest standards in compliance with Australian Design Regulation, SRS Airbag tested and certified
  • Winch compatible with clutch handle access and line visibility
  • Standard 10” x 4.5” winch mount footprint
  • Only compatible with 9500 lbs winch
  • Pickled, cold-rolled steel manufacturing for impurity free template during assembly
  • Ultra-durable AKZO NOBEL Black Powder Coat and pre-treated steel for rust resistance
  • 360° Robotic welding for consistently precise welds resulting in peak quality and unequaled strength
  • Increased approach and departure angles provide maximum clearance for obstacles
  • Compatible with factory parking sensors

Specifications

  • Front Bumper Approximate Weight: 123lbs

This Kit Includes:

Raid Steel Front Bumper

  • Bolt-On installation with mounting hardware

Front Bumper Light Bar (depending on selection can include):

Bright Saber LED Dual Row Light Bar - 32"

  • Front Bumper Lighting - 1st Pair (depending on selection can include one of the following):
  • (2) 3.2" 40W Cube Spot Beam LED Lights - Clear
  • (2) 3.2" 40W Cube Flood Beam LED Lights - Clear
  • (2) 3.2" 40W Cube Spot Beam LED Lights - Amber
  • (2) 3.2" 40W Cube Flood Beam LED Lights - Amber

  • Front Bumper Lighting - 2nd Pair (depending on selection can include one of the following):
  • (2) 3.2" 40W Cube Spot Beam LED Lights - Clear
  • (2) 3.2" 40W Cube Flood Beam LED Lights - Clear
  • (2) 3.2" 40W Cube Spot Beam LED Lights - Amber
  • (2) 3.2" 40W Cube Flood Beam LED Lights - Amber

NOTE:

The front bumper will not work with roller fairleads. This will only work with hawse fairleads.

Compatibility with TRD skid plate requires some modification and extra hardware not included.

Only compatible with 9500 lbs winch.

Not compatible with 2WD Toyota Tacoma models

A 3rd pair of front bumper lights can be purchased separately as shown on the pictures of the black Tacoma. Compatible work lights can be purchased here:

  • (2) 10W Work Lights - Clear
  • (2) 10W Work Lights - Amber

The Raid Front Bumper is only compatible with synthetic rope winches.

Does not include wiring harness.  Recommended wiring harness setup:

  • For front bumper light bar: 1x IWHL001
  • For front bumper cube lights: 2x IWHL002
  • Front bumper cube lights can also be wired into factory fog lights
