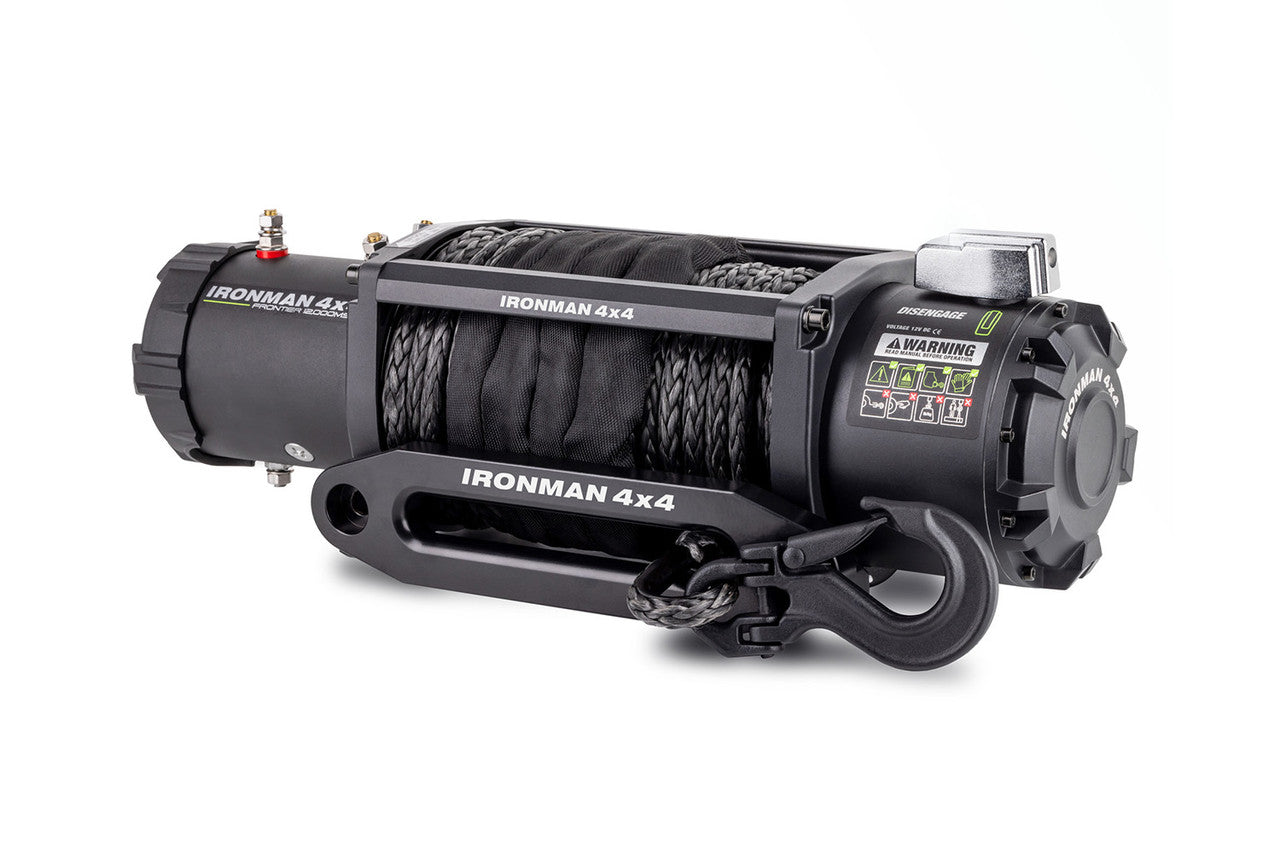

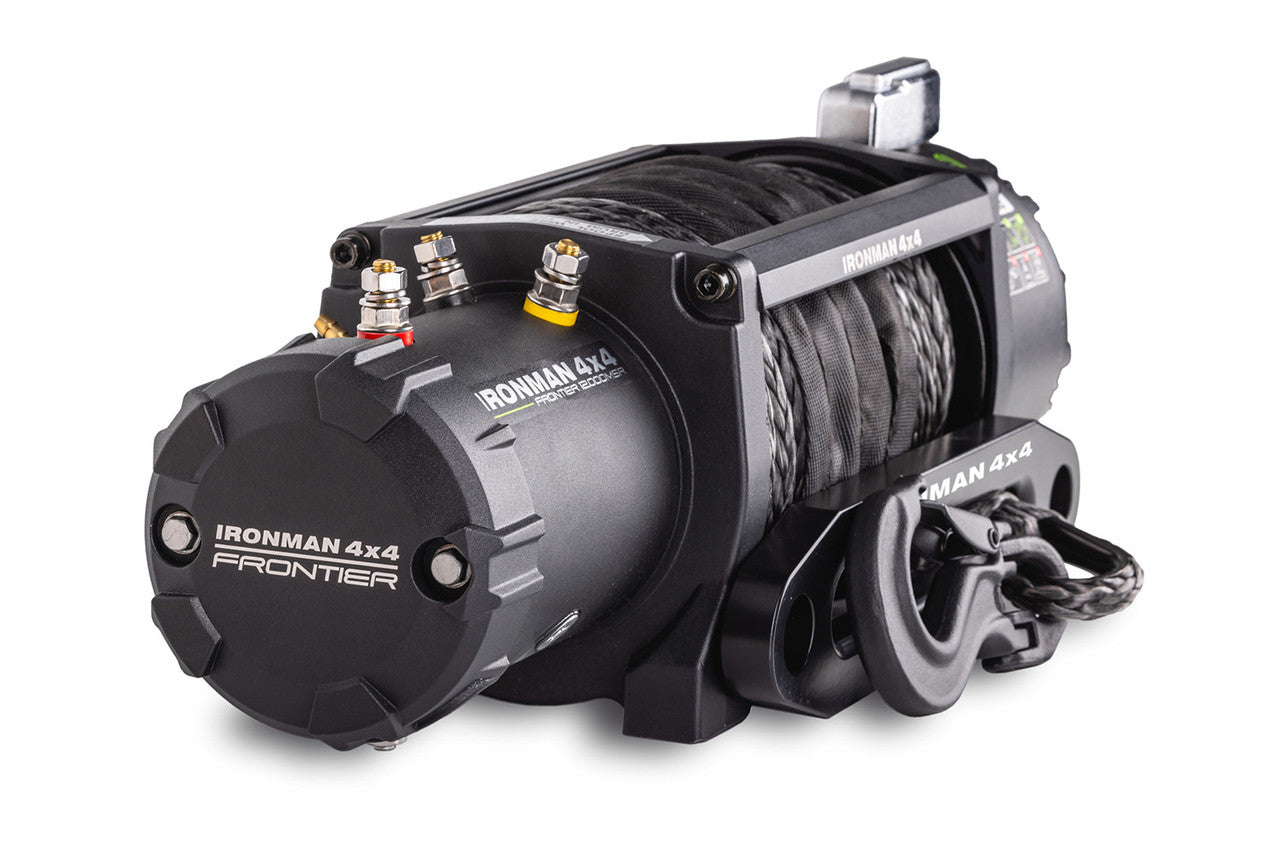

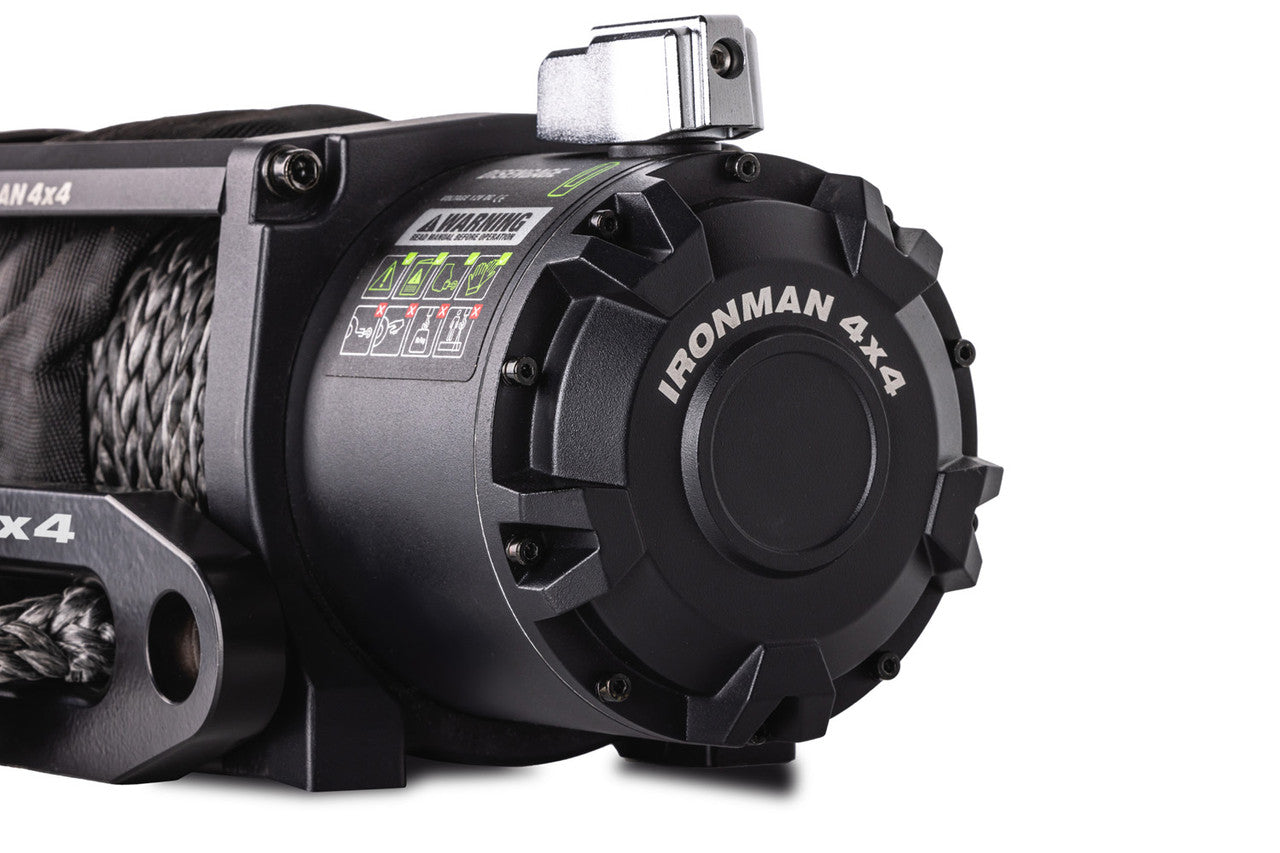

Frontier 12,000 lb Winch with Synthetic Rope
SUPERIOR DURABILITY: Built with over a decade of development, the Frontier Winch Range offers unmatched reliability with low-maintenance, synthetic rope designed to withstand the toughest conditions.
WATER RESISTANT DESIGN: With an IP68 rating, the winch can be submerged up to 5 feet for 30 minutes, allowing you to tackle wet and muddy terrain without compromising performance.
ADVANCED BREATHER TECHNOLOGY: The built-in breather protects seals by expelling moisture, enhancing the winch's durability and longevity, even in extreme environments.

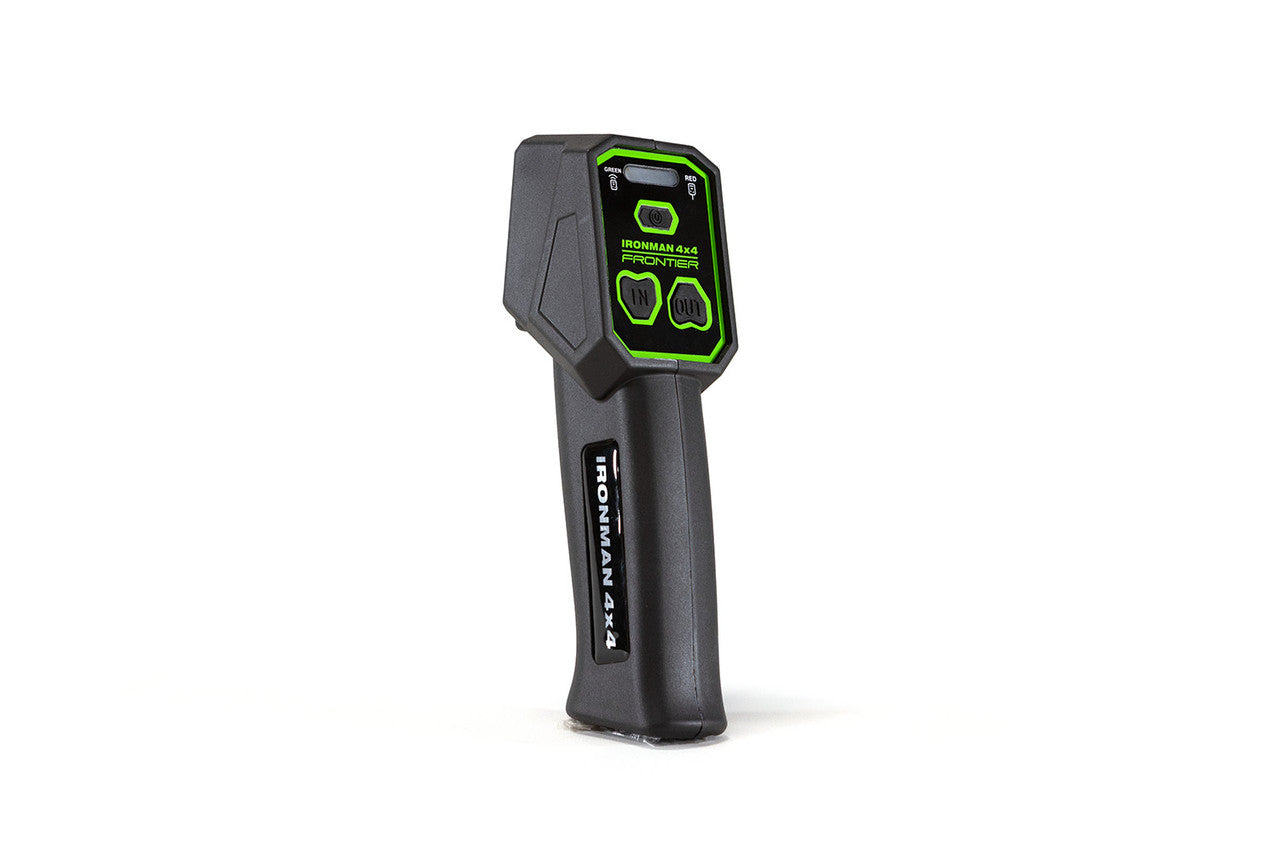

DUAL REMOTE FUNCTIONALITY: Equipped with both wireless and plug-in remote controls, the Frontier Winch offers flexible control options, ensuring safety and convenience during recovery operations.
POWERFUL PERFORMANCE: Powered by robust 4.5 HP(9,500 lb) or 6 HP (12,000 lb) motors, with up to 28 to 34 feet per minute line speed, this makes for a powerful and efficient tool for all your recovery needs.
LONG-TERM WARRANTY: Backed by a 5-year mechanical warranty, the Frontier Winch delivers peace of mind with its proven mechanical design and reliability in the harshest environments.
Installation Instructions: Frontier Installation Information
Specifications:
Rating & Performance
- Rating: 12,000 lb
- Motor: 6.0 HP
- Power: 12V (Current Draw @ 12V: 75, Max Current Draw @ 12V: 360)
- Line Speed: No Load - 28.25 ft/min, Full Load - 5.25 ft/min
- Water Ingress: IP68
- Breather: Included
- Gearing: Ratio - 218:1, Type: 3 Stage Planetary
- Brake: Auto cam lock-in brake
Recovery Line

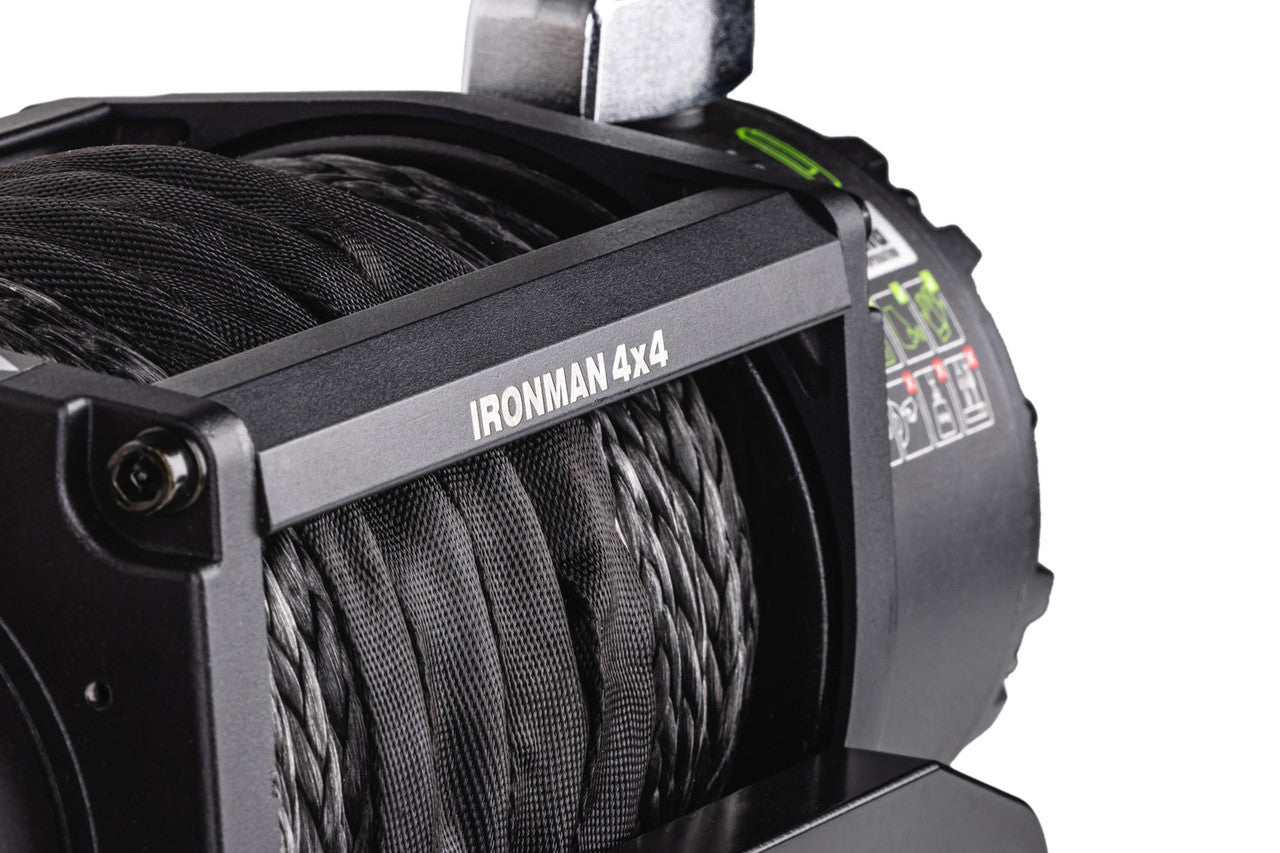

- Line: Type - Synthetic Rope, Diameter - 3/8", Length - 82 ft, Breaking Load - 19,000 lb., Rope Connection - Spliced Lug
- Controller: Wireless Remote & Wired, Battery: CR2450
- Hook: Steel Hinged

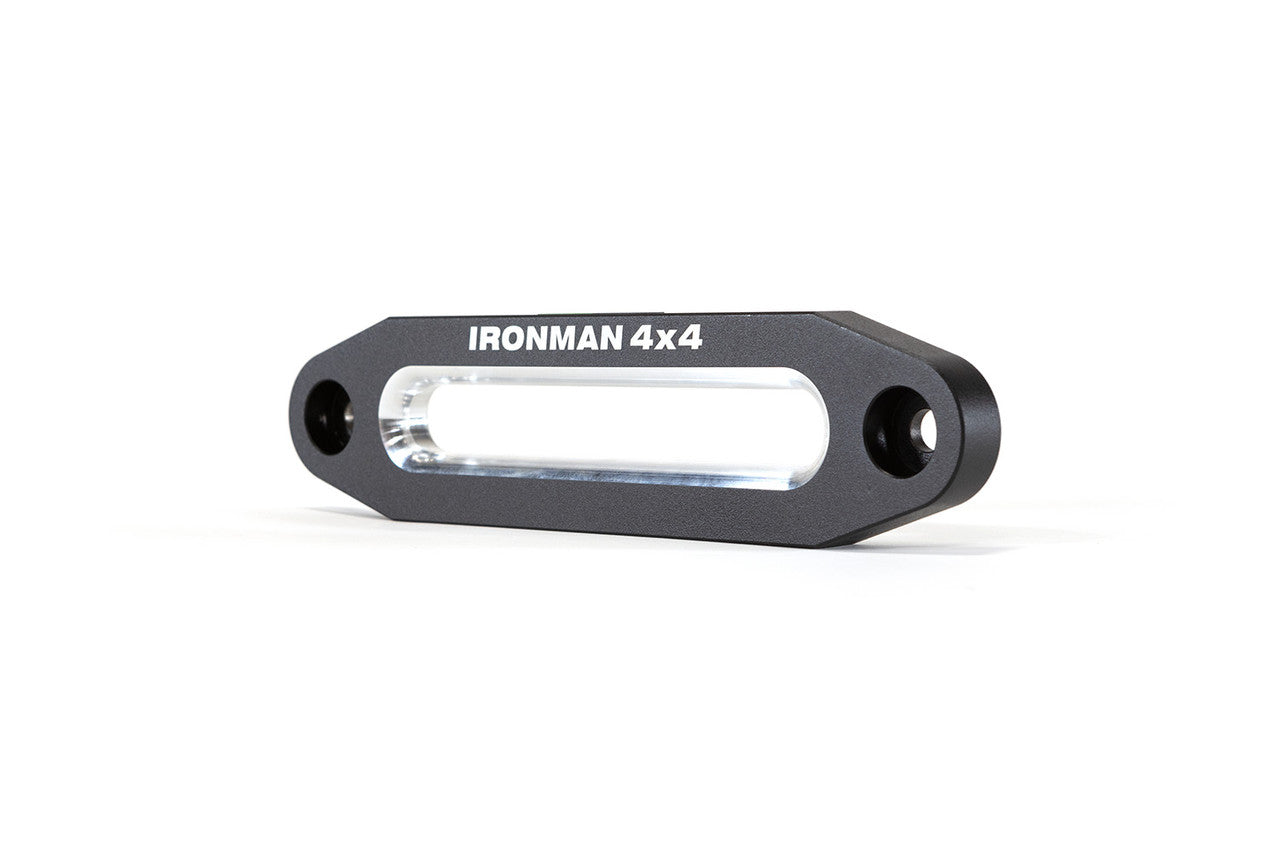

- Fairlead: Hawse
- Hand Strap: Yes
Weight & Dimensions

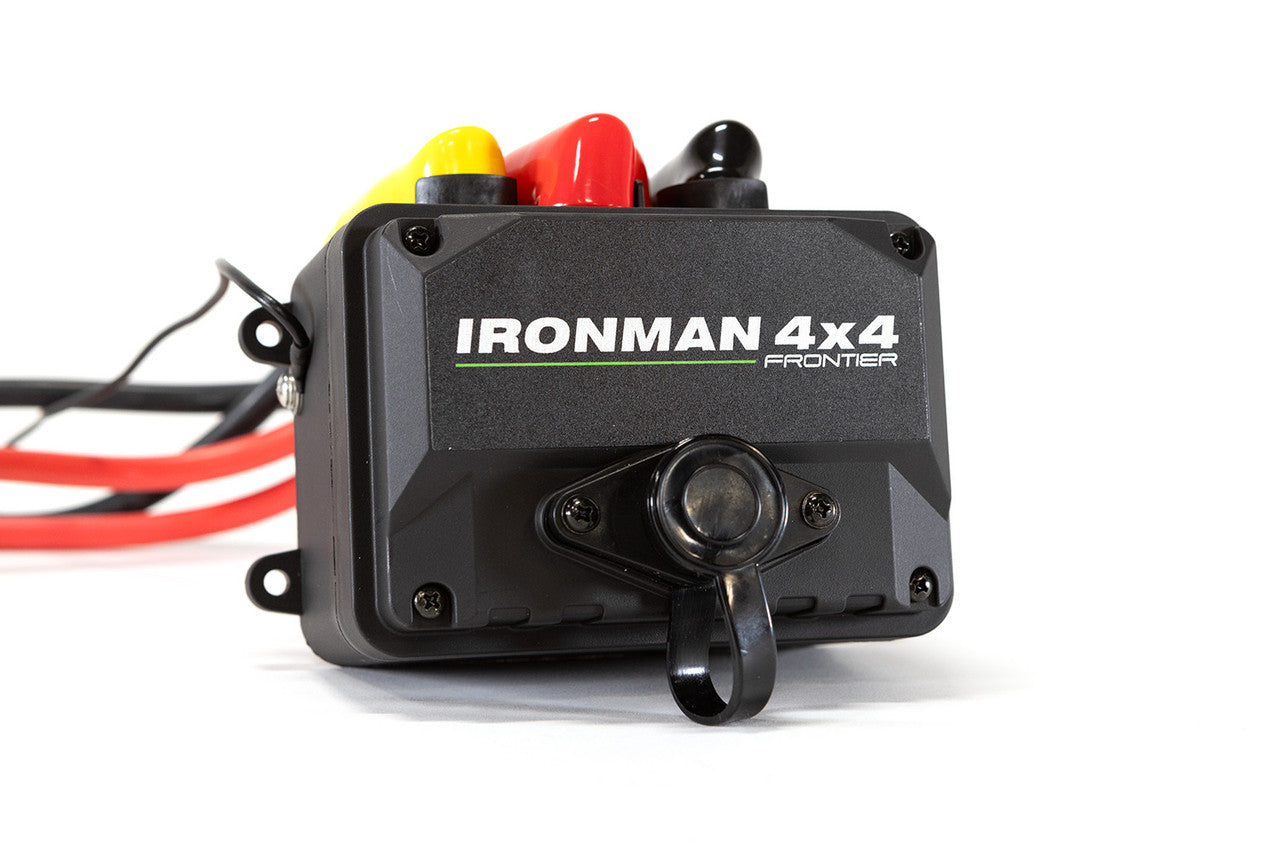

- Dimensions: With Control Box: 21.1 x 6.3 x 10.5", Without Control Box: 21.1 x 6.3 x 7.2"
- Weight: 61.6 lbs
- Power Cable: Size: 0 AWG, Material: Copper, Control Box Length: 24" x 3 pc, Positive (Red) Length: 81.1" x 1 pc, Negative (Black) Length: 82.7" 1 pc
Certification
- Certification: CE
