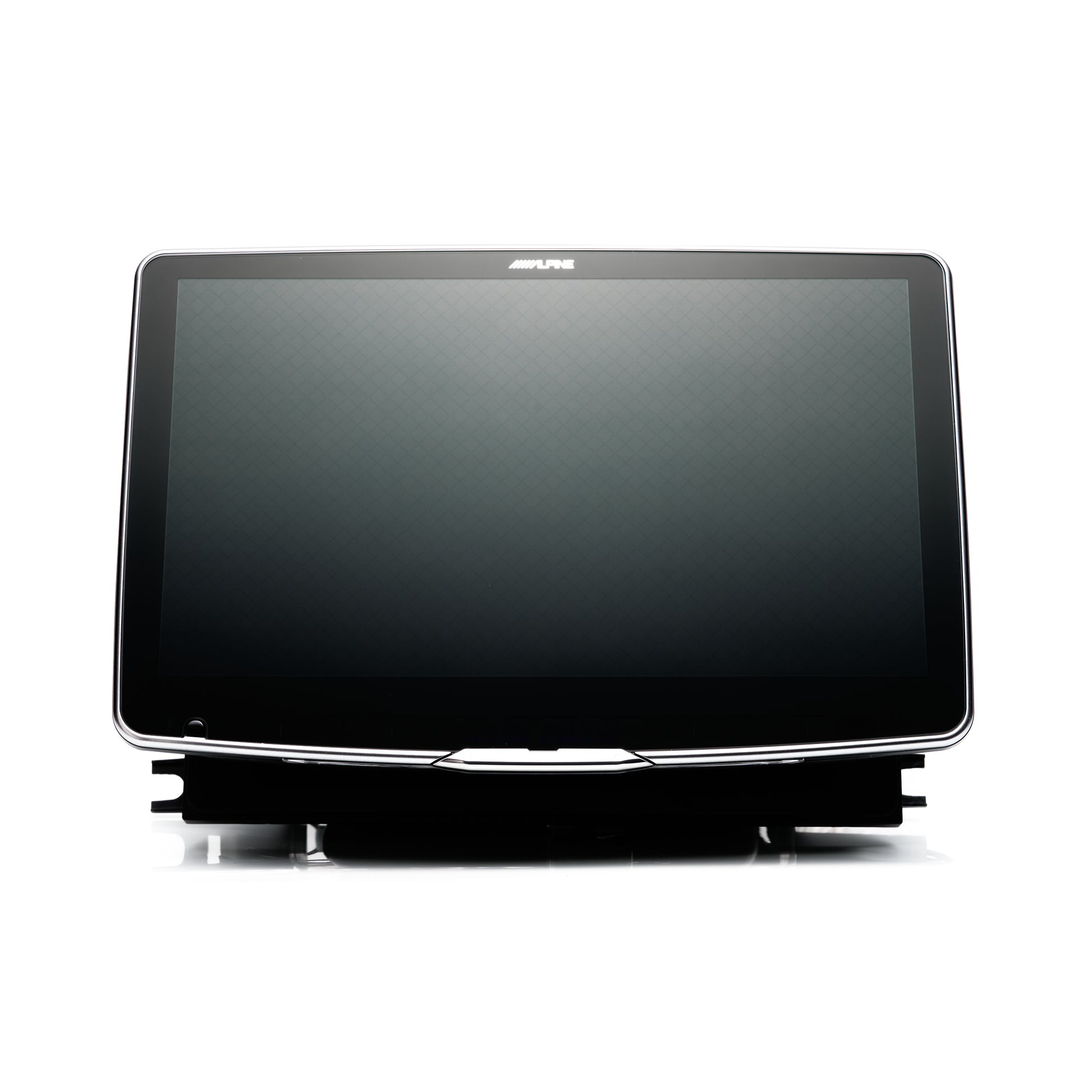

Alpine iLX-F511 Plug & Play Bundle | '16 - '23 Tacoma

2016-2019 Tacoma Installation Guide

2020-2023 Tacoma Installation Guide

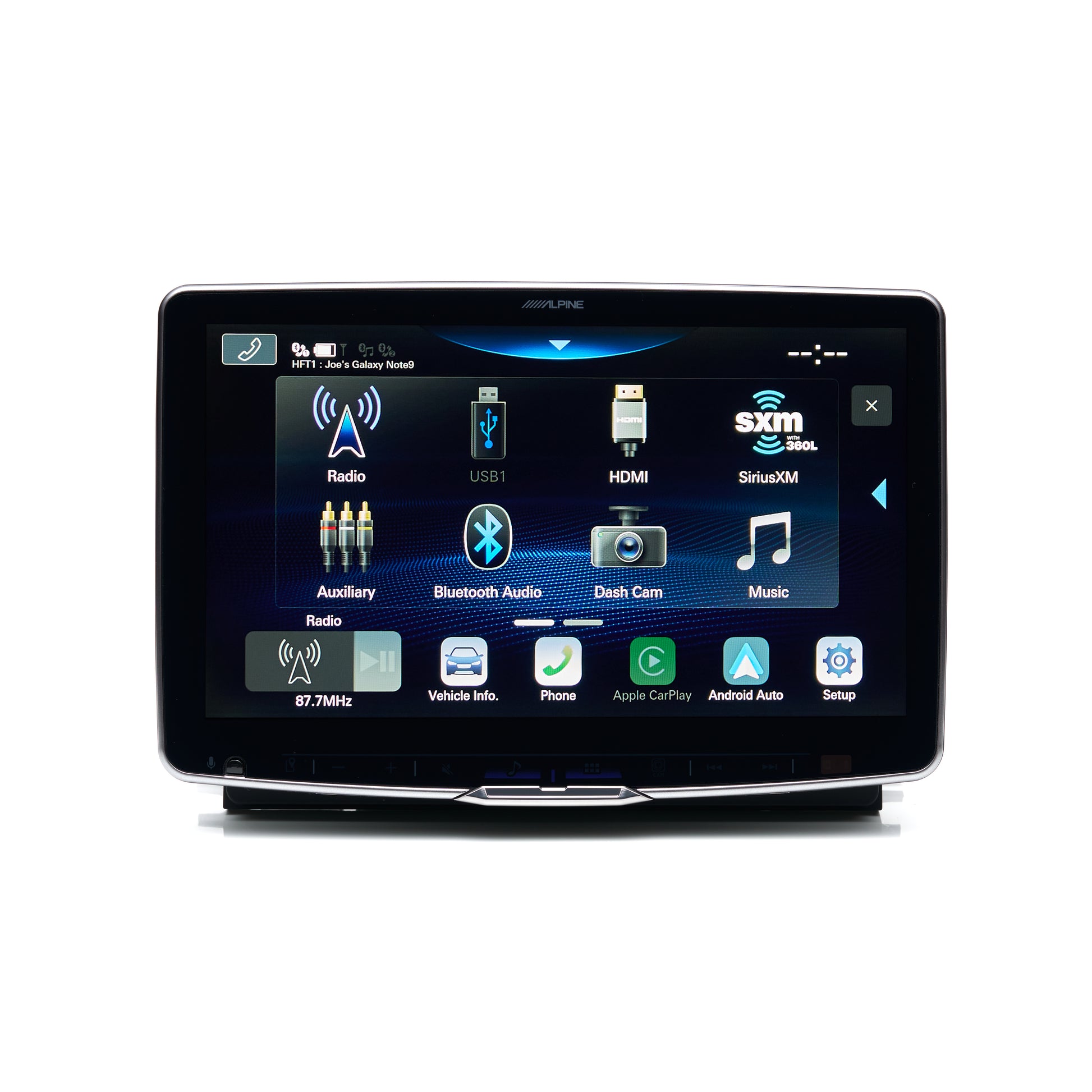

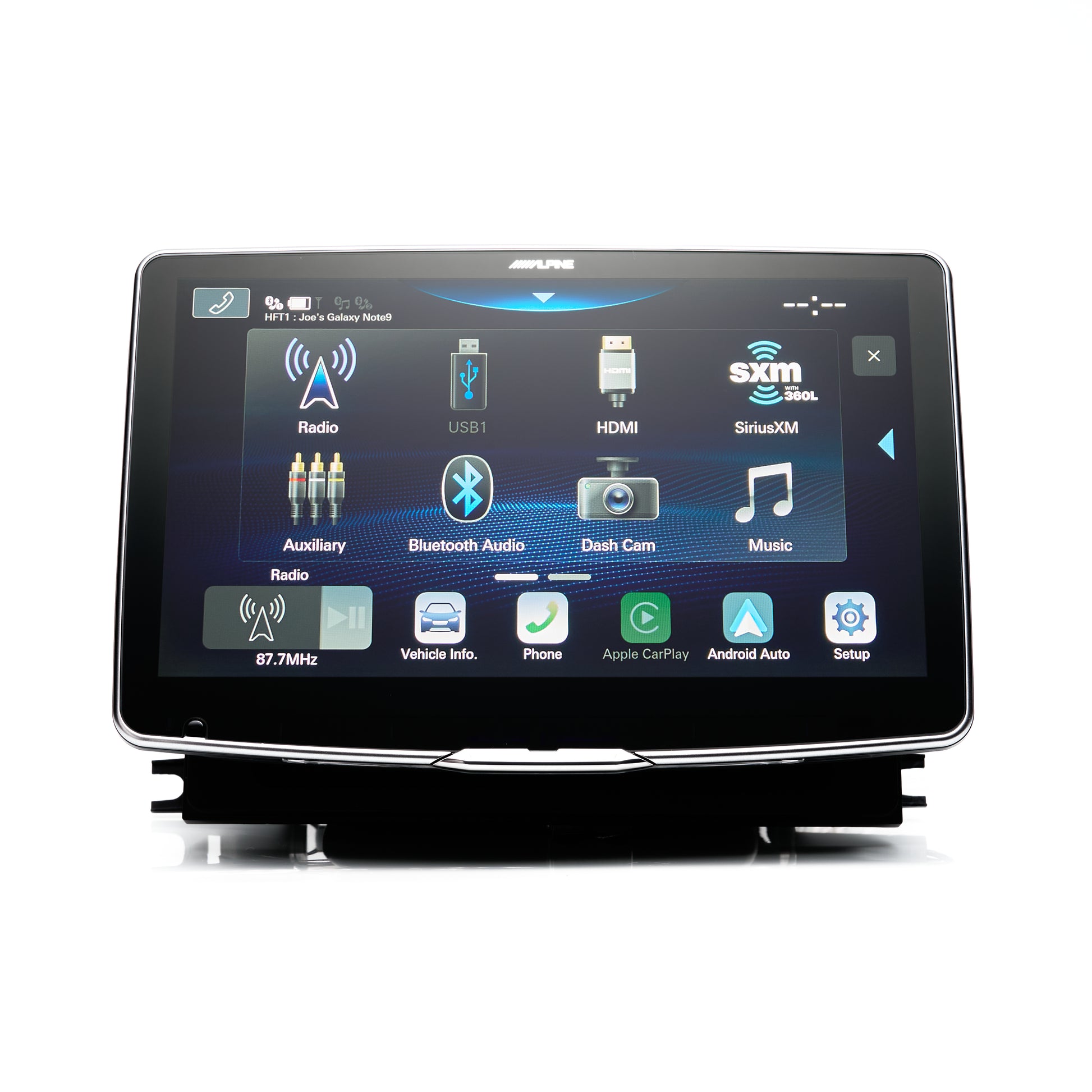

Our Next-Gen Toyota Tacoma Halo11 (11" hi-res touchscreen) features wired and wireless Apple CarPlay®, Android Auto™, and built in Bluetooth® hand-free which allows access to your music, messages, phone calls, and maps via a wired or wireless smartphone connection.

Grab even more goodies for your Tacoma with entertainment options: built-in HD Radio®, Pandora Internet Radio, and SiriusXM 360L for even more choices in entertainment.

JBL Amplified or Non-JBL Amplified?

If your door speakers have a JBL logo on them, then you have a JBL amplified system. If your door speakers do not have a JBL logo, then you do not have a JBL amplified system.

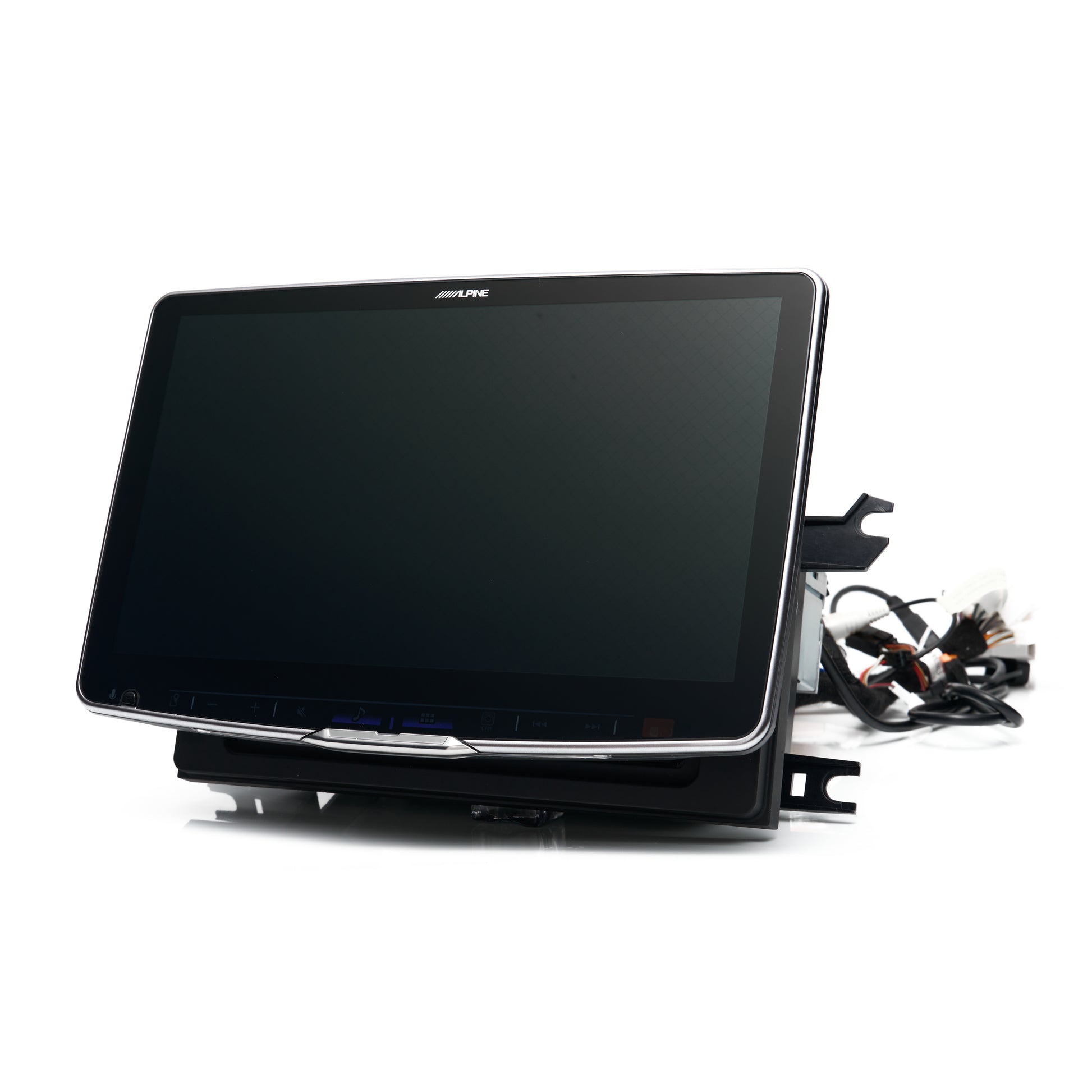

What’s In The Plug & Play Bundle?

We’ve taken all the guess work out of upgrading the audio system in your 2016 – 2023 Toyota Tacoma. We’ve partnered with some of the biggest and most reliable names in mobile electronics to bring you a high-end, super-reliable audio system — that’s packed with a 1-year no-questions-asked warranty. All of our bundles are pre-wired and completely assembled prior to shipping from our Frederick, Maryland shop. When you get your bundle, it’s all ready to drop in your truck! Here’s what you can expect to be in your Alpine iLX-F511 Plug & Play Bundle from Trail Grid Pro:

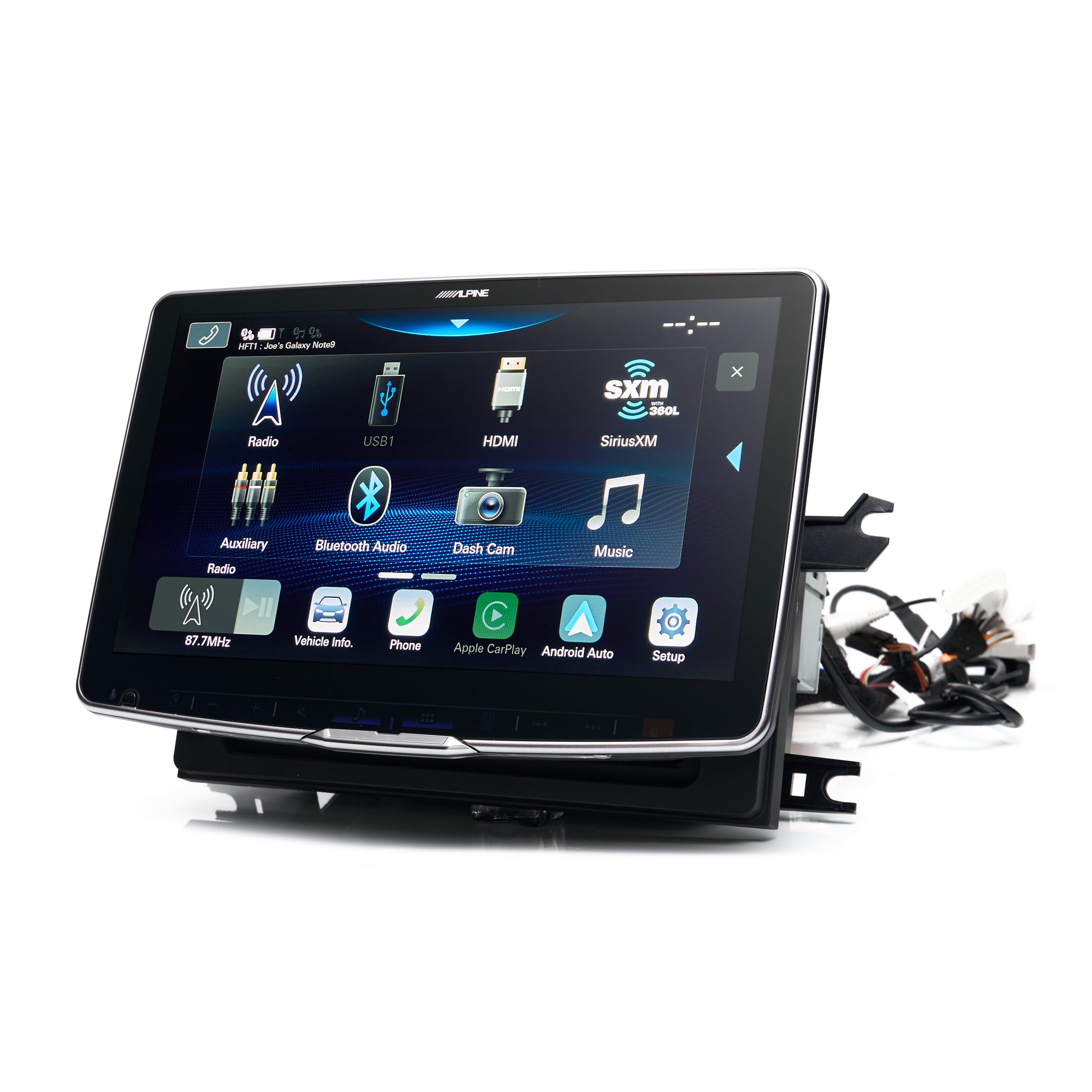

• Alpine iLX-F511

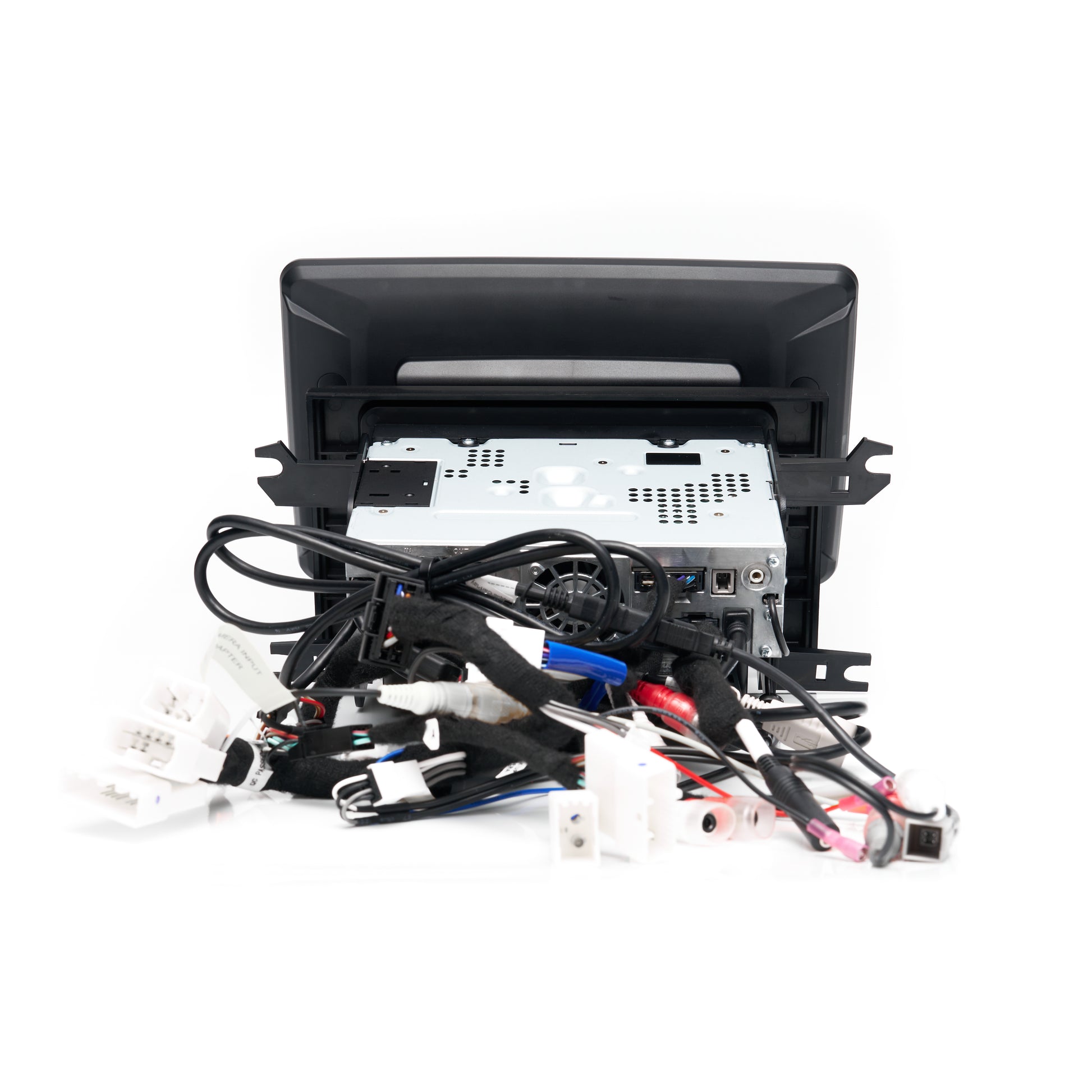

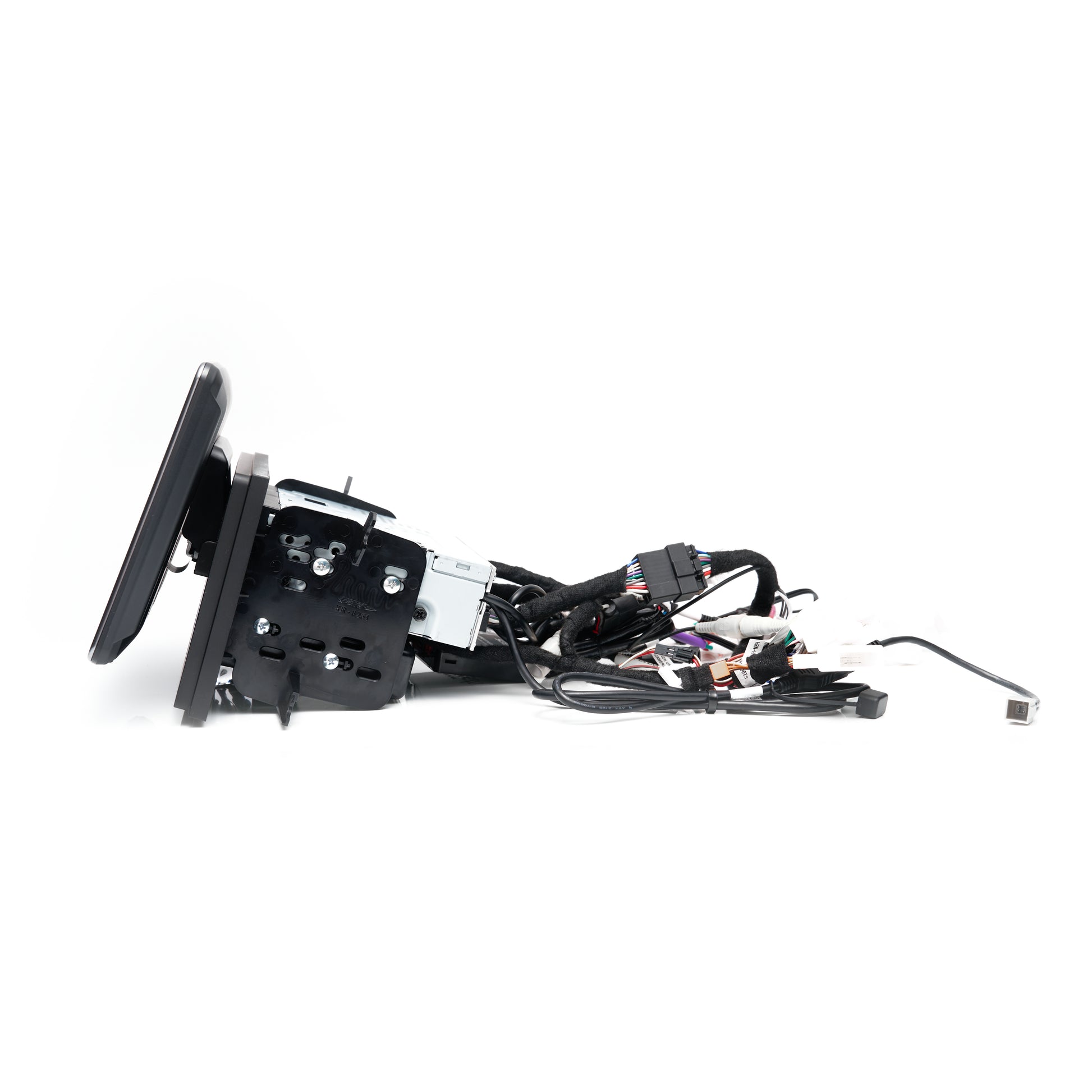

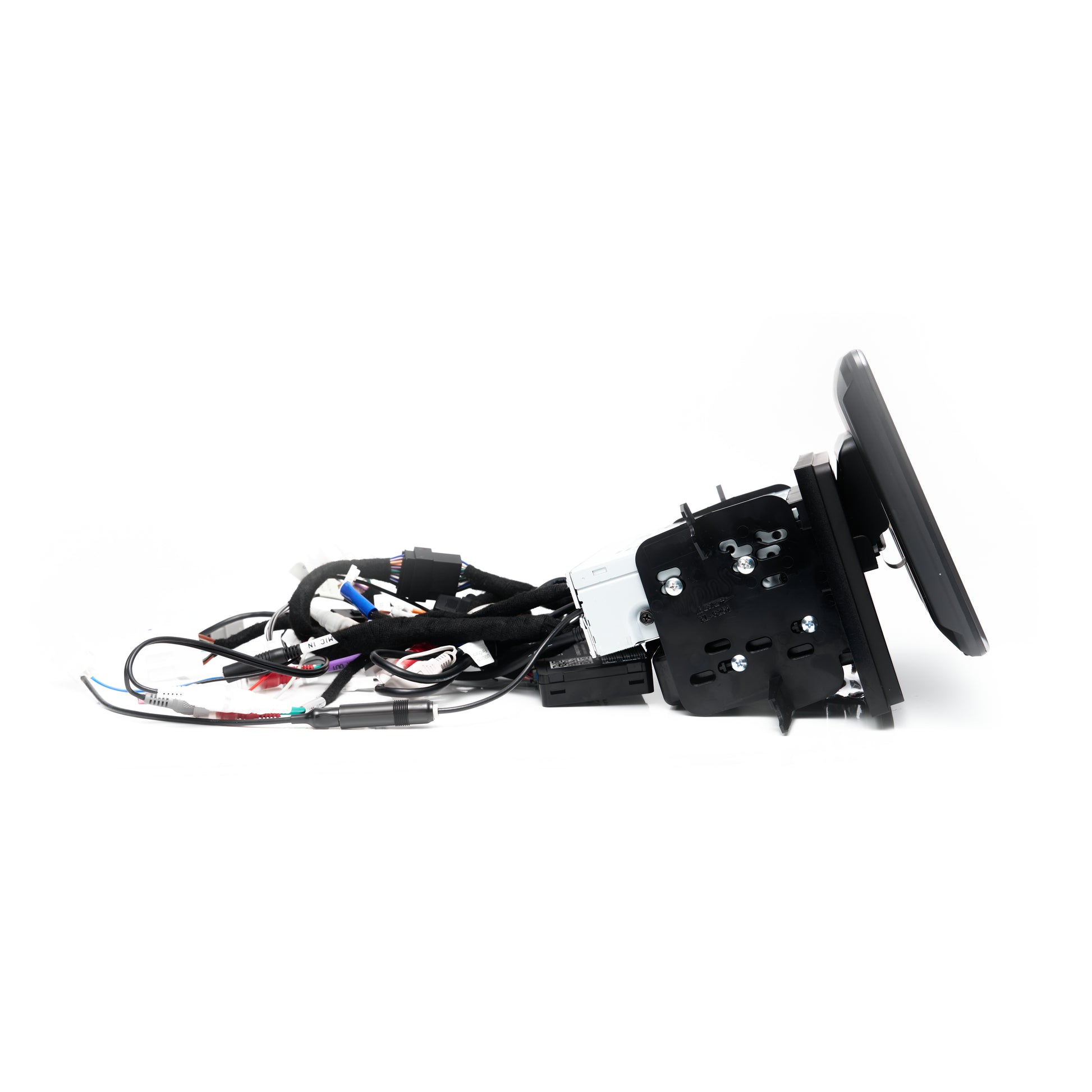

• Bundle will be pre-wired, soldered, shrink-wrapped and tesa taped to achieve a professional finish prior to shipping
• Metra 2016-2023 Toyota Tacoma Dash Kit in matte black
• Maestro RR Interface and plug and play wiring package to maintain steering wheel controls, vehicle information and non-amplified & amplified audio system (if onboard JBL system).
•  Antenna adapter (if applicable to your year/make of Tacoma)
• SiriusXM SXV300V1 and idatalink STO2/STO1 (when applicable). Factory satellite antenna signal retained for all 2016 – 2023 Tacoma's.
• Follow our installation video above to complete your audio upgrade!
• See below for even more details!

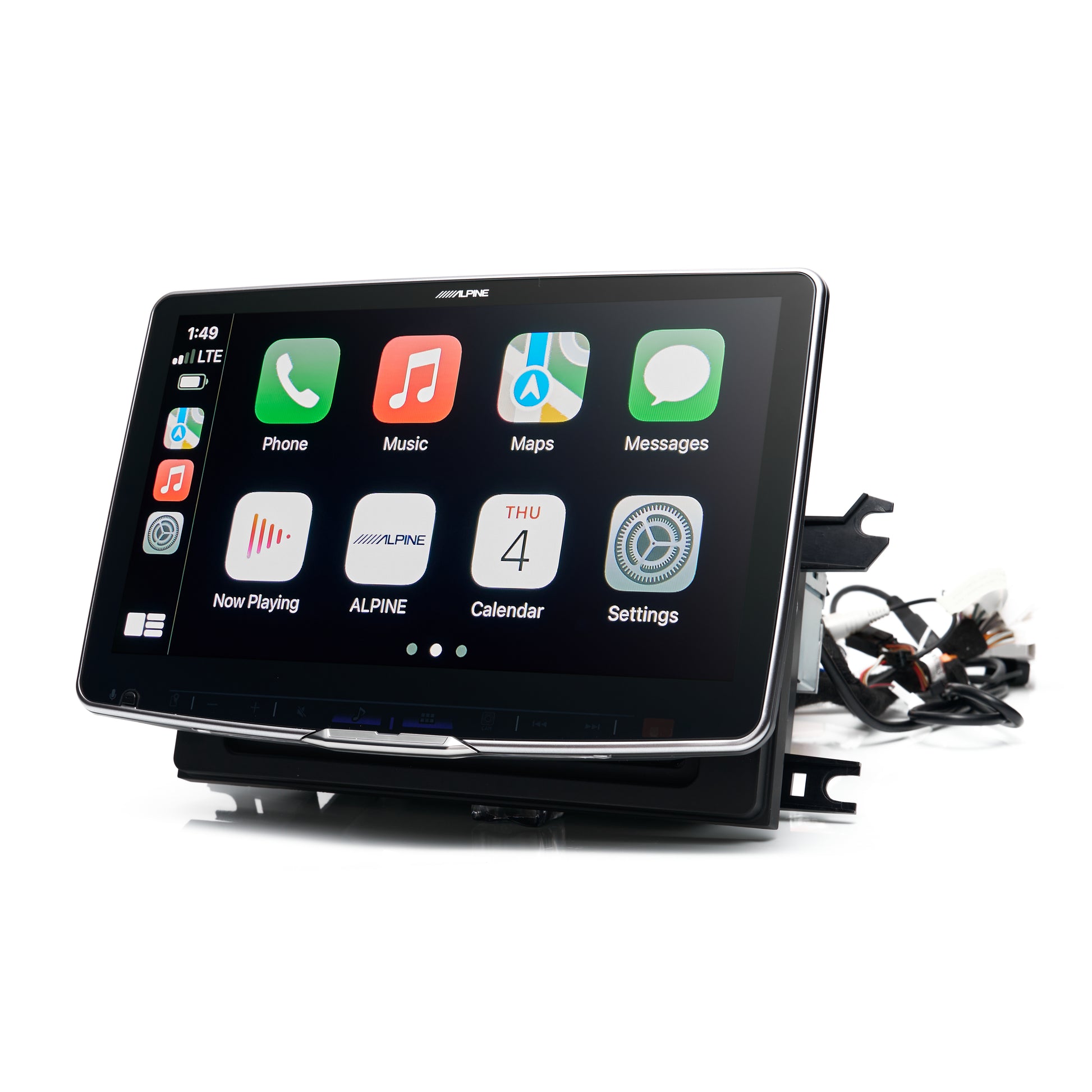

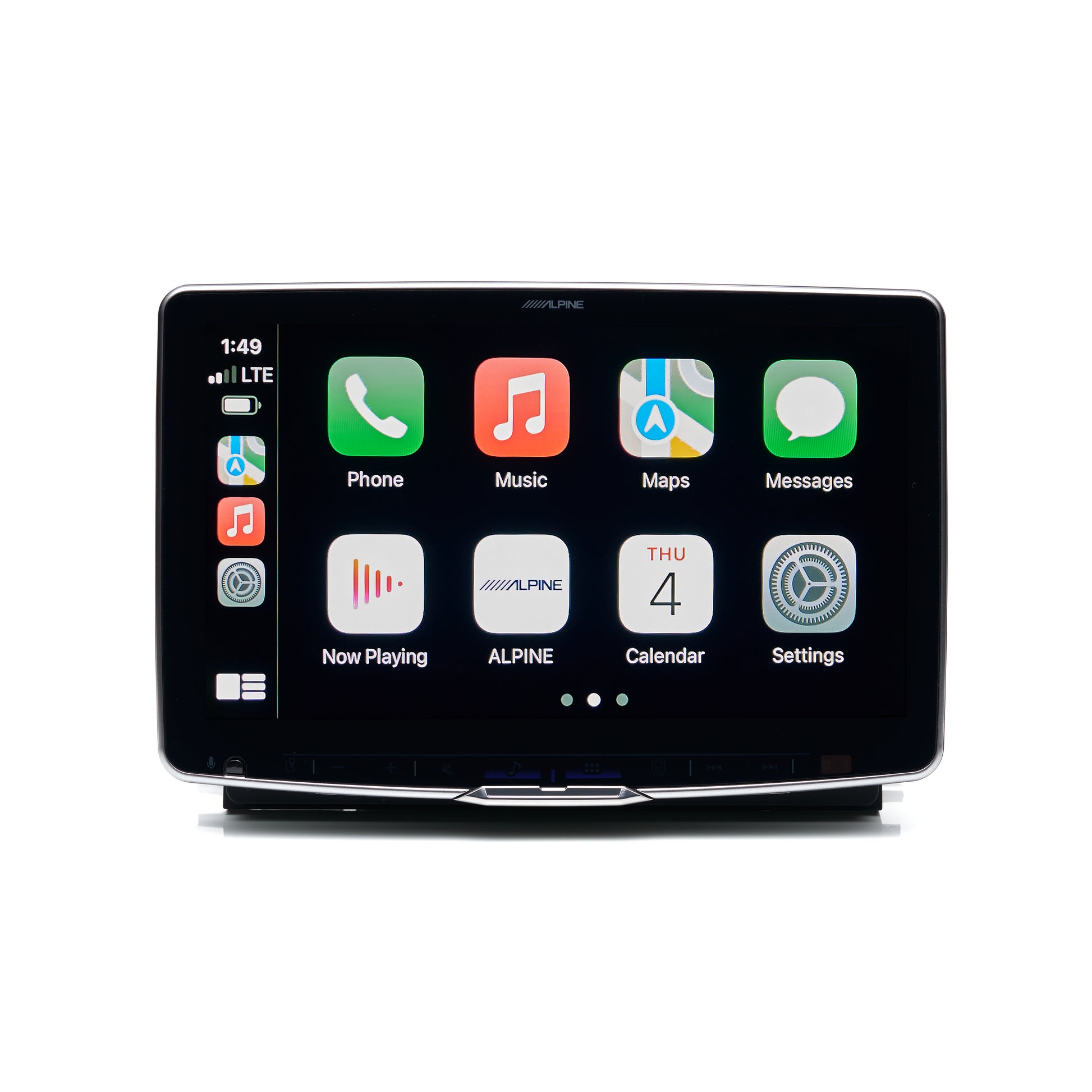

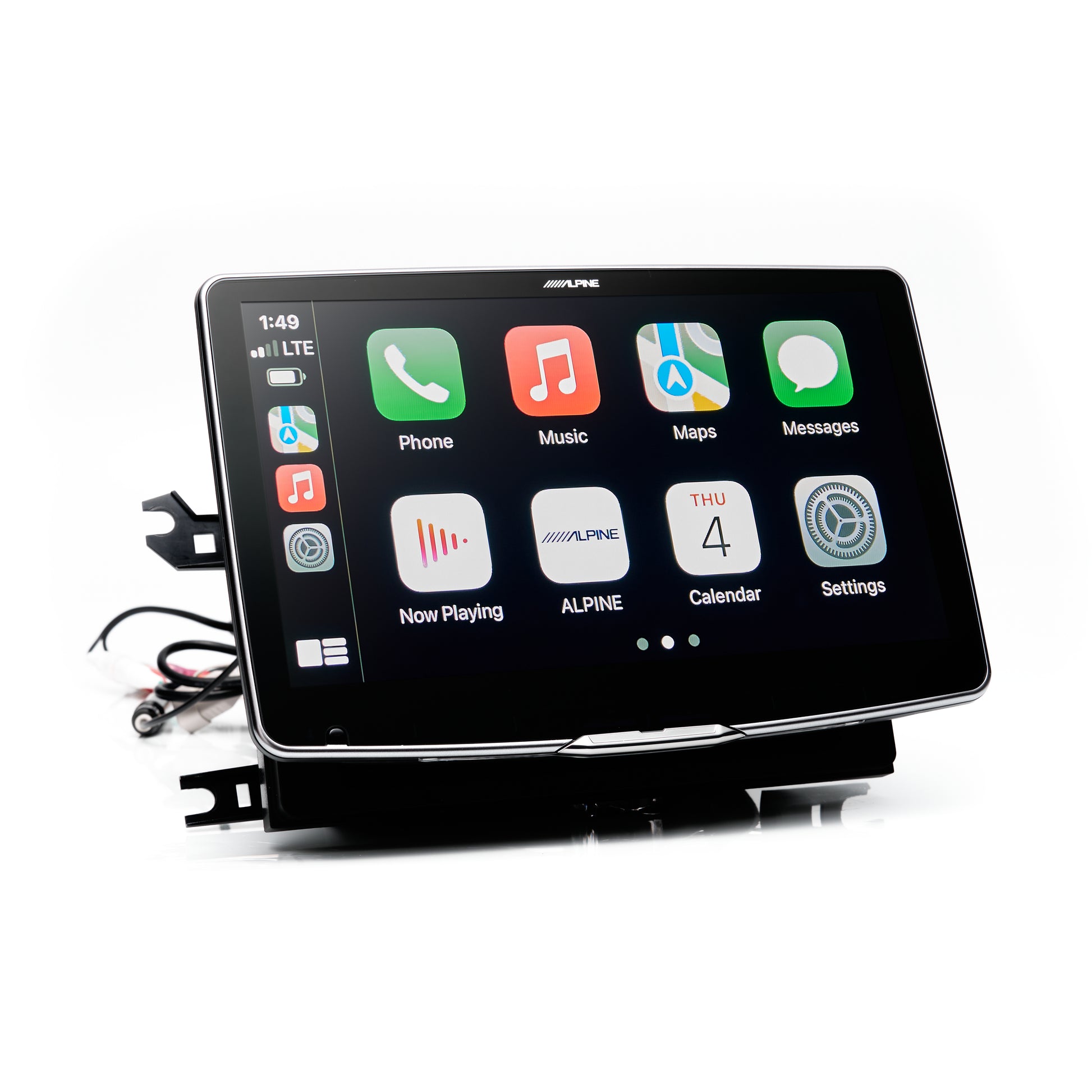

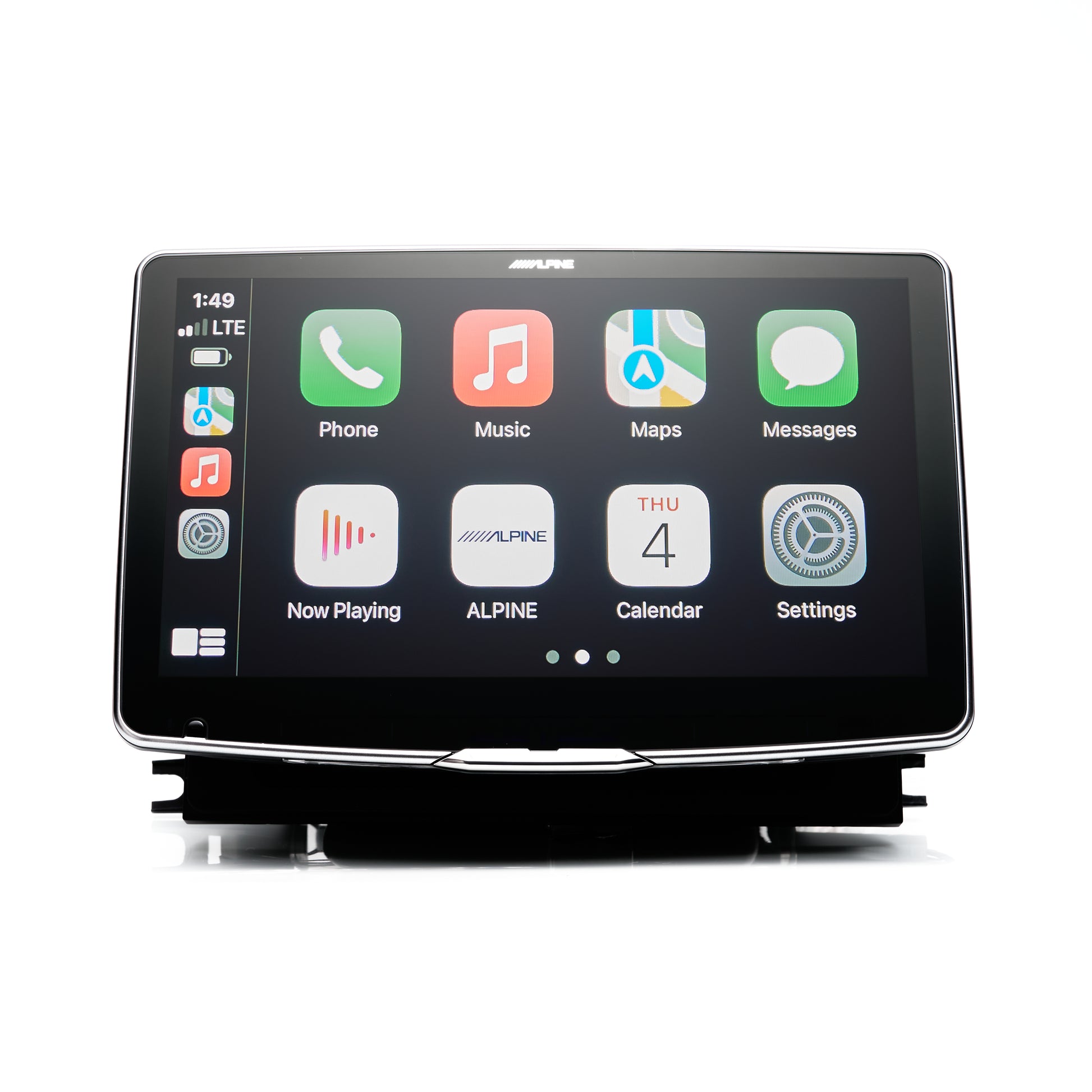

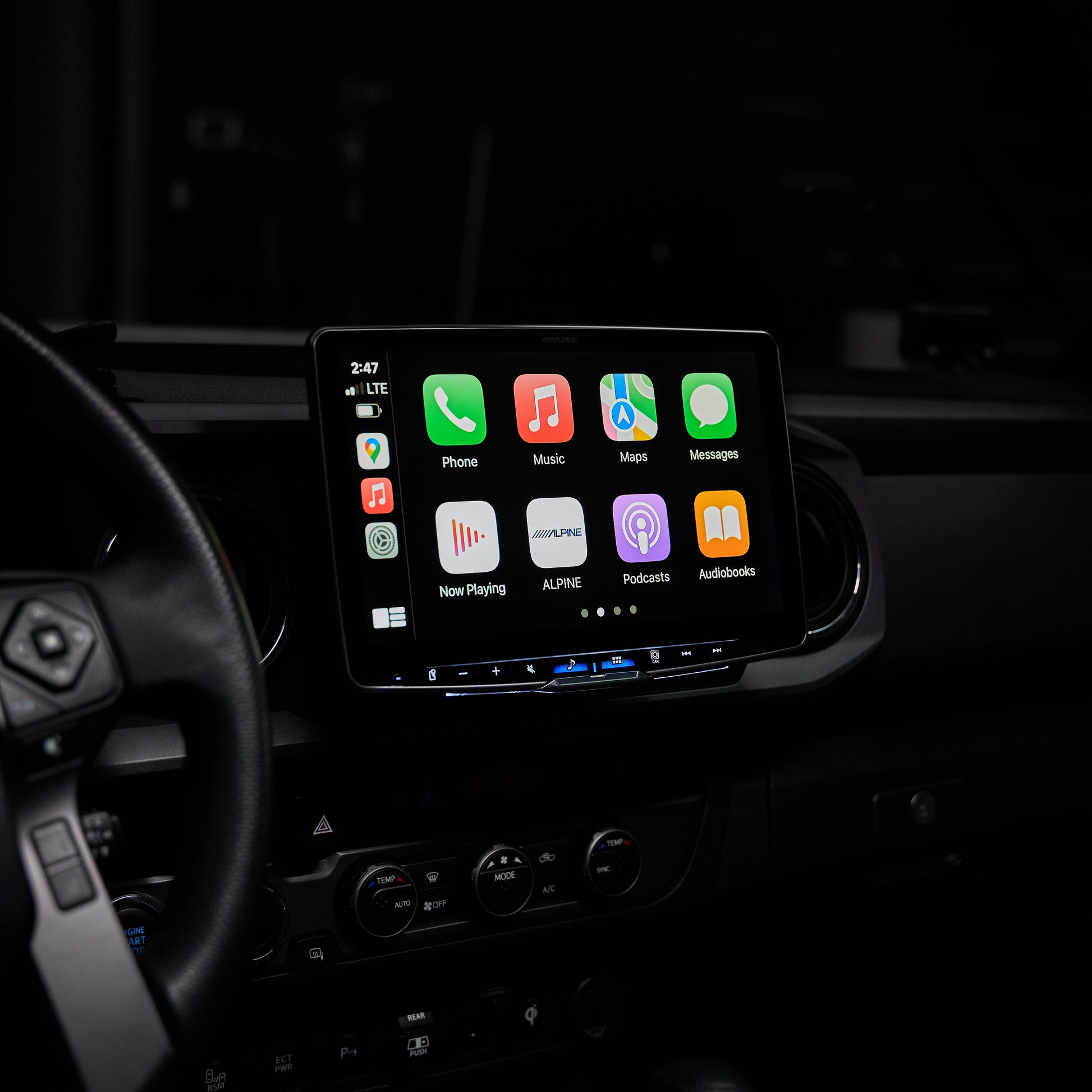

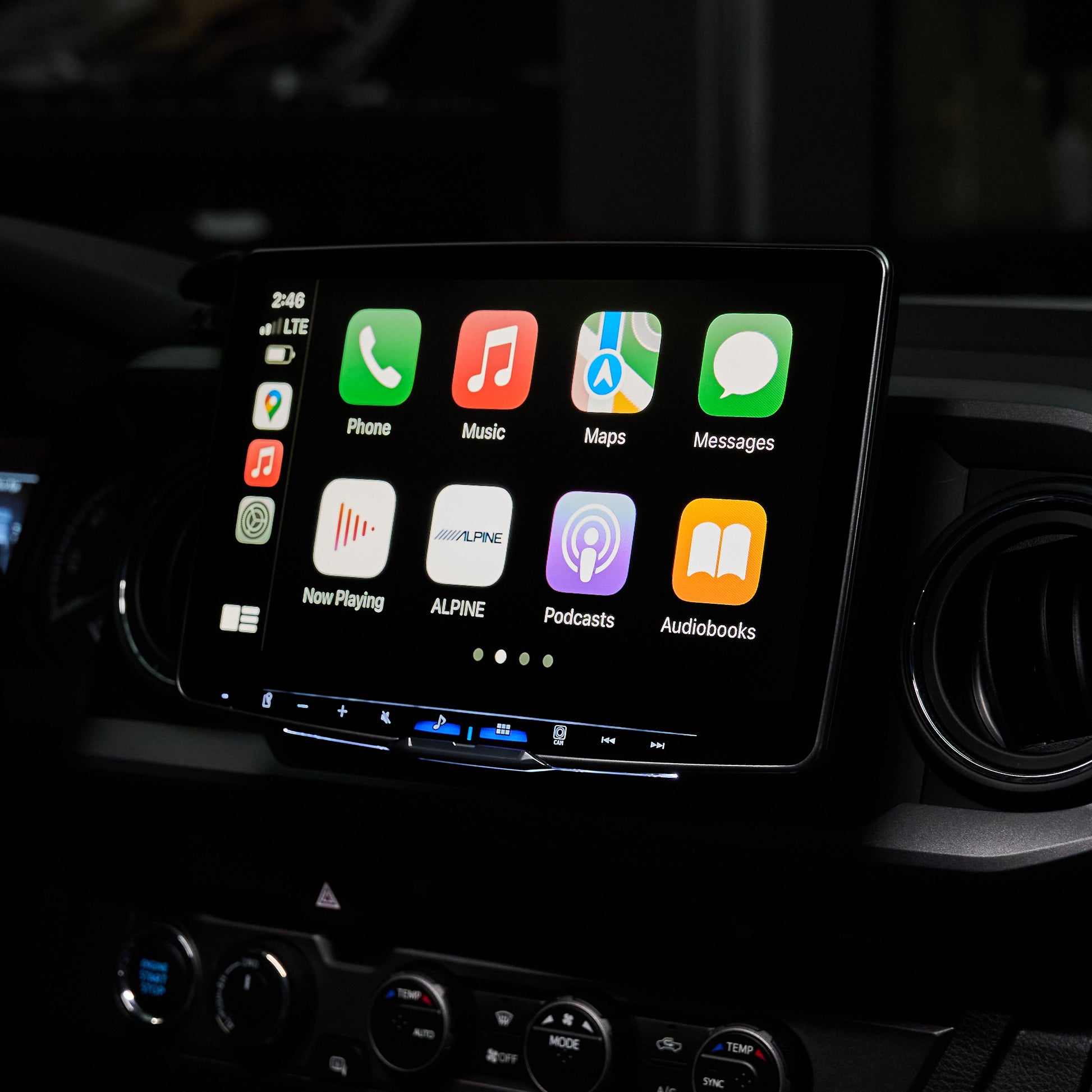

Apple CarPlay (Wired & Wireless)

The iLX-F511 works with Apple CarPlay and let's iPhone users make and receive calls, access text messages, play music, and get directions in a way that allows them to stay focused on the road. Apple CarPlay is accessed through the capacitive touchscreen or the mic button to activate Siri voice control and is compatible with iPhone 5 and later.

Android Auto (Wired & Wireless)

The iLX-F511 includes Android Auto and works with the Google Assistant (requires both a USB cable and Bluetooth connection; requires an Android phone running 5.0 (Lollipop) or higher and the Android Auto app). To access the Google Assistant on Android Auto, say "OK Google" or select the mic button. Google Assistant in Android Auto allows users to play their favorite music, get driving directions to their destination, interact with smart home devices, and reply to text messages - hands-free.

Hi-Res Audio

Experience incredible music detail with Hi-Res Audio Playback. High-precision music reproduction brings out the full potential of every song and makes every drive feel like an intimate recording studio session with your favorite artist. Access your favorite songs on popular Hi-Res streaming services like Apple Music, Tidal, Amazon Music HD, and more. The Alpine Halo11 plays Hi-Res music at it's intended spec of 96kHz/24Bit via a wired USB connection to a smartphone or wirelessly through Bluetooth connection. You can also purchase and download Hi-Res music files onto a USB drive from platforms like HDtracks and plug directly into the Alpine Halo9 for Hi-Res playback.

Onboard Audio Tuning

The Alpine Halo11 has on-board tuning features including a 13-band parametric EQ per channel, for continuous frequency control. The 6-channel time correction ensures that music is staged properly in the front and center of the vehicle. If more power is needed, additional amplifiers can be added using three sets of true 4V preamp outputs with front, rear, and subwoofer control.

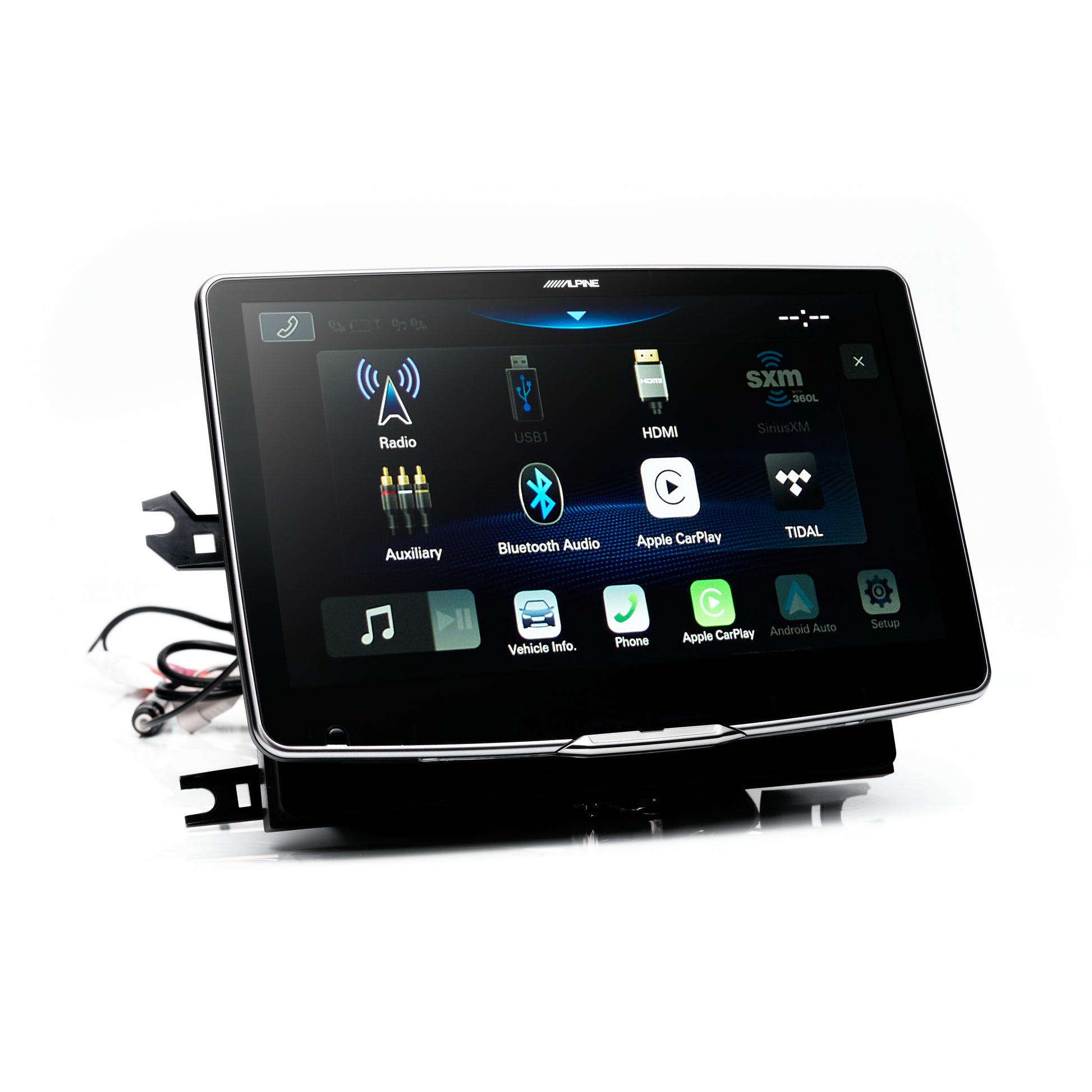

Hi-Res Music Streaming With Tidal

Experience music as the artist originally intended with the industry's first first Tidal integration. The iLX-F511 allows you to access select TIDAL features directly on the head unit and receive a high-res streaming experience with the TIDAL catalog of over 90 million songs. Lossless audio and high-fidelity music options are also available for TIDAL HiFi and HiFi Plus Members, for superior sound quality that elevates the music experience. A TIDAL subscription is required and sold separately. To access TIDAL on the Alpine Head Unit, the head unit must be tethered to a mobile or smartphone hotspot. Data rates may apply.

Increased Adjustability

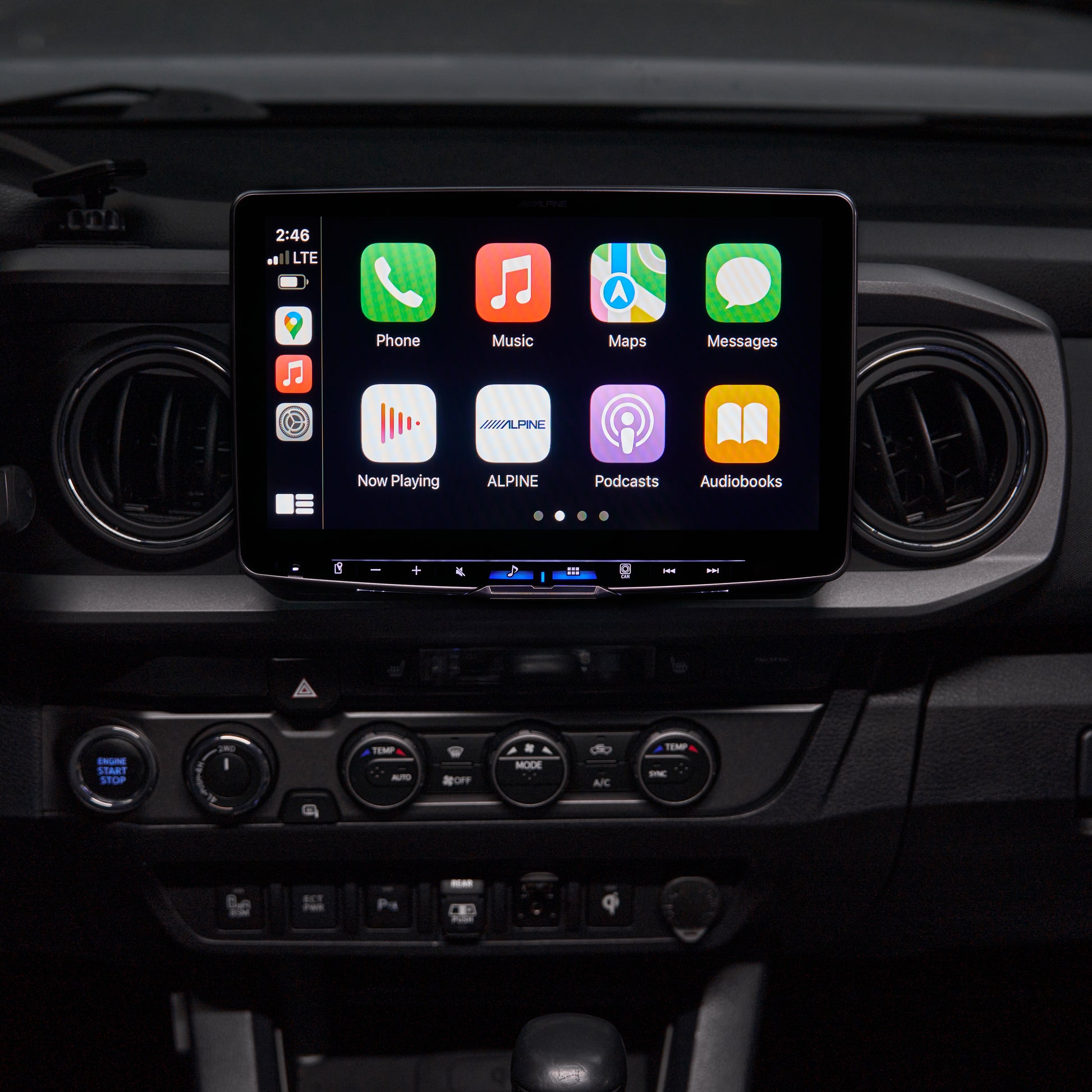

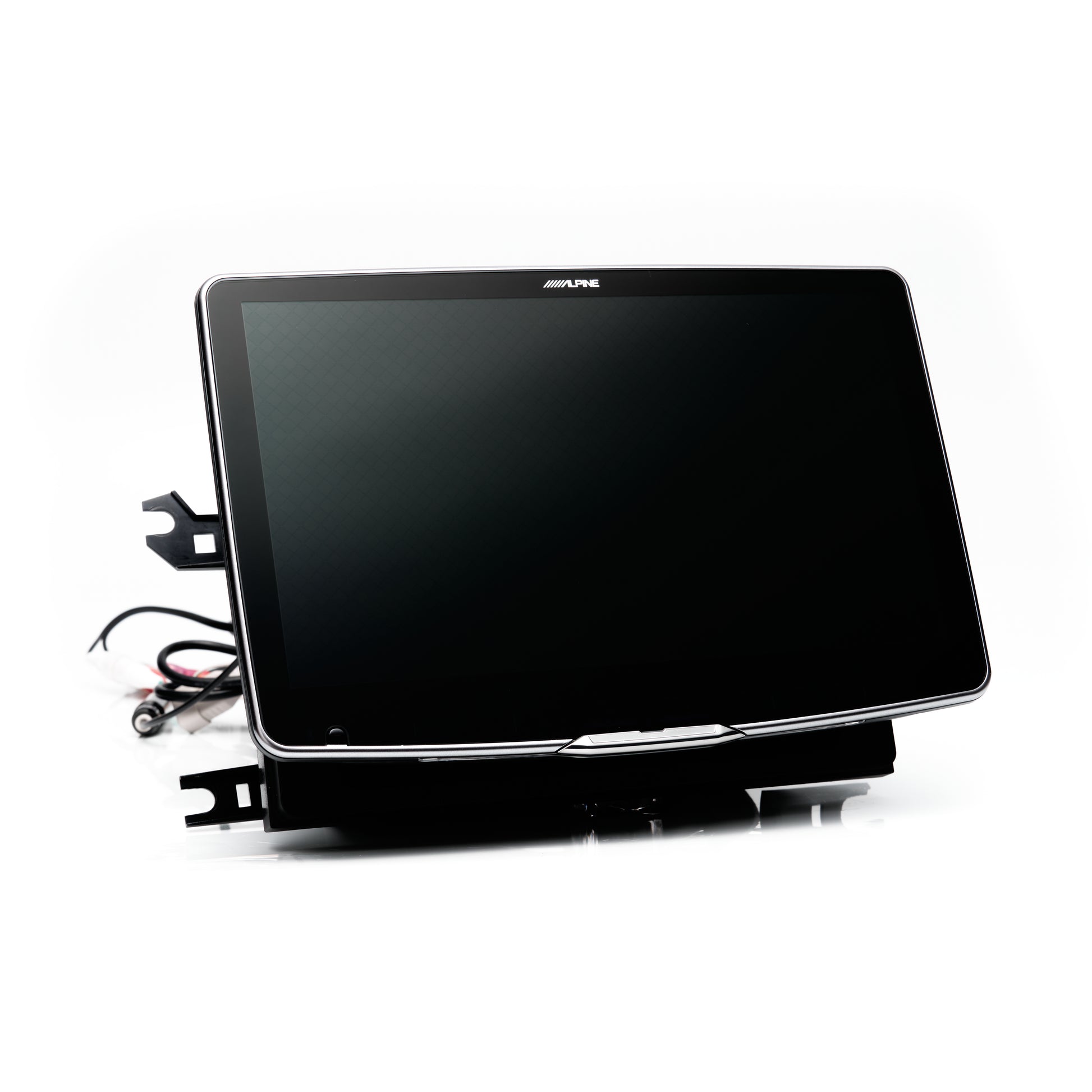

The screen is attached to an adjustable mount on a single-DIN chassis that's designed to fit in your Tacoma. Once the unit is installed, the screen can be easily adjusted simply by tilting the screen with your hands.

Keep Factory Controls

The Alpine Halo11 is compatible with, and will include, a pre-flashed for your Tacoma iDatalink Maestro Module to retain and display vehicle information on the large 9" screen. Your full factory steering wheel controls and backup camera / 360 camera (if applicable) will be retained. Information such as tire pressure, engine codes, MPH, RPM, Intake Air Temp and more will be available like never before on your Alpine head unit!

Add A Rear Camera or Front Camera

The Alpine Halo11 includes two camera inputs to add a front, side or rearview camera. The rearview camera includes a distance guide display that overlays guidelines onto the screen for ease when moving in reverse.

Dash Cam Integration

Take driving safety even further by connecting your Alpine Halo11 with the DVR-C320R Premium 1080P Front and Rear Dash Camera with built-in drive assist. View real0time and recorded drives in high definition on your Alpine Halo11, plus receive assist features that help get you to your destination. (sold separately or add to your bundle above)

Quick Sound Control

The new RUX-H02 Alpine Halo Volume & Subwoofer Controller easily mounts to the Alpine Halo Display and allows quick-access controls to the subwoofer and main volume through a wireless Bluetooth connection. The sleek, tapered lines and silver trim of the RUX-H02 compliments the Alpine Halo Display design.

SiriusXM With 360L

Alpine is the first aftermarket car audio company to offer SiriusXM-Ready® head units enhanced with 360L. SiriusXM with 360L combines satellite and streaming features, to give you the widest variety of ad-free music, and the best in sports, news, talk, and comedy. SiriusXM-Ready® with 360L is available by adding our SiriusXM add on option in the product options dropdown above.

Easily add or maintain your SiriusXM subscription to your Trail Grid Pro Alpine Bundle by selecting to maintain or add SiriusXM to your bundle above!

With SiriusXM’s compact SXV300V1 tuner, you can liven up your ride with your favorite satellite radio programming. Small enough to fit neatly on the rear chassis of our Alpine bundles, the SXV300V1 will be securely stowed and plugged in prior to shipping your bundle.

Special Offer: $70 rebate with a new subscription (via $70 SiriusXM Visa® Prepaid Card and choose your offer: 3 months free or $99 for 12 months). Click below for more details!
