Toyota Tacoma Front Frame Cross Member | '24+ Tacoma

2024–Current Toyota Tacoma Front Frame Cross Member
Fits SR, SR5, PreRunner, TRD Sport, and Limited trims without i-FORCE MAX

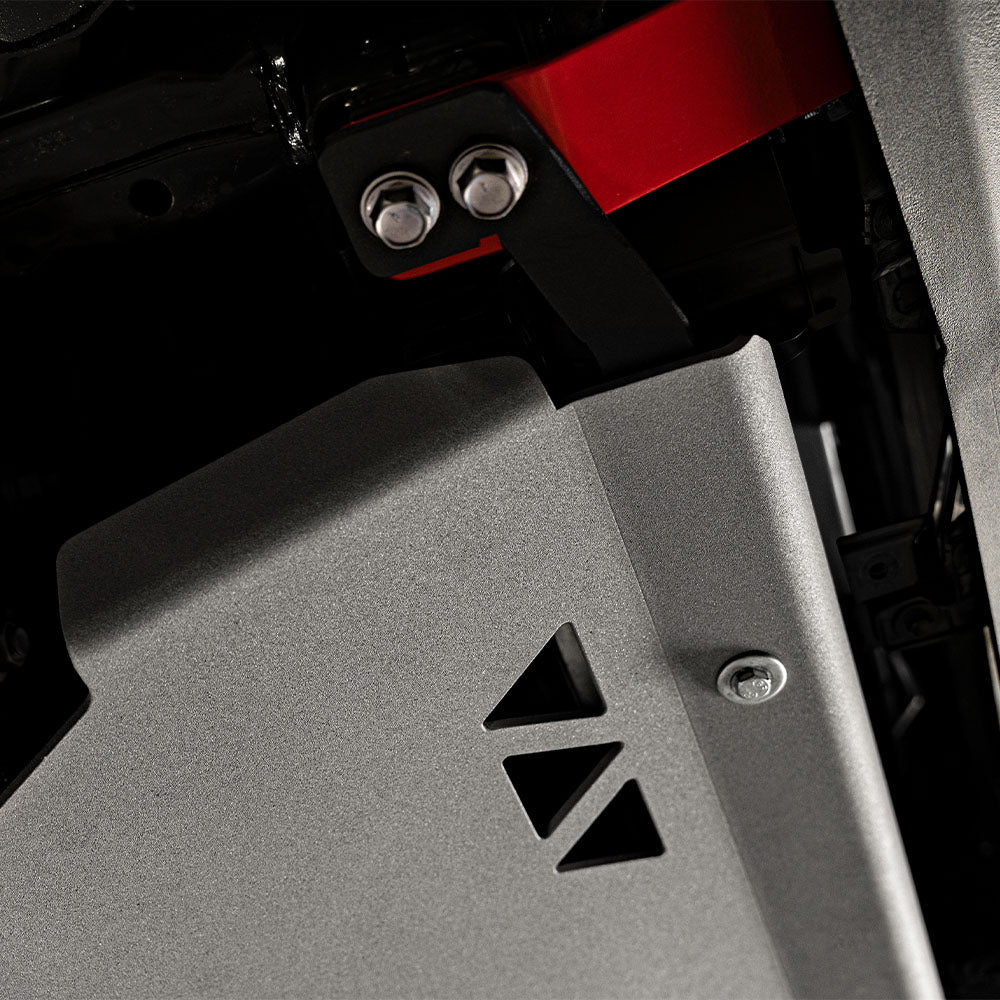

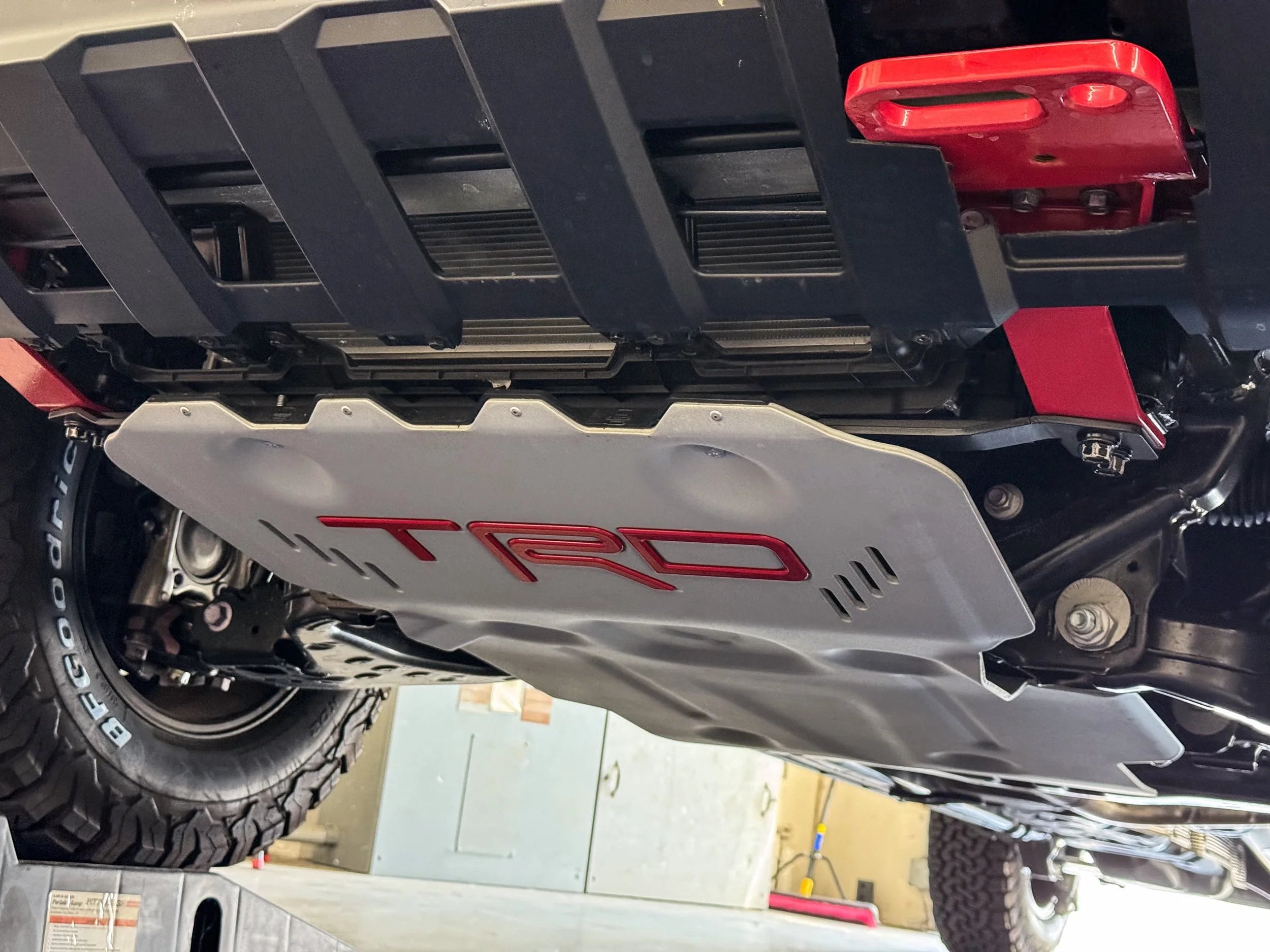

Fourth-generation Tacoma trims that are not off-road focused come from the factory without the welded front frame cross member found on TRD Off-Road, TRD Pro, and Trailhunter models. Without this cross member, you cannot properly mount OEM TRD Pro or Trailhunter skid plates, NYTOP skid plates, or many popular aftermarket skid plate options due to two missing mounting points.

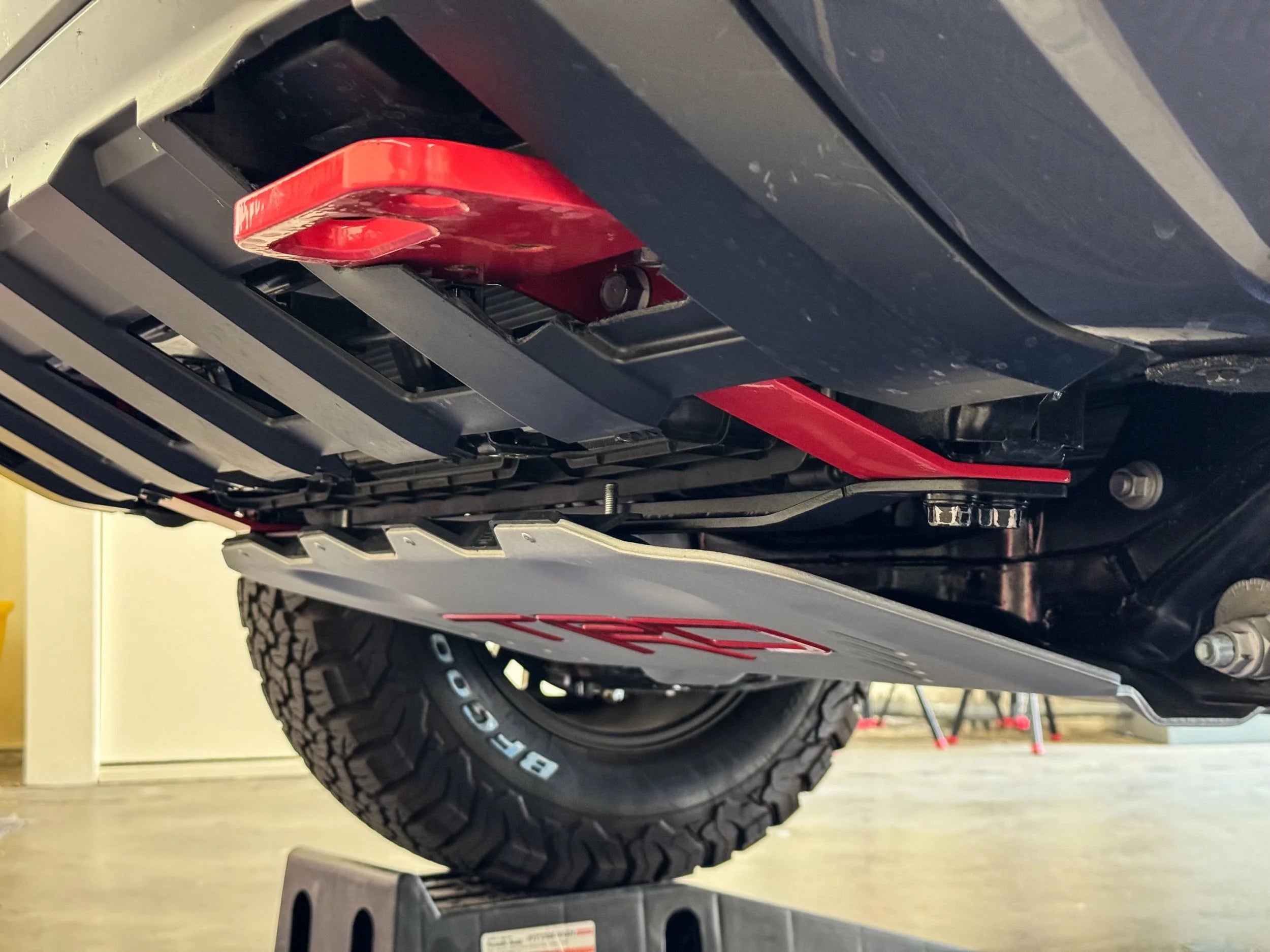

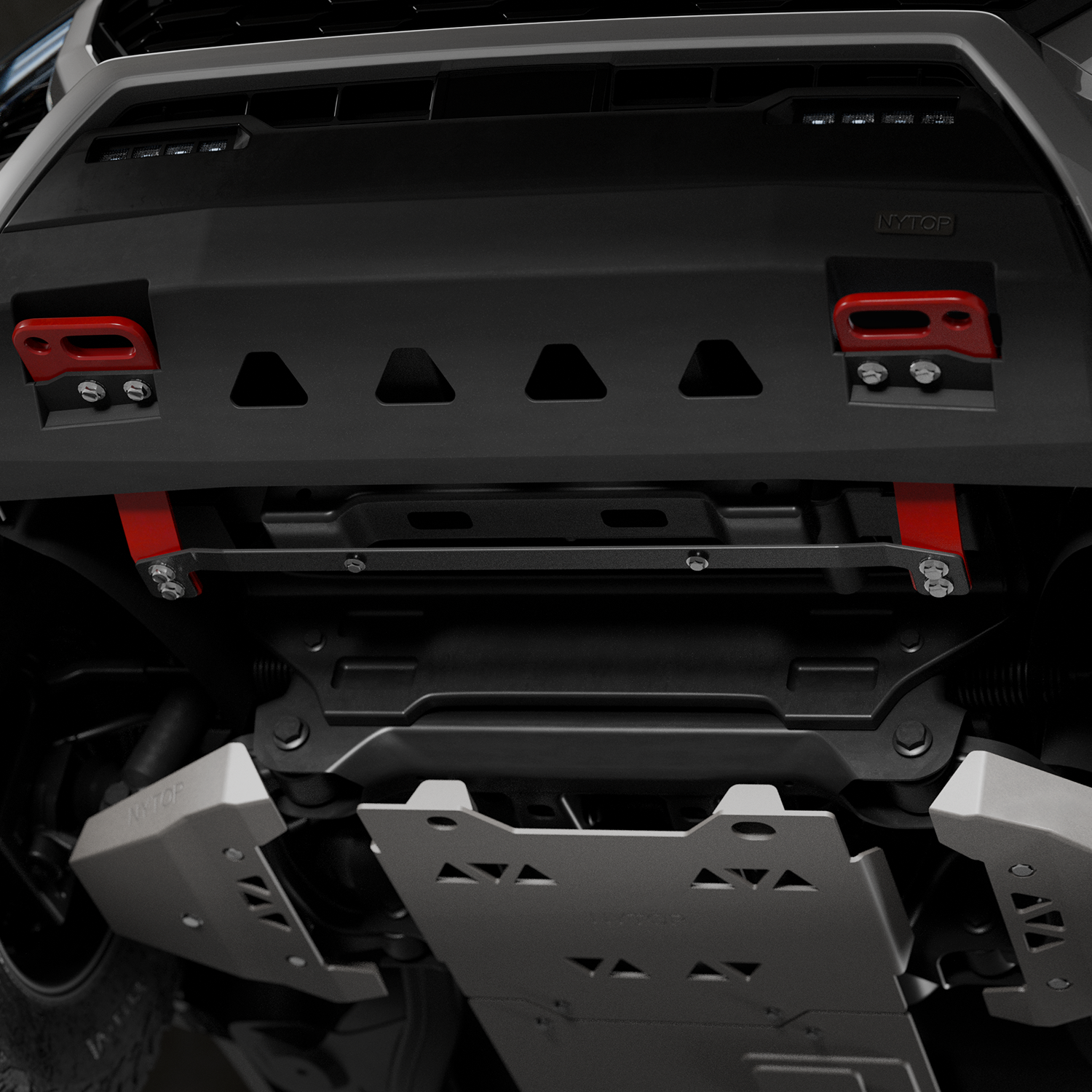

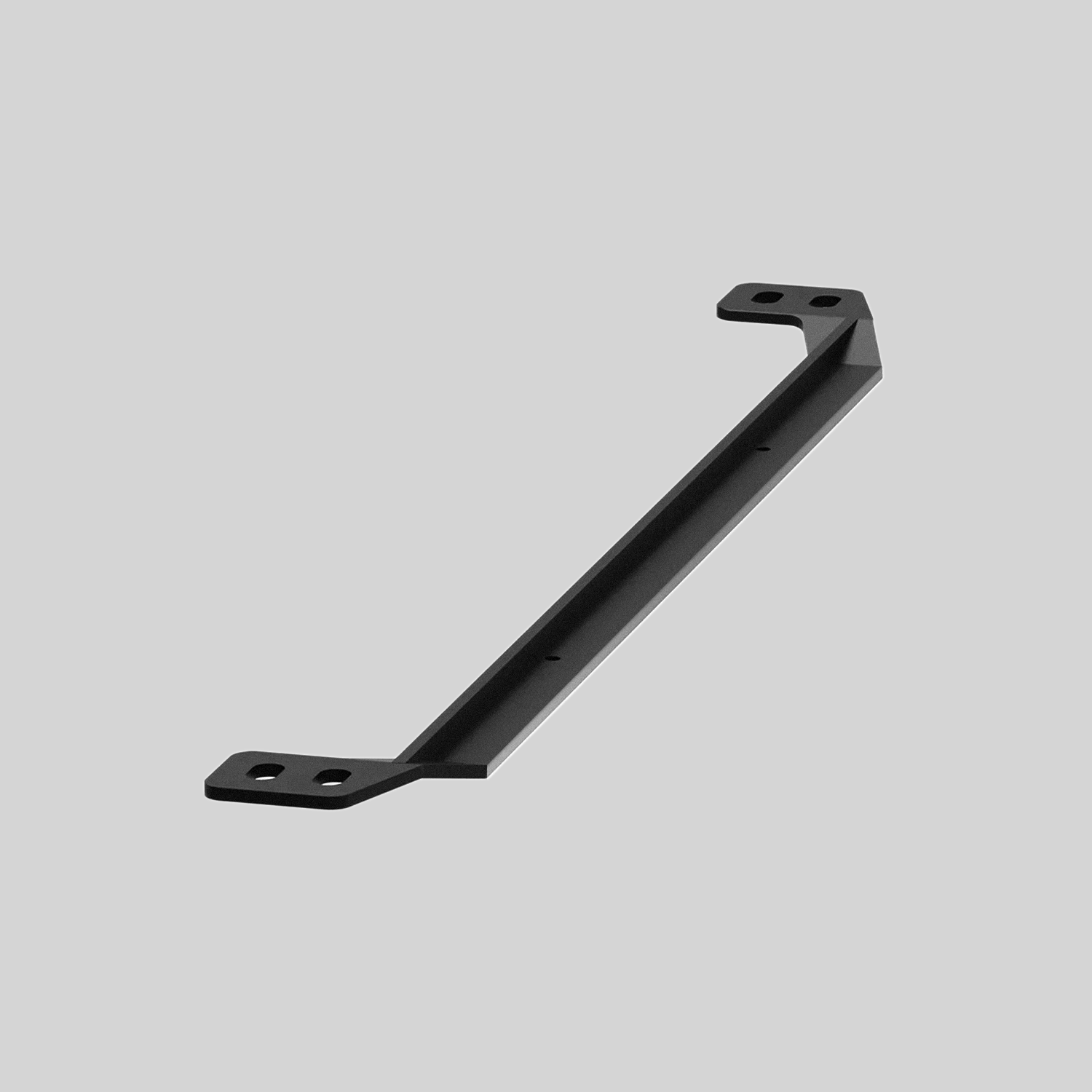

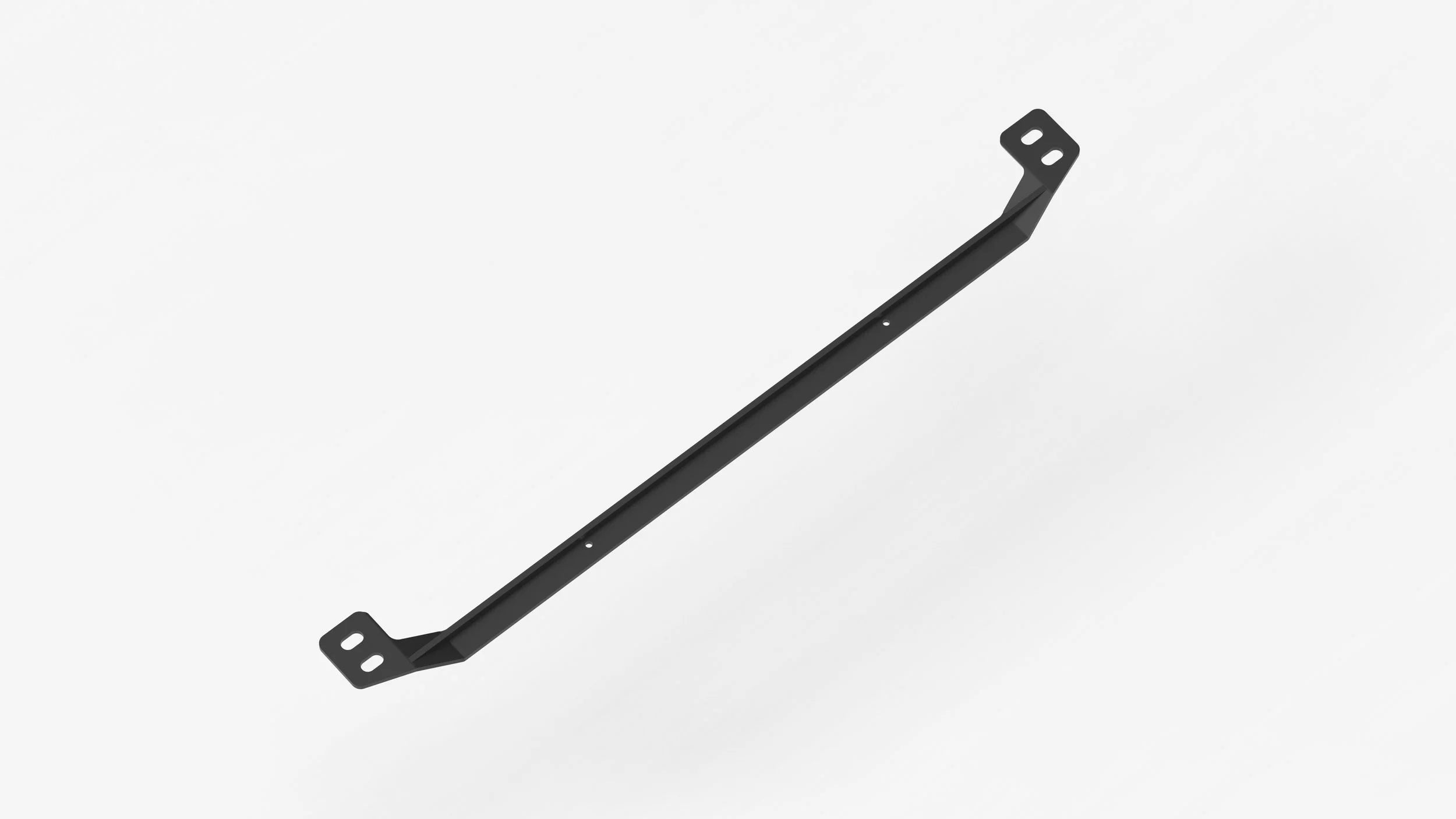

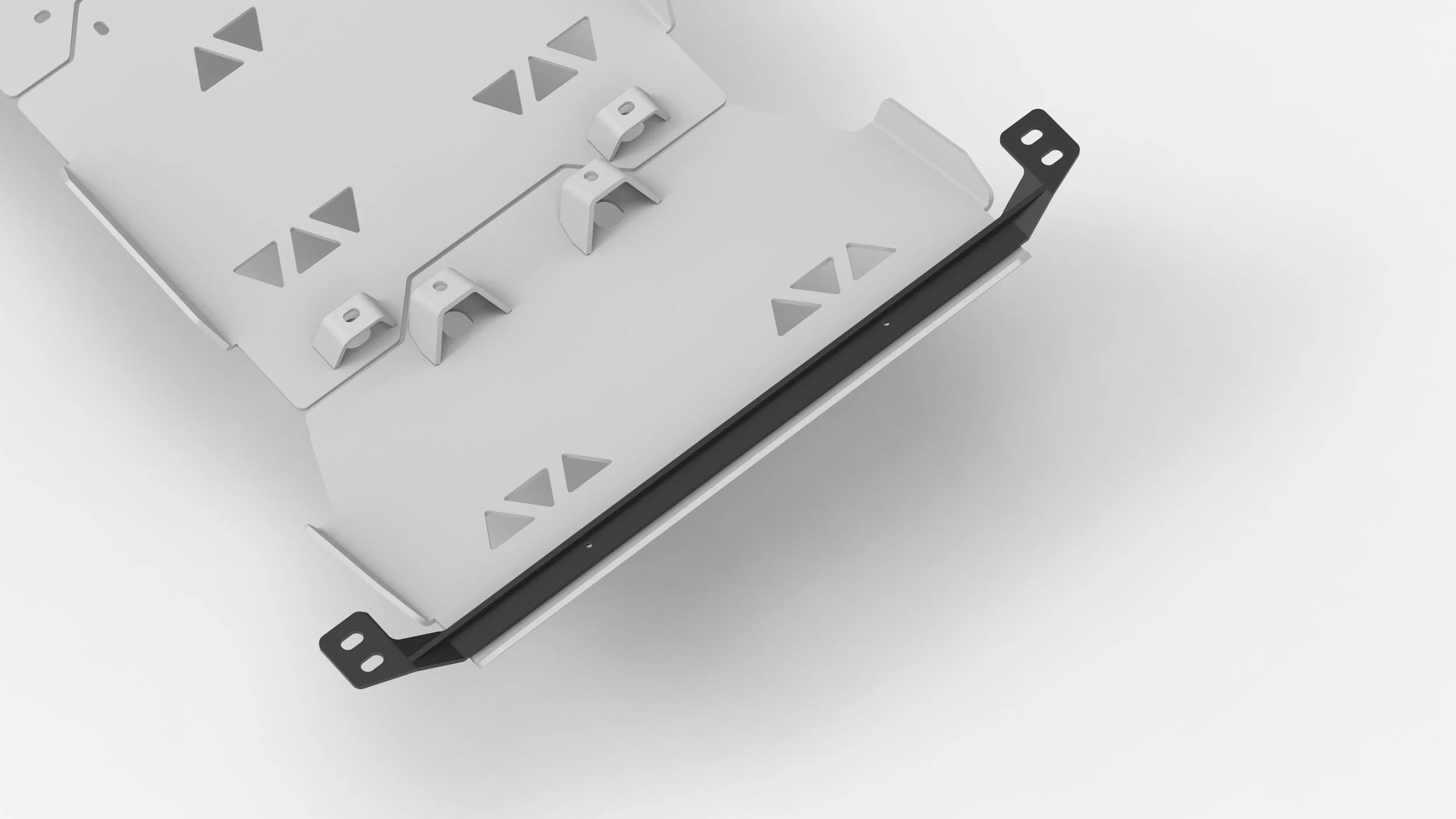

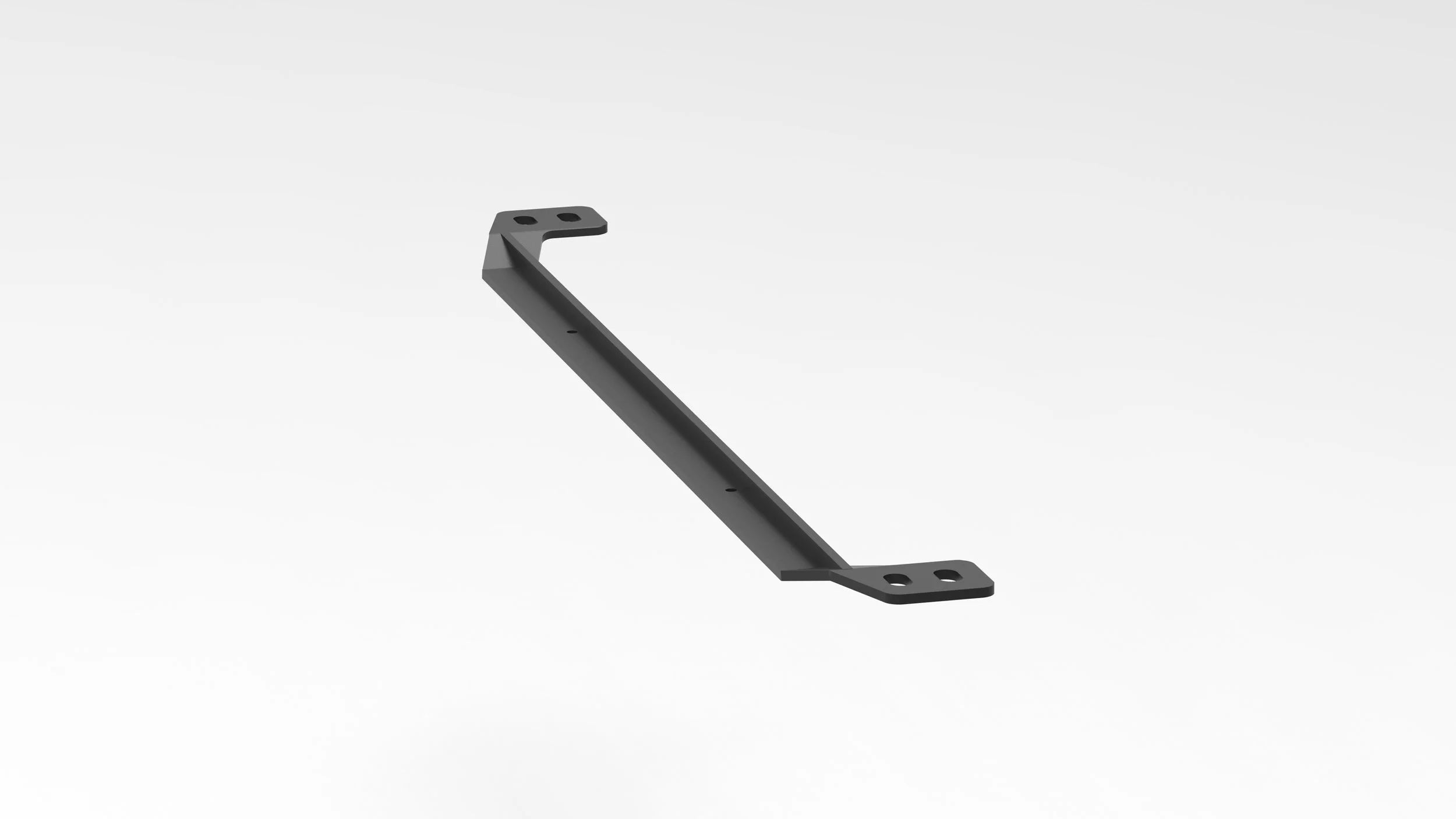

This Toyota Tacoma Front Frame Cross Member restores those missing M8 mounting holes, allowing proper installation of OEM and aftermarket skid plates while also adding increased chassis strength and front-end damage resistance. Precision TIG welded from ¼-inch high-strength steel and finished in a durable black powder coat, this cross member is built to handle real-world use on and off the trail.

Design & Engineering

• Restores missing skid plate mounting points on non off-road Tacoma trims
• Adds two M8 mounting holes for OEM and aftermarket skid plates

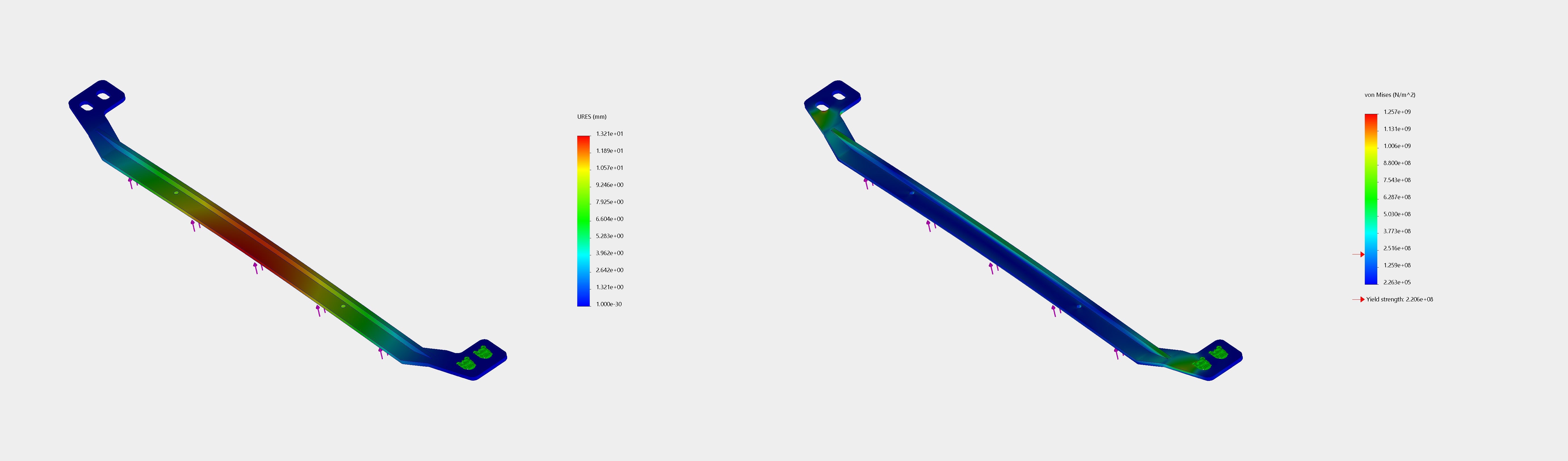

• Improves chassis rigidity and impact resistance
• TIG welded from ¼" high-strength steel
• Durable black powder coat finish
• Product Weight: 4 lbs

Installation & Usage

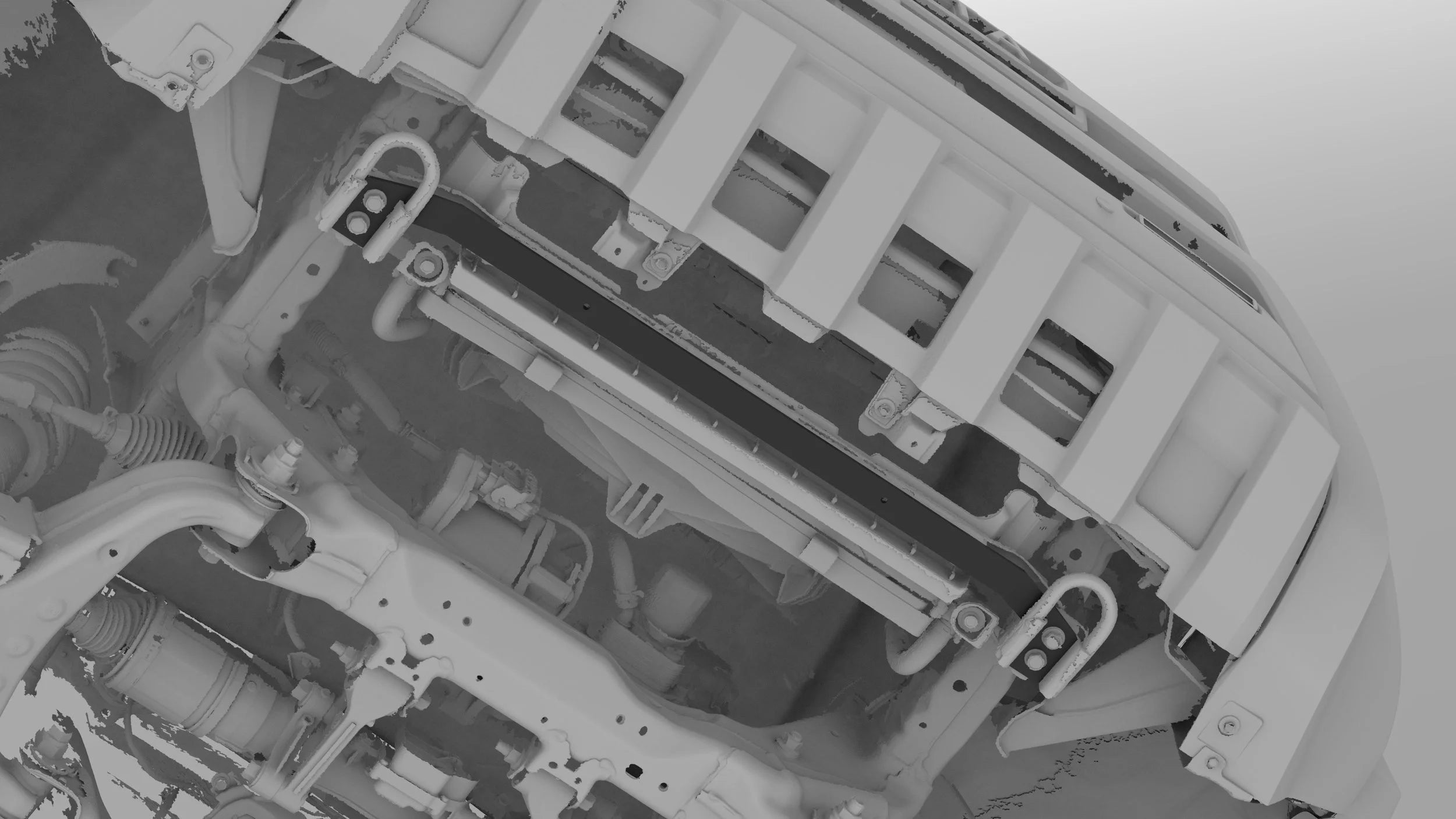

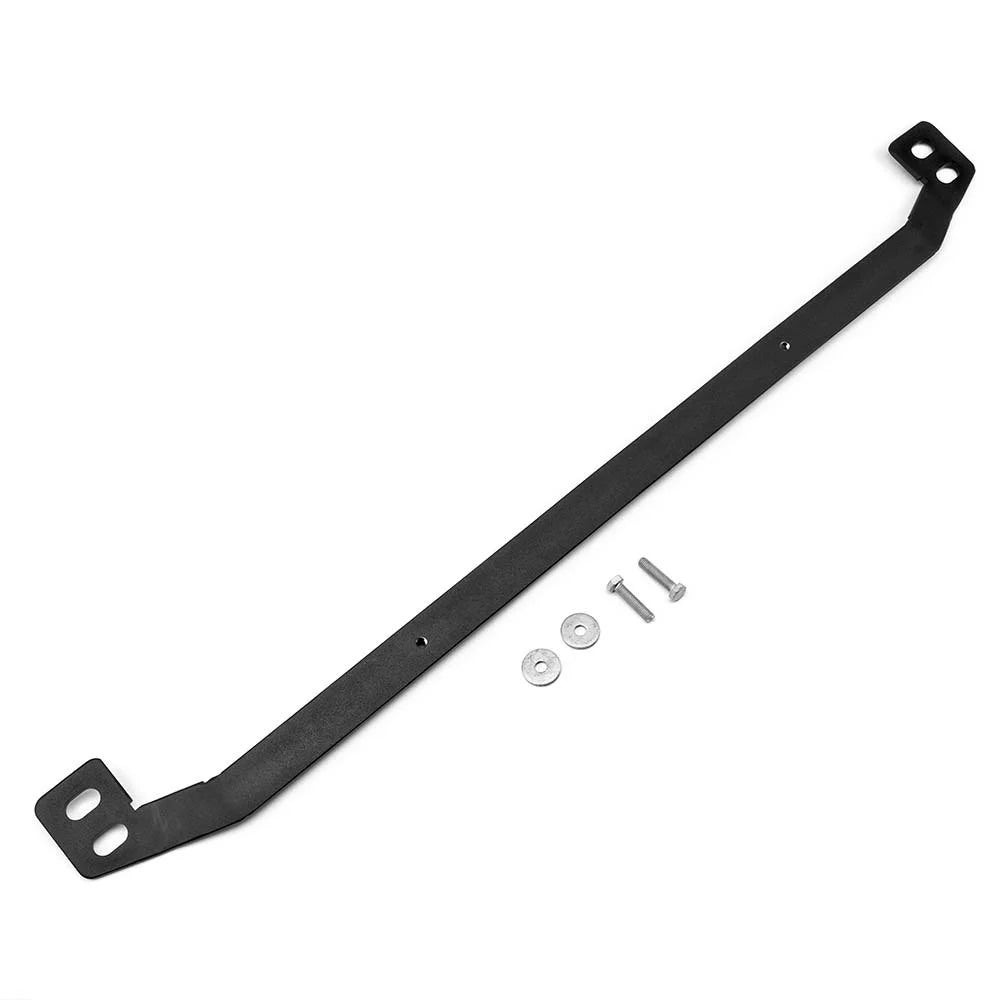

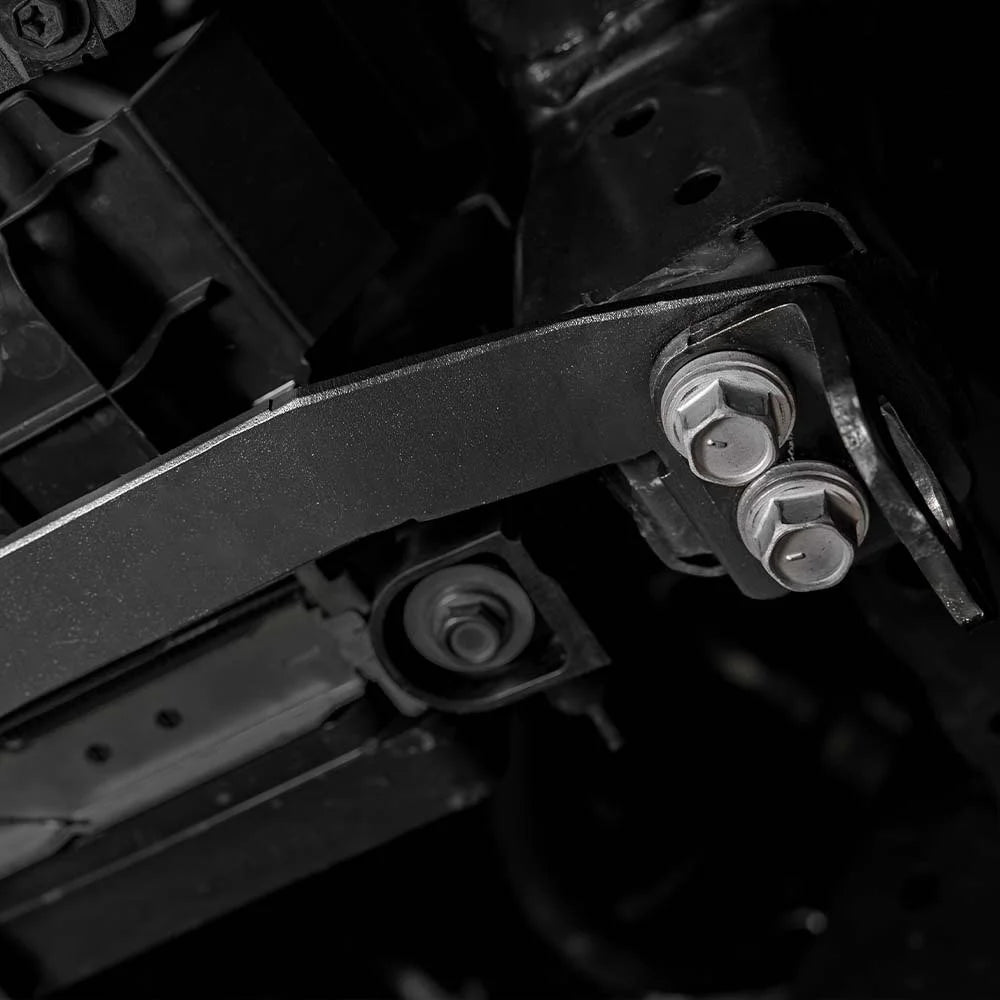

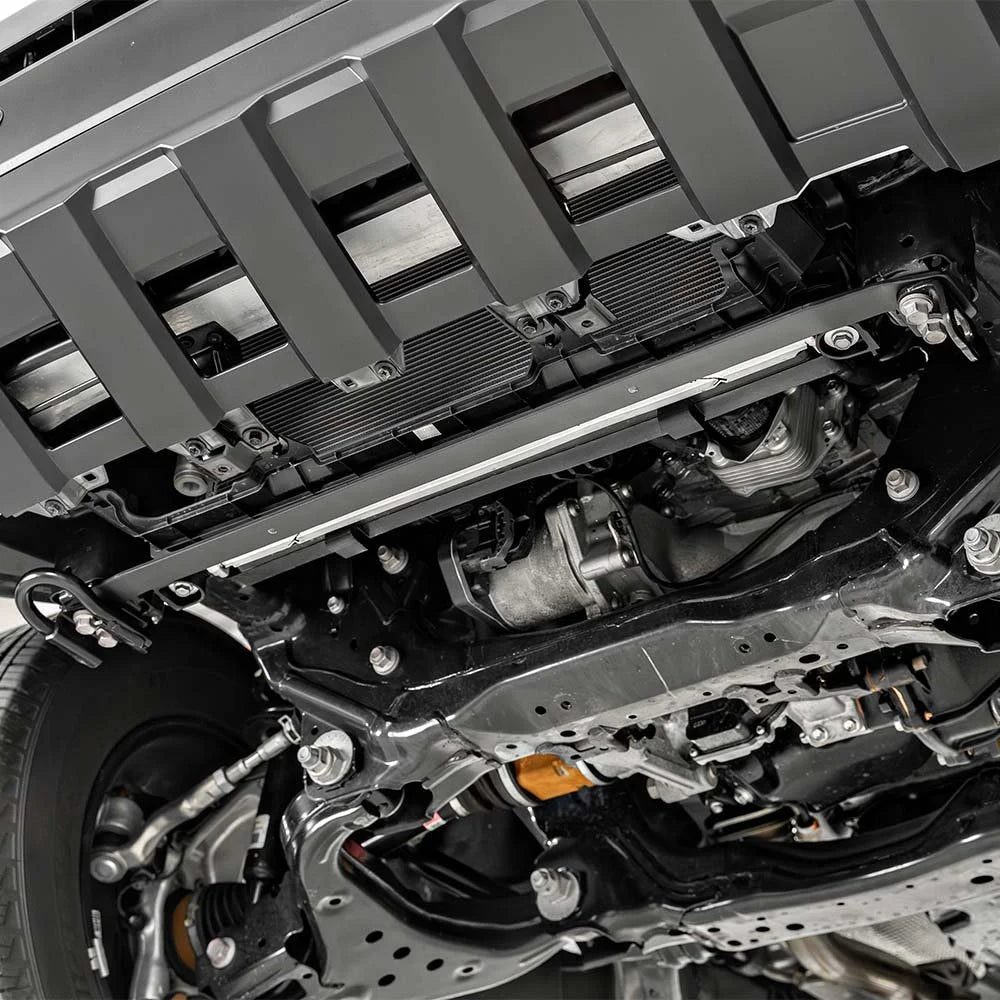

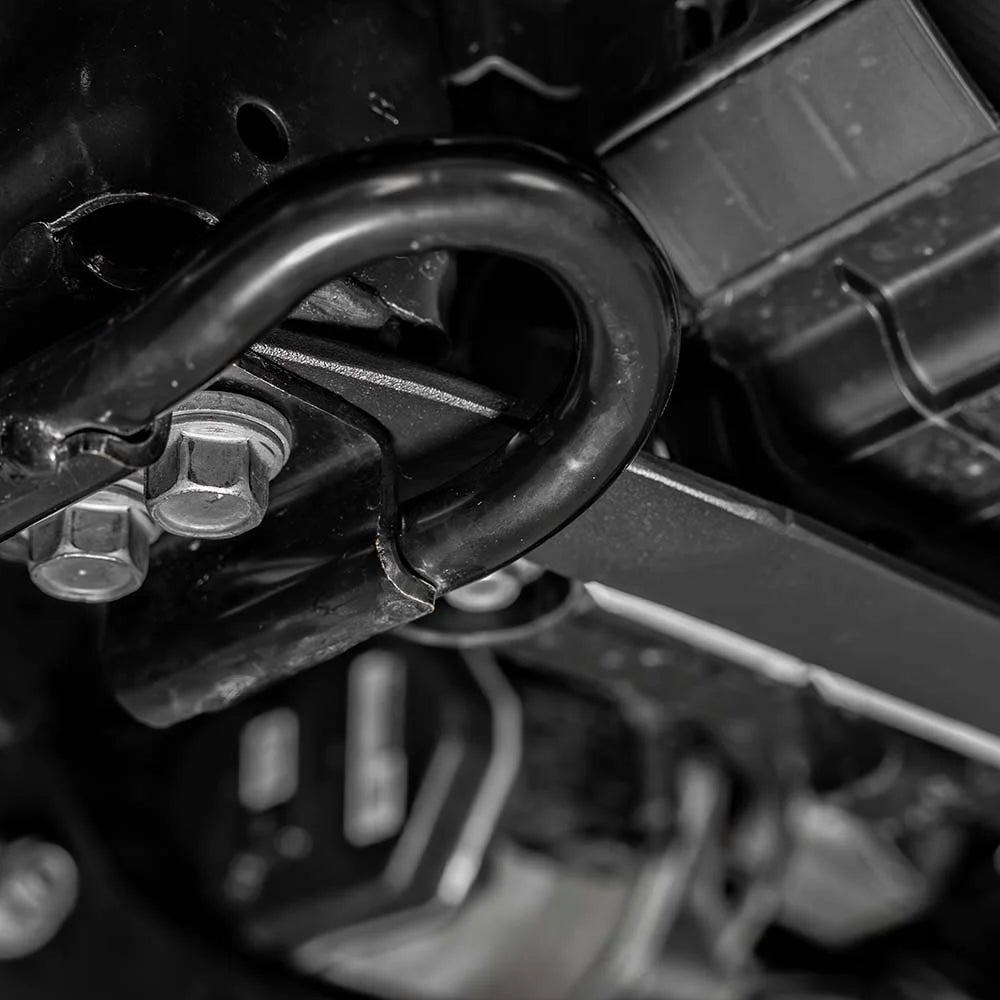

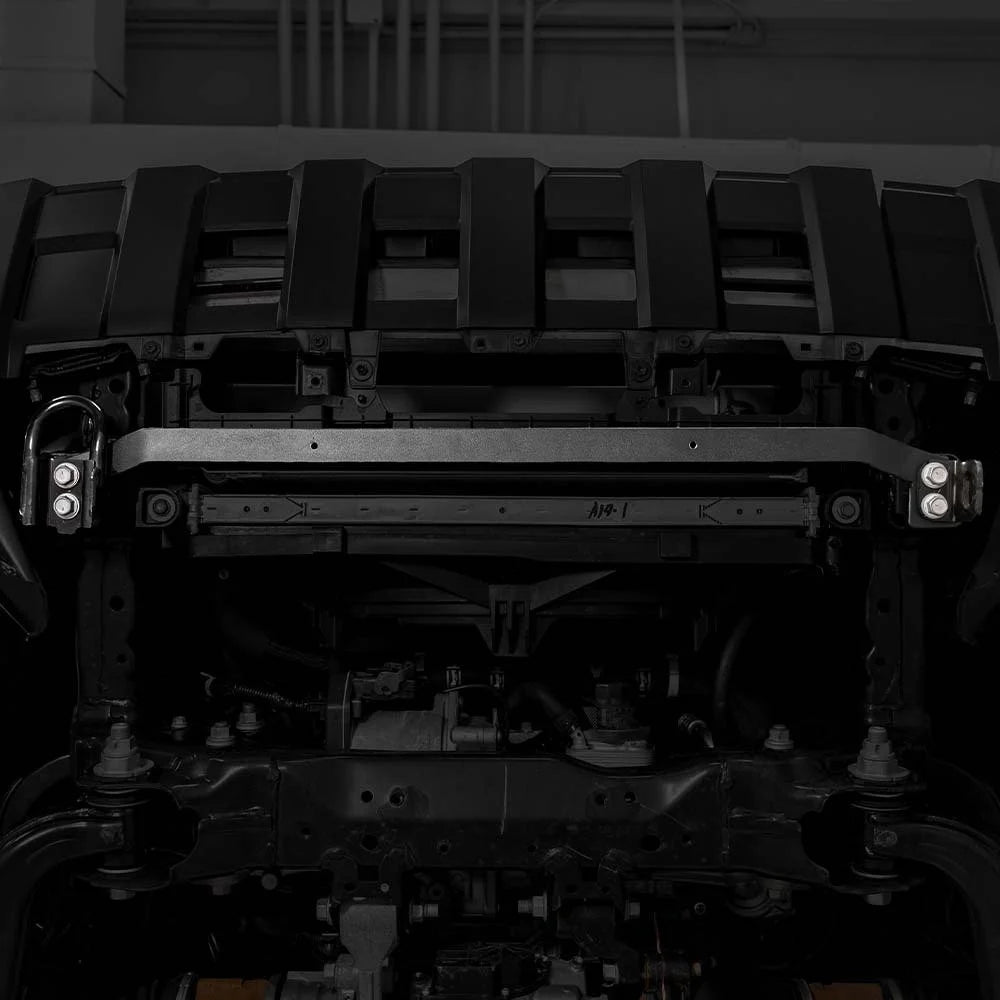

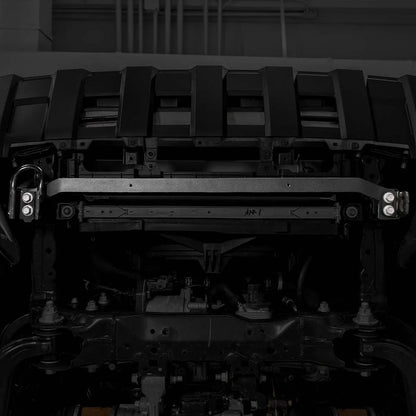

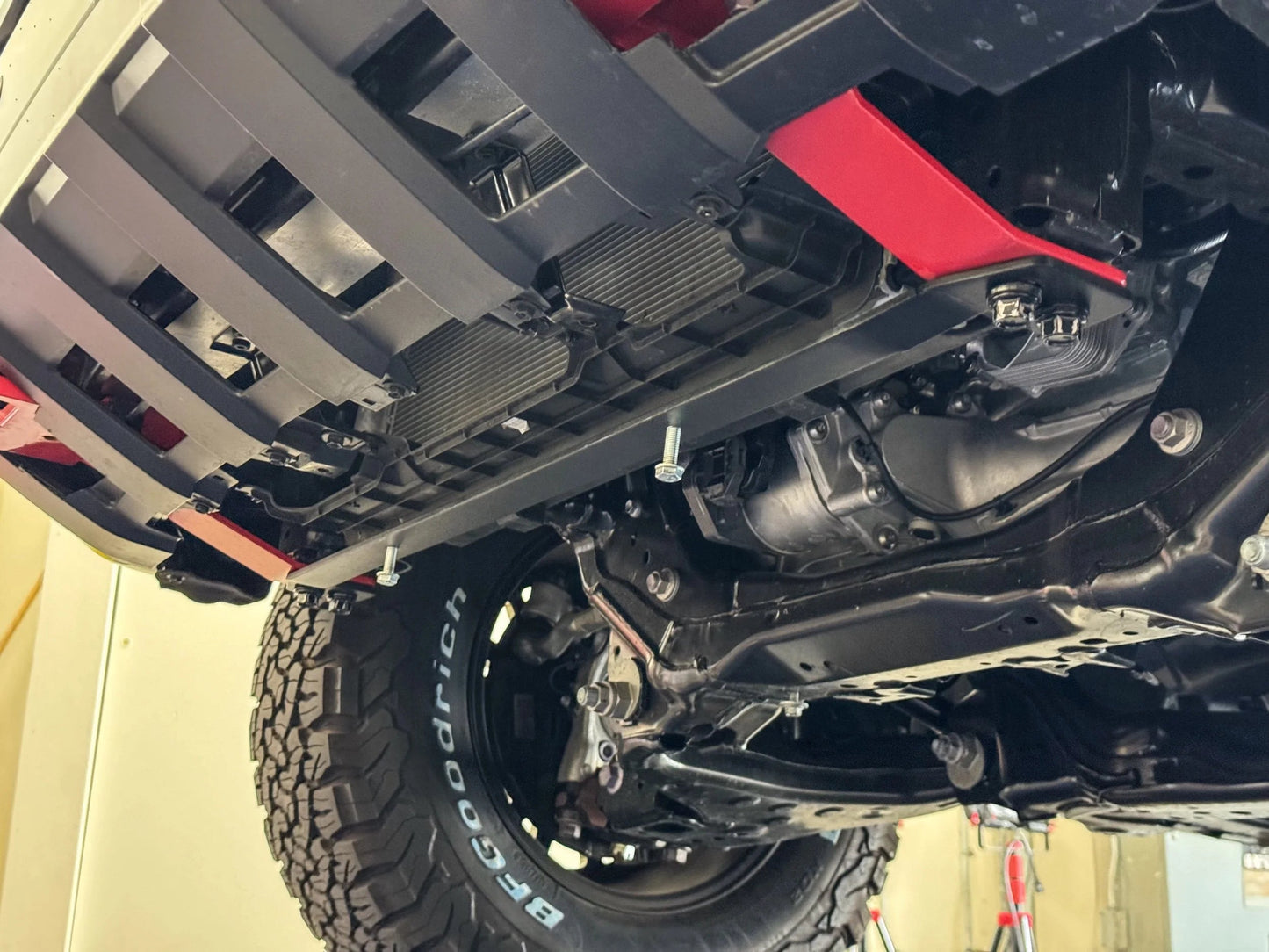

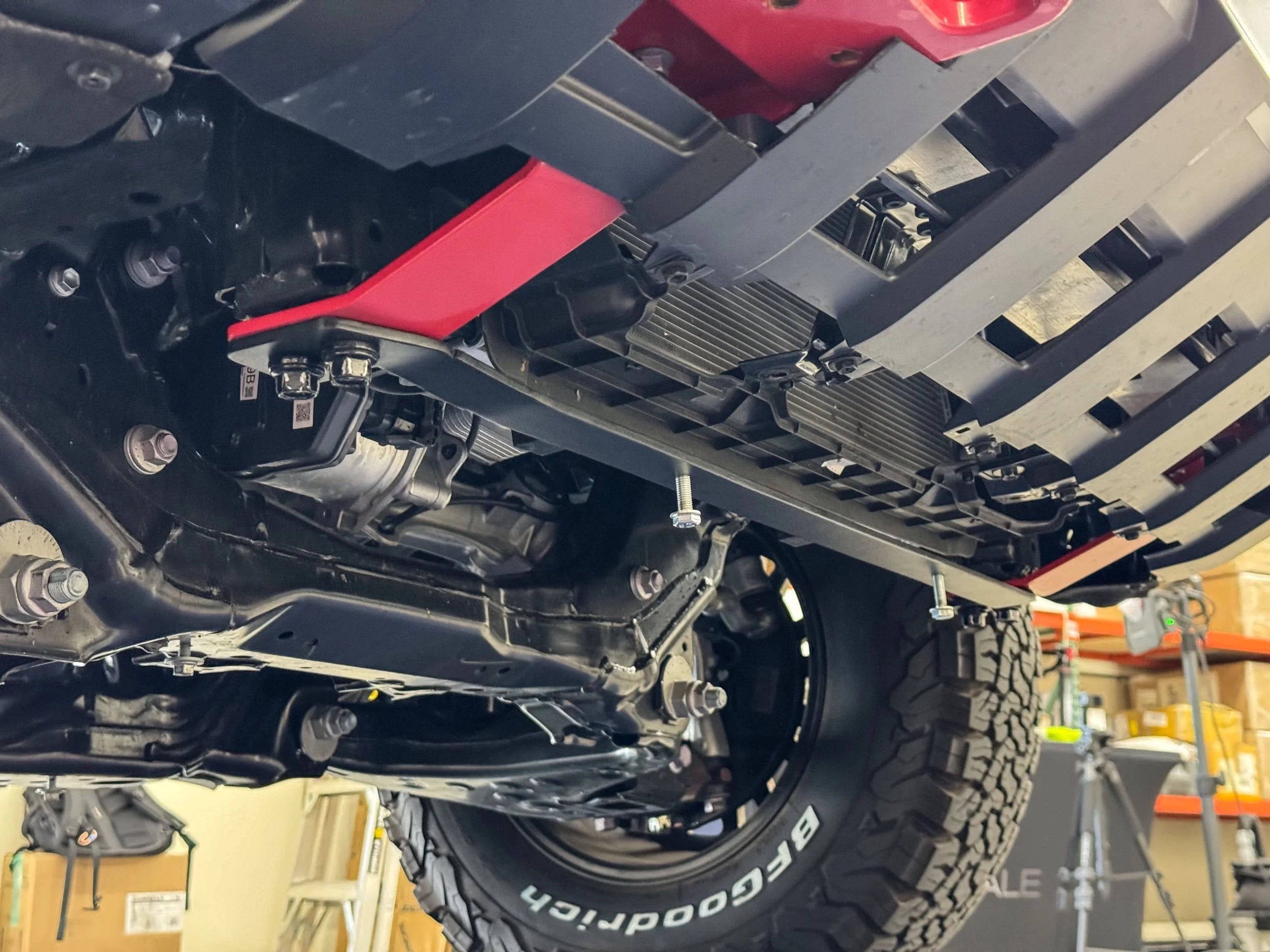

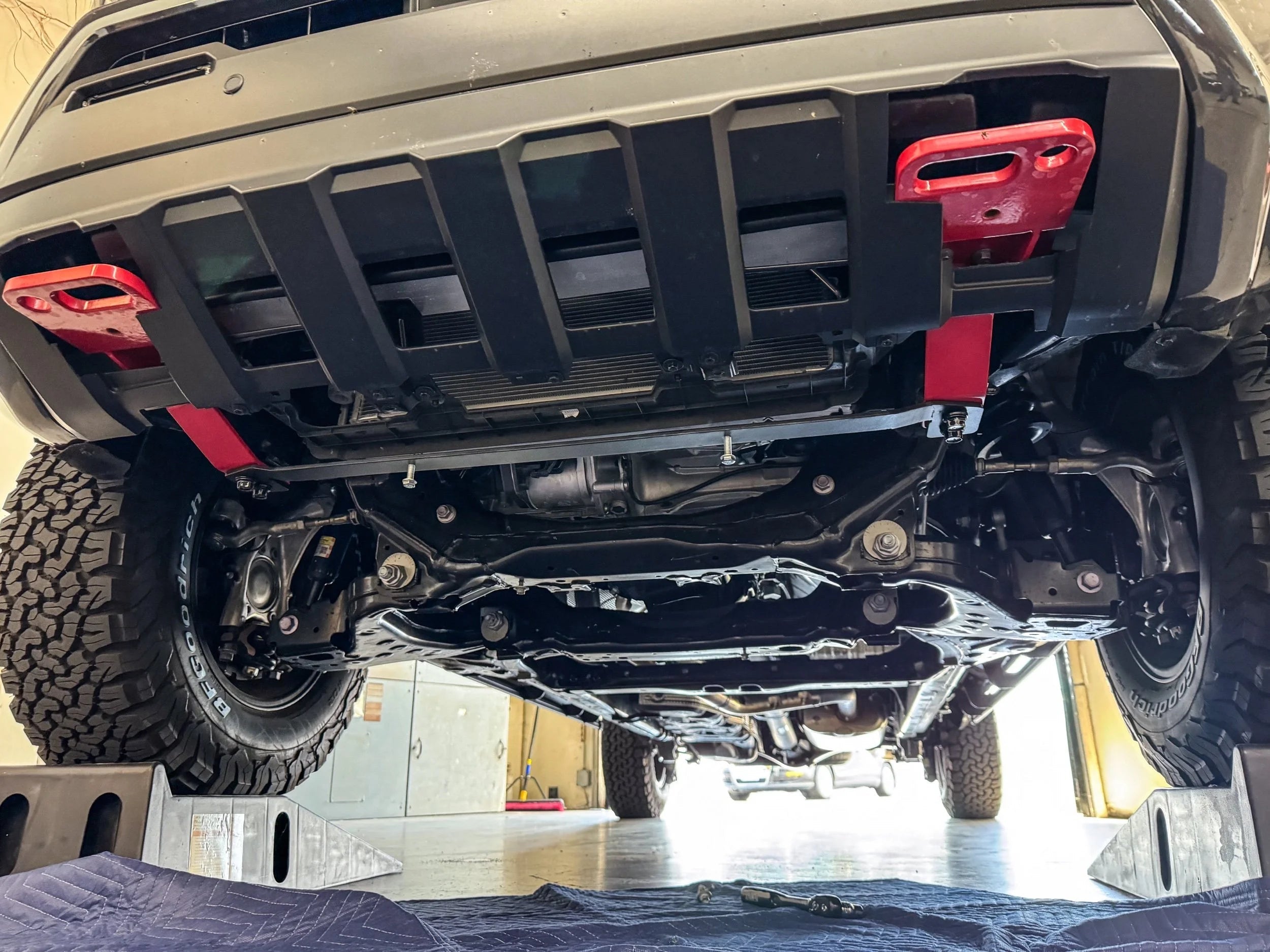

The Front Frame Cross Member bolts directly into place using factory mounting locations for a clean, secure fit. Two M8 bolts are included for mounting OEM or aftermarket skid plates.

Torque Specifications:

• M12 bolts: 75 ft-lbs (101 Nm)
• M8 bolts: 21 ft-lbs (29 Nm)

A must-have upgrade for Tacoma owners looking to add proper skid plate protection and factory-correct mounting points.
