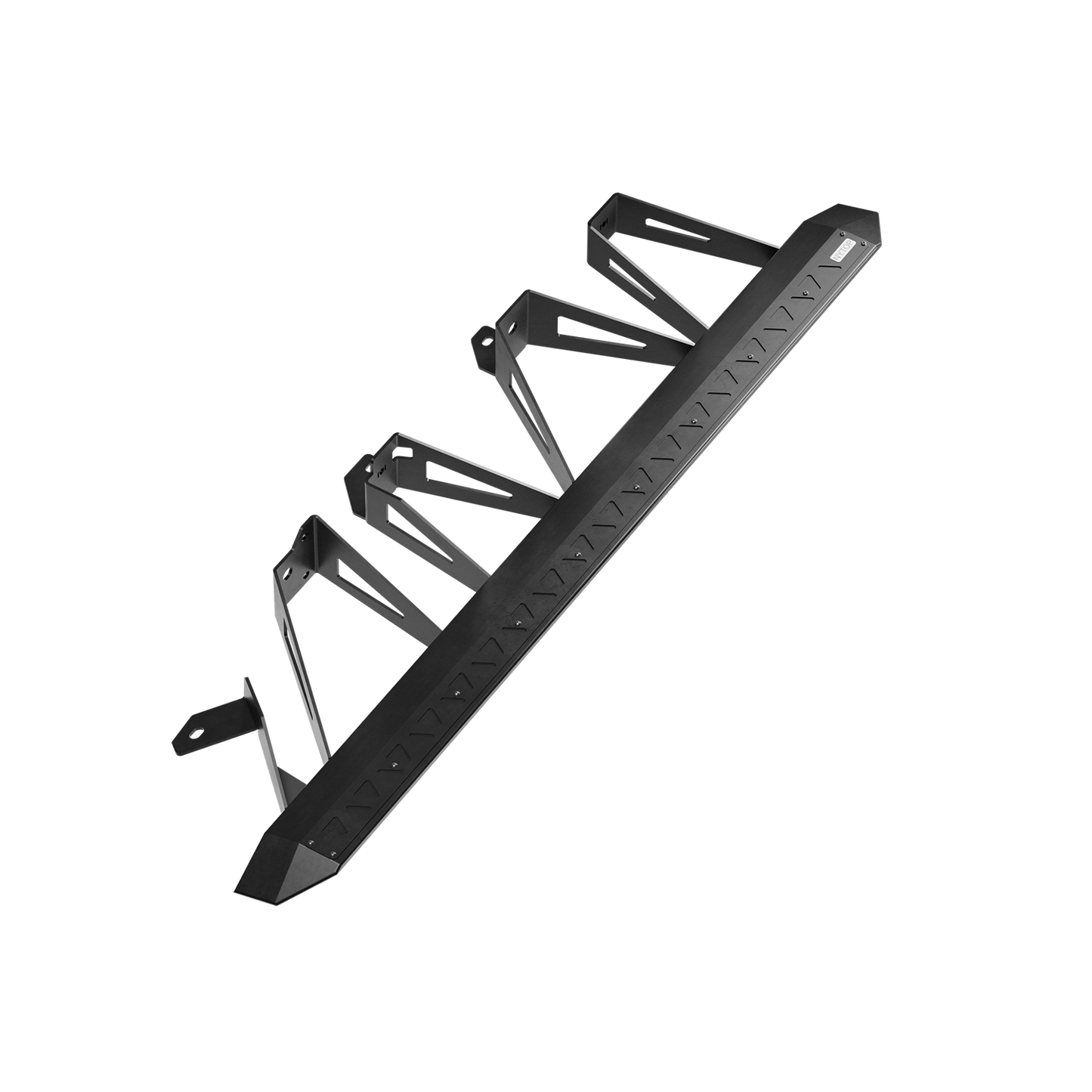

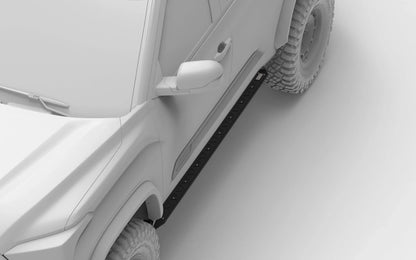

Toyota Sequoia Rock Sliders | '23+ Sequoia

2023–Current Toyota Sequoia Rock Sliders
Fits all trims

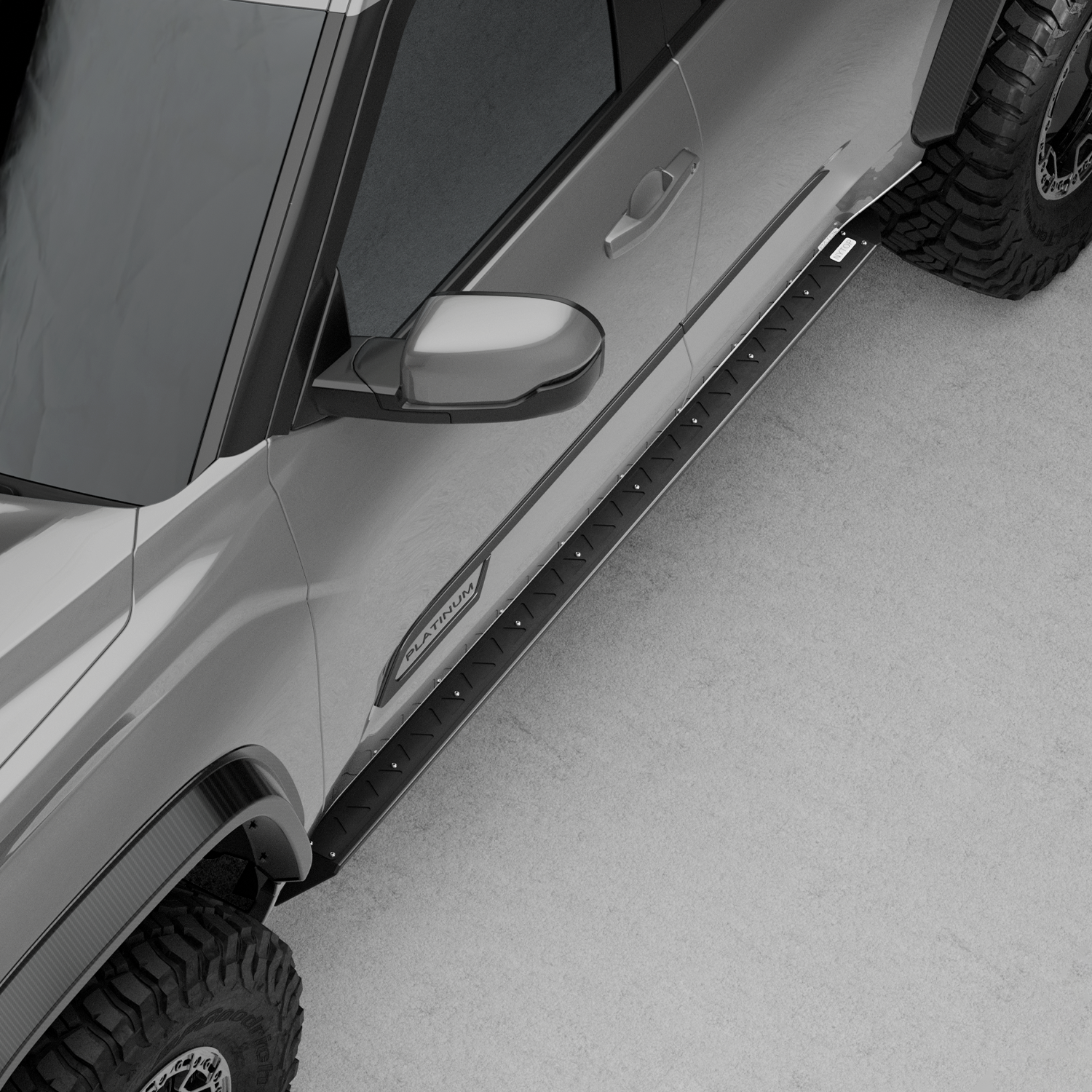

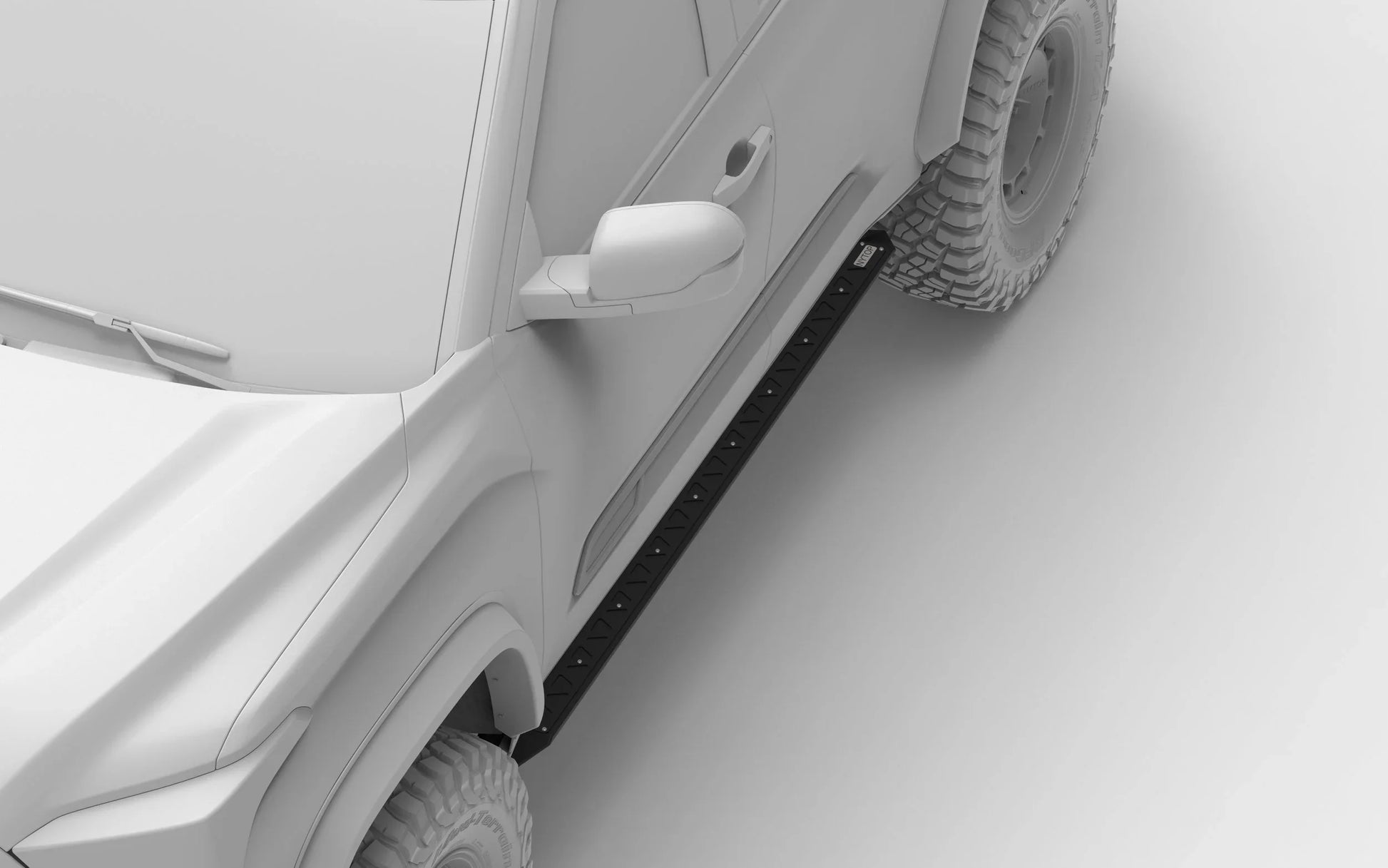

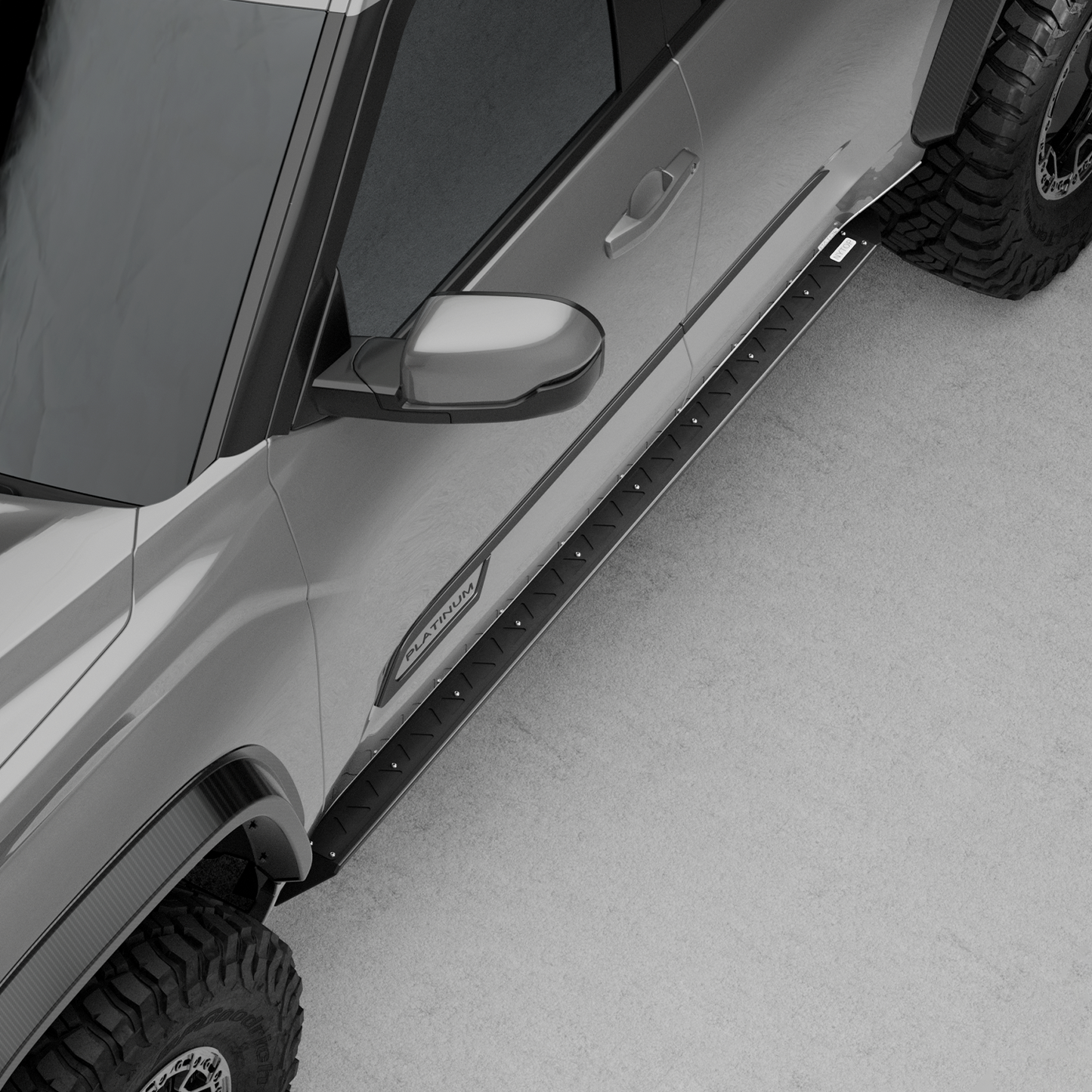

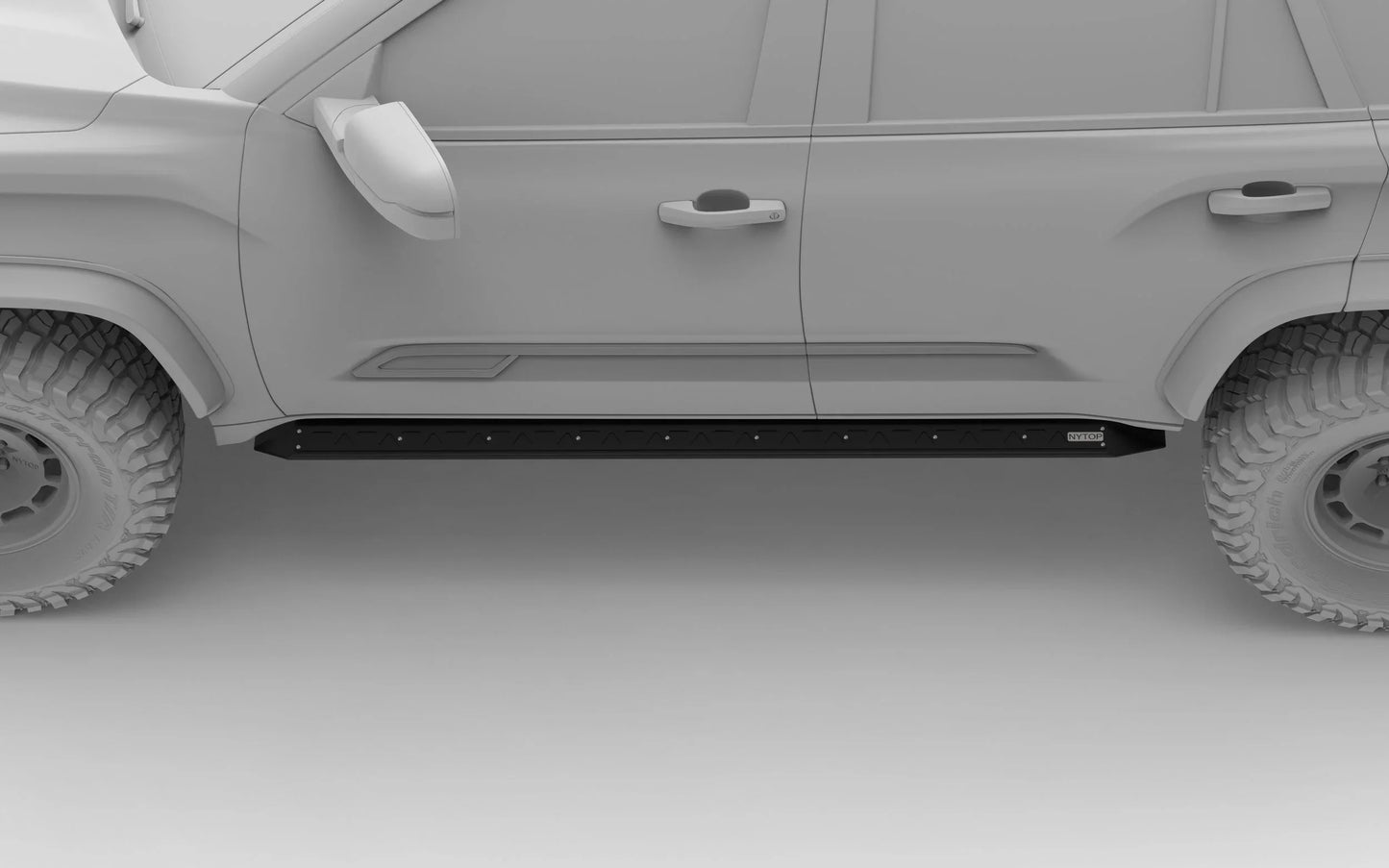

Protect your Sequoia with Not Your Typical Rock Sliders, engineered for serious off-road use while maintaining everyday functionality. These sliders feature a high-clearance, low-profile, non-tubular design that delivers exceptional protection without the bulk of traditional round-tube sliders.

Instead of conventional tubing, this innovative design uses a 28.5° flat, angled bottom surface optimized for sliding smoothly over rocks and trail obstacles. The top surface remains level, creating a usable 4-inch-wide step that makes vehicle entry and exit easy for daily driving. Built to withstand real-world abuse, the sliders are TIG welded from 3/16-inch and 1/4-inch high-strength steel and finished in a durable wrinkle black powder coat.

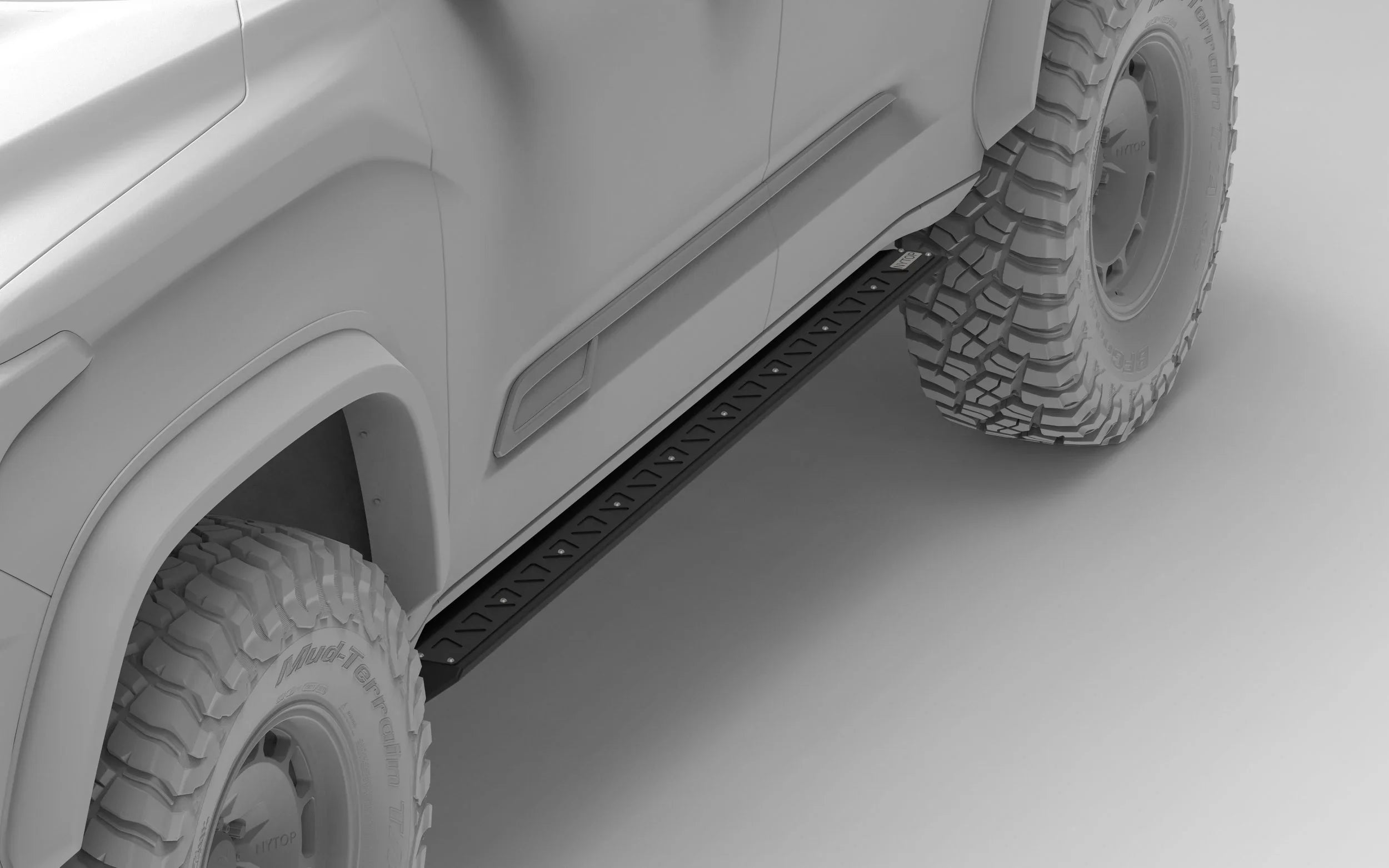

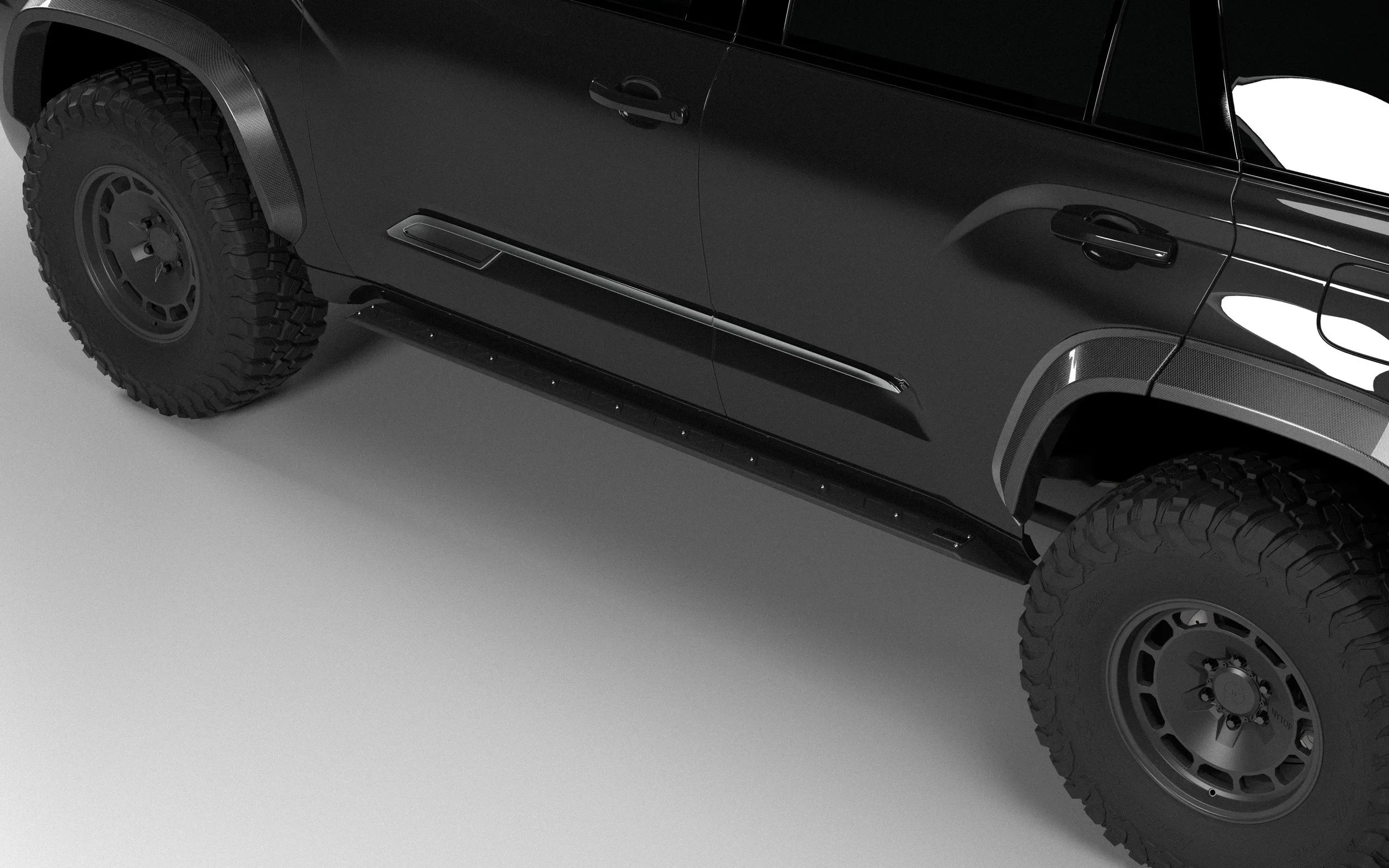

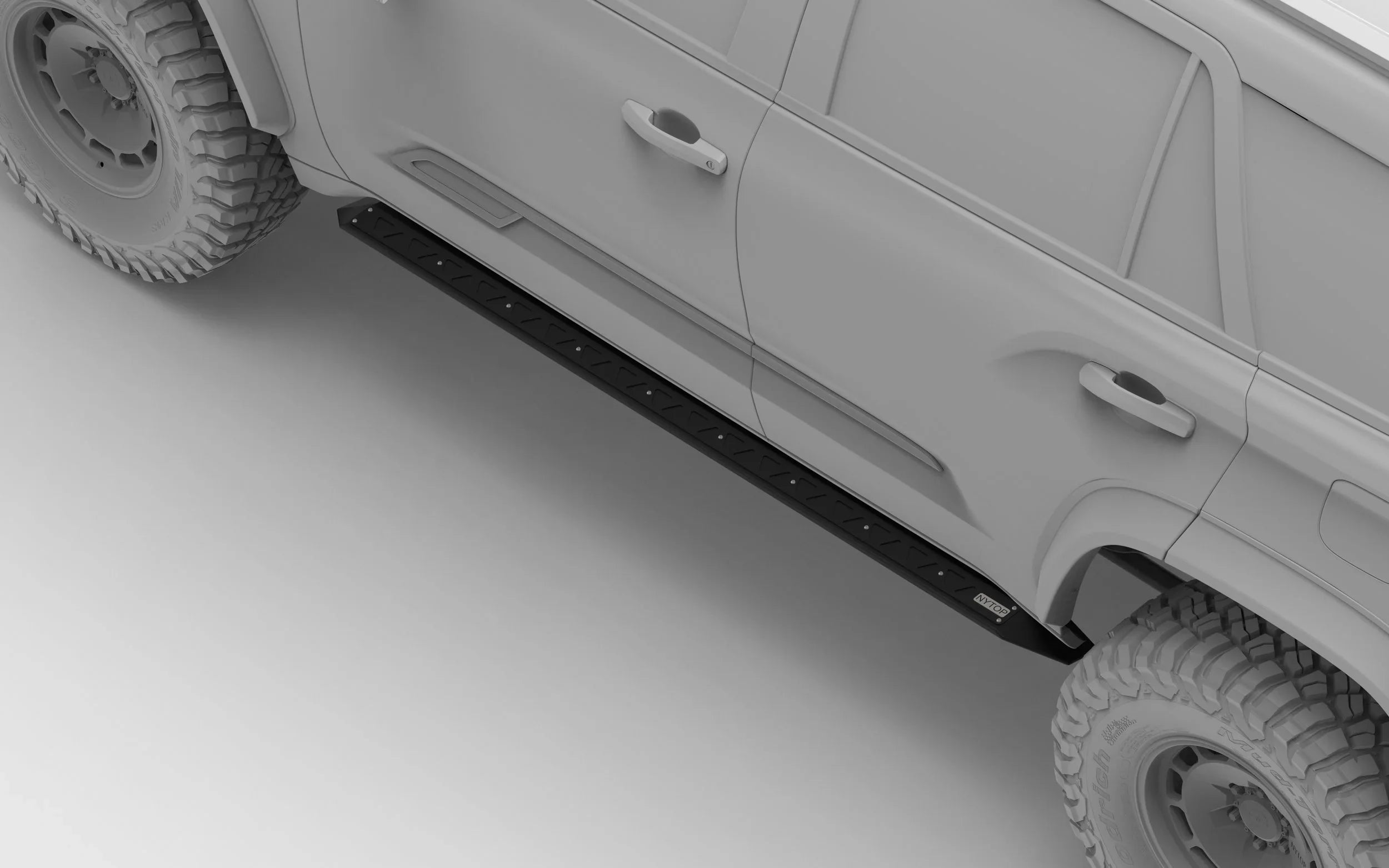

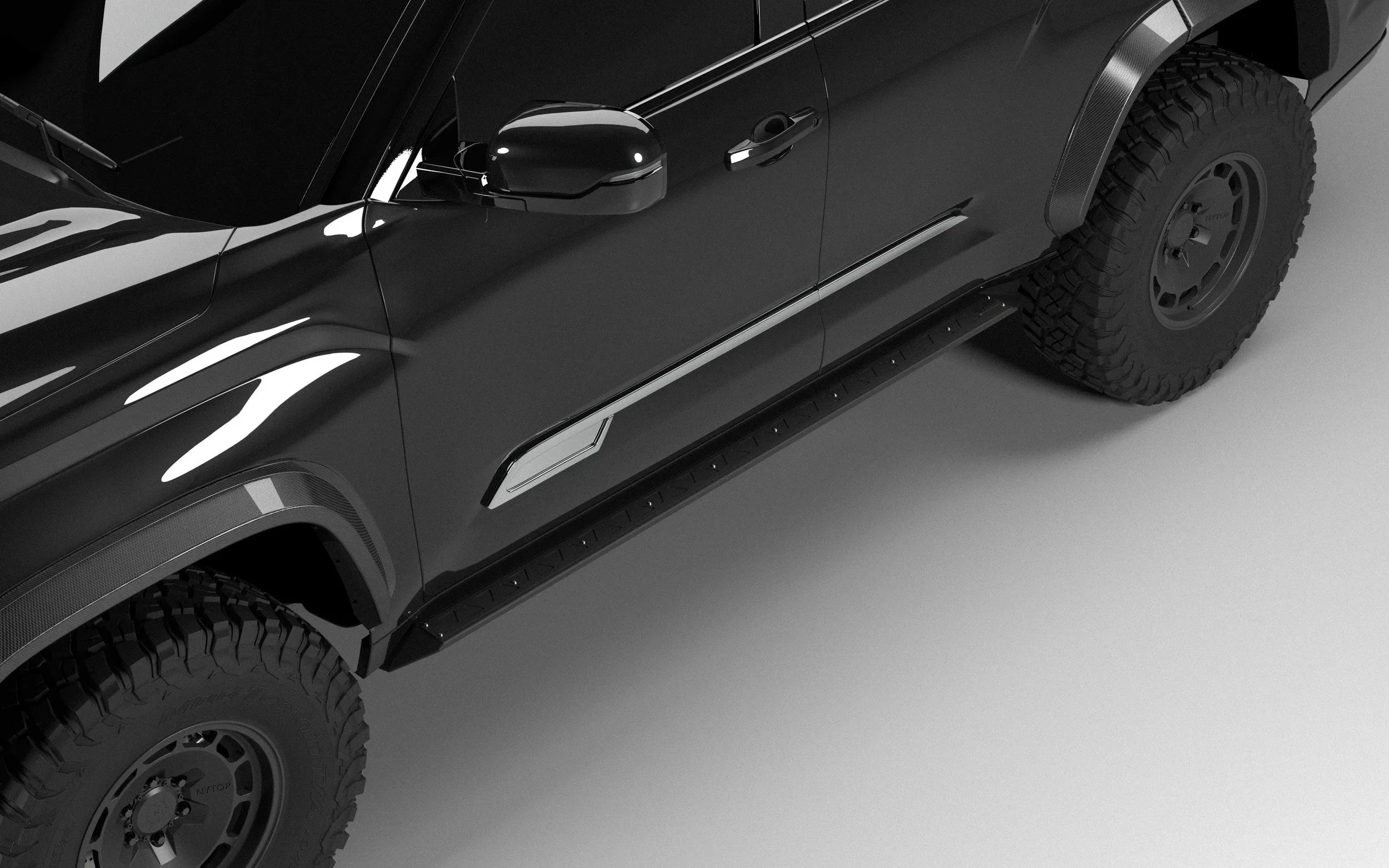

These rock sliders mount directly to the frame, protecting the vehicle’s body while doubling as functional side steps. Installation utilizes patent-pending hardware, eliminating the need for drilling, trimming, or any irreversible modifications to your Sequoia.

Design & Engineering

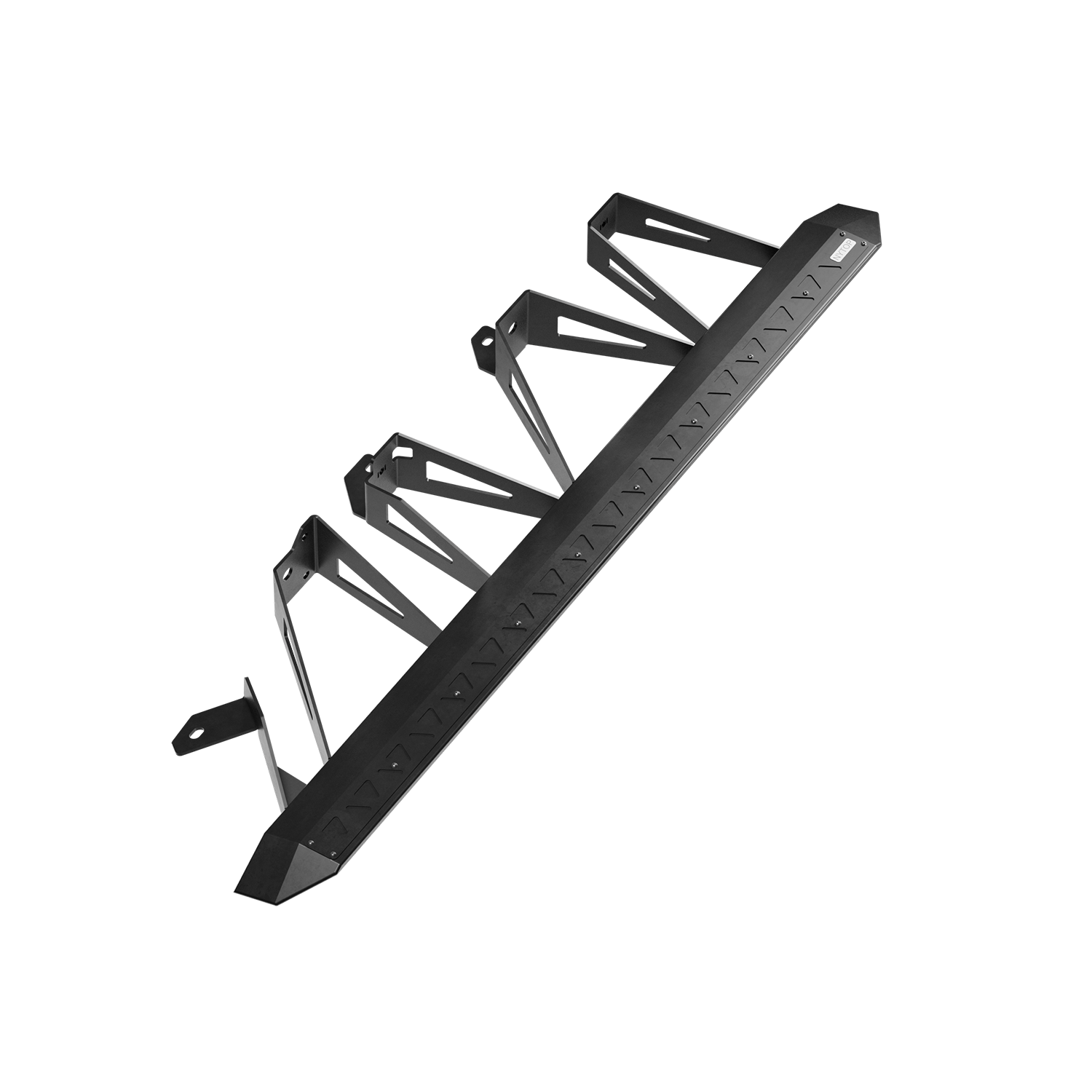

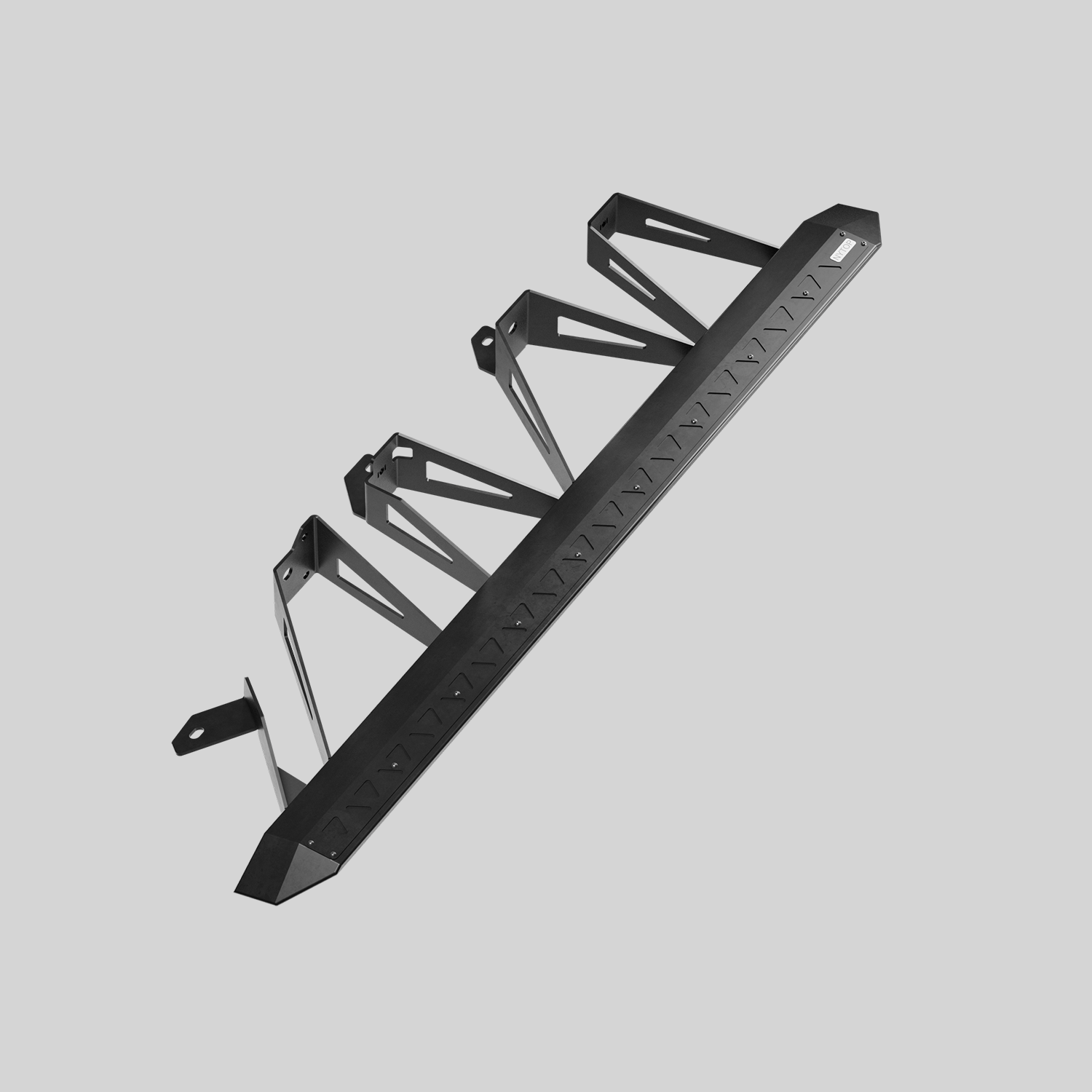

• High-clearance, low-profile, non-tubular construction
• 28.5° angled bottom surface optimized for sliding
• Flat top with 4" wide stepping platform
• TIG welded 3/16" and 1/4" high-strength steel
• Durable wrinkle black powder coat finish
• Frame-mounted for maximum strength and protection

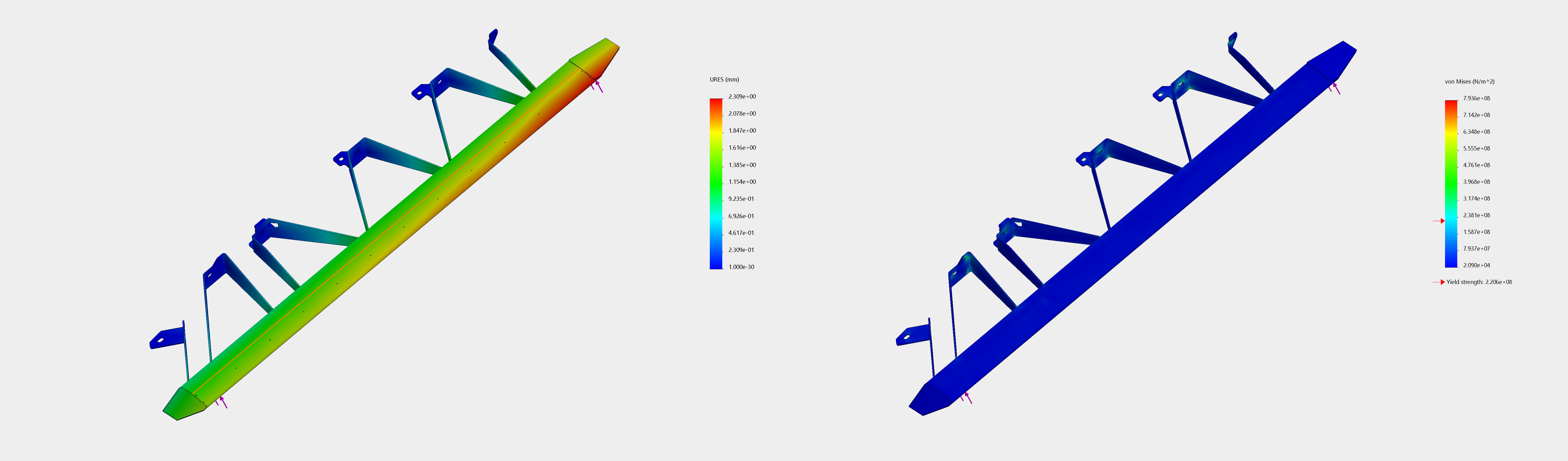

NYTOP Rock Slider Stress Test Results:

• 1.3 metric tons (2,866 lbs): 2mm flex with full spring-back
• 1.7 metric tons (3,748 lbs): 3mm flex with 1mm deformation
• 2.0 metric tons (4,409 lbs): 4mm flex with 1.5mm deformation
• 3.0 metric tons (6,614 lbs): 6mm flex with 2mm deformation

Product Weight (Pair): 170 lbs

Installation & Usage

All required mounting hardware is included. The sliders install using patent-pending mounting hardware to ensure a secure fit without cutting, drilling, or permanent vehicle modification.

Torque Specifications:

• M6 BoxBolts®: 14 ft-lbs (19 Nm)
• M8 BoxBolts®: 19 ft-lbs (25 Nm)
• M12 BoxBolts®: 59 ft-lbs (80 Nm)
• Standard M12 bolts: 75 ft-lbs (101 Nm)
• Patent-pending M14 blind studs & nuts: 105 ft-lbs (142 Nm)

Built for Sequoia owners who demand uncompromising strength, smart design, and trail-proven performance.
