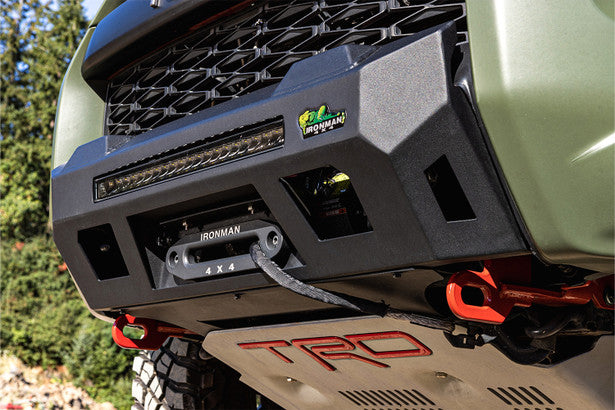

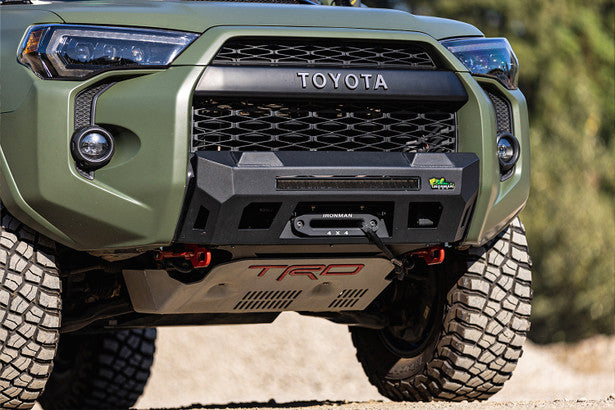

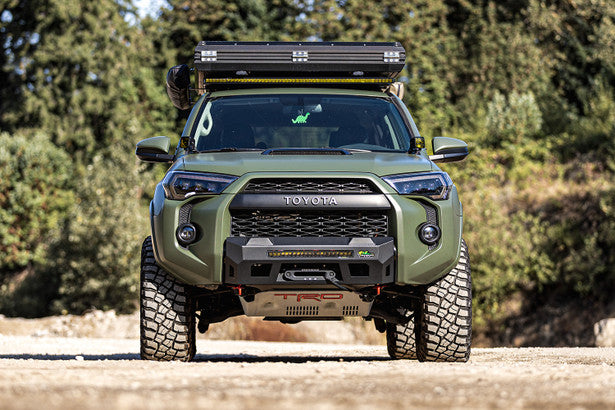

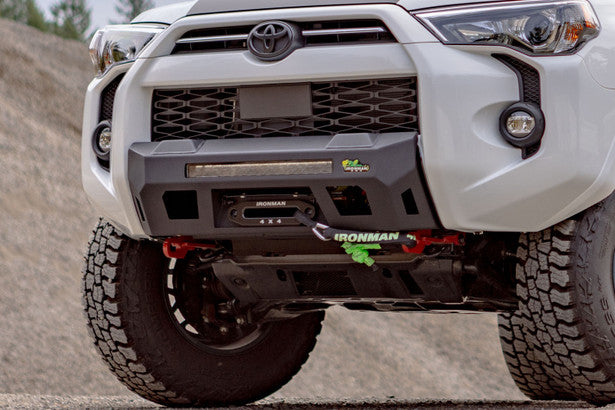

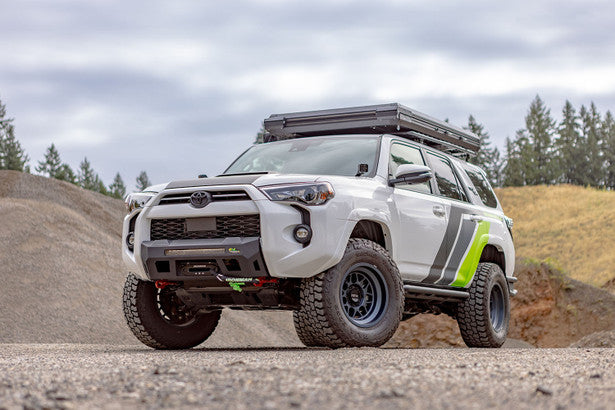

Ironman 4x4 Raid Series Front Winch Bumper | '14 - '24 4Runner

• Two-part front bumper design with a winch cradle mounted directly to the chassis for the strongest and safest possible winching platform for the harshest recovery situations
• Bolt-on, frame-mounted recovery points included with the bumper
• Integrated crumple zones transfer energy away from vehicle occupants
• ADR 69, 73 approved (Full Frontal and Offset Impact Occupant Protection)
• Tested to the highest standards in compliance with Australian Design Regulation, SRS Airbag tested and certified
• Winch compatible with clutch handle access and line visibility
• Standard 10” x 4.5” winch mount footprint
• Only compatible with 9500lbs winch
• Only compatible with hawse fairleads
• Pickled, cold-rolled steel manufacturing for impurity free template during assembly
• Ultra-durable AKZO NOBEL Black Powder Coat and pre-treated steel for rust resistance
• 360° Robotic welding for consistently precise welds resulting in peak quality and unequaled strength
• Increased approach and departure angles provide maximum clearance for obstacles

Bumper weight with recovery points: 117lbs

This Kit Includes:

• Raid Steel Front Bumper
• Bolt-On installation with mounting hardware
• Recovery points
• Front Bumper Light Bar (depending on selection can include):
• Bright Saber LED Single Row Light Bar - 20"

NOTE:

The front bumper will not work with roller fairleads. This will only work with hawse fairleads.

Compatibility with TRD skid plate requires some modification and extra hardware not included.

Only compatible with 9500lbs winch.

Does not include wiring harness.  Recommended wiring harness setup:

• For front bumper light bar: 1x IWHL001

Winch Installation Notice:

We recommend that when installing any Ironman 4x4 Monster Winch to check that the length of bolt thread is sufficient to secure the winch to the mounting cradle.

Some mounting cradles may have a thicker or dual-skinned mounting plate which may render the supplied bolts too short once installed with a spring & flat washer. There must be 1-3 threads protruding beyond the nut when fully tightened. To ensure the winch is secured correctly.

If at least 1 thread is not protruding beyond the nut, it is recommended that a longer bolt is sourced from your local supplier to the following specifications:

• Hex Nut, M10 x 40mm x 1.5p Grade 8.8 or Higher

IRONMAN 4X4 WARRANTY STATEMENT

Ironman 4x4 warranties products to the original purchaser, only when purchased new via authorized Ironman 4x4 resellers and distributors, from date of retail sale and cannot be transferred. Product is warranted against defects in material or workmanship that cause the product to perform below the specified limits set by Ironman 4x4, to the extent that Ironman 4x4 will repair or replace any parts which are found to be defective.

It is at the discretion of Ironman 4x4 if a repair will be made or a replacement issued once the product has been inspected by an Ironman 4x4 representative and deemed to be a genuine warrantable claim. All warranty claims must be submitted via original purchasing store or chain, unless otherwise arranged. Proof of original purchase must be presented upon request.

PLEASE NOTE:

Products may be required to be returned to Ironman 4x4 for assessment or repair. Ironman 4x4 is not responsible for postage or removal costs involved, but assistance may be considered at the discretion of Ironman 4x4 in the event of such a claim being verified.

The warranty does NOT apply where, 1) acts of neglect or misuse are evident, 2) product has been modified, 3) vehicles which are modified or not the recommended vehicle of use, 4) used in racing or competition conditions without the prior consent of Ironman 4x4, 5) used beyond the expectations of the original vehicle manufacturer.

Before installation of any product, please ensure you have received the correct parts for your application. Ordering of the correct parts is the responsibility of the buyer. Return of a product in an unused condition will attract a 10% restock fee, where Ironman 4x4 is not at fault.

Return of used or soiled product, 1) outside warranty period, 2) without fault, will result in refusal of your claim and be returned at buyer’s expense Damage to products through fitment error is not covered under warranty.

You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage contingent on that failure. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality even if the failure does not amount to a major failure.
