Kicker 6 Speaker Plug & Play Install Guide | 2007-2013 Tundra

Tools needed:

• 10mm socket
• Phillips head screw driver
• Panel removal tool
• Zip ties
• Cutters

Step 1

Remove the dash speaker:

• Use a panel tool to remove the grille from the dash.
• Use a 10mm socket to remove the two factory bolts that secure the speaker.
• Disconnect the speaker by depressing the tab.

Step 2

Install the Kicker 2.75 inch dash speaker:

• Connect the crossover to the speaker wires.
• Match up the male and female spade connectors and push together.
• Ensure that the insulators are covering the spade connectors.
• Insert the speaker into the larger speaker mounting plate.
• Place the smaller mounting plate over the speaker, lining up the hols with the lower plate. Be careful not to damage the face of the speaker or dome.
• Connect the provided wire adapter to the factory connector from the dash.
• Place the speaker wires in the dash and lower the speaker assembly into the dash lining up the mounting bracket with the factory mounting locations.
• Secure the speaker assembly with the two factory 10mm bolts. They only need to be finger tight!
• Replace the speaker grille by pushing into place.

Repeat the process for the other dash speaker.

Step 3

Remove front door panel:

• Remove the 2 phillips head screws:
• Using a panel tool, remove the cover behind the door handle.
• The second screw is located in the grab handle of the door.
• Remove the push clip near the hinge side of the door panel.
• Depress the middle of the pin and remove.
• Remove the triangular plastic panel near the mirror.
• Pull straight out.
• Remove the door panel by releasing the clips along the edge of the door.
• Start at the bottom of the door and work your way around the sides.
• Lift the door up and off the window channel.
• Remove the cables:
• Unclip the retainer and swivel the cable around until the ball releases from the mechanism.
• Disconnect wire harnesses.
• Depress tabs and remove the door lock, window switch and door light.

Step 4

Remove the factory speakers

• Disconnect the wire harness from speaker by depressing the tab.
• Use a phillips head screwdriver or 10 mm socket to remove the four 10mm bolts holding in the speaker.

Step 5

Installing the front door 6x9 speakers:

• Install the 6x9 speaker adapter ring using the factory four 10mm bolts.
• Connect the front door harness with inline crossover to the speaker.
• Match the 1/8th and 1/4 inch spade connectors from the harness to the speaker prongs. These should fit snugly and not easily removed.
• Place the speaker wire through the small speaker spacer and place the speaker into the spacer.
• Connect the wiring adapter to the door speaker harness.
• Line up the speaker wire with the channel in the adapter ring so that the wires do not get smashed when installing the speaker.
• Mount the 6x9 to the speaker adapter ring using the provided phillips head screws.

Pro Tip: Take your time and protect the speaker while tightening the screws that hold in the speaker.

Step 6

Re-install the front door panel:

• Make all door lock, window switch, door light and cable connections back to the door panel.
• White cable connection goes on top.
• Green cable connection goes on the bottom.
• Hang the top of the door panel over the window channel.
• Make sure that the holes in the panel are lined up with the door.
• Once it is lined give the door panel a push to reconnect all the retainers.
• Replace the 2 phillips head screws.
• The larger screw goes in the grab handle.
• The small screw goes behind the door handle.
• Replace the cover behind the door handle.
• Replace the triangular plastic trim by the mirror.
• Replace the pin clip.
• Press the pin to the outside of the circular head.
• Put the clip back in the door and depress the pin till it's flush with the circular head.

Step 7

Removing the rear door panel:

• Remove the 2 phillips head screws.
• Using a panel tool, remove the cover behind the door handle.
• The second screw is located in the grab handle.
• Remove the door panel by releasing the clips along the edge of the door.
• Start at the bottom of the door and work your way around the sides.
• Lift the door up and off the window channel.
• Remove the cables.
• Unclip the retainer and swivel the cable around until the ball releases from the mechanism.
• Disconnect wire harnesses.
• Depress tabs and remove the door lock, window switch and door light.

Step 8

Remove the factory 6.5" speaker:

• Disconnect the wire harnesses from the speaker.
• Use a phillips head screwdriver or 10mm socket to remove the three 10mm screws holding in the speaker.

Step 9

Installing the rear door 6.5" speakers:

• Install the 6.5" speaker adapter ring using the factory three 10mm bolts.
• Connect the rear door harness to the speaker.
• Match the 1/8th and 1/4 inch spade connectors from the harness to the speaker prongs. These should fit snugly and not easily removed.
• Place the speaker wire through the small speaker spacer and place the speaker into the spacer.
• Connect the wiring adapter to the door speaker harness.
• Line up the speaker wire with the channel in the adapter ring so that the wires do not get smashed when installing the speaker.
• Mount the 6.5" speaker to the speaker adapter ring using the provided phillips head screws.

Pro Tip: Take your time and protect the speaker while tightening the screws that hold in the speaker.

Step 10

Re-install the rear door panel:

• Make all door lock, window switch, door light and cable connections back to the door panel.
• White cable connection goes on top.
• Green cable connection goes on the bottom.
• Hang the top of the door panel over the window channel.
• Make sure that the holes in the panel are lined up with the door.
• Once it is lined give the door panel a push to reconnect all the retainers.
• Replace the 2 phillips head bolts:
• The larger bolt goes behind the armrest.
• The small bolt goes behind the door handle.

Step 11

Test functionality:

• Power on your radio and enjoy your new Kicker 6 speaker audio upgrade!

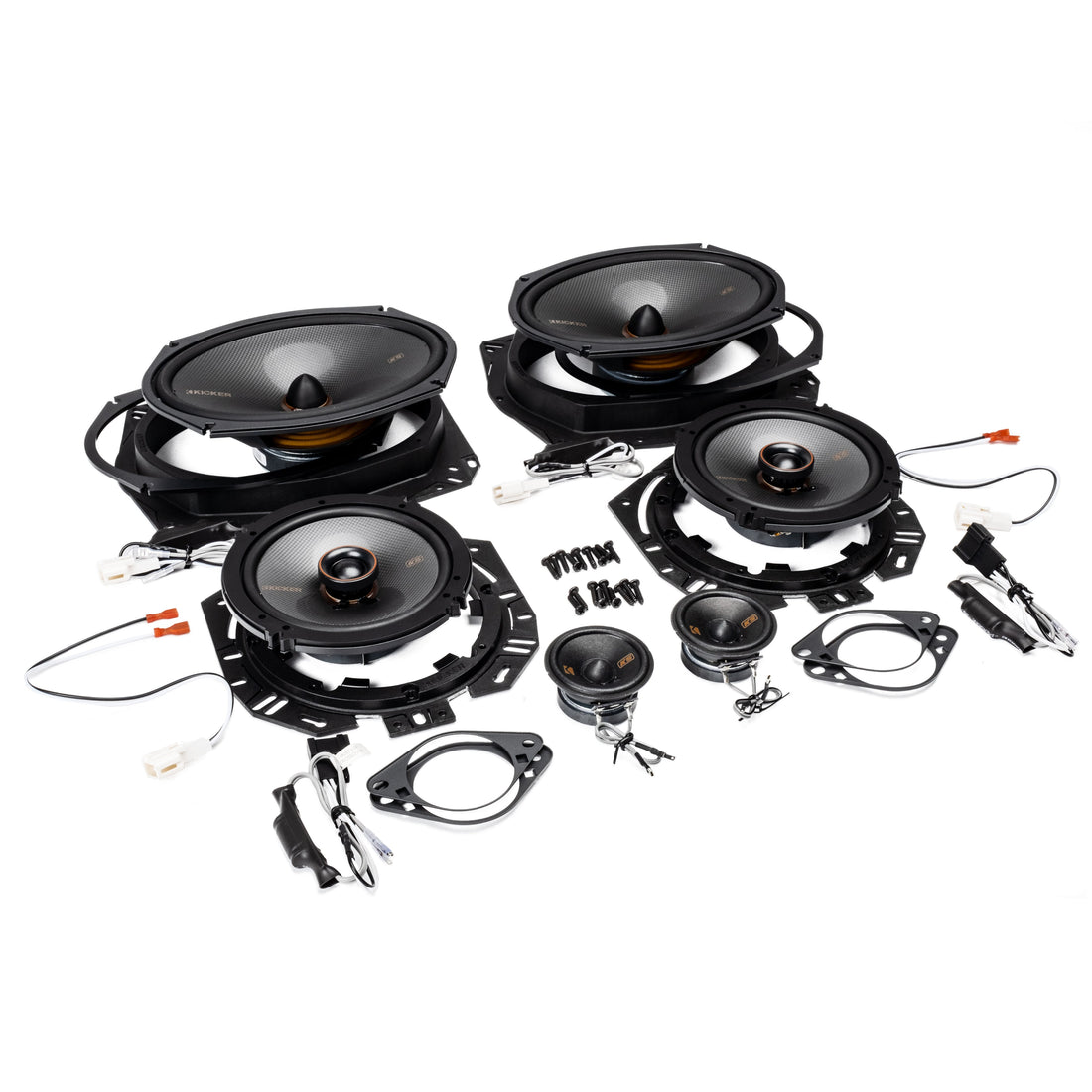

Congratulations on installing your new
Kicker 6 Speaker Plug & Play Bundle!
